Old 12-09-2013, 02:15 PM   #221
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,673
Total Cats: 230
Default

I just saw your last update with DAT turbo (late to the party, i know). But GOD DAMN. I'm very excited to see what you can do with a BP and that turbo.

You are doing gods work.
Fireindc is offline   Reply With Quote
Old 12-09-2013, 06:23 PM   #222
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Thank you! Nice thing is sub-4000rpm drivability is not an issue here, but would be interesting to see what the large turbo will be like on the BP (albeit it is twin-scroll).
bcrx7 is offline   Reply With Quote
Old 12-09-2013, 07:10 PM   #223
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 231
Default

It'll be great up until the point it takes more boost pressure to make the same power as other cars make due to the crappy heads.

Still can't wait, it feels like Faeflora's **** except you actually deliver.
thenuge26 is offline   Reply With Quote
Old 12-09-2013, 08:55 PM   #224
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Well one way to find out! There is a lot of hear and say, but haven't seen guys with big turbos trying to make power... we all know about Fae...

We will know in a few months!
bcrx7 is offline   Reply With Quote
Old 12-16-2013, 12:24 PM   #225
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

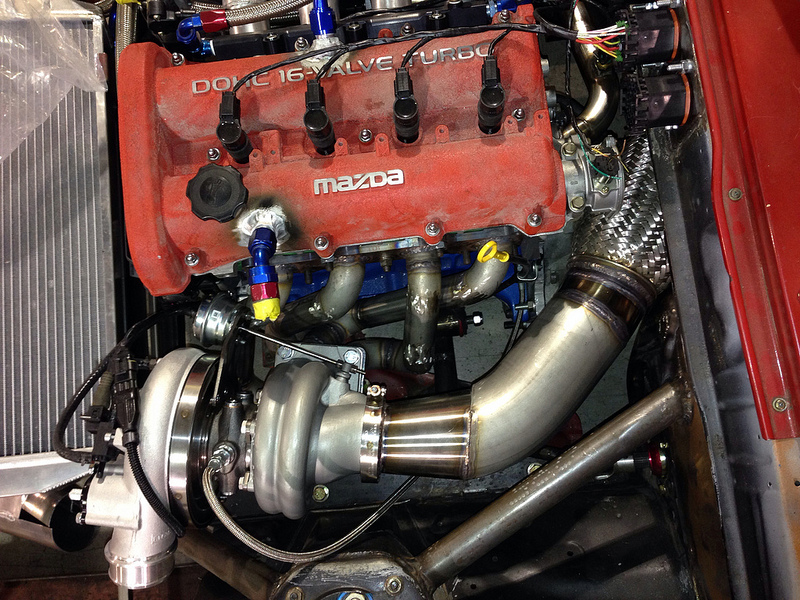

Finished the exhaust! The V-Bands for the intake piping are on the way. UPS shows it should be here tomorrow!

Before anyone says that CAS location will end world and cause a black hole: it is about an inch away and it will be shielded. In addition the CAS is only being used for the CAM sensor, there is a crank sensor as well.



Attached Thumbnails
1984 RX-7 Race Car with BP! (almost a Miata)-11374248284_1517049aef_c.jpg
bcrx7 is offline   Reply With Quote
Old 12-16-2013, 02:28 PM   #226
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,969
Total Cats: 50
Default

That CAS is going to cook pretty quickly with an exhaust pipe next to it. Its already problematic on the miatas where its at the back of the engine.
Seefo is offline   Reply With Quote
Old 12-16-2013, 02:31 PM   #227
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Once it does, it will move to the front... thanks for pointing out what I wrote about (did you even read it?)
bcrx7 is offline   Reply With Quote
Old 12-16-2013, 07:39 PM   #228
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,969
Total Cats: 50
Default

Quote:
Originally Posted by bcrx7 View Post
Once it does, it will move to the front... thanks for pointing out what I wrote about (did you even read it?)
haha, I totally didn't read it. I would almost say it wasn't there, but of course I was at work and in a hurry!

anyways, you get the idea.
Seefo is offline   Reply With Quote
Old 12-16-2013, 07:41 PM   #229
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

I might even put one on the front some how. What does the 01+ cam sensor pickup looks like on the intake cam?
bcrx7 is offline   Reply With Quote
Old 12-16-2013, 07:44 PM   #230
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,804
Total Cats: 2,117
Default

its at the top so it would work
18psi is offline   Reply With Quote
Old 12-16-2013, 07:45 PM   #231
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

It reads off of the cam gear in the front, right? Is there a teeth on the cam gear? I don't think my FM gear have a teeth on them, I can add something to one of the bolts I guess!
bcrx7 is offline   Reply With Quote
Old 12-16-2013, 07:58 PM   #232
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,804
Total Cats: 2,117
Default

99-00 has the sensor in front, 01+ has sensor in the back on top of the intake cam
18psi is offline   Reply With Quote
Old 12-16-2013, 08:01 PM   #233
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

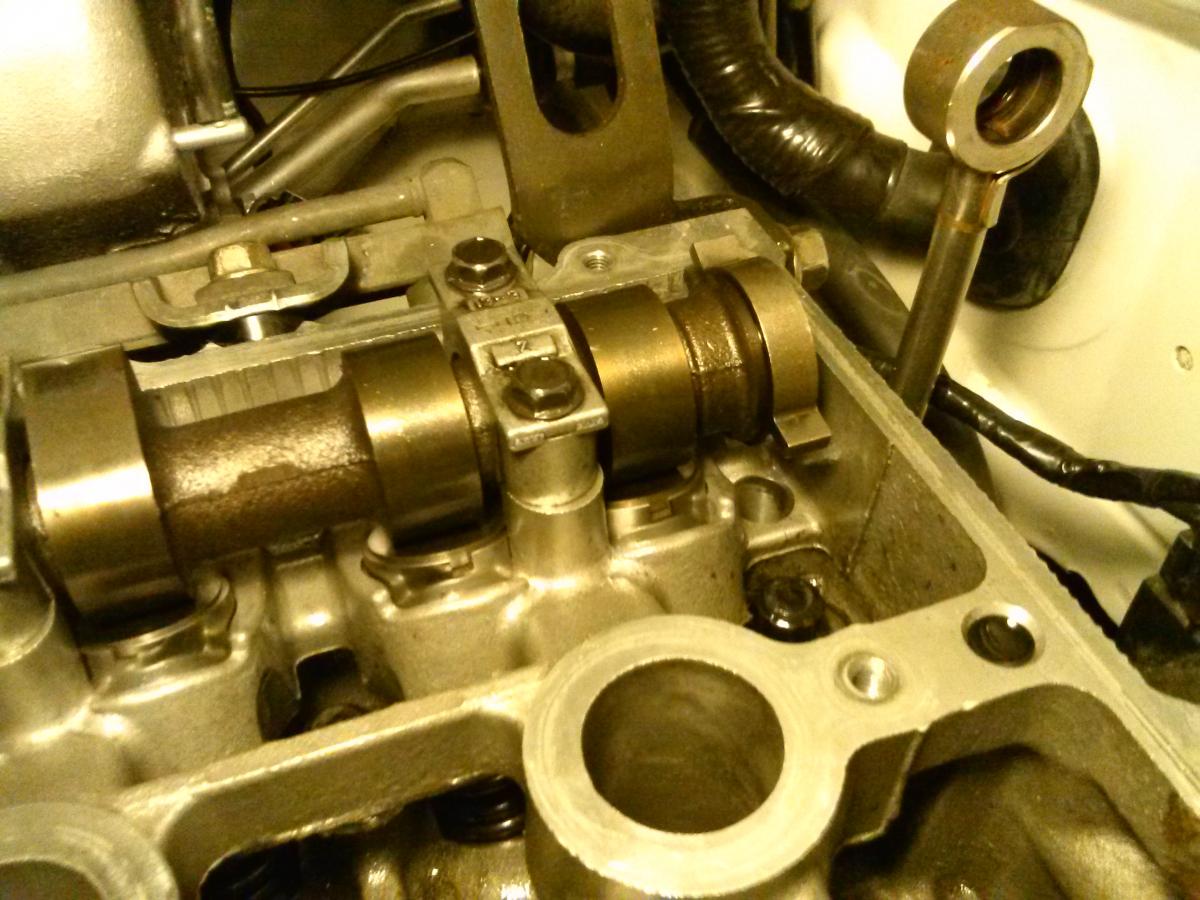

Oh right, I see! You still have your valve cover off? You mind snapping a picture of the cam where the sensor goes in the valve cover, wondering what the cam looks like there.
bcrx7 is offline   Reply With Quote
Old 12-16-2013, 08:04 PM   #234
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,804
Total Cats: 2,117
Default

boom

Attached Thumbnails
1984 RX-7 Race Car with BP! (almost a Miata)-cam00393.jpg
18psi is offline   Reply With Quote
Old 12-16-2013, 08:07 PM   #235
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

I see... I think what I will do is run it as is with a heat shield with gold reflective material. If the syncing goes to crap, I will either add something to the end of the cam or figure something out on the cam gear.
bcrx7 is offline   Reply With Quote
Old 12-16-2013, 08:10 PM   #236
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,804
Total Cats: 2,117
Default

Lets do some betting on how long it lasts there. I say 1 track event lol
18psi is offline   Reply With Quote
Old 12-16-2013, 08:12 PM   #237
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

You'd be surprised how good the gold heat shield works though! Plus with the size of that turbo, I am not sure how much exhaust will actually make it out of the turbo lol
bcrx7 is offline   Reply With Quote
Old 12-17-2013, 01:45 AM   #238
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,969
Total Cats: 50
Default

all joking aside, you probably don't need to test this. Its going to fail and quick. gold reflective tape or not (google indicates 40-60% reflection on common gold tape, plus many of the gold tapes have lower heat rating for the adhesive...).

I don't see why you are running that exhaust pipe up there. In the first picture, it looks like there is plenty of space to run it down (ie beside the engine instead of behind).

Otherwise (not a bad idea anyway), you should just get a 99 head . Engine re-rebuild! lol
Seefo is offline   Reply With Quote
Old 12-17-2013, 08:47 AM   #239
Moderator
iTrader: (10)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 14,086
Total Cats: 1,165
Default

My dipstick handle melted. Twice. With shielding and reflective tape. My engine is apart right now to get all of the teeny plastic bits out of my oil pump and passages. I'm sure for street cars it is no big deal but when everything is glowing red for 30+ minutes at a time everything gets heat soaked. I wouldn't wish it on you. I'm planning on a plug or cap for the tube when on the track and keep the dipstick in the support vehicle for checking oil level in the paddock. It isn't something I need to check while driving.
sixshooter is offline   Reply With Quote
Old 12-17-2013, 09:42 AM   #240
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

As far as the space, that is 4" exhaust and even though it looks like there is room, that tunnel gets narrow awefully quick and the trans mount is right there. The RX-7 has the exhaust on the opposite side of the chassis.

The head is a 99 head, just not the valve cover and the can gears. I will make something for the front can gear them.

And I will get rid of the plastic dipstick! Good idea! Thanks guys!
bcrx7 is offline   Reply With Quote
