Default The 300whp Super clean daily driver

Hey guys, I am about to start my build and I want to thank everyone for the help so far. I am fairly new and have just been reading all the useful information I can on here seeing the limits of what I can do and trying to learn from everyone else's builds. Starting off, I have a 95 Miata I bought already turboed from the previous owner. For anyone who hasn't read my introduction post (which I would assume would be most of you) I picked it up for $4200 with pretty much everything I need to run. The only down side being it burned oil. lots of oil, and had a broken 2nd gear syncro on a stock 5 speed. I am not going to list everything that was done to the car but I will list why I picked this up instead of starting from scratch. It came with MS2, 650cc injectors, BC coilovers, Artech 3" exhaust with ewg, and a lot more.

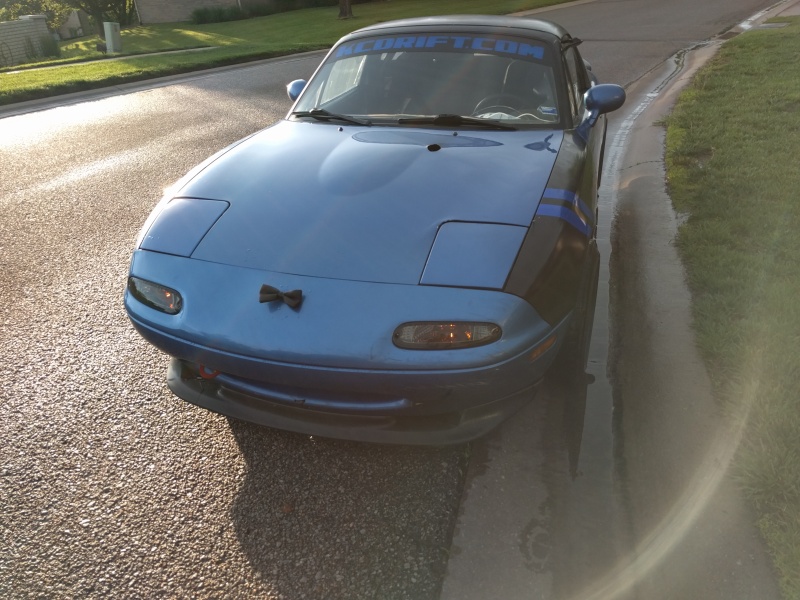

The 300whp Super clean daily driver-n2jt07.jpg

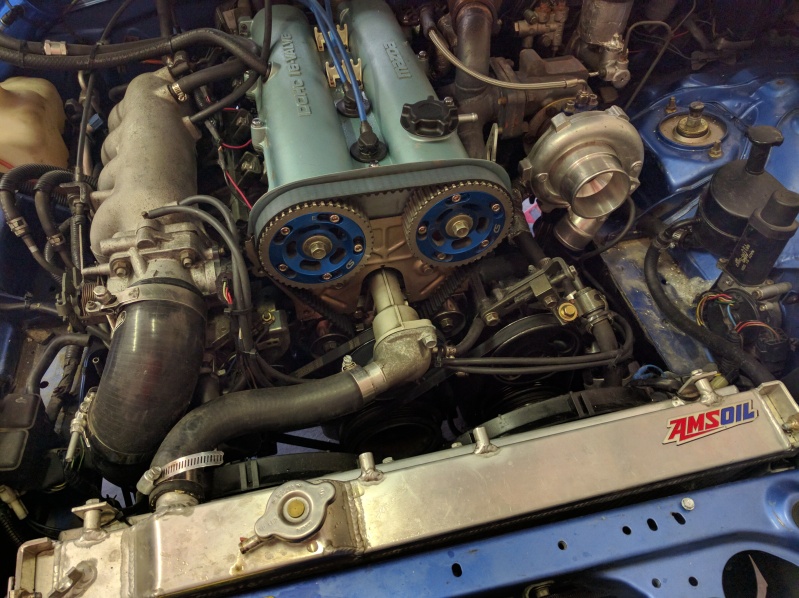

The 300whp Super clean daily driver-30a6r92.jpg

What started as me wanting to fix the oil burning issue quickly turned into a slippery slope as most of you have also experienced. I originally was just going to replace piston rings, but then once I went through all the trouble of pulling the motor out I was going to do a "rods only build." However, then after asking you guys about my OEM pistons I decided on going for Supertech 8.6 83.5mm for the extra insurance. Well one thing led to another and now I have this pile of goodies, a 6 speed that should be getting here tomorrow, and I'll get my engine block back from the shop next week

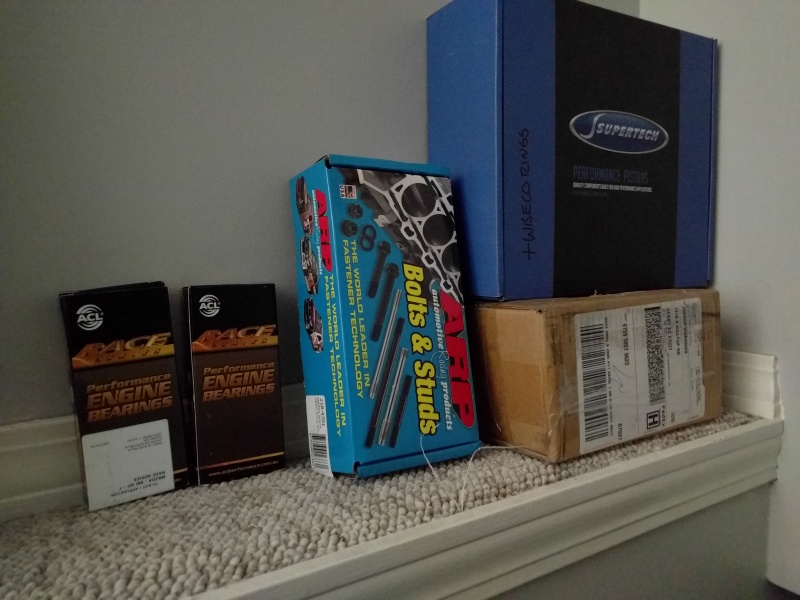

The 300whp Super clean daily driver-msp3ic.jpg

Goals:
I want this to be a daily driver first. This means I'm keeping ac and ps and I want the inside to be as clean as possible. I want to make 300whp reliably and not have to worry about anything blowing up. The plans for this car are to drive it every day to work and school then take it to the autocross once a month. I'm not trying to do anything that's never been done before, I am just trying to build a car that'g going to be reliable and fun.

Progress.
I ordered the coolant reroute hardware from TheBandit here on the forum. Once I get everything in the mail and my block back from the shop next week I plan to start putting everything back together. The only thing that's still up in the air at this point is my oil pump. I pulled the cover off the back today and the gears look great. But I've seen people say if you are making 250+ to get billet gears, also I've seen people say they've done 300 reliably on just rods. Does anyone have a opinion on this? Also, billet gears are $200 from boundary, is this the go-to option? I saw you can also get the whole pump with gears from fab9 for $300? I have already invested a lot of money in this motor and I would hate to see it blow up due to oil pump failure, especially since I have a stock damper. At the same time, my money supply is dwindling. Thanks for everything so far everyone!
Jmanwork is offline   Reply With Quote
Old 07-10-2016, 03:08 AM   #2
Member

astral's Avatar

Join Date: Jul 2016
Location: Bay Area
Posts: 263
Total Cats: 15
Default

I can't quite comment on the questions as I am still learning myself. Just wanted to let you know the car looks great. Good luck on the build!
astral is offline   Reply With Quote
Old 07-10-2016, 06:07 PM   #3
Junior Member
Thread Starter

Join Date: Jun 2016
Location: Wichita, Kansas
Posts: 75
Total Cats: 3
Default

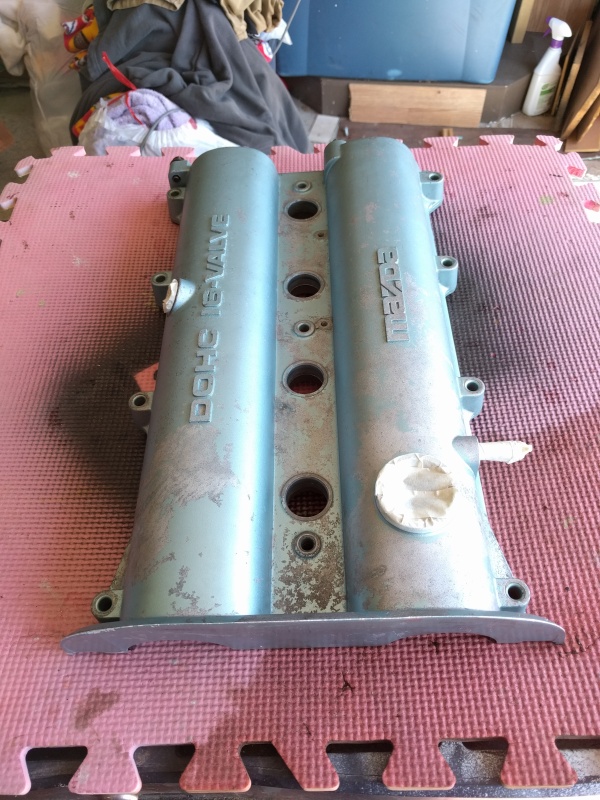

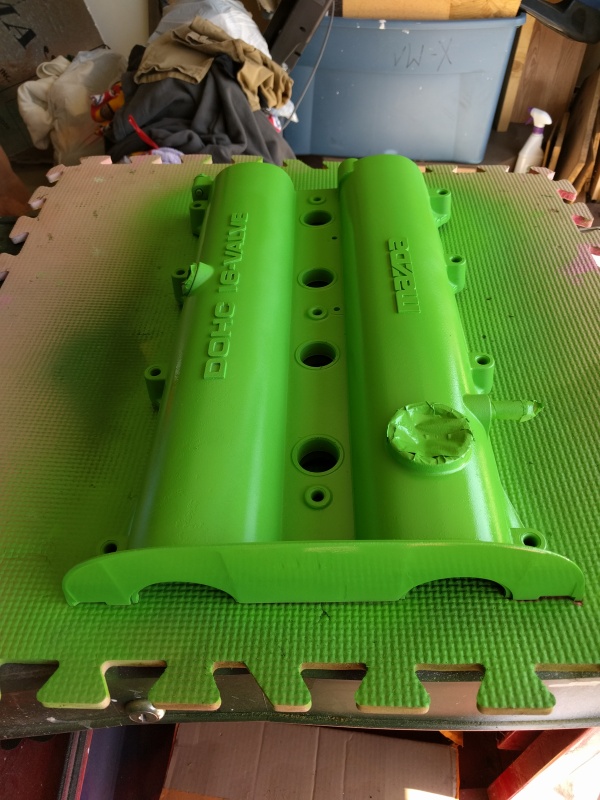

Thanks Astral! Also today I painted the valve cover. A small thing I know, but it definitely needed it.
The 300whp Super clean daily driver-xbwupj.jpg

The 300whp Super clean daily driver-263iy5i.jpg

Shrek green, I know. Next is the IM
Jmanwork is offline   Reply With Quote
Old 07-10-2016, 09:32 PM   #4
Junior Member

mmmjesse's Avatar

Join Date: Aug 2007
Posts: 341
Total Cats: 32
Default

what turbo are you running?

this actually sounds like what i am planning. 300whp daily with all the things like AC and PS still on it.
mmmjesse is offline   Reply With Quote
Old 07-11-2016, 01:42 AM   #5
Junior Member
Thread Starter

Join Date: Jun 2016
Location: Wichita, Kansas
Posts: 75
Total Cats: 3
Default Mmmjesse

Mmmjesse right now im still unsure about the turbo. The car came turboed with a China turbo and I'm unsure which brand. It's very similar in spec to a gt2554. Obviously I'm not going to be making 300whp from that so I'm selling it (no shaft play so I think I can sell it.) I'm thinking about a gt2860 right now.
Jmanwork is offline   Reply With Quote
Old 07-11-2016, 01:46 AM   #6
Junior Member
Thread Starter

Join Date: Jun 2016
Location: Wichita, Kansas
Posts: 75
Total Cats: 3
Default

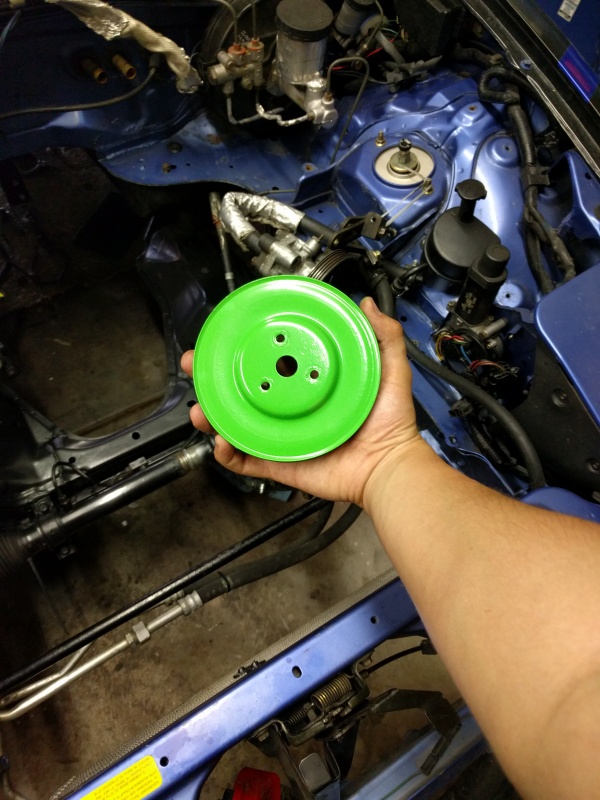

Painted the intake manifold and water pump pulley Shrek green as well

The 300whp Super clean daily driver-zodljc.jpg

The 300whp Super clean daily driver-2ccv1ax.jpg

You can kind of see the contrast of the green in my blue engine bay. I can't wait to put the engine back in this thing it's going to look so mint.
Jmanwork is offline   Reply With Quote
Old 07-11-2016, 09:52 AM   #7
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,215
Total Cats: 750
Default

Quote:
Originally Posted by Jmanwork View Post
Mmmjesse right now im still unsure about the turbo. The car came turboed with a China turbo and I'm unsure which brand. It's very similar in spec to a gt2554. Obviously I'm not going to be making 300whp from that so I'm selling it (no shaft play so I think I can sell it.) I'm thinking about a gt2860 right now.
A GT2871 is a much better choice then a GT2860 for what it is worth. You will give up no spool, but breath better on the top end.
shuiend is offline   Reply With Quote
Old 07-11-2016, 10:48 AM   #8
Junior Member

mmmjesse's Avatar

Join Date: Aug 2007
Posts: 341
Total Cats: 32
Default

i am actually selling my gt2876r in favor of a 2871. i will never be able to fully use the 2876 unfortunately. Good to know that there is no spool difference between the 60 and 71.
mmmjesse is offline   Reply With Quote
Old 07-11-2016, 01:12 PM   #9
Junior Member
Thread Starter

Join Date: Jun 2016
Location: Wichita, Kansas
Posts: 75
Total Cats: 3
Default

Thanks guys I'm going to do some more research on the Gt2871 now
Jmanwork is offline   Reply With Quote
Old 07-11-2016, 01:29 PM   #10
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,407
Total Cats: 836
Default

Having driven both turbos on 1.8L motors, I can say that you'll absolutely see a spool and response difference between a 2860RS and a 2871R.
Savington is offline   Reply With Quote
Old 07-11-2016, 02:16 PM   #11
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,215
Total Cats: 750
Default

Quote:
Originally Posted by Savington View Post
Having driven both turbos on 1.8L motors, I can say that you'll absolutely see a spool and response difference between a 2860RS and a 2871R.
How much of a difference was it? Way back when I was picking out my turbo for my Absurdflow setup the spool difference was marginal with all the dyno's that I compared. Now really he should be going with an EFR instead if he really wants to be a man.
shuiend is offline   Reply With Quote
Old 07-11-2016, 06:49 PM   #12
Newb

Join Date: Jun 2016
Location: Los Angeles, CA
Posts: 14
Total Cats: 0
Default

Garret < BorgWarner EFR

All that daily driven torque sex...
timemachine89 is offline   Reply With Quote
Old 07-11-2016, 06:55 PM   #13
Junior Member
Thread Starter

Join Date: Jun 2016
Location: Wichita, Kansas
Posts: 75
Total Cats: 3
Default

I want a BorgWarner EFR... I also want to eat tomorrow xD

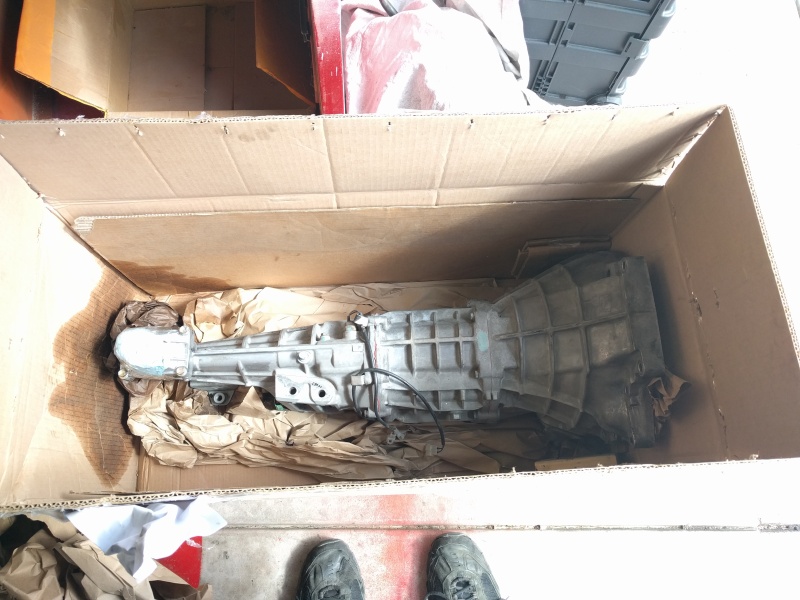

Just got my 6 speed from UPS!

The 300whp Super clean daily driver-21owthv.jpg

Also painted my subframe with truck bed liner

The 300whp Super clean daily driver-10di83r.jpg
Jmanwork is offline   Reply With Quote
Old 07-14-2016, 09:46 PM   #14
Junior Member
Thread Starter

Join Date: Jun 2016
Location: Wichita, Kansas
Posts: 75
Total Cats: 3
Default

Update: I went ahead and bought billet oil pump gears. I've already spent enough money in my engine that it seems dumb to skimp on the component that keeps everything lubricated. Plus since I have the engine apart right now it's obviously the best time to do it. I don't want to have to remove the oil pan later down the line.
Jmanwork is offline   Reply With Quote
Old 07-14-2016, 09:48 PM   #15
Ich verstehe nur Bahnhof
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,773
Total Cats: 221
Default

You fools are lucky with your power steering and creature comforts.
psyber_0ptix is offline   Reply With Quote
Old 07-14-2016, 09:53 PM   #16
Junior Member
Thread Starter

Join Date: Jun 2016
Location: Wichita, Kansas
Posts: 75
Total Cats: 3
Default

Quote:
Originally Posted by psyber_0ptix View Post
You fools are lucky with your power steering and creature comforts.
Not about that sweaty butt crack life... for now
Jmanwork is offline   Reply With Quote
Old 07-14-2016, 10:00 PM   #17
Ich verstehe nur Bahnhof
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,773
Total Cats: 221
Default

Some of us unprivileged plebs started from the bottom. With a 1.6 at that!

What I'd give to have A/C in this weather. I'm just to lazy to get the system vacuumed and charged.

More car pictures!
psyber_0ptix is offline   Reply With Quote
Old 07-14-2016, 10:25 PM   #18
SadFab CEO
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,327
Total Cats: 402
Default

If you are going to steal my color, you at least need to call it by its proper name. That, sir, is Kawi green.
hi_im_sean is offline   Reply With Quote
Old 07-14-2016, 10:40 PM   #19
Junior Member
Thread Starter

Join Date: Jun 2016
Location: Wichita, Kansas
Posts: 75
Total Cats: 3
Default

Quote:
Originally Posted by hi_im_sean View Post
If you are going to steal my color, you at least need to call it by its proper name. That, sir, is Kawi green.
Holy crap I did steal your green lol. Your build looks sick though I bought this paint from O'Reilly it's the engine paint "Grabber green" high class I know. I spent a whole $5.50 (it was on sale.)
Jmanwork is offline   Reply With Quote
Old 07-14-2016, 11:29 PM   #20
SadFab CEO
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,327
Total Cats: 402
Default

Quote:
Originally Posted by Jmanwork View Post
I bought this paint from O'Reilly it's the engine paint "Grabber green" high class I know. I spent a whole $5.50 (it was on sale.)
I bought the exact same paint from the exact same retailer AFAIK and understand from spending years on kawasaki forums, "grabber" is the term originally used by kawi since forever (70s?).

good luck with build, I really wish i had AC.
hi_im_sean is offline   Reply With Quote
