Old 07-17-2016, 07:01 PM   #21
Junior Member
Thread Starter

Join Date: Jun 2016
Location: Wichita, Kansas
Posts: 67
Total Cats: 3
Default

@hi_im_sean that's pretty awesome! Lol thanks, it looks like I might need some luck
Jmanwork is online now   Reply With Quote
Old 07-17-2016, 07:09 PM   #22
Junior Member
Thread Starter

Join Date: Jun 2016
Location: Wichita, Kansas
Posts: 67
Total Cats: 3
Default

Update: I have my block back from the machine shop and have started assembling my bottom end (sorry no pictures.) However, I've run into a problem. The pin hole on my connecting rod is too small. It's about .05mm too small. Great, another setback. It's looking like I might have to take my rods back to the shop to have the small end honed to spec. Has anyone else had this problem? Should I just try to return my rods?
Jmanwork is online now   Reply With Quote
Old 07-17-2016, 07:13 PM   #23
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,150
Total Cats: 1,989
Default

that's china qc for ya
most are ok, some are not
18psi is offline   Reply With Quote
Old 07-17-2016, 07:15 PM   #24
Elite Member
iTrader: (5)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 1,653
Total Cats: 111
Default

I had to hone mine. I was lazy and cheap and just did it myself. 800 grit sand paper around my finger. It took hardly anything. 1000 miles so far on 20 lbs boost. With the wrist pins floating in the pistons, I don't think it was even necessary. What do the rest of you say?
ryansmoneypit is offline   Reply With Quote
Old 07-17-2016, 07:25 PM   #25
Junior Member
Thread Starter

Join Date: Jun 2016
Location: Wichita, Kansas
Posts: 67
Total Cats: 3
Default

Quote:
Originally Posted by 18psi View Post
that's china qc for ya
most are ok, some are not
That's what I figured. I guess that's what happens with these China parts.

Quote:
Originally Posted by ryansmoneypit View Post
I had to hone mine. I was lazy and cheap and just did it myself. 800 grit sand paper around my finger. It took hardly anything. 1000 miles so far on 20 lbs boost. With the wrist pins floating in the pistons, I don't think it was even necessary. What do the rest of you say?
That sounds sketchy I'm not sure I would be comfortable doing it with my finger. But if it worked for you maybe I could rig up a way to do it? A drill maybe? I do wanna know what everyone else thinks? According to this manual I'm reading it is necessary that the pistons float freely.
Jmanwork is online now   Reply With Quote
Old 07-17-2016, 07:27 PM   #26
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,150
Total Cats: 1,989
Default

Don't be scared, before long you will want more than 1 finger
18psi is offline   Reply With Quote
Old 07-17-2016, 07:28 PM   #27
Elite Member
iTrader: (5)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 1,653
Total Cats: 111
Default

A drill would scare me. Just take them into the shop if your worried. Or use two fingers. No, threeee.

Your talking about half a millimeter. That's .009 on the radius. Nothing.
ryansmoneypit is offline   Reply With Quote
Old 07-17-2016, 07:33 PM   #28
Junior Member
Thread Starter

Join Date: Jun 2016
Location: Wichita, Kansas
Posts: 67
Total Cats: 3
Default

Okay since you guys seem to think this isn't a bad idea I'll just use my fingers and carefully check my clearances. I don't wanna wait any longer for the machine shop or spend more money.. lol
Jmanwork is online now   Reply With Quote
Old 07-17-2016, 07:39 PM   #29
Elite Member
iTrader: (5)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 1,653
Total Cats: 111
Default

I used wd 40 on the sand paper. Clean and check a bunch

Full disclaimer : I am not a pro engine builder. I'm broke, lazy, and like to tinker with stuff to the point of catastrophic failure. It has worked fine thus far.
ryansmoneypit is offline   Reply With Quote
Old 07-17-2016, 08:01 PM   #30
Junior Member
Thread Starter

Join Date: Jun 2016
Location: Wichita, Kansas
Posts: 67
Total Cats: 3
Default

What did you use to check clearances Ryan?
Jmanwork is online now   Reply With Quote
Old 07-17-2016, 08:43 PM   #31
Ich verstehe nur Bahnhof
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,753
Total Cats: 217
Default

The wrist pin
psyber_0ptix is offline   Reply With Quote
Old 07-17-2016, 09:54 PM   #32
Elite Member
iTrader: (5)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 1,653
Total Cats: 111
Default

Yep
ryansmoneypit is offline   Reply With Quote
Old 07-17-2016, 10:26 PM   #33
Junior Member

mmmjesse's Avatar

Join Date: Aug 2007
Posts: 335
Total Cats: 31
Default

so i must have missed it, what turbo are you going with?
mmmjesse is offline   Reply With Quote
Old 07-18-2016, 01:35 AM   #34
Junior Member
Thread Starter

Join Date: Jun 2016
Location: Wichita, Kansas
Posts: 67
Total Cats: 3
Default

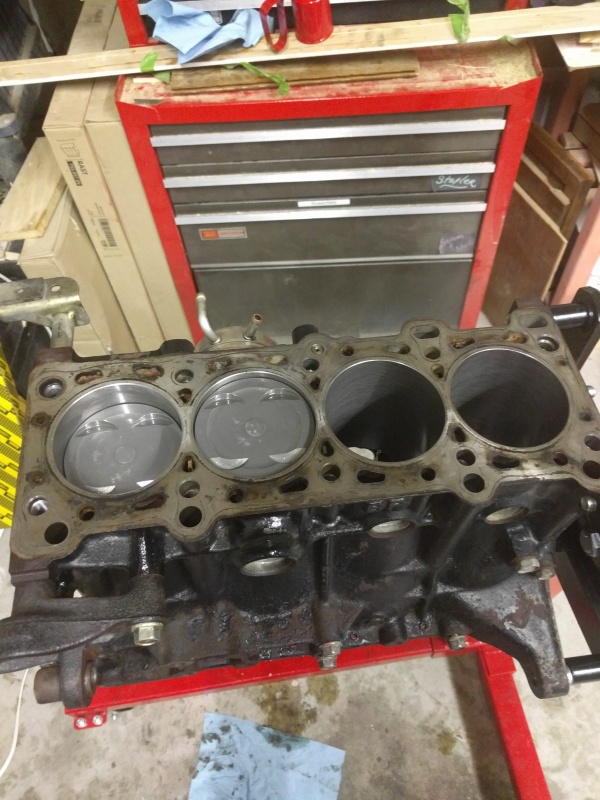

Update: Thanks for the help guys. After hours of carefully fitting I got the wrist pin to fit perfectly. Also by the way, those wirelocks suck, my thumbs hurt. I then put rings on and popped the pistons in. I called it good for the night at 2, I'll finish the rest tomorrow
The 300whp Super clean daily driver-kd3dqh.jpg
Jmanwork is online now   Reply With Quote
Old 07-18-2016, 09:18 AM   #35
Junior Member

Join Date: Sep 2014
Posts: 47
Total Cats: 2
Default

Quote:
Originally Posted by Jmanwork View Post

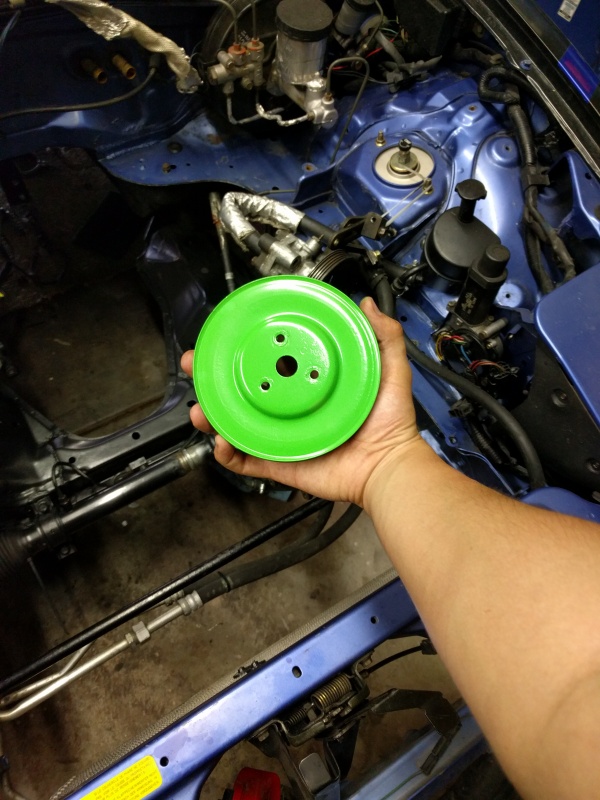

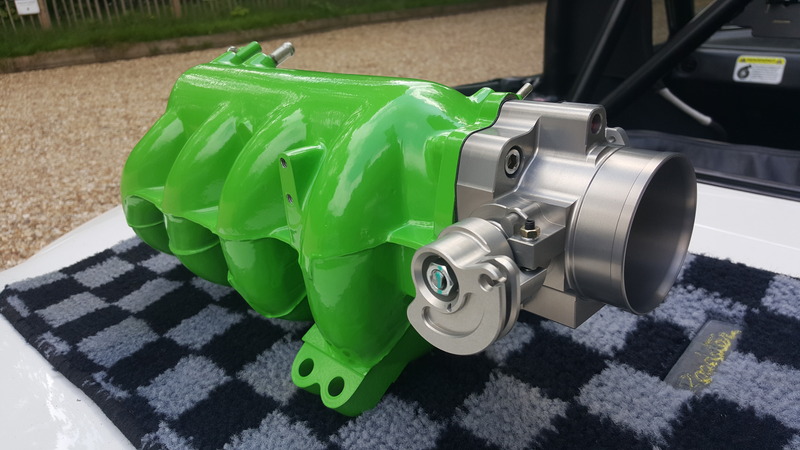

Painted the intake manifold and water pump pulley Shrek green as well

Attachment 176364

Attachment 176365

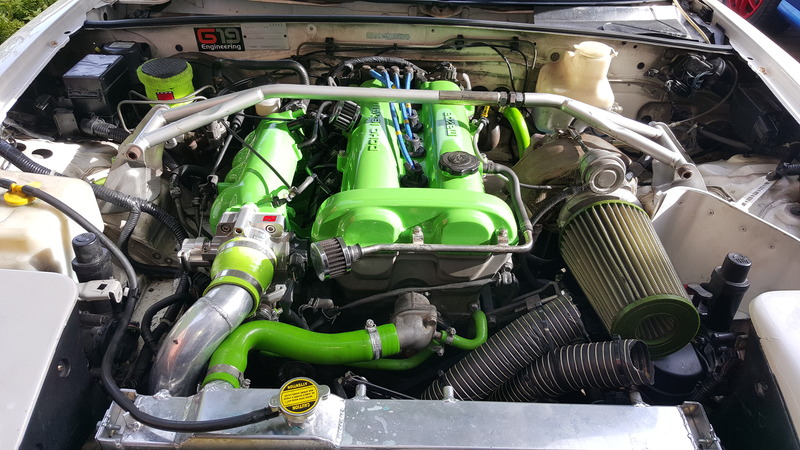

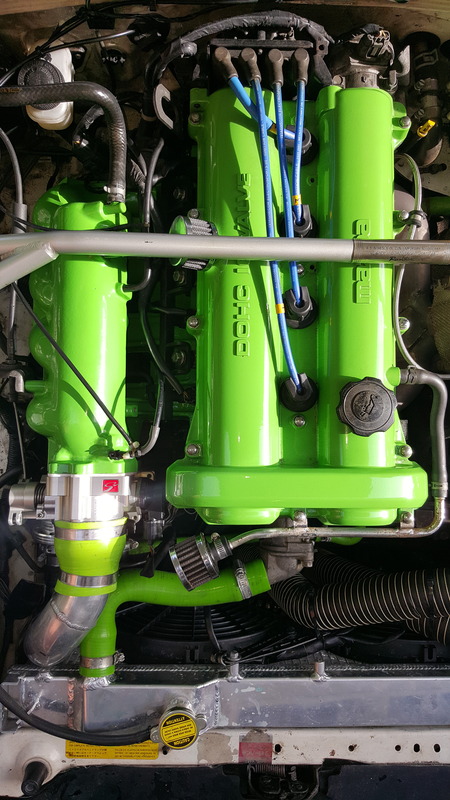

You can kind of see the contrast of the green in my blue engine bay. I can't wait to put the engine back in this thing it's going to look so mint.
Looking forward to seeing this happen!

Kawazaki green??

The 300whp Super clean daily driver-20160527_112823_zpsjcooueeo.jpg

The 300whp Super clean daily driver-20160714_175550_zps7qltqmxm.jpg

The 300whp Super clean daily driver-20160714_175616_zpsbctcsd5q.jpg
MintyTheEunos is offline   Reply With Quote
Old 07-18-2016, 10:38 AM   #36
Junior Member
Thread Starter

Join Date: Jun 2016
Location: Wichita, Kansas
Posts: 67
Total Cats: 3
Default

Quote:
Originally Posted by mmmjesse View Post
so i must have missed it, what turbo are you going with?
Right now I have a China turbo but as soon as I get the funds I'm getting a gt2871R
Jmanwork is online now   Reply With Quote
Old 07-18-2016, 10:40 AM   #37
SOMEOFIT
iTrader: (1)

Girz0r's Avatar

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,506
Total Cats: 219
Default

Quote:
Originally Posted by 18psi View Post
Don't be scared, before long you will want more than 1 finger
Girz0r is offline   Reply With Quote
Old 07-18-2016, 05:18 PM   #38
Junior Member
Thread Starter

Join Date: Jun 2016
Location: Wichita, Kansas
Posts: 67
Total Cats: 3
Default

Quote:
Originally Posted by 18psi View Post
Don't be scared, before long you will want more than 1 finger
My finger really hurts 4 holes later...
Jmanwork is online now   Reply With Quote
Old 07-18-2016, 05:18 PM   #39
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,150
Total Cats: 1,989
Default

that's cause you didn't lube it up
18psi is offline   Reply With Quote
Old 07-18-2016, 05:23 PM   #40
Junior Member
Thread Starter

Join Date: Jun 2016
Location: Wichita, Kansas
Posts: 67
Total Cats: 3
Default

I used plenty of lube but after going for hours there's only so much good lubrication can do for you
Jmanwork is online now   Reply With Quote
