Old 05-01-2016, 03:18 AM   #21
Junior Member
Thread Starter

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 241
Total Cats: 14
Default

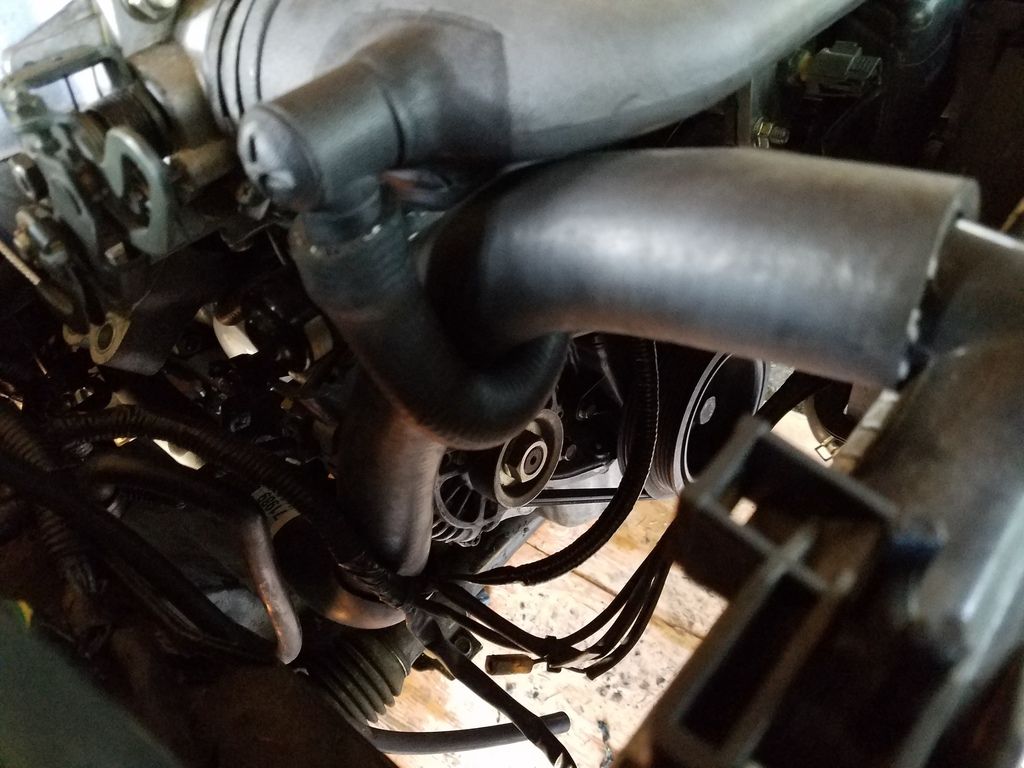

This is what the DIY coolant reroute looks like at the front of the engine. I'm going to have to cook something better up when intercooler pipes get involved.
Attached Thumbnails
91 BRG 1.8BP MK turbo build-80-20160430_181425_6e5dfb15c330e1dd616cd63974eefb934f224462.jpg
wackbards is offline   Reply With Quote
Old 05-01-2016, 03:22 AM   #22
Junior Member
Thread Starter

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 241
Total Cats: 14
Default

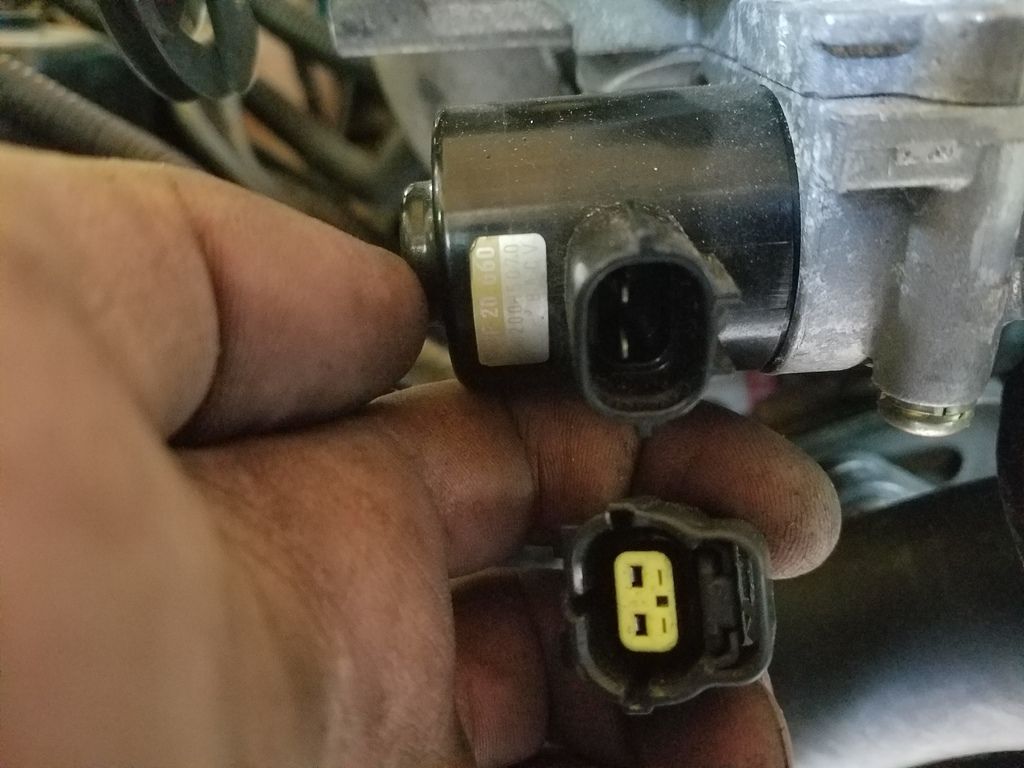

Nuts. I missed a connector that I needed to swap. I kept the 1.8 TB, so the IAC still needs a connector on the harness side.
Attached Thumbnails
91 BRG 1.8BP MK turbo build-80-20160430_174555_18c37c5ea9b5445762c53babe3c63d309a94df29.jpg
wackbards is offline   Reply With Quote
Old 05-01-2016, 03:27 AM   #23
Junior Member
Thread Starter

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 241
Total Cats: 14
Default

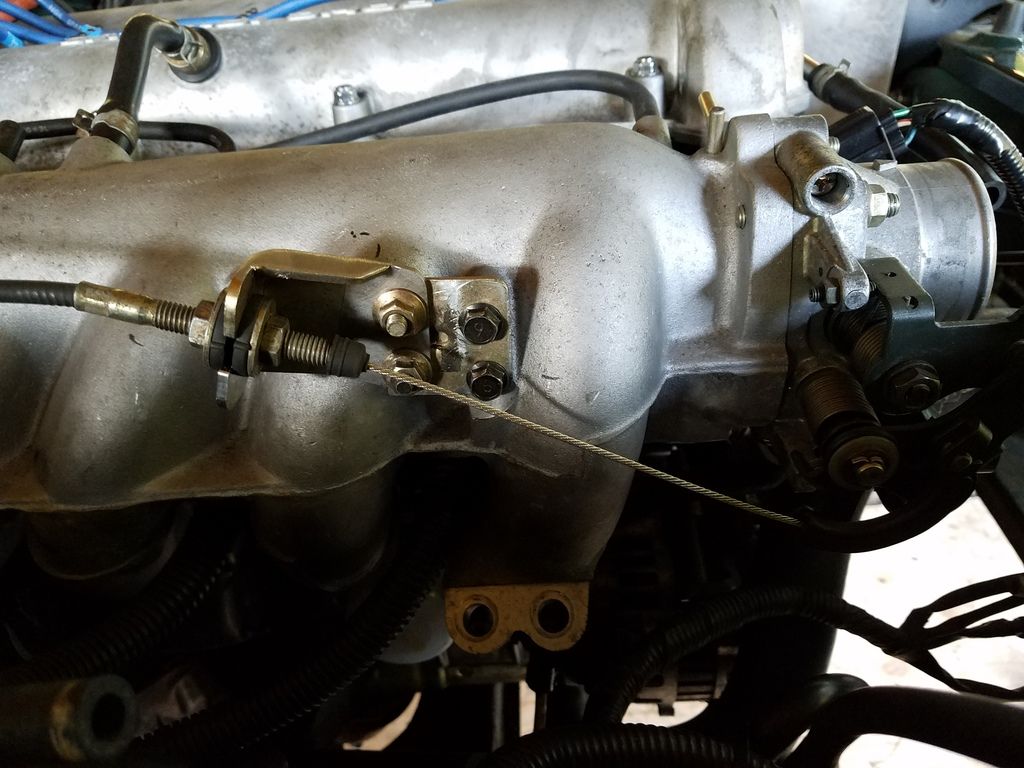

I ordered the FM 1.8 swap kit, but I deleted the 1.6 TB adapter because I wanted to keep the 1.8 TB. The throttle cable left a bunch of slack even with the cable adapter because there is no TB adapter in between the IM and TB. I had to make an extension plate.
Attached Thumbnails
91 BRG 1.8BP MK turbo build-80-20160430_174520_73a95903cd9828510b7c7588ece90ffc0e531f16.jpg
wackbards is offline   Reply With Quote
Old 05-01-2016, 03:31 AM   #24
Junior Member
Thread Starter

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 241
Total Cats: 14
Default

****EDIT******

I had my wires crossed. switch the red & grn wires.

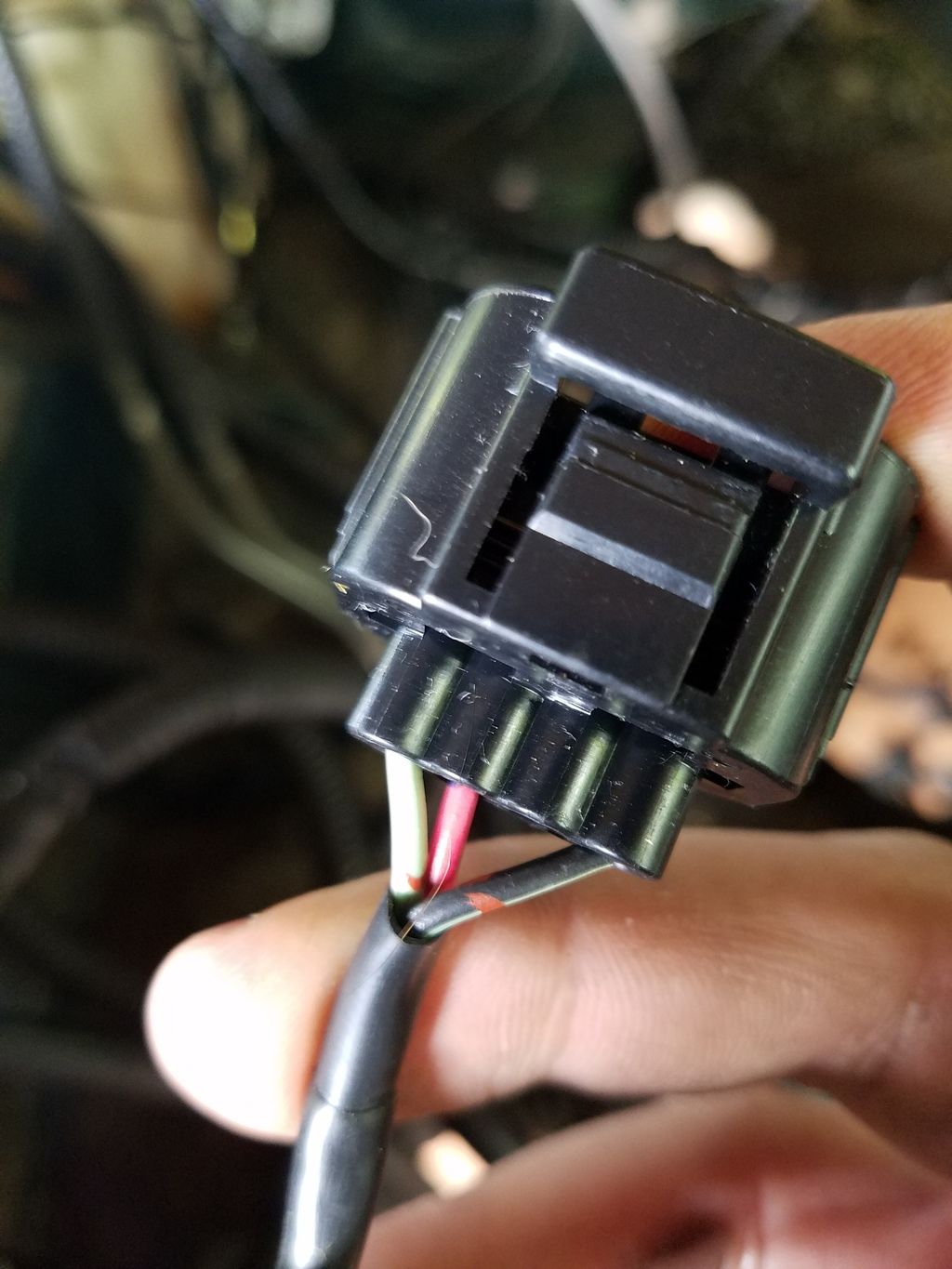

I'm intending to run the car using the OEM 1.8 variable TPS. I rewired the 1.8 TPS using the 1.6 wires as pictured. I hope this works...
Attached Thumbnails
91 BRG 1.8BP MK turbo build-80-20160430_094157_f9232f795d8b01ddc8b38e4f58265fc615750736.jpg

Last edited by wackbards; 05-12-2016 at 01:01 AM. Reason: wiring mistake
wackbards is offline   Reply With Quote
Old 05-01-2016, 03:49 AM   #25
Junior Member
Thread Starter

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 241
Total Cats: 14
Default

Quote:
Originally Posted by shuiend View Post
Change your required fuel to go from the 1.6 engine to 1.8 and then everything else should be pretty close. There is nothing else major that you should really need to change. This is assuming you already had the EV14 injectors running on the 1.6 engine.
I only ran the stock injectors on the 1.6. But you're saying I could roll over my old tune with changes to the req fuel, and the injectors? I'll also need to update the sensor calibrations.

I gotta improve the cold start. Man, it sucks. I also need to sort out the acceleration enrichment. I'll post some of my butt map/logs after I start up the new motor.
wackbards is offline   Reply With Quote
Old 05-01-2016, 11:25 PM   #26
Junior Member
Thread Starter

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 241
Total Cats: 14
Default

Home Shop Connectors / Harnesses Sumitomo 2 Way Plug Assembly for Japanese applications (Connector + Lock), Green

This looks right for the IAC connector! Hard to find on the forums, as most people retain the 1.6 TB & IAC.
wackbards is offline   Reply With Quote
Old 05-07-2016, 12:21 AM   #27
Junior Member
Thread Starter

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 241
Total Cats: 14
Default

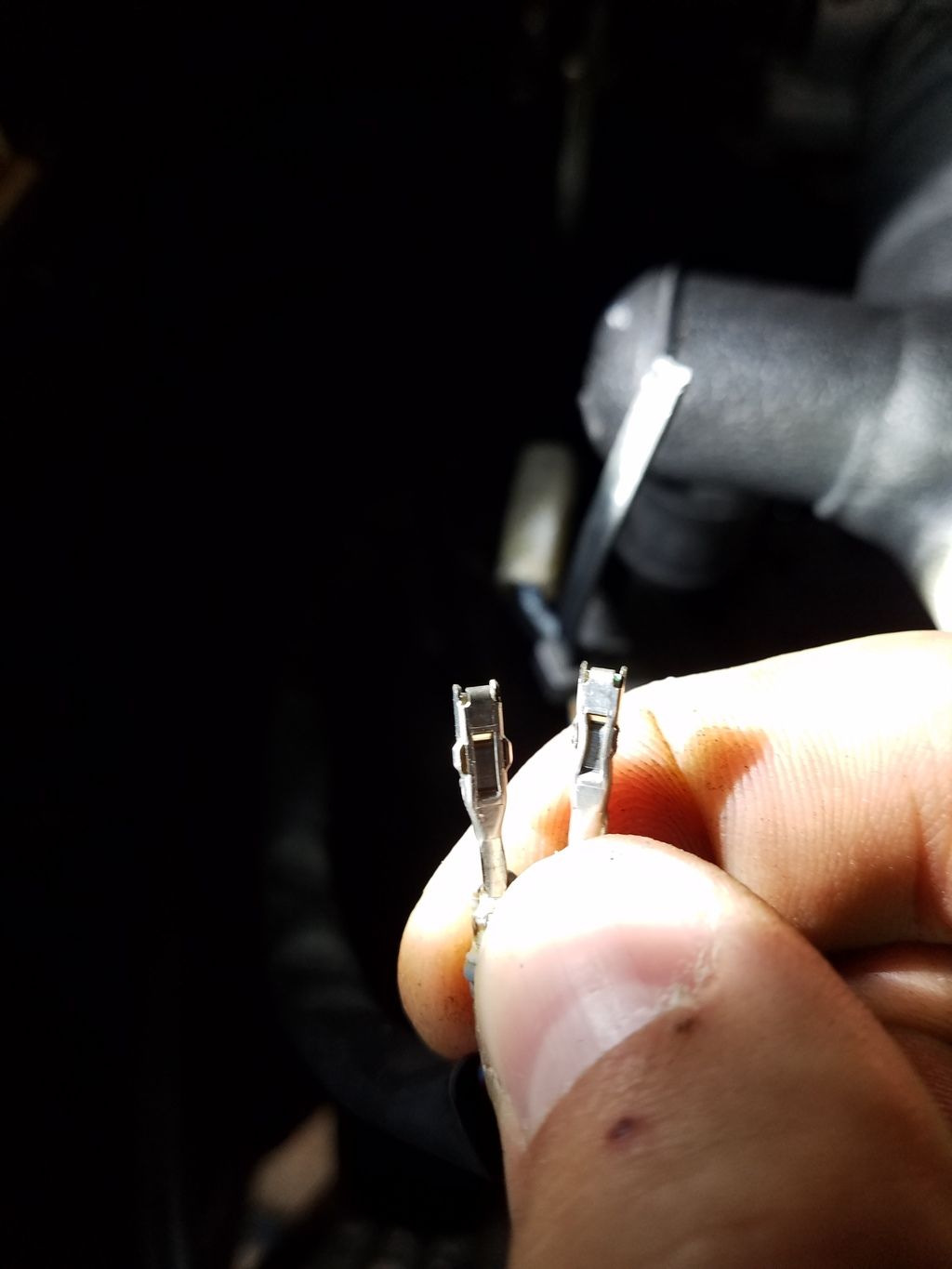

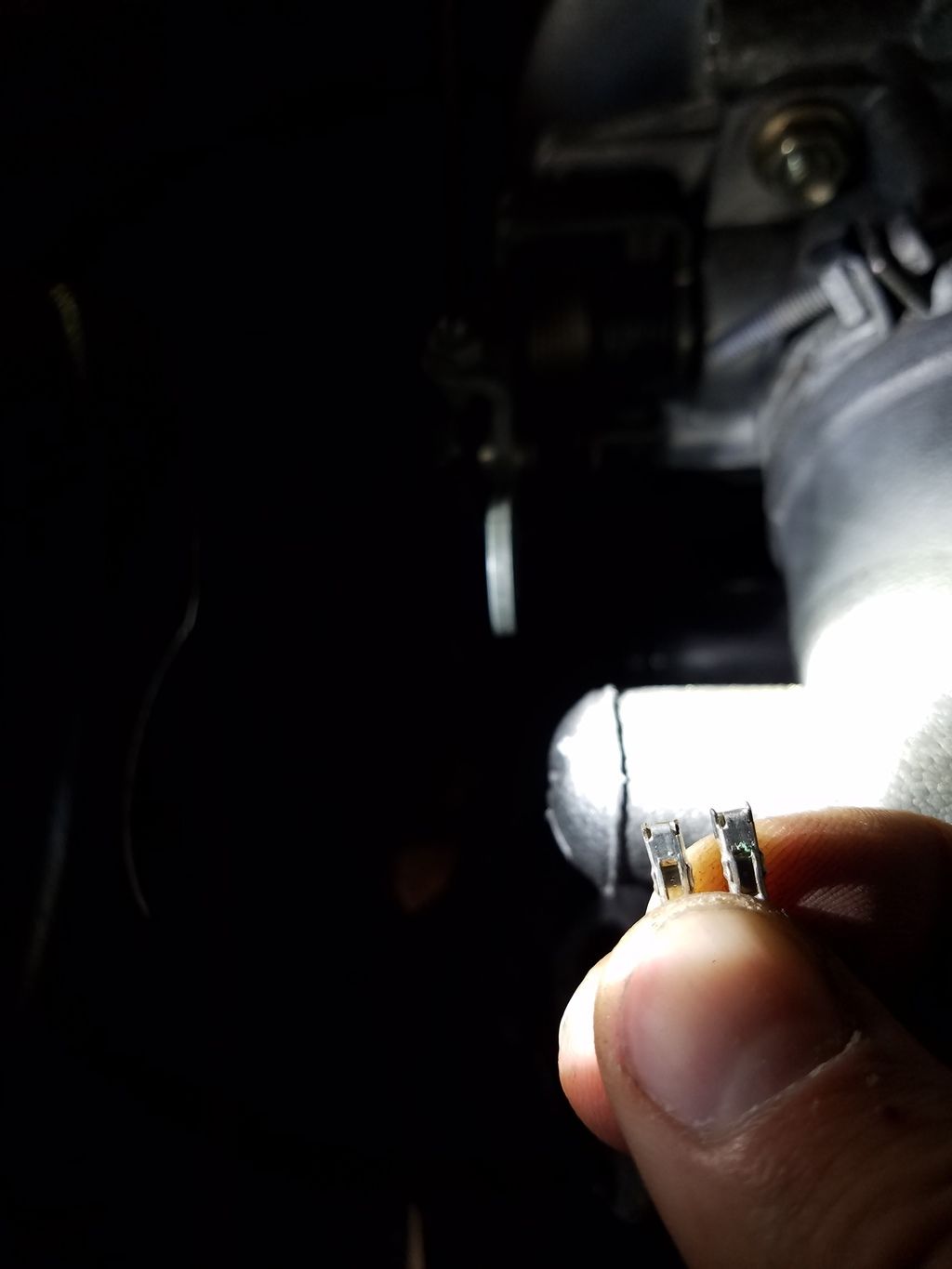

The above connector is the correct fit, but the OEM pins are slightly wrong. Since I didn't have the correct pins on hand, I modified the OEM pins. Here are the mods I made to make the pins seat & lock. In each pic below, I've completed one pin in the step described so you can compare before & after:



Squish in the side tabs so they are flush



File the tags flush on the nose



Hog out the locking detent so it extends about 1/16" closer to the nose.

This all took about 5 minutes. Not as clean as using the correct pins, but it gets the job done. If I had to do it again, I'd just buy the connector with the pigtail already included.
Attached Thumbnails
91 BRG 1.8BP MK turbo build-80-20160506_173831_f9273f6f6eeaf93842f52b4d4acf094eb3bac189.jpg   91 BRG 1.8BP MK turbo build-80-20160506_174742_1dba9c4f9743ef0e33adb25c92208255827cdb07.jpg   91 BRG 1.8BP MK turbo build-80-20160506_175653_95a14a7594858422d6dc36c1fae6ef500e11786c.jpg
wackbards is offline   Reply With Quote
Old 05-09-2016, 11:39 PM   #28
Junior Member
Thread Starter

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 241
Total Cats: 14
Default

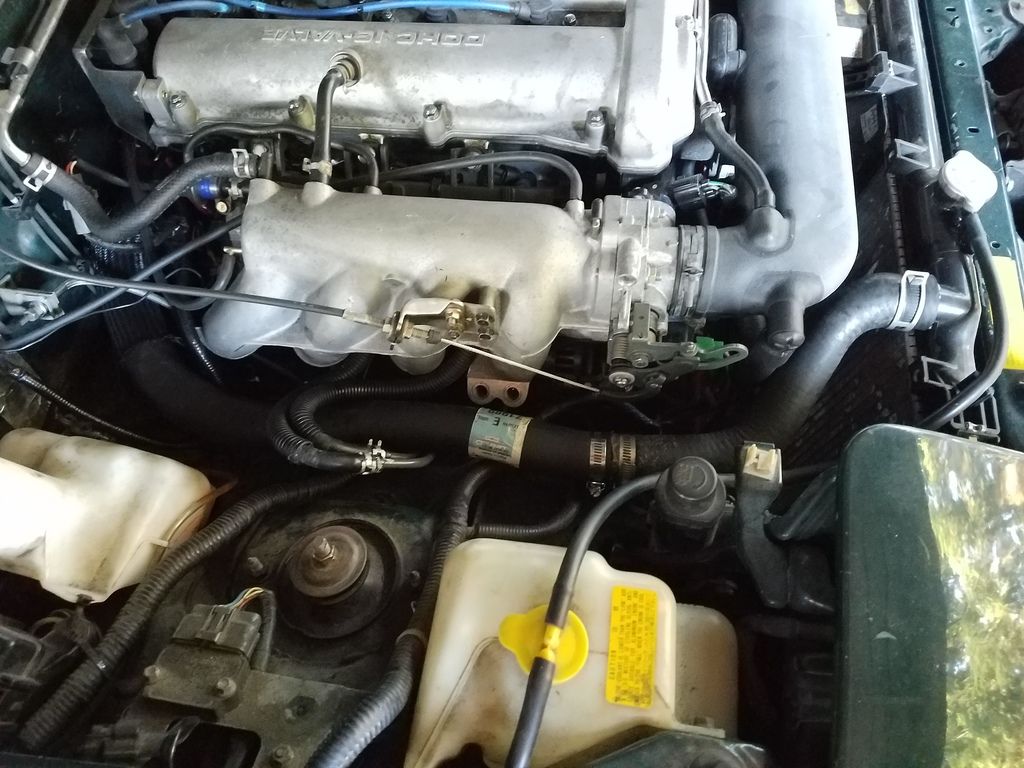

Had to do a bit of a reroute of the coolant...reroute. I had the hose drooping low, and there was no way I could burp the line. Here's the new routing. I spliced in the OEM 1.6 radiator hose.

Attached Thumbnails
91 BRG 1.8BP MK turbo build-80-20160509_190046_e32b6e8811199e6ba03170f2ebe7ef488a881f6e.jpg
wackbards is offline   Reply With Quote
Old 05-10-2016, 02:09 AM   #29
Junior Member
Thread Starter

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 241
Total Cats: 14
Default

I'm sorting out my map for the FF610 injectors I ordered in February. Based on the recommendations from this thread, I'm running the following:

dead time = 1.179ms@13.2v
battery correction = .144v/ms

I've multiplied my static flow published on the cards I received with the injectors by 1.04. Here are the injector serial numbers, published flow, and corrected flow

serial # published corrected
f6ak43 609cc 633.36cc
f6ak49 614cc 638.56cc
f6ak55 609cc 633.36cc
f6ak62 610cc 634.40cc

the average corrected flow is 634.92cc. I input 634cc into tunerstudio.

does this seem sane?
wackbards is offline   Reply With Quote
Old 05-10-2016, 11:17 AM   #30
Junior Member

Join Date: Jan 2016
Location: Akron, Ohio
Posts: 113
Total Cats: 9
Default

Did you do your coolant reroute with the motor in the car or before?
Joseph Conley is online now   Reply With Quote
Old 05-10-2016, 12:10 PM   #31
Junior Member
Thread Starter

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 241
Total Cats: 14
Default

I did it with the engine out. I had tried running the hose lower down closer to the alternator. With that big dip in the hose, you get a big air pocket it the line that will never come out.
wackbards is offline   Reply With Quote
Old 05-11-2016, 01:59 AM   #32
Junior Member
Thread Starter

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 241
Total Cats: 14
Default

Changing injector dead time from 1.179ms to 1.124ms due to silly math error I made last night.
wackbards is offline   Reply With Quote
Old 05-12-2016, 01:05 AM   #33
Junior Member
Thread Starter

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 241
Total Cats: 14
Default

Everything is buttoned up, and I'm calibrating my tune. I've got the TPS wiring fixed & the TPS is calibrated now. The only things left to do are to tweak the Hz rate for the IAC, test my injector & spark sequencing, & fire it up! I should have enough time in the next couple days to get it running...
wackbards is offline   Reply With Quote
Old 05-14-2016, 12:31 AM   #34
Junior Member
Thread Starter

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 241
Total Cats: 14
Default

Car started right up first crank. Only tuned the idle cells, because I couldn't get the clutch to operate. Hopefully there's just air trapped...

Had to move the idle VE up about 25% from 57 to 72.
wackbards is offline   Reply With Quote
Old 05-15-2016, 03:55 PM   #35
Junior Member
Thread Starter

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 241
Total Cats: 14
Default

Fiddled with the clutch pedal, and got it to engage. I've auto tuned up to about 3k. Gotta chase down a noisy exhaust leak somewhere.

I'm having to add a lot of fuel to my VE table.
wackbards is offline   Reply With Quote
Old 05-16-2016, 05:35 AM   #36
Junior Member

Join Date: Sep 2012
Location: New Zealand Christchurch
Posts: 199
Total Cats: -5
Default

Checked your required fuel is close? I hate chasing down exhaust leaks. Glad you are getting somewhere
jimmyneutron is offline   Reply With Quote
Old 05-16-2016, 01:10 PM   #37
Junior Member
Thread Starter

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 241
Total Cats: 14
Default

Exhaust leak fixed. Drove the car to work today. Auto tuning. Need to adjust the sway bar end links.
wackbards is offline   Reply With Quote
Old 05-18-2016, 10:25 PM   #38
Junior Member
Thread Starter

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 241
Total Cats: 14
Default

Ugh. 4 days on the road, and I have two symptoms: low voltage, and the thermostat gasket for the OEM thermostat neck block of is weeping.

I guess I'll pull the alternator & get it tested. Sure hope I'm not hunting grounding demons...
wackbards is offline   Reply With Quote
Old 05-18-2016, 11:47 PM   #39
Junior Member
Thread Starter

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 241
Total Cats: 14
Default

OK, so the alternator ground post nut had walked loose. Easy fix there. Cranked on the coolant neck cap, but my gut says it's a crap gasket.

Trickle charging the PC680 battery back up. It was reading at 11 volts by the time I got home.
wackbards is offline   Reply With Quote
Old 05-19-2016, 12:31 AM   #40
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,632
Total Cats: 463
Default

If that was more than an hour your battery is toast. That or your charge is toast.
curly is offline   Reply With Quote
