Old 05-19-2016, 12:39 AM   #41
Junior Member
Thread Starter

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 244
Total Cats: 14
Default

Fingers crossed. I don't really want to buy a new battery.
wackbards is offline   Reply With Quote
Old 05-19-2016, 12:32 PM   #42
Junior Member
Thread Starter

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 244
Total Cats: 14
Default

Battery charged right up & car drove in to work fine. The coolant neck is still leaking though.
wackbards is offline   Reply With Quote
Old 05-20-2016, 11:14 AM   #43
Junior Member
Thread Starter

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 244
Total Cats: 14
Default

Still fighting exhaust leaks. I'm gonna try doughnuts instead of gaskets at the fwd & aft cat flanges.
wackbards is offline   Reply With Quote
Old 05-20-2016, 11:41 AM   #44
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,205
Total Cats: 749
Default

I always just use red gasket maker instead of gaskets. Slob it all over and let it dry before you start the car.
shuiend is offline   Reply With Quote
Old 05-20-2016, 01:18 PM   #45
Junior Member
Thread Starter

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 244
Total Cats: 14
Default

Damn fine idea. I'll give it a shot.
wackbards is offline   Reply With Quote
Old 05-20-2016, 10:05 PM   #46
Junior Member
Thread Starter

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 244
Total Cats: 14
Default

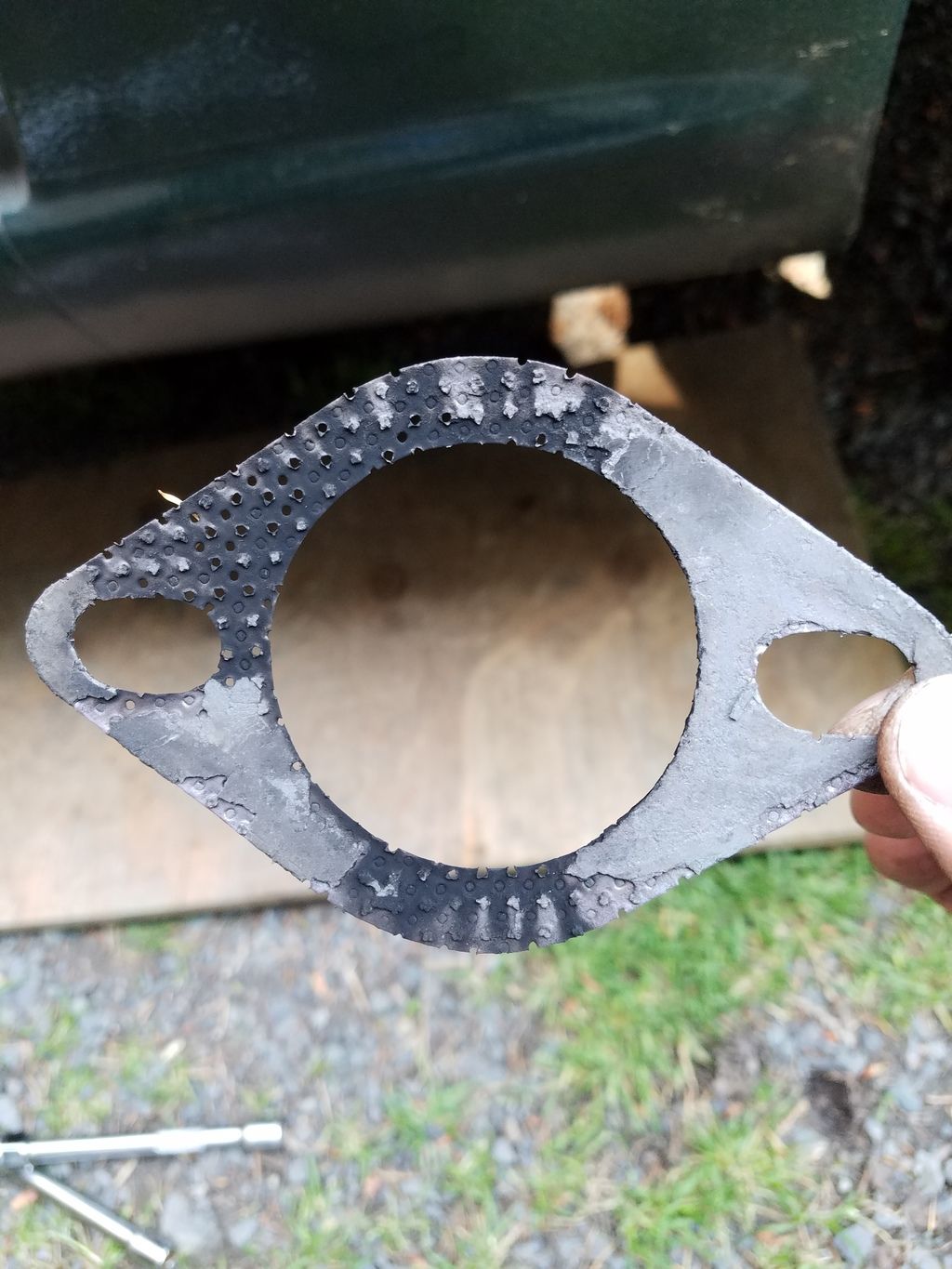

Fixed both the exhaust & coolant leaks. The exhaust leak was from a very dead gasket caused by incomplete clamp up. I bought stainless hardware, and the washers were riding on flange welds. I'm going to try just a plain gasket & see how it holds.

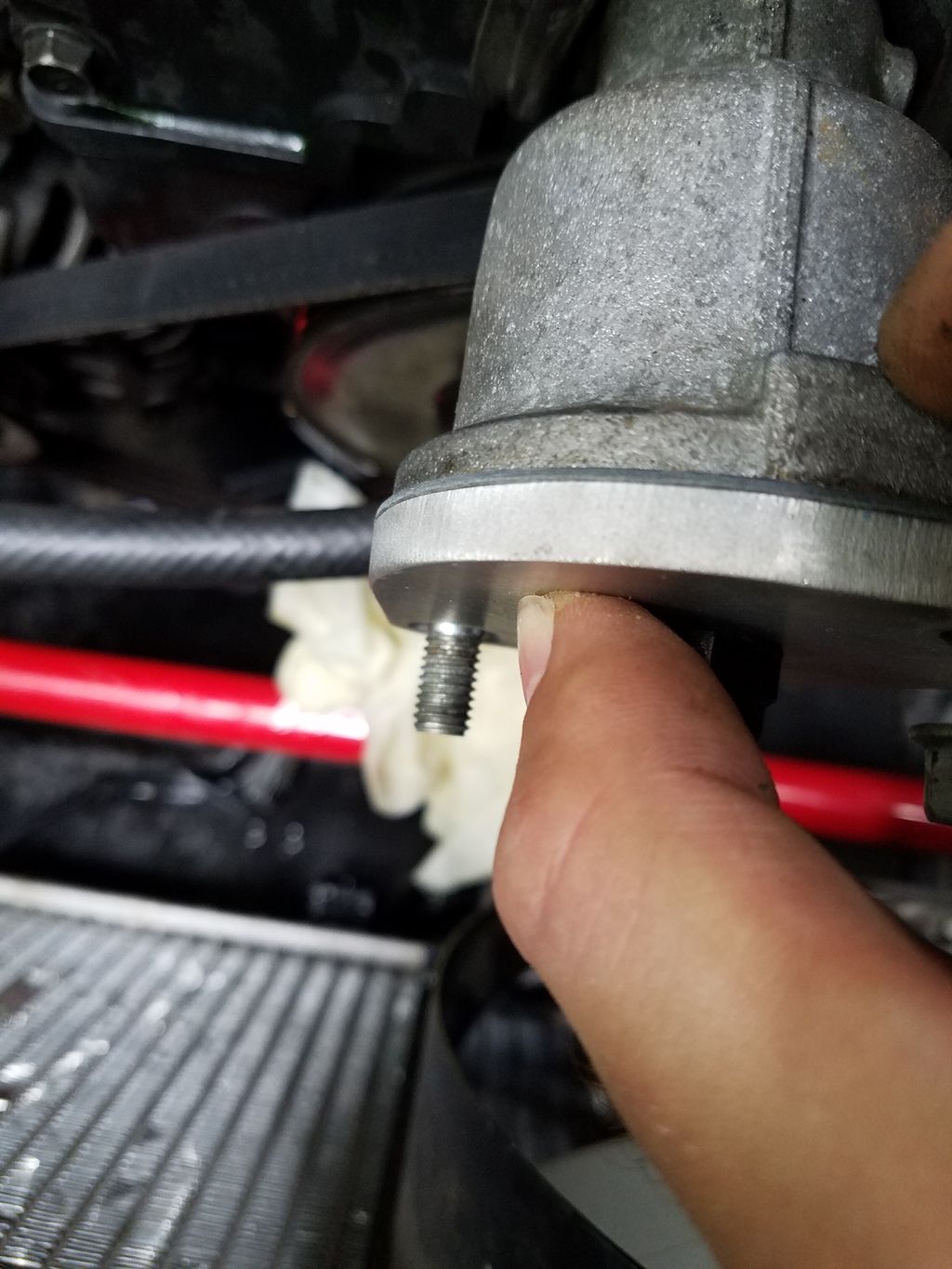

The coolant leak at the blockoff plate was due to the sheet stock of the plate being thinner than the sholder on the stud in the coolant neck, which prevented full clamp up. A couple washers solved this. The gasket was ruined though, and had to be replaced.
Attached Thumbnails
91 BRG 1.8BP MK turbo build-80-20160520_161825_cbe169e3d6628a9a1858a14ff02d1b5dda3f0b37.jpg   91 BRG 1.8BP MK turbo build-80-20160520_170117_22a4fd61395d780762cbcb6c87b6dcdb3626b5e6.jpg

Last edited by wackbards; 05-20-2016 at 10:17 PM.
wackbards is offline   Reply With Quote
Old 05-26-2016, 01:09 AM   #47
Junior Member
Thread Starter

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 244
Total Cats: 14
Default

I've been dicking around with my VE trying to get it to run ok. I've been chasing heat soak in the IAT, making tuning my idle cells a bitch, and giving me lean hot start issues. I spent some time sealing up the CAI box with some speed tape, and things are much better. I ended up telling it to ignore MAT correction during ASE. I am going to pay much closer attention to IAT while tuning idle, and see if I can settle on some values I like. I'll see if I can get a decent map & log up for critique tomorrow.
wackbards is offline   Reply With Quote
Old 05-26-2016, 02:58 PM   #48
Junior Member
Thread Starter

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 244
Total Cats: 14
Default

Here are my most recent tune & log. I'm really green at this, so I'm open to any good advice.
Attached Files
File Type: msq CurrentTune.msq (113.1 KB, 10 views)
File Type: zip 2016-05-26_07.11.44.zip (1.07 MB, 0 views)

Last edited by wackbards; 05-26-2016 at 03:11 PM.
wackbards is offline   Reply With Quote
Old 06-18-2016, 11:44 AM   #49
Junior Member
Thread Starter

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 244
Total Cats: 14
Default

Time for a cosmetic project. Greg's Revlimiter video inspired me, so I'm cleaning up my dash. I've got one of the horrible painted dashboards, and it's super gooey.

The project will include painting the top and shroud black, the leading edge tan, swapping in a set of Revlimiter gauges (modified alpha), and swapping in a 1uF cap filter for the tach.
wackbards is offline   Reply With Quote
Old 06-18-2016, 12:03 PM   #50
Junior Member
Thread Starter

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 244
Total Cats: 14
Default

Here's my shopping list in case someone wants to replicate:

SEM landau black
SEM camel tan
SEM Plastic prep
SEM adhesion promoter
1uF tantalum capacitor (they have these in the brick & mortar stores for $2, otherwise go digikey)
Version alpha Revlimiter gauge
wackbards is offline   Reply With Quote
Old 06-28-2016, 12:06 AM   #51
Junior Member
Thread Starter

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 244
Total Cats: 14
Default

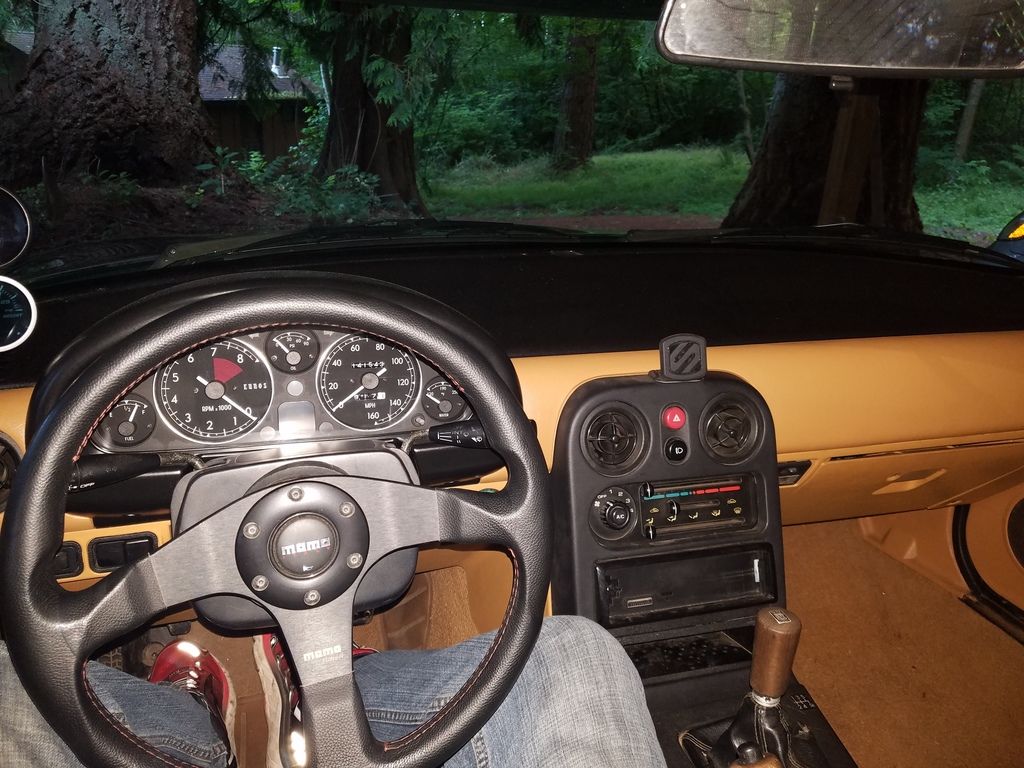

Dash project went beautifully. It was labor intensive lifting the old paint without damaging the plastic (dot 3 & green scotch brite worked best).

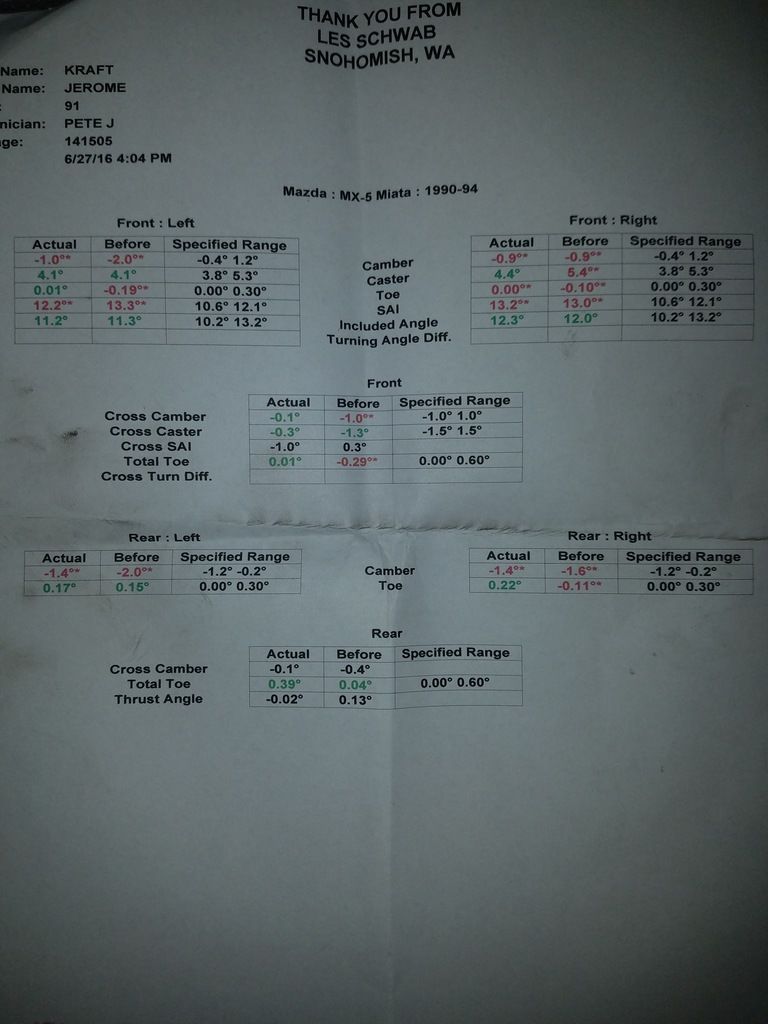

Got an alignment today, but didn't hit the numbers I was hoping for. I was aiming for a super miata dual duty with auto x rear toe, but I came up short ~1 of neg camber up front. My pax front is wonky, and the camber is the limiting factor. Here are the numbers I hit:

Front caster: L= 4.0, R= 4.4
Front camber: L=-1, R=-.9
Front toe = 0

Rear camber= -1.4
Rear total toe .38 (~1/8")

I'm thinking extended ball joints should give me what I need. Good thing an alignment only costs $83.
wackbards is offline   Reply With Quote
Old 06-28-2016, 10:36 AM   #52
Junior Member
Thread Starter

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 244
Total Cats: 14
Default

Shiny dash is shiny!

Attached Thumbnails
91 BRG 1.8BP MK turbo build-80-20160628_055534_bda2faf1a6ccf956c08b9eb0a5d6caab4a3a84df.jpg
wackbards is offline   Reply With Quote
Old 06-28-2016, 12:36 PM   #53
Junior Member
Thread Starter

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 244
Total Cats: 14
Default

Attached Thumbnails
91 BRG 1.8BP MK turbo build-80-20160627_222821_cea67ed50b6b4c31fbc20cff977956bfb6fa151a.jpg
wackbards is offline   Reply With Quote
Old 07-06-2016, 10:34 PM   #54
Junior Member
Thread Starter

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 244
Total Cats: 14
Default

I added 3 oz of weight to my shift **** with tungsten putty. They sell it as either fishing weight or pine car ballast. The putty has about the same density as lead. pine car hobby kits also sell more pure tungsten weights, but they are 3/8" OD, and won't fit up past the M10x1.25 threading in a miata shift ****.

Also, **** is apparently a censored word according to IB, you hoser.
wackbards is offline   Reply With Quote
Old 07-06-2016, 11:41 PM   #55
Internet Tough Guy
iTrader: (1)

Corifto's Avatar

Join Date: Jun 2010
Location: Bradenton, FL
Posts: 384
Total Cats: 18
Default

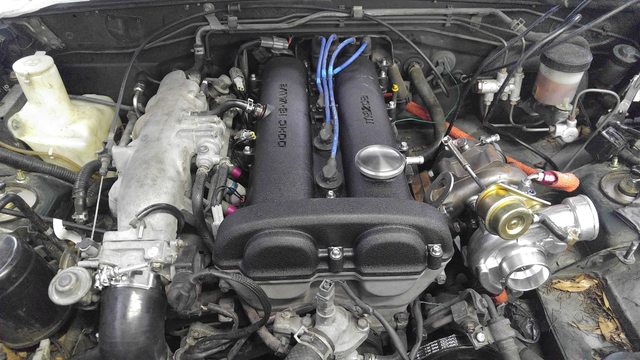

Nice progress so far. Thought I was the only BRG MkTurbo kit, but I guess I'll be the only 1.6 BRG. I might be finished with mine first though.

91 BRG 1.8BP MK turbo build-wc4xhwgl.jpg

My intercooler piping was just welded up today, now waiting on powder to be finished.



That dash looks great. I probably need to do that with mine eventually.
Corifto is offline   Reply With Quote
Old 07-07-2016, 12:06 AM   #56
Junior Member
Thread Starter

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 244
Total Cats: 14
Default

Thanks! I'm just tinkering while I wait on my kit. Let me know if you decide to do the dash job, I'll walk you through my lessons learned. I think it set me back about $75.
wackbards is offline   Reply With Quote
Old 07-07-2016, 12:25 AM   #57
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,632
Total Cats: 463
Default

Your alignment is gross. 1f/1.4r?!
curly is offline   Reply With Quote
Old 07-07-2016, 12:30 AM   #58
Junior Member
Thread Starter

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 244
Total Cats: 14
Default

Quote:
Originally Posted by curly View Post
Your alignment is gross. 1f/1.4r?!
Yeah, life sucks. I was shooting for 2f/1.7r. I'm planning on fixing the front with extended lower ball joints. Any recommendations on the rear? Are eccentrics the only way, and are they worth it for .3 deg rear camber?
wackbards is offline   Reply With Quote
Old 07-07-2016, 03:39 AM   #59
Junior Member
Thread Starter

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 244
Total Cats: 14
Default

Or I guess I can try lowering it an inch to see if I can pick up the static camber I want. 3.75" pinch welds in the front seems kinda low for the street tho.
wackbards is offline   Reply With Quote
Old 07-07-2016, 09:16 AM   #60
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,205
Total Cats: 749
Default

Quote:
Originally Posted by wackbards View Post
Thanks! I'm just tinkering while I wait on my kit. Let me know if you decide to do the dash job, I'll walk you through my lessons learned. I think it set me back about $75.
Yeah I am going slow. Currently waiting to get my diff back and bronze inserts for my bushings. Then I can get suspension back on my car and into the garage to finish exhausts. I rather not build the exhaust going around the diff without the diff there because I don't want it to be hitting there and such.
shuiend is offline   Reply With Quote
