Old 05-07-2014, 05:22 PM   #2381
Senior Member
iTrader: (4)

Join Date: May 2010
Location: Iowa City
Posts: 541
Total Cats: 15
Default

Quote:
Originally Posted by EO2K View Post
Seriously, what the hell is up with this? I've never seen so many alignment techs so consistently confused as I do with the Miata. Is it really that different or that much more complex?
It's because most cars have mushy bushings, tame book settings and numb steering. The Miata takes a bit of finesse to make it drive well due to these and many factors.

I find it easiest to bring the tech a hard number I want as opposed to a range.
vteckiller2000 is offline   Reply With Quote
Old 05-07-2014, 09:58 PM   #2382
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

I think I should be ok on getting a good alignment. The guy I used in Cedar City has been doing them for 30 years. Old man river type fellow who does everything old school. He only uses the shops machines to verify his alignment and print out the specs for the customers.


What I AM considering, or I should say my father is offering to help me with, is putting the miata on a flatbed and taking it to a dyno and get a full tune done by a guy who has a shop near Vegas speedway.

Guys name is Dynodan(Home Page) and has been tuning for 20 years. Most people in the area recommend him. I'm assuming he has experience with MS ECUs, and using TS, but I need to give him a call first.

While I do want to learn how to do the tuning myself in TS. I think it would be nice to have it done correctly once, and learn as I go afterwards. Plus I'd rather not get a ticket doing pulls on public roads. I haven't gotten a ticket since I was 17, and I'd rather keep that clean record going.
Jeffbucc is offline   Reply With Quote
Old 05-08-2014, 04:24 AM   #2383
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Man I hope I never have to do the rears again. The pinch welds on the lip makes it a bitch to get it smooth.

Lesson learned when rolling fenders. Never forget to apply your heat. Roll a 3" section, heat it back up, roll it again, heat it back up....for every part of the lip. Every time I decided I was better than that logic I got a tiny crack in the paint.

Saying that, I only cracked the paint about 4-5 times all together. Luckily it is on the inside of the lip, so you don't really notice. I put a little touch up paint in the cracks to help stop it from possibly growing as well.

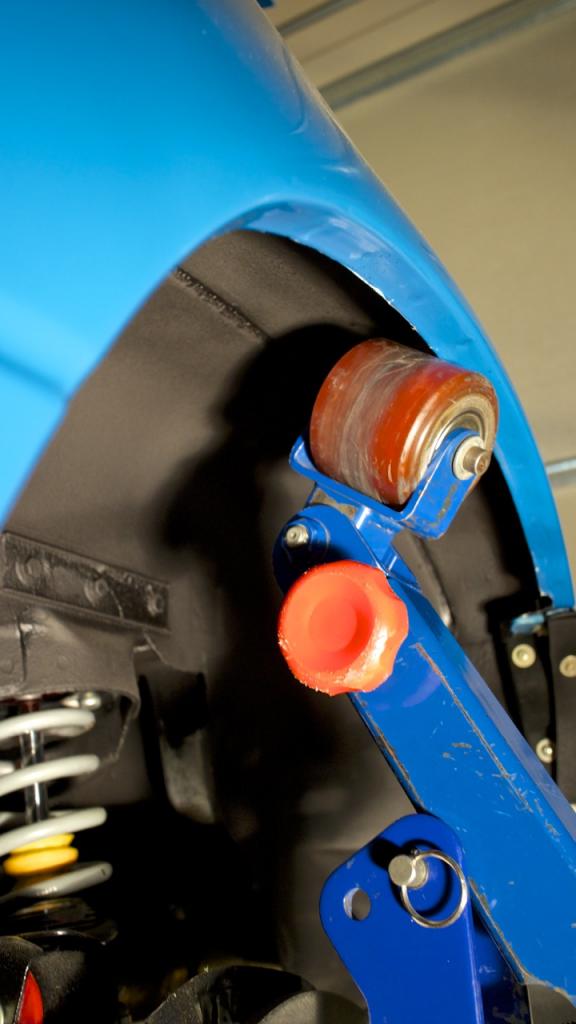

Before, there is so much damn material on the rears!

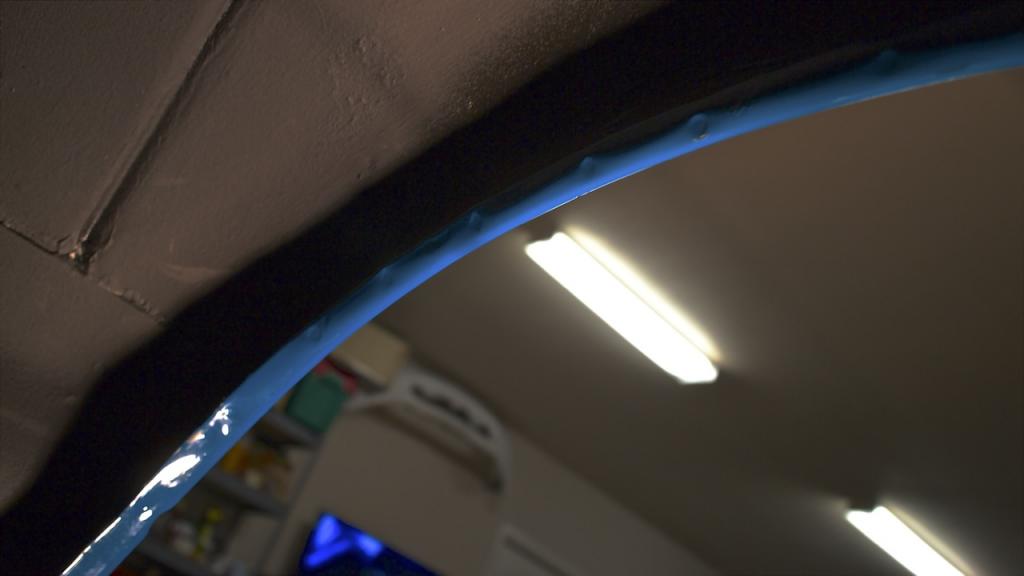

All bent up after about 10 passes

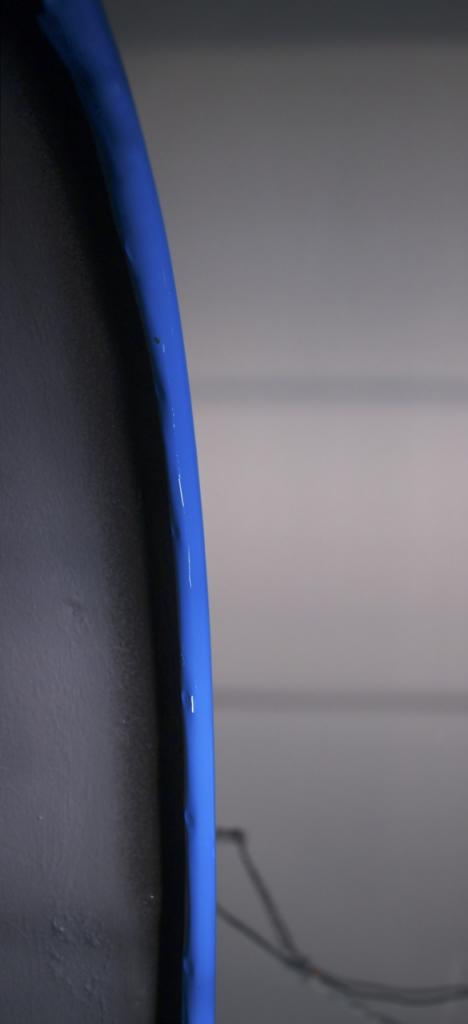

Picture makes it look worse than it is. The pinch welds make it look really uneven but you can only see it when you are looking up at them.

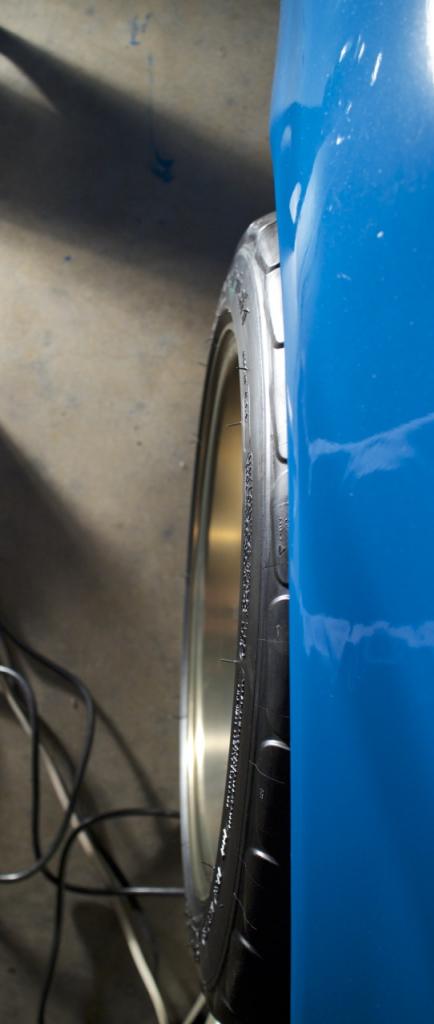

Should have no issues with clearance

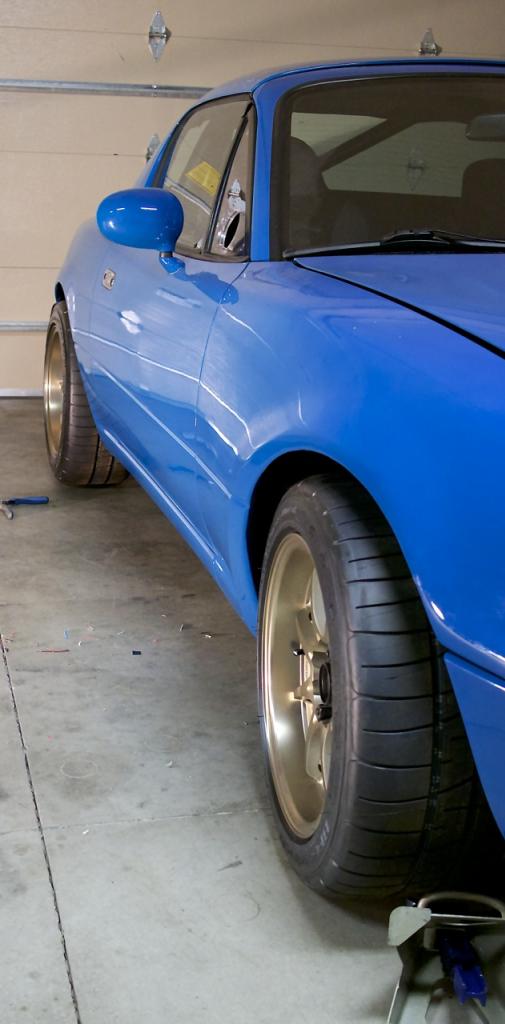

Glad that is over with!
Attached Thumbnails
93' Miata stolen and flipped build thread-img_2759.jpg   93' Miata stolen and flipped build thread-img_2763.jpg   93' Miata stolen and flipped build thread-img_2764.jpg   93' Miata stolen and flipped build thread-img_2770.jpg   93' Miata stolen and flipped build thread-img_2773.jpg

Jeffbucc is offline   Reply With Quote
Old 05-08-2014, 09:06 AM   #2384
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,903
Total Cats: 1,469
Default

DRIVE YOUR CAR!
Braineack is offline   Reply With Quote
Old 05-08-2014, 09:10 AM   #2385
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,801
Total Cats: 2,116
Default

Those fat meats look so sexy on there.
18psi is offline   Reply With Quote
Old 05-08-2014, 11:11 AM   #2386
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Quote:
Originally Posted by Braineack View Post
DRIVE YOUR CAR!
My tune is *****! I want to, trust me.
Jeffbucc is offline   Reply With Quote
Old 05-08-2014, 11:41 AM   #2387
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,673
Total Cats: 230
Default

Looks like a job well done. Now, DRIVE YOUR CAR!
Fireindc is offline   Reply With Quote
Old 05-08-2014, 11:52 AM   #2388
Senior Member
iTrader: (1)

revlimiter's Avatar

Join Date: Jan 2009
Location: ABQ, NM
Posts: 512
Total Cats: 86
Default

The more you drive, the better the tune will get.
revlimiter is offline   Reply With Quote
Old 05-08-2014, 11:54 AM   #2389
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,845
Total Cats: 559
Default

For fuel tuning, I'll take TS VEA or VEAL any day over a dyno tune. The only reason to go to the dyno is to finalize a spark map in my opinion.

Let me amplify. DRIVE YOUR CAR TO MY HOUSE AND ROLL THE FENDERS ON MY RED CAR!

Last edited by hornetball; 05-08-2014 at 02:12 PM.
hornetball is offline   Reply With Quote
Old 05-08-2014, 12:14 PM   #2390
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,801
Total Cats: 2,116
Default

autotune, then hand smooth it out, then repeat those two over and over and over like eleventy billion times, and you have yourself a flawless ve table.
18psi is offline   Reply With Quote
Old 05-08-2014, 12:15 PM   #2391
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Quote:
Originally Posted by hornetball View Post
For fuel tuning, I'll take TS VEA or VEAL any day over a dyno tune. The only reason to go to the dyno is to finalize a spark map in my opinion.

Let my amplify. DRIVE YOUR CAR TO MY HOUSE AND ROLL THE FENDERS ON MY RED CAR!
Isn't that your track car? Rubber mallet the hell out of it. Or just cut the excess off.
Jeffbucc is offline   Reply With Quote
Old 05-08-2014, 02:15 PM   #2392
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,845
Total Cats: 559
Default

PO already hammered the rears so he could fit 205's on 15x6.5. (Seriously, WTF?!?).

It's getting 225s on 15x9s now. It needs your touch, baby!
hornetball is offline   Reply With Quote
Old 05-08-2014, 11:37 PM   #2393
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Quote:
Originally Posted by hornetball View Post
PO already hammered the rears so he could fit 205's on 15x6.5. (Seriously, WTF?!?).

It's getting 225s on 15x9s now. It needs your touch, baby!
Ugh I bet that looks like hell. I respect the people who do fender rolling and make it look easy. It is a pain in the *** to do.

I wish I would have held out for some 6ul 25x9s to come back in stock but I got a really good deal on my wheels.

Going to check why spark #4 isn't firing tonight and hopefully get it sorted out. I hope it is just the spark plug and not the harness.
Jeffbucc is offline   Reply With Quote
Old 05-08-2014, 11:47 PM
XxxMonoxideChild
This message has been deleted by sixshooter. Reason: fuckhead
Old 05-09-2014, 01:52 AM   #2394
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Tested the COP harness and had continuity through all 4 connectors and the Power Unit. So that isn't the issue.

Time to put the harness back in and the new spark plugs and turn it over.
Jeffbucc is offline   Reply With Quote
Old 05-09-2014, 02:31 AM   #2395
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,485
Total Cats: 79
Default

Please do still verify that the MS is firing all 4 cylinders...
Zaphod is offline   Reply With Quote
Old 05-09-2014, 03:02 AM   #2396
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Quote:
Originally Posted by Zaphod View Post
Please do still verify that the MS is firing all 4 cylinders...
Easiest way to check this? Or shall I say would I check wiring or software side of things.
Jeffbucc is offline   Reply With Quote
Old 05-09-2014, 03:40 AM   #2397
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Hmm I just saw the test modes section of Tunerstudio. Would running the injector and spark give me a clue without running the engine?
Jeffbucc is offline   Reply With Quote
Old 05-09-2014, 03:51 AM   #2398
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 41
Default

Yes.

Run the test mode with the ignition on. It'll confirm if the outputs are working.
richyvrlimited is offline   Reply With Quote
Old 05-09-2014, 05:03 AM   #2399
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Tested spark and injectors and all 4 are firing just fine.

So I started the motor and still no luck on cyl #4. I pulled the plug and looked in the hole after I started it up and it was pretty wet with fuel in there still.

Timing is showing around 2-4 degrees at idle. Could MS still be the issue or do I need to do a compression check now.
Jeffbucc is offline   Reply With Quote
Old 05-09-2014, 05:56 AM   #2400
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,485
Total Cats: 79
Default

Quote:
Originally Posted by Jeffbucc View Post
Tested spark and injectors and all 4 are firing just fine.

So I started the motor and still no luck on cyl #4. I pulled the plug and looked in the hole after I started it up and it was pretty wet with fuel in there still.

Timing is showing around 2-4 degrees at idle. Could MS still be the issue or do I need to do a compression check now.
Timing should be 12-14 at idle - but that isn't you problem looks like there is an other problem that keeps you from firing nr. 4...
Zaphod is offline   Reply With Quote
