Old 07-04-2014, 11:21 PM   #2581
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

I still can't get my tach working. Speedo does but all it does is bounce randomly at times. Tried the resistor on ib+ but no luck. Do instruments need to be enabled in TS on tacho?
Jeffbucc is offline   Reply With Quote
Old 07-05-2014, 03:30 AM   #2582
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

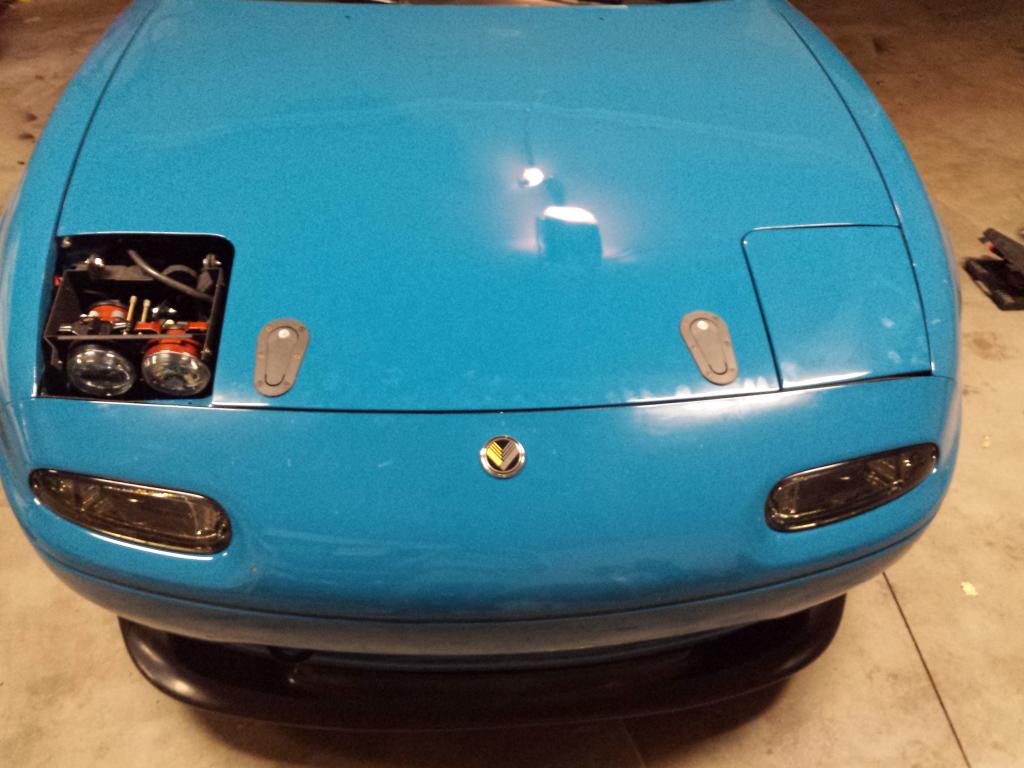

Well I was trying to get a video for you guys and then the e-clip on my wastegate rod popped off and I had no power....as I found out I had no power a piece of my car decided to fly off as well...Searched for it several times but it is too dark to see. Not sure how it popped off since I remember tightening the screws down tight after adjusting it...oh well, guess I'll find it later.

Attached Thumbnails
93' Miata stolen and flipped build thread-img_20140705_002543.jpg
Jeffbucc is offline   Reply With Quote
Old 07-05-2014, 01:12 PM   #2583
Senior Member
iTrader: (1)

Onyxyth's Avatar

Join Date: May 2013
Location: Boyertown, PA
Posts: 566
Total Cats: 38
Default

Oh.. ****. Do you know roughly where it flew off at?
Onyxyth is online now   Reply With Quote
Old 07-05-2014, 01:25 PM   #2584
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,456
Total Cats: 1,426
Default

Quote:
Originally Posted by Jeffbucc View Post
I still can't get my tach working. Speedo does but all it does is bounce randomly at times. Tried the resistor on ib+ but no luck. Do instruments need to be enabled in TS on tacho?
are you coils 3 pin only? where exactly did you put the resistor?

bouncy speedo means your cable is starting to fail.
Braineack is offline   Reply With Quote
Old 07-06-2014, 12:20 AM   #2585
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,138
Total Cats: 70
Default

Did you check the ground next to the intake and between the VC?
ScottyP3821 is offline   Reply With Quote
Old 07-06-2014, 02:46 AM   #2586
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by Braineack View Post

are you coils 3 pin only? where exactly did you put the resistor?

bouncy speedo means your cable is starting to fail.
Coils are 4 pin. I put the resistor on the pins in the Mitsubishi power unit.

It is odd how it bounces. Never on acceleration and not very often. Just on decel in 3rd gear off throttle I'll notice it bounce a little. Very odd. Tried the resistor in several places with no luck.

Do you have a picture of the ground for the I.M.? Pretty sure I have one just want to make sure. Are you referring to the ground on the back of the I.M. near the VICS solenoid/FPR?
Jeffbucc is offline   Reply With Quote
Old 07-06-2014, 09:19 AM   #2587
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,456
Total Cats: 1,426
Default

you probably put it in the wrong spot.

you jump b+ and ig- in the diagnostics box on the driver side.
Braineack is offline   Reply With Quote
Old 07-06-2014, 08:07 PM   #2588
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,902
Total Cats: 775
Default

Your replacement headlight lid will never match the rest of the car. Time to repaint!

But seriously, that sucks. Sorry man. I guess at least it didn't take out the windshield?
EO2K is offline   Reply With Quote
Old 07-06-2014, 08:42 PM   #2589
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,821
Total Cats: 555
Default

Time for carbon fiber lids?
hornetball is offline   Reply With Quote
Old 07-07-2014, 12:31 AM   #2590
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by hornetball View Post
Time for carbon fiber lids?
Haha I guess so! They matched the hard top pretty perfectly so I have high hopes for the replacement lid. I still have the lids from the old car I just need to bang out a small dent and it'll be ready for paint.

Hoping when I get back from my parents I can track down the lid.

It hit the windshield but luckily didn't crack it.
Jeffbucc is offline   Reply With Quote
Old 07-07-2014, 08:18 AM   #2591
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,456
Total Cats: 1,426
Default

carbon fiber lids, unless painted, will look stupid and cost a lot of money for no reason.
Braineack is offline   Reply With Quote
Old 07-08-2014, 12:01 PM   #2592
Junior Member

Join Date: May 2014
Location: North St Paul, MN
Posts: 394
Total Cats: 23
Default

130 pages of awesomeness. Thank you Jeff for all the pictures and details. I was holding off on starting a build thread until my swap starts in September, but you have inspired me to start updating/OCD Jeffing other parts in my 91' while I wait. keep up with the updates, I love reading threads like to this keep myself from being productive at work.
ofspunk7 is offline   Reply With Quote
Old 07-08-2014, 12:37 PM   #2593
Senior Member
iTrader: (1)

revlimiter's Avatar

Join Date: Jan 2009
Location: ABQ, NM
Posts: 512
Total Cats: 86
Default

Did the tach ever work? Did you calibrate the tach needle after installing the faces or did you just pop it on there?

Usually, in almost every case, when someone reports a non-working gauge and they've changed the faces, the problem is the needle being pushed on roughly and the black center touching the face. The little gauge motor doesn't have much torque. Any touching on the face will make it not work.

If it's touching, you can take something like two paper clips and loop them around the needle itself. Slide them toward the black center and then pull the needle free. Then put it back on VERY GENTLY and verify that the tach works.
revlimiter is offline   Reply With Quote
Old 07-08-2014, 12:44 PM   #2594
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,902
Total Cats: 775
Default

Quote:
Originally Posted by ofspunk7 View Post
Jeffing other parts
EO2K is offline   Reply With Quote
Old 07-08-2014, 12:59 PM   #2595
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 929
Total Cats: 399
Default

Quote:
Originally Posted by Jeffbucc View Post
No disassemble!

FAB is offline   Reply With Quote
Old 07-08-2014, 03:29 PM   #2596
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by revlimiter View Post
Did the tach ever work? Did you calibrate the tach needle after installing the faces or did you just pop it on there?

Usually, in almost every case, when someone reports a non-working gauge and they've changed the faces, the problem is the needle being pushed on roughly and the black center touching the face. The little gauge motor doesn't have much torque. Any touching on the face will make it not work.

If it's touching, you can take something like two paper clips and loop them around the needle itself. Slide them toward the black center and then pull the needle free. Then put it back on VERY GENTLY and verify that the tach works.
I calibrated it yes. Still after calibrating that and fuel and coolant temp all 3 still aren't working. I'll have to check and see if it is rubbing behind the needle.

Glad you have gotten a kick out of the thread 0spunk7, was the mission of the thread after all. As I've said before, if I can do this, anyone can. It may take longer but just gotta do your research and be humble enough to ask stupid questions.
Jeffbucc is offline   Reply With Quote
Old 07-09-2014, 12:36 AM   #2597
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Hmm can't seem to find the damn cover! Use this as an excuse to get a NACA duct on the drivers side and a replacement on the passenger side?

I see carbonmiata(I'd just get the fiberglass ones from them, less $$) has a decent deal on dual NACA ducts. Pointless to have on the passenger side I'm guessing?
Jeffbucc is offline   Reply With Quote
Old 07-09-2014, 01:17 AM   #2598
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,902
Total Cats: 775
Default

Pointless. Only on the drivers side, and then only if its ducted into a sealed airbox that feeds cool air into the air filter and engine.

Sticking it on the passenger side allows pressureized air into the engine compartment that does not come through the radiator/intercooler. This makes kittens cry.
EO2K is offline   Reply With Quote
Old 07-10-2014, 07:06 AM   #2599
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Drove the car up to Cedar City this morning for work and was early so I went for a drive up the canyon. Didn't push it to hard since it had rained earlier and didn't want a reenactment of what started all this.

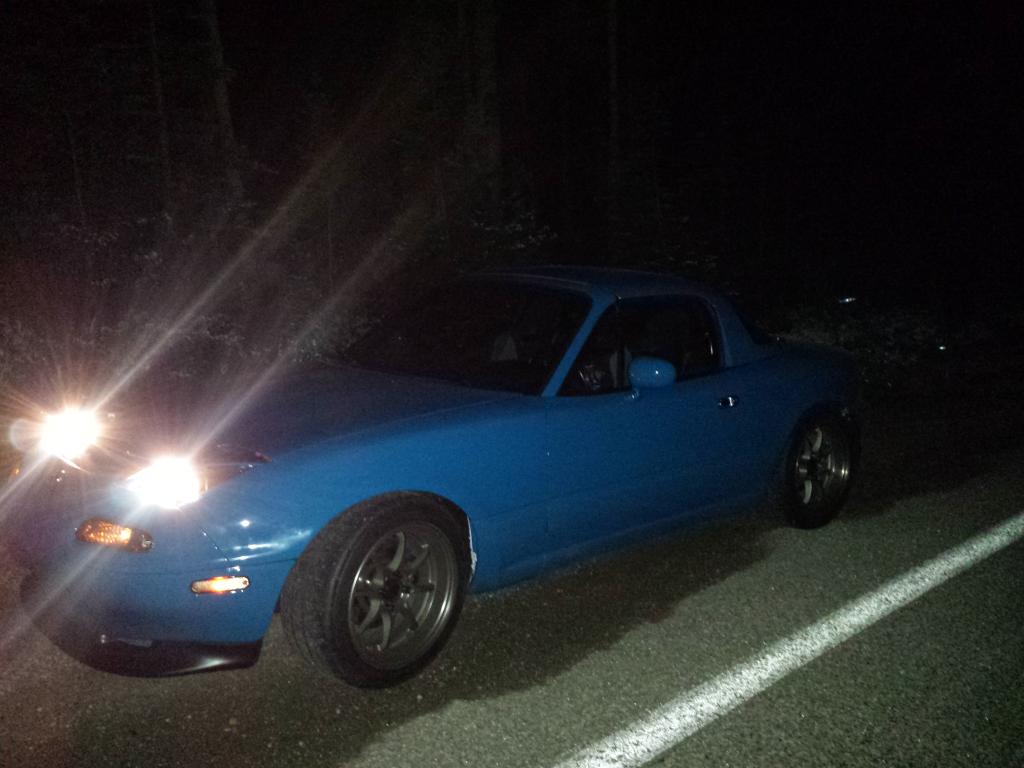

Took the picture right where the car was found on its roof. Kinda full circle.

Saying that I took it easy wasn't completely true though. Car handles great through the canyon sweepers and besides needing to lower the VE table a little under high boost(10-11 AFR) it pulls like a monster. I know I know video stat, my go pro doesn't like low light.

Attached Thumbnails
93' Miata stolen and flipped build thread-img_20140710_033352.jpg
Jeffbucc is offline   Reply With Quote
Old 07-10-2014, 11:22 AM   #2600
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,138
Total Cats: 70
Default

ScottyP3821 is offline   Reply With Quote
