Old 09-16-2014, 06:38 AM   #2901
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 41
Default

Quote:
Originally Posted by Jeffbucc View Post
I haven't bought a pyrometer yet but I have been playing with tire pressure after every single heat. Took 2 seconds off my time with 38 in the rear and 36 in the front after being around 30-32.

You do bring up a very valid point on going to them too early. I just wish I could utilize the cars potential more, but seem to be hitting a wall when it comes to applying said potential. I realize that 300hp @2300lbs is too much for autocross on Rivals but we'll see with some more seat time.

On the alignment note, this is the second time my steering wheel was knocked off center after an autocross. Is this a normal thing that happens to a lot of people or is the alignment shop just not torquing the alignment bolts enough?

Talking to most of the Miata guys at the event, almost every single one of them was running RS3s and were all giving me looks like, "why are you using Rivals?"
The alignment bolts did change after the first few years of the MK1 to a finer (IIRC) thread as alignment slippage was an issue.

if the bolts are original, it could be worth changing them to new ones.
richyvrlimited is offline   Reply With Quote
Old 09-16-2014, 09:01 AM   #2902
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,821
Total Cats: 555
Default

The new style bolts have a green-blue finish if they are oem. Worth it.
hornetball is offline   Reply With Quote
Old 09-16-2014, 01:21 PM   #2903
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,882
Total Cats: 774
Default

Yeah, I came here to say alignment bolts. Apparently they stretch or something with reuse and should be replaced with some frequency.

One of the becauseracecar guys once told me that after I get the car alignment where I wanted it, take a breaker bar and tighten them bitches like there is no tomorrow... and then order another set for the next time you do your alignment.
EO2K is online now   Reply With Quote
Old 09-16-2014, 01:40 PM   #2904
Senior Member
iTrader: (1)

revlimiter's Avatar

Join Date: Jan 2009
Location: ABQ, NM
Posts: 512
Total Cats: 86
Default

+1 on the "you'll never have enough grip" thing. Because you won't. Show me a 100 HP E-stock Miata and I'll show you a driver that wants more grip.

Your video looked pretty good. Very smooth.
revlimiter is offline   Reply With Quote
Old 09-16-2014, 02:19 PM   #2905
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,083
Total Cats: 424
Default

What size was the tire/wheel package of the RS3 car you drove? It would make sense to have more feedback and a more progressive grip loss if they're 225s on 9s instead of your 225s on 8s. I certainly noticed a (negative) difference switching to 8s.

Need to watch the video still.

Seems these days most people are going to the Rivals, never heard that they're not as good as the RS3s.
turbofan is online now   Reply With Quote
Old 09-16-2014, 02:31 PM   #2906
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,275
Total Cats: 122
Default

I have heard that for autocrosd rs3's are better because they have more peak grip. Most people I have talked to like rivals on the road course becaise they handle heavy braking zones much better and are more predictable at the limit.
Ryan_G is offline   Reply With Quote
Old 09-16-2014, 03:02 PM   #2907
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,083
Total Cats: 424
Default

Interesting. Thanks for sharing, hadn't heard that. I had planned to go to Rivals for my next tire, what you said makes me even more prone to go that way -- we all know I could use more control

carry on
turbofan is online now   Reply With Quote
Old 09-16-2014, 11:39 PM   #2908
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

New radiator ducting is gonna begin tomorrow. Finally got the call that they expect the 48x96 sheet in tomorrow.

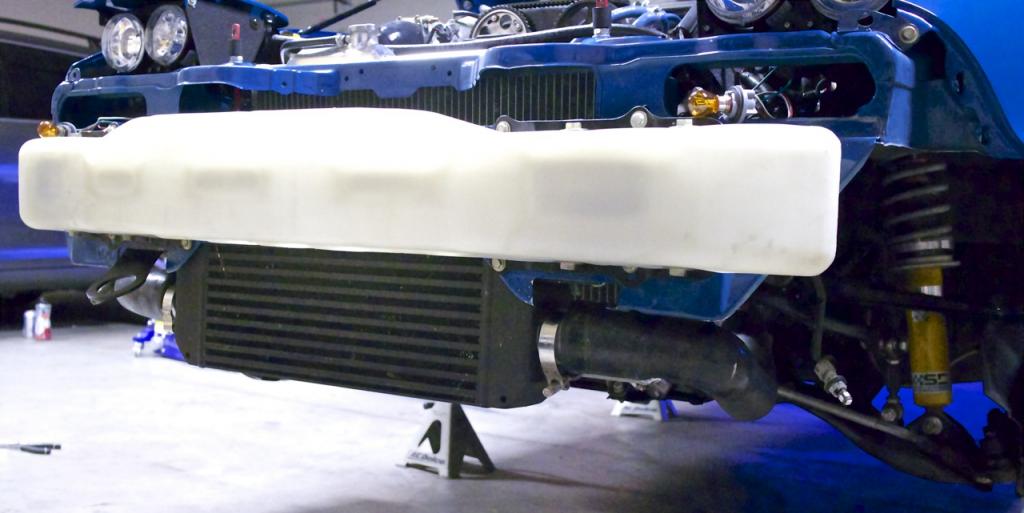

Bumper off and old undertray taken off. Lots of cardboard templates made.

Question on the front bumper bar. Is it needed to keep the bumper shape properly? Reason I ask is that I want to do a curved ABS panel that goes from the top of the radiator down to the bumper opening, and it is painfully in the way. Trying to get the air to run smoothly into the radiator. In my head, all the dead space above the radiator opening doesn't give an efficient flow, so I'm trying to encourage it with the cowling to go exactly where I want it to.

Attached Thumbnails
93' Miata stolen and flipped build thread-img_2841.jpg
Jeffbucc is offline   Reply With Quote
Old 09-17-2014, 01:05 AM   #2909
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,882
Total Cats: 774
Default

I don't think it does. There are a bunch of people who have installed RX7 oil coolers in place of the big plastic bumper thing with no ill effects. I believe Savington did this on Theseus. Of course, just don't hit anything.

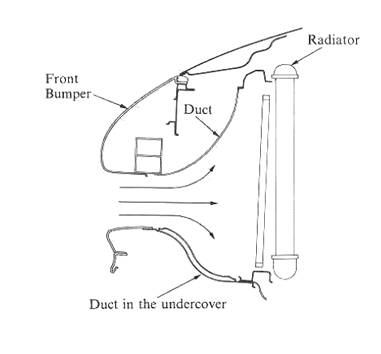

You are talking about this, right?

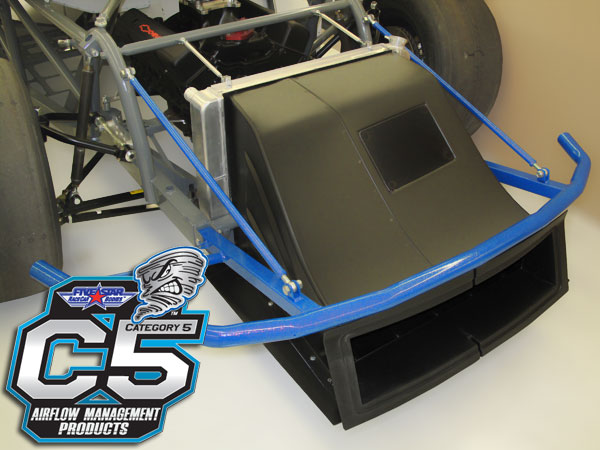

The first time I saw something like this was on a Winston Cup Car about 15 years ago, and I'd always wanted to try it back with I had my 95 NA.

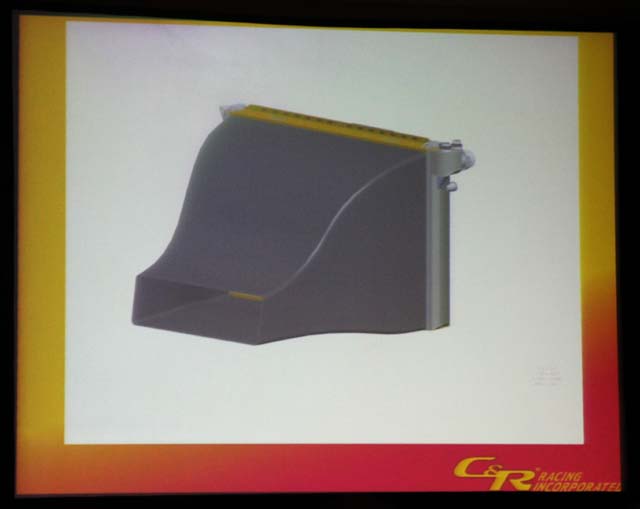

I always thought if someone built something like this, it would be pretty cool to share the templates.

Maximum Boost has some numbers in it regarding angles and surface opening areas compared to core size, and I know there are "optimal" angles and radii that should not to be exceeded lest the air separate from the surface and tumble, but its beyond my knowledge base. Fluid dynamics y0
Attached Thumbnails
93' Miata stolen and flipped build thread-front_rad_ducting.gif   93' Miata stolen and flipped build thread-000-408.jpg   93' Miata stolen and flipped build thread-chris-paulson-aetc-02.jpg
EO2K is online now   Reply With Quote
Old 09-17-2014, 01:47 AM   #2910
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Yes to everything you posted. That is exactly what I'm doing. It will be a very gentle bend. Should not be enough to create an air turbulence pocket or "eddy" if using a river as an example. I'll definitely use some string and a go pro to see if I avoided that.

The whole reason I started getting more serious about this, or at least a partial reason, is Revlimiter approached me about trading products. I can't do the magic he does, and he doesn't want to bother with this(I'm sure he is more than capable).

So I'm making 2. His setup is close enough to mine that it should work great. Just in case we've taken some measurements.

I bought an 18" metal bending brake so I wouldn't have to score lines(to encourage a straight bend) in the plastic and potentially cause a weak point to crack over time. It's going to run all the way back to the rear of the front subframe. A couple 90 bends at the frame rails(in the wheel arches for engine bay sealing) for rigidity, and have tabs to mount the cowling to the radiator fan mounts to ensure a good seal.

Sounds really complicated, but once you look at it long enough, it isn't so bad. I'll be sure to take measurements for anyone who wants to make something similar. My price went down on plastic too. $62 including tax for a 48"x96" sheet!
Jeffbucc is offline   Reply With Quote
Old 09-17-2014, 02:20 AM   #2911
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

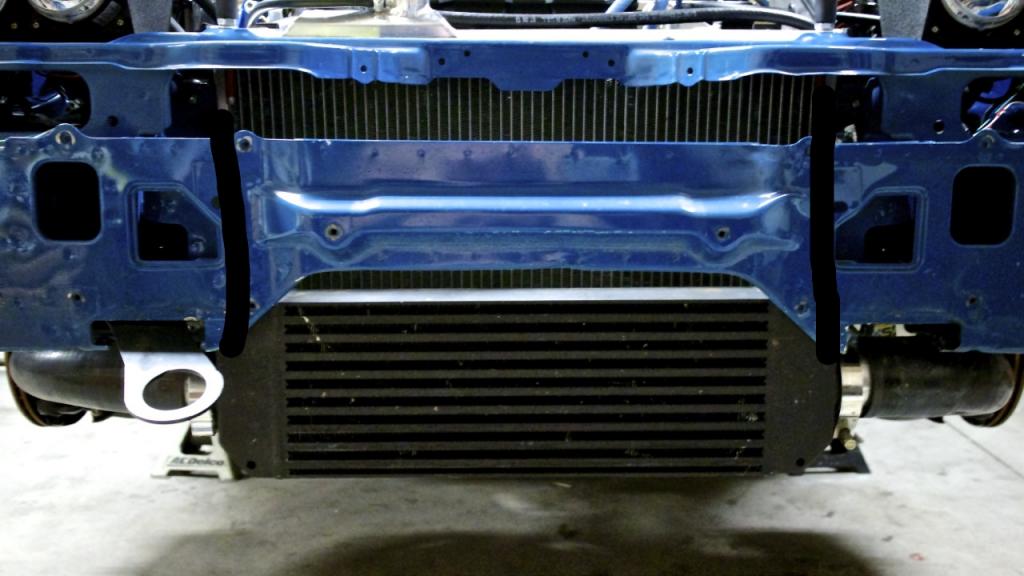

Also, I want to make 2 little cuts to make my life entirely easier with this....I wish! I actually need to look into this and how it affects rigidity. Maybe cut it and weld in a piece of square steel that is much smaller?

Attached Thumbnails
93' Miata stolen and flipped build thread-f7fb2150-462f-49e5-92ad-73f9de91b6df.jpg
Jeffbucc is offline   Reply With Quote
Old 09-17-2014, 02:41 AM   #2912
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,882
Total Cats: 774
Default


Flyin' Miata : Engine conversions : V8 conversions : V8 CAI brace

Quote:
Originally Posted by Flyin' Miata
V8 CAI brace

We are currently using stock LS7 intakes on our conversions. This gives very cold air intake temperatures, but requires a bit of surgery. On the 1999-05 NB models, the bumper support needs to be cut away. This brace welds in to place to replace the missing portion. It includes threaded holes for the airbag sensor as well as for the power steering cooler mounts. Mild steel construction, made of hefty 4mm thick metal.

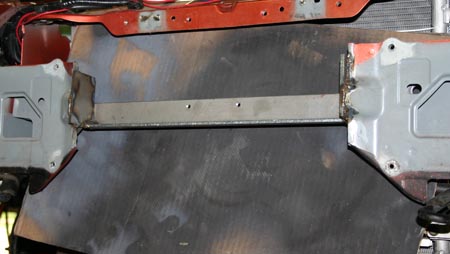

One of the prototypes in place. This particular unit is missing the power steering cooler mounting points and does not have the correct profile on the vertical sides.
I say got for it
Attached Thumbnails
93' Miata stolen and flipped build thread-26-05070a.jpg
EO2K is online now   Reply With Quote
Old 09-17-2014, 02:48 AM   #2913
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Money! Gracias good sir. I also read DOM tubing is very strong as well. My fingers are getting itchy to grab my angle grinder and zip it off real quick. After looking at several threads and ThePass's car, it is nuts how much airflow it opens up to your upper radiator.

Is it necessary? No. To those who may comment on it being unnecessary for proper cooling, you are correct. Does it make things easier in the end for a good ducting solution? Hell yes.
Jeffbucc is offline   Reply With Quote
Old 09-17-2014, 10:09 AM   #2914
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,703
Total Cats: 472
Default

Might wanna ask Rev if he's willing to do the same to his car though.

But no, it's not necessary to cut that out for proper ducting. And no, you cannot leave it out, something needs to be welded in. Hopefully something prettier than the above picture of the angle iron.

I've found the plastic very difficult to deal with, I've used leather for years now, works great.
curly is offline   Reply With Quote
Old 09-17-2014, 01:01 PM   #2915
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,882
Total Cats: 774
Default

The FM part far nicer that just a chunk of "angle iron." It looks like a piece of 1/4" steel that has been cut with a laser or waterjet and then folded into shape. I got to fondle the one in Gesso's garage a couple weekends ago.

But to the point, yes I'm sure one could DIY one with some ease.
EO2K is online now   Reply With Quote
Old 09-17-2014, 04:34 PM   #2916
Senior Member
iTrader: (4)

Join Date: Jul 2006
Location: Shelton, CT
Posts: 672
Total Cats: 2
Default

Quote:
Originally Posted by Ryan_G View Post
I second that Hoosier's sounds like a terrible idea. From what I understand when they let go they just let go. There is no warning. You will be traveling very fast and then have no grip. You may end up putting that beautiful car into a wall. Stick with high performance street tires for a while.
Never noticed that with Hoosiers. I ran A6s for five years at our local with my Miata. The grip was always very predictable overall. It really depends on if you have them heated up though. If they are cold then you'll get loose quickly, because it's basically just a slick with some nice light grooves down the middle, but then again some of the slicker street tires like the RS-3 like heat as well and tend to be less progressive when cold.

Once you get heat in the A6 you find that you have a lot more grip than you think you do and it's overall very predictable and easy to drive on. I always found it a challenge to use all the grip most of the time.

That said, I tend to agree with the people who say to learn how to drive with less traction rather than more, but at the same time he has set his car up with a ton of horsepower (300hp?), so the car is very under-tired when autocrossing even with Rivals or RS-3s. If anything it's kind of a waste to drive such a car at autocross without the right suspension setup and tires to match, because you're just gonna be babying it all the time.

The car should have a very stiff spring setup and run at least 15x9s with 245 Hoosiers, better to run 275s on 10s if possible to make the most of it. You should be able to do Rivals and RS-3s if you really take it easy on the throttle and as long as you go for a much larger wheel and tire size (15x9s with at least 225s or better).

Again though, this isn't really the car or setup to learn how to autocross on, but what else has he got?

Maybe do a two day Evo school on the r-comps to really get your driving skills tuned up?

Last edited by Harv; 09-17-2014 at 05:11 PM.
Harv is offline   Reply With Quote
Old 09-17-2014, 04:48 PM   #2917
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 929
Total Cats: 399
Default

Quote:
Originally Posted by Jeffbucc View Post
Question on the front bumper bar. Is it needed to keep the bumper shape properly?
I've seen a number of NA's suffer from a warped bumper after some time in the heat without this support or the foam piece that can be found in others.

Local guy took his out and within a relatively short period of time two dips could be seen right in the middle near the hood seam. Granted, this was on a black car but still it did seem to have some effect on retaining the shape. Could have been unrelated but it certainly seemed to be connected to the removal of that support.
FAB is online now   Reply With Quote
Old 09-17-2014, 04:51 PM   #2918
Senior Member
iTrader: (1)

revlimiter's Avatar

Join Date: Jan 2009
Location: ABQ, NM
Posts: 512
Total Cats: 86
Default

Quote:
Originally Posted by Jeffbucc View Post

The whole reason I started getting more serious about this, or at least a partial reason, is Revlimiter approached me about trading products. I can't do the magic he does, and he doesn't want to bother with this(I'm sure he is more than capable).

So I'm making 2. His setup is close enough to mine that it should work great.


Because excited.

And don't sell yourself short, Jeff. Your car is a testament to your own magic. It's considerably strong.
Attached Thumbnails
93' Miata stolen and flipped build thread-96781-anna-excited-gif-imgur-frozen-j9hv.gif
revlimiter is offline   Reply With Quote
Old 09-17-2014, 05:41 PM   #2919
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 2,873
Total Cats: -6
Default

Quote:
Originally Posted by Harv View Post
The car should have a very stiff spring setup and run at least 15x9s with 245 Hoosiers, better to run 275s on 10s if possible to make the most of it. You should be able to do Rivals and RS-3s if you really take it easy on the throttle and as long as you go for a much larger wheel and tire size (15x9s with at least 225s or better).

Again though, this isn't really the car or setup to learn how to autocross on, but what else has he got?

Maybe do a two day Evo school on the r-comps to really get your driving skills tuned up?
If this a street car that he's doing some auto cross for fun in, I'd say putting super stiff springs on and getting 275 Hoosiers is a terrible idea. It's a street car.

Too many people jump to R-compounds too early, and then they handicap themselves and learn all sorts of bad habits all while blowing $$$$ on tires.

If you're not autocrossing, TT'ing, or racing for trophies, contingencies and money, you're wasting your hard earned money on R-compounds.

Jeff...if you're just doing the auto crosses for fun and to start learning "high performance driving" stick with street tires.

If you want to get serious about autocrossing (barf) or track days or TT or anything then I'm sorry but you built the wrong car. That's why you see so many people switching to the "super Miata" formula when they get serious about track time or TT or racing.
Efini~FC3S is offline   Reply With Quote
Old 09-17-2014, 07:18 PM   #2920
Senior Member
iTrader: (4)

Join Date: Jul 2006
Location: Shelton, CT
Posts: 672
Total Cats: 2
Default

Quote:
Originally Posted by Efini~FC3S View Post
If this a street car that he's doing some auto cross for fun in, I'd say putting super stiff springs on and getting 275 Hoosiers is a terrible idea. It's a street car.

Too many people jump to R-compounds too early, and then they handicap themselves and learn all sorts of bad habits all while blowing $$$$ on tires.

If you're not autocrossing, TT'ing, or racing for trophies, contingencies and money, you're wasting your hard earned money on R-compounds.

Jeff...if you're just doing the auto crosses for fun and to start learning "high performance driving" stick with street tires.

If you want to get serious about autocrossing (barf) or track days or TT or anything then I'm sorry but you built the wrong car. That's why you see so many people switching to the "super Miata" formula when they get serious about track time or TT or racing.
Wasn't saying its a great idea, I'm just saying that is what you would have if you wanted to run r-comps at autocross with such a powerful light car and have the best handling, but yeah it makes it less of a fun street car for sure. Everything is a compromise depending on how seriously you want to play the various driving games out there.
Harv is offline   Reply With Quote
