Little more done today.

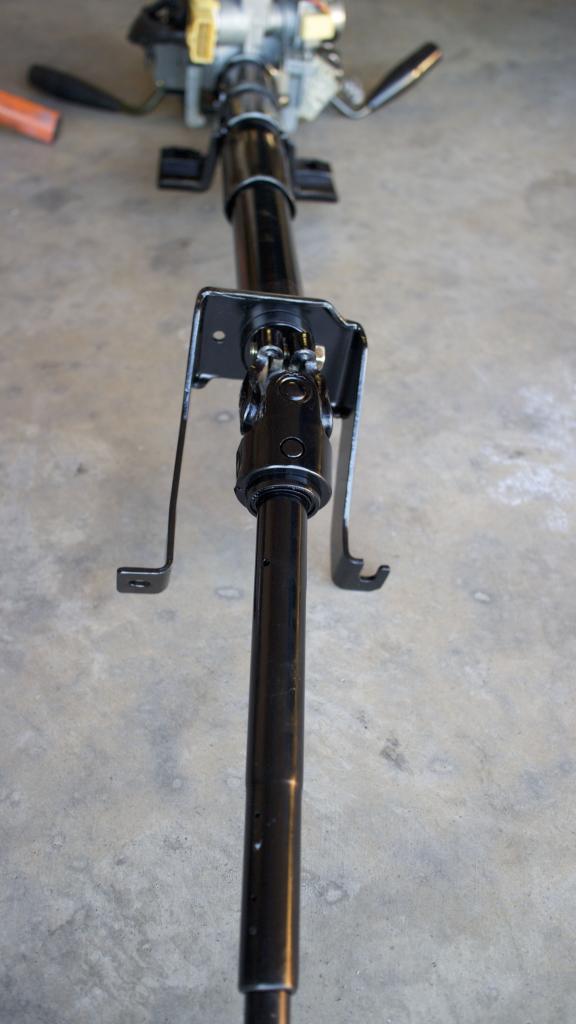

Assembled the steering rack after I stripped off all the rust and painted it a while back.

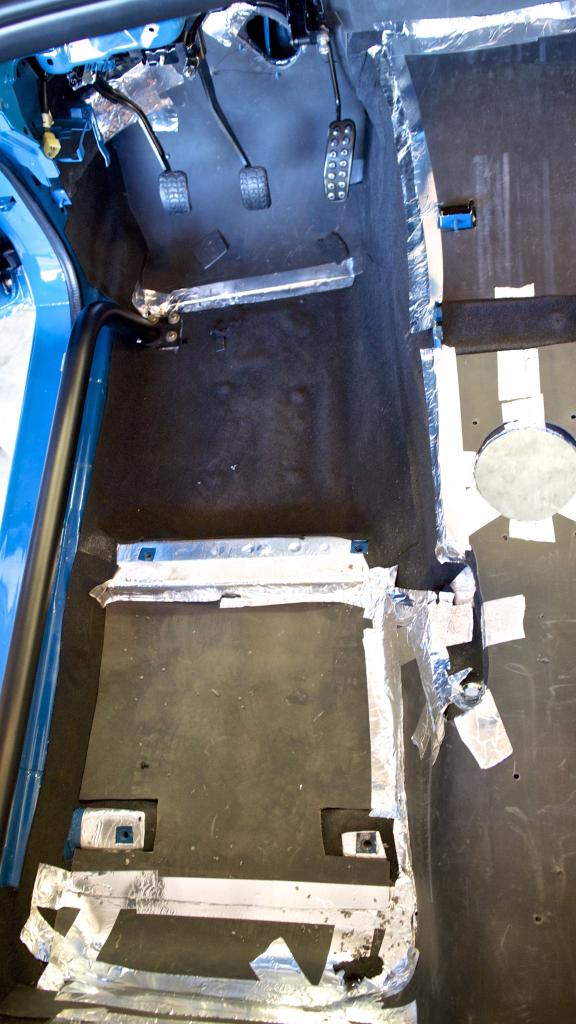

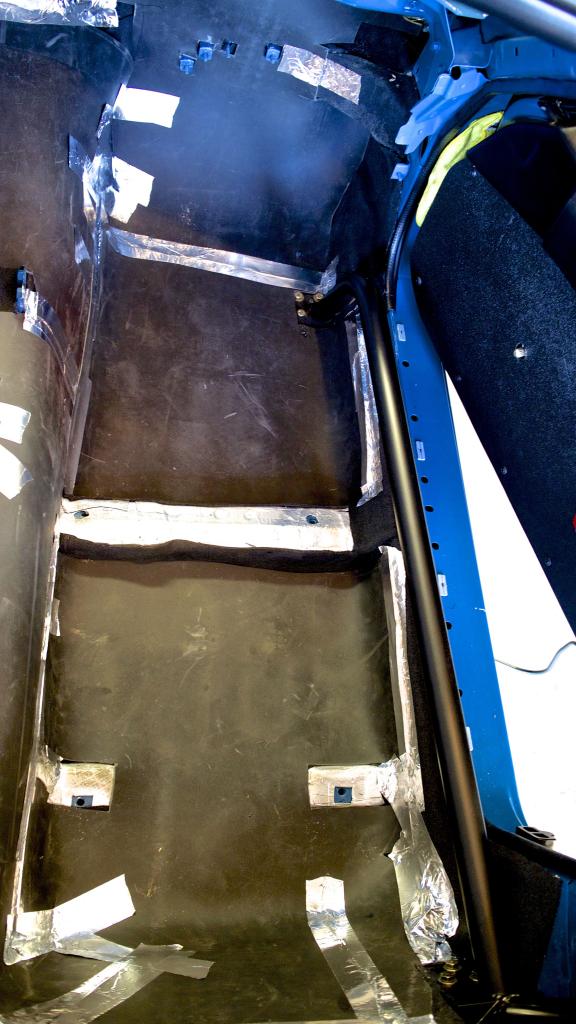

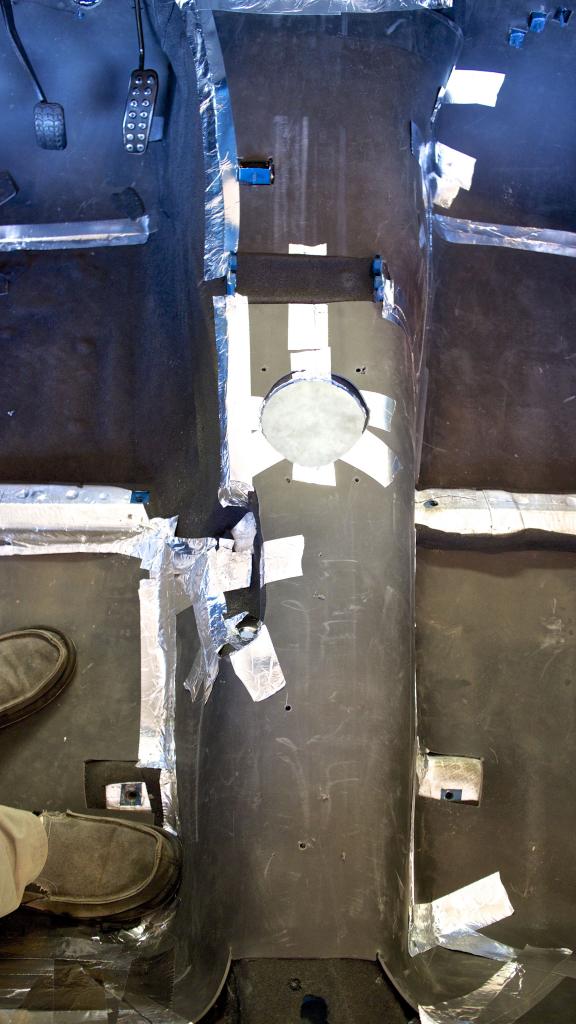

All the sound deadening is done!!!! Thank christ. Turned out really really good after I found out how MLV likes to bend and how it doesn't like to bend.

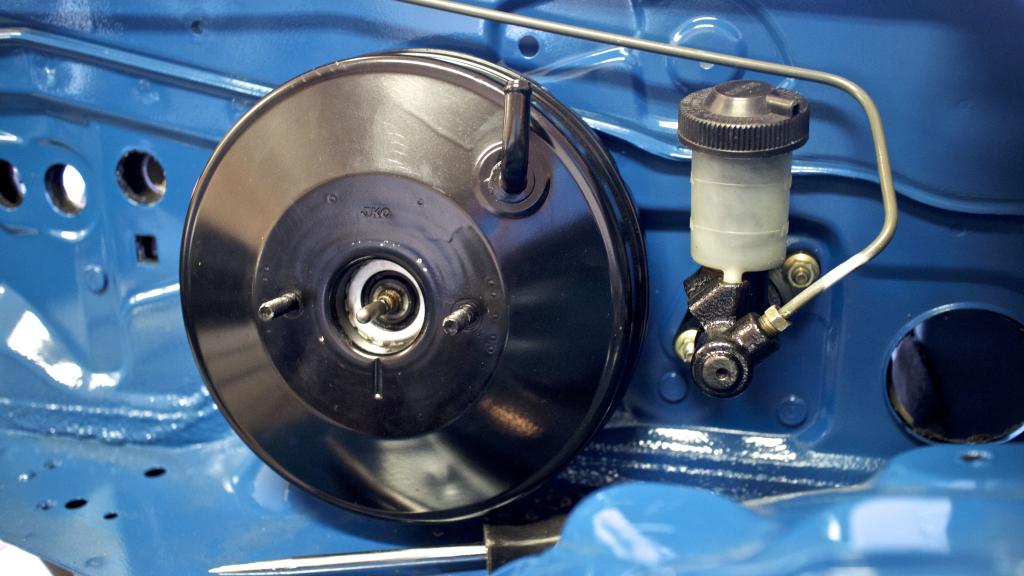

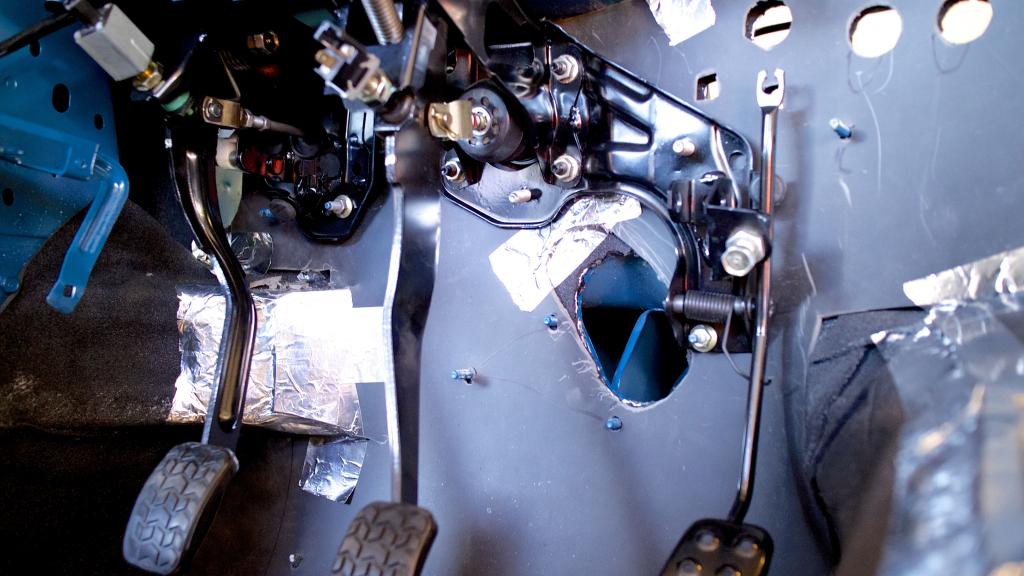

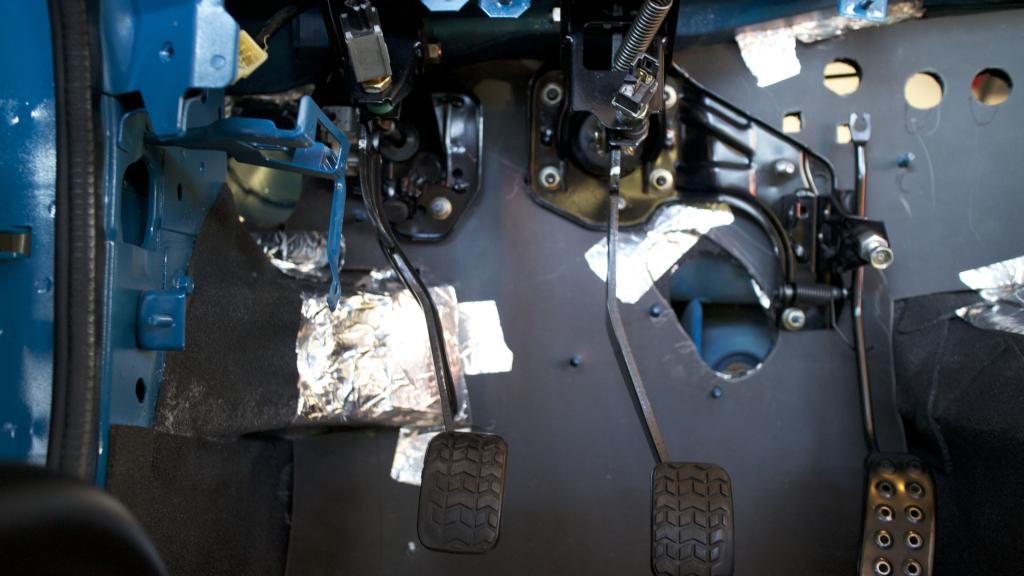

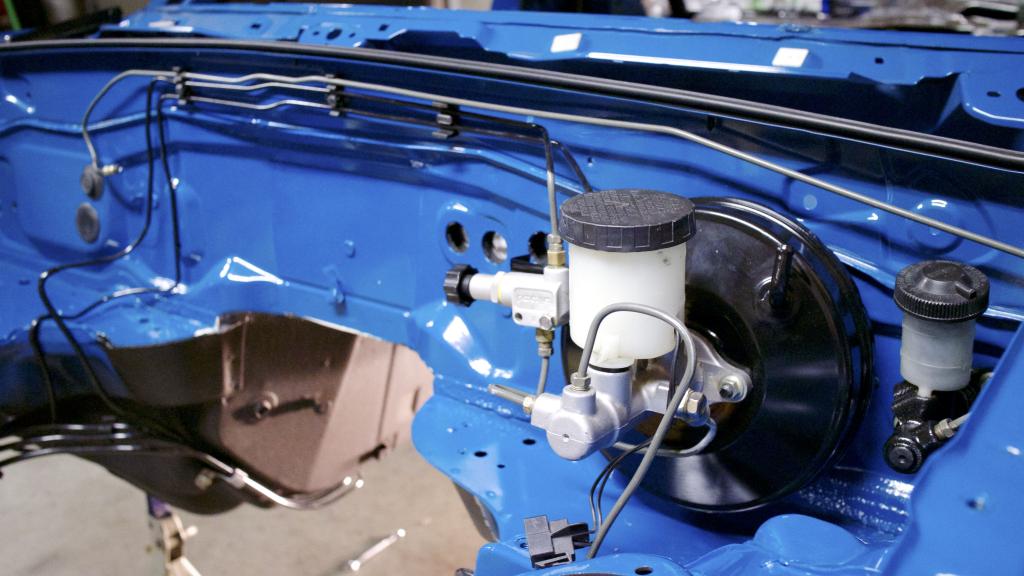

Brake, clutch, gas pedal installed and associated master cylinders







Waiting on a couple parts to dry from painting them before I can put the steering rack on and the hard lines.
Attached Thumbnails
93' Miata stolen and flipped build thread-img_1212.jpg   93' Miata stolen and flipped build thread-img_1216.jpg   93' Miata stolen and flipped build thread-img_1217.jpg   93' Miata stolen and flipped build thread-img_1218.jpg   93' Miata stolen and flipped build thread-img_1213.jpg

93' Miata stolen and flipped build thread-img_1214.jpg   93' Miata stolen and flipped build thread-img_1215.jpg
Jeffbucc is offline   Reply With Quote
Old 01-19-2014, 06:53 AM   #863
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Little bit more progress from last night.

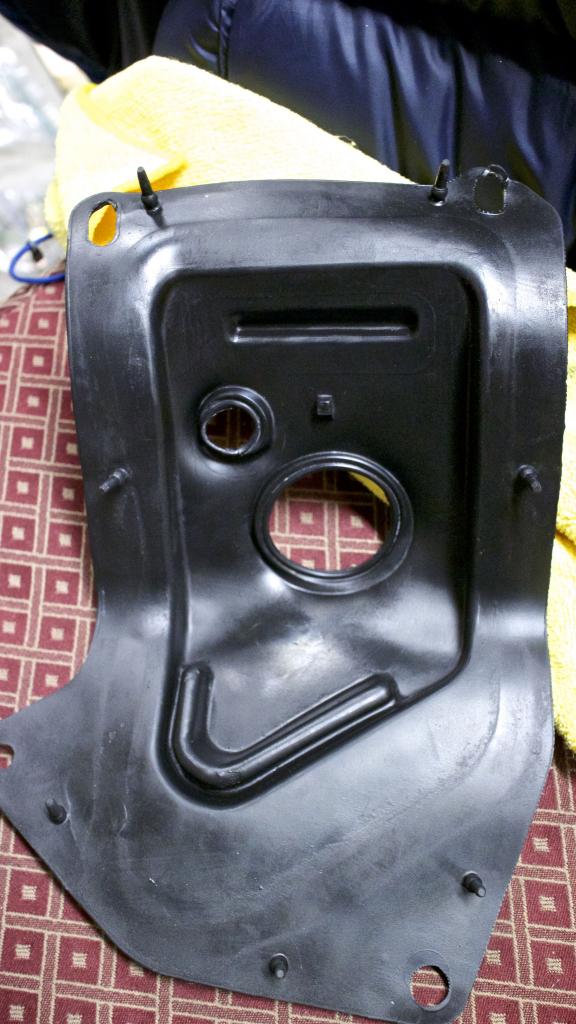

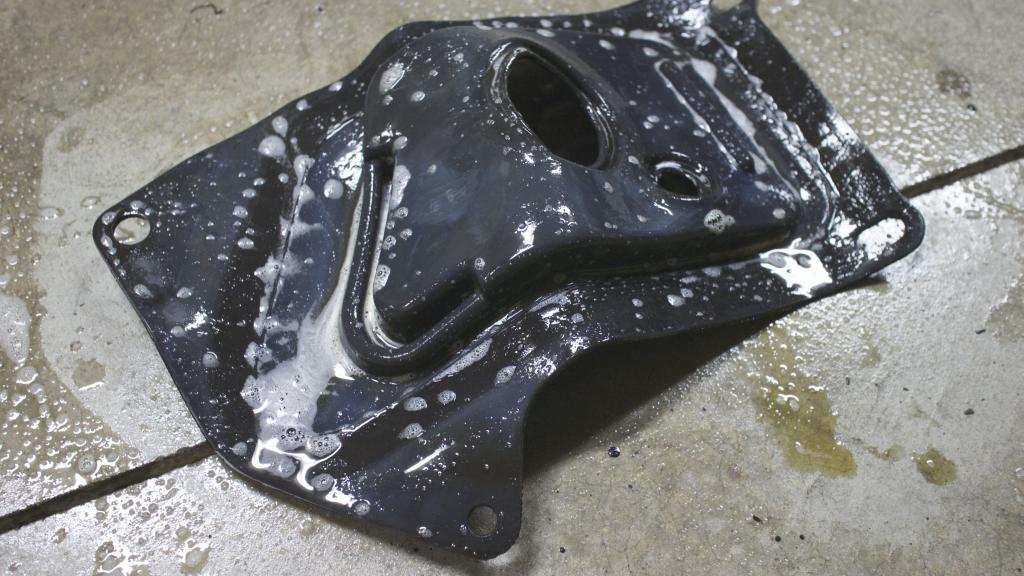

Cleaning the gasket for the gas tank....lots of degreaser and a plastic razor blade and Super VRT
-Before



-After

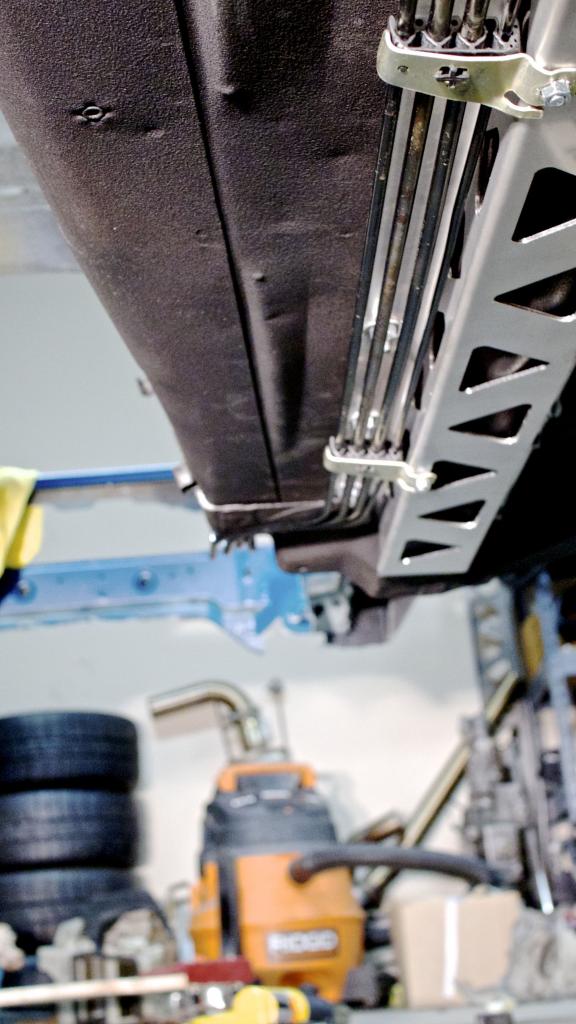

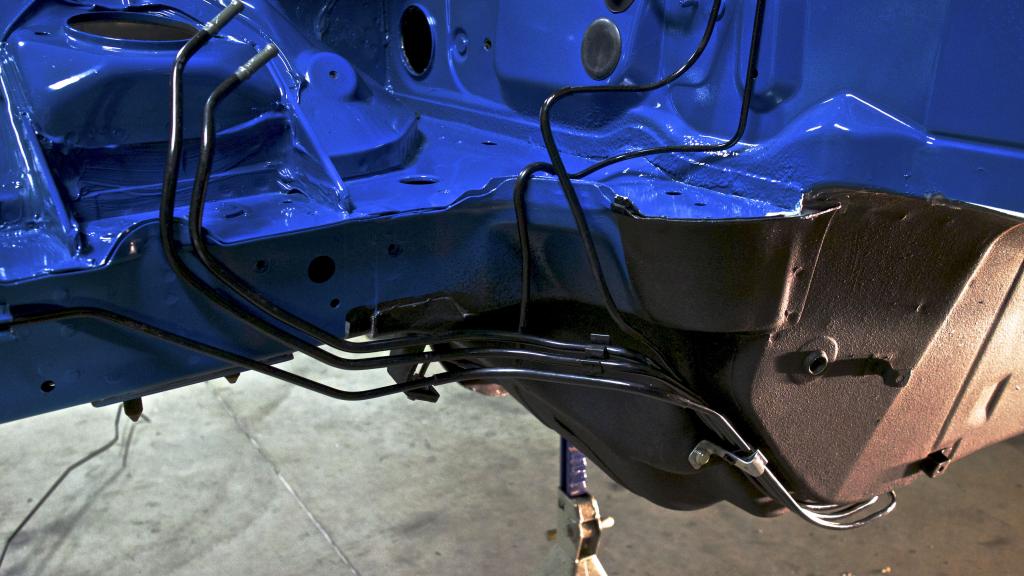

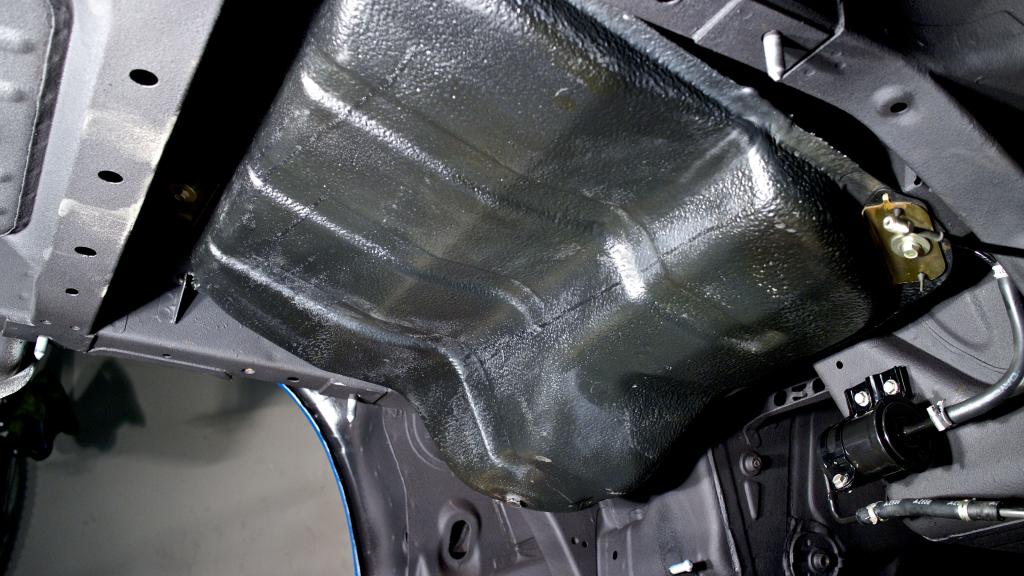

Hard lines mounted







Gas tank mounted

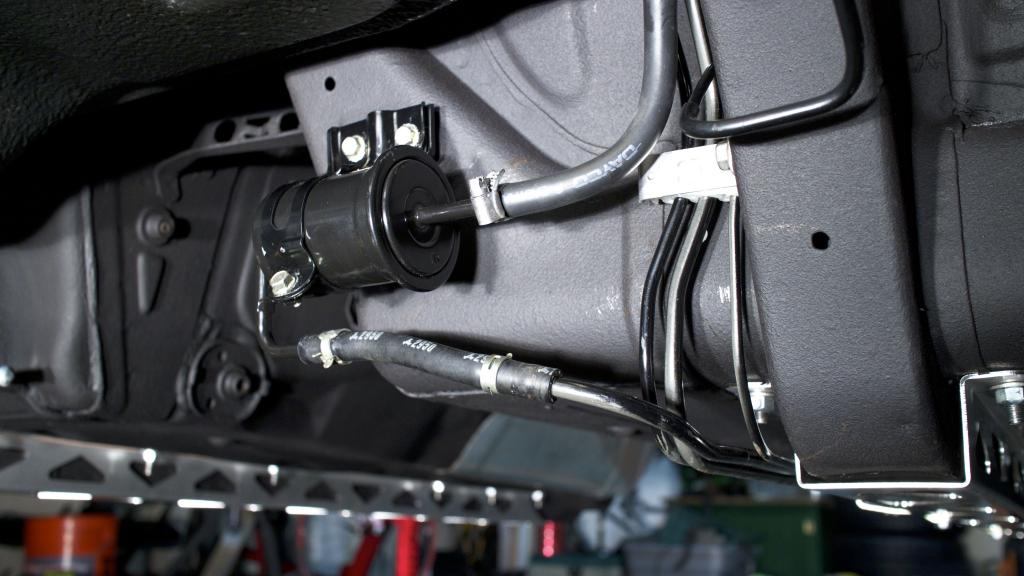

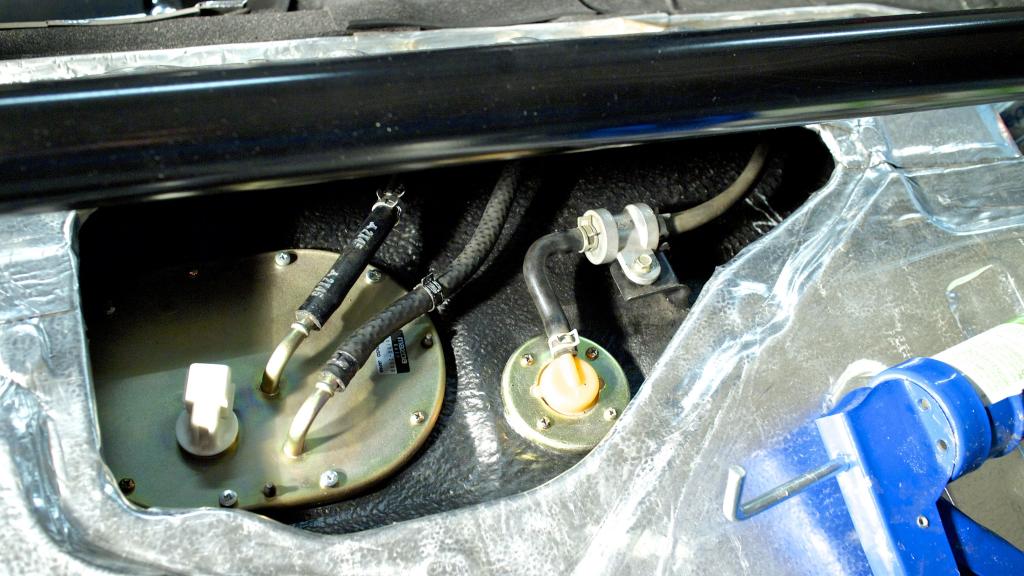

Gas tank hoses/fuel pump/fuel filter finished up

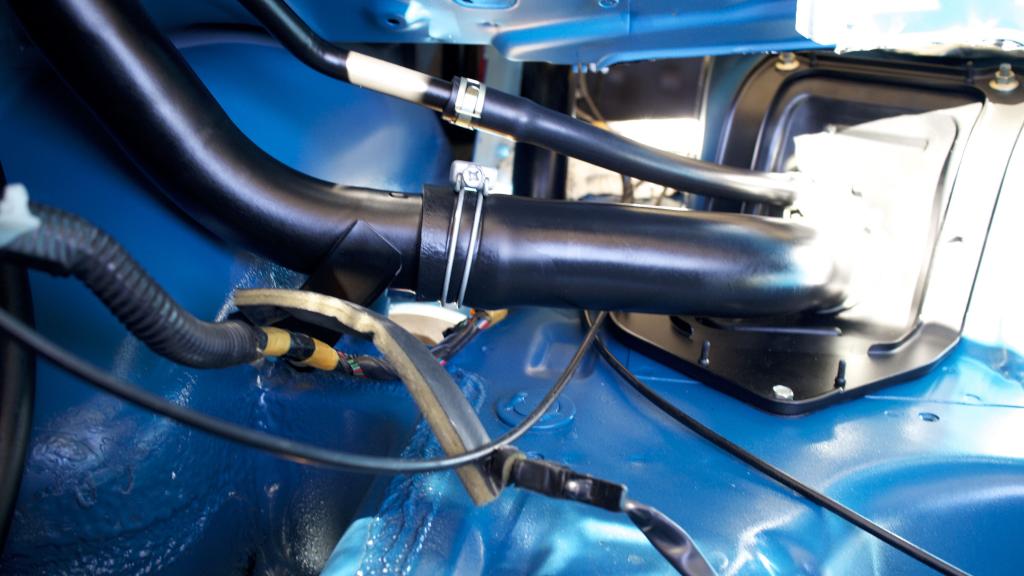

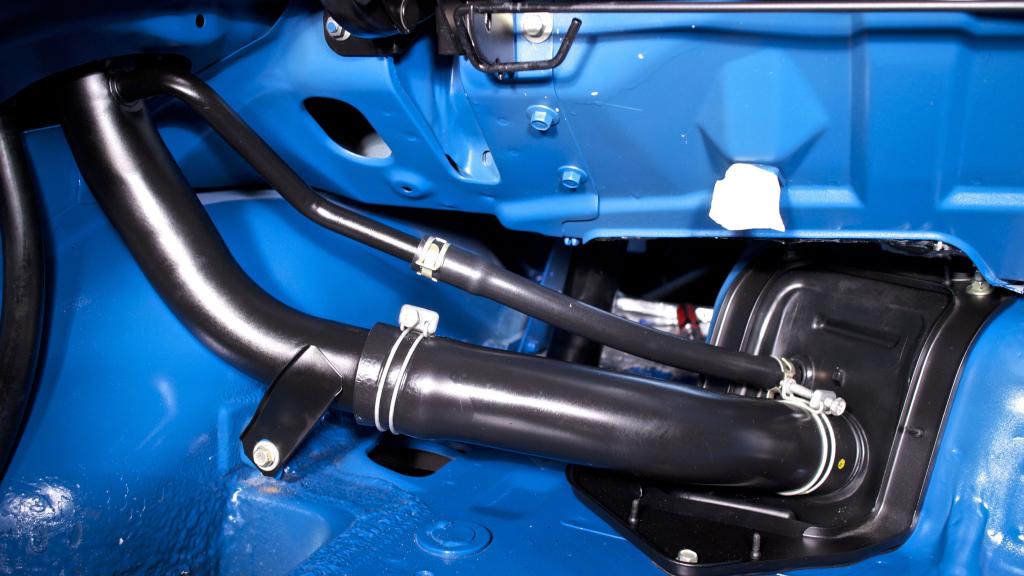

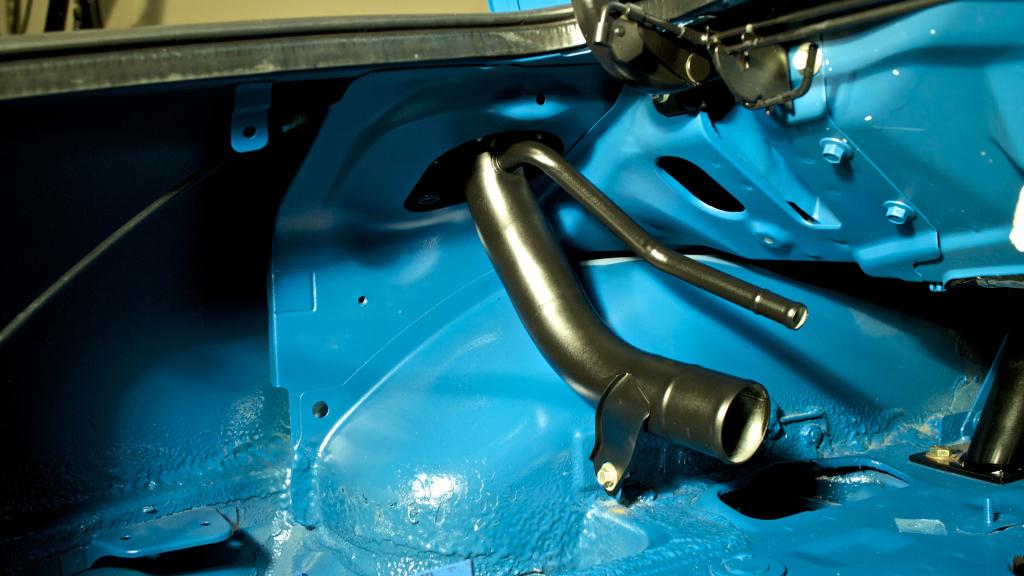

Filler tube/breather tube/vent tube installed





Not quite sure what to do next...maybe get some of the interior trim pieces put in, or the wiring harness, not sure.
Attached Thumbnails
93' Miata stolen and flipped build thread-img_1219.jpg   93' Miata stolen and flipped build thread-img_1227.jpg   93' Miata stolen and flipped build thread-img_1224.jpg   93' Miata stolen and flipped build thread-img_1225.jpg   93' Miata stolen and flipped build thread-img_1226.jpg

93' Miata stolen and flipped build thread-img_1221.jpg   93' Miata stolen and flipped build thread-img_1222.jpg   93' Miata stolen and flipped build thread-img_1230.jpg   93' Miata stolen and flipped build thread-img_1220.jpg   93' Miata stolen and flipped build thread-img_1229.jpg

Jeffbucc is offline   Reply With Quote
Old 01-19-2014, 08:27 AM   #864
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,485
Total Cats: 79
Default

Astonishing work, as usual... I would vote for the harness, as this should be easier
with the trim pieces of.
Zaphod is offline   Reply With Quote
Old 01-19-2014, 08:51 AM   #865
Senior Member
iTrader: (13)

Join Date: Jan 2007
Location: Murfreesboro,TN
Posts: 1,184
Total Cats: 36
Default

Inspiring work for sure. I wish I'd had the time and patience to do all this when I painted my car last year.
Midtenn is offline   Reply With Quote
Old 01-19-2014, 08:57 AM   #866
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

I would definitely get the harness out of the way first! It will motivate you even more to install the things that plug in at the other end
BTMiata is offline   Reply With Quote
Old 01-20-2014, 11:22 AM   #867
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 2,885
Total Cats: -11
Default

I must stop checking this thread
Efini~FC3S is offline   Reply With Quote
Old 01-20-2014, 11:30 AM   #868
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,673
Total Cats: 230
Default

Wow man, good show. As usual.
Fireindc is offline   Reply With Quote
Old 01-20-2014, 11:45 AM   #869
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,485
Total Cats: 79
Default

Quote:
Originally Posted by Efini~FC3S View Post
I must stop checking this thread
I am checking this bloody thread every hour or so, just to keep the little devil on my shoulder happy...
Zaphod is offline   Reply With Quote
Old 01-20-2014, 12:40 PM   #870
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,795
Total Cats: 2,116
Default

so how much did the sound deadening stuff cost total? just curious
18psi is offline   Reply With Quote
Old 01-20-2014, 01:06 PM   #871
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Quote:
Originally Posted by 18psi View Post
so how much did the sound deadening stuff cost total? just curious
About 250ish I believe. Give or take a little for the adhesive spray.
Jeffbucc is offline   Reply With Quote
Old 01-20-2014, 01:11 PM   #872
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,795
Total Cats: 2,116
Default

Not bad. Props to you, for a while I thought I had the quietest most rattle free miata on here but you beat me hands down.
18psi is offline   Reply With Quote
Old 01-20-2014, 02:10 PM   #873
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,845
Total Cats: 559
Default Hornetball's Sound Deadening Mod



I wanna' go fast! (Forgive me, just coming off a track weekend, adrenaline still there)
Attached Thumbnails
93' Miata stolen and flipped build thread-earplugs.jpg
hornetball is offline   Reply With Quote
Old 01-20-2014, 02:35 PM   #874
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

I do as well, but earplugs are uncomfortable after a while!

Vlad, only time will tell if my car is quieter than yours. We'll find out just how good of a job I did.
Jeffbucc is offline   Reply With Quote
Old 01-20-2014, 08:30 PM   #875
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Big update I'll break it up into parts

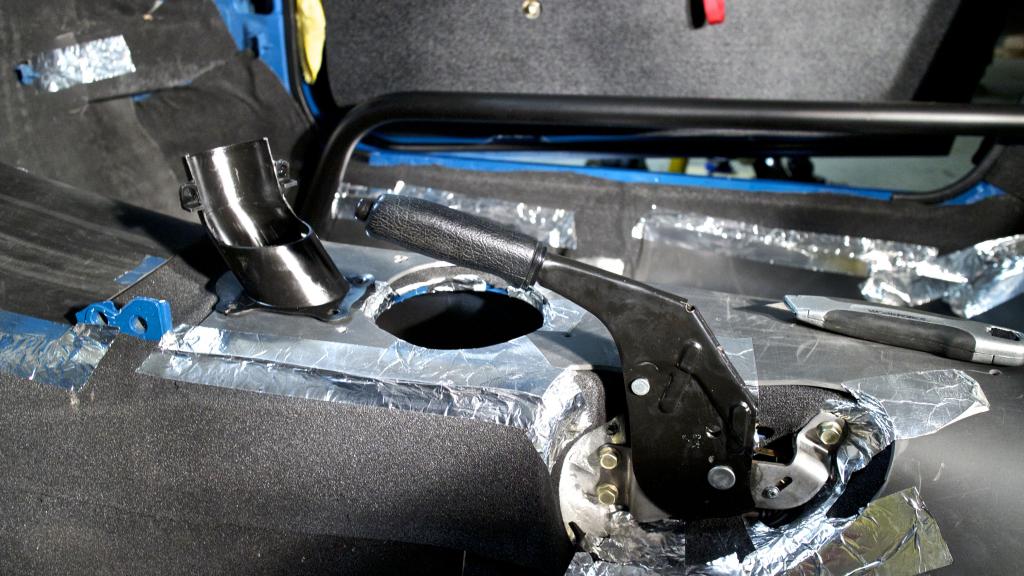

Emergency brake installed

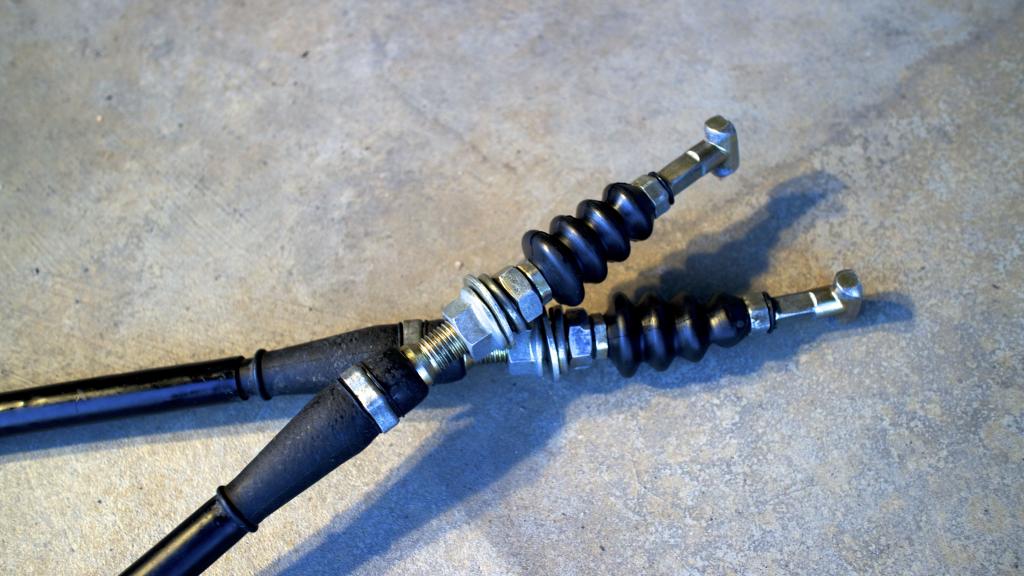

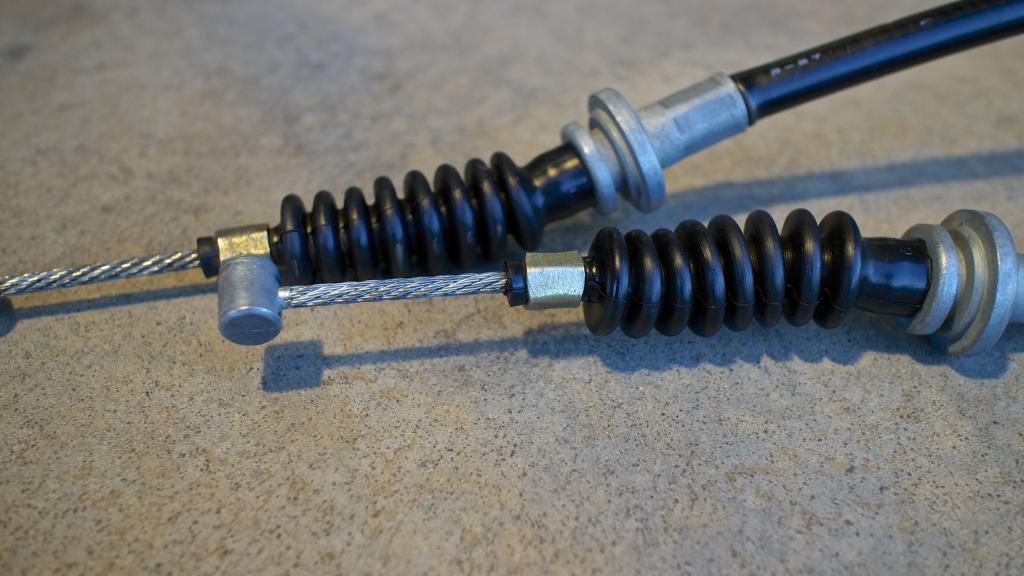

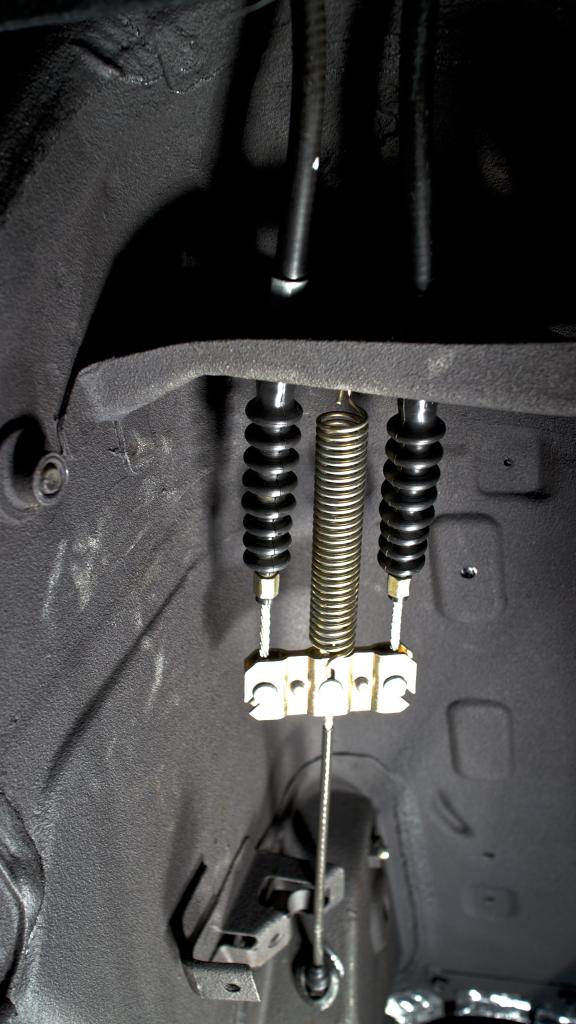

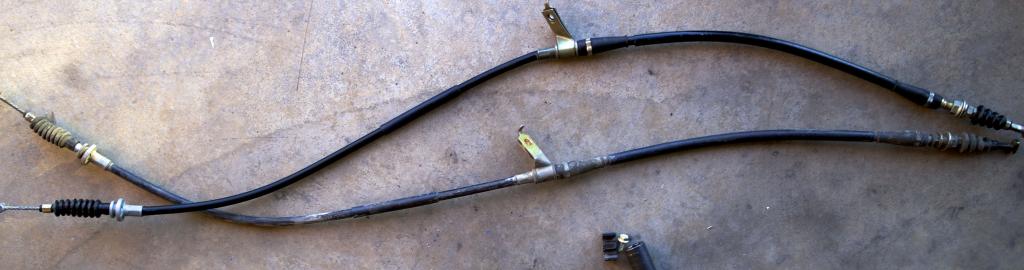

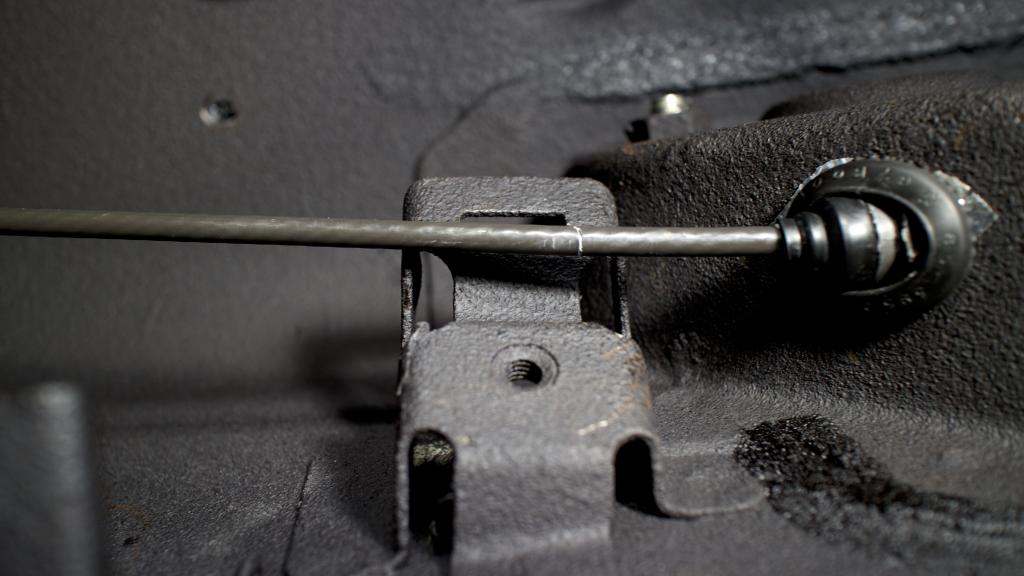

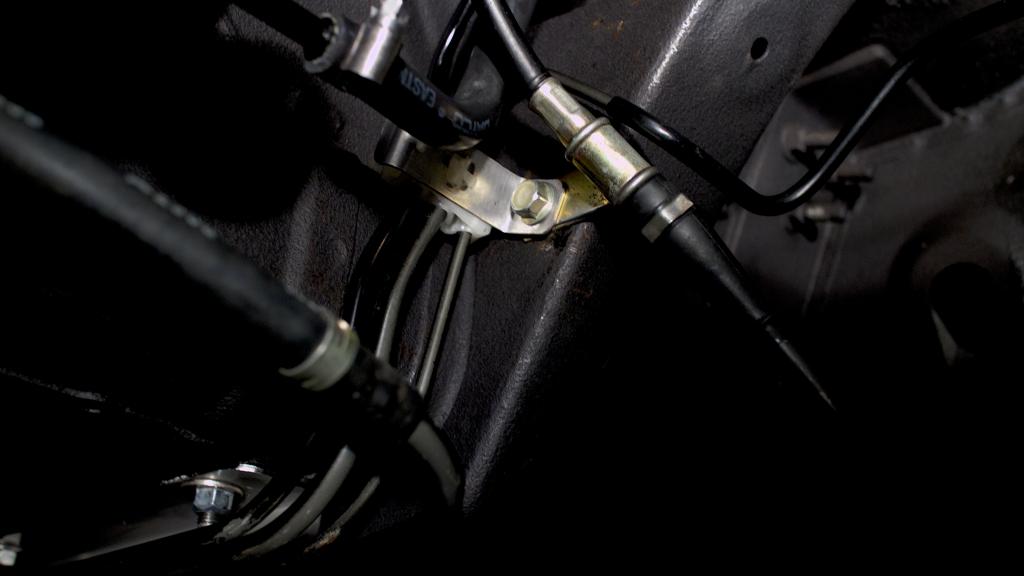

Deep cleaned the cables and protected them with Super VRT. Not sure if I routed the rear brake connections correctly but in my minds eye they work out ok. I put the spare or "slack line above the gas tank.

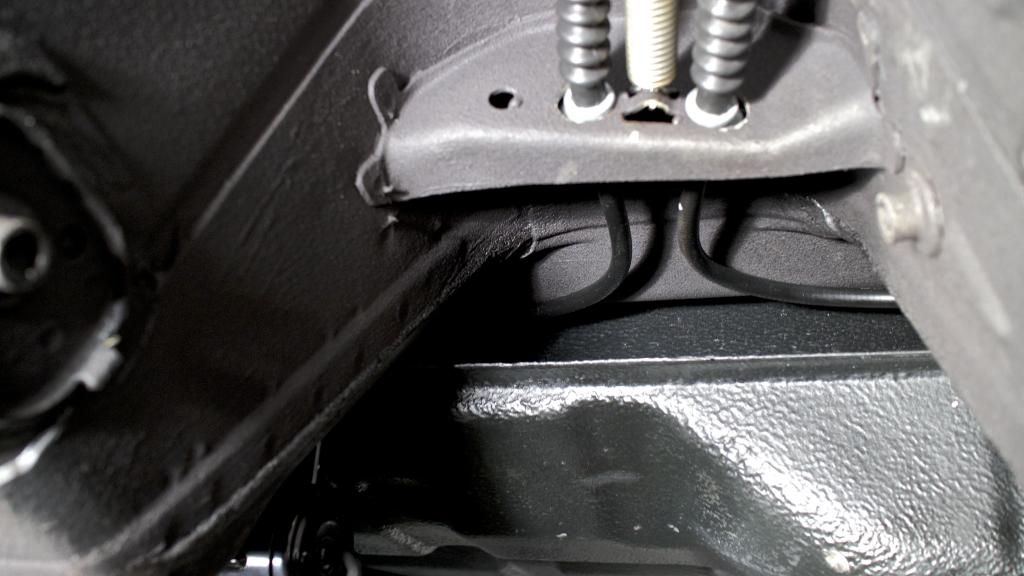

For the life of me I can't remember what bracket goes right here





Also cleaned up the "dust shield" for the steering rack

Attached Thumbnails
93' Miata stolen and flipped build thread-img_1233.jpg   93' Miata stolen and flipped build thread-img_1234.jpg   93' Miata stolen and flipped build thread-img_1235.jpg   93' Miata stolen and flipped build thread-img_1241.jpg   93' Miata stolen and flipped build thread-img_1246.jpg

93' Miata stolen and flipped build thread-img_1247.jpg   93' Miata stolen and flipped build thread-img_1251.jpg   93' Miata stolen and flipped build thread-img_1240.jpg   93' Miata stolen and flipped build thread-img_1238.jpg
Jeffbucc is offline   Reply With Quote
Old 01-20-2014, 08:30 PM   #876
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

double post
Attached Thumbnails
93' Miata stolen and flipped build thread-img_1233.jpg   93' Miata stolen and flipped build thread-img_1234.jpg   93' Miata stolen and flipped build thread-img_1235.jpg   93' Miata stolen and flipped build thread-img_1241.jpg   93' Miata stolen and flipped build thread-img_1246.jpg

93' Miata stolen and flipped build thread-img_1247.jpg   93' Miata stolen and flipped build thread-img_1251.jpg   93' Miata stolen and flipped build thread-img_1240.jpg   93' Miata stolen and flipped build thread-img_1238.jpg

Last edited by Jeffbucc; 01-20-2014 at 09:20 PM.
Jeffbucc is offline   Reply With Quote
Old 01-20-2014, 08:35 PM   #877
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

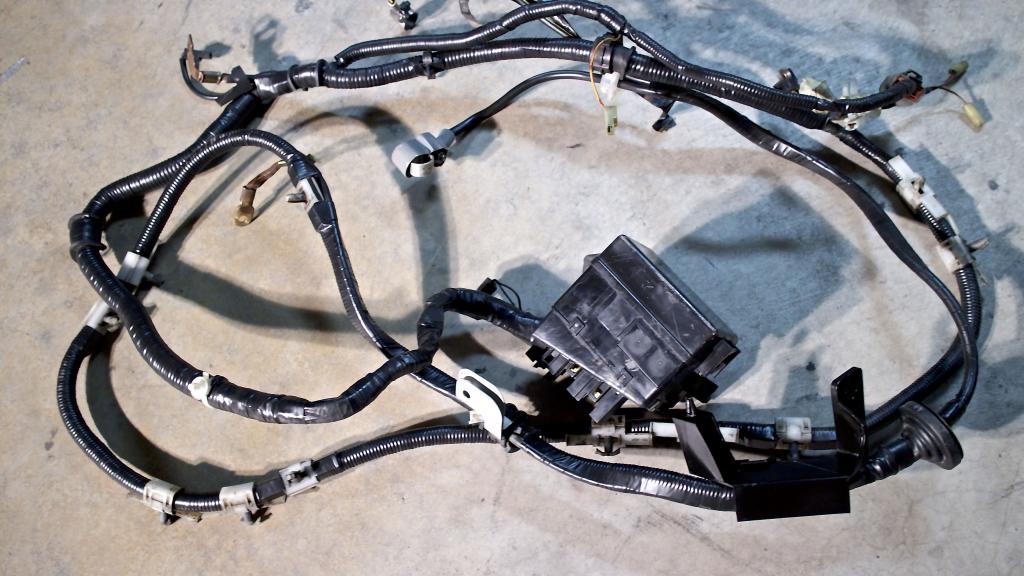

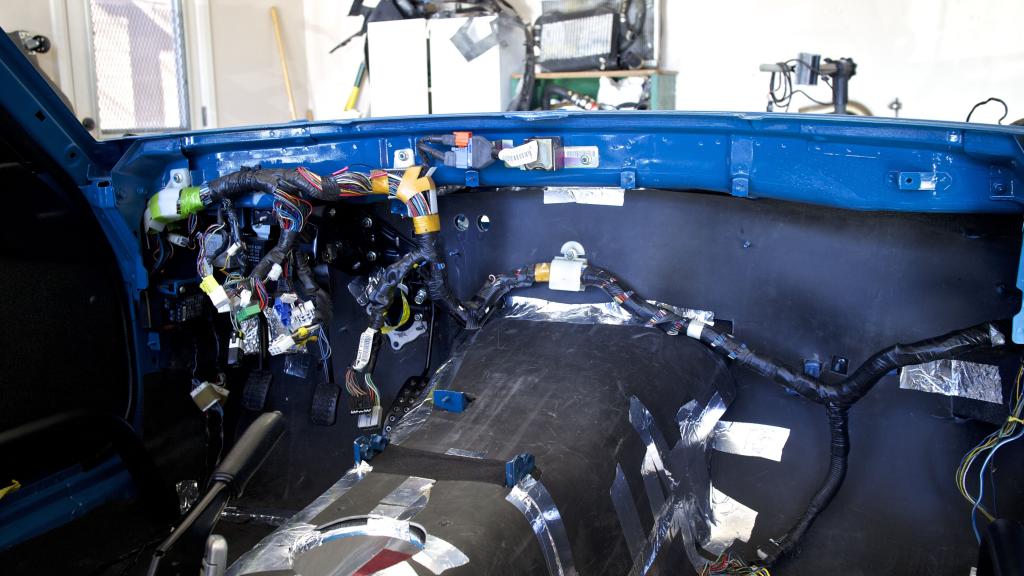

Started installing the wiring harness.

A lot of the electrical tape was starting to rot so I decided to re-wrap allofit. Luckily electrical tape is cheap so I didn't feel guilty doing so.



Dash harness in. I broke a lot of the plastic holder tabs so I just used several zipties.



I honestly have no clue/can't remember how the wiring is routed to the trunk. Any clues?



Just need to install the PPF/battery harness and then the COP Harness and try to chase down those cut wires.
Attached Thumbnails
93' Miata stolen and flipped build thread-img_1276.jpg   93' Miata stolen and flipped build thread-img_1253.jpg   93' Miata stolen and flipped build thread-img_1256.jpg
Jeffbucc is offline   Reply With Quote
Old 01-20-2014, 08:39 PM   #878
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,555
Total Cats: 11
Default

I just did my ebrake cables 2 nights ago. Don't forget the springclips to hold the cables into this mount


Also, the missing bracket has a tab on one side, a hole on the other, and a semicircle in the middle to hold the cable. I can snap a pic tomorrow if I remember
240_to_miata is offline   Reply With Quote
Old 01-20-2014, 08:41 PM   #879
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

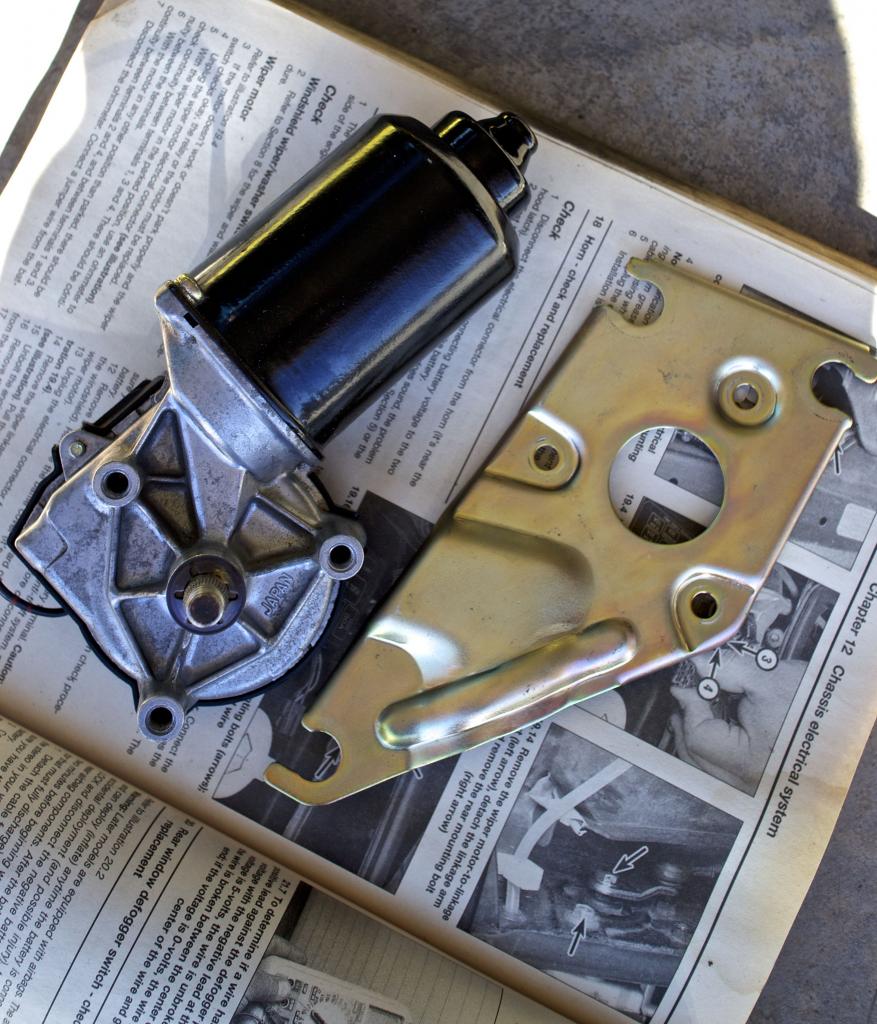

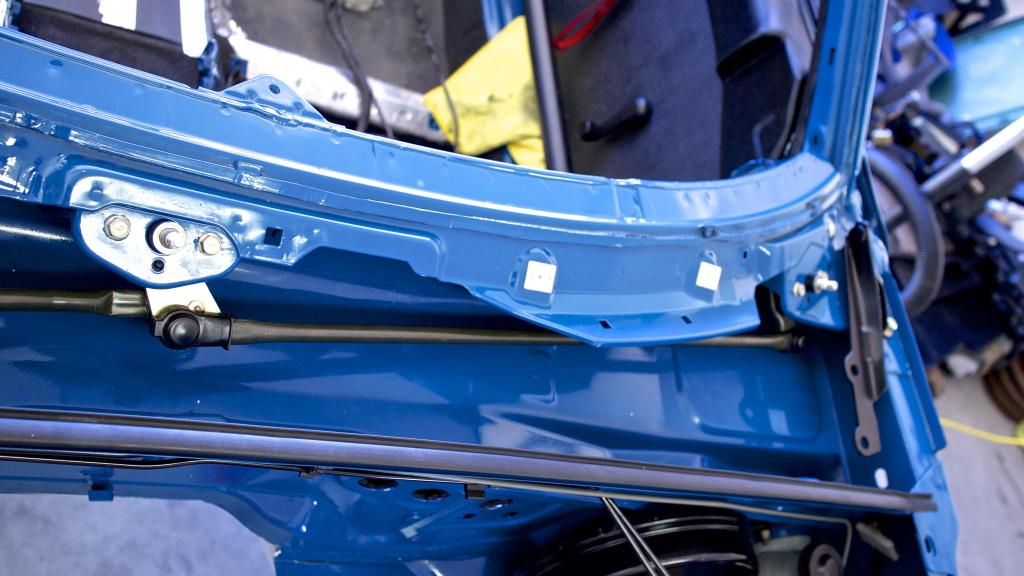

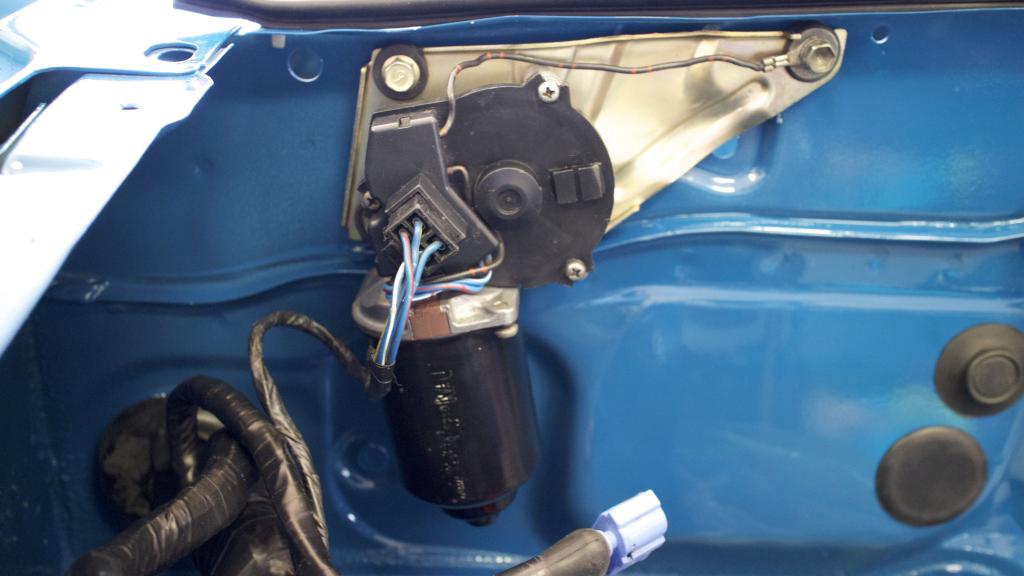

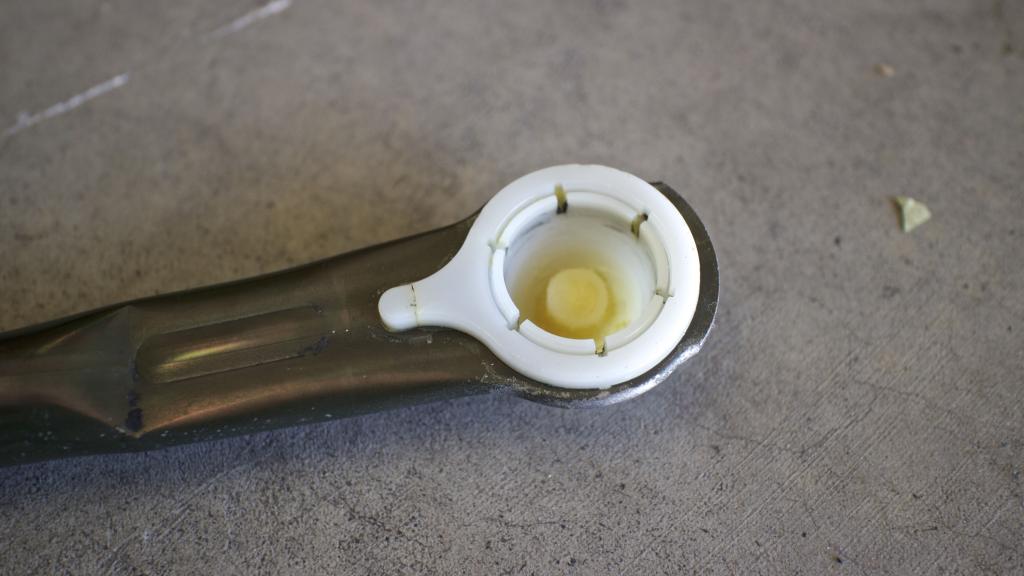

Had to overhaul my window wiper motor and wiper linkage arms

Problem I had was that the newer car's window wiper motor was fried so I had to replace the 90' with the 93' motor. The problem, is that in the 1993 model they changed to a 4-bolt bracket and the 1990 shell has a 3-bolt triangular bracket.

I had to install the motor upside down and trim some of the edge of the bracket off to get the 93' motor to work. Hopefully I don't have issues with it but it installed just fine so I'm guessing not.





Also degreased and cleaned all the wiper arm linkages.

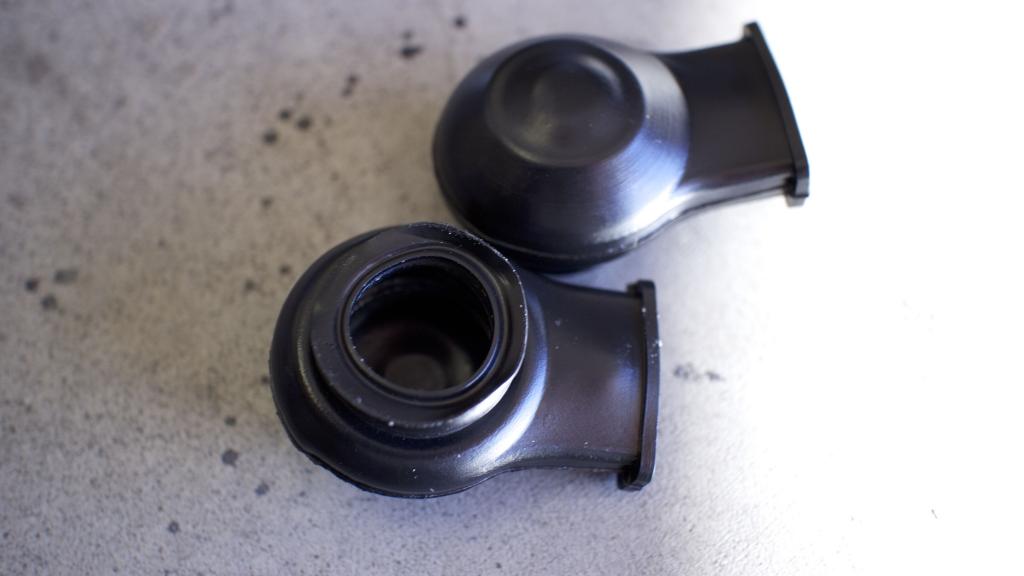

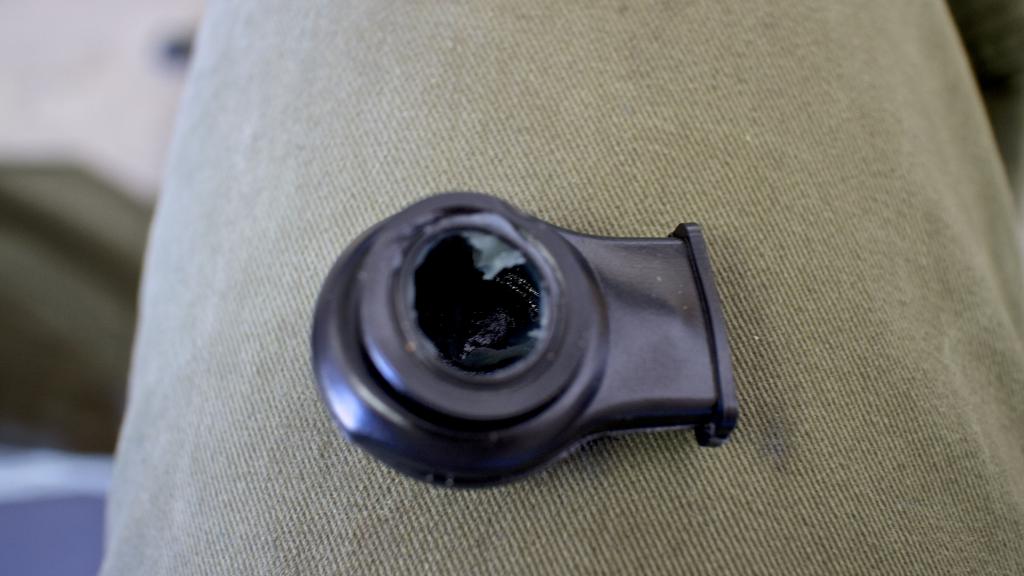

the boots



greasing them up to get them ready to slip over the plastic retaining tabs

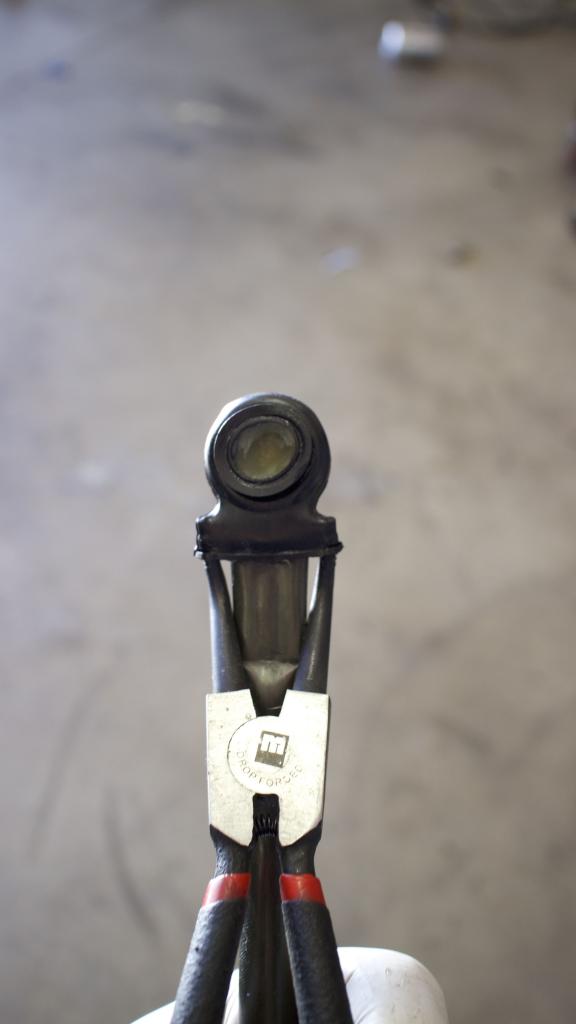

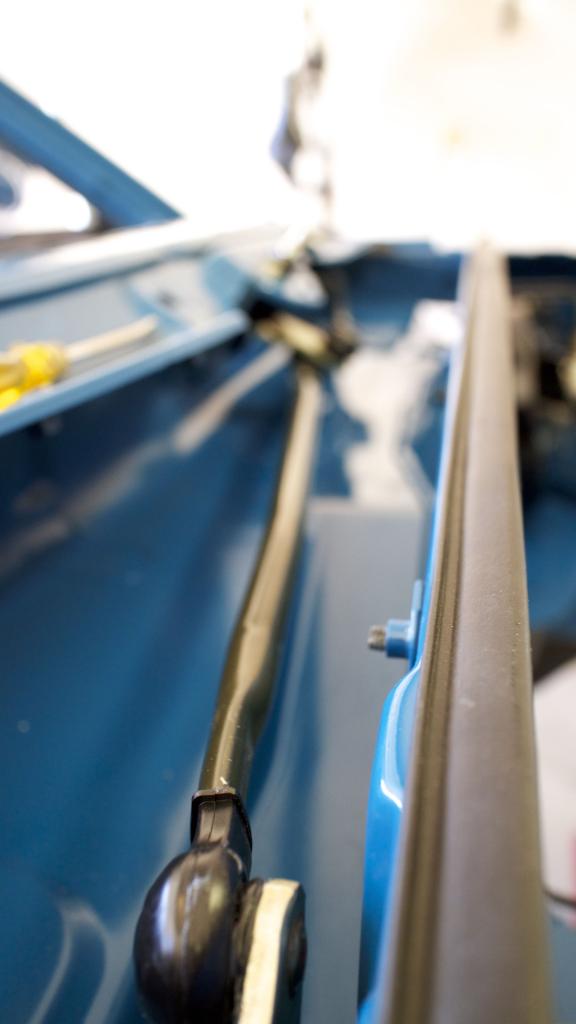

Used C-clip pliers to stretch it enough to pull back over the ball joint



All brand new and spiffy



Attached Thumbnails
93' Miata stolen and flipped build thread-img_1258.jpg   93' Miata stolen and flipped build thread-img_1271.jpg   93' Miata stolen and flipped build thread-img_1265.jpg   93' Miata stolen and flipped build thread-img_1266.jpg   93' Miata stolen and flipped build thread-img_1269.jpg

93' Miata stolen and flipped build thread-img_1270.jpg   93' Miata stolen and flipped build thread-img_1272.jpg   93' Miata stolen and flipped build thread-img_1273.jpg
Jeffbucc is offline   Reply With Quote
Old 01-20-2014, 09:14 PM   #880
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,795
Total Cats: 2,116
Default

I saw a speck of dust in one of the pictures.

You better stop slacking
