Old 02-10-2014, 11:05 AM   #1141
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,869
Total Cats: 45
Default

The OEM endlinks with poly bushings suck massively. I have RB poly end links, but you'd be better off with 949 sperical bearing links.

EDIT: You're also missing some spacer plates between the sway bar bushings and the subframe, I think.
vehicular is offline   Reply With Quote
Old 02-10-2014, 11:09 AM   #1142
Junior Member
iTrader: (3)

Join Date: Apr 2009
Location: Allen, TX
Posts: 88
Total Cats: 8
Default

I can't believe the attention to detail on this. I think you are one of the first of more people who will be restoring NAs like this. The car is a classic and this is no different than what some folks have done with other classic cars. Still I'm impressed. Nice job so far!
black roadster is offline   Reply With Quote
Old 02-10-2014, 11:21 AM   #1143
Junior Member

Join Date: Jan 2014
Location: Finland
Posts: 79
Total Cats: -10
Default

Just a note: You have your end links on the wrong side of the bar
And you might be better to torque down your control arms once the car is one the ground to relieve any tension on the bushings.
Vuti is offline   Reply With Quote
Old 02-10-2014, 11:24 AM   #1144
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Quote:
Originally Posted by 18psi View Post
that sway bar/endlinks definitely don't look right
No matter which way you turn them they stay that way. I looked at old photos and they were the same as that. *edit* Nevermind, I wrapped my head around what you were saying.*Edit*

Not sure if they are the wrong endlinks or what.

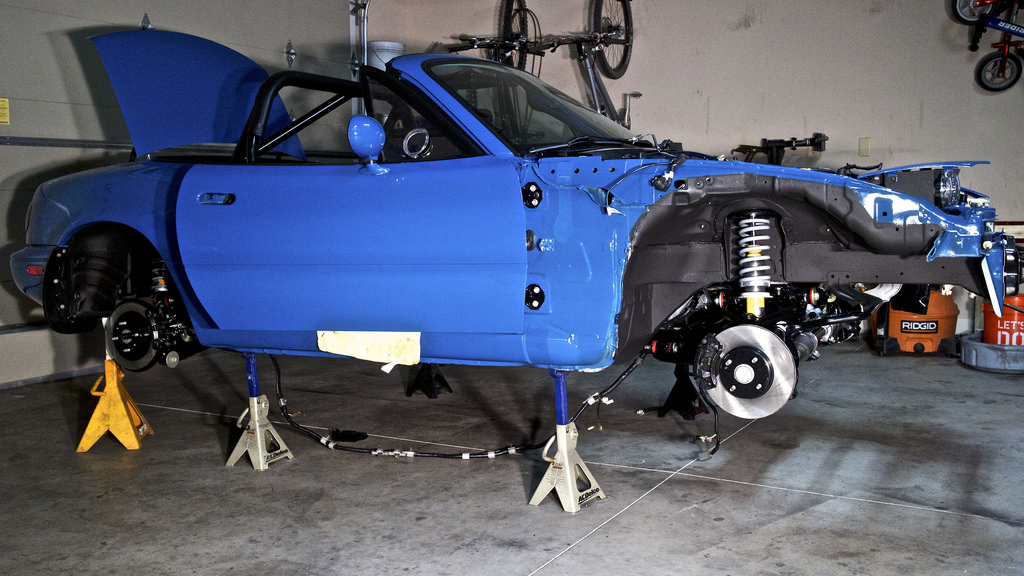

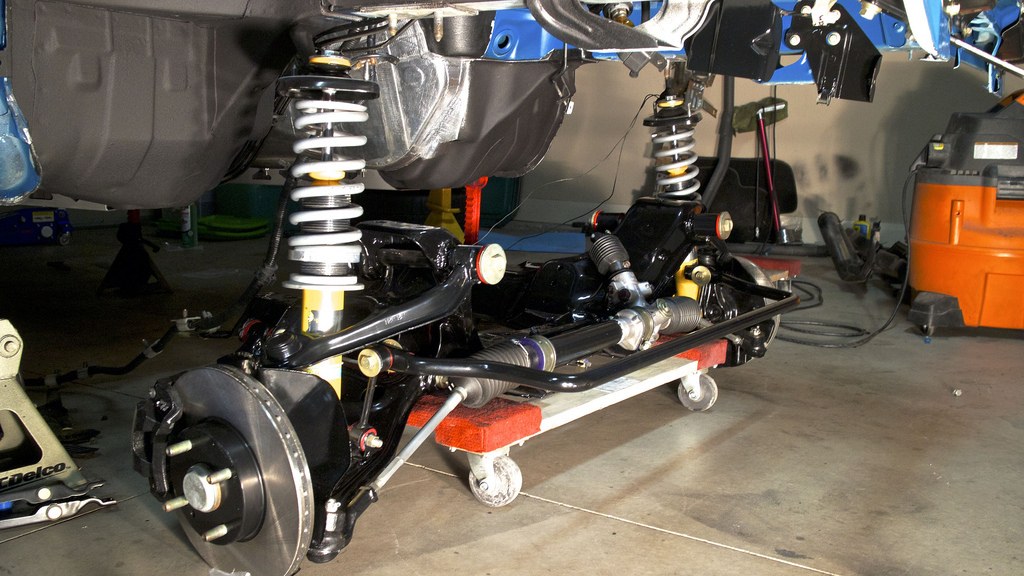

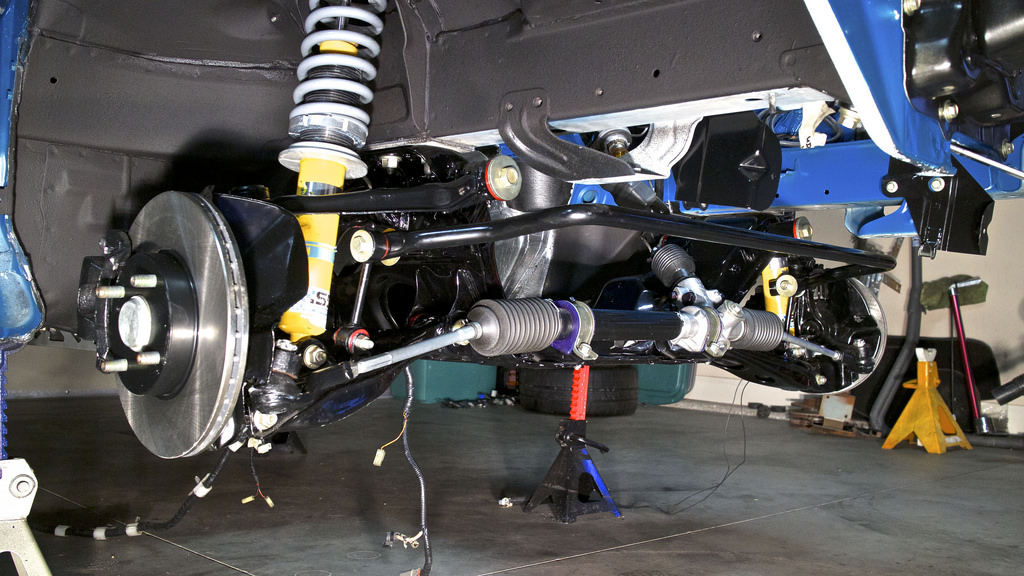

Front subframe in





Attached Thumbnails
93' Miata stolen and flipped build thread-12437938474_1a51731437_b.jpg   93' Miata stolen and flipped build thread-12437450745_46b15aa50a_b.jpg   93' Miata stolen and flipped build thread-12437925734_fa574d6940_b.jpg
Jeffbucc is offline   Reply With Quote
Old 02-10-2014, 11:26 AM   #1145
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Quote:
Originally Posted by vehicular View Post
The OEM endlinks with poly bushings suck massively. I have RB poly end links, but you'd be better off with 949 sperical bearing links.

EDIT: You're also missing some spacer plates between the sway bar bushings and the subframe, I think.
Hmm I'll take a look, I was honestly pretty tired when I was doing it last night.
Jeffbucc is offline   Reply With Quote
Old 02-10-2014, 11:35 AM   #1146
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Quote:
Originally Posted by Vuti View Post
Just a note: You have your end links on the wrong side of the bar
And you might be better to torque down your control arms once the car is one the ground to relieve any tension on the bushings.
I have read that this is a non-issue with Poly(correct me if I am wrong) just multiple people saying it isn't a big deal.

Not a really an issue anyways since the first drive is going to be to get an alignment done.
Jeffbucc is offline   Reply With Quote
Old 02-10-2014, 11:44 AM   #1147
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,845
Total Cats: 559
Default

Quote:
Originally Posted by Vuti View Post
Just a note: You have your end links on the wrong side of the bar
This (on the rears). Or, as an alternative, skip the rear sway bar altogether. A lot of the fast guys do this.

Quote:
Originally Posted by Vuti View Post
And you might be better to torque down your control arms once the car is one the ground to relieve any tension on the bushings.
Common and correct practice with rubber bushings. Not needed with poly. Press ahead!
hornetball is offline   Reply With Quote
Old 02-10-2014, 12:18 PM   #1148
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,673
Total Cats: 230
Default

This car should have xidas. Just sayin', lol :P

Also, no zerk fittings on the control arms? I always told myself when i go poly bushings ill do the zerk thing so i can keep em lubed and not squeaky.
Fireindc is offline   Reply With Quote
Old 02-10-2014, 12:20 PM   #1149
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

They have zerks.
concealer404 is offline   Reply With Quote
Old 02-10-2014, 12:23 PM   #1150
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Zerks they have, blind you be!

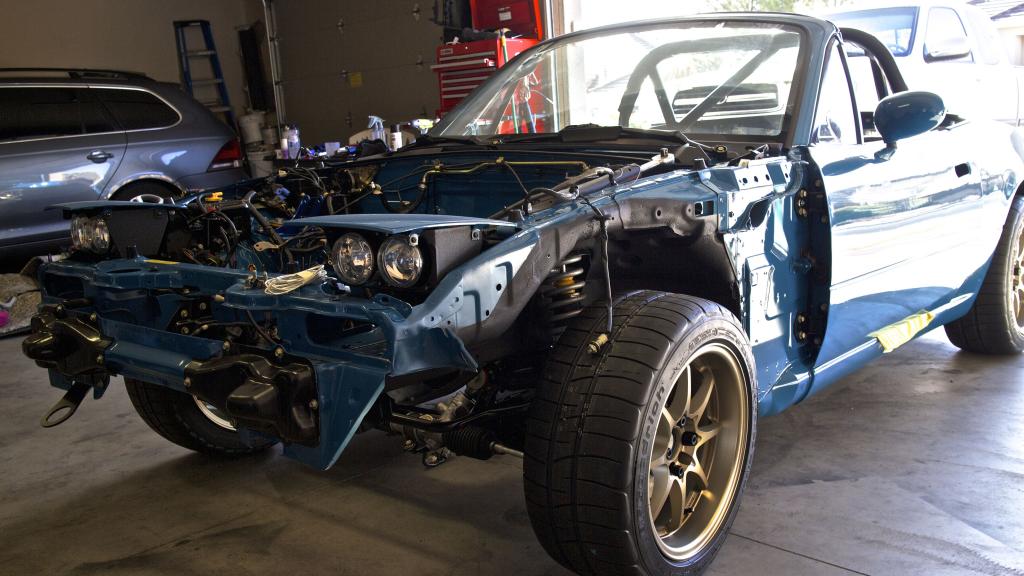

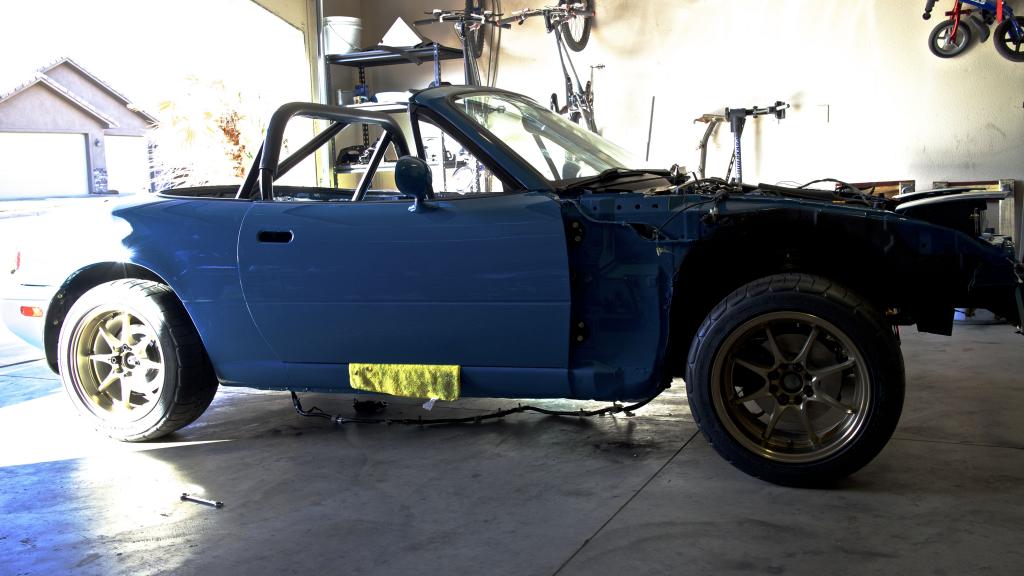

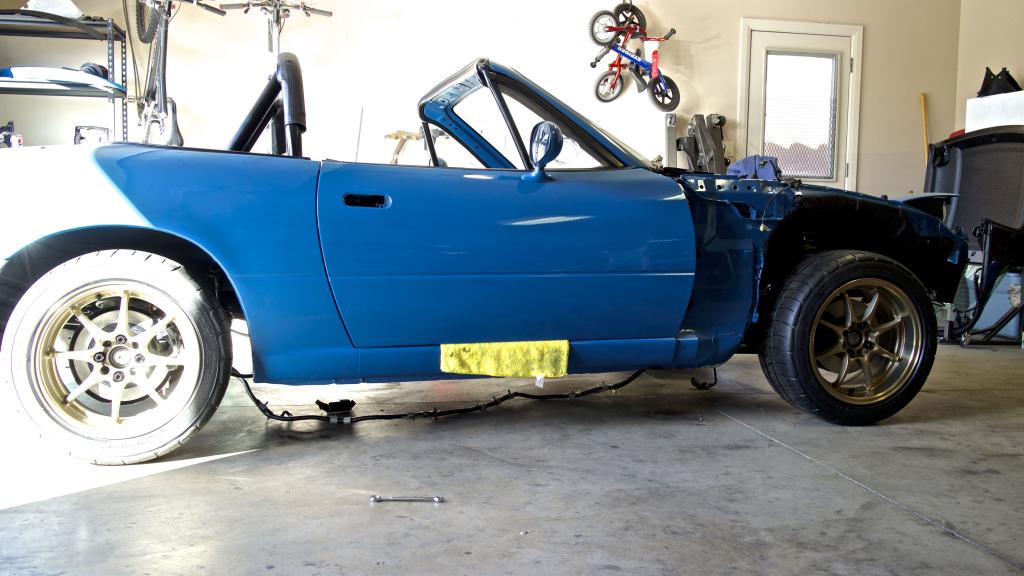

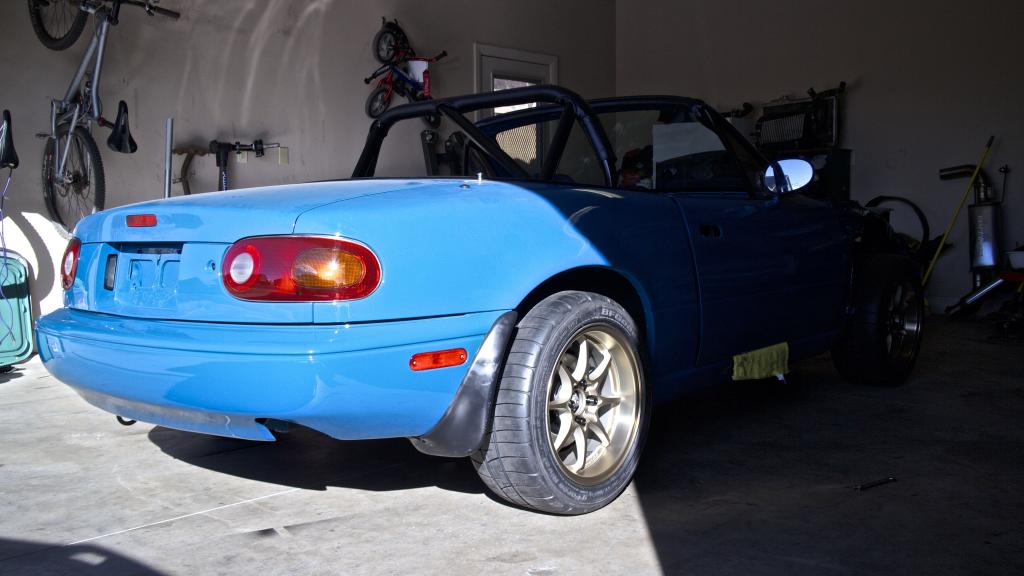

My curiosity got the better of me.







Attached Thumbnails
93' Miata stolen and flipped build thread-img_1633.jpg   93' Miata stolen and flipped build thread-img_1632.jpg   93' Miata stolen and flipped build thread-img_1628.jpg   93' Miata stolen and flipped build thread-img_1629.jpg
Jeffbucc is offline   Reply With Quote
Old 02-10-2014, 12:26 PM   #1151
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,804
Total Cats: 2,117
Default

This thread competes with the members section hot girl thread for fap material
18psi is offline   Reply With Quote
Old 02-10-2014, 12:48 PM   #1152
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,673
Total Cats: 230
Default

Quote:
Originally Posted by Jeffbucc View Post
Zerks they have, blind you be!
Quote:
Originally Posted by concealer404 View Post
They have zerks.
I should have known. Carry on..
Fireindc is offline   Reply With Quote
Old 02-10-2014, 01:03 PM   #1153
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,485
Total Cats: 79
Default

Quote:
Originally Posted by 18psi View Post
This thread competes with the members section hot girl thread for fap material
The member section has got what...????? How much was that again...
Zaphod is offline   Reply With Quote
Old 02-10-2014, 01:22 PM   #1154
Senior Member
iTrader: (13)

Join Date: Jan 2007
Location: Murfreesboro,TN
Posts: 1,184
Total Cats: 36
Default

This thread makes me feel like a less of a man and that I've cut too many corners.
Midtenn is offline   Reply With Quote
Old 02-10-2014, 02:21 PM   #1155
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,845
Total Cats: 559
Default

Is it too late to paint your mud guards? They look nice body-colored.
hornetball is offline   Reply With Quote
Old 02-10-2014, 03:52 PM   #1156
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,804
Total Cats: 2,117
Default

until they start cracking and fading/discoloring
18psi is offline   Reply With Quote
Old 02-10-2014, 11:44 PM   #1157
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Quote:
Originally Posted by 18psi View Post
until they start cracking and fading/discoloring
Yeah that is the main reason I didn't consider it. I have contemplated painting the front lip blue though. I saw a picture of a LSB Miata with a color matched lip and it looked clean.

Currently deciding what my next plan of attack is.

1. Assemble all the engine parts together and drop the engine in while my dad is visiting this week. Having a second pair of hands for that would be amazing.

2. Completely finish the wiring before doing anything else

3. Finish the interior up

I want to get the engine in but I know it would make things tight to work around.
Jeffbucc is offline   Reply With Quote
Old 02-10-2014, 11:52 PM   #1158
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Fire, I wish I could afford Xidas. I won't complain though. These SD Bilsteins ride so well on the street. I've never driven a car with specially revalved struts to match the car and it makes it so I don't think I'd ever get a coilovers setup without doing that. Makes the KW V3's on My Jetta seem like crap in comparison.

Also, my pops got a photo of what it looks like after you do that much work in one night. Guess his dog felt the same...I don't remember laying down in the driveway to pass out.

Attached Thumbnails
93' Miata stolen and flipped build thread-96c55910c587b140bf07627ed56561d02.jpg
Jeffbucc is offline   Reply With Quote
Old 02-11-2014, 03:57 AM   #1159
Junior Member
iTrader: (2)

Join Date: Oct 2009
Location: San Jose, CA
Posts: 92
Total Cats: 7
Default

Incredible build..

Have you thought about installing a fender brace from Boss Frog or GarageStar? Now is the perfect time to install it with the fenders out and really tightens up the front end.
newold_m is offline   Reply With Quote
Old 02-11-2014, 10:12 AM   #1160
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,845
Total Cats: 559
Default

Careful posting a picture like that here. This is a Miata forum you know. An this is a totally erotic build thread.

On the mud guards, I've found that the painted rears hold up great (mine are at ~5 years on a tracked 212K car).

The fronts are lower and will scrape and bend. I ended up amputating the lowest flexible part of my fronts. Need to get them repainted.
hornetball is offline   Reply With Quote
