Old 03-13-2014, 02:12 PM   #1621
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,812
Total Cats: 479
Default

One step at a time, looks like some of that is going to be cleaned up soon. I'm assuming he won't leave a giant bundle of red wire back there for instance...

Jeff, I switched the T so the FPR got a direct line of travel from it's source on the intake manifold, and with fresh vacuum line, your hose clamp is most likely overkill. You'll probably do more damage than good on the little vacuum line. A clean black zip tie is probably all you need. Don't forget the Armor All on the zip tie of course. And along the same lines, the giant brass T is most likely overkill, but at least stronger than the plastic ones, albeit less inconspicuous.

I've T'd off the FPR for the MAP, then T'd off the MAP line once it's in the cabin for the MS, and it's worked great for years.
curly is offline   Reply With Quote
Old 03-13-2014, 02:19 PM   #1622
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Quote:
Originally Posted by curly View Post
One step at a time, looks like some of that is going to be cleaned up soon. I'm assuming he won't leave a giant bundle of red wire back there for instance...

Jeff, I switched the T so the FPR got a direct line of travel from it's source on the intake manifold, and with fresh vacuum line, your hose clamp is most likely overkill. You'll probably do more damage than good on the little vacuum line. A clean black zip tie is probably all you need. Don't forget the Armor All on the zip tie of course. And along the same lines, the giant brass T is most likely overkill, but at least stronger than the plastic ones, albeit less inconspicuous.

I've T'd off the FPR for the MAP, then T'd off the MAP line once it's in the cabin for the MS, and it's worked great for years.
Thanks, that makes a lot of sense on the direct FPR then T'ing off the line. The brass T was already on the car in a different spot so I just reused it. I'm sure the small plastic T I got with the gauges is more than sturdy, and cleaner looking too.

Would there be issues with too much voltage draw by tapping both gauges into the same ignition wire source and running an inline 5a 12v fuse on each gauge?
Jeffbucc is offline   Reply With Quote
Old 03-13-2014, 03:54 PM   #1623
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,845
Total Cats: 559
Default

Quote:
Originally Posted by Jeffbucc View Post
Would there be issues with too much voltage draw by tapping both gauges into the same ignition wire source and running an inline 5a 12v fuse on each gauge?
Did you miss post #1600?
hornetball is offline   Reply With Quote
Old 03-13-2014, 03:59 PM   #1624
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

No

We are talking about the same thing, just different places. I just forgot about it!

Sorry, been a long day at work already haha.
Jeffbucc is offline   Reply With Quote
Old 03-13-2014, 04:04 PM   #1625
Junior Member

Join Date: Jan 2014
Location: Finland
Posts: 79
Total Cats: -10
Default

How much power do you think your gauges need to operate?
Come on, you are over that level
Vuti is offline   Reply With Quote
Old 03-13-2014, 04:12 PM   #1626
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,795
Total Cats: 2,116
Default

oh you need to power 2 gauges?

better do it right and get one of these



On a serious note:
I run all my gauges off the fuse box tapping into not very important fuses. No splicing or cutting of wires, and if something happens the fuse will pop and nothing will short or burn or be damaged.
18psi is offline   Reply With Quote
Old 03-13-2014, 04:12 PM   #1627
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 934
Total Cats: 398
Default

Quote:
Originally Posted by Vuti View Post
How much power do you think your gauges need to operate?
Come on, you are over that level
Since the wideband gauge uses a heated O2 so the current draw is higher than you'd expect. But still.. The ignition cylinder uses 12 gauge wires that supply the current to everything else in the vehicle but the starter.
FAB is online now   Reply With Quote
Old 03-13-2014, 04:26 PM   #1628
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Yup, I'm just overthinking this as always. Vuti, my wiring skills are so not over that level, I'm basically learning from scratch as I go here.

----

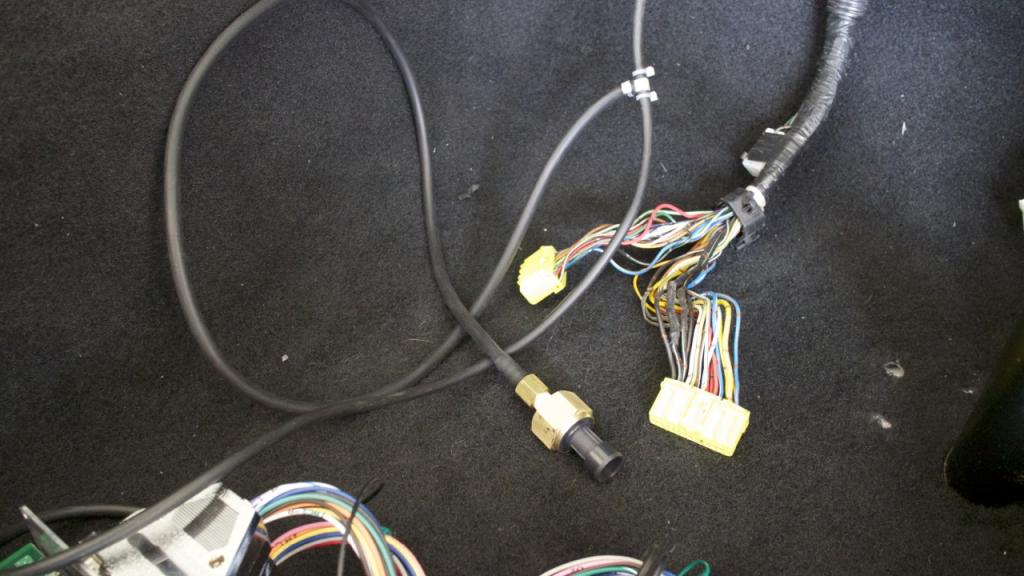

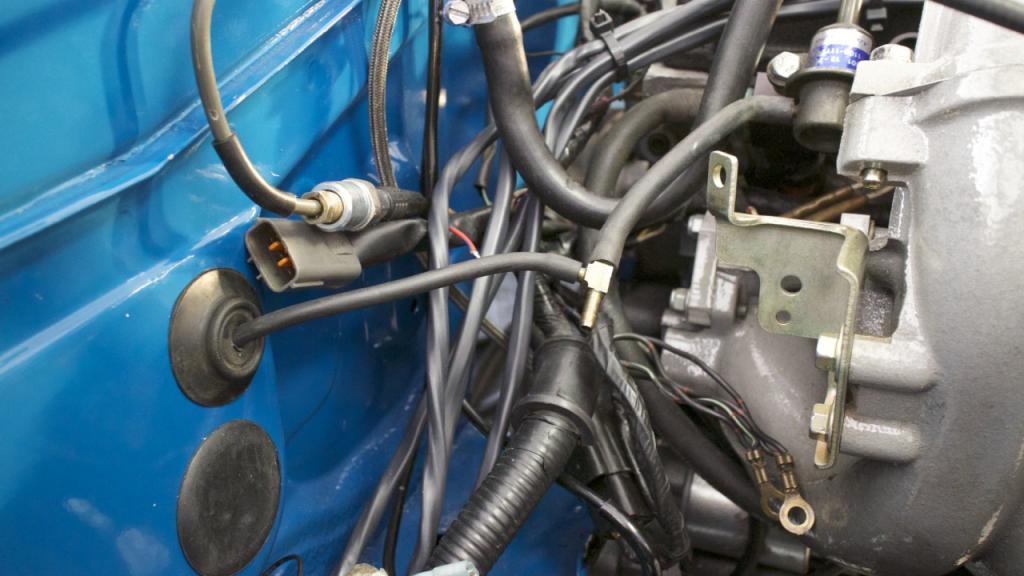

As per Curly's advice, I changed the vacuum setup. Put the T on correctly so the FPR is the main line and the T is going to the MS. Boost gauge is then T'd off of the MS vacuum line.



Attached Thumbnails
93' Miata stolen and flipped build thread-img_2151.jpg   93' Miata stolen and flipped build thread-img_2150.jpg
Jeffbucc is offline   Reply With Quote
Old 03-13-2014, 07:06 PM   #1629
Senior Member
iTrader: (5)

Join Date: Jul 2011
Location: Sonora, Ca
Posts: 623
Total Cats: 73
Default

Quote:
Originally Posted by Jeffbucc View Post
I've been in wiring mode more so that cleaning mode lately. Once I solve the huge amount of wiring issues the car has, then I'll spit shine it all pretty.
...was joking.
Attached Thumbnails
93' Miata stolen and flipped build thread-twilight-%2525288%252529.png
bikersam717 is offline   Reply With Quote
Old 03-13-2014, 09:48 PM   #1630
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Quote:
Originally Posted by bikersam717 View Post
...was joking.


----

Wired everything up. Was a lot easier than I was making it in my head. I still need to wire the analog +/- wires but I need to find out what the pins in his ms3 connector goes. He did a DIY ms3x, so brain didn't make it otherwise it would be easy to know what goes where.

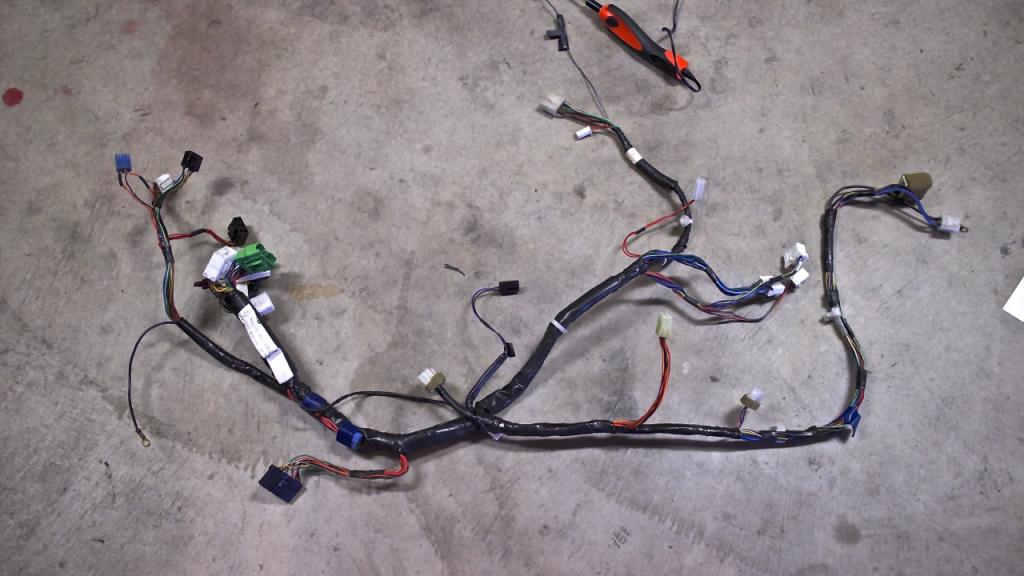

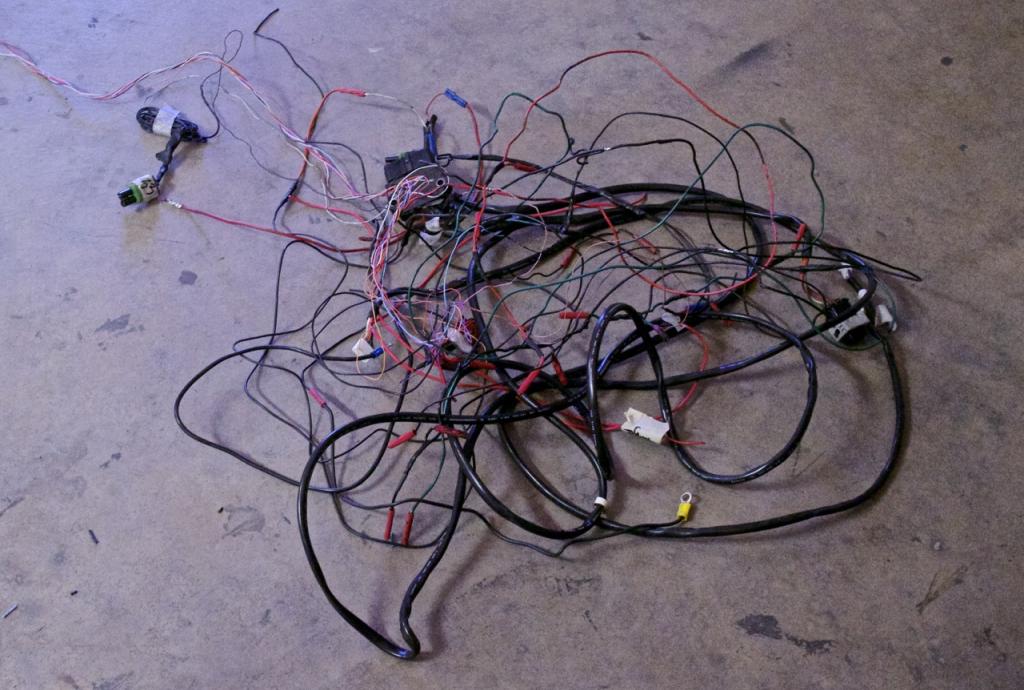

All the wiring not going back in the car...thank god

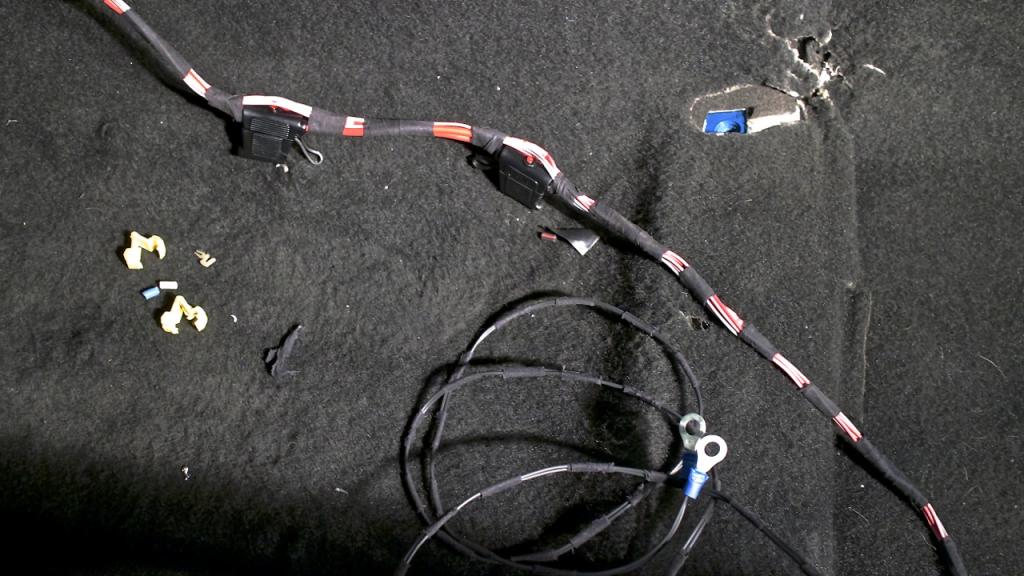

Dashboard harness all cleaned up.

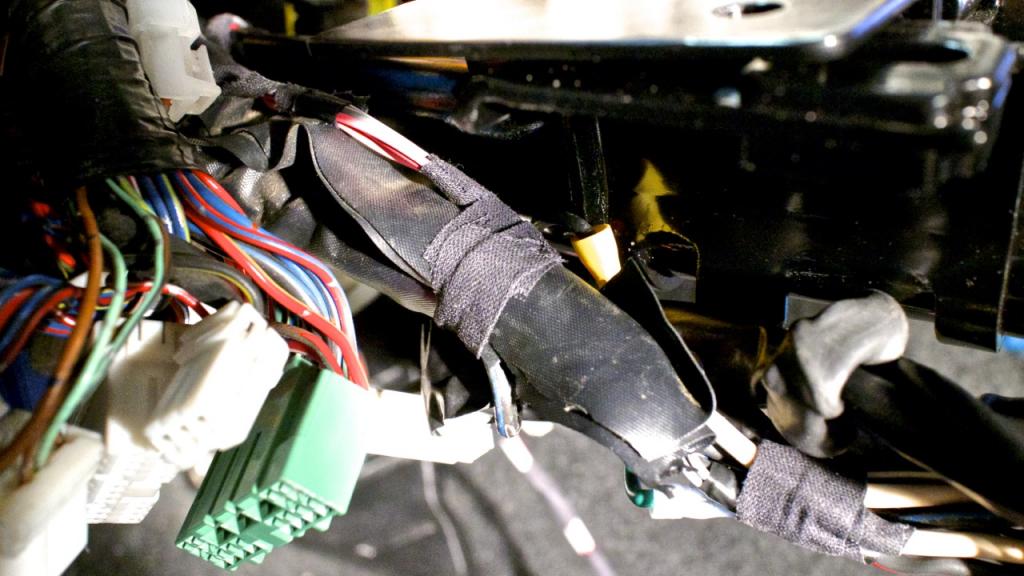

I taped it like this just in case there was an issue with the wires, I could clip the tape really quick. I used anti friction tape to bundle it all together(if you can't tell I love this stuff. $2.36 at Wal-mart...I have 6 rolls of it)

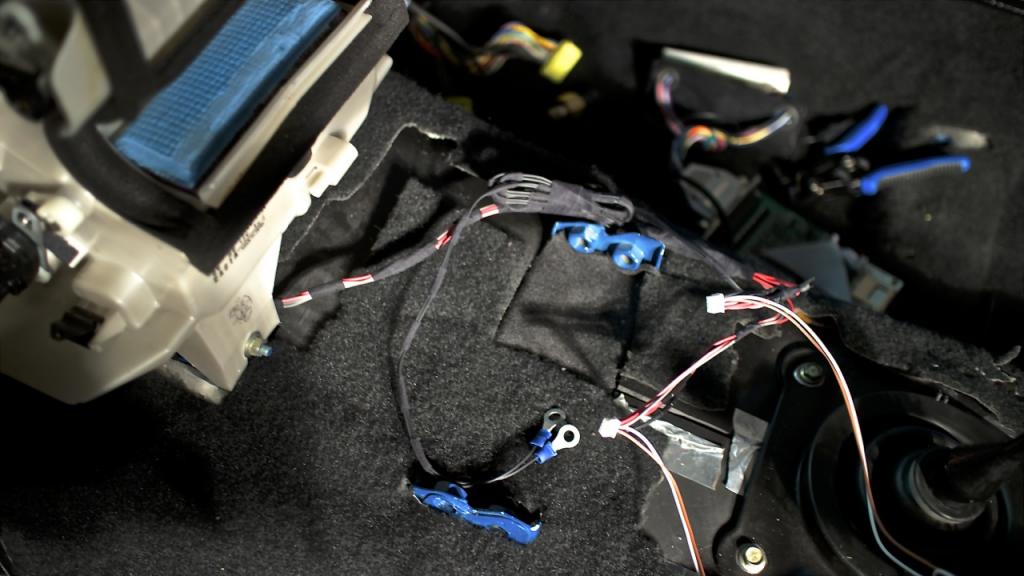

I routed the wires up the oem firewall harness, taping it as I went and pulled it under the HVAC box to the center tombstone. I haven't trimmed the ground cables up yet, I want to wait until I put the dashboard back in.

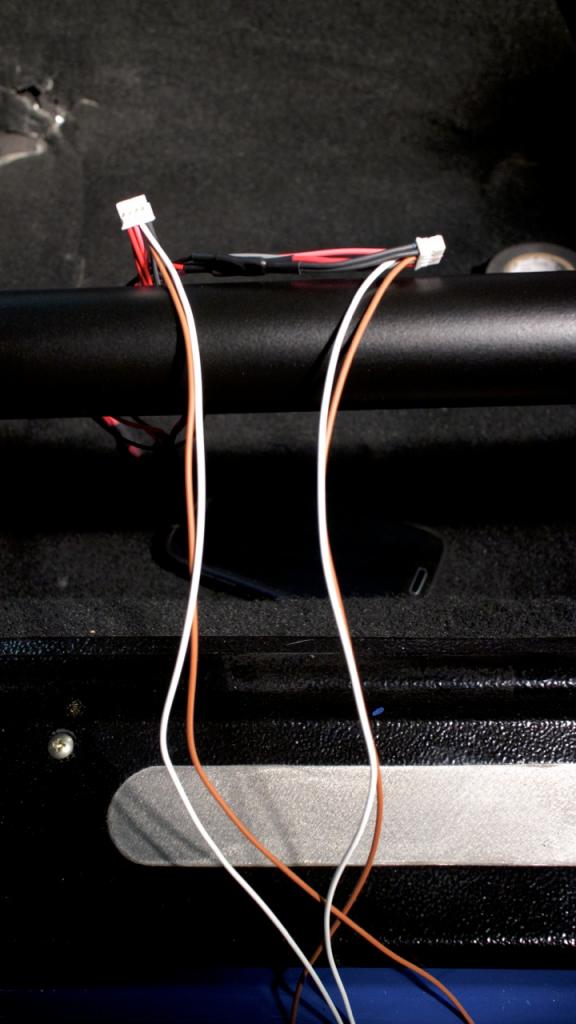

Said analog cables I still need to connect

Attached Thumbnails
93' Miata stolen and flipped build thread-its-all-good1.jpg   93' Miata stolen and flipped build thread-img_2152.jpg   93' Miata stolen and flipped build thread-img_2153.jpg   93' Miata stolen and flipped build thread-img_2159.jpg   93' Miata stolen and flipped build thread-img_2157.jpg

93' Miata stolen and flipped build thread-img_2166.jpg   93' Miata stolen and flipped build thread-img_2160.jpg
Jeffbucc is offline   Reply With Quote
Old 03-13-2014, 11:44 PM   #1631
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

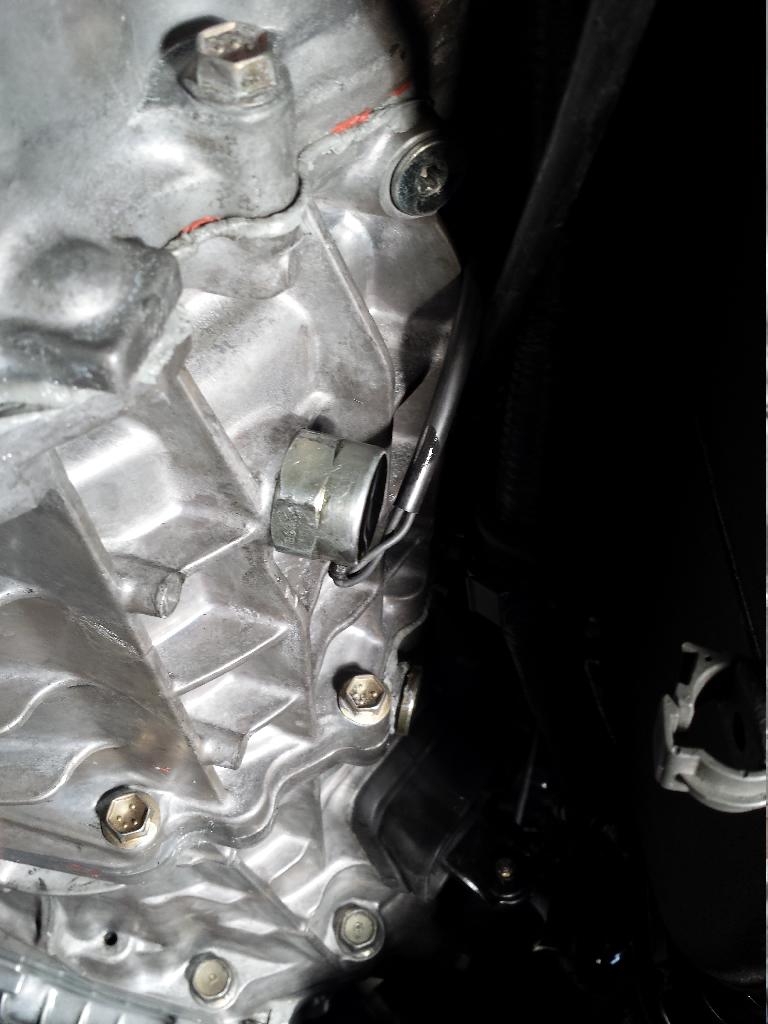

Also it looks like I've sprung a small leak in the transmission. How tight does this bolt need to be? Is there a gasket/crush washer that goes under it?

It has leaked about a tablespoon of oil since I filled it up.

Attached Thumbnails
93' Miata stolen and flipped build thread-img_20140313_213939.jpg
Jeffbucc is offline   Reply With Quote
Old 03-13-2014, 11:51 PM   #1632
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,033
Total Cats: 808
Default

Quote:
Originally Posted by Jeffbucc View Post
I taped it like this just in case there was an issue with the wires, I could clip the tape really quick. I used anti friction tape to bundle it all together(if you can't tell I love this stuff. $2.36 at Wal-mart...I have 6 rolls of it)
Is that the same stuff you used to "anti-rattle" the HVAC rods and such? I meant to ask you about that before as I've been looking for something similar that isn't just 'fabric tape' that'll get all squishy when it gets hot. This is gonna sound stupid but I can haz link please?
EO2K is offline   Reply With Quote
Old 03-14-2014, 12:09 AM   #1633
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,033
Total Cats: 808
Default

Is that a 6 speed? If so, be VERY DAMN CAREFUL about what plugs you mess with. I know there are plugs in that trans that are not actually plugs, but retainers for internal parts
EO2K is offline   Reply With Quote
Old 03-14-2014, 12:53 AM   #1634
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Quote:
Originally Posted by EO2K View Post
Is that a 6 speed? If so, be VERY DAMN CAREFUL about what plugs you mess with. I know there are plugs in that trans that are not actually plugs, but retainers for internal parts
Yeah I was careful not to remove that plug! There is one with a ball bearing where if you remove it you have to tear apart your transmission.

I believe this one is the reverse light switch.
Jeffbucc is offline   Reply With Quote
Old 03-14-2014, 12:59 AM   #1635
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Quote:
Originally Posted by EO2K View Post
Is that the same stuff you used to "anti-rattle" the HVAC rods and such? I meant to ask you about that before as I've been looking for something similar that isn't just 'fabric tape' that'll get all squishy when it gets hot. This is gonna sound stupid but I can haz link please?
Sorry I was getting some food and missed this. same stuff. It is at walmart in either the crafts area or by the automotive/lighting area.

Just gotta look around, they tend to move it
Jeffbucc is offline   Reply With Quote
Old 03-14-2014, 01:32 AM   #1636
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,812
Total Cats: 479
Default

Just tore apart Doppels car, that plug was leaking on his as well. I think I did see a washer though. Definitely should look into that.
curly is offline   Reply With Quote
Old 03-14-2014, 09:30 AM   #1637
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Hey Jeff when you wire up that boost gauge, be a doll and exhaustively document exactly what you do, kthx.
concealer404 is offline   Reply With Quote
Old 03-14-2014, 09:55 AM   #1638
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Quote:
Originally Posted by concealer404 View Post
Hey Jeff when you wire up that boost gauge, be a doll and exhaustively document exactly what you do, kthx.
Want me to get some shots of the ignition wires I tapped into? Or more to the point the ms3 analog connection?
Jeffbucc is offline   Reply With Quote
Old 03-14-2014, 09:58 AM   #1639
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Quote:
Originally Posted by Jeffbucc View Post
Want me to get some shots of the ignition wires I tapped into? Or more to the point the ms3 analog connection?

Ignition wires you tapped into for boost gauge. MS2 gives no ***** about what the boost gauge is doing.
concealer404 is offline   Reply With Quote
Old 03-14-2014, 11:47 AM   #1640
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Quote:
Originally Posted by concealer404 View Post

Ignition wires you tapped into for boost gauge. MS2 gives no ***** about what the boost gauge is doing.
Red/black for lighting
Blue for switched
White for constant

There are 2 white that look identical but one has a small blue stripe on it. Use the pure white one. I had about 5 random unused vampire clips on my ignition harness...don't be that guy.

I'll take some pictures later today but I'm in Cedar City actually doing real work for most the day.

*edit* fixed the constant and switched to the correct wires*
