Old 03-20-2014, 08:12 PM   #1721
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by concealer404 View Post
Wait, what? Have i missed something? What the **** turbo is on this again?
2860rs turbo

Quote:
Originally Posted by 18psi View Post
those custom gauge faces to match your cluster is a FANTASTIC idea. holy crap, I can't get over how awesome that is!!! Revlimiter FTW

As for the tb: why not switch to a NB tb and eliminate that stupid ugly retarded NA one with its giant idle valve and hose and the addapter and all that crap? you have an NB manifold and the ecu to control everything, it should be pretty straightforward
The gauges do look incredible.

So why exactly is the spacer plate necessary? I was just taking a look at it and it seems like I can just remove it and reinstall the 1.6 throttle body. It doesn't seem like clearance will be a huge issue by just removing the spacer itself.

MY solution in my head is taking the rubber washer off the top of the radiator mounts. That will allow me to move the top of the radiator forward 1/2". Then trim another 1/2" off the silicone elbow. That should give me plenty of room without buying a new throttle body(for now at least, I do want to get rid of it.)

Is there a very sound reason as to the thick *** rubber spacer on the upper radiator mount? I don't even have one on my Jetta radiator mount. Doesn't seem necessary if you torque the bolts down correctly.
Jeffbucc is offline   Reply With Quote
Old 03-20-2014, 08:21 PM   #1722
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,882
Total Cats: 774
Default

I believe the spacer is a kludge so you can use the 1.6 TB and thus the giant ugly idle air valve etc with your stock harness, connectors and ECU in your 1.6 car. on't get me wrong, its a beautifully made kludge and works well for the above application, but its not something you need when running a Megasquirt.

You may need to do a little electrical work in the MS to accommodate, but the NB TB with the stock VTPS really is the way to go in this case.
EO2K is offline   Reply With Quote
Old 03-20-2014, 08:57 PM   #1723
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Now to track one down....

Anyone selling one?(I'm looking at you parts supplier Vlad!)
Jeffbucc is offline   Reply With Quote
Old 03-21-2014, 12:23 AM   #1724
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

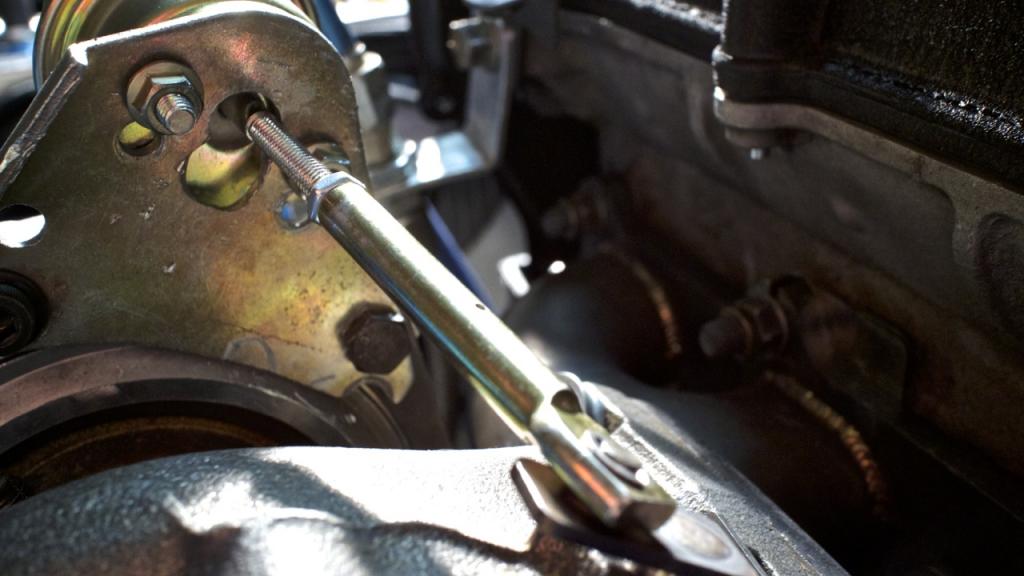

So because of the new position of the turbo I had to make some pretty major changes to the IWG bracket so that they would line up again. After drilling and sanding and bending I have gotten it pretty close to perfect. Just need to widen the waste gate rod role a little so it doesn't rub.





Also test fitted the turbo shield and need to make a couple modifications to make it work.

Need to trim some off the front of it so the waste gate rod doesn't rub.



And I think I need to cut this bracket off due to the brake bias adjuster being in the way of the bracket it normally bolts to. Either cut it or bend it backwards 180 degrees to attach to the brake bias bolt you see in the bottom of the picture.




I also removed the flyin' miata spacer and put the throttle body back on just to see how much clearance I would have...yup, it is the working answer. Not only does it pull it completely off the radiator hose but it also pulls the intercooler hose off the front sway bar even more so it will rub less.

I could trim more off, but as other have said, might as well get rid of the root problem while I am at it.

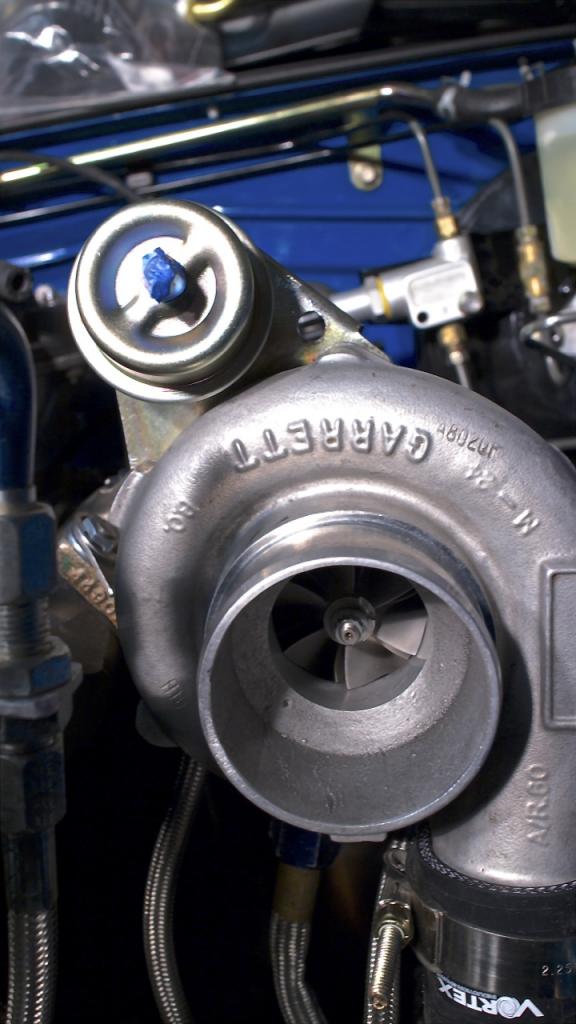

Attached Thumbnails
93' Miata stolen and flipped build thread-img_2303.jpg   93' Miata stolen and flipped build thread-img_2304.jpg   93' Miata stolen and flipped build thread-img_2306.jpg   93' Miata stolen and flipped build thread-img_2307.jpg
Jeffbucc is offline   Reply With Quote
Old 03-21-2014, 12:31 AM   #1725
Junior Member

Join Date: Mar 2013
Location: Redmond, WA
Posts: 110
Total Cats: 42
Default

I told you to message me if you wanted a heat shield made!
Yezzir is offline   Reply With Quote
Old 03-21-2014, 12:32 AM   #1726
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

I totally forgot! My brain is all over the place these days.
Jeffbucc is offline   Reply With Quote
Old 03-21-2014, 12:34 AM   #1727
Junior Member

Join Date: Mar 2013
Location: Redmond, WA
Posts: 110
Total Cats: 42
Default

Haha, oh well. Shows that you are human after all.
Yezzir is offline   Reply With Quote
Old 03-21-2014, 12:17 PM   #1728
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

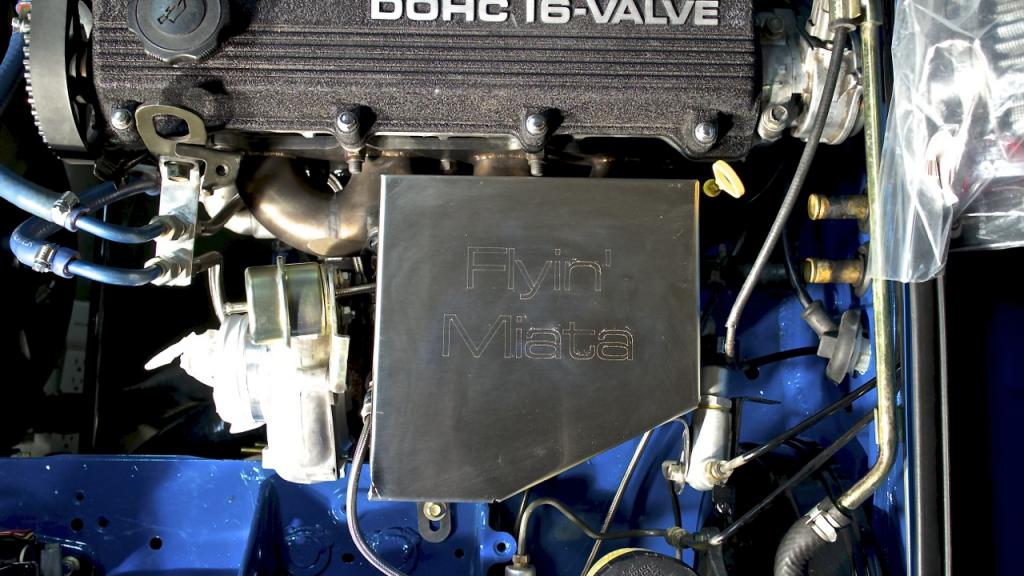

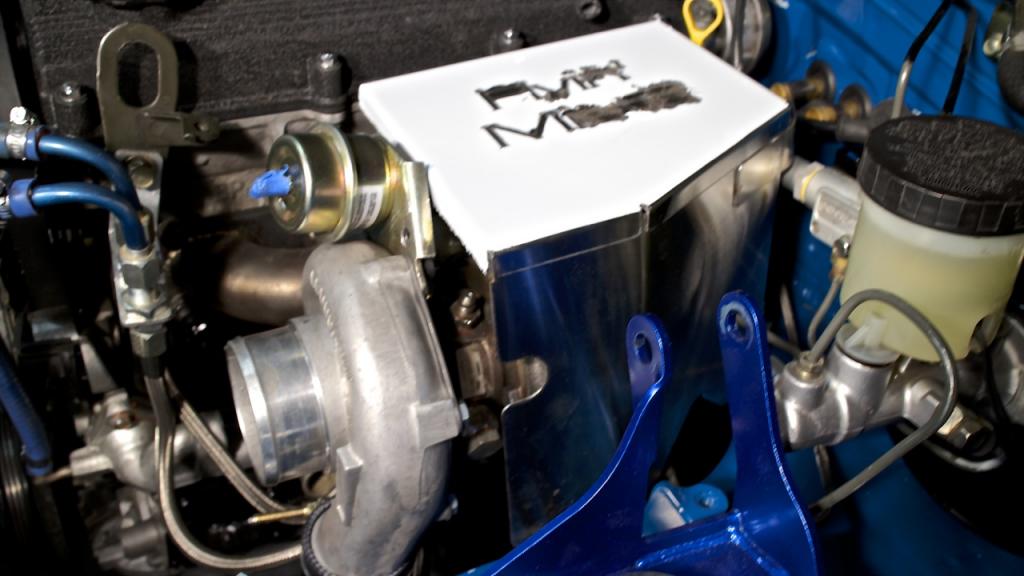

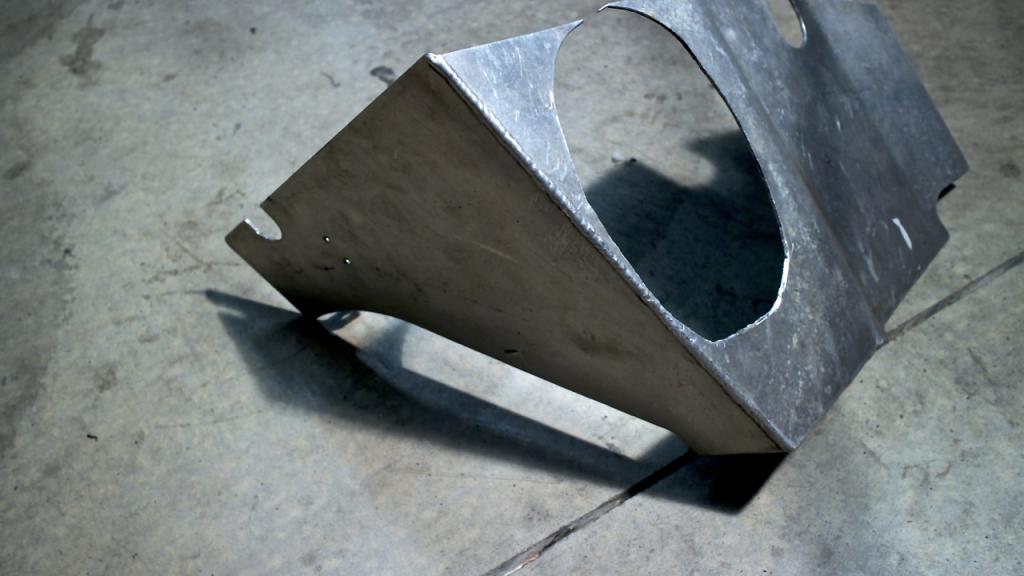

Fitted the turbo heat shield . Took a little grinding and cutting to get it to fit but luckily I didn't have to do too much to get it to fit. Also finished the waste gate bracket so the rod isn't rubbing against anything.

I remove some of the lip up front so that the oil feed line wouldn't rub against it.

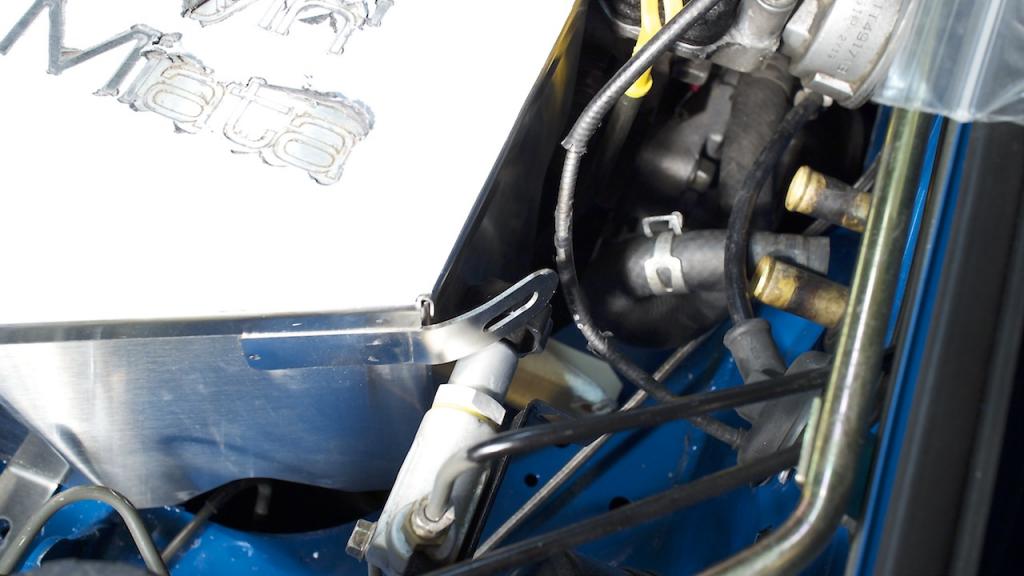

Bent the middle bracket a lot to allow it to bolt to the brake bias ****. Turned out great though.

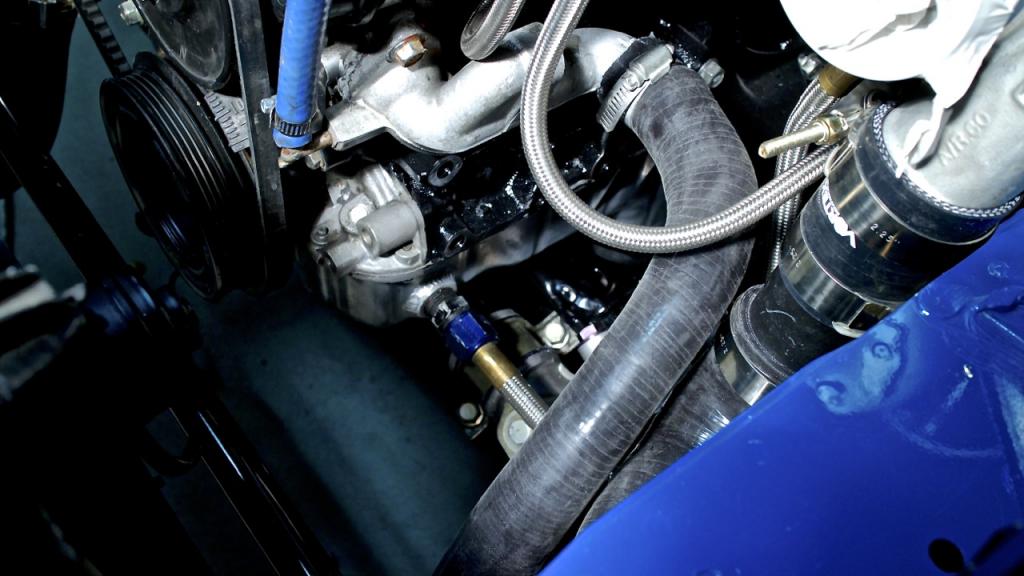

Also got my lower radiator hose from Vlad, and with a little trimming it fit with 1/2" of clearance off the intercooler hose.

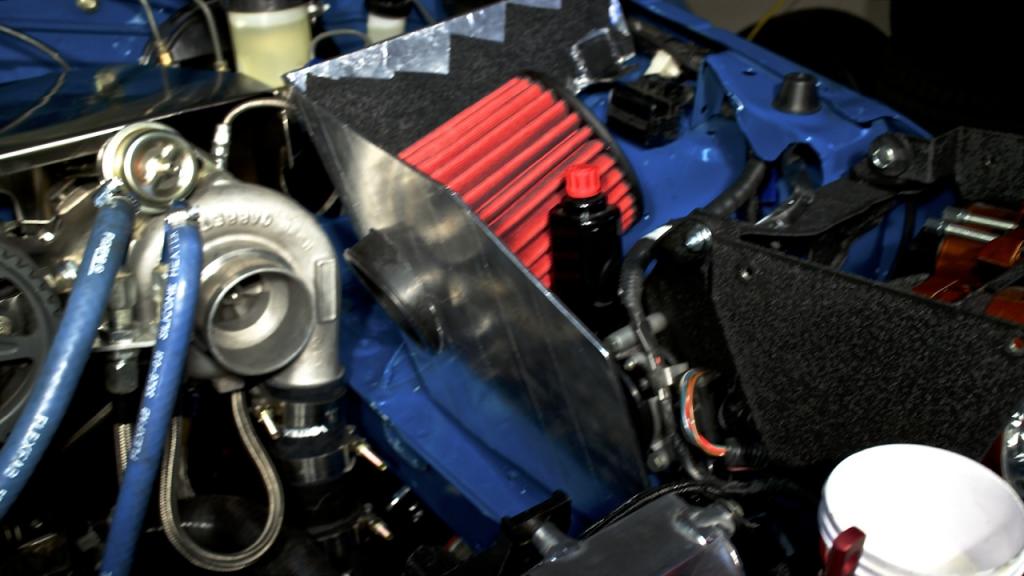

Then I decided to make a new air filter box to help lower the intake temps. I didn't have any aluminum so I cut some ABS plastic and used the old box as a template. The reason I didn't use the old box was that the hole for the air filter was unnecessarily huge.

old box

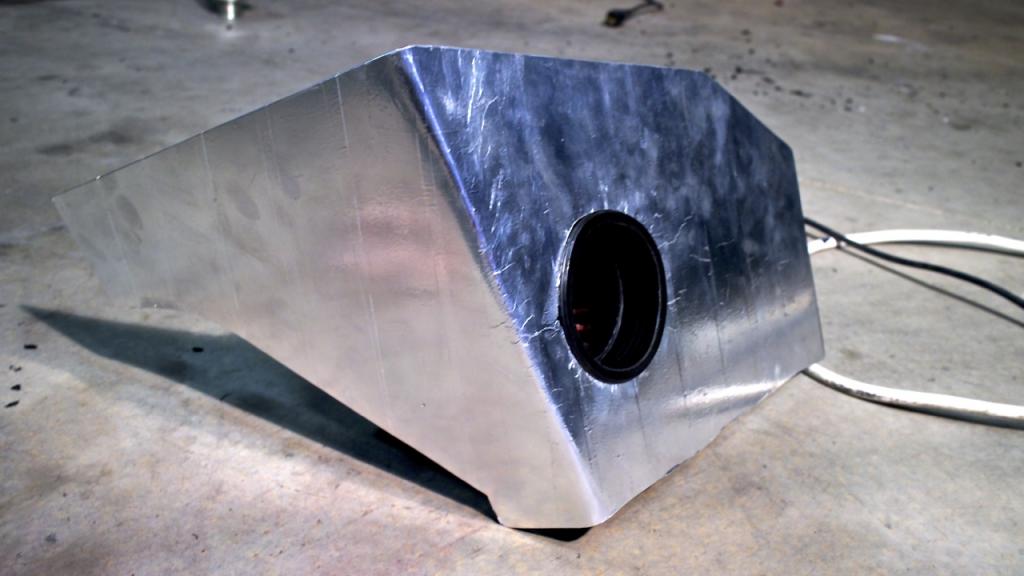

New box with aluminum tape to help reflect the heat a little more. I'll find something that is more one piece to clean it up a little later.



Perfect fitment

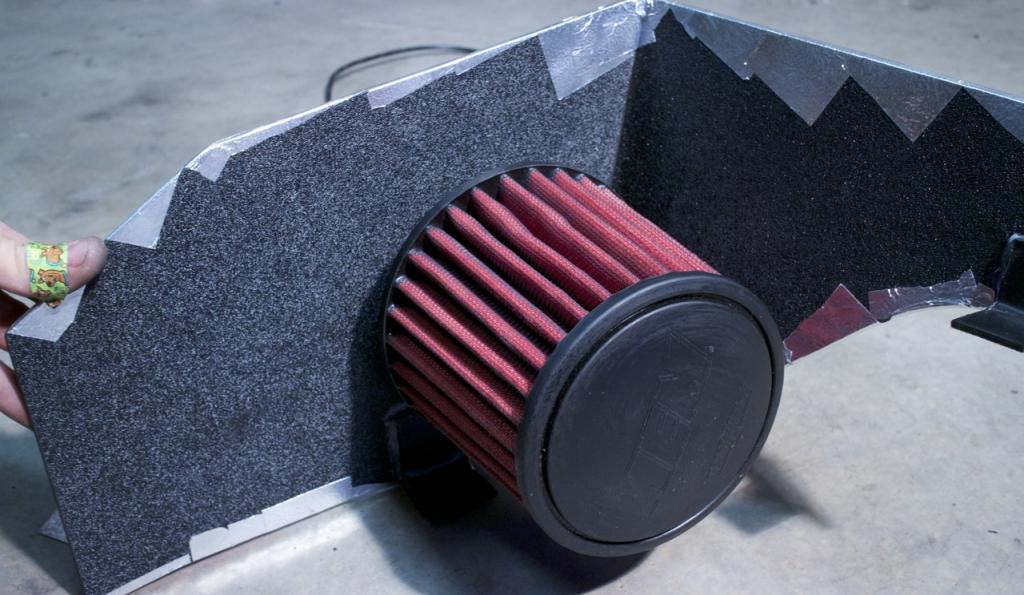

Rough fitment, still waiting on the brackets I epoxied onto the plastic to cure fully before I bolt it down. I just need to buy a couple inches of 3" metal tubing to slip onto the 90 degree elbow.

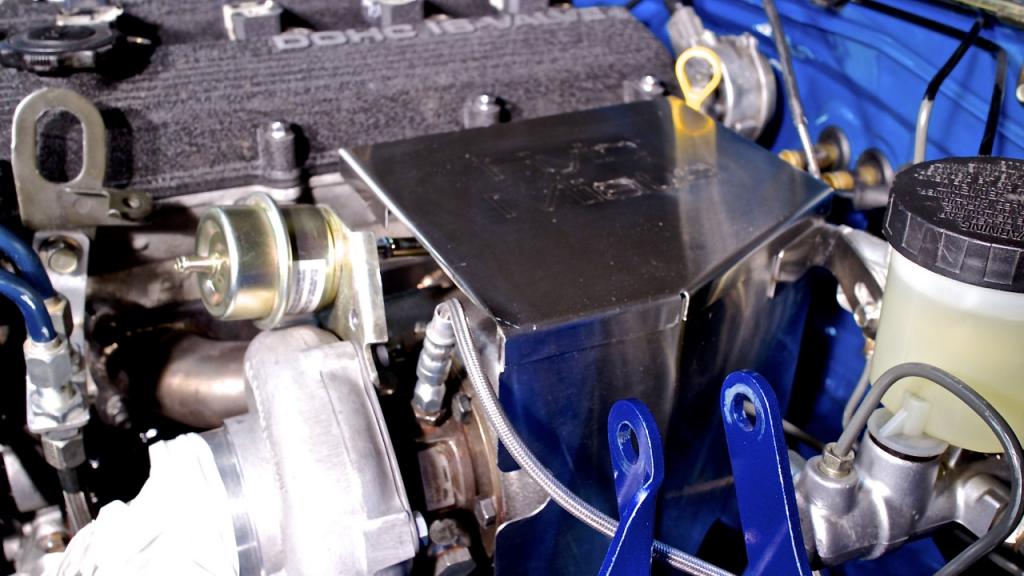

Attached Thumbnails
93' Miata stolen and flipped build thread-img_2308.jpg   93' Miata stolen and flipped build thread-img_2309.jpg   93' Miata stolen and flipped build thread-img_2312.jpg   93' Miata stolen and flipped build thread-img_2313.jpg   93' Miata stolen and flipped build thread-img_2314.jpg

93' Miata stolen and flipped build thread-img_2315.jpg   93' Miata stolen and flipped build thread-img_2316.jpg
Jeffbucc is offline   Reply With Quote
Old 03-21-2014, 12:34 PM   #1729
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,667
Total Cats: 227
Default

I like it!
Fireindc is offline   Reply With Quote
Old 03-21-2014, 12:36 PM   #1730
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 929
Total Cats: 399
Default

This is looking great man. Killer Scooby band-aid too
FAB is offline   Reply With Quote
Old 03-21-2014, 01:07 PM   #1731
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,703
Total Cats: 472
Default

Well, except the engine/filter moves, and the heat shield doesn't.
curly is offline   Reply With Quote
Old 03-21-2014, 01:15 PM   #1732
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 929
Total Cats: 399
Default

Quote:
Originally Posted by curly View Post
Well, except the engine/filter moves, and the heat shield doesn't.
Good call Curly. I recall a number of people have cut through their filter neck because they did not take drivetrain movement into consideration.
FAB is offline   Reply With Quote
Old 03-21-2014, 01:23 PM   #1733
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by curly View Post
Well, except the engine/filter moves, and the heat shield doesn't.
Good call, agreed. Didn't consider that. Think 1/2" more space would give it enough room to flex?
Jeffbucc is offline   Reply With Quote
Old 03-21-2014, 01:26 PM   #1734
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,404
Total Cats: 2,035
Default

Yes. 1/4" on each side is more than enough. what I'd do is carefully notch and CURL the sheet metal around the hole instead of cutting it off. It will be much much less prone to cut that way
18psi is offline   Reply With Quote
Old 03-21-2014, 01:33 PM   #1735
Senior Member
iTrader: (5)

Join Date: Jul 2011
Location: Sonora, Ca
Posts: 623
Total Cats: 73
Default

Widen it 1/2" and maybe put some sort of rubber trim(hose with a cut down the side works well) around the circumference of the hole so there is no sharp edge.

Last edited by bikersam717; 03-21-2014 at 02:15 PM.
bikersam717 is offline   Reply With Quote
Old 03-21-2014, 01:36 PM   #1736
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 929
Total Cats: 399
Default

Quote:
Originally Posted by 18psi View Post
Yes. 1/4" on each side is more than enough. what I'd do is carefully notch and CURL the sheet metal around the hole instead of cutting it off. It will be much much less prone to cut that way

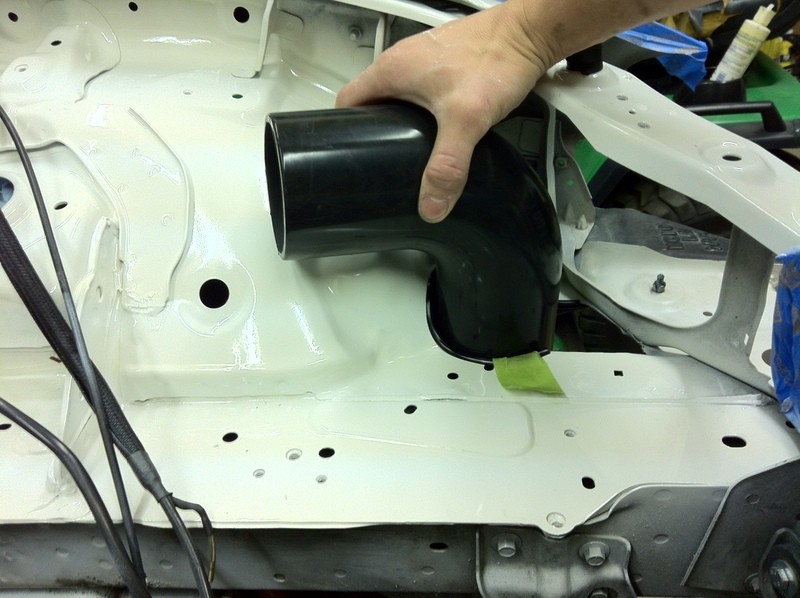

If you don't want to go that route - Do what I did - take a piece of silicone or rubber vacuum hose and cut down one side then place it over the sharp edge of the material you just cut. This will make sure that even with the movement you aren't likely to do damage.

Attached Thumbnails
93' Miata stolen and flipped build thread-img1430r.jpg
FAB is offline   Reply With Quote
Old 03-21-2014, 02:25 PM   #1737
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by FAB View Post
If you don't want to go that route - Do what I did - take a piece of silicone or rubber vacuum hose and cut down one side then place it over the sharp edge of the material you just cut. This will make sure that even with the movement you aren't likely to do damage.
Bryan do you have a build thread anywhere on your Miata? All the little engine bay shots and other assorted pictures I've seen make it look incredibly nice.

Everytime I see a super clean white Miata I have second thoughts about LSB. It just looks so good when it is done right.

---

Also thank goodness for nice exhaust shops! They just gave me 8" of 3" pipe for free.
Jeffbucc is offline   Reply With Quote
Old 03-21-2014, 02:26 PM   #1738
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,138
Total Cats: 69
Default

Ya sell the adapter you dont need that bish.
ScottyP3821 is offline   Reply With Quote
Old 03-21-2014, 02:29 PM   #1739
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,404
Total Cats: 2,035
Default

Quote:
Originally Posted by Jeffbucc View Post
Bryan do you have a build thread anywhere on your Miata? All the little engine bay shots and other assorted pictures I've seen make it look incredibly nice.

Everytime I see a super clean white Miata I have second thoughts about LSB. It just looks so good when it is done right.

---

Also thank goodness for nice exhaust shops! They just gave me 8" of 3" pipe for free.
yes. everywhere. search "Dem768"
18psi is offline   Reply With Quote
Old 03-21-2014, 02:32 PM   #1740
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by 18psi View Post
yes. everywhere. search "Dem768"
Gracias.

I also picked up a 99 throttle body off a guy in Arizona for dirt cheap, so I should get that in the next week. Now I need to look up what wiring changes are necessary to make it work.
Jeffbucc is offline   Reply With Quote
