I don't get what the spot weld does...
curly is offline   Reply With Quote
Old 03-08-2014, 03:34 AM   #462
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,301
Total Cats: 181
Default

I lost one stud because it was all threaded and it vibrated all the way out. The spot weld will stop it from going down through the flange. Next time Ill upgrade to TSE 10MM studs and stage 8 hardware.
99mx5 is offline   Reply With Quote
Old 03-19-2014, 03:59 AM   #463
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,301
Total Cats: 181
Default

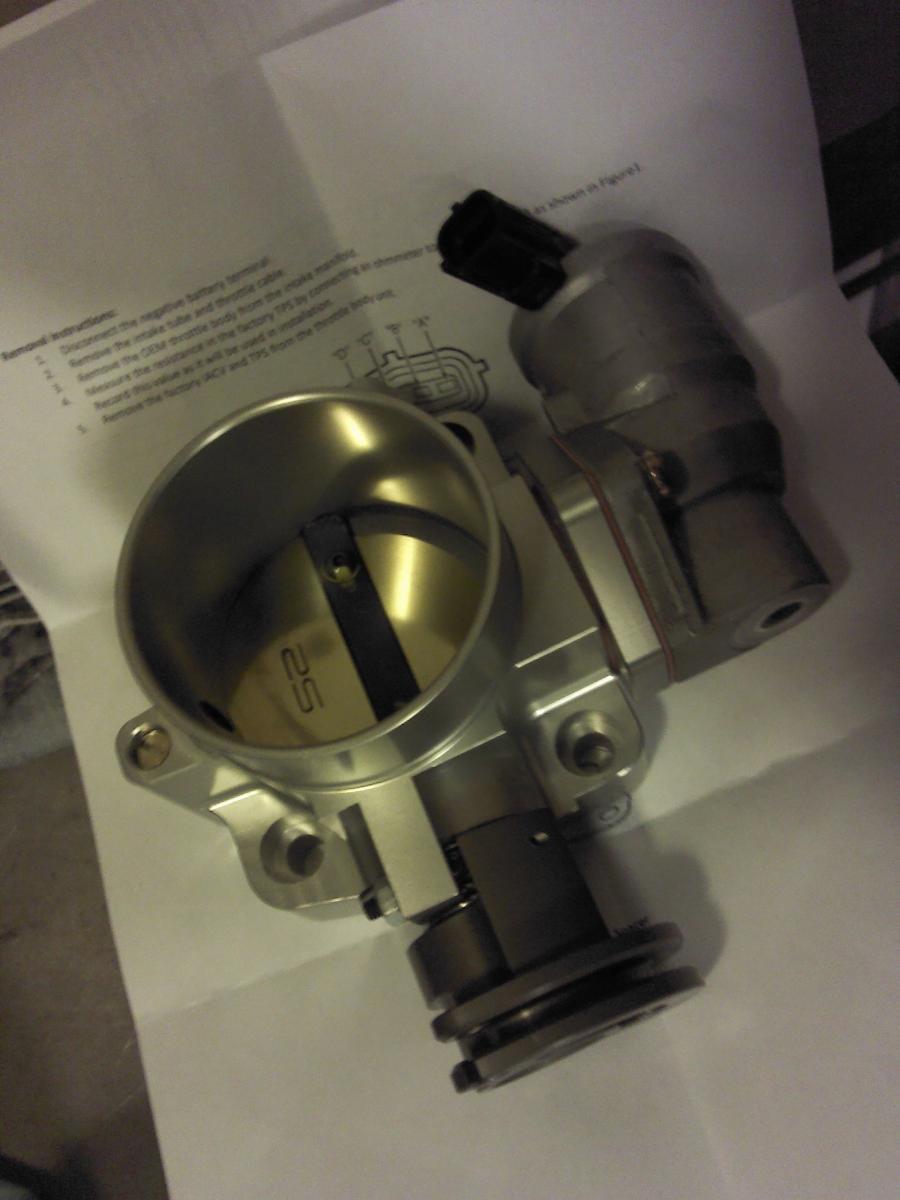

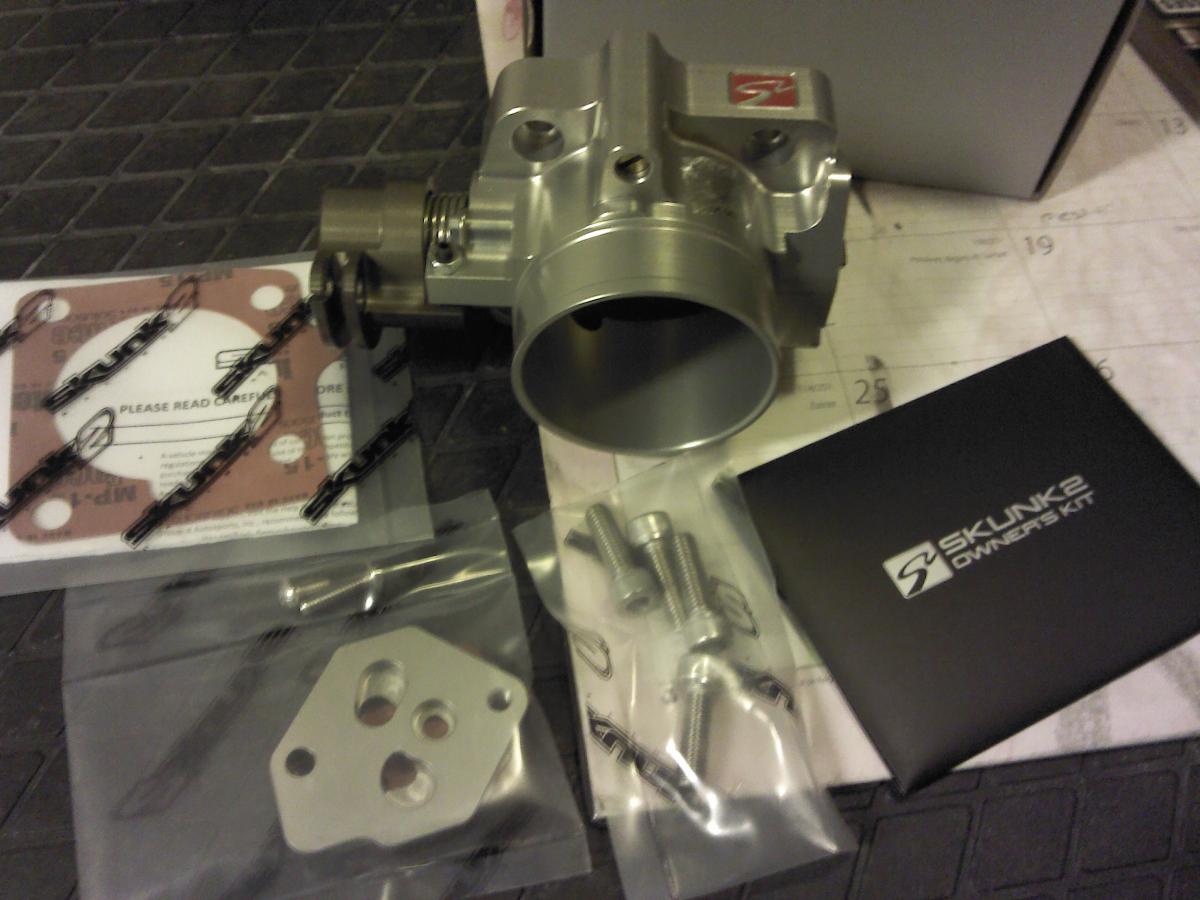

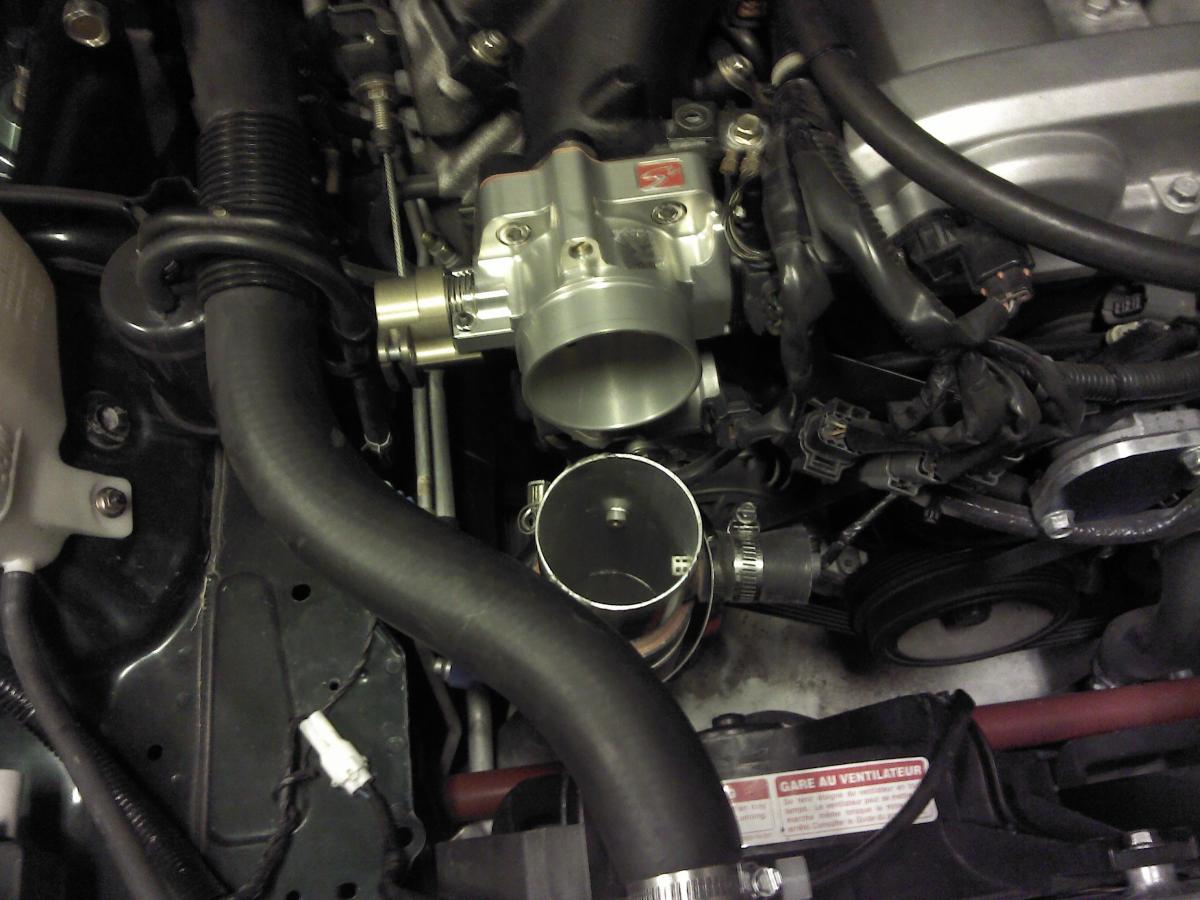

Here's the latest toy added to the car. After reading about screws being injested from the stock TB, I decided to get the Skunk2 TB for added insurance.

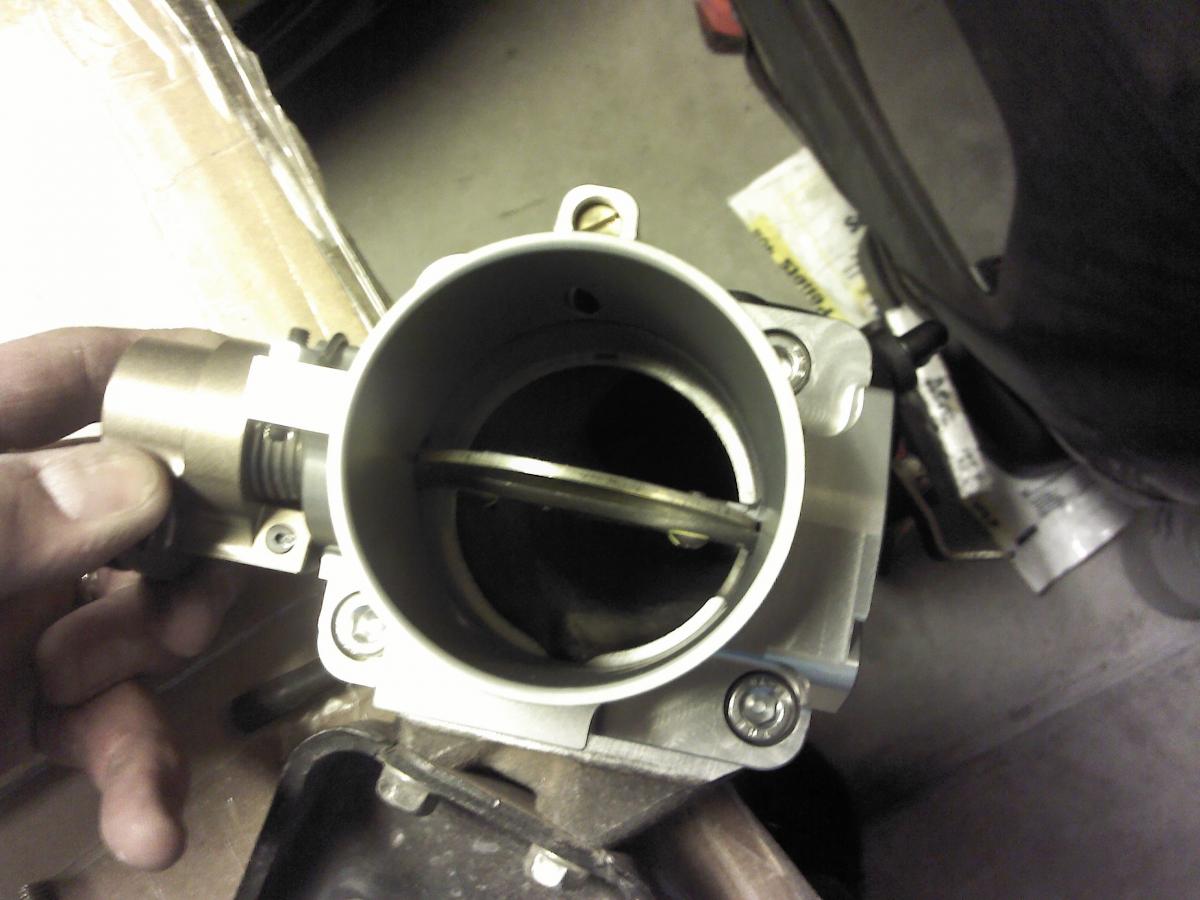

Here is the amount of overlap that needs to be opened up in the IM.

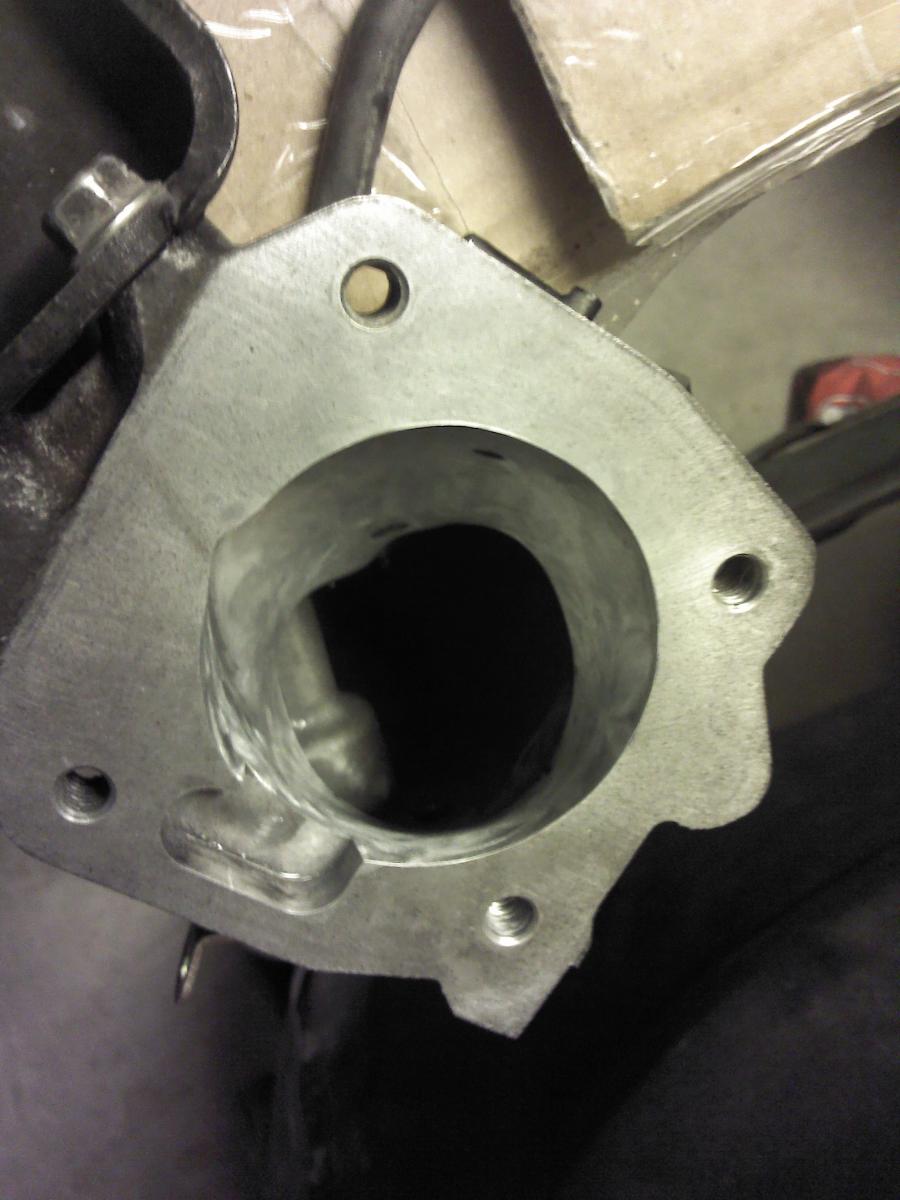

Here is the throat of the manifold after I opened it up to match the new TB.

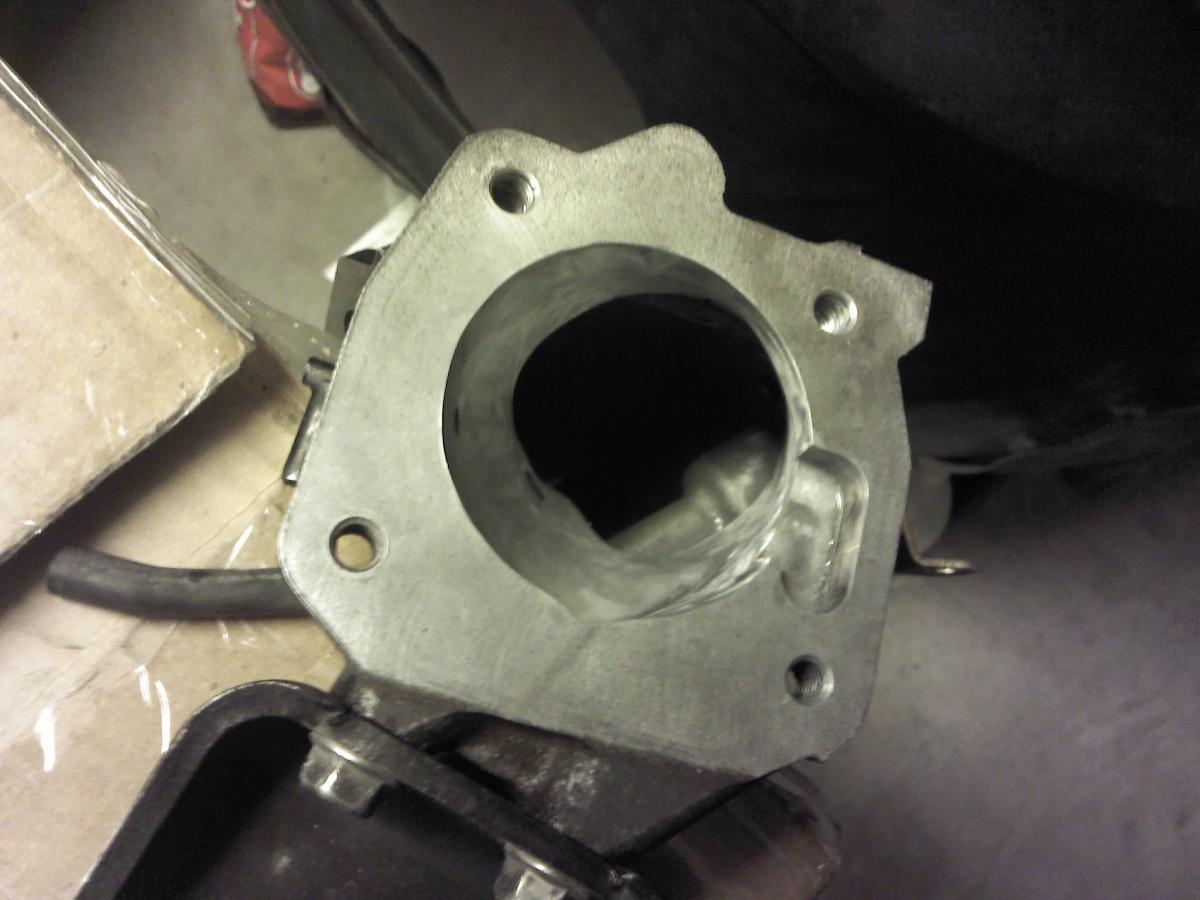

I marked the overlap and used a carbide bit to port it then used a flapper wheel to smooth it out.





IAC installed.

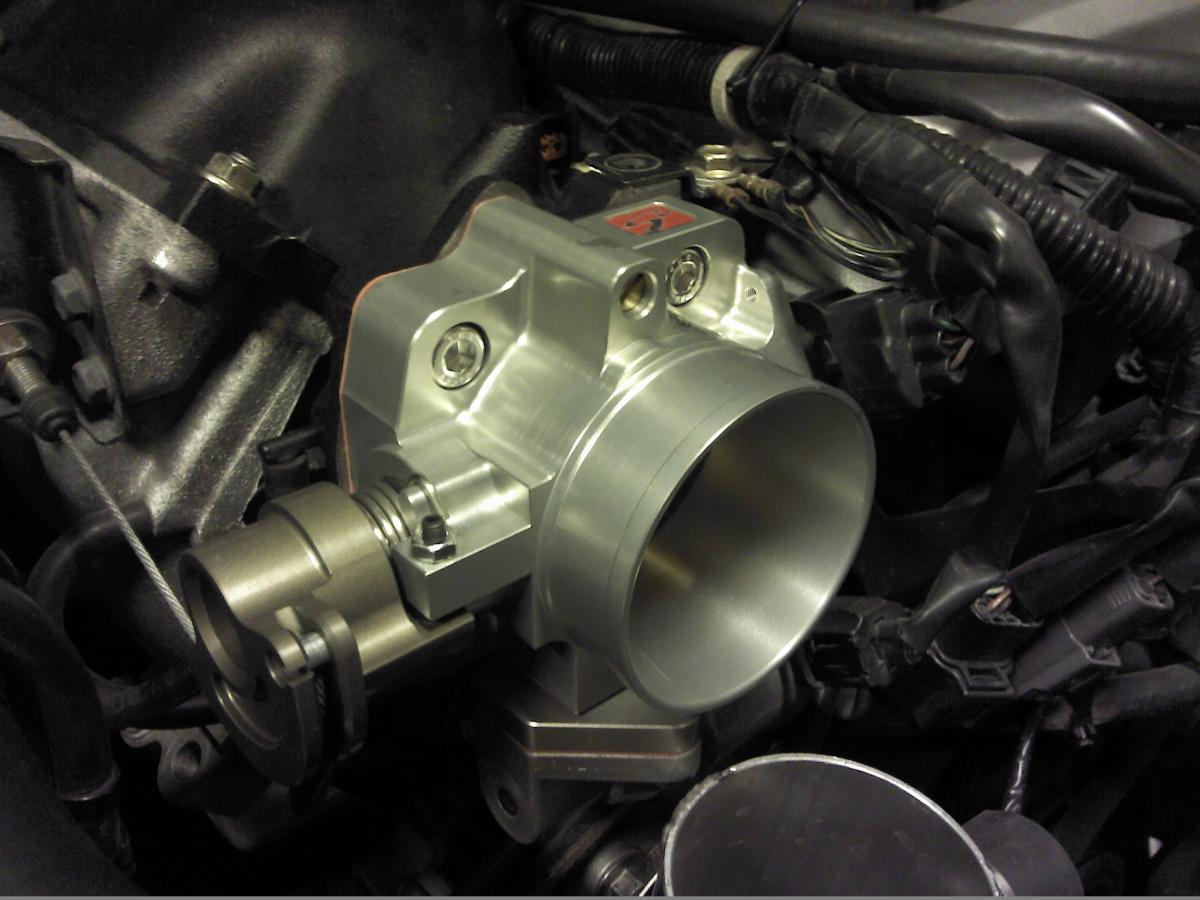

Attached to the IM.



All I need to finish it up is a 2-3/4" elbow.

Attached Thumbnails
99mx5 EFR build-img_20140318_194616.jpg   99mx5 EFR build-img_20140318_195639.jpg   99mx5 EFR build-img_20140318_202929.jpg   99mx5 EFR build-img_20140318_211912.jpg   99mx5 EFR build-img_20140318_211922.jpg

99mx5 EFR build-img_20140318_213239.jpg   99mx5 EFR build-img_20140318_215751.jpg   99mx5 EFR build-img_20140318_215738.jpg

Last edited by 99mx5; 03-19-2014 at 03:54 PM. Reason: typo
99mx5 is offline   Reply With Quote
Old 03-19-2014, 06:08 AM   #464
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

That is a beautiful throttle body. Sometime down the road when my bank account has recovered, I'll have to go the same route and get rid of the Flyin' Miata adapter.
Jeffbucc is offline   Reply With Quote
Old 03-19-2014, 07:31 AM   #465
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,537
Total Cats: 18
Default

For serious track cars that dont even work with 10mm inconel resbond and stage8 you can put a tiny tack on the stud to the manifold.

Dann
nitrodann is offline   Reply With Quote
Old 03-19-2014, 07:32 AM   #466
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,813
Total Cats: 92
Default

Did you red loctite the devil screw?
Leafy is offline   Reply With Quote
Old 03-19-2014, 02:55 PM   #467
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,301
Total Cats: 181
Default

I put blue locktite on the stop screw. The brass air bleed screw is tight to turn, so I left it alone.
99mx5 is offline   Reply With Quote
Old 03-19-2014, 03:12 PM   #468
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

You guys are making me worried about my VIC's butterflies. I applied red locktite to the screws, but still nervous about failure.
Jeffbucc is offline   Reply With Quote
Old 03-19-2014, 03:17 PM   #469
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,813
Total Cats: 92
Default

Quote:
Originally Posted by Jeffbucc View Post
You guys are making me worried about my VIC's butterflies. I applied red locktite to the screws, but still nervous about failure.
I have an untouched vic...


say that quickly with an accent.
Leafy is offline   Reply With Quote
Old 03-19-2014, 03:22 PM   #470
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Quote:
Originally Posted by Leafy View Post

I have an untouched vic...

say that quickly with an accent.
Next time you are in Vegas I'm sure we can find a girl to take care of your Vic Leafy
Jeffbucc is offline   Reply With Quote
Old 03-20-2014, 08:49 AM   #471
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,684
Total Cats: 837
Default

Quote:
Originally Posted by nitrodann View Post
For serious track cars that dont even work with 10mm inconel resbond and stage8 you can put a tiny tack on the stud to the manifold.

Dann
What serious track miatas have stretched TSE Inconel Studs and their other hardware?
shuiend is online now   Reply With Quote
Old 03-20-2014, 10:17 AM   #472
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,514
Total Cats: 253
Default

The ones in Australia
soviet is offline   Reply With Quote
Old 03-20-2014, 03:28 PM   #473
Junior Member
iTrader: (1)

Tmorgan's Avatar

Join Date: Nov 2009
Posts: 77
Total Cats: 13
Default

when the car is upsidown there's more stress on the studs
Tmorgan is offline   Reply With Quote
Old 04-21-2014, 08:58 PM   #474
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,301
Total Cats: 181
Default

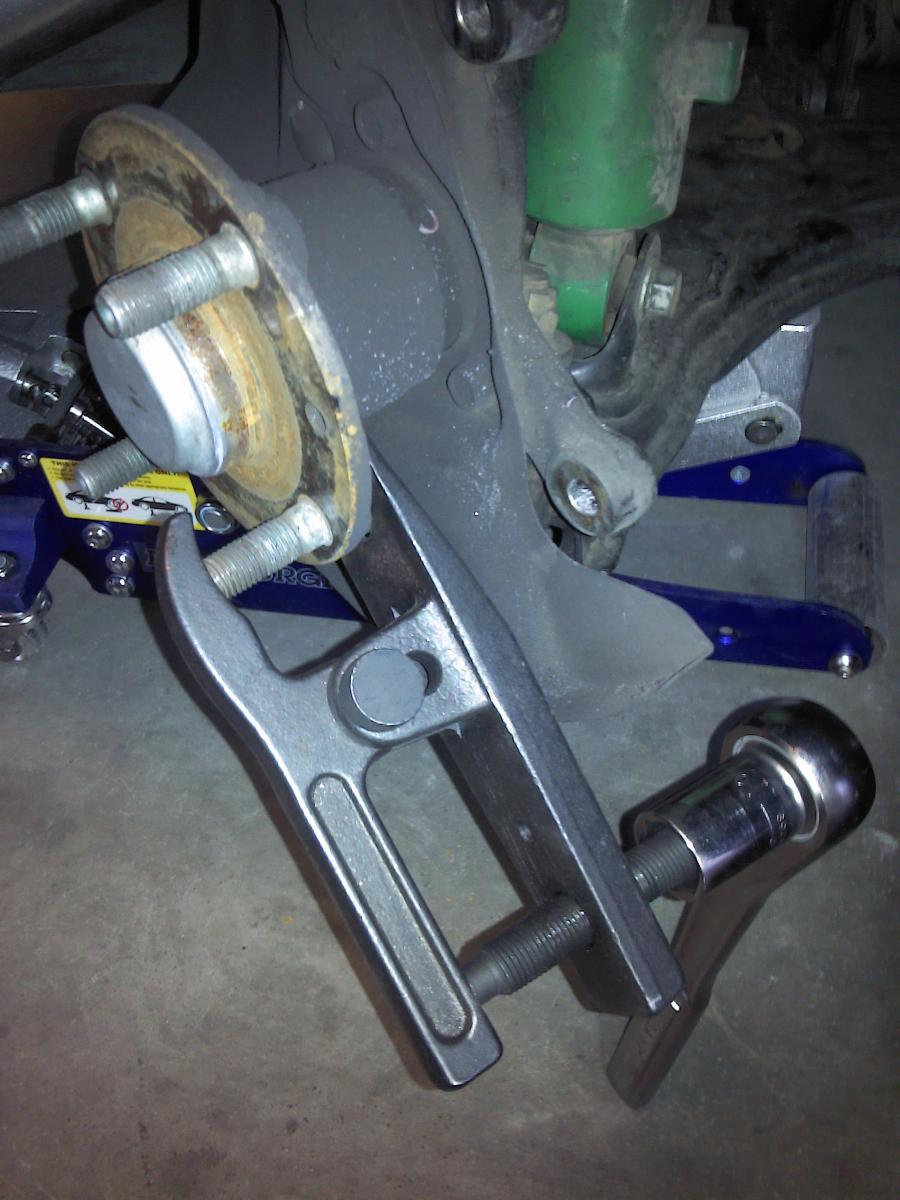

I finally got around to installing ARP studs. I used the same ball-joint tool that FrankB used on his car. It was easy to do using this tool.

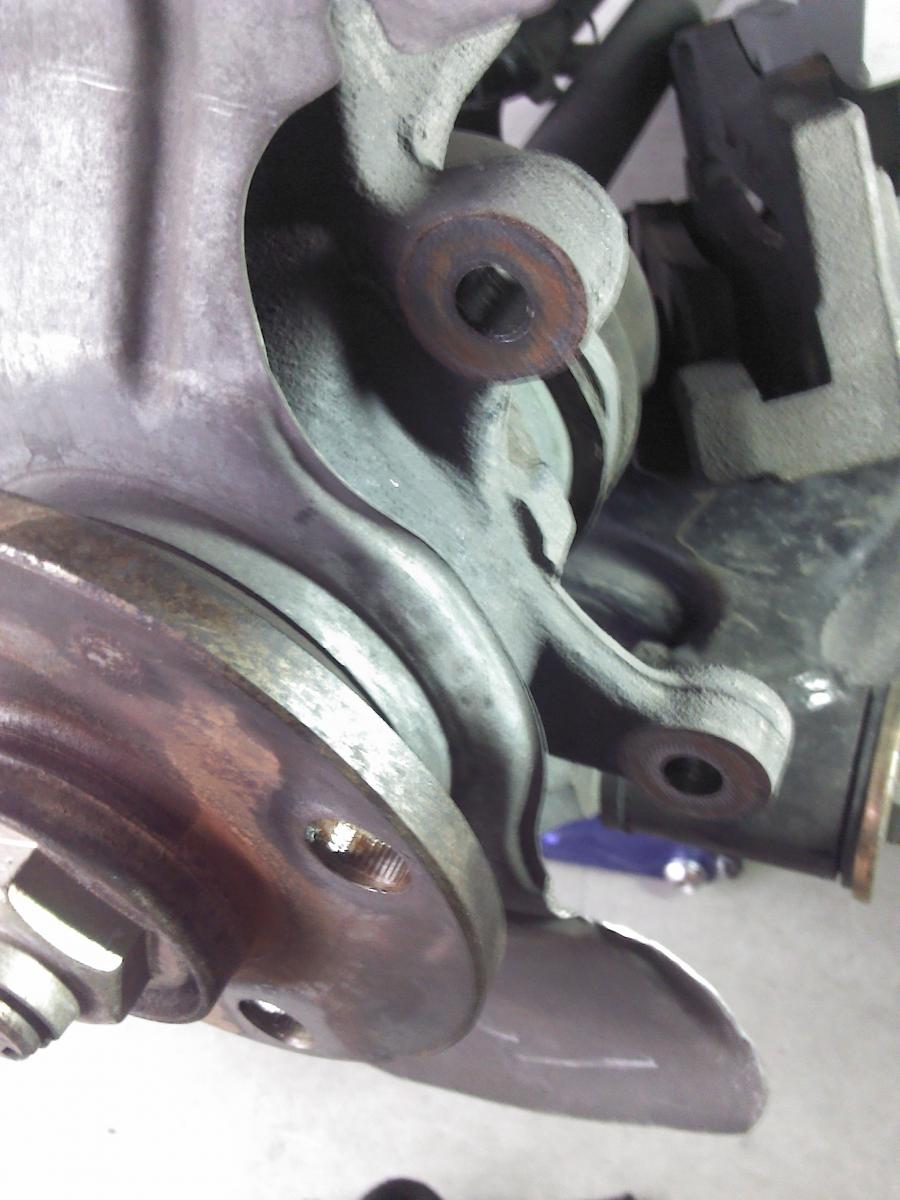

I bent the shield back on the rear hubs to remove and install the studs.


Here is how I removed the old studs. To press in the new ones, just flip the tool. the only caveat is to make sure you press in the center of the stud head to press it in straight.

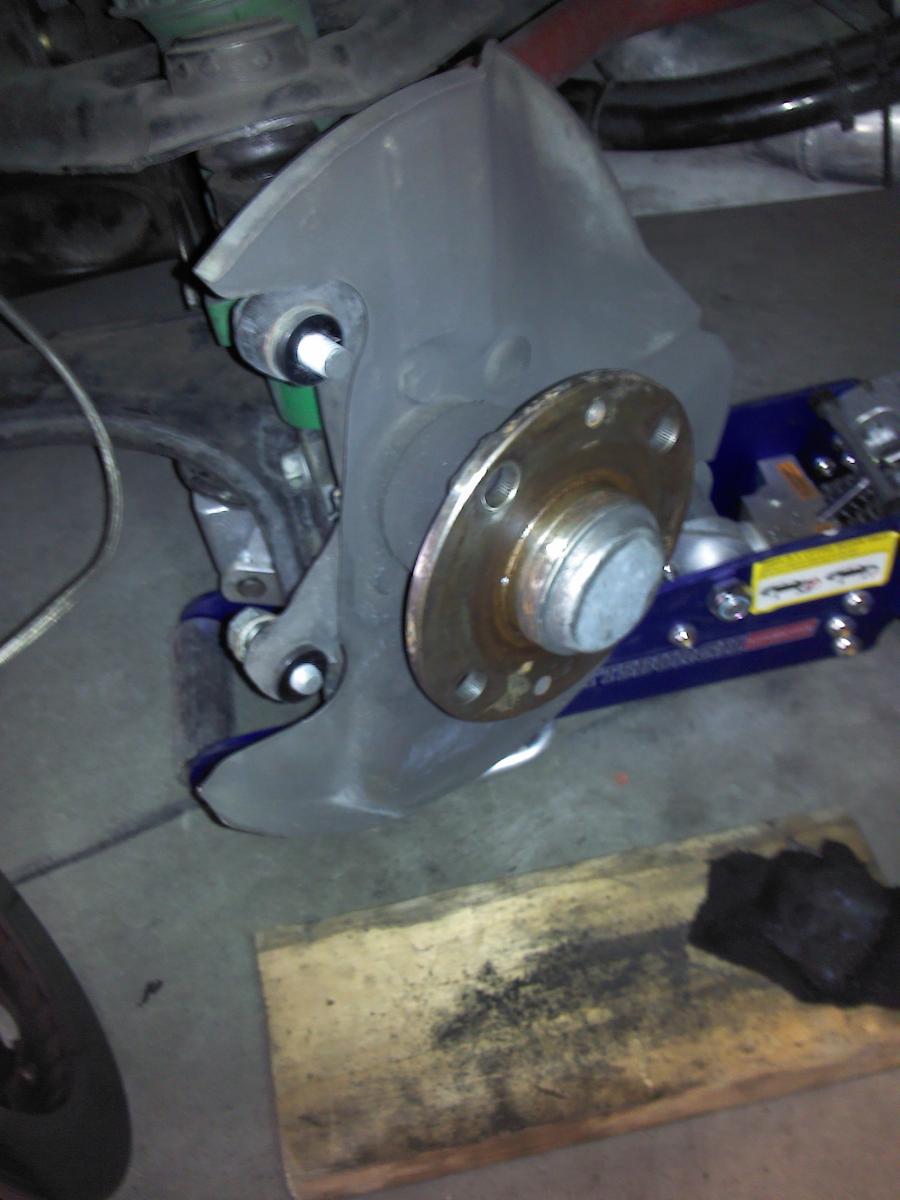

The studs clear the front shields for removal and replacement.

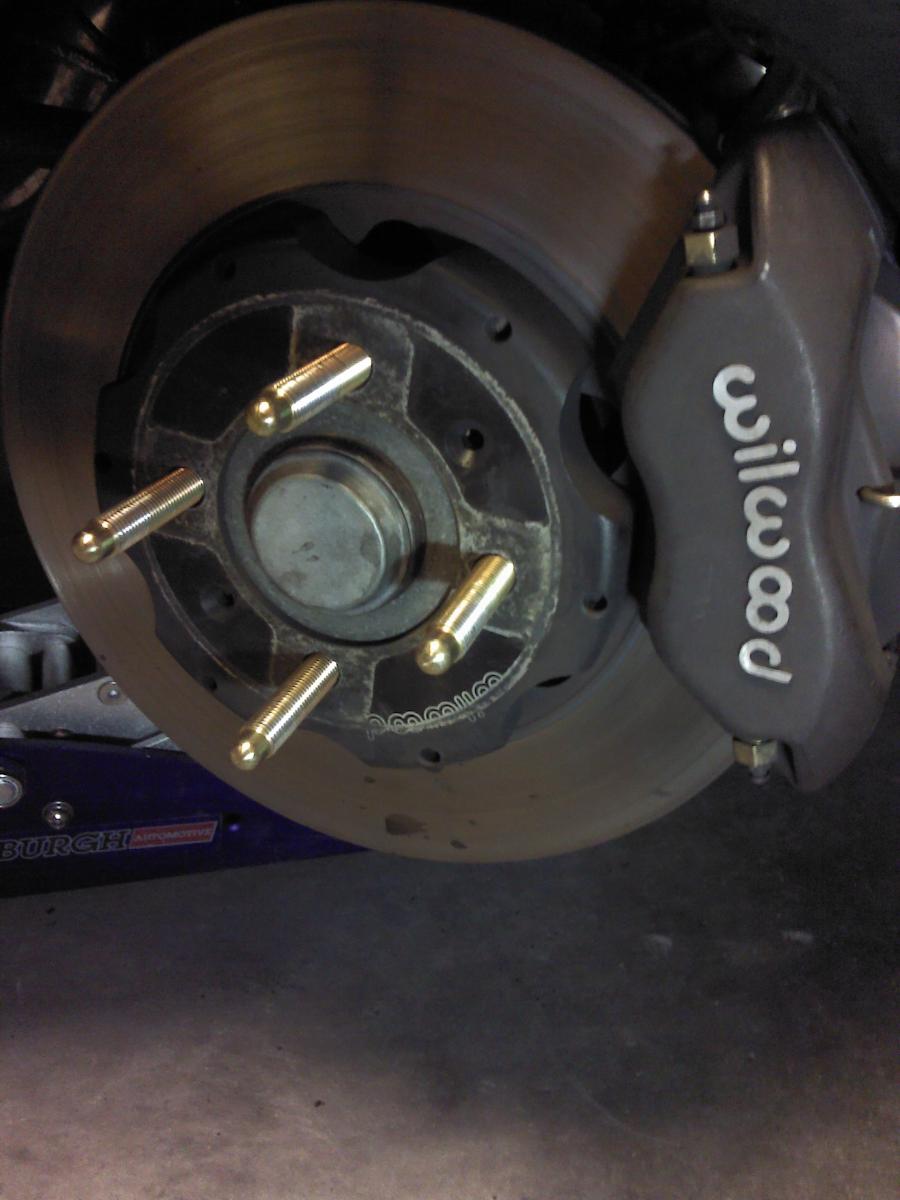

After reinstalling the brake disk.
Attached Thumbnails
99mx5 EFR build-img_20140419_172043.jpg   99mx5 EFR build-img_20140419_191401.jpg   99mx5 EFR build-img_20140419_195023.jpg   99mx5 EFR build-img_20140419_183351.jpg
99mx5 is offline   Reply With Quote
Old 04-28-2014, 04:19 PM   #475
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,301
Total Cats: 181
Default

Had a great track day this past Sunday. I started with a full tank and ran it dry. I turned up the boost and was hitting around 20PSI at the top end. The car ran great and I had some fresh NT-01s on it.

Looks like I'll be replacing my clutch soon. I noticed that It was slipping a bit when shifting. I didn't take any pics or video. I was too busy driving!
99mx5 is offline   Reply With Quote
Old 04-29-2014, 01:59 PM   #476
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,115
Total Cats: 426
Default

So, it made 323 whp at 14 PSI and you were running 20?
Attached Thumbnails
99mx5 EFR build-jaw_drop.jpg
turbofan is offline   Reply With Quote
Old 04-29-2014, 02:57 PM   #477
Junior Member

Join Date: Apr 2011
Location: Las Cruces, NM
Posts: 250
Total Cats: 11
Default

All of it.
Stock is offline   Reply With Quote
Old 04-29-2014, 03:04 PM   #478
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Video nao plz!!!!
concealer404 is offline   Reply With Quote
Old 04-29-2014, 03:44 PM   #479
Senior Member
iTrader: (4)

Join Date: May 2010
Location: Iowa City
Posts: 541
Total Cats: 15
Default

Video, dyno graph, and videodynograph nao plox.
vteckiller2000 is online now   Reply With Quote
Old 04-29-2014, 04:37 PM   #480
Senior Member

Join Date: Mar 2011
Location: South Chicago
Posts: 688
Total Cats: 26
Default

I think my pants are wet now...
Mazduh is offline   Reply With Quote
