Old 02-13-2015, 06:27 PM   #561
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,801
Total Cats: 2,116
Default

yessssssssssssssssssssssss


18psi is offline   Reply With Quote
Old 02-13-2015, 06:30 PM   #562
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,038
Total Cats: 809
Default

Glorious!
EO2K is offline   Reply With Quote
Old 02-13-2015, 06:37 PM   #563
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,813
Total Cats: 92
Default

Quote:
Originally Posted by EO2K View Post
He may actually be limited by injector size. IIRC he and I are on the same 650cc injectors. Take that 375hp with a BSFC of .60 and .80 DC on 4 injectors and you are looking at required 743cc worth of fuel. The 60psi base pressure in the NB puts him at 763.39cc for actual injector size. So if you believe the RC calculator, its completely feasible that he did in fact run out of injector.

The numbers listed are optimal, obviously not taking into account plumbing losses and such. I'd have to dig through the thread and figure out if he went boost reference on the FPR or if he stuck with the stock system, because that will have a significant effect on things as well.

Either way, 375 is absolutely nothing to sneeze at
But with an NB the 60psi base pressure turns into 34psi differential pressure at 26psi of boost. Guessing theres a manifold referenced fpr in there. Or he's secretly corkey bell.
Leafy is offline   Reply With Quote
Old 02-13-2015, 06:39 PM   #564
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 2,826
Total Cats: 222
Default

Awesome
Mobius is offline   Reply With Quote
Old 02-13-2015, 06:44 PM   #565
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,301
Total Cats: 181
Default

Quote:
Originally Posted by Leafy View Post
But with an NB the 60psi base pressure turns into 34psi differential pressure at 26psi of boost. Guessing theres a manifold referenced fpr in there. Or he's secretly corkey bell.


This was at 22-23PSI from glancing at the gauge. I will have to check the log to get the exact amount of boost. I have a Walbro 255HP fuel pump and FIC 650cc injectors.
99mx5 is offline   Reply With Quote
Old 02-13-2015, 07:02 PM   #566
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,038
Total Cats: 809
Default

Quote:
Originally Posted by 99mx5 View Post


This was at 22-23PSI from glancing at the gauge. I will have to check the log to get the exact amount of boost. I have a Walbro 255HP fuel pump and FIC 650cc injectors.
Is the rest of the fuel system stock, or boost referenced AFPR?
EO2K is offline   Reply With Quote
Old 02-13-2015, 07:16 PM   #567
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,301
Total Cats: 181
Default

The rest of the fuel system is stock.

I just found this video online.

click to play

99mx5 is offline   Reply With Quote
Old 02-13-2015, 07:43 PM   #568
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,038
Total Cats: 809
Default

Dear lord
Quote:
Originally Posted by 99mx5 View Post
The rest of the fuel system is stock.
So what you are saying is... I don't need to worry about setting up a return and a referenced FPR? I'm running the same FIC 650 injectors and a 255LPH pump (DW200 in my case.) This will simplify my fuel system quite a bit.

Also, I know you said Magnaflow muffler and resonator, do you happen to have PNs around somewhere? That thing sounds amazing

Last edited by EO2K; 02-13-2015 at 07:55 PM.
EO2K is offline   Reply With Quote
Old 02-13-2015, 07:48 PM   #569
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

Damn son. I'm getting really excited to get mine on the dyno once everything is in place.

Anyone care to explain to me why power jumps so sharply at 4200 rpm? I'm guessing peak boost being held by the EBC?

What timing wheel do you have? Maybe timing jumping around also holding you back?
Jeffbucc is offline   Reply With Quote
Old 02-13-2015, 08:06 PM   #570
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Nicely done! Congrats.
bcrx7 is offline   Reply With Quote
Old 02-13-2015, 09:13 PM   #571
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,301
Total Cats: 181
Default

Quote:
Originally Posted by Jeffbucc View Post
Damn son. I'm getting really excited to get mine on the dyno once everything is in place.

Anyone care to explain to me why power jumps so sharply at 4200 rpm? I'm guessing peak boost being held by the EBC?

What timing wheel do you have? Maybe timing jumping around also holding you back?
I have the stock timing wheel. I wanted to use the OEM 36-1 toothed wheel, but I don't have a spare cam gear to cut the intake sensor triggers.
99mx5 is offline   Reply With Quote
Old 02-15-2015, 03:31 AM   #572
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,301
Total Cats: 181
Default

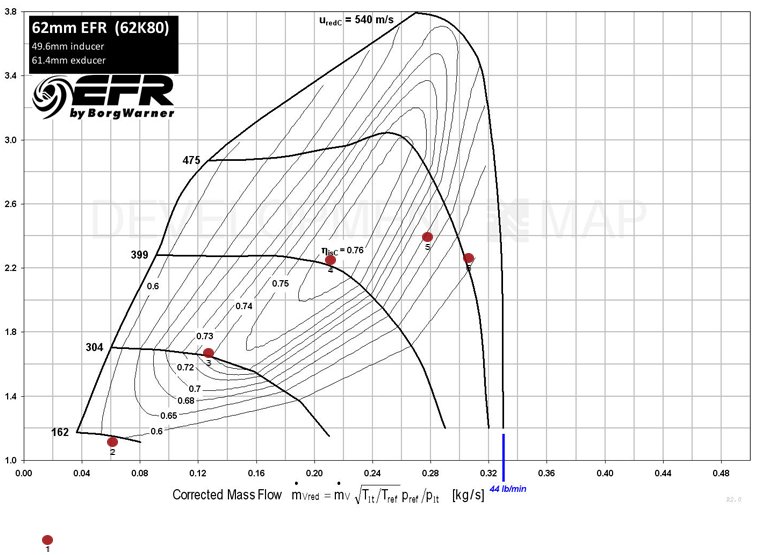

Here is the graph produced by the BW Matchbot based on the RPM and PSI converted from kPa to PSI from the log.



Edit: Corrected graph
Attached Thumbnails
99mx5 EFR build-133339d1424071892-99mx5-efr-build-6258.jpg
Attached Files
File Type: msl 375whp dyno pull 2.13.2015.msl (65.9 KB, 40 views)

Last edited by 99mx5; 02-16-2015 at 02:40 AM.
99mx5 is offline   Reply With Quote
Old 02-15-2015, 04:30 AM   #573
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,359
Total Cats: 187
Default

Wait, what's up with the slow spool?

And why are you getting 250*F coolant temps?!??!

TPS is also reading 114% max, time to calibrate.
Reverant is offline   Reply With Quote
Old 02-15-2015, 11:33 AM   #574
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,801
Total Cats: 2,116
Default

He's at elevation
18psi is offline   Reply With Quote
Old 02-15-2015, 11:39 AM   #575
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,038
Total Cats: 809
Default

Quote:
Originally Posted by 18psi View Post
He's at elevation
Like, 4,000ft worth of it. I can't wait to see what mine does at sea level

Ari, props for making the plot. Also, did you hit the drop down to change the turbo and see where the plot landed on a 6758?
EO2K is offline   Reply With Quote
Old 02-15-2015, 01:29 PM   #576
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,301
Total Cats: 181
Default

I found that I could "stretch" the graph in megalog viewer to get more exact values. The RPM - kPa - PSI values from the log are as follows:

EDIT: THESE VALUES WERE INCORRECT. SEE POST #581 FOR UPDATED GRAPHS 99mx5 EFR build

Red is the incorrect value. Apologies for the error.
2000 - 50.1 - 7.26 -7.43
3000 - 110.5 - 16.02 1.33
4000 - 165 - 23.93 9.24
5000 - 221.5 - 32.12 17.43
6000 - 233.6 - 33.88 19.18
7000 - 220 - 31.90 17.21

Last edited by 99mx5; 02-16-2015 at 02:49 AM. Reason: Incorrect values
99mx5 is offline   Reply With Quote
Old 02-15-2015, 01:43 PM   #577
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,038
Total Cats: 809
Default

EO2K is offline   Reply With Quote
Old 02-15-2015, 03:34 PM   #578
Junior Member

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

congrats, good job!
I'm pretty jelly, coudn't imagine what 375 whp are
also:subbed
DNA54 is offline   Reply With Quote
Old 02-15-2015, 03:59 PM   #579
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Glad to know that you can run off of the compressor map on those EFR's and not have a drastic dip in the flow! Excited!
bcrx7 is offline   Reply With Quote
Old 02-16-2015, 01:49 AM   #580
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,359
Total Cats: 187
Default

Quote:
Originally Posted by 99mx5 View Post
I found that I could "stretch" the graph in megalog viewer to get more exact values. The RPM - kPa - PSI values from the log are as follows:

2000 - 50.1 - 7.26
3000 - 110.5 - 16.02
4000 - 165 - 23.93
5000 - 221.5 - 32.12
6000 - 233.6 - 33.88
7000 - 220 - 31.90
The kPa values from the log are absolute pressure numbers, not boost.

So, 110 = 0.1bar = 1.4psi, 220 = 1.2bar = 17.4psi, etc.
