Seems to be right. I pulled the plugs and they do not indicate that it was rich.
99mx5 is offline   Reply With Quote
Old 03-31-2012, 03:13 AM   #162
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,829
Total Cats: 2,122
Default

lean is a lot worse though lol
18psi is offline   Reply With Quote
Old 03-31-2012, 10:39 AM   #163
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,008
Total Cats: 333
Default

Quote:
Originally Posted by 99mx5 View Post
Seems to be right. I pulled the plugs and they do not indicate that it was rich.
...rich at the time you shut down.
hustler is offline   Reply With Quote
Old 03-31-2012, 10:43 AM   #164
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,702
Total Cats: 847
Default

Where are the pictures of the destroyed motor?
shuiend is offline   Reply With Quote
Old 03-31-2012, 02:17 PM   #165
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,302
Total Cats: 181
Default

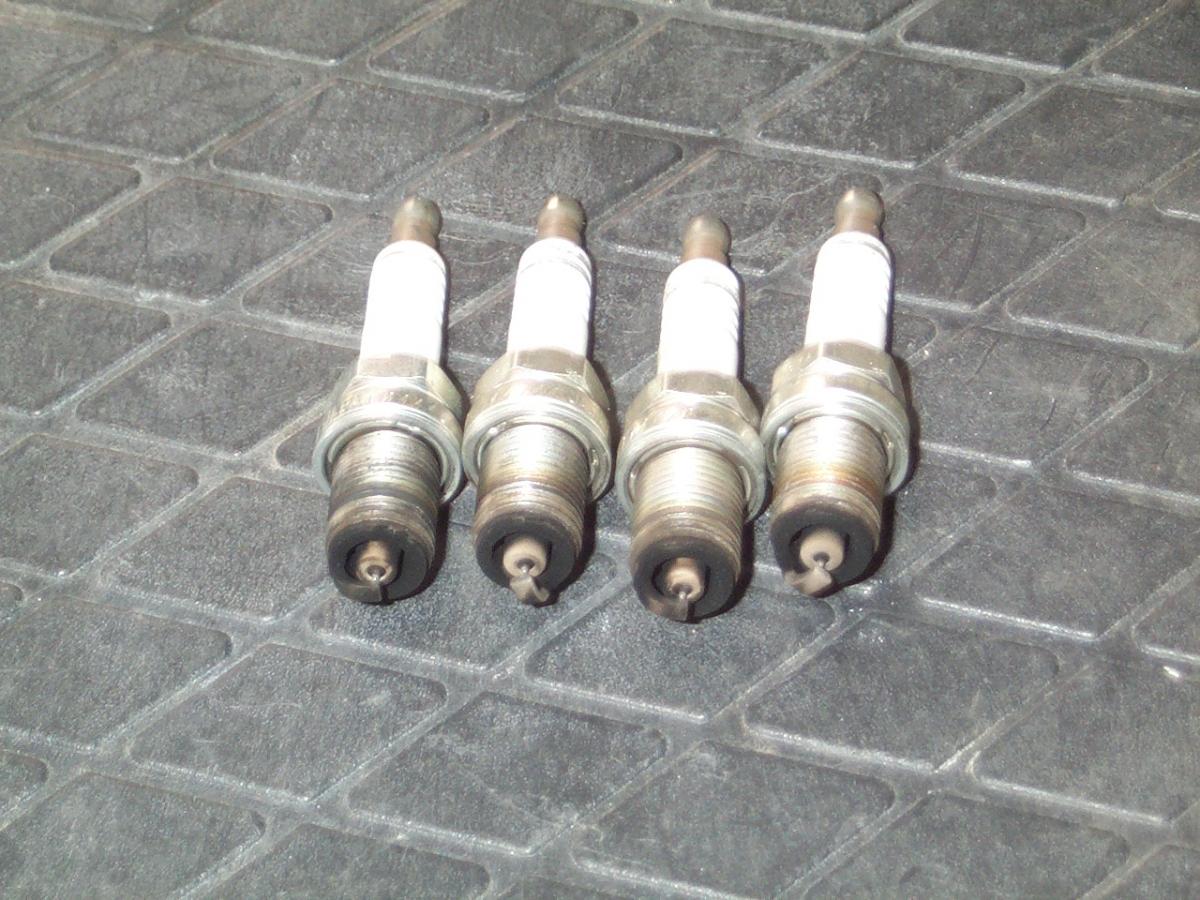

Here are pics of the plugs from the tuning session the week before. The flash makes them look a bit whiter.

I'm pulling the engine out now. I expect to have it out later on today.

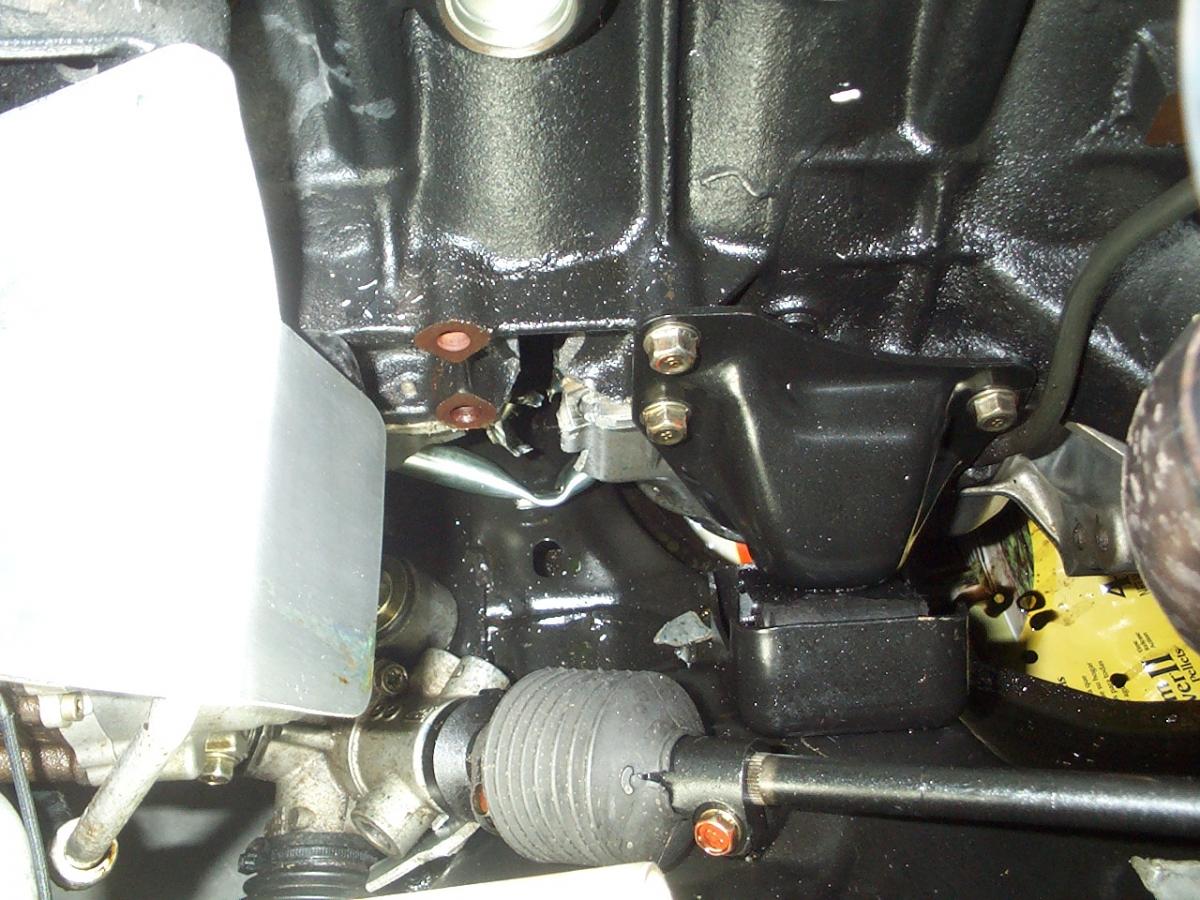

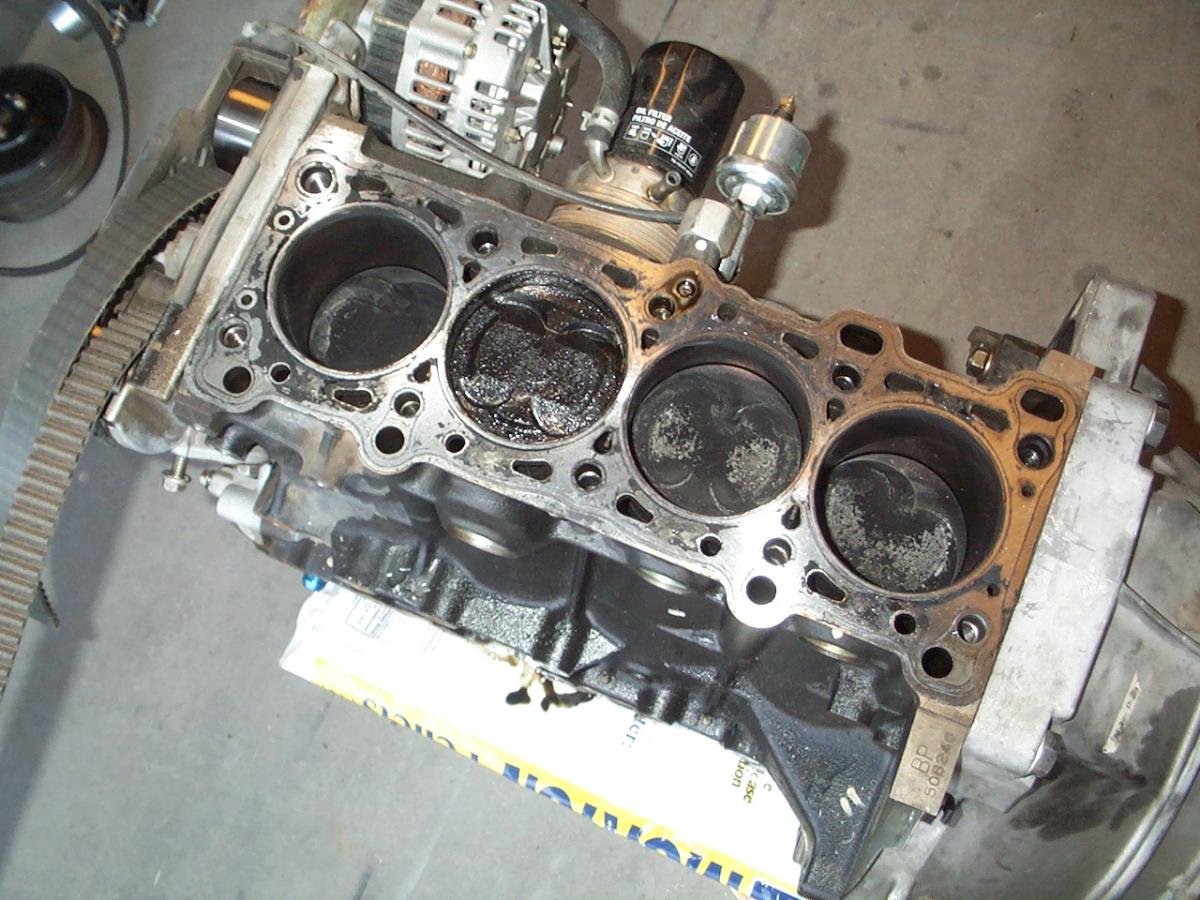

Here's a pic of the driver side of the block.
Attached Thumbnails
99mx5 EFR build-dcp_5041.jpg   99mx5 EFR build-dcp_5039.jpg
99mx5 is offline   Reply With Quote
Old 03-31-2012, 03:35 PM   #166
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,702
Total Cats: 847
Default

Quote:
Originally Posted by 99mx5 View Post
Here are pics of the plugs from the tuning session the week before. The flash makes them look a bit whiter.

I'm pulling the engine out now. I expect to have it out later on today.
Here's a pic of the driver side of the block.
That hole is small, should be easy to jbweld over it to fix it.
shuiend is offline   Reply With Quote
Old 03-31-2012, 05:59 PM   #167
Senior Member
iTrader: (2)

Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,168
Total Cats: 27
Default

A little mesh and resin and she'll be ready to go.
Landrew is offline   Reply With Quote
Old 04-01-2012, 01:56 AM   #168
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,302
Total Cats: 181
Default

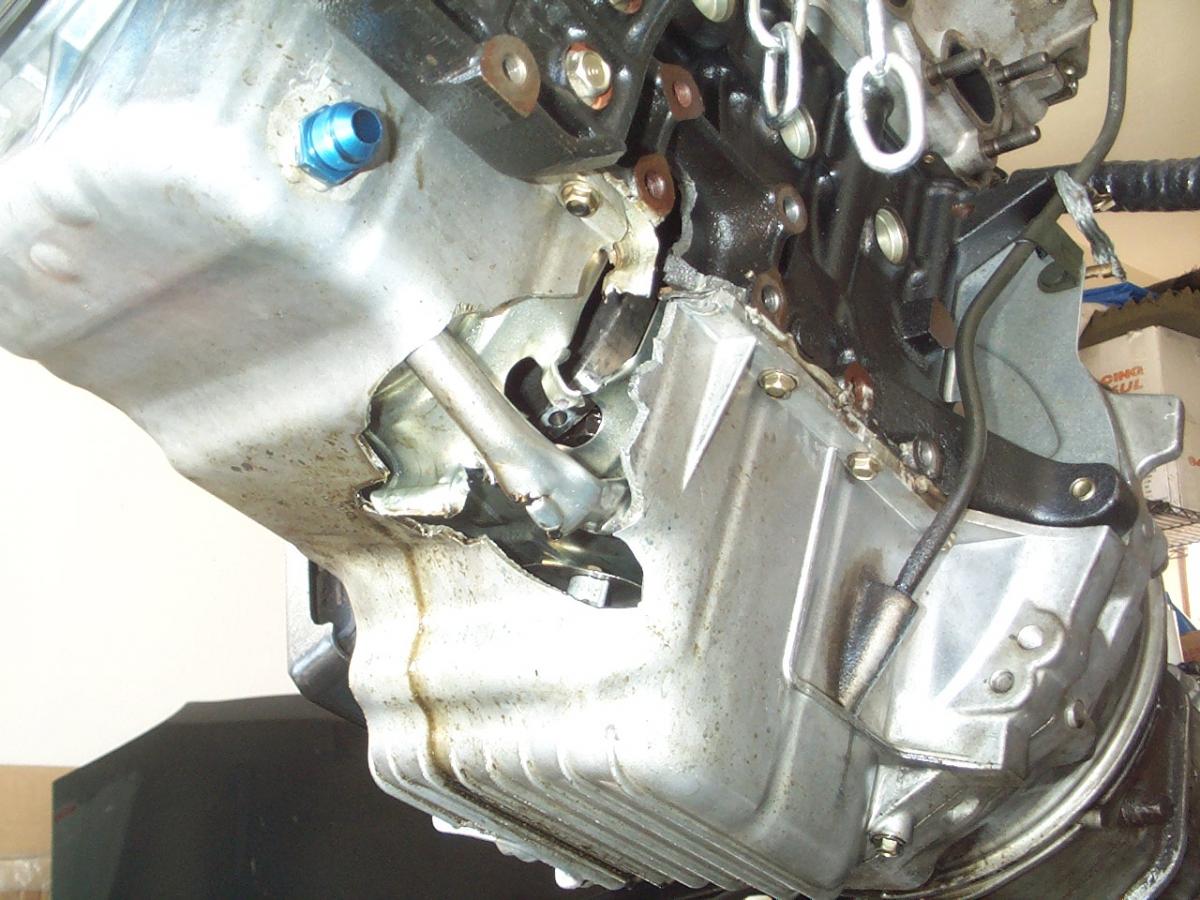

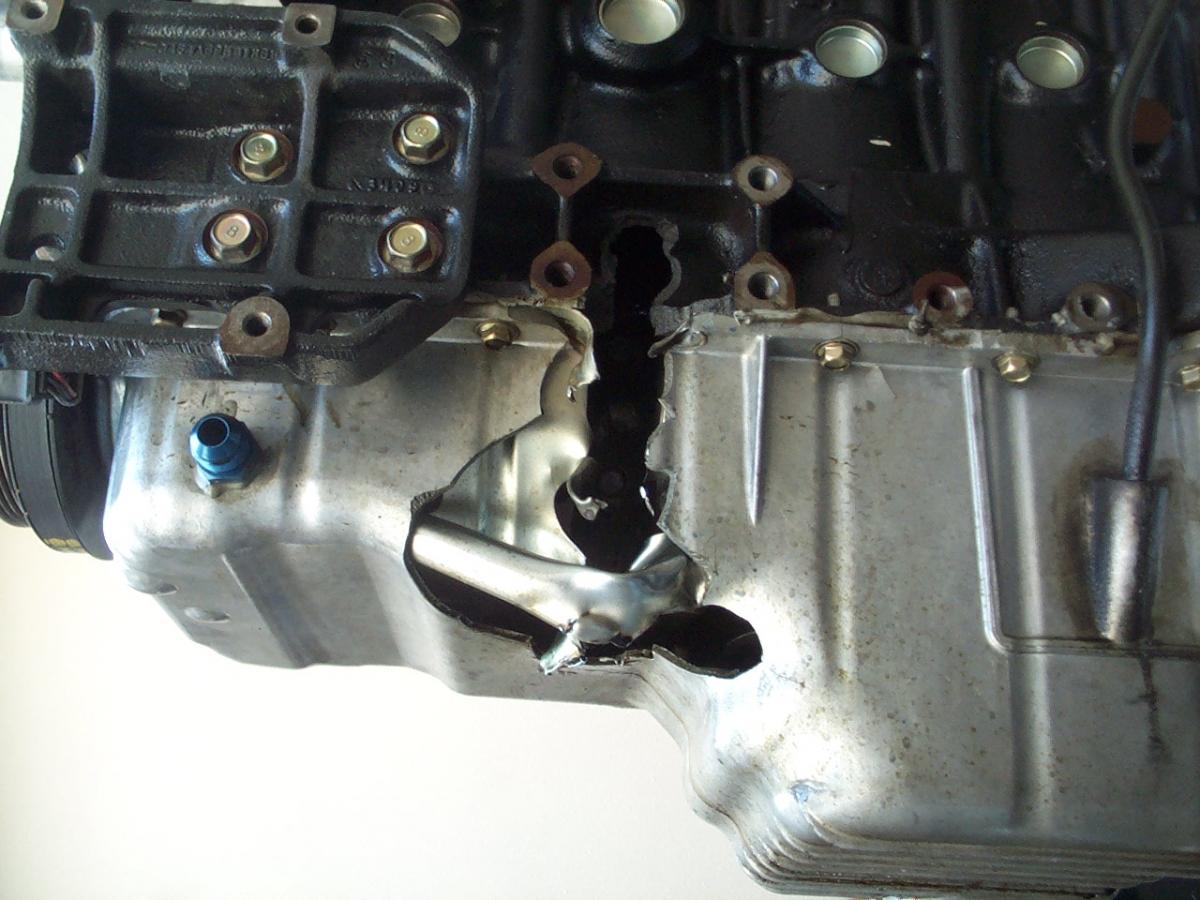

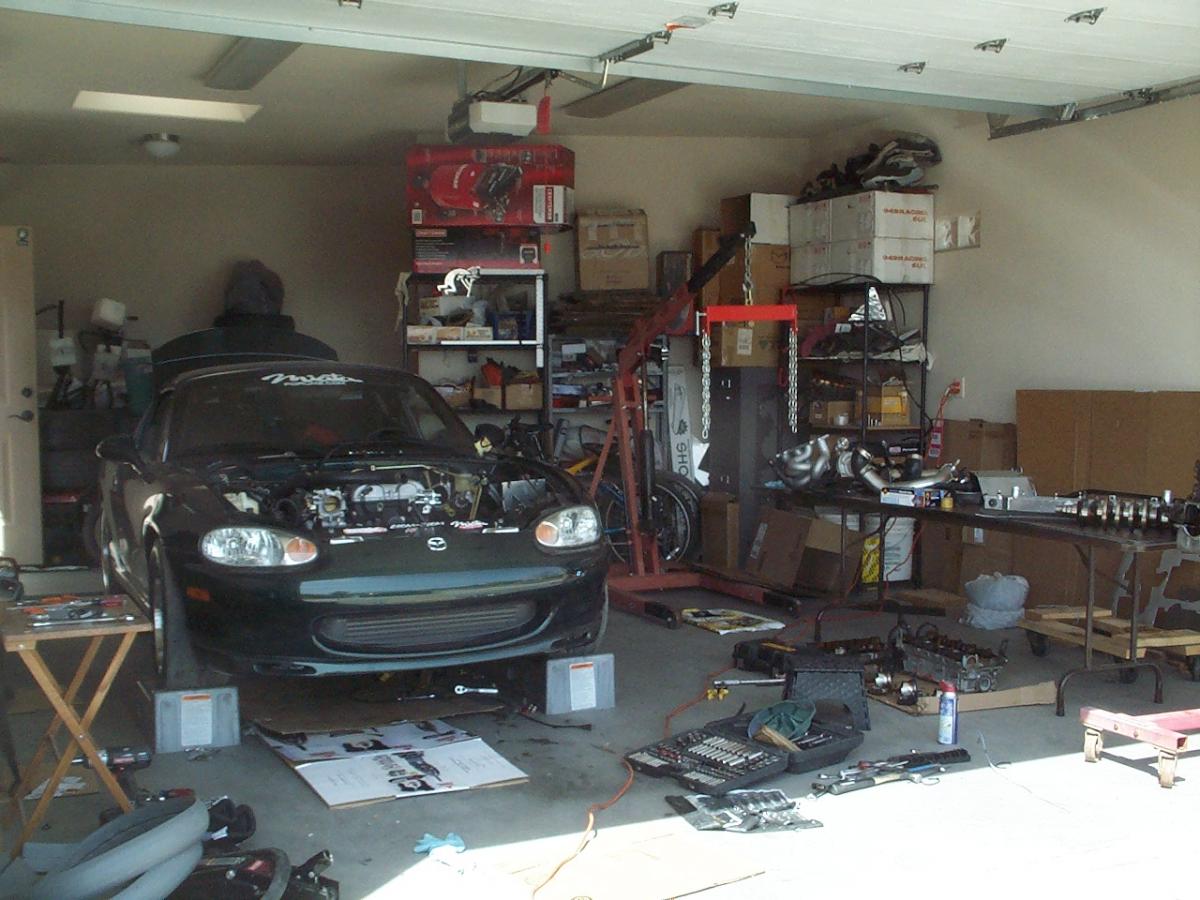

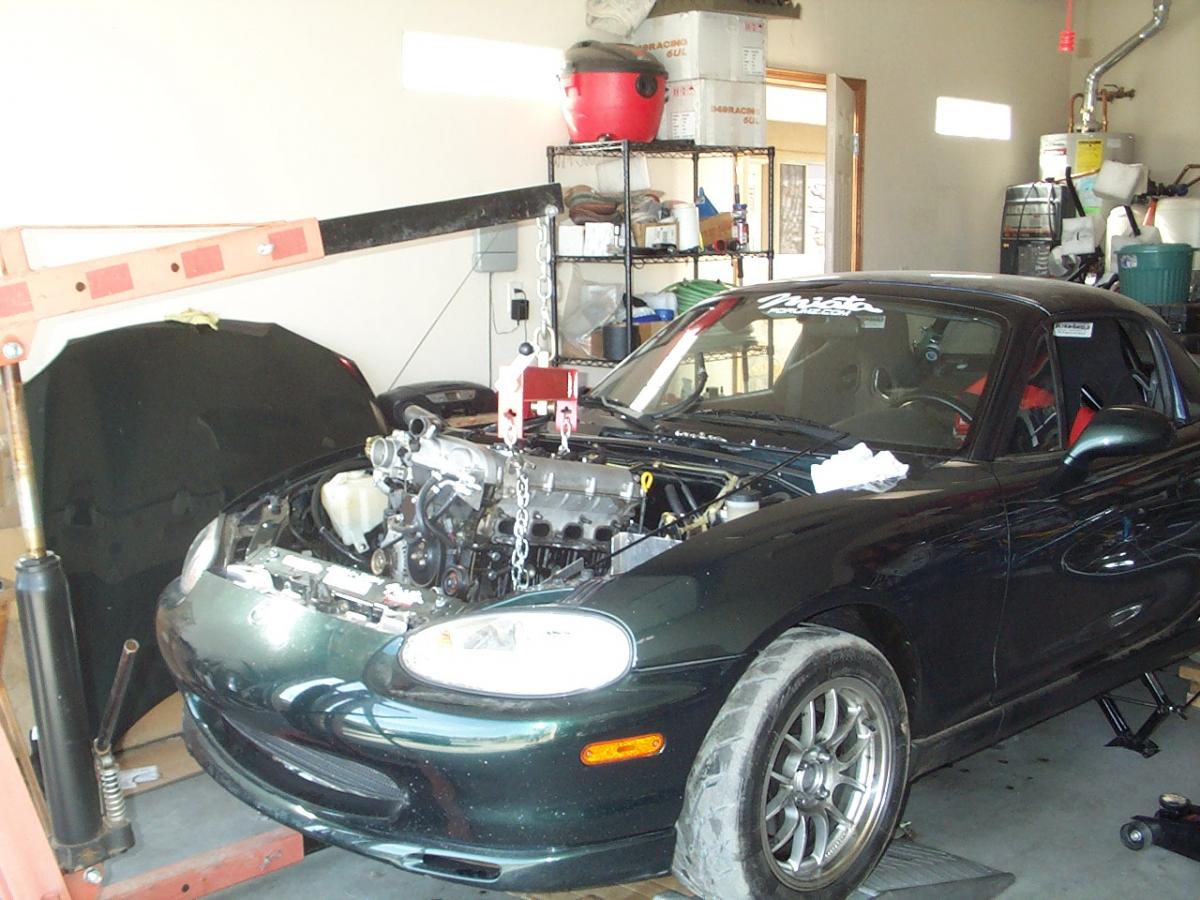

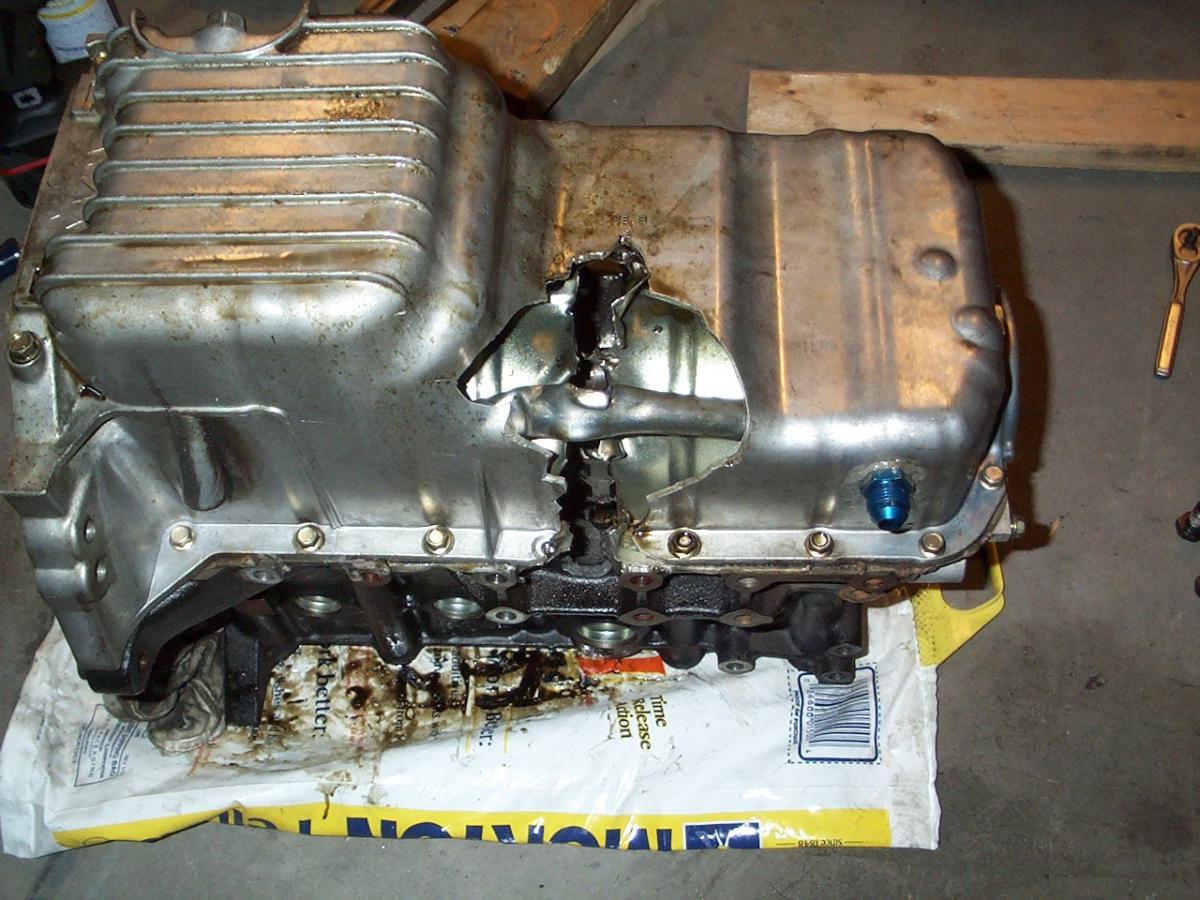

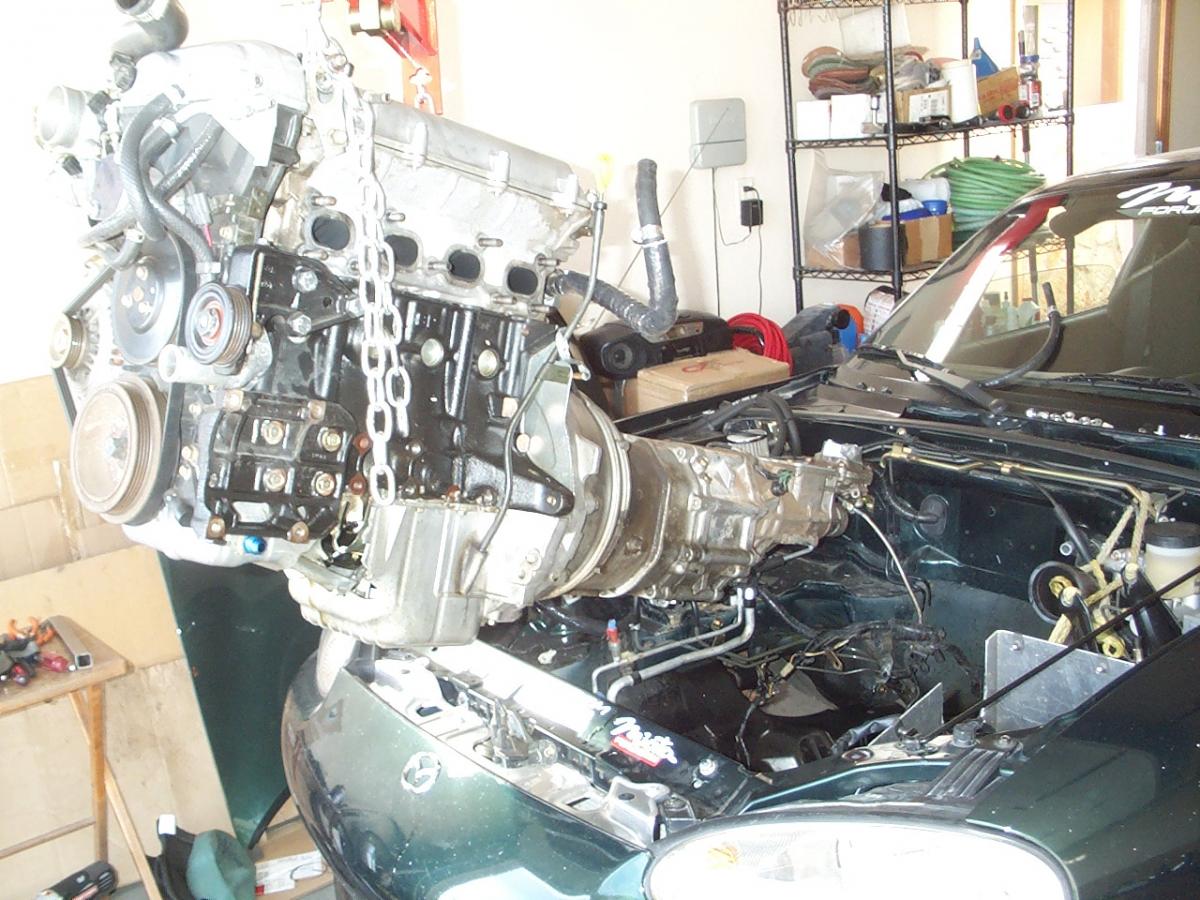

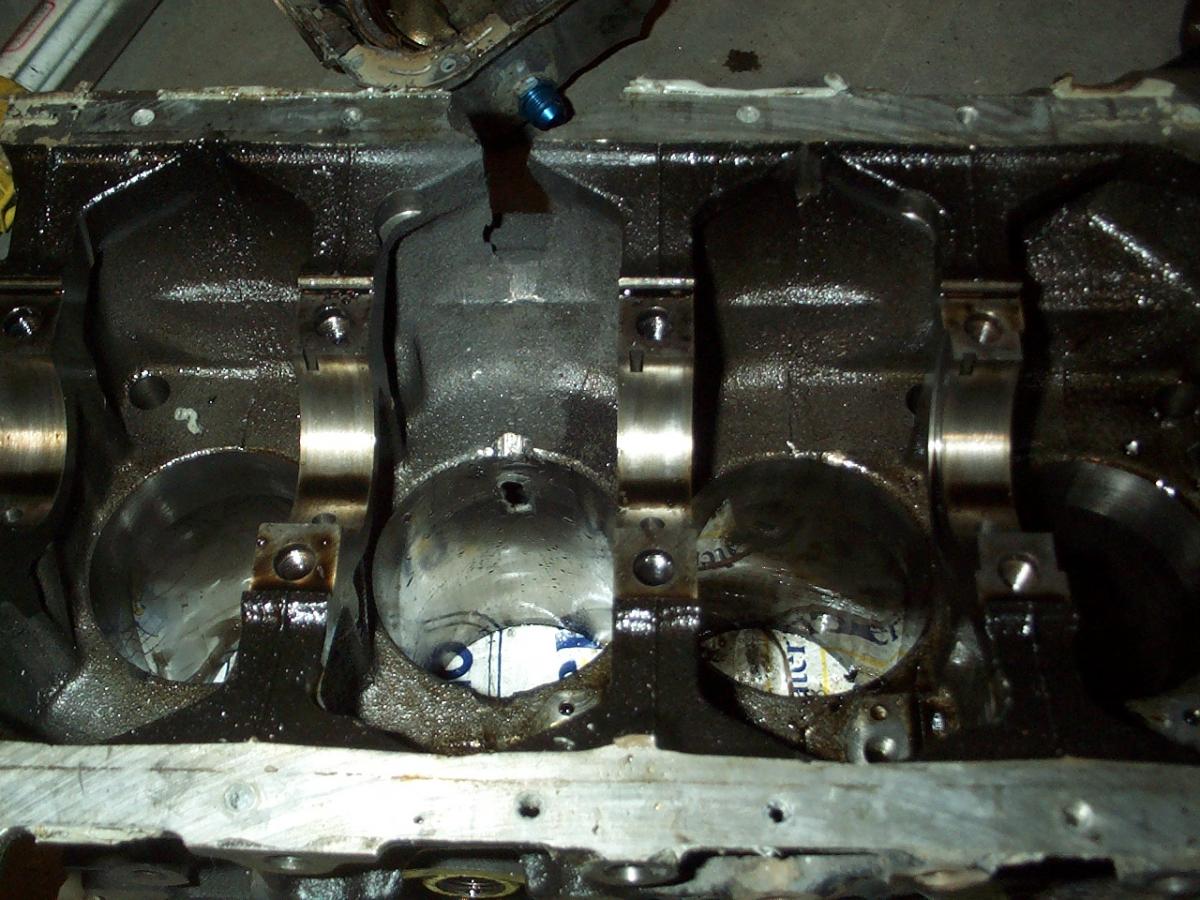

I just finished pulling the engine today. No 2 rod is gone! It broke near the top and snapped up to the underside of the piston and cracked it and it stuck at the top of the cylinder. The rest of the rod swung around and punched a hole in the cylinder and the driver side of the block and the oil pan. It also made a dent in the sub-frame cross member.
Attached Thumbnails
99mx5 EFR build-dcp_5043.jpg   99mx5 EFR build-dcp_5046.jpg   99mx5 EFR build-dcp_5048.jpg   99mx5 EFR build-dcp_5047.jpg   99mx5 EFR build-dcp_5049.jpg

99mx5 EFR build-dcp_5050.jpg   99mx5 EFR build-dcp_5051.jpg
99mx5 is offline   Reply With Quote
Old 04-01-2012, 01:58 AM   #169
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,829
Total Cats: 2,122
Default

throwing rods at under 10psi.
geez, them efr's are doin work
18psi is offline   Reply With Quote
Old 04-01-2012, 02:01 AM   #170
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,302
Total Cats: 181
Default

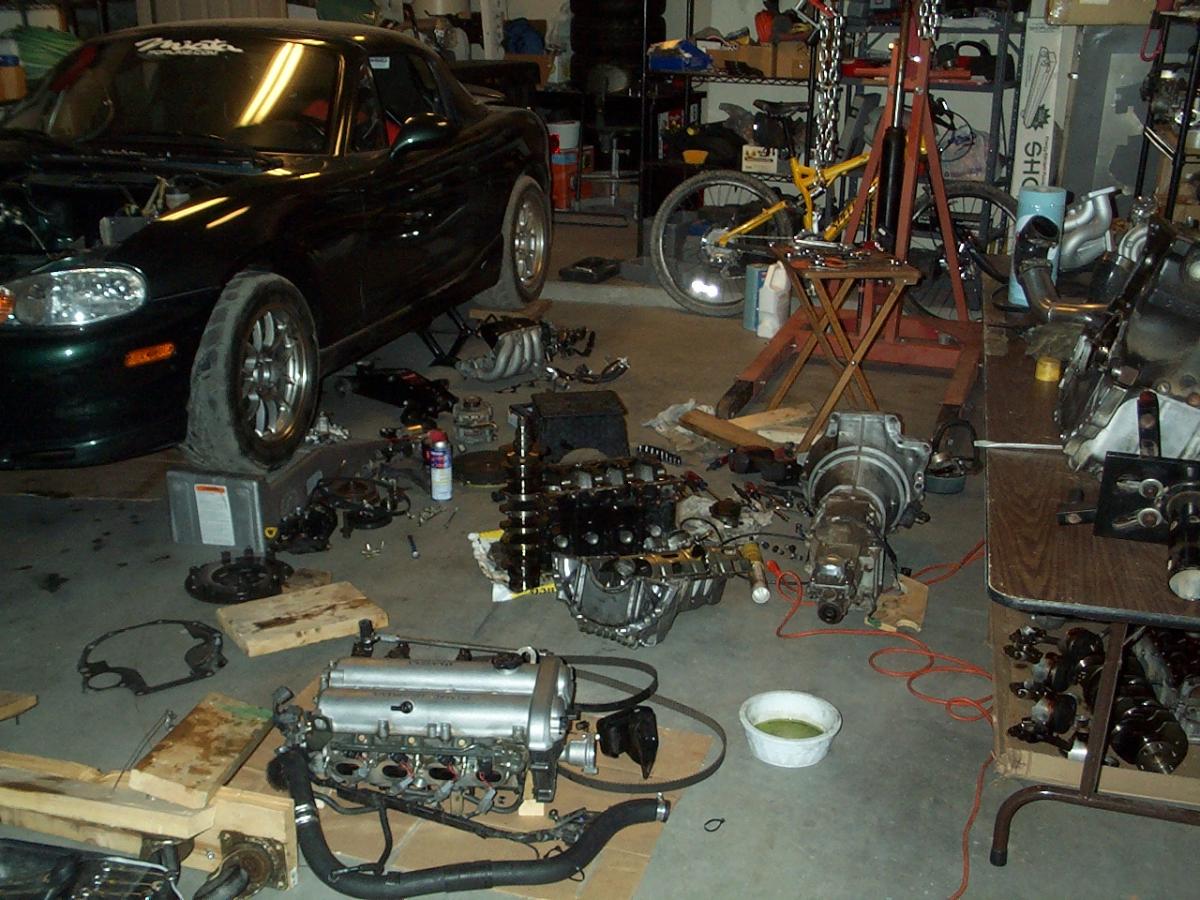

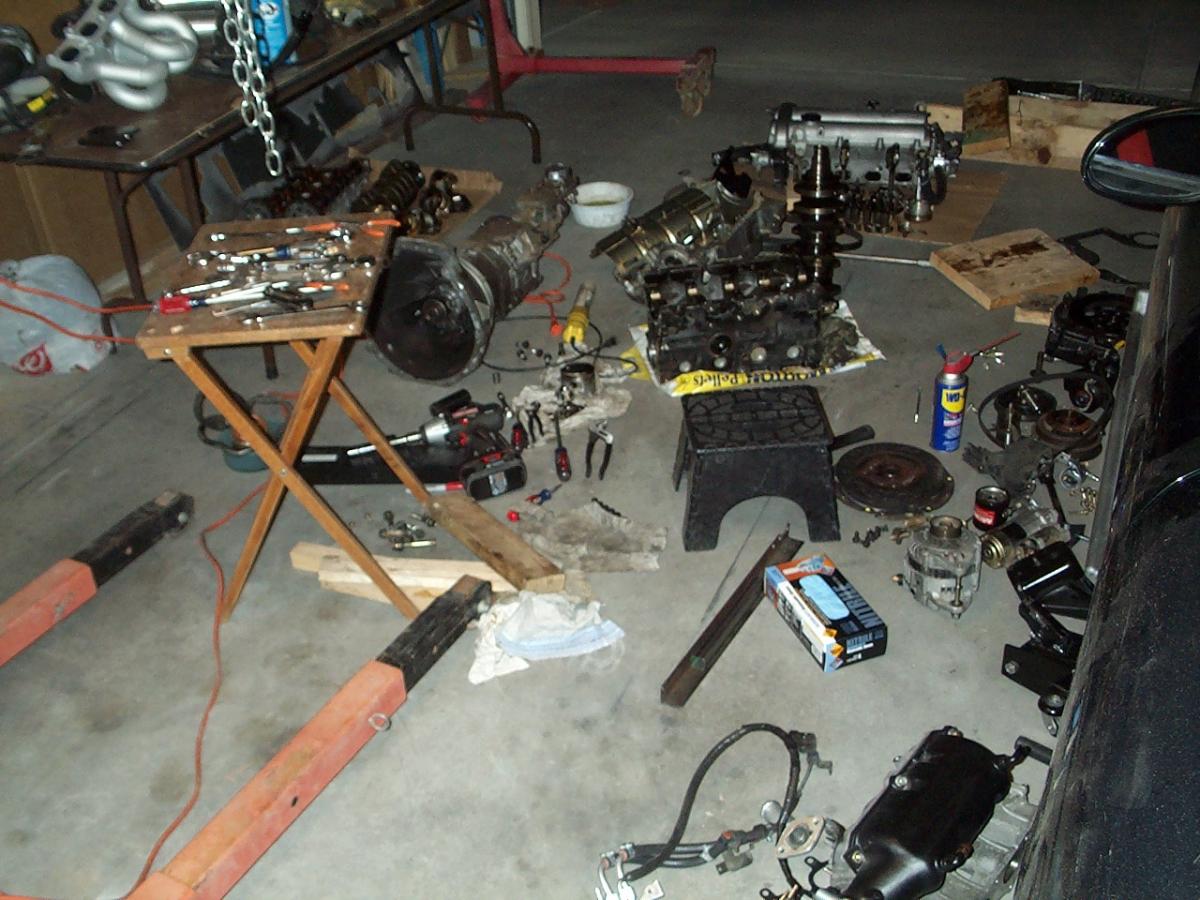

Not only did No 2 rod fail, but No 3 is bent too.

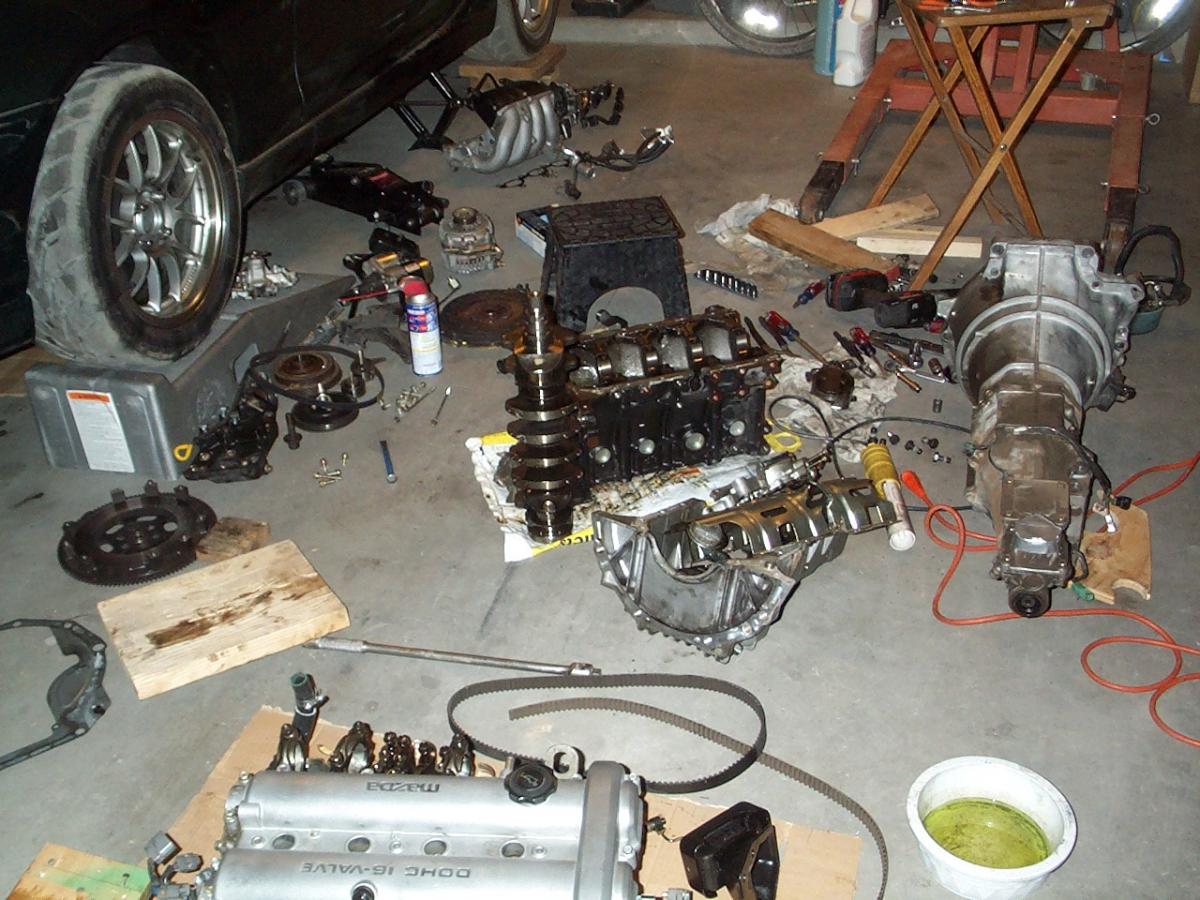

More pics of today's fun. It looks like a mess but there is order.
Attached Thumbnails
99mx5 EFR build-dcp_5052.jpg   99mx5 EFR build-dcp_5054.jpg   99mx5 EFR build-dcp_5053.jpg
99mx5 is offline   Reply With Quote
Old 04-01-2012, 02:05 AM   #171
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,302
Total Cats: 181
Default

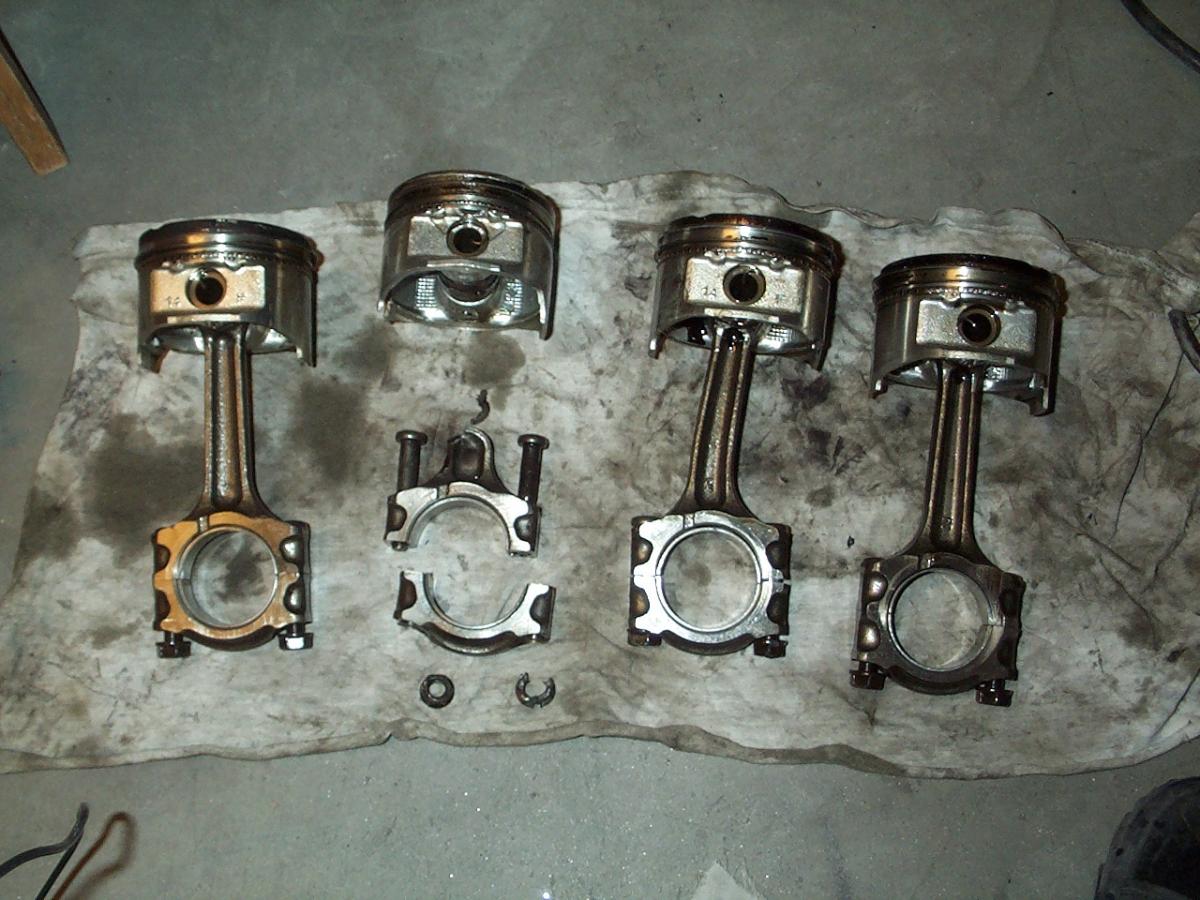

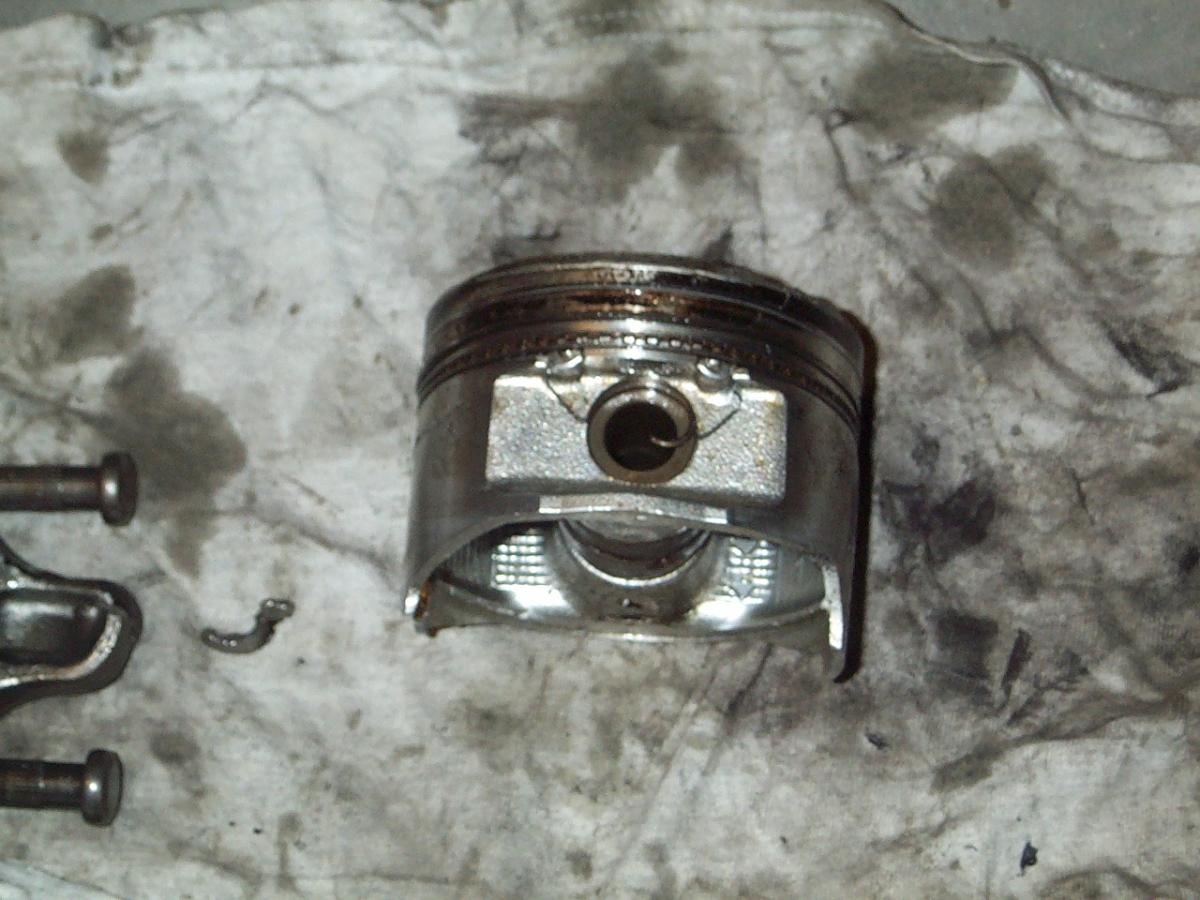

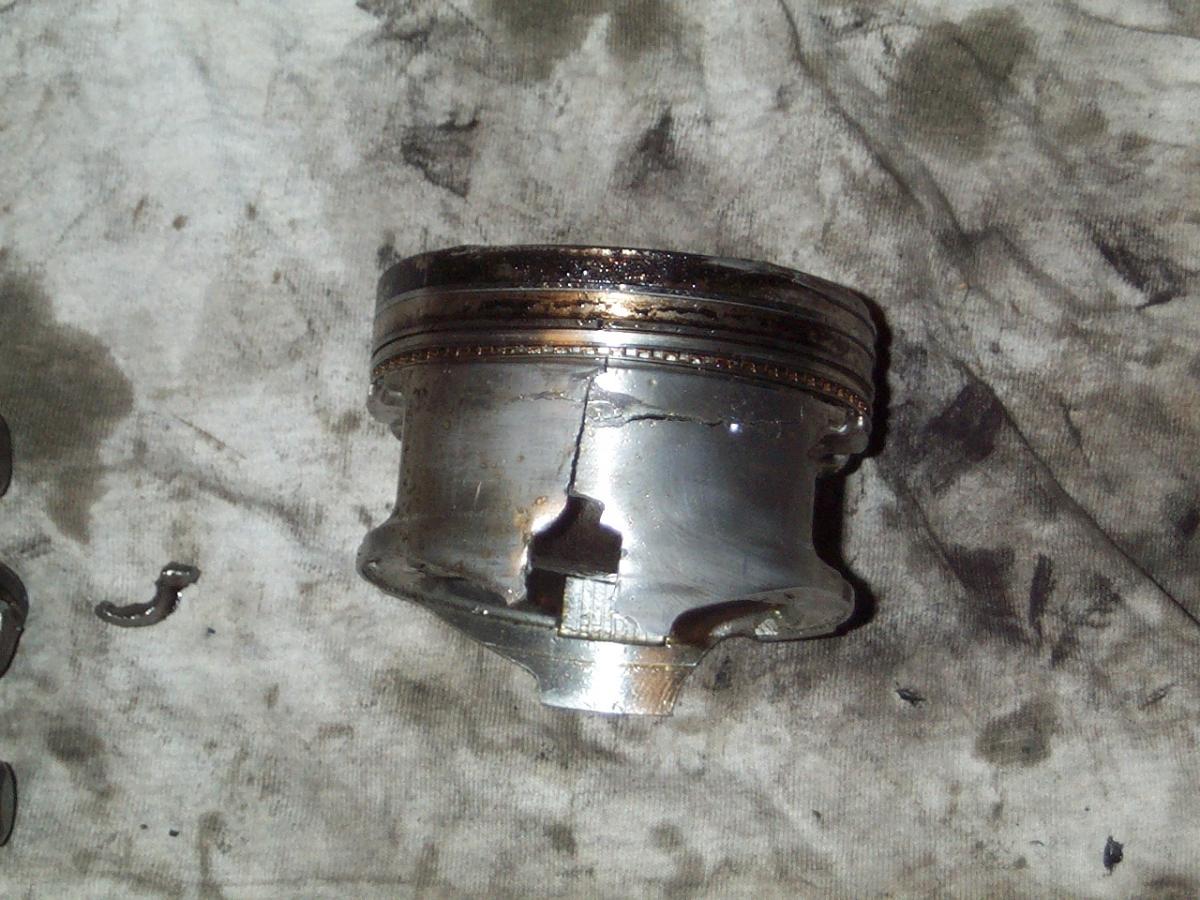

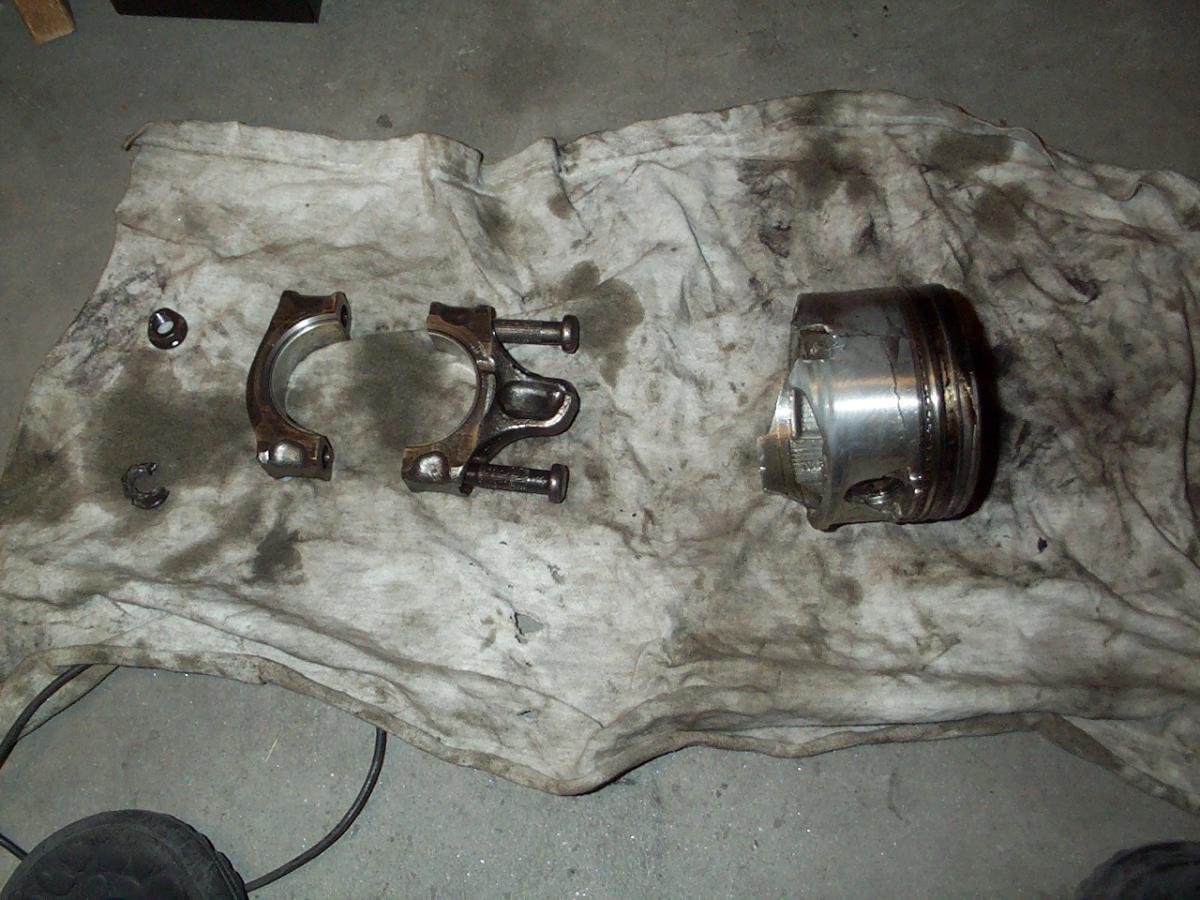

Pics of pistons and rods. I had to grind one of the bolts off the No 2 rod to remove it.
Attached Thumbnails
99mx5 EFR build-dcp_5055.jpg   99mx5 EFR build-dcp_5061.jpg   99mx5 EFR build-dcp_5063.jpg   99mx5 EFR build-dcp_5064.jpg   99mx5 EFR build-dcp_5066.jpg

99mx5 is offline   Reply With Quote
Old 04-01-2012, 02:07 AM   #172
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,302
Total Cats: 181
Default

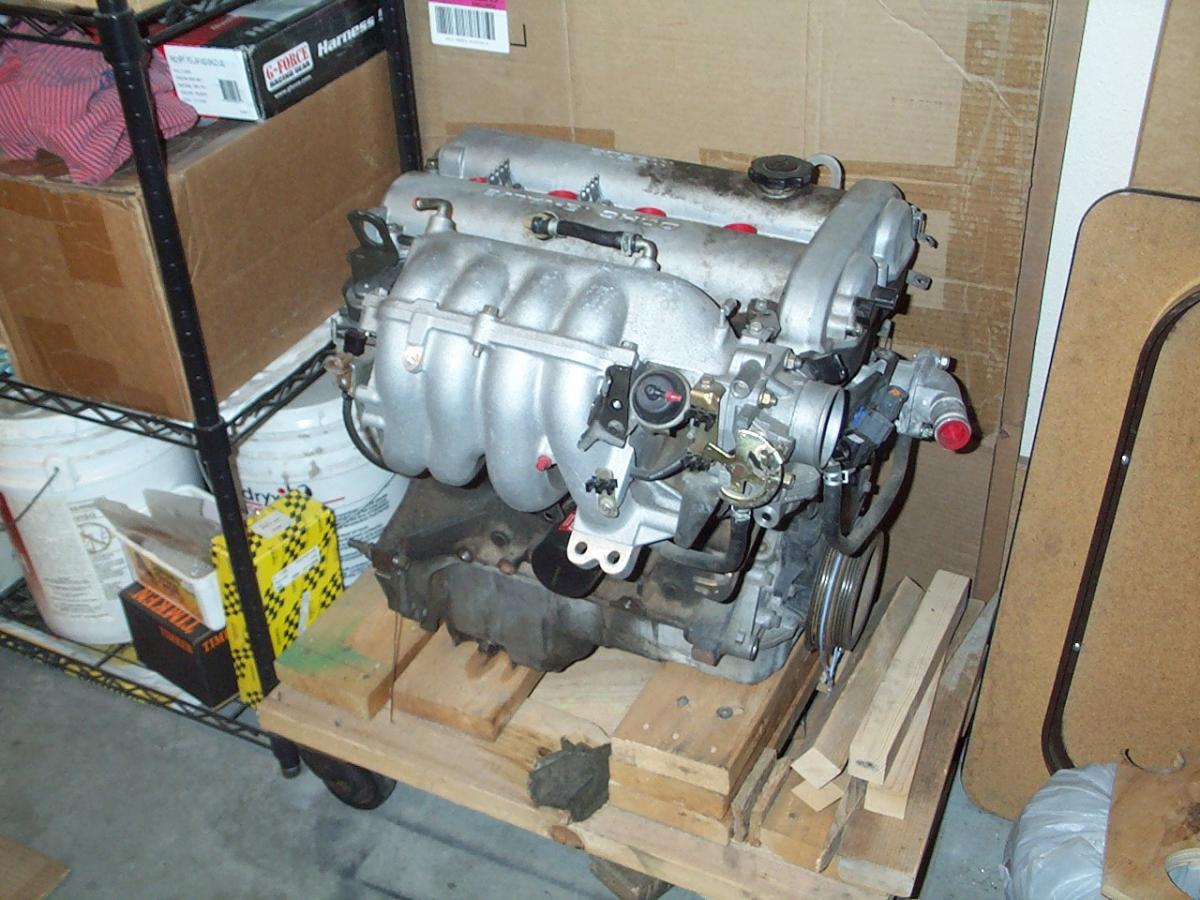

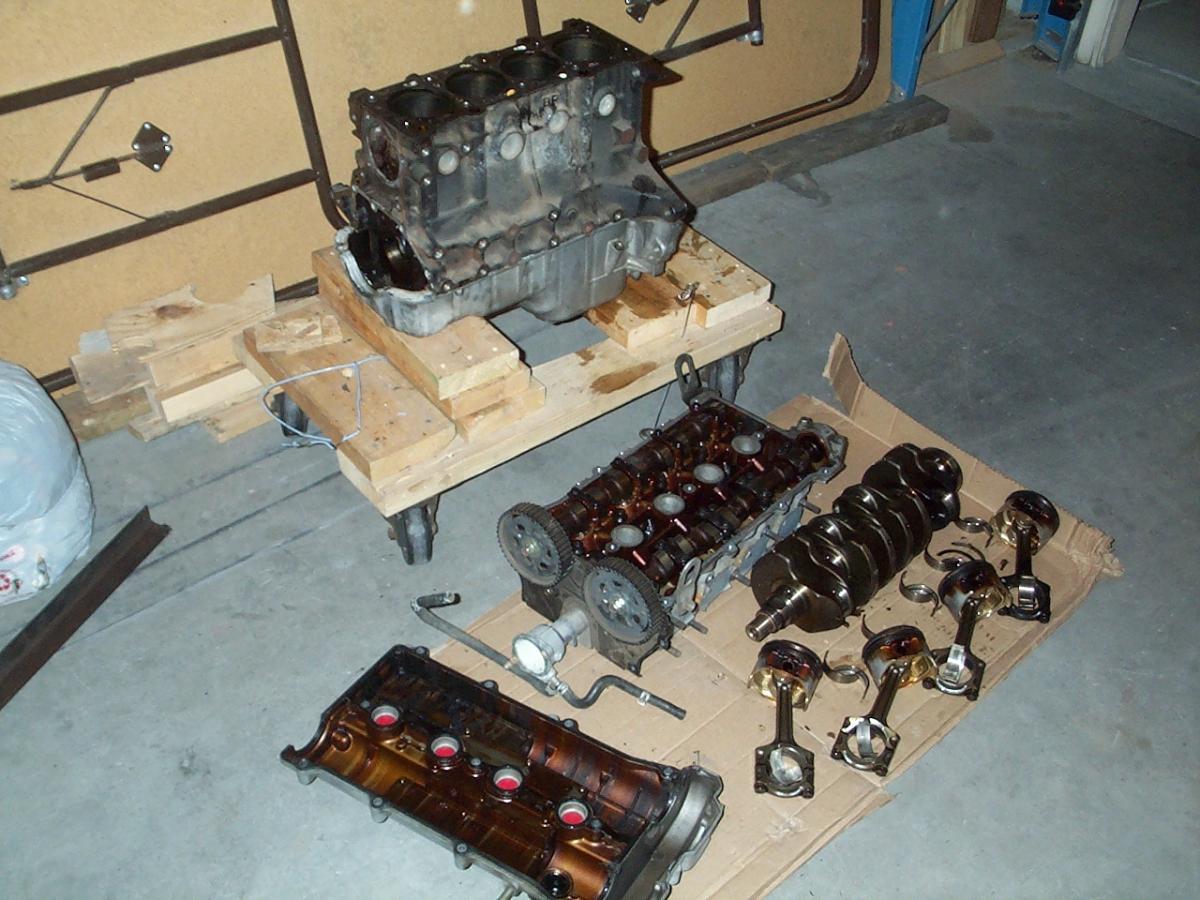

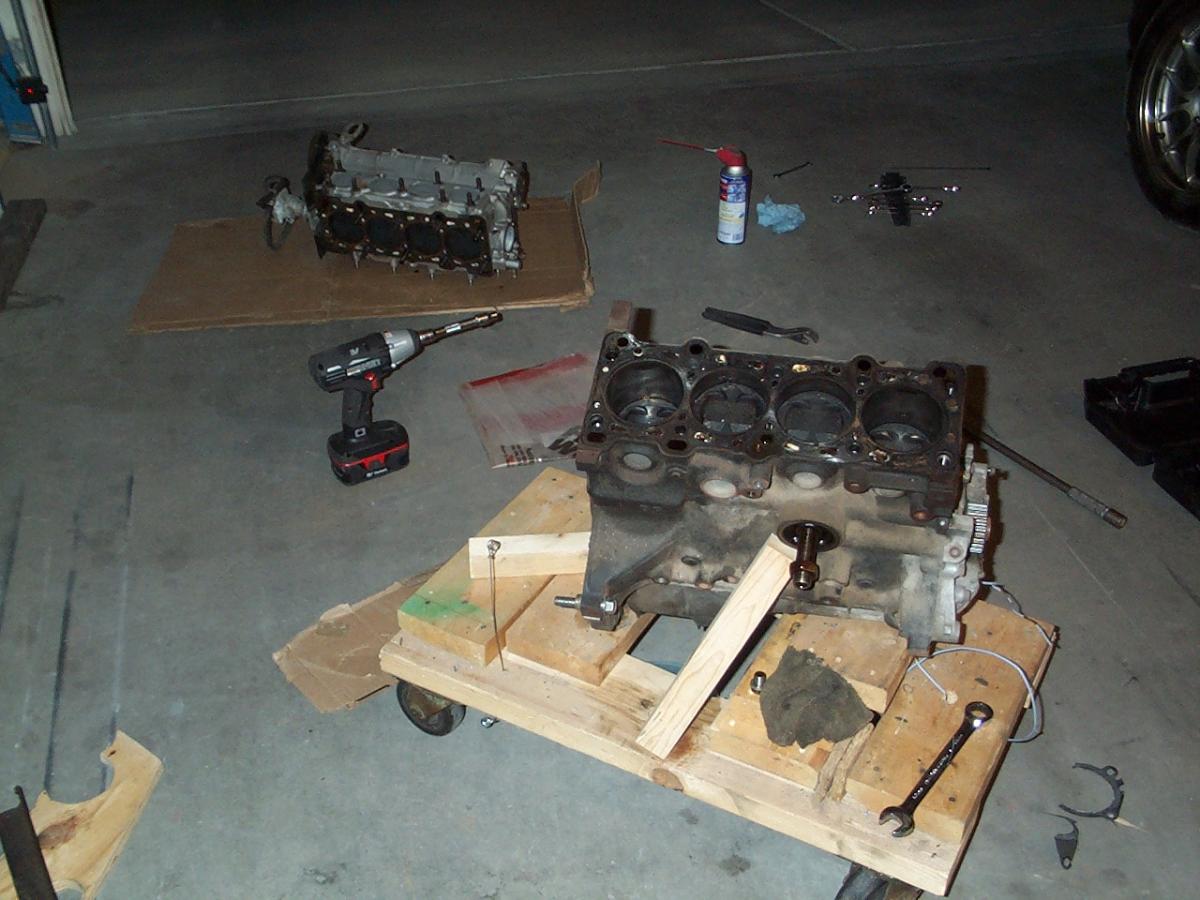

Spare engine also taken apart.
Attached Thumbnails
99mx5 EFR build-dcp_5034.jpg   99mx5 EFR build-dcp_5037.jpg   99mx5 EFR build-dcp_5038.jpg
99mx5 is offline   Reply With Quote
Old 04-01-2012, 02:08 AM   #173
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,302
Total Cats: 181
Default

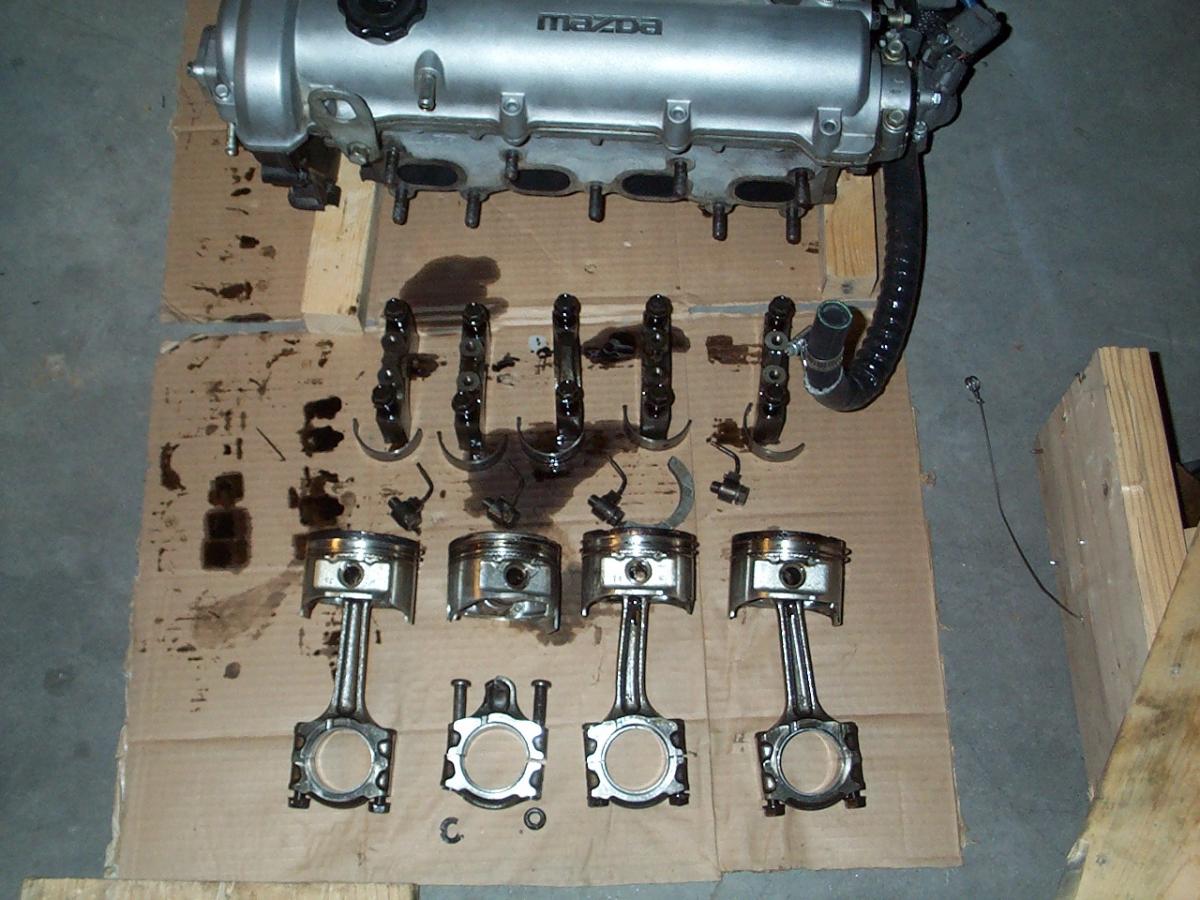

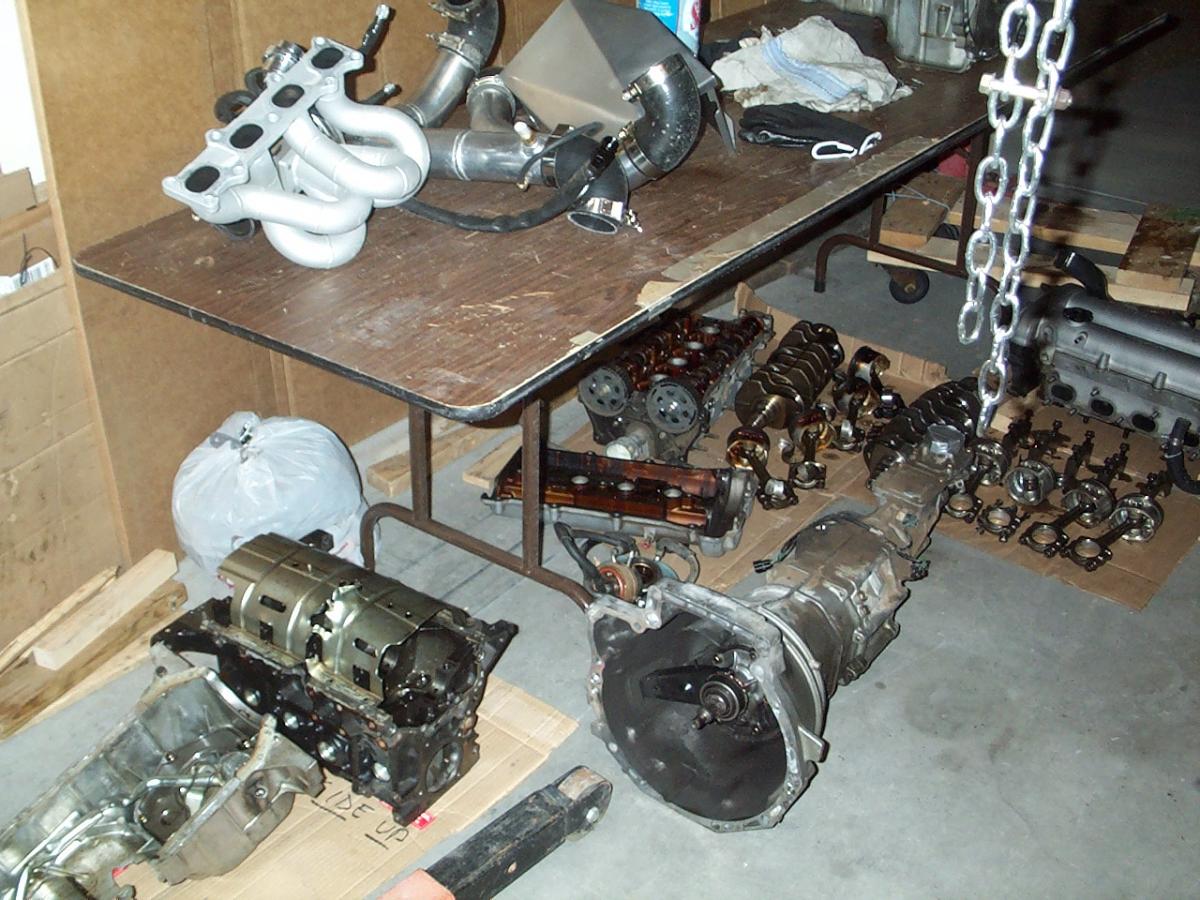

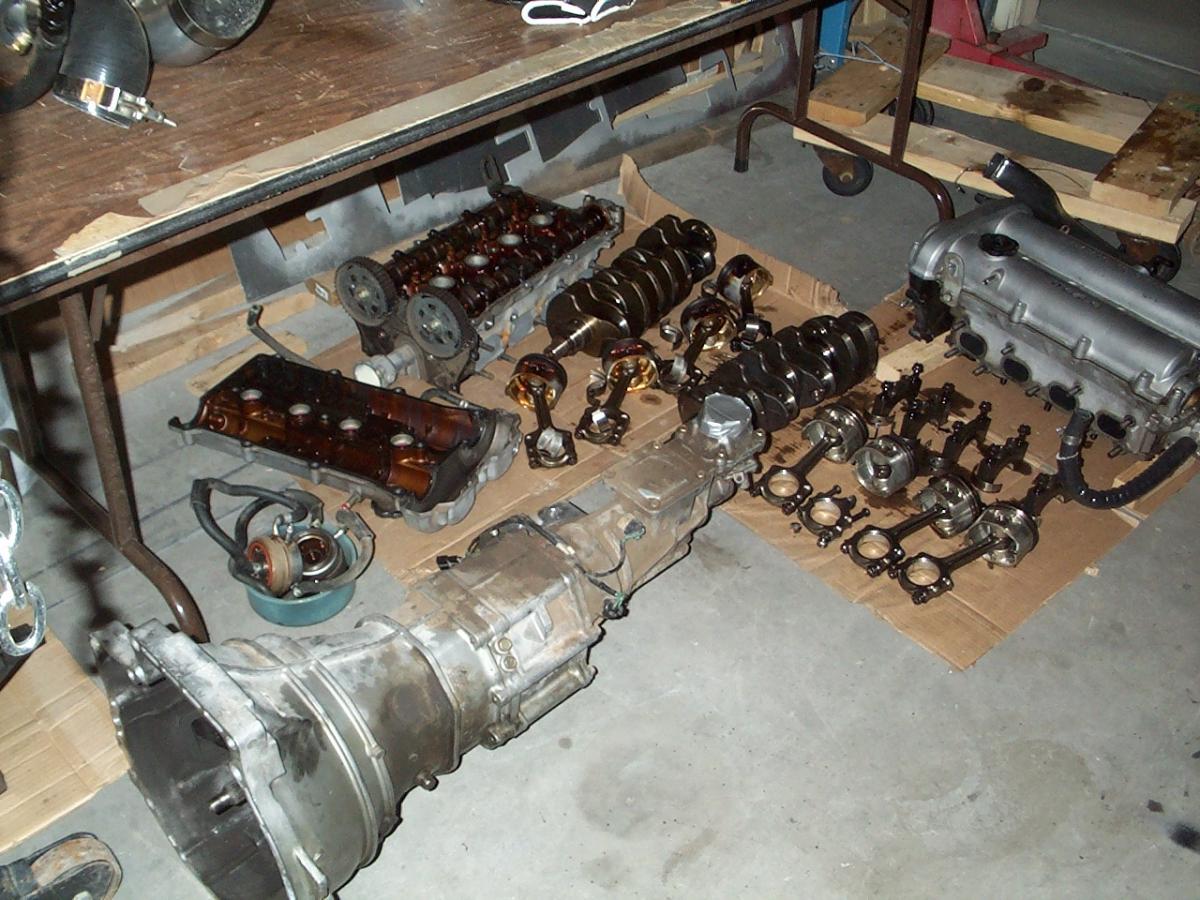

I organized all the parts from both engines.
Attached Thumbnails
99mx5 EFR build-dcp_5067.jpg   99mx5 EFR build-dcp_5068.jpg   99mx5 EFR build-dcp_5069.jpg
99mx5 is offline   Reply With Quote
Old 04-01-2012, 02:10 AM   #174
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,829
Total Cats: 2,122
Default

looks like you would have snapped the 3rd one too if #2 held up for a couple more minutes
18psi is offline   Reply With Quote
Old 04-01-2012, 02:11 AM   #175
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,302
Total Cats: 181
Default

Now to order parts for the rebuild. Can the crank be reused after such an ordeal? The bearing journals on my crank are perfect, the spare crank will need some work because of a spun bearing.

Any piston and rod recommendations?
99mx5 is offline   Reply With Quote
Old 04-01-2012, 02:12 AM   #176
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,302
Total Cats: 181
Default

Quote:
Originally Posted by 18psi View Post
looks like you would have snapped the 3rd one too if #2 held up for a couple more minutes
Yeah LOL! I was just thinking that.

Luckily, the head is undamaged.
99mx5 is offline   Reply With Quote
Old 04-01-2012, 09:41 AM   #177
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

If the crank is not damaged then go for it. Bring it to a shop to check for trueness but other than that there should be no problems using it.
falcon is offline   Reply With Quote
Old 04-01-2012, 10:19 AM   #178
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,008
Total Cats: 333
Default

A+ carnage thread.
hustler is offline   Reply With Quote
Old 04-01-2012, 11:06 AM   #179
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,938
Total Cats: 1,470
Default

Can you explain why #4 is rotated the way it is?
Braineack is offline   Reply With Quote
Old 04-01-2012, 01:48 PM   #180
Senior Member
Thread Starter
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,302
Total Cats: 181
Default

Good observation! It made me look twice. I realized in that pic, I haven't removed the oil pan at that point. I double checked the piston and rod and they are not twisted. It must be the reflection of the flash from the bore onto the piston. It you look closely at the bottom edge of the piston, you can see that the the relief cuts for the valves are lined up with the block. It also explains the bright part of the No 1 piston.
99mx5 is offline   Reply With Quote
