Old 01-18-2016, 01:28 AM   #361
Sadfab Union President
Thread Starter
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default

Same email address, the gmail one?
deezums is offline   Reply With Quote
Old 01-18-2016, 01:29 AM   #362
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,159
Total Cats: 972
Default

Quote:
Originally Posted by deezums View Post
Same email address, the gmail one?
Yep. Lmk what you want for shipping for the tinyiox boxes too. I need those in the next 2 weeks I hope. Plan to pull the megasquirt while the suspension is at powder coating.
aidandj is offline   Reply With Quote
Old 01-18-2016, 01:32 AM   #363
Sadfab Union President
Thread Starter
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default

$6?

I'll start the printer now, I forget things too easy.
deezums is offline   Reply With Quote
Old 01-18-2016, 03:25 AM   #364
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,159
Total Cats: 972
Default

Sweet. Guess we're even lol.

Heads up, no idea if it works though.
aidandj is offline   Reply With Quote
Old 01-18-2016, 03:56 AM   #365
Sadfab Union President
Thread Starter
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default

So, no different than straight from ebay?

deezums is offline   Reply With Quote
Old 01-18-2016, 10:03 AM   #366
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,448
Total Cats: 359
Default

Concealer404 has a 6 speed and 4.3s.
I kinda like it, but both of us have a high tolerance for obnoxious vehicles.

Is tagging not working again?
Monk is online now   Reply With Quote
Old 01-18-2016, 11:55 PM   #367
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,159
Total Cats: 972
Default

Concealer has no power. Course it feels fine. Add in some real power and you can run a lower final gear.

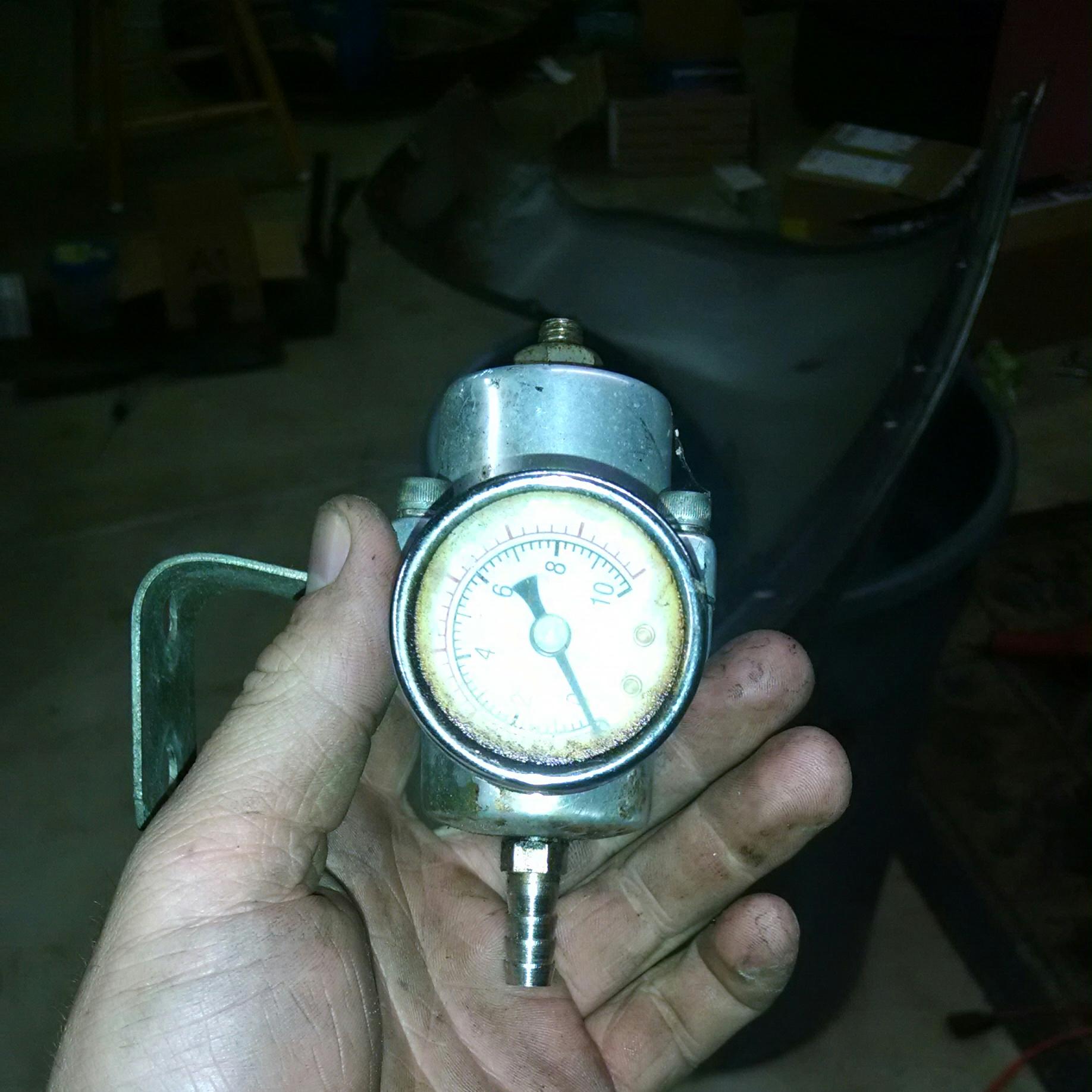

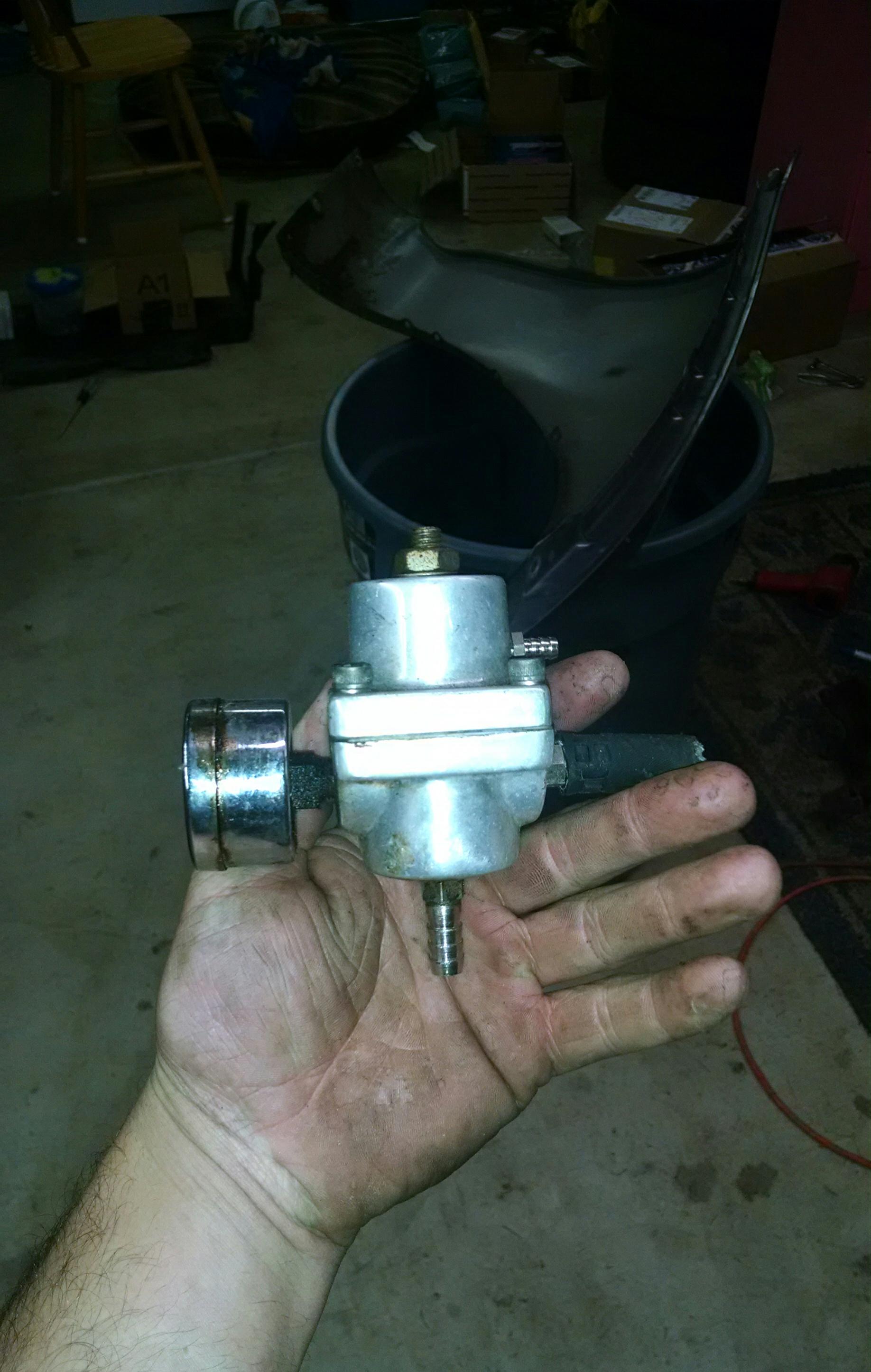

Here is your new FPR, no idea what the numbers mean, but its packed up, so its now yours.

Email me your address


Attached Thumbnails
"After failed abortion, deezums sees the 1.8 light" Build-c3rlkhf.jpg   "After failed abortion, deezums sees the 1.8 light" Build-kr1d0fk.jpg
aidandj is offline   Reply With Quote
Old 01-19-2016, 12:07 AM   #368
Sadfab Union President
Thread Starter
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default

I'll just turn till it leaks, then back off a bit

Thanks!
deezums is offline   Reply With Quote
Old 01-20-2016, 02:47 AM   #369
Sadfab Union President
Thread Starter
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default

So I've been working with EAE lately and I've introduced all sorts of starting problems. EAE wants to pull 100% of fuel right as crank mode quits, so it catches and dies. If I beat about on it I can get it to start, then things work fine.

Here's a starting log and my tune if anyone wants to help me make sense of this
Attached Files
File Type: msq eae tuning.msq (111.6 KB, 115 views)
File Type: msl 2016-01-19_14.55.46.msl (923.3 KB, 34 views)
deezums is offline   Reply With Quote
Old 01-20-2016, 02:53 AM   #370
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,159
Total Cats: 972
Default

FWIW your supposed to leave ae enabled for fast transitions.
aidandj is offline   Reply With Quote
Old 01-20-2016, 02:58 AM   #371
Sadfab Union President
Thread Starter
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default

Yeah, just feeling things out on eae still. It's all just zeros for now, hope to be able to cut it lots so I waste less fuel on throttle blips for downshifts and thing. My catch can has more fuel than oil normally, means I suck at this.

I guess I should add that I switched back to basemap curves for EAE right now, the y8's stuff I copied was puling fuel in boost like decel fuel cut. With eae it doesn't seem to care that I don't have crazy AE going while cold, no stalls or on throttle hesitation once it starts.
deezums is offline   Reply With Quote
Old 01-20-2016, 03:15 AM   #372
Sadfab Union President
Thread Starter
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default

Well, I made a new row for under 700 rpm and cut EAE RPM correction factors down to zero. Works, but I don't think it's really right.
Attached Files
File Type: msl 2016-01-20_01.08.55.msl (462.8 KB, 31 views)
deezums is offline   Reply With Quote
Old 01-20-2016, 09:57 AM   #373
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 1,890
Total Cats: 165
Default

I can send you my latest temp / rpm curves that keep EAE from screwing up after-start. That will be this evening.
DNMakinson is offline   Reply With Quote
Old 01-20-2016, 10:02 AM   #374
SadFab CEO
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,435
Total Cats: 418
Default

Quote:
Originally Posted by DNMakinson View Post
I can send you my latest temp / rpm curves that keep EAE from screwing up after-start. That will be this evening.
Can you post them here so e can all see? I promise you a kitten If you do.
hi_im_sean is online now   Reply With Quote
Old 01-20-2016, 10:42 AM   #375
Senior Member

Join Date: Dec 2007
Location: ATL
Posts: 684
Total Cats: 47
Default

FWIW I've been playing with EAE for several months. I've got things pretty nailed down (is anything EVER "nailed down"?), and have been dialing in cold starts as the mornings have gotten colder and colder. I've just scratched the surface with CLT and RPM-based EAE changes.

You're welcome to my maps if interested.
rwyatt365 is offline   Reply With Quote
Old 01-20-2016, 03:19 PM   #376
Sadfab Union President
Thread Starter
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default

Quote:
Originally Posted by DNMakinson View Post
I can send you my latest temp / rpm curves that keep EAE from screwing up after-start. That will be this evening.
Quote:
Originally Posted by rwyatt365 View Post
FWIW I've been playing with EAE for several months. I've got things pretty nailed down (is anything EVER "nailed down"?), and have been dialing in cold starts as the mornings have gotten colder and colder. I've just scratched the surface with CLT and RPM-based EAE changes.

You're welcome to my maps if interested.
That'd be awesome if you guys could share what you've come up with. Kitties all around

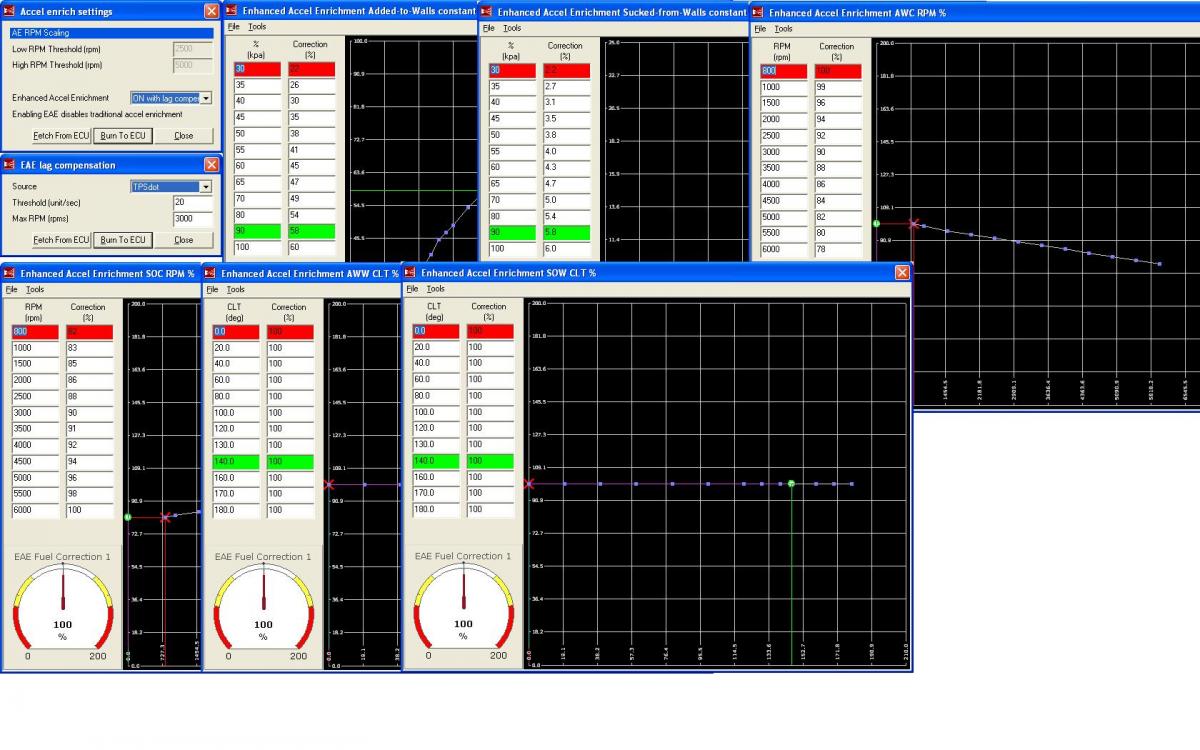

I'd share mine, but it's all over the net already. Just this, but with zeros in the first RPM correction rows.

Attached Thumbnails
"After failed abortion, deezums sees the 1.8 light" Build-10395d1235346921-x-tau-eae-sweet-accel-enrich.jpg
deezums is offline   Reply With Quote
Old 01-20-2016, 08:15 PM   #377
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 1,890
Total Cats: 165
Default

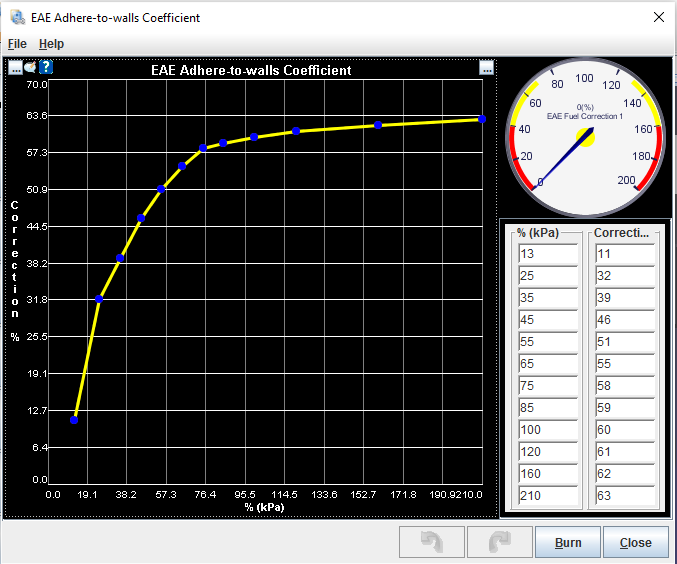

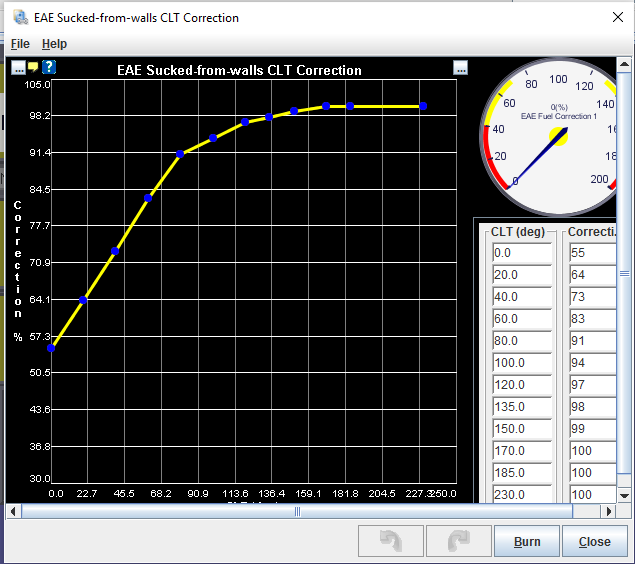

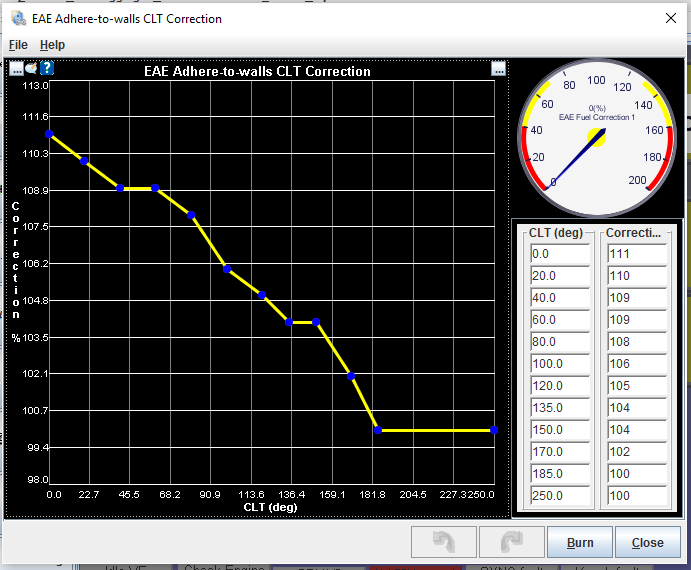

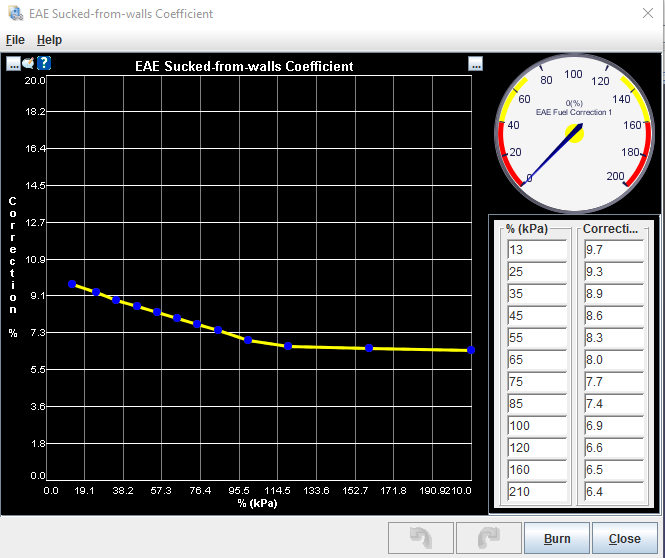

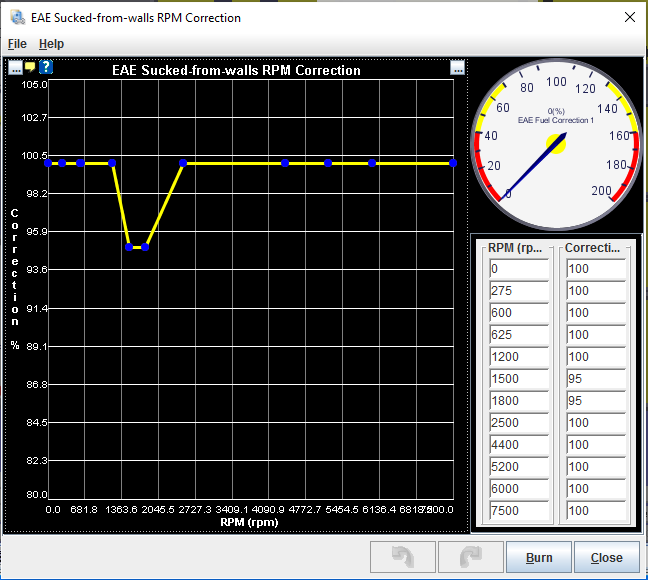

Cranking pulse will be cranking pulse. What I have tried to do, is to have a smooth transition from the crank to the running. It has been a long time since I set this up, and car is not running now, but I can say that I was getting close to the goal. Overall goal is actually to have, from first firing, a smooth ramp-up of RPM to about 2000-2300, and then come down to idle set point. Never a negative RPM dot during transition. I was pretty close for most starts. This was in the fall, and now car is still down because LAZY. Spending too much time on MT, and not enough at the shop.
This is somewhat important to Starting, but is really based on driving.



This one is key to the subject at hand... not killing the engine after start

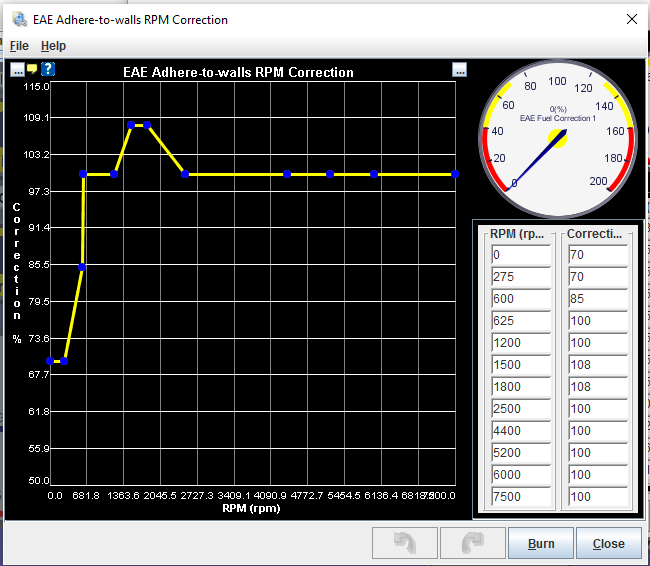

The importance of the ATW_RPM is that (and I don't fully understand why) the virtual puddle (Wall Fuel) grows during cranking. Then when EAE begins to be applied, the puddle is large, and the SFW coefficient is multiplied with it and basically tells the injectors that SWF is supplying all fuel, and for injectors to not open, or open very little. Engine stumbles. By keeping the Wall Fuel smaller, and, as the RPM's just start growing, reducing SFW, the transition from Crank to Run is smoother (smaller, less abrupt change in Pulse Width).

EDIT: Here is my last start, at 50F


Attached Thumbnails
"After failed abortion, deezums sees the 1.8 light" Build-80-atw_clt_5b53d728addbdd9f56ab7d5b7d037653d118f05f.png   "After failed abortion, deezums sees the 1.8 light" Build-80-sfw_clt_b75c74bb6b046f6eb765d1cd2ddd8726f07c281d.png   "After failed abortion, deezums sees the 1.8 light" Build-80-atw_rpm_7dbe5d560374cc860ad959756de0b7dc05ee5b6a.png   "After failed abortion, deezums sees the 1.8 light" Build-80-sfw_rpm_efb1c974c02830a9ef7d60df08046f4ea0907b65.png   "After failed abortion, deezums sees the 1.8 light" Build-80-adhtowalls_b94ced1b4ff970f54e214d7976fd1179d00aff1b.png

"After failed abortion, deezums sees the 1.8 light" Build-80-sucfrwalls_d94c6706838dd51807135b57102c1fb35a47f947.png

Last edited by DNMakinson; 01-20-2016 at 10:22 PM.
DNMakinson is offline   Reply With Quote
Old 01-20-2016, 08:57 PM   #378
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 405
Total Cats: 17
Default

I have yet to play with EAE, but care to digress a bit on your spark tables? Have you had either of them on a dyno by chance? Table 1 looks pretty aggressive and seems to be a pretty conservative boost level where as the other is a higher boost level but more conservative. Looks like a cool thing to get some data on.
90civichhb is offline   Reply With Quote
Old 01-20-2016, 08:59 PM   #379
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,159
Total Cats: 972
Default

He is probably only using 1 table. So the 2nd tables aren't tuned. He's on e85 so he can be as aggressive with timing as he wants, until his rods exit the block.
aidandj is offline   Reply With Quote
Old 01-21-2016, 12:37 AM   #380
Sadfab Union President
Thread Starter
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default

Quote:
Originally Posted by DNMakinson View Post
Cranking pulse will be cranking pulse. What I have tried to do, is to have a smooth transition from the crank to the running. It has been a long time since I set this up, and car is not running now, but I can say that I was getting close to the goal. Overall goal is actually to have, from first firing, a smooth ramp-up of RPM to about 2000-2300, and then come down to idle set point. Never a negative RPM dot during transition. I was pretty close for most starts. This was in the fall, and now car is still down because LAZY. Spending too much time on MT, and not enough at the shop.
This is somewhat important to Starting, but is really based on driving.

This one is key to the subject at hand... not killing the engine after start

The importance of the ATW_RPM is that (and I don't fully understand why) the virtual puddle (Wall Fuel) grows during cranking. Then when EAE begins to be applied, the puddle is large, and the SFW coefficient is multiplied with it and basically tells the injectors that SWF is supplying all fuel, and for injectors to not open, or open very little. Engine stumbles. By keeping the Wall Fuel smaller, and, as the RPM's just start growing, reducing SFW, the transition from Crank to Run is smoother (smaller, less abrupt change in Pulse Width).

EDIT: Here is my last start, at 50F
Thanks for the tables, and explanation, EAE still doesn't really make sense to me but I know I have massive wallfuel right after starting, higher than it ever gets again.

You don't ever have problems with EAE getting crazy in boost?

Quote:
Originally Posted by 90civichhb View Post
I have yet to play with EAE, but care to digress a bit on your spark tables? Have you had either of them on a dyno by chance? Table 1 looks pretty aggressive and seems to be a pretty conservative boost level where as the other is a higher boost level but more conservative. Looks like a cool thing to get some data on.
Table 1 is what I'm using now, table 2 is old 91 octane stuff and should mostly be basemap, or a little retarded from there. My car's never been to a dyno, running on "this shouldn't break ****, definitely probably not break things, maybe." I descaled that map because I don't need more kpas, that will vent the block for sure.

Quote:
Originally Posted by aidandj View Post
until his rods exit the block.
This is what JB weld is for, that and oil pans.

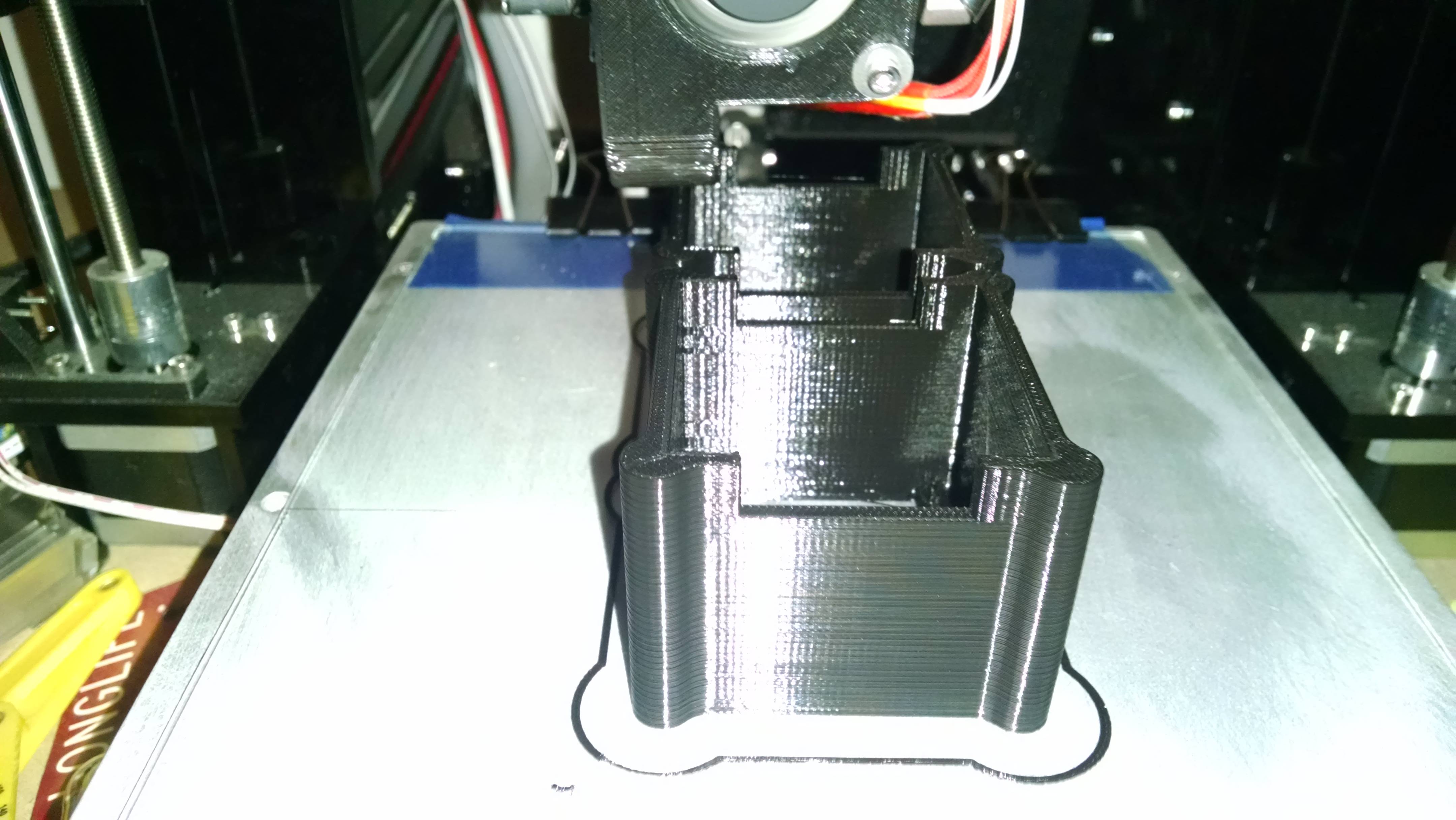

Also, almost done!

Attached Thumbnails
"After failed abortion, deezums sees the 1.8 light" Build-7ywgcxc.jpg
deezums is offline   Reply With Quote
