Old 05-06-2013, 08:40 PM   #81
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 1,956
Total Cats: 106
Default

Quote:
Originally Posted by Braineack View Post
You know what I meant. your oem wiring/ECU connector pins.

You said you have JS4 jumped to IAC1A and JS2 jumped to IAC2A.

where do IAC1A and 1AC2A go on your harness? 4F and 2K?

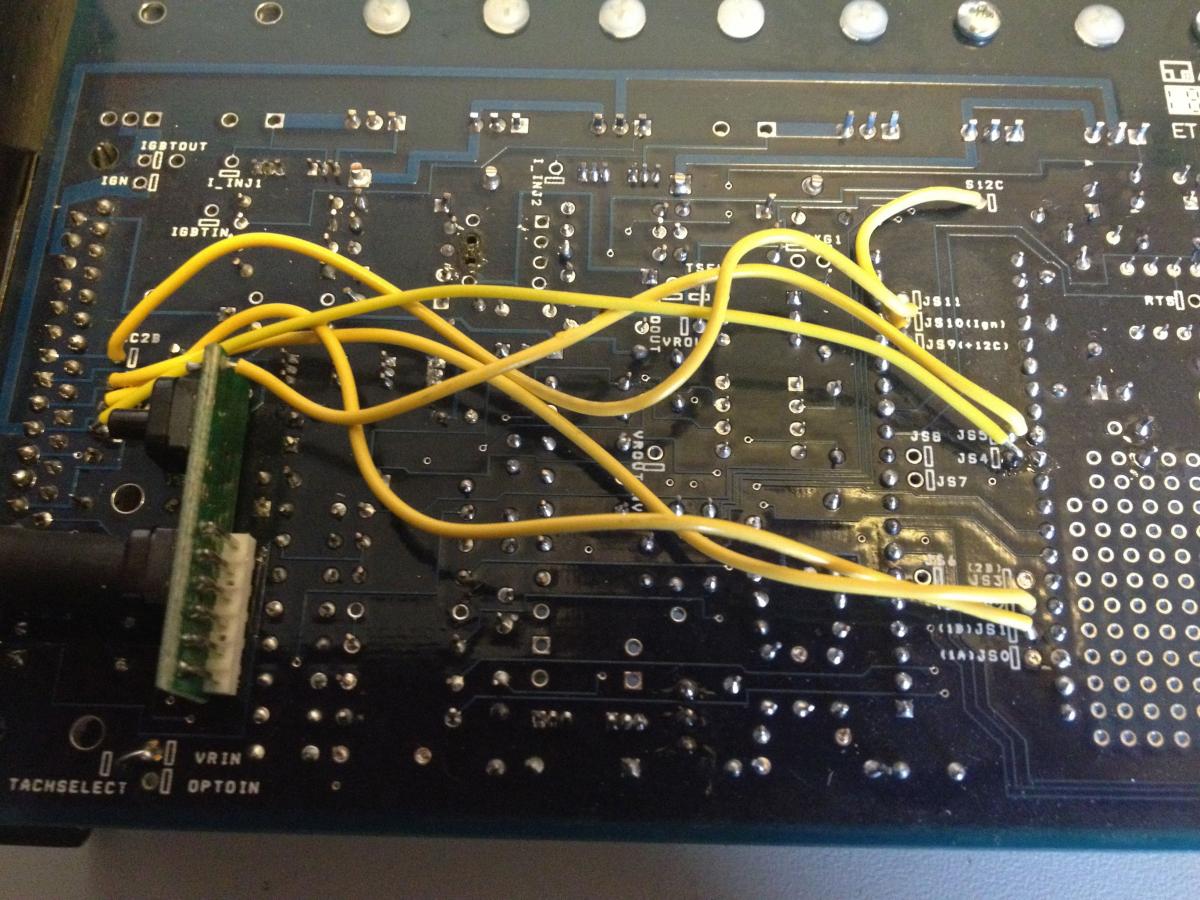

Harness 4F to M25 IAC1A to JS4 - A/C Pressure switch
Harness 2R to M27 IAC1B to JS1 - Check Engine
Harness 2K to M29 IAC2A (IAC2) to JS2 - A/C Switch
Harness 3C to M31 IAC2B to JS10 - Purge Control
Harness 2C to X4 Injector F Condensor Fan
Harness 2B to X7 Injector E Cooling Fan

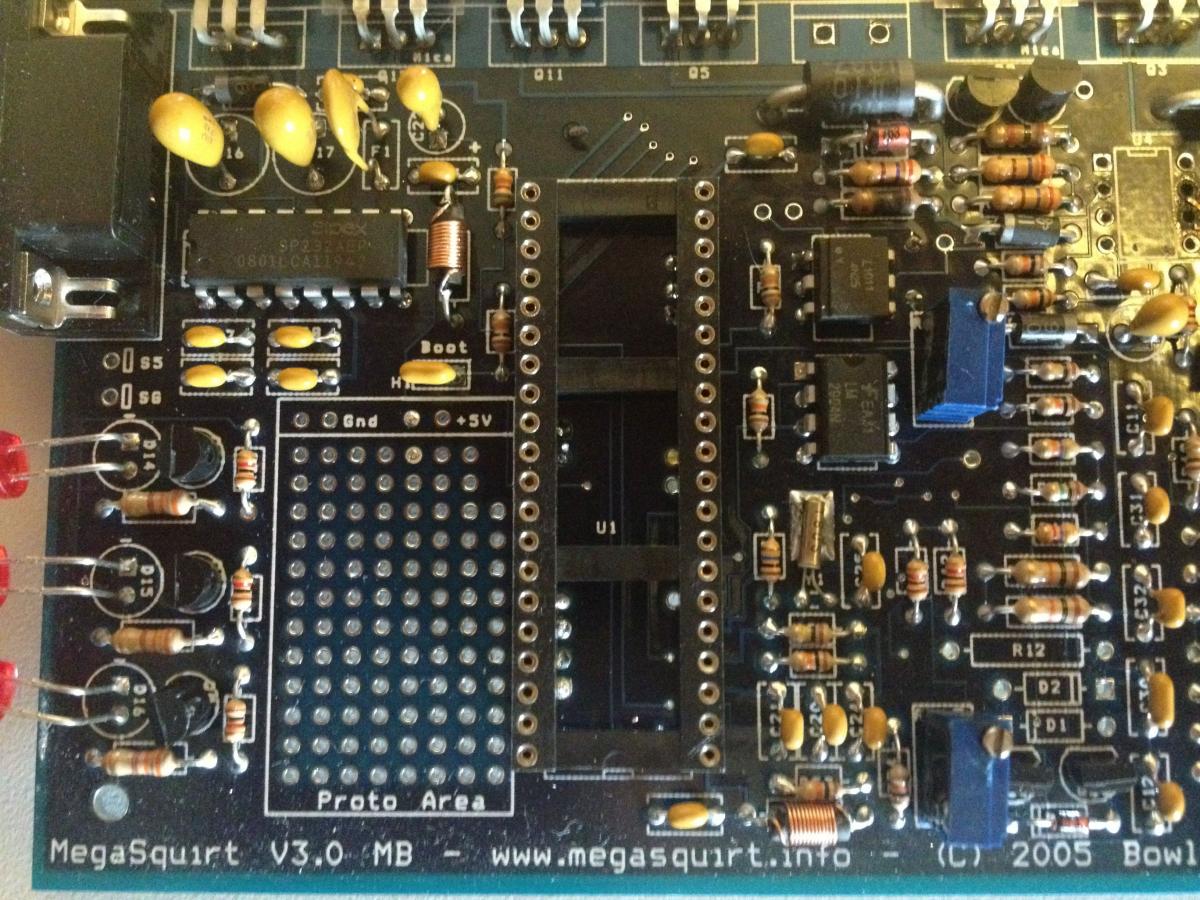

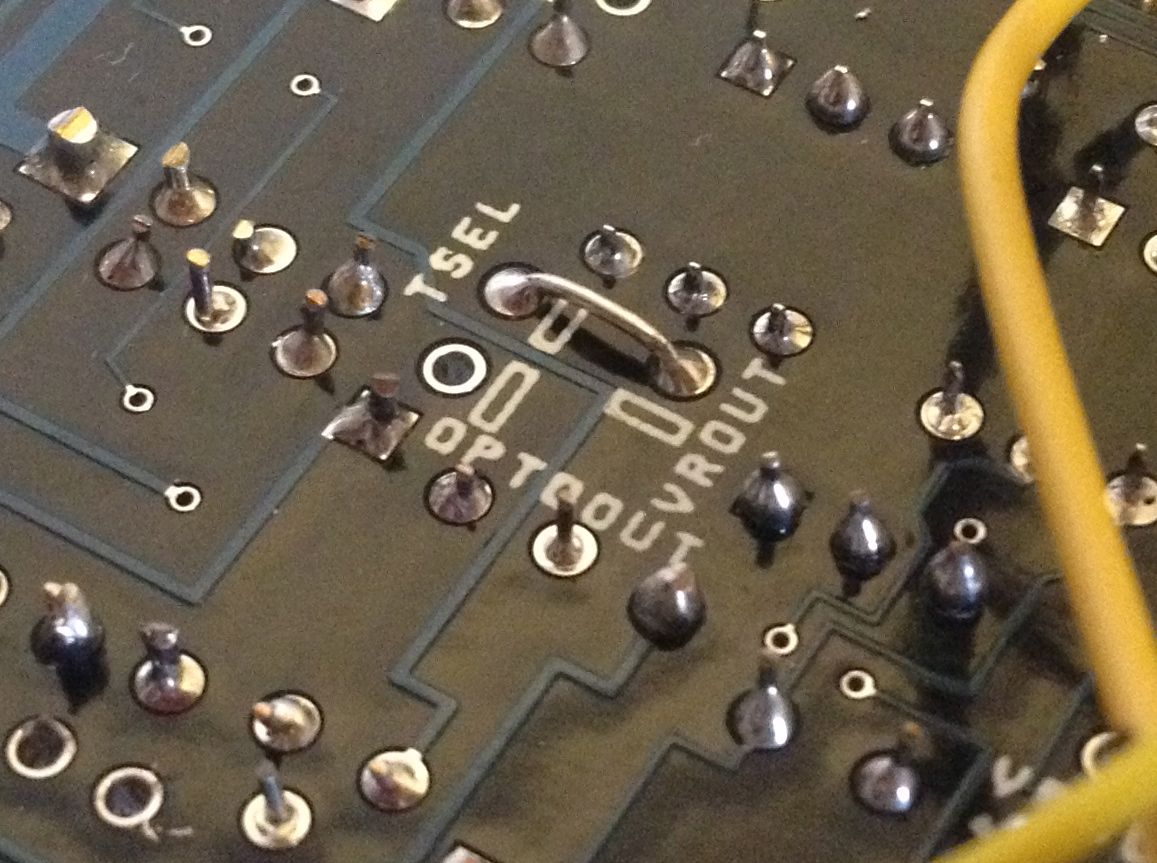

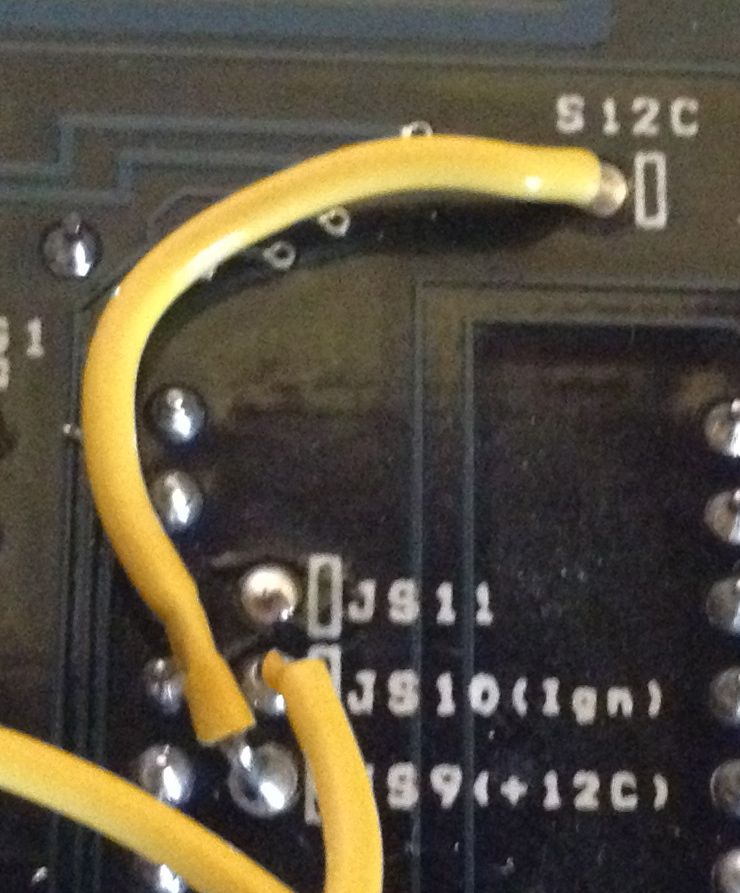

Attached Thumbnails
Chiburbian's 01' Lots of potential, no follow-through build-ms_underside.jpg   Chiburbian's 01' Lots of potential, no follow-through build-ms_topleft.jpg   Chiburbian's 01' Lots of potential, no follow-through build-ms_topright.jpg   Chiburbian's 01' Lots of potential, no follow-through build-s12c_to_js9.jpg   Chiburbian's 01' Lots of potential, no follow-through build-ms_tsel_to_vrout.jpg

Chiburbian is offline   Reply With Quote
Old 05-06-2013, 10:20 PM   #82
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 18,769
Total Cats: 324
Default

I posted a fix in that thread.
y8s is offline   Reply With Quote
Old 05-06-2013, 10:36 PM   #83
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 1,956
Total Cats: 106
Default

Thanks y8s. Do I have to do this for every input or is there some extra inputs on the expander that I can use safely without doing this?

Also, brainiac, do you have any more of those alternator control boards left?

If I have to build the alternator circuit later on the proto area in addition to those input mods (what should I call them?) I am afraid I will be running out of room shortly.
Chiburbian is offline   Reply With Quote
Old 05-06-2013, 10:38 PM   #84
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 1,956
Total Cats: 106
Default

Is Peter Florance still active in the MS community? His website hasn't been updated in some time.
Chiburbian is offline   Reply With Quote
Old 05-07-2013, 11:04 AM   #85
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 18,769
Total Cats: 324
Default

You can indeed use the MS3X inputs. I copied the circuit for my input.

These are all fine:
Datalog In
Tableswitch In
Nitrous In (jumper installed)
Launch In
y8s is offline   Reply With Quote
Old 05-07-2013, 11:40 AM   #86
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,165
Total Cats: 1,401
Default

Quote:
Originally Posted by Chiburbian View Post
Also, brainiac, do you have any more of those alternator control boards left?
I can look tonight. I might have 1 or two more. To make it properly work, you need to build an output circuit on JS0 or Js2 or alike to trigger the TIP125 on above 300RPM.
Braineack is offline   Reply With Quote
Old 05-07-2013, 11:46 AM   #87
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,165
Total Cats: 1,401
Default

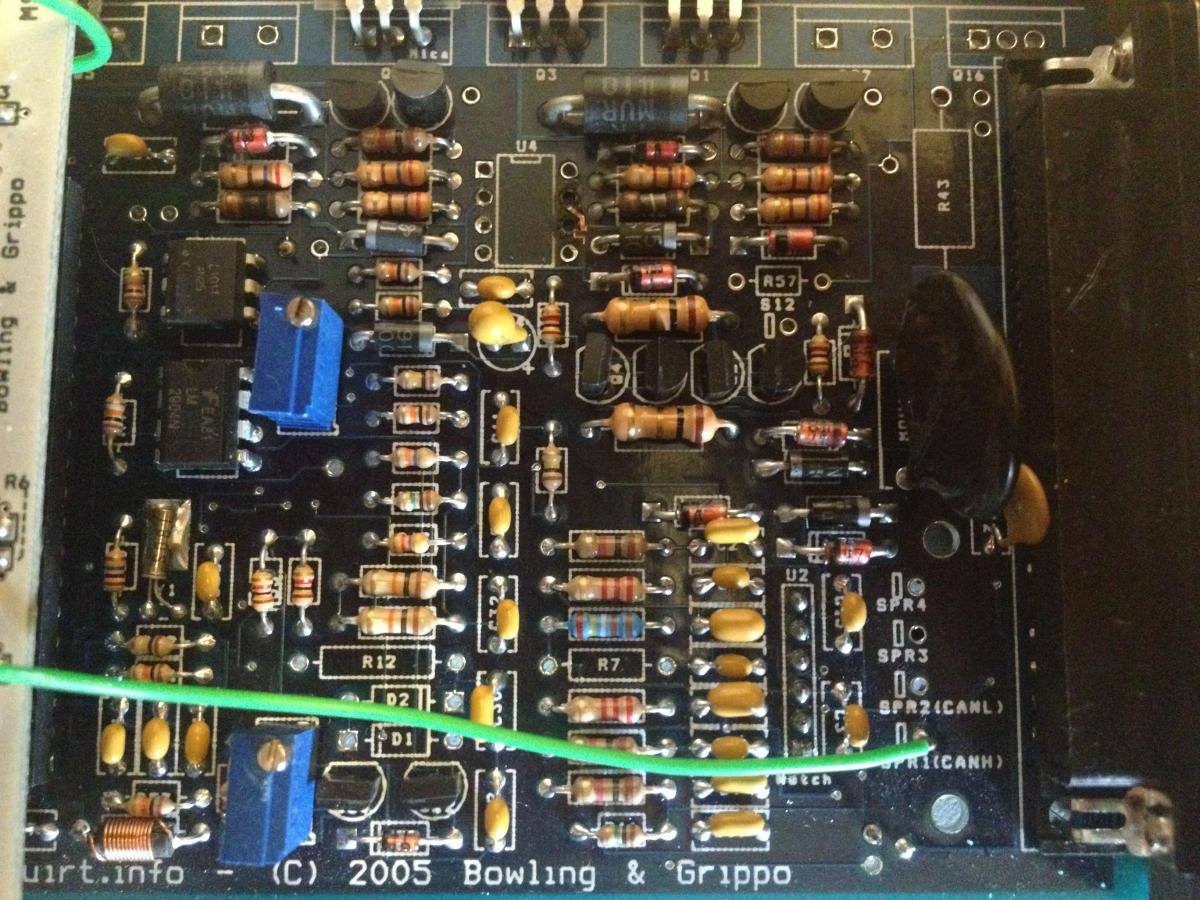

Looks like you have some frieds resistors and traces in the mainboard INJ outputs cirucit.

R15, R20, exposed traces around U4
Braineack is offline   Reply With Quote
Old 05-07-2013, 12:26 PM   #88
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 1,956
Total Cats: 106
Default

Quote:
Originally Posted by Braineack View Post
Looks like you have some frieds resistors and traces in the mainboard INJ outputs cirucit.

R15, R20, exposed traces around U4
Yeah, that was related to me blowing U4 trying to use it to drive my fans... Can I live without those resistors and runs or do I need to get a new bare board?

What is my prognosis doc?

Quote:
I can look tonight. I might have 1 or two more. To make it properly work, you need to build an output circuit on JS0 or Js2 or alike to trigger the TIP125 on above 300RPM.
Where can I go to find out how to make this? It feels like I am rapidly running out of room...
Chiburbian is offline   Reply With Quote
Old 05-07-2013, 12:28 PM   #89
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 1,956
Total Cats: 106
Default

Quote:
Originally Posted by y8s View Post
You can indeed use the MS3X inputs. I copied the circuit for my input.

These are all fine:
Datalog In
Tableswitch In
Nitrous In (jumper installed)
Launch In
I was hoping to keep datalog, tableswitch and launch... Was I supposed to use the conditioner(?) circuits for these as well?
Chiburbian is offline   Reply With Quote
Old 05-07-2013, 12:31 PM   #90
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,165
Total Cats: 1,401
Default

Quote:
Originally Posted by Chiburbian View Post
I was hoping to keep datalog, tableswitch and launch... Was I supposed to use the conditioner(?) circuits for these as well?
yes of course, that's the whole point of them.
Braineack is offline   Reply With Quote
Old 05-07-2013, 12:37 PM   #91
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 1,956
Total Cats: 106
Default

Re: Brain, datalog, launch etc

That is interesting. Every time I get a reply like that I see my project taking another two days to a week to get back on the road...
Chiburbian is offline   Reply With Quote
Old 05-07-2013, 02:54 PM   #92
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 1,956
Total Cats: 106
Default

putting this here so it's in multiple spots even though it wasn't aimed directly at me:

Quote:
Originally Posted by Braineack View Post
Dont even build circuits.

USE THE ******* EXPANDER BOARD THAT HAS:
Datalog In
Tableswitch In
Nitrous In
Launch In

already built to bring in the a/c switch.

AND:
INJ E
INJ F
INJ G
INJ H
Nitrous 1
Nitrous 2
Boost
Tacho
VVT

To activate the a/c compressor and a/c fan.

I mean, that's the reason you pay the $90 to buy the epxander board...so you don't have to build circuits.
Chiburbian is offline   Reply With Quote
Old 05-07-2013, 02:55 PM   #93
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,165
Total Cats: 1,401
Default

Braineack is offline   Reply With Quote
Old 05-07-2013, 03:05 PM   #94
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 1,956
Total Cats: 106
Default

Proposed uses:

INPUTS:
Gnd/12 switched
Datalog In - Datalog Switch
Tableswitch In - A/C Switch
Nitrous In (12v to trigger) - Vehicle Speed Sensor
Launch In - Launch In (clutch)
0-5v analogue
Flex Fuel In - Future Flex Fuel Sensor
SpareADC - Not used
EGO2 - Not used
EXT_MAP - Not Used

OUTPUTS
Logic Level (spark)
SPK A,B - Spark 1-4 (wasted spark for now
SPK C,D - Reserving for future sequential spark
SPK E - ?
SPK F - ?
SPK G - ?
SPK H - ?
High Current
INJ A-D - Fuel Injectors
INJ E - Cooling Fan
INJ F - Condenser Fan
INJ G - Purge Control
INJ H - VCTS Control
Medium Current
Nitrous 1 - Compressor Relay
Nitrous 2 - VVT
Boost - Boost Solenoid
Tacho - Tacho
VVT - Unused
Idle - Idle Valve

So far so good?

What other things can I use SPK E-H for in the future?

Last edited by Chiburbian; 05-11-2013 at 03:38 PM.
Chiburbian is offline   Reply With Quote
Old 05-09-2013, 11:59 AM   #95
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 1,956
Total Cats: 106
Default

Mother of #@$@!!

I just saw this thread: C16 exploded, carnage inside

I am guessing this means I should probably try and replace C16 while I have it apart as a preventative measure?

I have a Fry's Electronics on the way home from work, I can pick one up there I am pretty sure.
Chiburbian is offline   Reply With Quote
Old 05-09-2013, 12:01 PM   #96
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,165
Total Cats: 1,401
Default



not a bad idea, but just fwiw, I've only had 3 blow one me so far and I've probably built 30-40 MS3x units. so far, and probably closer to 300-350 units altogether.

a 22uF rated at 35V from digikey will run you close to $4 each.
Braineack is offline   Reply With Quote
Old 05-09-2013, 12:07 PM   #97
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 1,956
Total Cats: 106
Default

Quote:
Originally Posted by Braineack View Post


not a bad idea, but just fwiw, I've only had 3 blow one me so far and I've probably built 30-40 MS3x units. so far, and probably closer to 300-350 units altogether.

a 22uF rated at 35V from digikey will run you close to $4 each.
I am just worried about blowing traces. I can solder fine (in my opinion) but I know squat about repairing boards to the point of accomodating blown traces.

To me it looks like cheap insurance.

Back to U4 for a minute... Since I am not using the injector drivers anymore, any reason I can't just leave U4 out and not worry about fixing or replacing those resistors/traces? I see Frank doesn't even install that stuff.
Chiburbian is offline   Reply With Quote
Old 05-09-2013, 12:10 PM   #98
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,165
Total Cats: 1,401
Default

correct.
Braineack is offline   Reply With Quote
Old 05-11-2013, 03:47 PM   #99
Elite Member
Thread Starter

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 1,956
Total Cats: 106
Default

Can you guys take a look at my proposed inputs and outputs above and either bless them or tell me where I am going to frak up?

Post 94
http://www.miataturbo.net/build-thre...5/#post1009569

As soon as my daughterboard arrives I will be burning it and hooking it all up. Working on wiring harness, spreadsheet, and msq to match as we speak.
Chiburbian is offline   Reply With Quote
Old 05-11-2013, 08:34 PM   #100
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 18,769
Total Cats: 324
Default

regarding the A/C input and fan outputs, they look fine.

purge control... not even sure it's worth it. I did it but forget if i enabled it.

other fuel outputs can be for stuff like IC sprayers or water injection or who knows.
y8s is offline   Reply With Quote
