Finally my 1st (water cooled) turbo build

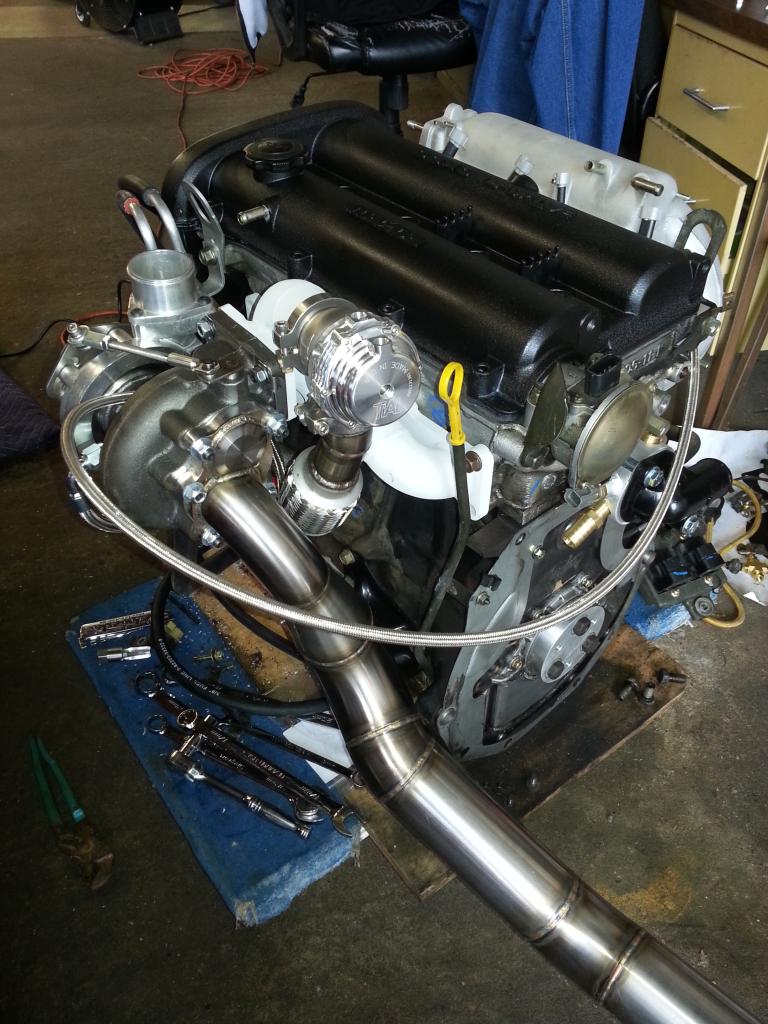

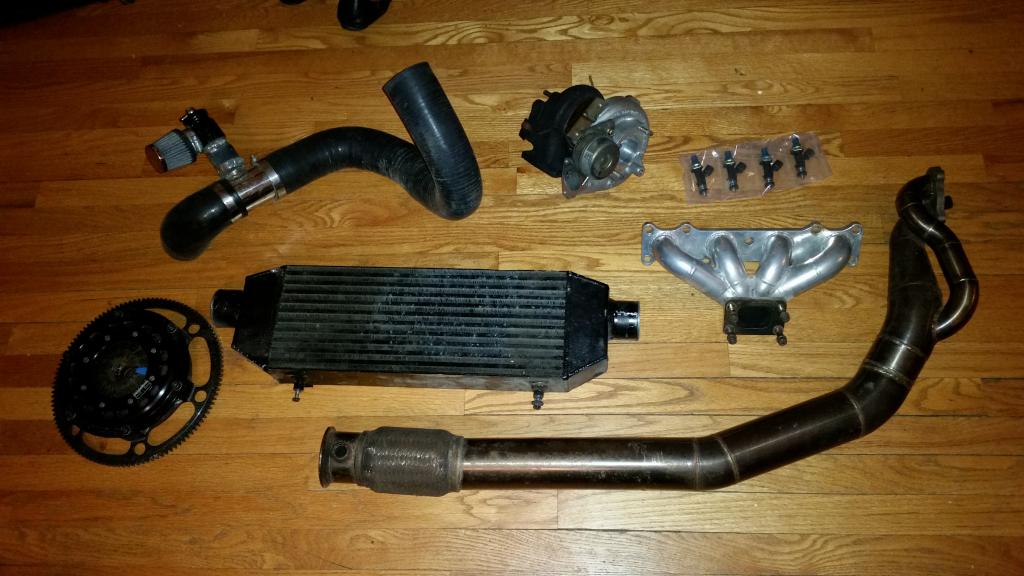

So I'm finally putting together my turbo and need some advice...here is what I have so far:
car- Ugly as hell, 1995, 1.8- Long block rebuild in process
Megasquirt 2
GT 2560
ID 1000's
ARTech SGDP to 3" exhaust
Turbo Sport BOV
sprearco IC (forget the size) ill get to that later
FM oil filter relocate
manly rods
Toyota cops
949 twin disc
15x9's
empty bank account
Searching for 225-250 whp. Is this a realistic goal?
Question of the night..Do I need to run a fuel pump/ regulator set up? from the FAQ Archive, It looks like I do not. Shooting for well under 300 hp and on a stand alone.
I have a few beer bottles surrounding me and a tube of skin thickener, so let the flaming begin...
car- Ugly as hell, 1995, 1.8- Long block rebuild in process
Megasquirt 2
GT 2560
ID 1000's
ARTech SGDP to 3" exhaust
Turbo Sport BOV
sprearco IC (forget the size) ill get to that later
FM oil filter relocate
manly rods
Toyota cops
949 twin disc
15x9's
empty bank account
Searching for 225-250 whp. Is this a realistic goal?
Question of the night..Do I need to run a fuel pump/ regulator set up? from the FAQ Archive, It looks like I do not. Shooting for well under 300 hp and on a stand alone.
I have a few beer bottles surrounding me and a tube of skin thickener, so let the flaming begin...
Last edited by ryansmoneypit; 11-08-2014 at 12:04 AM.
Reply
1
1
11-07-2014, 11:06 PM
#5
Elite Member
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: A cave in Va
Posts: 3,395
Total Cats: 456
ARTech side mount.
so i can get away with the stock FPR and a larger pump ehh?
pics soon... Im in the middle of moving into a new place. the neighbors are going love the guy who moves in and immediately tears apart his car.
Reply
0
0
11-08-2014, 09:08 AM
#6
Reply
0
0
11-08-2014, 12:22 PM
#7
Elite Member
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: A cave in Va
Posts: 3,395
Total Cats: 456
Building my cops harness now.. Following the sticky, I don't understand where the 10,000uf cap goes. Or better yet, I don't understand the directions. I have a megasquirt so, I do not need the capacitors?
EDIT: So it looks like the capacitors provide the full charge to the coils. Understood. Wouldn't it then be helpful to have a capacitor on each of the 12v leading to the coils and not just 1 on the main 12v source?
on a 1.8 (1995.5) since I have two plugs at the coils, am I going to actually have two separate harnesses, one for 1&4 and another for 2&3 ?
Are you guys just cutting off the connectors, or installing a male plug to go the the factory harness? Anyone have a plug part # ? the one in the write up seems to be just to the cop itself.
EDIT: So it looks like the capacitors provide the full charge to the coils. Understood. Wouldn't it then be helpful to have a capacitor on each of the 12v leading to the coils and not just 1 on the main 12v source?
on a 1.8 (1995.5) since I have two plugs at the coils, am I going to actually have two separate harnesses, one for 1&4 and another for 2&3 ?
Are you guys just cutting off the connectors, or installing a male plug to go the the factory harness? Anyone have a plug part # ? the one in the write up seems to be just to the cop itself.
Last edited by ryansmoneypit; 11-09-2014 at 07:47 AM.
Reply
0
0
11-10-2014, 10:44 PM
#11
Elite Member
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: A cave in Va
Posts: 3,395
Total Cats: 456
1.8 oem connector Coil On Plug & Ignition : Fab9 - Ignition Connector - 4 Pin
I do not see it on the website either.
Reply
0
0
12-14-2014, 05:30 PM
#13
Elite Member
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: A cave in Va
Posts: 3,395
Total Cats: 456
A quick pay-pal query, says that my budget turbo build is at about 5k and counting. Does someone have a free 6 speed lying around? maybe a coolant re route? Ohmy gawd, this is nuts.
Reply
0
0
12-31-2014, 06:06 PM
#18
Elite Member
Thread Starter
iTrader: (6)
Join Date: Feb 2013
Location: A cave in Va
Posts: 3,395
Total Cats: 456
I started my wire harness for my ls2 coils, and have run into some confusion.
going off of the COPS write up, a Toyota coil is wired like:
1. Ground
2. Trigger
3. Tach
4. +12 V
But then the Ls diagram shows:
A- Coil GND
B- Ignition Low Noise Ground
C- Ignition Digital Signal
D- +12 V
could someone please help me understand these Ls coil labels please? Does the diagram for the wire harness (which is written for the Toyota part) also apply to the ls coils?
Thanks,
Ryan
going off of the COPS write up, a Toyota coil is wired like:
1. Ground
2. Trigger
3. Tach
4. +12 V
But then the Ls diagram shows:
A- Coil GND
B- Ignition Low Noise Ground
C- Ignition Digital Signal
D- +12 V
could someone please help me understand these Ls coil labels please? Does the diagram for the wire harness (which is written for the Toyota part) also apply to the ls coils?
Thanks,
Ryan
Reply
0
0
12-31-2014, 06:19 PM
#19
No, not entirely. The LS coils have no tach out pin. They only need three things, a trigger, 12V, and ground.
Tie both A and B together, and wire them as grounds the exact same way you would toyota coils. That extra ground is for misfire detection or something similar a megasquirt can't use. Everything else is the same, wire them in batch as the trigger is the same for LS2/toyota cops. You won't have a tach out, which I think is fine on your car. I believe it's driven off the ECU on 1.8s, and the megasquirt should already be wired and configured to drive your tach.
Tie both A and B together, and wire them as grounds the exact same way you would toyota coils. That extra ground is for misfire detection or something similar a megasquirt can't use. Everything else is the same, wire them in batch as the trigger is the same for LS2/toyota cops. You won't have a tach out, which I think is fine on your car. I believe it's driven off the ECU on 1.8s, and the megasquirt should already be wired and configured to drive your tach.
