Old 09-03-2015, 02:56 AM   #201
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 657
Total Cats: 109
Default

Quote:
Originally Posted by turbofan View Post
Um wat no. Give it to me instead.
Wait, should I give you the exocet instead of doing this? Or give you the body and keep the exocet?
gesso is offline   Reply With Quote
Old 09-03-2015, 09:27 AM   #202
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,823
Total Cats: 2,121
Default

lol WUUTT

so you're dropping a cat body onto an exo?
18psi is offline   Reply With Quote
Old 09-03-2015, 02:16 PM   #203
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,116
Total Cats: 426
Default

<p>
Quote:
Originally Posted by gesso View Post
Wait, should I give you the exocet instead of doing this? Or give you the body and keep the exocet?
</p><p>&nbsp;</p><p>I tell ya what, you choose. I'll take either one.</p>
turbofan is offline   Reply With Quote
Old 09-03-2015, 02:22 PM   #204
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,823
Total Cats: 2,121
Default

he just wants your body
18psi is offline   Reply With Quote
Old 09-03-2015, 06:50 PM   #205
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 657
Total Cats: 109
Default Spelling

Got the exomotive suspension spacers installed today and as I suspected, I feel like the body gap is too much. I can't lower the body on the frame anymore, due to interference with the main tube in a few places.

Guess that means I need to order 17x9 6uls?

Will post pics of the body gap with my my 15x8's with 225/45s later.
gesso is offline   Reply With Quote
Old 09-04-2015, 10:33 AM   #206
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,047
Total Cats: 810
Default

Quote:
Originally Posted by 18psi View Post
lol WUUTT

so you're dropping a cat body onto an exo?
Yep! He's been teasing me with these kind of pics for days now

Quote:
Originally Posted by gesso View Post
Guess that means I need to order 17x9 6uls?

Will post pics of the body gap with my my 15x8's with 225/45s later.
What size tire would you run with the 17? I can bring my 225/45 on 15x9 up with me this weekend if you want to test fit?

Its glorious either way. Thread title delivers
EO2K is offline   Reply With Quote
Old 09-05-2015, 05:01 PM   #207
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 657
Total Cats: 109
Default

Quote:
Originally Posted by EO2K View Post
What size tire would you run with the 17?
Big

Quote:
Originally Posted by EO2k

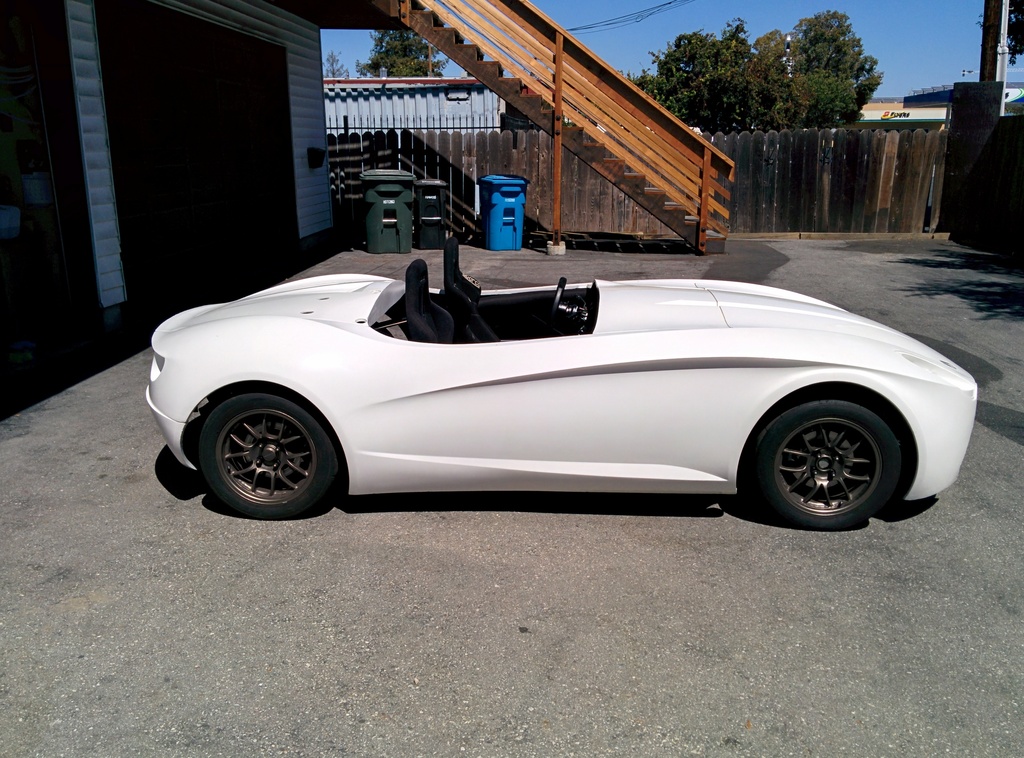

I can bring my 225/45 on 15x9 up with me this weekend if you want to test fit?
If you've got room, please do! There's tons of room under these fenders.

Attached Thumbnails
Geoff builds a silly 'car' in the few weeks before M@MRLS, every year!-img_20150905_135025_zpsiakle6rt.jpg
gesso is offline   Reply With Quote
Old 09-05-2015, 07:16 PM   #208
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,047
Total Cats: 810
Default

Thats with the spacers and the Xidas, correct? How much more adjustment do you have on ride height?

Also, how does someone with a 30" inseam get in and out of this thing now with the bodywork?
EO2K is offline   Reply With Quote
Old 09-10-2015, 12:52 AM   #209
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 657
Total Cats: 109
Default

Quote:
Originally Posted by EO2K View Post
Also, how do I made it do directional perspective thing on my phone, like in the Nissan 360 video you sent me the other day
I think Google finally fixed the encoding as this works now for me!


Also Brainy fixed my YT link for me, thanks Brain!
gesso is offline   Reply With Quote
Old 09-10-2015, 02:04 AM   #210
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 657
Total Cats: 109
Default

Updated TODO list for the exocet exofish?

Must be done before M@MRLS (3.5 weeks):
- Fix/upgrade the front fuel tank mounts DONE
- Modify Exocet rollbar to fit with catfish body DONE
- Mounts for the side body panels - Mostly done
- Mirrors - On order
- Mount lights - On order from Bauer LTD
- Wire lights
- Install gauge cluster
- Hood and rear deck mounts Done enough for now
- Replace the drivers side seat slider connecting rod/cable thing Done
- Make and install tophat spacers DONE: ordered and installed exomotive ones
- Adjust ride height to be even DONE: it's still got about 1/4" positive rake, but if I go any lower the spring perch will hit at full droop. I need to put my gopro in the wheel well and go for a spirited drive to see if I can drop the perch any more. Raised the rear a bit to give it no rake.

If all above is done then do this before M@MRLS:
- Alignment/corner weighting
- Build and install a rear firewall
- Radiator ducting
- Modify catfish dash panel to fit
- Install EO2k's stolen torsen
- Body supports for the ingress/exit areas
- Some additional rear body supports
- complete the flat bottom out to the edge of the body

Would be nice to have someday:
- MR shifter
- Paint
- Side mount exhaust (looks a bit silly with the empty hole)
- Interior panels
- Build and install some kind of trunk space
- Replace stock fuel tank with fuel cell (make my own?)
- Install MegaSquirt
- Install wideband
- Purchase/install bigger injectors 1/2 DONE: ID725s purchased
- fuel pump
- Install GT2554R for all the boost before 3500 RPM and some of it after
- Make better brake line mounts
- Finish my NB

Last edited by gesso; 09-24-2015 at 03:47 PM. Reason: Updates
gesso is offline   Reply With Quote
Old 09-10-2015, 09:34 AM   #211
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,823
Total Cats: 2,121
Default

Quote:
- Install GT2554R for all the boost before 3500 RPM and some of it after
Brings a tear to my eye
18psi is offline   Reply With Quote
Old 09-11-2015, 01:11 PM   #212
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 657
Total Cats: 109
Default

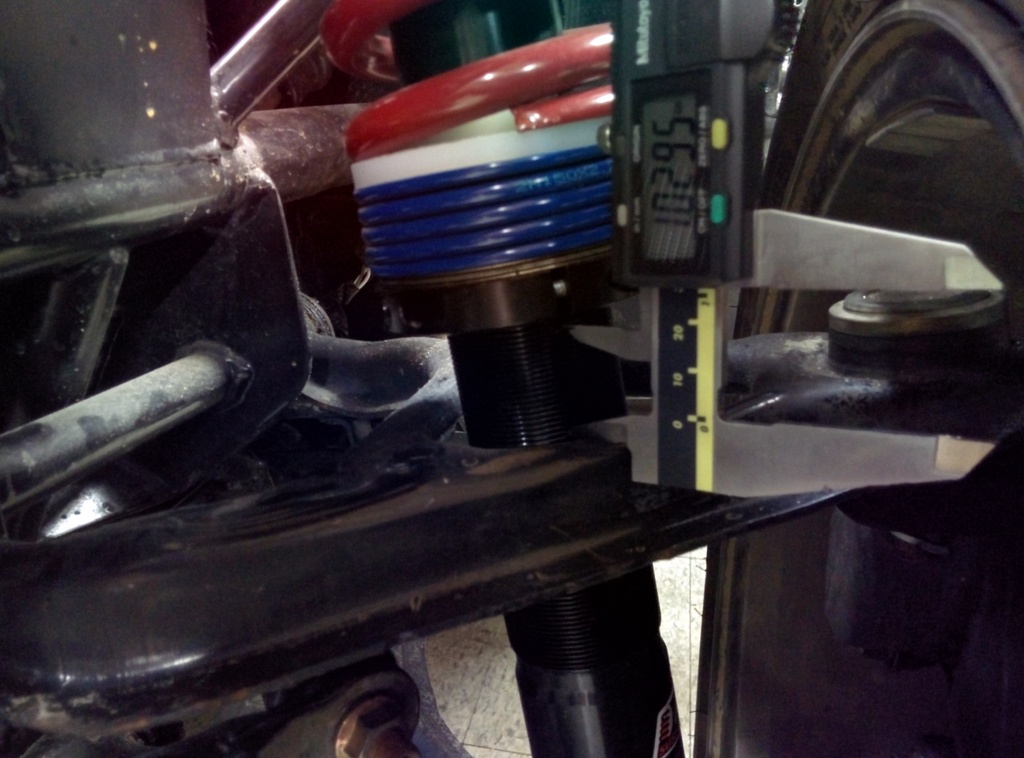

How much lower can I go? To be specific, how close can the spring perch get to the UCA before it will hit?

It seems like they shouldn't move too much relative to each other but I figure one of you knows for sure
Attached Thumbnails
Geoff builds a silly 'car' in the few weeks before M@MRLS, every year!-img_20150910_211842_zpsp99devbt.jpg
gesso is offline   Reply With Quote
Old 09-12-2015, 11:35 PM   #213
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 657
Total Cats: 109
Default

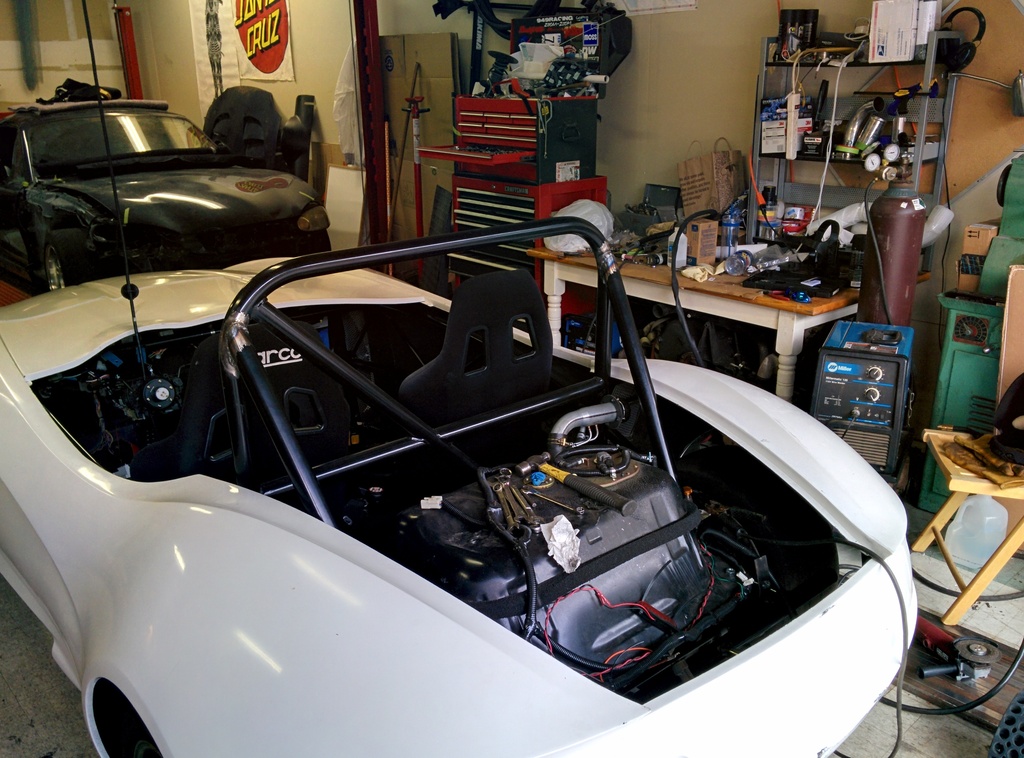

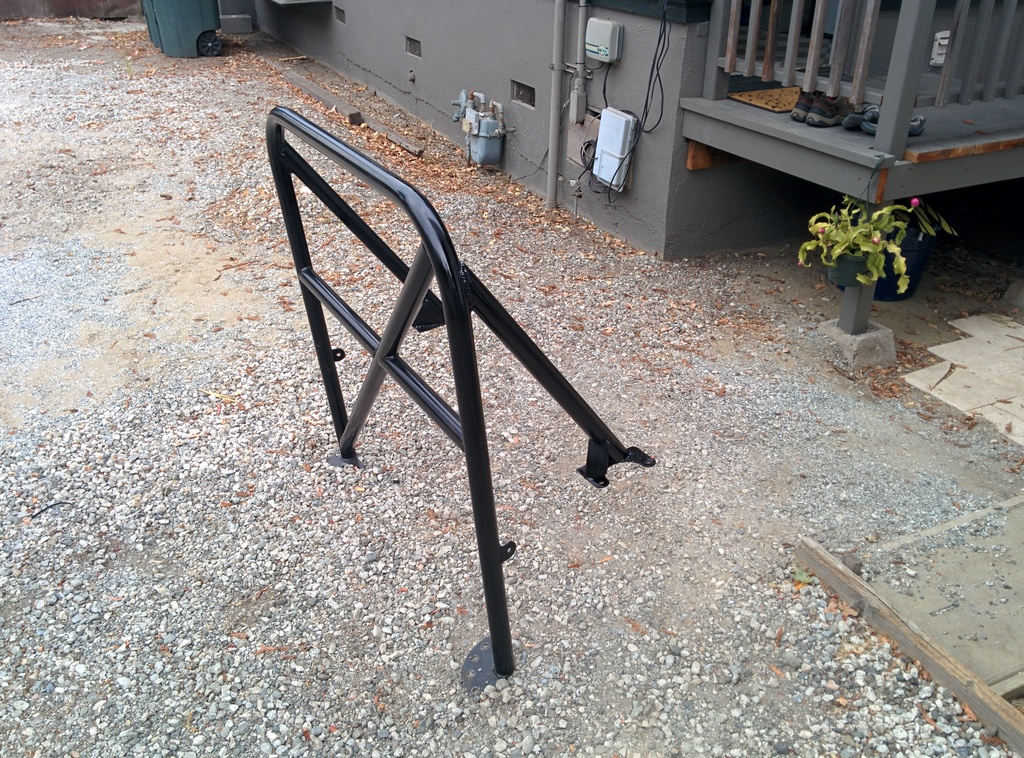

Modified exocet bar

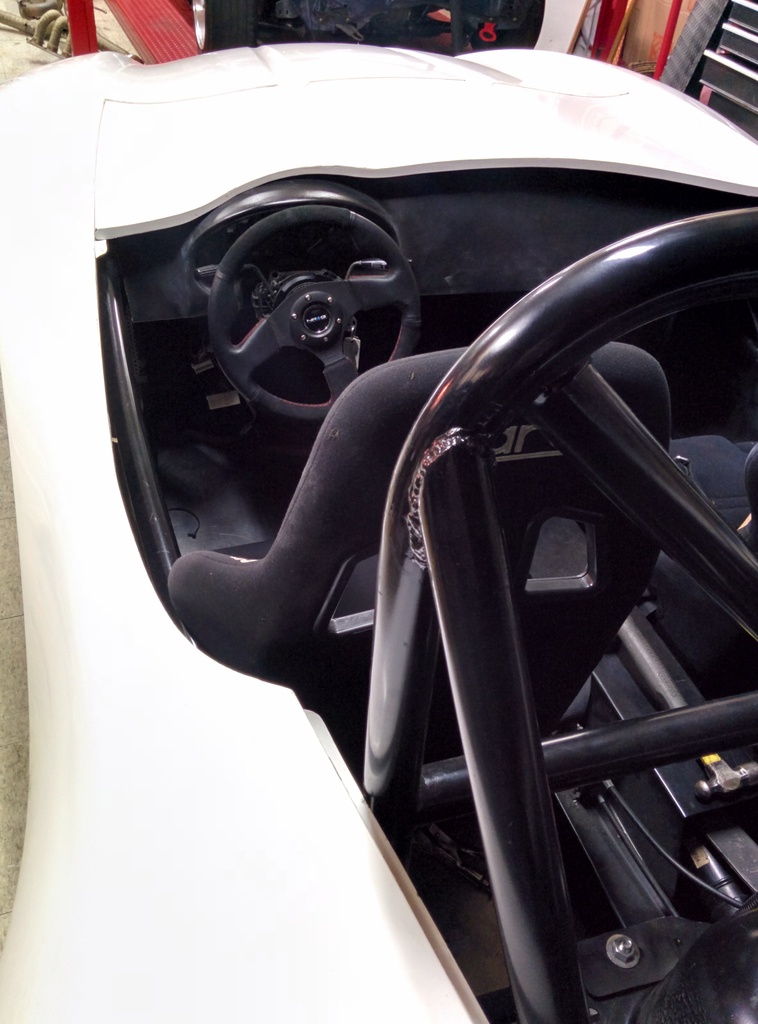

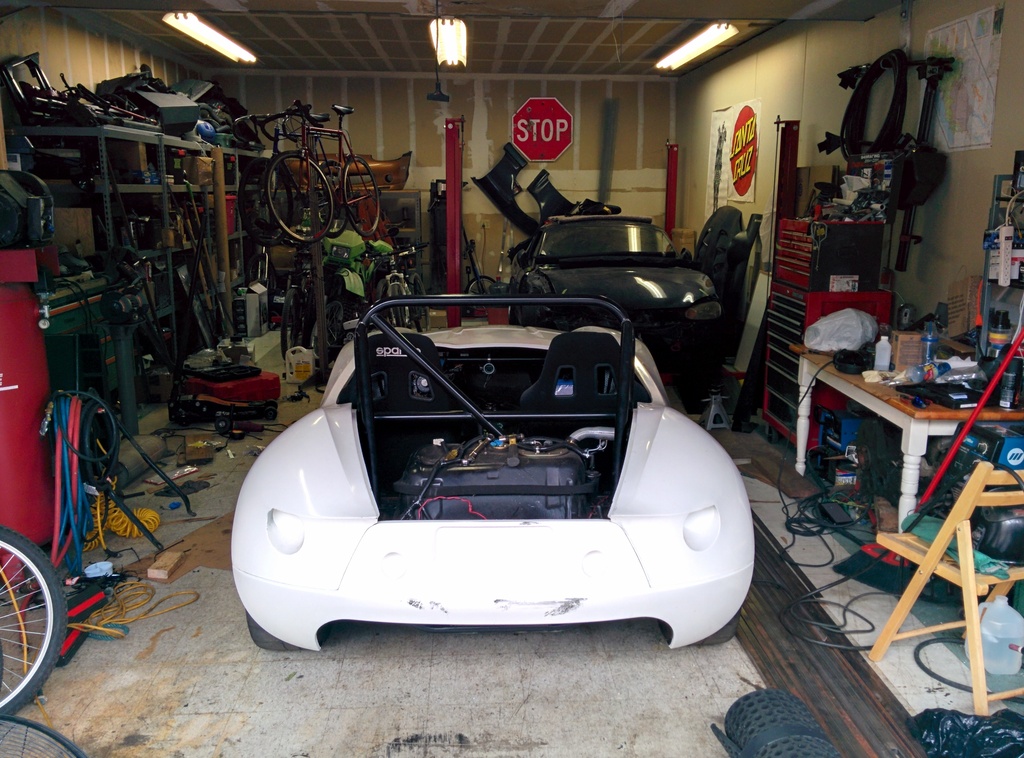

Bar in the car








I still need to figure out what to do about the trunk panel. Not sure exactly where I'll cut it to allow for installation/removal.
Attached Thumbnails
Geoff builds a silly 'car' in the few weeks before M@MRLS, every year!-img_20150912_175547_zpsxlnuviow.jpg   Geoff builds a silly 'car' in the few weeks before M@MRLS, every year!-img_20150912_141126_zpse7hci2pu.jpg   Geoff builds a silly 'car' in the few weeks before M@MRLS, every year!-img_20150912_141036_zpssobmdiiq.jpg   Geoff builds a silly 'car' in the few weeks before M@MRLS, every year!-img_20150912_170005_zps3kldngga.jpg
gesso is offline   Reply With Quote
Old 09-13-2015, 12:23 AM   #214
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,047
Total Cats: 810
Default

What did you change? Mounted to the top of the rear suspension mount?

Also, can you split the deck lid behind the bar legs and still have access to stuff in the underside? Looking at it from that angle, you are absolutely right about the fuel cell.

This also occurred to me:

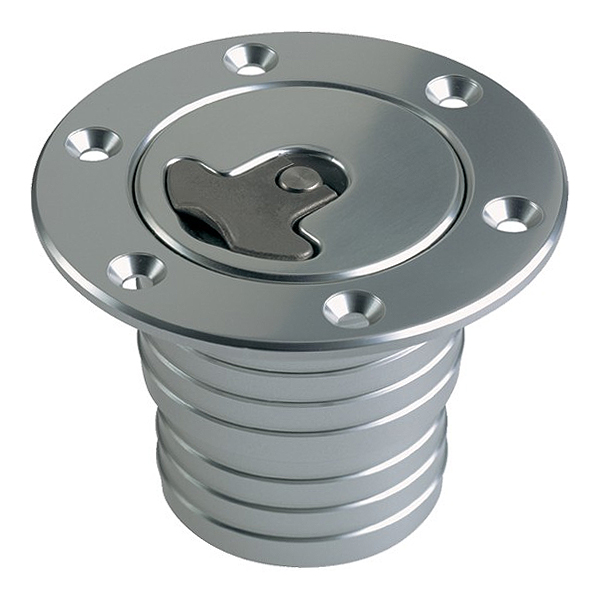

British American Transfer - Mocal Aero Fuel Caps

Fuel Caps | Rallynuts Ltd



How sexy is that?

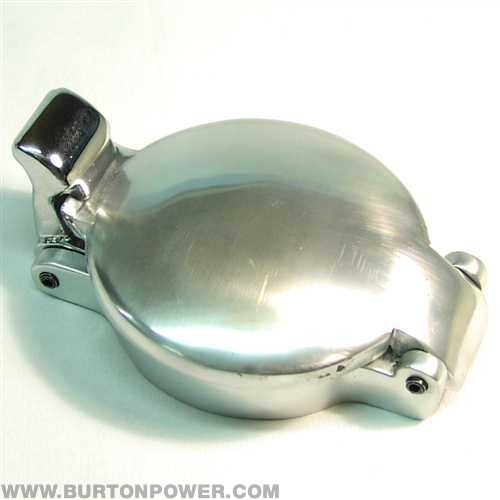

There is also this vintage badassery:

British American Transfer - Aston & Monza Style Fuel Caps



but you know me and the vintage stuff
Attached Thumbnails
Geoff builds a silly 'car' in the few weeks before M@MRLS, every year!-cap2sf_lge.jpg   Geoff builds a silly 'car' in the few weeks before M@MRLS, every year!-mocast25_aston_cap_10.jpg
EO2K is offline   Reply With Quote
Old 09-13-2015, 02:32 AM   #215
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 657
Total Cats: 109
Default

Quote:
Originally Posted by EO2K View Post
What did you change? Mounted to the top of the rear suspension mount?
The support bars used to mount to the outside edge of the shock towers. This would have put the support bars going right through the hips of the body. So I cut them off at the main hoop, cut off the mounting feet, and moved their lower mounting location to the inside of the shock towers. This makes it so the support bars are just inside the edge of the side body panels so only the deck lid needs to be cut.

Quote:
Originally Posted by EO2K View Post
Also, can you split the deck lid behind the bar legs and still have access to stuff in the underside? Looking at it from that angle, you are absolutely right about the fuel cell.
Maybe? I mean yes for sure, but I'm trying to figure out how to allow the bar to be removed still. So we'll see, I'm just holding off on cutting it at this point. Plenty of other things to do

Quote:
Originally Posted by EO2K View Post
Huuunnngg, I'll be ordering the black anodized version as soon as I confirm there's a flat 3" diameter spot on the deck lid.

Quote:
Originally Posted by EO2K View Post
There is also this vintage badassery:

British American Transfer - Aston & Monza Style Fuel Caps



but you know me and the vintage stuff
Meh? I don't want anyone thinking that I'm building some janky cobra replica
gesso is offline   Reply With Quote
Old 09-13-2015, 03:03 AM   #216
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 657
Total Cats: 109
Default

Messed around with the dash panel some after dinner.



This was the best I could get it to fit. Better than nothing, but not amazing. It's seems like the steering wheel/column should be further inboard. But the wheel is already somewhat inboard of the center of the drivers seat. /Shrug
Attached Thumbnails
Geoff builds a silly 'car' in the few weeks before M@MRLS, every year!-img_20150912_223818_zpsvy1caeku.jpg
gesso is offline   Reply With Quote
Old 09-20-2015, 02:14 AM   #217
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 657
Total Cats: 109
Default

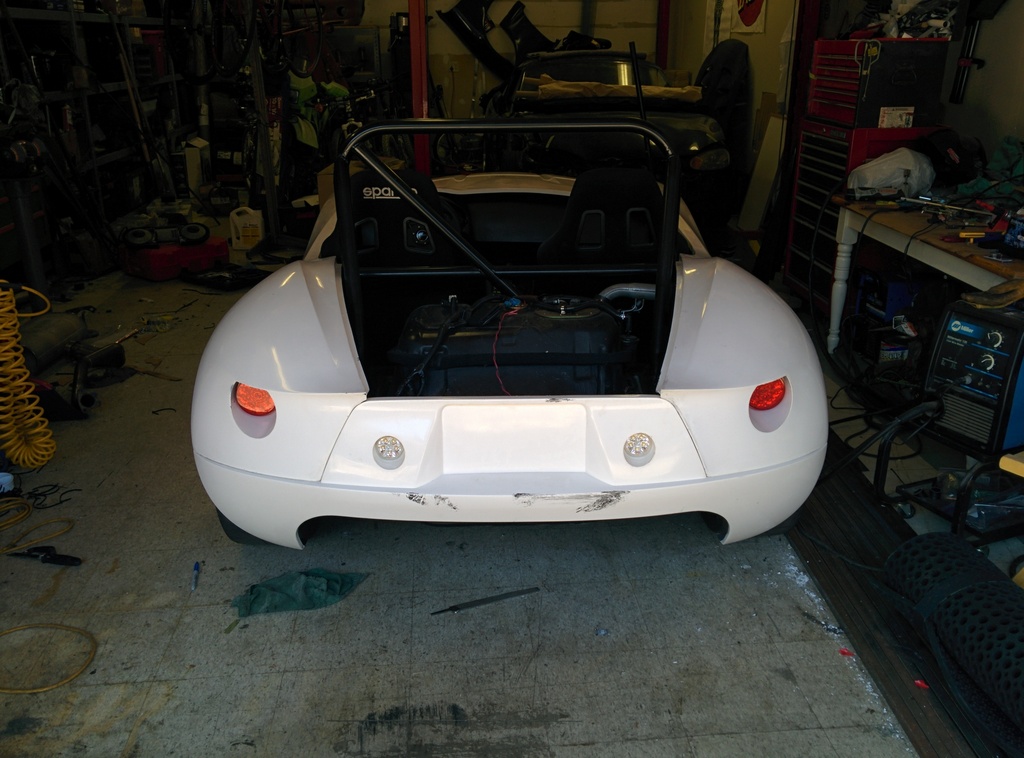

Tail lights installed and wired up.



Time to move on to the trunk lid.

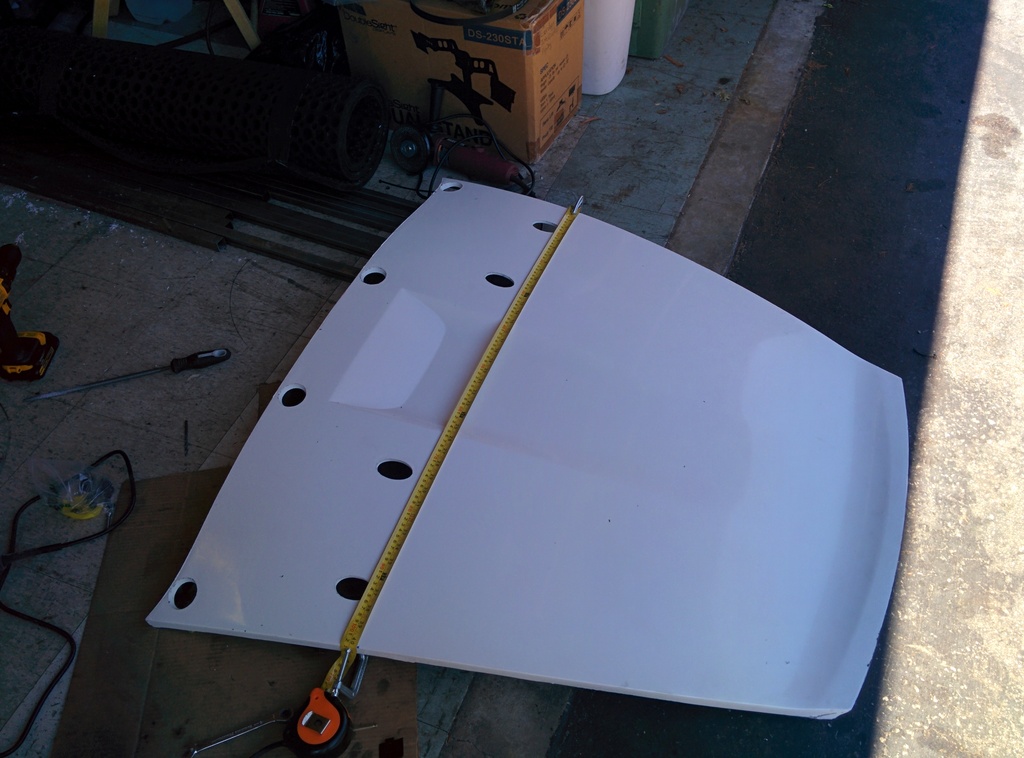

Here we go!

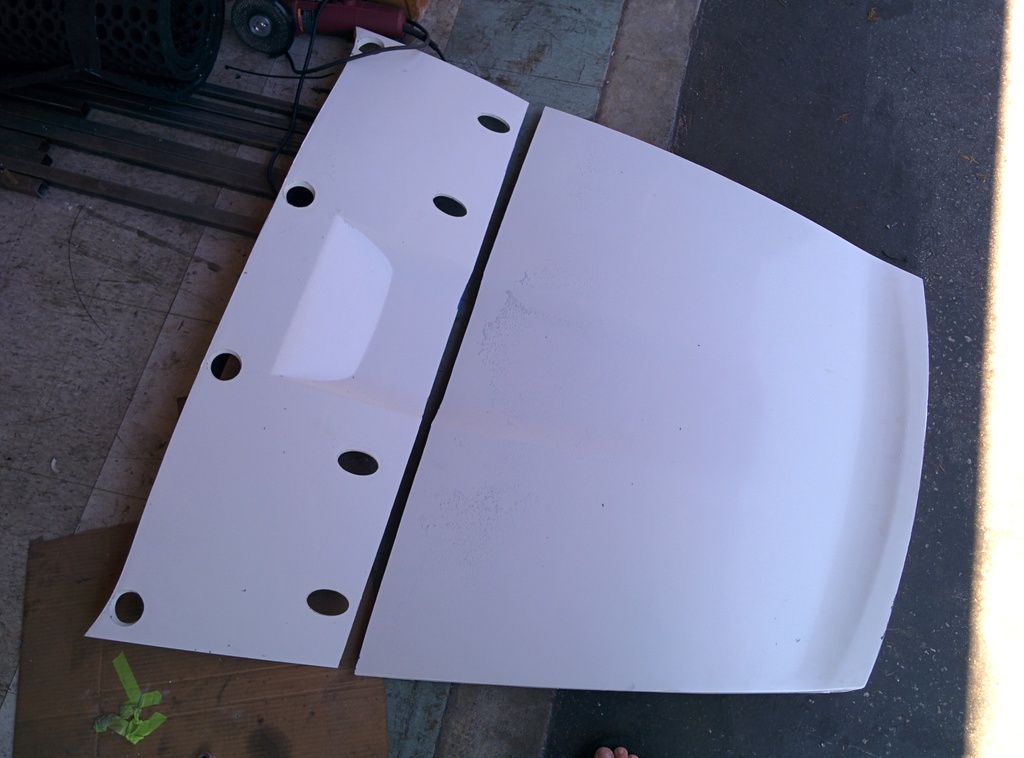

Well that wasn't too scary...


And hours later, with very itchy fiberglass impregnated arms.
Attached Thumbnails
Geoff builds a silly 'car' in the few weeks before M@MRLS, every year!-img_20150919_131720_zpsyssauaij.jpg   Geoff builds a silly 'car' in the few weeks before M@MRLS, every year!-img_20150919_140303_zpsqvkqpxki.jpg   Geoff builds a silly 'car' in the few weeks before M@MRLS, every year!-img_20150919_141444_zps33gbn9qg.jpg
gesso is offline   Reply With Quote
Old 09-20-2015, 10:09 AM   #218
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,047
Total Cats: 810
Default

That came out really nice! I'm guessing the double bolt things are temporary just to keep it together?
EO2K is offline   Reply With Quote
Old 09-20-2015, 02:08 PM   #219
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 657
Total Cats: 109
Default

Quote:
Originally Posted by EO2K View Post
That came out really nice! I'm guessing the double bolt things are temporary just to keep it together?
Define temporary... It's basically impossible to get something between the rollbar legs that isn't split. Eventually I'd like to make the lid hinge at the left right split, but that likely won't happen until 2016
gesso is offline   Reply With Quote
Old 09-20-2015, 06:23 PM   #220
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,823
Total Cats: 2,121
Default

I can't believe how much better this thing looks with teh fish body
18psi is offline   Reply With Quote
