Old 08-29-2014, 09:21 PM   #1281
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,038
Total Cats: 809
Default

Quote:
Originally Posted by 18psi View Post
this is gonna be the best sr20 t25 bolted to the side of my block
FTFY

Most excellent btw So how much stuff was crapped up behind the turbine heatshield?

I also hate the fact that you have access to a blaster. I have many jellies.
EO2K is offline   Reply With Quote
Old 08-29-2014, 09:37 PM   #1282
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,801
Total Cats: 2,116
Default

A lot.

Like a whole lot.

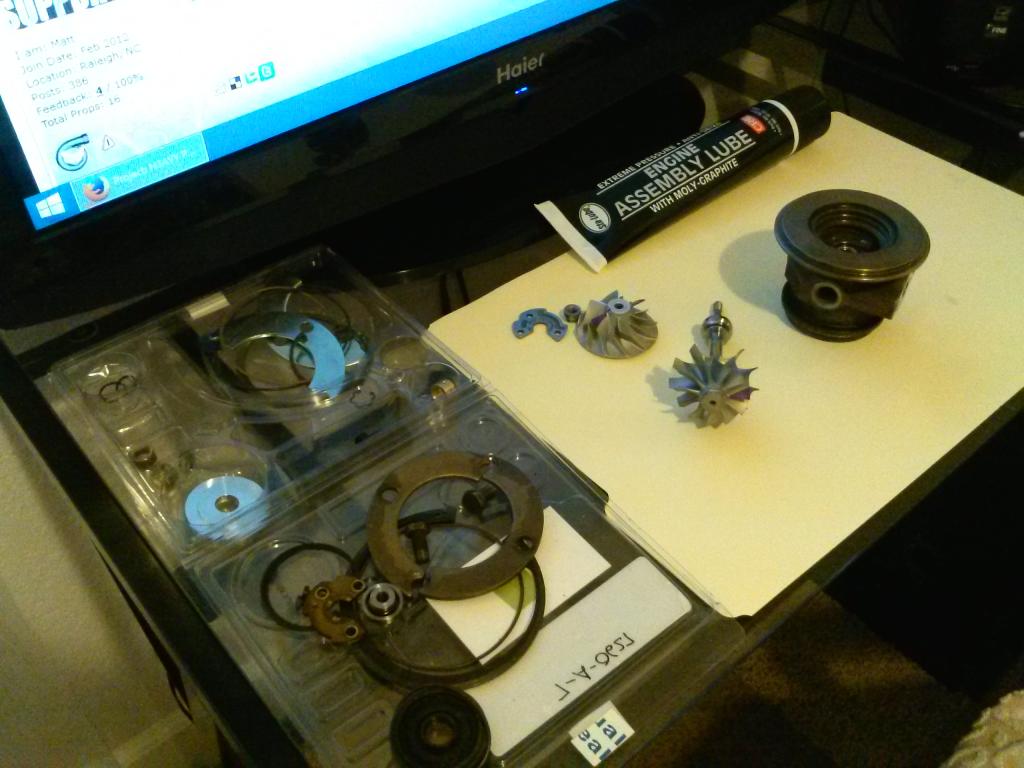

Like I think I went through half a wire wheel cleaning it up, and that doesn't even include stabbing it with screw drivers and knives to break off the outer layers.

lol

But now I know how to rebuild a turbo
18psi is offline   Reply With Quote
Old 08-29-2014, 09:45 PM   #1283
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,038
Total Cats: 809
Default

I figured that was the case. I got the turbine housing off and blasted behind that heatshield with some cleaner and a flood of crap got dislodged. I tried to soften it up with something that would penetrate () but it sounds like it didn't help much. Sounds like you have it under control though.

This is why I mentioned it prominently in the FS thread and picked up the rebuild kit. I absolutely knew it needed some love.
EO2K is offline   Reply With Quote
Old 08-29-2014, 09:53 PM   #1284
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,801
Total Cats: 2,116
Default

Haha its all good. I actually kinda sorta enjoyed working on it.

Its so tiny and cute
18psi is offline   Reply With Quote
Old 08-29-2014, 10:57 PM   #1285
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

You have a soda blaster? **** you good sir. I want a parts cleaner and a sand blasting cabinet so bad. While we're at it my own Powdercoating booth.

IB4 compressor falls off! :lol:
Jeffbucc is offline   Reply With Quote
Old 08-29-2014, 11:21 PM   #1286
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,673
Total Cats: 230
Default

Sweet man, i should do this to mine as well.
Fireindc is offline   Reply With Quote
Old 08-30-2014, 12:57 AM   #1287
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,801
Total Cats: 2,116
Default

Nothing to be jelly about: I don't have a blaster. Just have friends that do.
The wheels were actually cleaned and blasted by G-Pop shop.

I was going to throw on the MS3 this weekend, but I'm sick as a dog, haven't been sick in 2 years, and I guess finally it caught up to me, I caught the nastiest cold I think I've had in over 10 years.

bleh

eating pills by the handful and feeling like death.
18psi is offline   Reply With Quote
Old 08-30-2014, 01:13 AM   #1288
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,025
Total Cats: 185
Default

Quote:
Originally Posted by EO2K View Post
FTFY

Most excellent btw So how much stuff was crapped up behind the turbine heatshield?

I also hate the fact that you have access to a blaster. I have many jellies.
So, Vlad got that from you. Good deal!
DNMakinson is offline   Reply With Quote
Old 08-30-2014, 01:48 AM   #1289
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,311
Total Cats: 73
Default

Quote:
Originally Posted by EO2K View Post
FTFY

Most excellent btw So how much stuff was crapped up behind the turbine heatshield?

I also hate the fact that you have access to a blaster. I have many jellies.
Sidenote: My turbo has been disassembled and sitting in the parts washer for a few days as I wait on my kit from gpopshop. Is there anything I couldn't use a media blaster to cleanup? (Aside from the wheels I assume). I'm not sure if it has glass beads or soda in it at the moment, if that makes a difference. Plan was to only use it to clean up the housings.
Schuyler is offline   Reply With Quote
Old 08-30-2014, 02:21 AM   #1290
Senior Member
iTrader: (1)

Join Date: Mar 2014
Location: Rosedale, Indiana
Posts: 611
Total Cats: 42
Default

Quote:
Originally Posted by Jeffbucc View Post
You have a soda blaster? **** you good sir. I want a parts cleaner and a sand blasting cabinet so bad. While we're at it my own Powdercoating booth.

IB4 compressor falls off! :lol:
A couple hundred bucks at Harbor Freight for the parts washer and sand blasting cabinet.... and an old electric oven from Good Will and you are set!

Keith
Twodoor is offline   Reply With Quote
Old 08-30-2014, 02:24 AM   #1291
Senior Member
iTrader: (1)

Join Date: Mar 2014
Location: Rosedale, Indiana
Posts: 611
Total Cats: 42
Default

Quote:
Originally Posted by Schuyler View Post
Sidenote: My turbo has been disassembled and sitting in the parts washer for a few days as I wait on my kit from gpopshop. Is there anything I couldn't use a media blaster to cleanup? (Aside from the wheels I assume). I'm not sure if it has glass beads or soda in it at the moment, if that makes a difference. Plan was to only use it to clean up the housings.
Is it a mineral spirits based parts washer? If it is the aqueous solution type, don't use it on the compressor housing or anything else made of aluminum, the aqueous solutions can cause staining and corrosion of aluminum.

Keith
Twodoor is offline   Reply With Quote
Old 08-30-2014, 02:53 AM   #1292
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,801
Total Cats: 2,116
Default

Hope you marked it. And correctly.

One of the reasons I sent mine to gpop was cause I marked everything but the inside of the shaft. Realized it when the nut was about 1/4 turn off. Could have put it back to at least close to original location but said screw it, might as well get this thing balanced and 150% good to go.
18psi is offline   Reply With Quote
Old 08-30-2014, 02:58 AM   #1293
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,311
Total Cats: 73
Default

Quote:
Originally Posted by 18psi View Post
Hope you marked it. And correctly.

One of the reasons I sent mine to gpop was cause I marked everything but the inside of the shaft. Realized it when the nut was about 1/4 turn off. Could have put it back to at least close to original location but said screw it, might as well get this thing balanced and 150% good to go.
I did mark it, with sharpie. And realized a day after having it in the parts washer that the sharpie probably wouldnt survive. So I'm kind of just playing it by ear now until I pull the parts out. I had the same concerns about the solution and aluminum, but the owner of the shop told me it would be fine. I wasn't, and am still not, positive the solution hen has in there, and what effect it would have on aluminum. In hindsight I wish I'd just done it all by hand. But whats done is done, so we'll see....
Schuyler is offline   Reply With Quote
Old 08-30-2014, 05:25 AM   #1294
Senior Member
iTrader: (1)

Join Date: Mar 2014
Location: Rosedale, Indiana
Posts: 611
Total Cats: 42
Default

Quote:
Originally Posted by Schuyler View Post
I did mark it, with sharpie. And realized a day after having it in the parts washer that the sharpie probably wouldnt survive. So I'm kind of just playing it by ear now until I pull the parts out. I had the same concerns about the solution and aluminum, but the owner of the shop told me it would be fine. I wasn't, and am still not, positive the solution hen has in there, and what effect it would have on aluminum. In hindsight I wish I'd just done it all by hand. But whats done is done, so we'll see....
Yeah, when I purchased my parts washer I got a bottle of the solution concentrate... then read the label and realized half of the parts I would be working on would be stained or damaged. I hunted down a local supplier of mineral spirits based solution, and have been using that. Made it convenient for the "wash out any chips with mineral spirits" part of the turbo drain line installation

Keith
Twodoor is offline   Reply With Quote
Old 08-30-2014, 06:02 AM   #1295
Junior Member

Join Date: Dec 2009
Location: Brisbane, AUSTRALIA
Posts: 402
Total Cats: 35
Default

This:


... reminded me of this classic faux pas:


- yeah, I still think like a 14 year old sometimes.
Lokiel is offline   Reply With Quote
Old 09-15-2014, 11:17 PM   #1296
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,801
Total Cats: 2,116
Default

So I plugged in the ms3 today, loaded everything per Revs instructions, and the car fired up and idled. Very impressive.
Didn't run it too long since the wideband is not connected yet, about 30 seconds or so.

However,
Tach doesn't work. At all. Shows in TS, but the actual physical tach does not even budge.

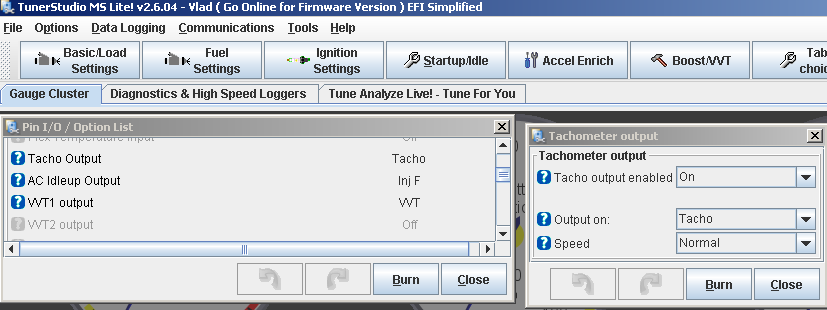

I sent Rev a PM, he will probably figure it out really easily, but here's screen shot of tach settings anyway:


Is there anything else I'm missing to check in the software or would this be 100% hardware? (ms unit itself)
Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-notachms3.png
18psi is offline   Reply With Quote
Old 09-16-2014, 11:59 AM   #1297
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,038
Total Cats: 809
Default

Needs more 100+kpa

& E85

Last edited by EO2K; 09-16-2014 at 12:09 PM.
EO2K is offline   Reply With Quote
Old 09-16-2014, 12:18 PM   #1298
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,801
Total Cats: 2,116
Default

working on it.....as you can see

actually I think I'm gonna try e85 on stock injectors, per that one thread where Emilio said they were doing it

gotta find dat thread
18psi is offline   Reply With Quote
Old 09-16-2014, 02:02 PM   #1299
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,813
Total Cats: 479
Default

Yup, so the wire labeled "tacho" is currently set as your tach output pin. Is it wired to your tach? We're having the same problem with our MSM coils, but out MS doesn't have a tach output pin :(
curly is online now   Reply With Quote
Old 09-18-2014, 12:30 AM   #1300
Junior Member
iTrader: (3)

Join Date: Oct 2010
Posts: 48
Total Cats: -10
Default

Tach out from the factory harness should be (3O) have you checked the connection? or the wire between the OEM harness and the MS3?
apalac01 is offline   Reply With Quote
