Old 10-04-2014, 03:23 PM   #1341
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,025
Total Cats: 184
Default

Excellent. A variation we used at the steam electric plant was dry ice on the bolt. The water is perhaps even better for the shock factor and great availabity.
DNMakinson is online now   Reply With Quote
Old 10-04-2014, 05:06 PM   #1342
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,033
Total Cats: 808
Default

I just assumed he yelled at it in Russian

Glad you got it apart, stuck bolts are the absolute worst. This is why I copper antiseaze allthethings upon re assembly
EO2K is offline   Reply With Quote
Old 10-04-2014, 05:23 PM   #1343
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

I see a bearded version of Vlad with a bottle of vodka and a large torch in hand when I envision your father.

Glad you got the bolts yanked off. Jealous your father is capable of that, mine would just throw cash at it till the problem went away.
Jeffbucc is offline   Reply With Quote
Old 10-04-2014, 09:32 PM   #1344
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,033
Total Cats: 808
Default

Quote:
Originally Posted by Jeffbucc View Post
I see a bearded version of Vlad with a bottle of vodka and a large torch in hand when I envision your father.
Oh ghads, that's amazing
EO2K is offline   Reply With Quote
Old 10-05-2014, 06:32 PM   #1345
Junior Member

Join Date: Dec 2009
Location: Brisbane, AUSTRALIA
Posts: 402
Total Cats: 35
Default

Quote:
Originally Posted by Jeffbucc View Post
I see a bearded version of Vlad with a bottle of vodka and a large torch in hand when I envision your father.
:
I was picturing something more like this:
Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-tumblr_inline_mksgcxffqe1qz4rgp.png
Lokiel is offline   Reply With Quote
Old 10-06-2014, 11:29 PM   #1346
Senior Member
iTrader: (1)

Join Date: Mar 2014
Location: Rosedale, Indiana
Posts: 611
Total Cats: 42
Default

Quote:
Originally Posted by 18psi View Post
Gets the housings glowing with it. Then squirts WATER onto just the bolt. With a crazy loud hiss of defeat, the bolts give up and he man handles them out.

The one that was broken off, he puts a nut over, and welds it onto the stud from the inside of the nut. Then repeats above procedure.
The "heat and cold" method combined with the "weld a nut to broke stud /bolt"... your Dad knows what he is doing

Keith
Twodoor is offline   Reply With Quote
Old 10-07-2014, 12:11 AM   #1347
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,795
Total Cats: 2,116
Default

hahaha he doesn't drink or curse.
otherwise yes, he looks like one of those big bearded russians that you don't wanna mess with.

Ordered G-Pop shop kit for the t25, even though its actually in decent shape as is. I am getting addicted to rebuilding turbo's lol. The gt2560r is just going to get a thorough cleaning and ported wastegate, since its pretty mint otherwise. Both are going to be near-new condition when I'm done.

I still really gotta stop putting off fixing this MS3x and finally install it.
18psi is offline   Reply With Quote
Old 10-07-2014, 10:24 AM   #1348
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,673
Total Cats: 230
Default

My pops helped me in the same situation. We used lots of heat (same oxy type torch your dad has), and used an air duster can turned upside down to frost the stud. I drilled a hole all the way "through" the stud, which helps release the tension on it, the sprayed the air duster into the hole. Came right out with an easy out using that method.

Then I ran into another problem, the exhaust housing was seized on. even with the bolts removed the BFH would not budge it, it was seized together with carbon and rust. Ended up using a LOT of heat, and a lot of slamming with the BFH.

I guess my point is, these old tiny turbos are a PITA.
Fireindc is offline   Reply With Quote
Old 10-07-2014, 10:32 AM   #1349
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,795
Total Cats: 2,116
Default

Yep, we had to heat up the housing to come off too.

Right now I'm shopping for misc crap: filter, turbo inlet, fittings, oil drain, etc.

I find it awesome that a bunch of links to a bunch of stuff is still posted in this very thread from before, and now I just open my own thread to help myself

I guess what I'm sayin is: I love it that y'all post in this thread
18psi is offline   Reply With Quote
Old 10-07-2014, 12:23 PM   #1350
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,027
Total Cats: 115
Default

Quote:
Originally Posted by 18psi View Post
I guess what I'm sayin is: I love it that y'all post in this thread
My build thread is getting jealous.
Chiburbian is offline   Reply With Quote
Old 10-07-2014, 12:27 PM   #1351
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Quote:
Originally Posted by Chiburbian View Post
My build thread is getting jealous.
No ****.
concealer404 is offline   Reply With Quote
Old 10-14-2014, 11:46 PM   #1352
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,795
Total Cats: 2,116
Default

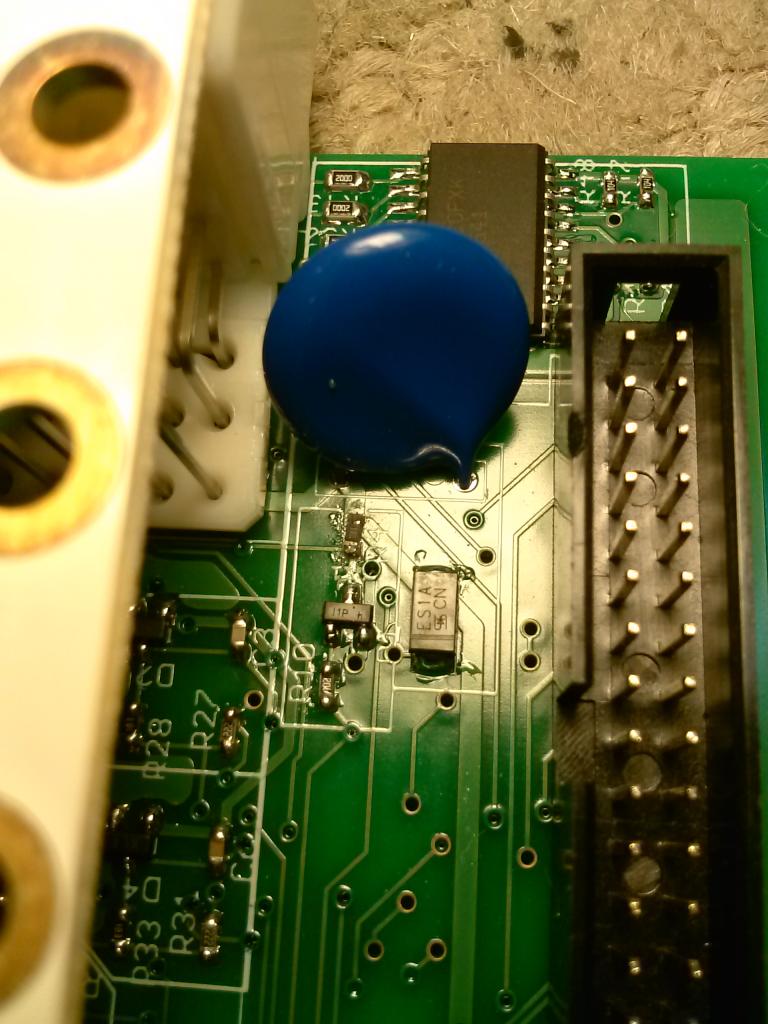

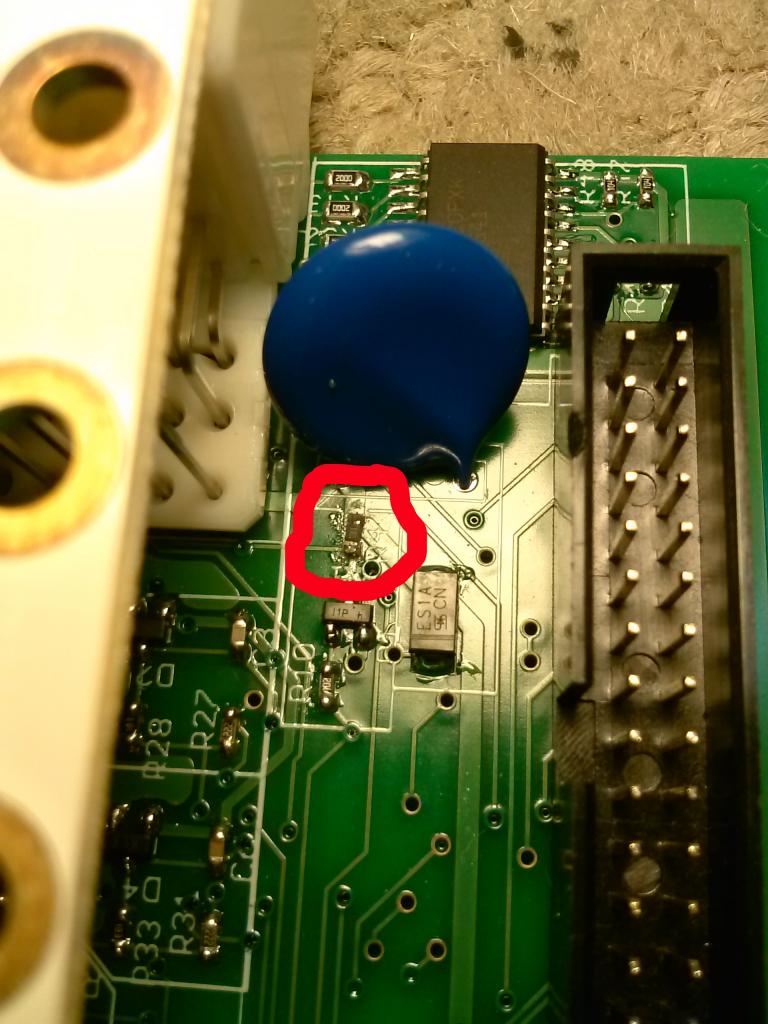

My friend finally had time to stop by and solder the tiny resistor.

When I say tiny, I mean microscopic. My mind was blown.

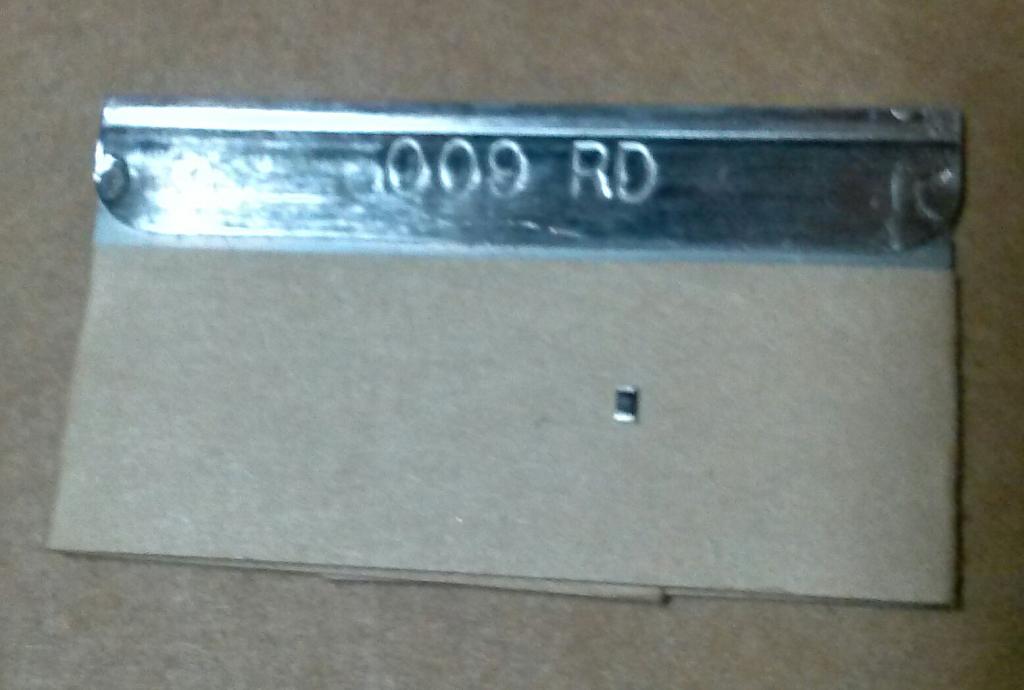

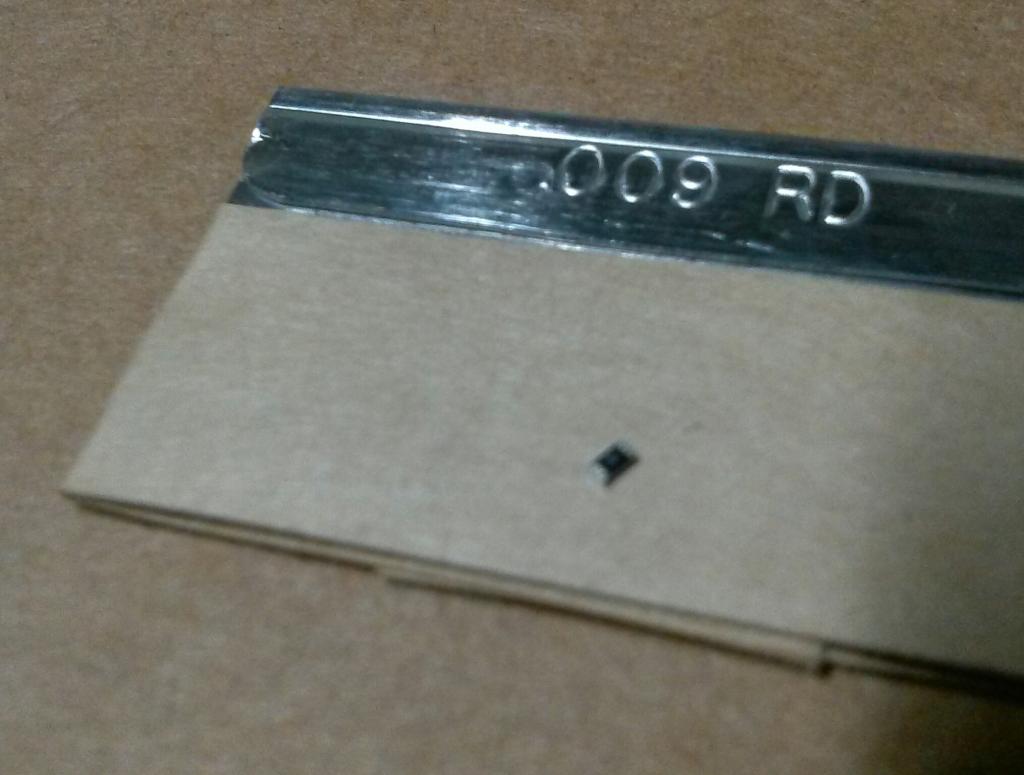

for size reference, regular razor blade with the resistor on it.



Anywho, I fired the car up with the MS3, and TACH WORKED
Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-cam00886.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-cam00887-1.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-cam00888-1.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-cam00886.jpg
18psi is offline   Reply With Quote
Old 10-14-2014, 11:48 PM   #1353
Senior Member
iTrader: (8)

paNX2K&SE-R's Avatar

Join Date: Dec 2007
Location: Mocksville, NC
Posts: 651
Total Cats: 10
Default

That resistor is nuts!
paNX2K&SE-R is offline   Reply With Quote
Old 10-14-2014, 11:49 PM   #1354
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 947
Default

I would have never found that thing.
Jeffbucc is offline   Reply With Quote
Old 10-15-2014, 12:40 AM   #1355
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,033
Total Cats: 808
Default

SMD/SMT resistor = huge PITA. I cant say how many hours I've spent with a magnifying glass, soldering iron, hemostat and razor blade. Good jorb on that one.

Where the boosts is at? Also, answer my PM
EO2K is offline   Reply With Quote
Old 10-15-2014, 03:23 AM   #1356
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,485
Total Cats: 79
Default

@Vlad - was this resistor wrong on the MS3X from the beginning?

I got a friend here that has the same problem with a non working tach - see here:
No tach in 94 1.8 MX-5 with MS3X

Thanks
Sven
Zaphod is offline   Reply With Quote
Old 10-15-2014, 11:23 AM   #1357
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,795
Total Cats: 2,116
Default

Correct
18psi is offline   Reply With Quote
Old 10-15-2014, 11:45 AM   #1358
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,025
Total Cats: 184
Default

But Vlad has 99 new resistors left over.

I presume you have let Rev know about the issue?
DNMakinson is online now   Reply With Quote
Old 10-15-2014, 11:48 AM   #1359
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,795
Total Cats: 2,116
Default

Yep, he was the one helping me troubleshoot.

If anyone needs a resistor or 10, holla at me.

I can't wait to get this thing in permanently and start tuning.
18psi is offline   Reply With Quote
Old 10-15-2014, 12:24 PM   #1360
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,485
Total Cats: 79
Default

I guess it won't make any sense to ship that tiny bugger over the ocean.... ;-)

Was that a batch of incorrect MS3X cards?
Zaphod is offline   Reply With Quote
