H3AVY to H3AVYER to...H3AV1EST P1G - Page 74 - Miata Turbo Forum -Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



Build Threads Building a motor? Post the progress here.

Reply



LinkBack Thread Tools Search this Thread
Old 11-10-2014, 04:11 PM   #1461
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by 18psi View Post
because it's directly in the way of the compressor outlet/cold side charge pipe
Ahh gotcha
BTMiata is offline   Reply With Quote
Old 11-10-2014, 05:46 PM   #1462
Junior Member
iTrader: (5)

hankclaussen's Avatar

Join Date: Mar 2010
Location: Houston
Posts: 341
Total Cats: 43
Default

Quote:
Originally Posted by 18psi View Post
As soon as FM's silicone lower rad hose is not backordered.

Or I find one for sale elsewhere, or I find same size/shape hose that I can use. I think that's pretty much the only thing left for me to get.
Just get the racer reroute man.

On a serious note, I think I have an extra. If I can find it, what's it worth to you?
hankclaussen is offline   Reply With Quote
Old 11-10-2014, 07:09 PM   #1463
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Wonder if a higher count crank wheel will help with that start. You have the stock one, right?

Quote:
Originally Posted by 18psi View Post
I'm pretty much down to things to iron out with the tune:

- the cold starts
They are OK. Not bad, not rough anymore, but still not perfect. It takes a bit too many turns to fire up for my liking. Still trying to figure that one out, cause I don't think adding any more cranking pw's is helping. I've also fiddled with the spark map in those cells, which didn't seem to help too much. One other thing I'll be verifying is the idle valve position while cranking - I had it tuned decent, but that was on the previous ms3 so maybe it needs a bit of adjustment.

- the silly little rich dip on throttle lift
I am fairly confident it is related to AE or EAE, because yesterday I was keeping an eye on the "accel enrichments" gauge when it does that, and it spikes to like full enrich for a SPLIT SECOND right before it does that dip. I have looked over my AE settings and simply cannot figure out what is causing it to do that. Sorry, still no log, will get one for sure today.

Other than that, really happy with the way the car is running, and with this MS3.
bcrx7 is offline   Reply With Quote
Old 11-11-2014, 01:45 AM   #1464
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 8,913
Total Cats: 499
Default

Quote:
Originally Posted by hankclaussen View Post
Just get the racer reroute man.

On a serious note, I think I have an extra. If I can find it, what's it worth to you?
*Cough*
triple88a is offline   Reply With Quote
Old 11-11-2014, 09:34 AM   #1465
Senior Member

Join Date: Feb 2009
Location: Philadelphia
Posts: 773
Total Cats: 42
Default

I have the M-Tuned reroute, and have seen the "Racer" reroute on another car. When looking at the two together, one looks well made, the other looks like it was made by banging stone against metal in Syria. Not saying which is which
Mazdaspeeder is offline   Reply With Quote
Old 11-11-2014, 10:04 AM   #1466
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,406
Total Cats: 2,035
Default

Quote:
Originally Posted by hankclaussen View Post
Just get the racer reroute man.

On a serious note, I think I have an extra. If I can find it, what's it worth to you?
Just got an email from FM that they are back in stock
But if you have one and wanna get rid of it please LMK, maybe we can work something out.
Quote:
Originally Posted by bcrx7 View Post
Wonder if a higher count crank wheel will help with that start. You have the stock one, right?
Probably. And yes I have the stock one.
I feel like the car should start with the stock wheel just like OEM. I see no reason why it couldn't.

I think I've made a bit more progress on it though. At least it seems like it. Messing with cranking idle valve settings now.

Its really not bad, just not perfect. I bet most people wouldn't even mind, but it bothers me haha
Quote:
Originally Posted by triple88a View Post
*Cough*

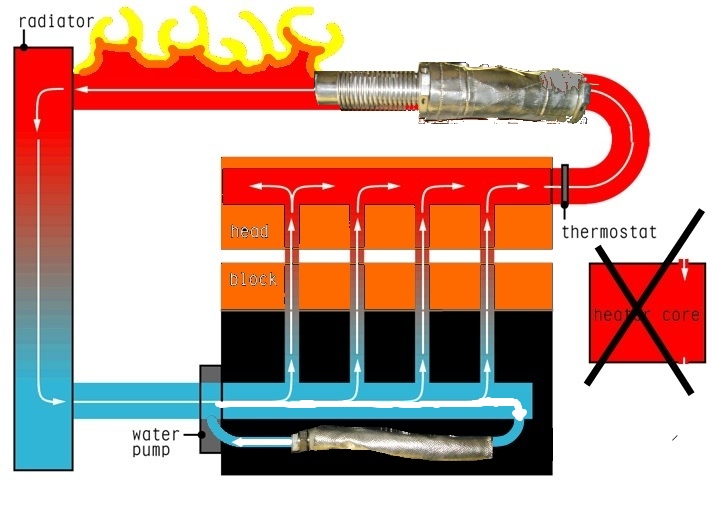

[IMG]http://www.miataturbo.net/attachments/insert-bs-here-4/85684d1376345263-hyper-reroute-hyperreroute_zps1b1ce914-jpg[IMG]
classy


Anyways, I've pretty much realized that nothing I do gets rid of the little rich dip on throttle closing. Nothing. At all. I have logs, will post when I get home. I've tried every single thing under the sun. Maybe I'm overthinking this and it's supposed to do that? After all, it's just reacting to throttle closing by pulling fuel, it can't pull fuel before the throttle is already closed. I dunno. It doesn't affect driveability at all, and really doesn't affect anythying. If I didn't have the wideband I wouldn't even be able to tell. I'm gonna table that one for now, and focus on something else:

VVT

I notice vvt angle % goes bananas past 4k rpm. I've tried a bunch of settings for PID on the way to work, and it was completely unpredictable, working nice and smooth and good, then jerky and wobbly, then smooth, then......you get the idea. Car still drives fine, everything is perfect, except that VVT angle needle. Not sure if faulty reading or what. Will be doing some more VVT tuning research, even though I've read and re-read the common VVT tuning discussions/threads on here enough times that I actually have them memorized.
18psi is offline   Reply With Quote
Old 11-11-2014, 10:25 AM   #1467
Senior Member

Join Date: Feb 2009
Location: Philadelphia
Posts: 773
Total Cats: 42
Default

For what it's worth I have a 4t wheel and I have the same kind of dip-in when I release the throttle as well. My starts are good by my standards, maybe a bit long compared to my stock Civic. Right now, the car has been sitting for exactly 1 week with no driving. I guarantee when I go over there to take it out for a ride today, if I let the fuel pump fully prime and then crank, it will be a sub 5 second start. Before I got tuned, I would be lucky if priming it twice would help it start, and after that it would idle all over the place until it came out of enrichment.
Mazdaspeeder is offline   Reply With Quote
Old 11-11-2014, 10:36 AM   #1468
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,406
Total Cats: 2,035
Default

HAHAHA see that's what I'm talking about: you, and most others, say their startup is "good". Then you define that by saying "sub 5 second".

Mine has pretty much always been sub 5 second. I consider that "ok". Not good.

I'm trying to make it 2 seconds or less, like OEM

My car right now probably runs amazing by most people's standards.
18psi is offline   Reply With Quote
Old 11-11-2014, 11:07 AM   #1469
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,889
Total Cats: 774
Default

Heh. Next time I'm in Sac I'll buy you lunch and you can show me how to fix my starting. 2 seconds would be amazing. Not that mine is "bad" but better is always better.
EO2K is online now   Reply With Quote
Old 11-11-2014, 11:37 AM   #1470
Senior Member

Join Date: Feb 2009
Location: Philadelphia
Posts: 773
Total Cats: 42
Default

I just did a count in my head and no way it takes 5 lol. I'll time it when I go over there later. Then we can have a contest about who's thing is SMALLER!
Mazdaspeeder is offline   Reply With Quote
Old 11-11-2014, 11:55 AM   #1471
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

I think mine starts in less than a second, but i'm not sure how relevant my tune is to yours. I have it uploaded in my build thread if you want to take a gander.
concealer404 is offline   Reply With Quote
Old 11-11-2014, 11:14 PM   #1472
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,406
Total Cats: 2,035
Default

OK, finally attaching the logs and screen shots of what I'm dealing with in regards to the throttle lift afr dip, and the stupid vvt random issues.

I'm almost thinking the vvt thing is a bad cam sensor. Again (still haven't swapped it out with another one). I just can't imagine the cam physically being able to advance and retard so fast and hard while in steady state cruise

uploaded to this post:

HERE
18psi is offline   Reply With Quote
Old 11-11-2014, 11:25 PM   #1473
Senior Member

Join Date: Feb 2009
Location: Philadelphia
Posts: 773
Total Cats: 42
Default

I checked mine and after the priming was complete, I had 3 seconds of cranking before a nice solid start, not cold out, about 65* but been sitting a week.

This was followed by about 3 seconds of clacking of the pistons before quieting down significantly to a quieter clack that lasts about 1-2 minutes. I have 83.5mm Wiseco 8.6 pistons with .004 p2w, Rod and Main bearings .002 via plastigauge (just throwing this out there)

Hot re-starts are easily under 2 seconds, on par with my civic.
Mazdaspeeder is offline   Reply With Quote
Old 11-11-2014, 11:29 PM   #1474
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,406
Total Cats: 2,035
Default

Quote:
Originally Posted by concealer404 View Post
I think mine starts in less than a second, but i'm not sure how relevant my tune is to yours. I have it uploaded in my build thread if you want to take a gander.

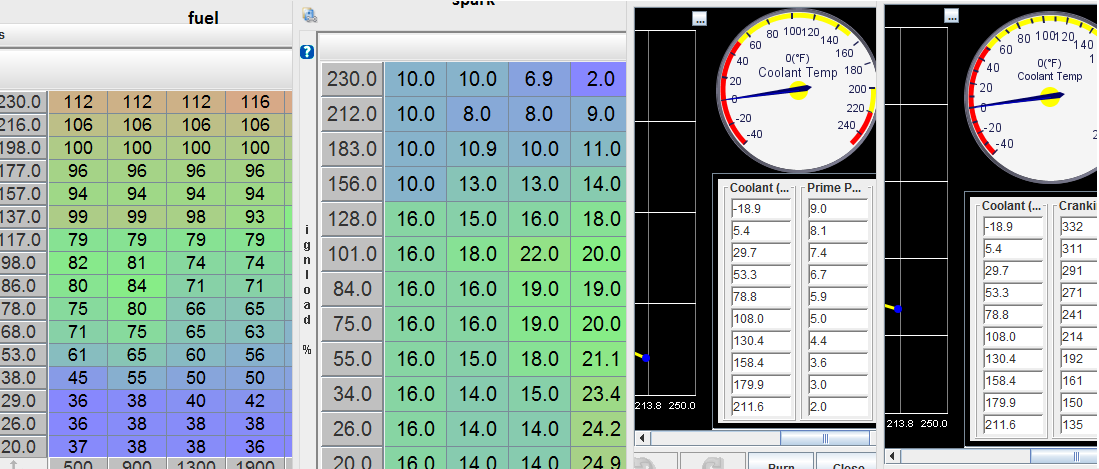

Posting Concealers startup related stuff here for my own records:



I'll have to reference and compare tomorrow
Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-concealer-startup.png
18psi is offline   Reply With Quote
Old 11-12-2014, 01:35 AM   #1475
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Quote:
Originally Posted by 18psi View Post
HAHAHA see that's what I'm talking about: you, and most others, say their startup is "good". Then you define that by saying "sub 5 second".

Mine has pretty much always been sub 5 second. I consider that "ok". Not good.

I'm trying to make it 2 seconds or less, like OEM

My car right now probably runs amazing by most people's standards.
I think OEM they have extra maps and it starts the car without full sync as it can sync after it starts. With MS that doesn't happen (as far as I know). I have the FM 36-2 wheel and starts pretty darn quick; we are talking sub 2 second. Way faster than the CAS ever did.
bcrx7 is offline   Reply With Quote
Old 11-12-2014, 01:36 AM   #1476
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

This thing is running E85, right?
bcrx7 is offline   Reply With Quote
Old 11-12-2014, 02:00 AM   #1477
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,406
Total Cats: 2,035
Default

Hmm that's very interesting, and makes sense, but wouldn't that mean that no miata running megasquirt on the stock trigger system would be able to start like OEM? I'm not sure that's the case, but who knows. Everyone's interpretation of "starts great" seems to be different.

Nope, pump gas. Which is why I'm a bit stumped, since it should start perfect.
18psi is offline   Reply With Quote
Old 11-12-2014, 02:15 AM   #1478
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,340
Total Cats: 184
Default

Mine starts fast, def less than 2 seconds. It did start faster and smoother with either the 36-2 wheel or sequential COPs.
Reverant is offline   Reply With Quote
Old 11-12-2014, 05:19 AM   #1479
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 41
Default

I'm sure there's an option somewhere to start in batch fire mode.

http://www.msextra.com/doc/pdf/Megas...erence-1.3.pdf

page 148

That supposedly helps with quick starts as there's no wait for a sync, and fuel is added to the cylinders quicker.
richyvrlimited is offline   Reply With Quote
Old 11-12-2014, 09:55 AM   #1480
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,406
Total Cats: 2,035
Default

Thanks, I'll read up on it.

Dimitris - is yours using the same startup values as the base map you provided?

This morning it seemed to start fairly decent. Around 2 seconds or so.
18psi is offline   Reply With Quote
