Old 05-18-2016, 10:47 PM   #81
Senior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 697
Total Cats: 50
Default

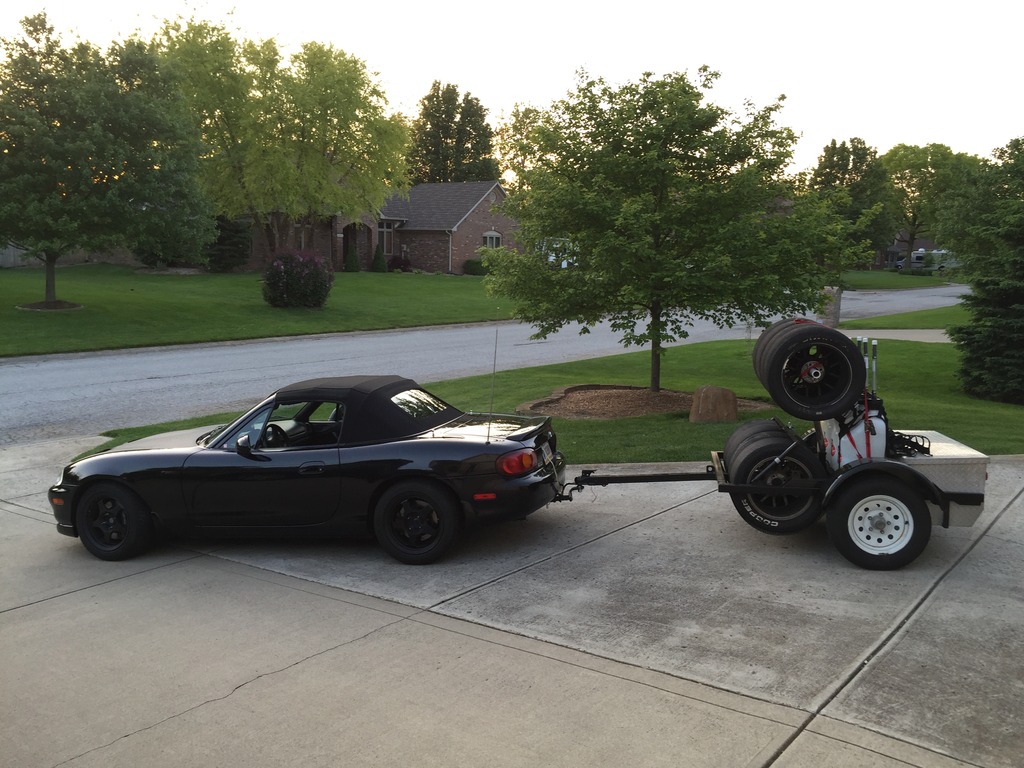

Ready for this coming weekend track day at Putman park
Attached Thumbnails
Harold's 1999 sport build-2cb0f498-6f28-4ae1-af5d-a4ce6b797eff.jpg
HHammerly is offline   Reply With Quote
Old 05-18-2016, 11:04 PM   #82
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,713
Total Cats: 1,060
Default Harold's 1999 sport build

Harold, there's no way you were 219lbs when I met you. Are you ok?

The car looks great.
sixshooter is offline   Reply With Quote
Old 05-19-2016, 07:39 AM   #83
Senior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 697
Total Cats: 50
Default

Thanks six, I am ok just need to start riding my bike again so i can loose some of it... My kid starts driving in June so i will start ryding to work and get back in shape.
Hope that all is well with you.
HHammerly is offline   Reply With Quote
Old 05-19-2016, 08:16 AM   #84
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 1,903
Total Cats: 166
Default

+1 for commute by bike.
DNMakinson is offline   Reply With Quote
Old 05-19-2016, 08:51 AM   #85
Senior Member
iTrader: (3)

Join Date: Oct 2008
Location: Indianapolis
Posts: 613
Total Cats: 13
Default

Quote:
Originally Posted by sixshooter View Post
Harold, there's no way you were 219lbs when I met you. Are you ok?

The car looks great.
Hahaha, my aunt's (his wife) food is very good!!! It's the Italian blood in her.
btabor is offline   Reply With Quote
Old 05-19-2016, 01:23 PM   #86
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,713
Total Cats: 1,060
Default

Quote:
Originally Posted by btabor View Post
Hahaha, my aunt's (his wife) food is very good!!! It's the Italian blood in her.
Aha! So it is a combination of good food and winter hibernation weight? That happens. In Florida we are active until it gets too hot in the summer and then we hide inside.
sixshooter is offline   Reply With Quote
Old 05-19-2016, 02:20 PM   #87
Senior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 697
Total Cats: 50
Default

Braian is correct about her cooking, that is her hobby and you know the food is ready when she pulls out the camera to take a photo of her new dish LOL, i am guilty of eating too much of f it and having a cushy desk job for the most part.
HHammerly is offline   Reply With Quote
Old 05-25-2016, 12:03 AM   #88
Senior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 697
Total Cats: 50
Default

The track day whent reasonably well, put on 53 laps at speed, i keptthe boost down in the 12-14 psi because my driving was pretty bad.
It was a cool day in the mid 70's and the car stayed cool runing 180-190 for water and maxing at 210 for the oil temp, the only major issue i had was that i was filling my small catch can in about 5 laps so i will have to re think that settup to solve that, it is also pretty clear that my suspension is to soft for track days with r comp tires, it is great for street use and bumpy autocross events but just OK for the track.

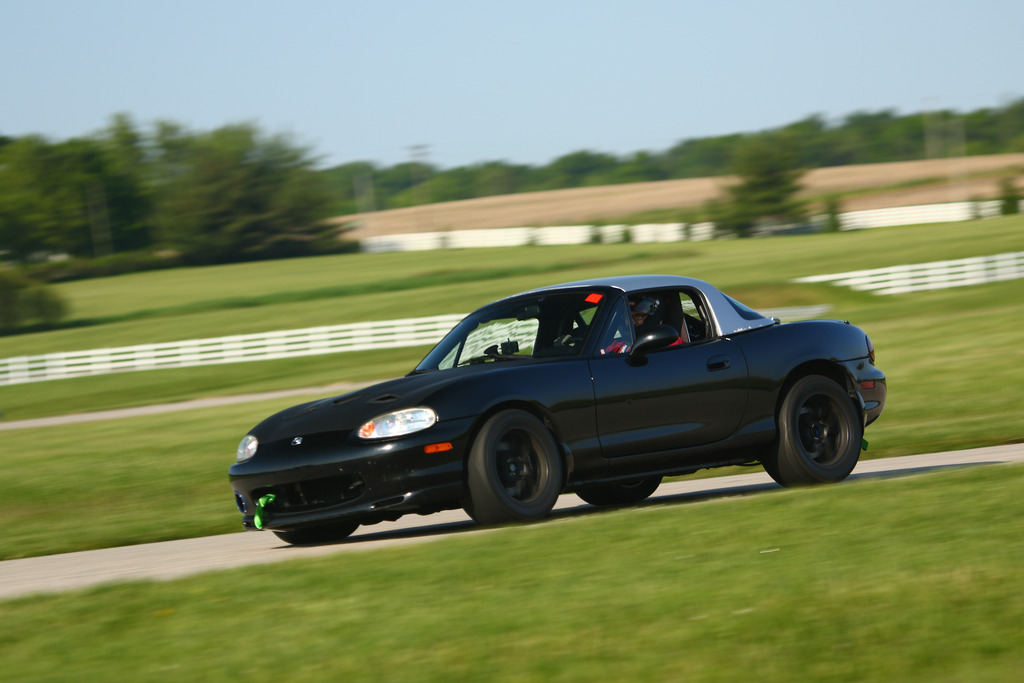

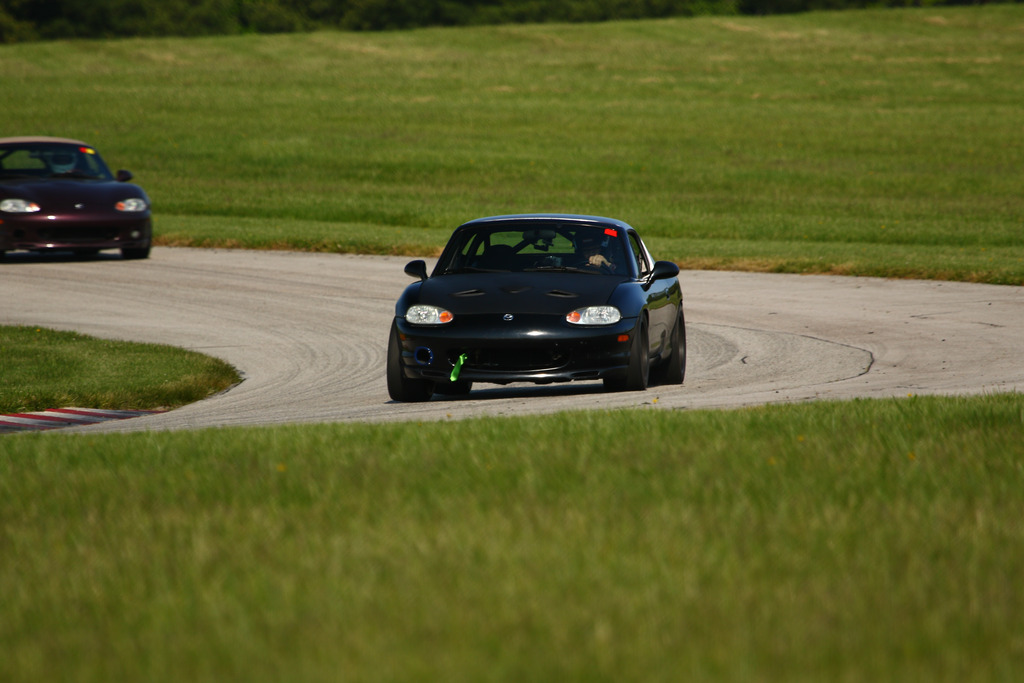

here is Btabor driving my car when we swapped cars in one of the sessions.

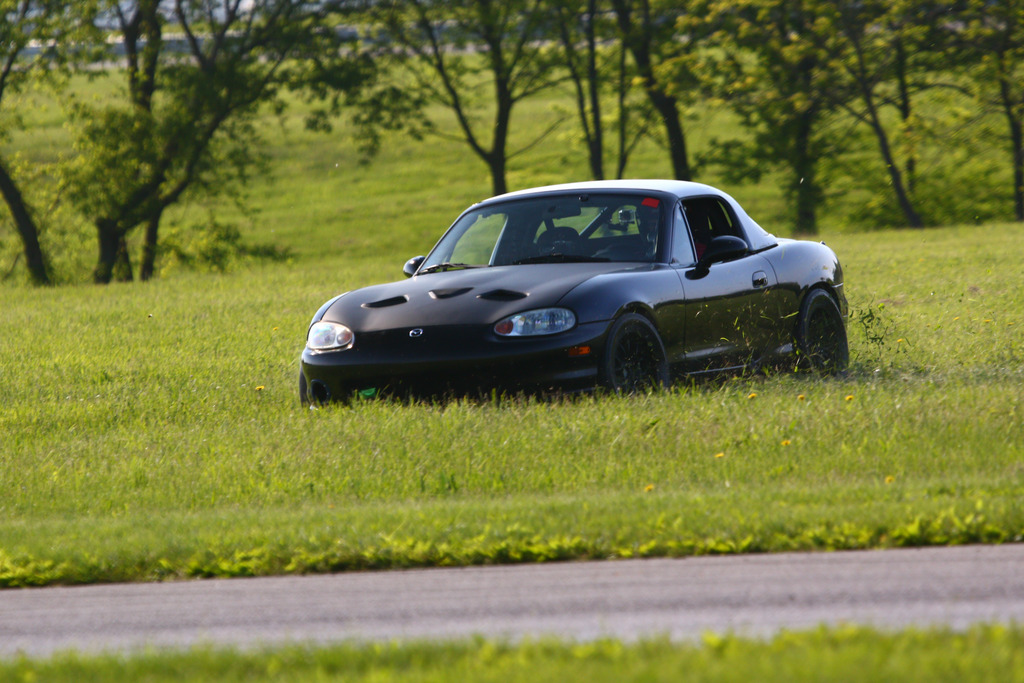

Yea did a little grass mowing LOL






Attached Thumbnails
Harold's 1999 sport build-20160522-256a28331010ths.jpg   Harold's 1999 sport build-20160522-256a29641010ths.jpg   Harold's 1999 sport build-20160522-256a29811010ths.jpg

Last edited by HHammerly; 05-25-2016 at 12:53 AM.
HHammerly is offline   Reply With Quote
Old 05-25-2016, 11:07 PM   #89
Senior Member
iTrader: (3)

Join Date: Oct 2008
Location: Indianapolis
Posts: 613
Total Cats: 13
Default

Thanks for letting me drive it. I agree, the car is a blast to drive but it feels unstable with those soft springs. The Dr. prescribed Xidas lol.
btabor is offline   Reply With Quote
Old 05-25-2016, 11:32 PM   #90
Senior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 697
Total Cats: 50
Default

Yea, a set will make its way into the car next winter, it was great to drive your car too, you have really put together a great package!
HHammerly is offline   Reply With Quote
Old 07-25-2016, 11:22 PM   #91
Senior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 697
Total Cats: 50
Default

Another track day, no big issues with the car on a 90 deg day water temps were at 210 and oil was at 230 (got to trmove the oil/water heat exchanger and shroud the oil cooler a little better) no oil venting issues with the new valve cover mods.
ready for the next track day
HHammerly is offline   Reply With Quote
Old 07-25-2016, 11:29 PM   #92
Senior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 697
Total Cats: 50
Default

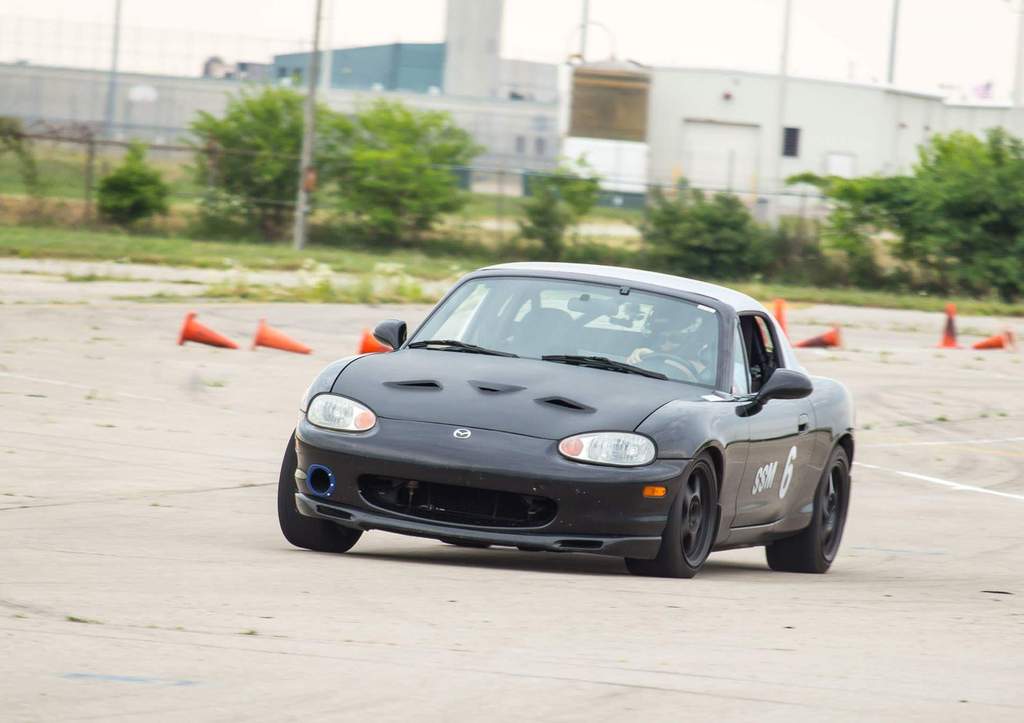

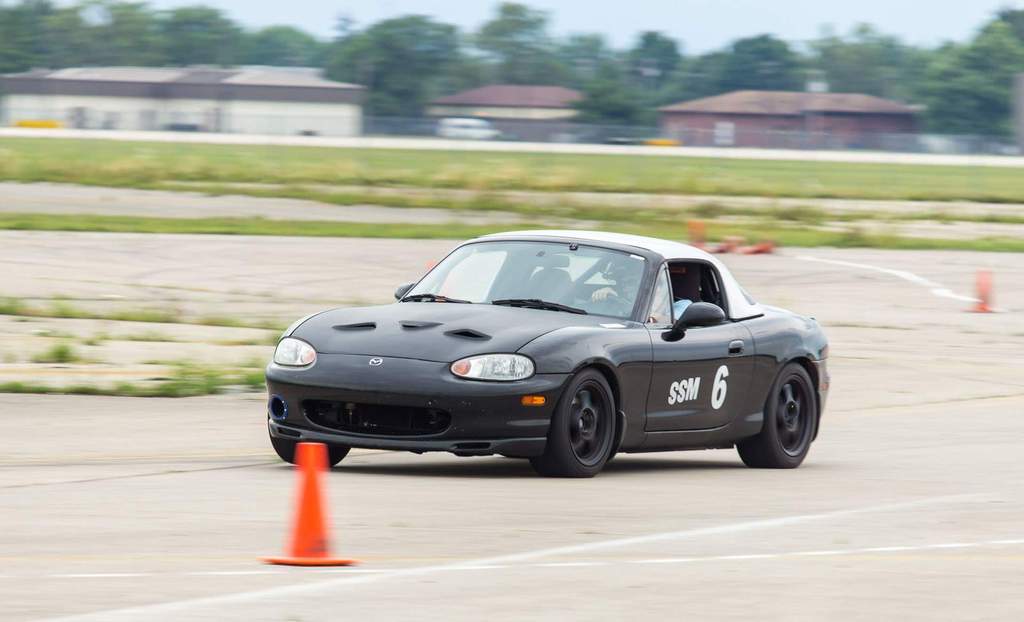

Autocross on sunday, runing on toyo R1R's because i was expecting rain (take a look at the sky) i could have run thi
rd on most of that run with the r-comp tires but still a good time




HHammerly is offline   Reply With Quote
Old 07-26-2016, 12:05 AM   #93
Mr Broke Pants
iTrader: (5)

thumpetto007's Avatar

Join Date: Sep 2010
Posts: 1,087
Total Cats: 52
Default

Do you have details of your valve cover mods in a different thread?

I"m guessing you went from one intake side catch can to something else?
thumpetto007 is offline   Reply With Quote
Old 07-26-2016, 06:47 AM   #94
Senior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 697
Total Cats: 50
Default

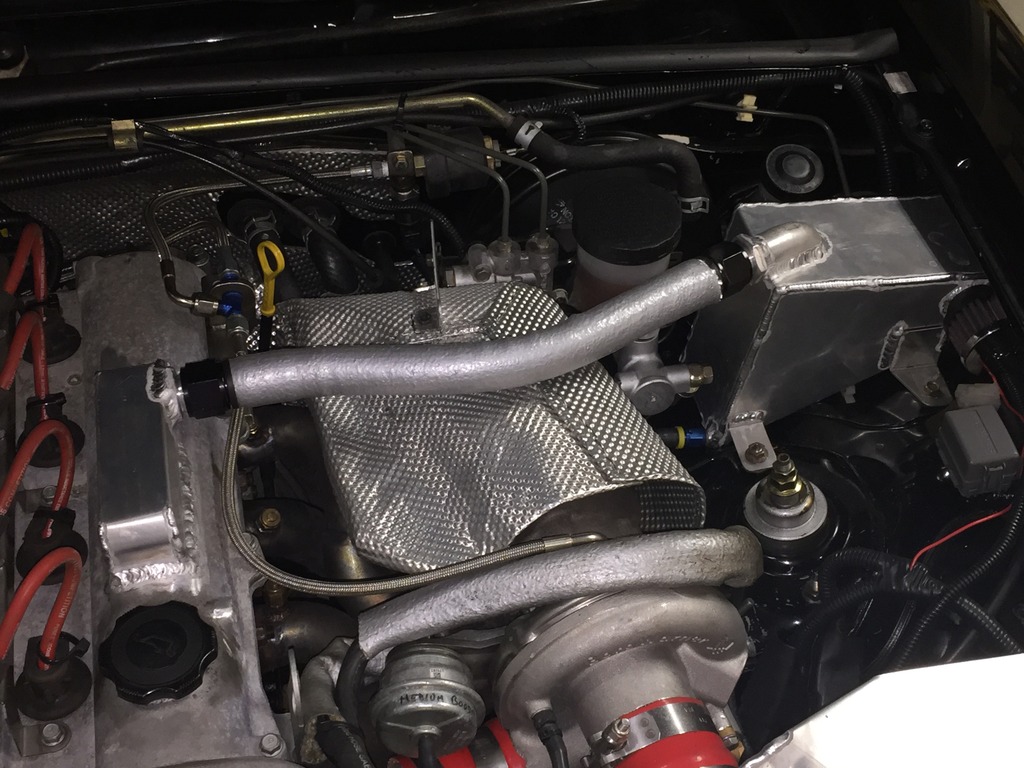

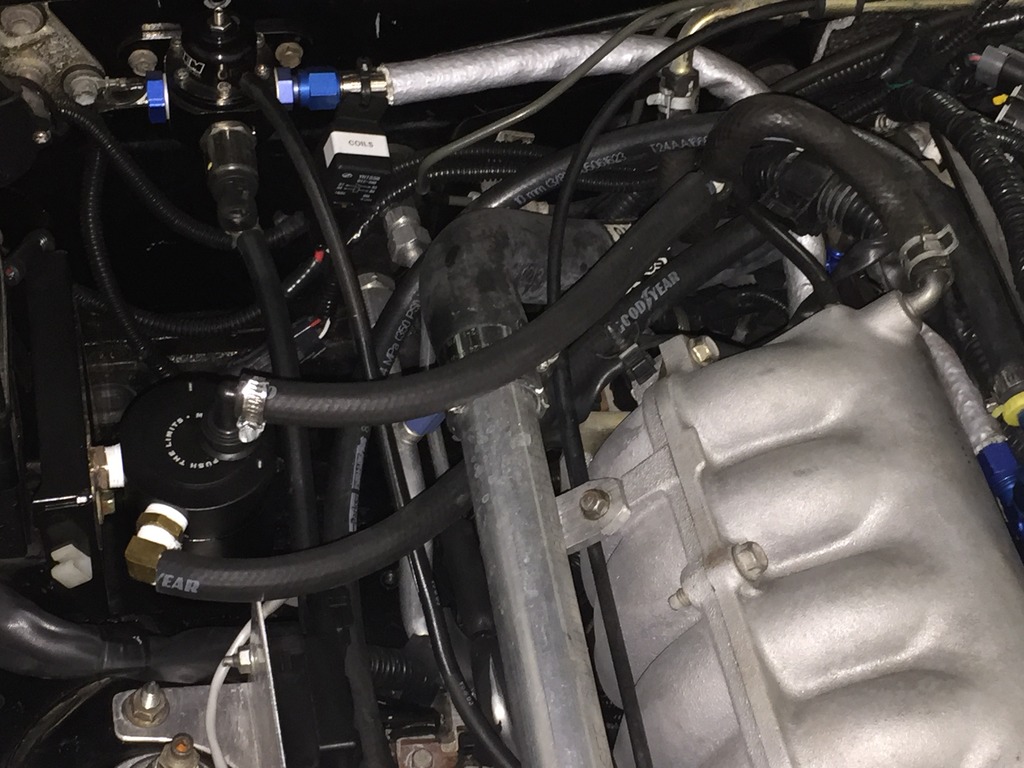

I kept the intake side as it was, added another intake hole and cover on the center chamber, drilled 8 1/4" holes between the center and exhaust side chambers and added another chamber above the exhaust chamber connecting the two with a 1/2" x 2" slot, plugged the original exhaust vent and installed a -10 vent fitting on the side of the new chamber that goes to a baffled catch can.
this was all done just to test thinfs and i will make a little nicer machined parts cover next winter.
HHammerly is offline   Reply With Quote
Old 07-26-2016, 07:35 PM   #95
Mr Broke Pants
iTrader: (5)

thumpetto007's Avatar

Join Date: Sep 2010
Posts: 1,087
Total Cats: 52
Default

^thanks for sharing, nice job. Is that exhaust side reservoir routed back to the oil pan?
thumpetto007 is offline   Reply With Quote
Old 07-26-2016, 07:53 PM   #96
Senior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 697
Total Cats: 50
Default

It is but i had the fitting capped of on my first track session to see if the catch can was getting any oil and it did not have any, i suppose that i should just leave the line off since it is not getting any oil in the catch can now.
HHammerly is offline   Reply With Quote
Old 07-26-2016, 08:43 PM   #97
Mr Broke Pants
iTrader: (5)

thumpetto007's Avatar

Join Date: Sep 2010
Posts: 1,087
Total Cats: 52
Default

Wow, well that's good. I read somewhere that it wasn't good to recirculate the breather oil, that way fuel and whatever else blowby doesn't contaminate the oil supply.

I just noticed you have a ziptie loose on your front plug wire.

Can't wait to see what you do with xidas.
thumpetto007 is offline   Reply With Quote
Old 07-26-2016, 09:39 PM   #98
Senior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 697
Total Cats: 50
Default

I agree that the catch can should not be draining back to the engine "IF" the PCV system is removed, in my case i kept the PCV system working with a catch can, i do get a little oil and a substantial amount of water when driving it to work or around town etc. you dont want that back in the engine.
HHammerly is offline   Reply With Quote
Old 07-26-2016, 10:28 PM   #99
Member

astral's Avatar

Join Date: Jul 2016
Location: Bay Area
Posts: 288
Total Cats: 22
Default

Quote:
Originally Posted by HHammerly View Post
I also installed some transmission tunnel heat shielding to keep temps down in the cabin

I'm using these photos as a guide for doing the same with my build. Looks super clean. How much square footage did you use roughly?
astral is offline   Reply With Quote
Old 07-29-2016, 12:28 AM   #100
Senior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 697
Total Cats: 50
Default

I used most of the two 36"x48" pieces i got, i used some under the trunk as well and have a 12"x24" piece left.
It sure keeps my leg from getting hot when resting it on the transmission tunnel on long drives or track sessions
HHammerly is offline   Reply With Quote
