Old 09-15-2014, 10:30 AM   #361
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by shlammed View Post

that's a pretty easy problem to solve.
^ I plan on sacrificing my Rivals to the tire gods for some RS3s. Dual burnout videos hornet.

Sucks about the valves man, you just got it back too!
Jeffbucc is offline   Reply With Quote
Old 09-15-2014, 10:38 AM   #362
Elite Member
iTrader: (4)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,631
Total Cats: 60
Default

@jeffbucc, off topic but:
I was watching an F1 documentary on the new tires and tire development... and one of those transition screens had the info that 24,000 tires (IIRC) were used in the 2013 season. How unreal is that.
shlammed is offline   Reply With Quote
Old 09-15-2014, 11:28 AM   #363
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,808
Total Cats: 551
Default

Quote:
Originally Posted by Filipe Dias View Post
I have made the same mistake on my Bp4w a couple of months ago. On my log it registered 8300 Rpm. The engine seems fine, no noises and pulls ok i think. I didnīt have the ***** to do a compression test

Do you think I am a lucky bastard or am i running a time bomb?
You'll first notice it if your idle is rough. Typically, when you really hurt something, idle will roughen because of the lack of static compression. As you rev, it will smooth out as dynamic compression takes over. If you have a bunch of blowby, you've hurt the piston sealing. Otherwise, likely the valve train. Confirm with compression and leakdown tests.

So, if your idle is smooth, I'd say you are a lucky bastard!!

Quote:
Originally Posted by shlammed View Post
that's a pretty easy problem to solve.
Haha!!
hornetball is offline   Reply With Quote
Old 09-15-2014, 11:32 AM   #364
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,808
Total Cats: 551
Default

Quote:
Originally Posted by Jeffbucc View Post
^ I plan on sacrificing my Rivals to the tire gods for some RS3s. Dual burnout videos hornet.

Sucks about the valves man, you just got it back too!
Careful about that. The RS3s are great in the heat. Not so much when it cools off. That's where the Rivals do well. You may burn up your cool weather tires and switch to hot weather tires just in time for the seasons to change.

RS3 Gen II might be different though.
hornetball is offline   Reply With Quote
Old 09-15-2014, 11:45 AM   #365
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,662
Total Cats: 227
Default

It really sucks to hear about dem valves, BUT, in a way I'm kind of happy because this thread will have some awesome updates soon

Seriously though, sorry to hear it sir. Looks like the car is a real demon on the track.
Fireindc is offline   Reply With Quote
Old 09-15-2014, 05:20 PM   #366
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,808
Total Cats: 551
Default

Dual valve spring kit on order from Emilio. I'll be pulling the head over the next couple of evenings. Stay tuned for intake valve carnage!
hornetball is offline   Reply With Quote
Old 09-16-2014, 04:29 AM   #367
Junior Member

Join Date: Oct 2013
Location: Portugal
Posts: 108
Total Cats: 24
Default

In no time it will be running again
Filipe Dias is offline   Reply With Quote
Old 09-17-2014, 03:37 PM   #368
Junior Member
iTrader: (2)

Join Date: May 2014
Location: Arlington, TX
Posts: 308
Total Cats: 39
Default

Just decided to get on MT to see what you found out about your rough idle, looks like your thoughts about the valves were correct, unfortunately! Too bad I didn't get a chance to ride in your car at Hallett!

So, new valves and valvesprings? Sounds like a good reason to post plenty of pics!

Speaking of pics, I'll be making a thread titled something like "Dustin's 10 year plan for making a Dual Duty Track car" so I can show off pics from my first track day.

Yes, this will include the photo of my first off track excursion!
Dustin1824 is offline   Reply With Quote
Old 09-17-2014, 07:37 PM   #369
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,808
Total Cats: 551
Default

About time you posted up. Hey, everybody, Dustin went to Hallett and had his first track driving experience. He also introduced us all to his lovely wife. She's a sweetheart, take good care of her Dustin.

I should have been taking some pics, sorry guys. But here's the update:

-Head is off.

-Cylinders and pistons look great. Beautiful cross-hatching, no signs of det.

-Measured valve lash on the head. Exhaust valves are fine. EVERY SINGLE intake valve is stretched to the point that I couldn't measure lash. If you're gonna' do it, do it right!

-As I was tearing down the head, found the cam caps and saddles were scored. Intake side damage was slight, but exhaust side damage was bad enough to require machine work. The cam journals (especially exhaust cam at the E-3 cap position) were rough. It would seem that the machine shop didn't do a good enough cleaning job before assembling the head. Took the head back to the shop and, after mic'ing the cams, they requested that I furnish a different exhaust cam.

-Hope to have all parts in hand for the head rebuild Friday. That would be valve springs and seals from Emilio and a new exhaust cam from Mazdaspeed. Machine shop should deliver the refurbished head (with new intake valves) on Monday and I'll re-assemble.

Next track event is 9/27-28! Should be ready just in time.
hornetball is offline   Reply With Quote
Old 09-17-2014, 07:49 PM   #370
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,985
Total Cats: 409
Default

Wow, you move quick! Glad to hear it's only valves.
turbofan is offline   Reply With Quote
Old 09-23-2014, 10:19 AM   #371
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,808
Total Cats: 551
Default Hallett Pictures

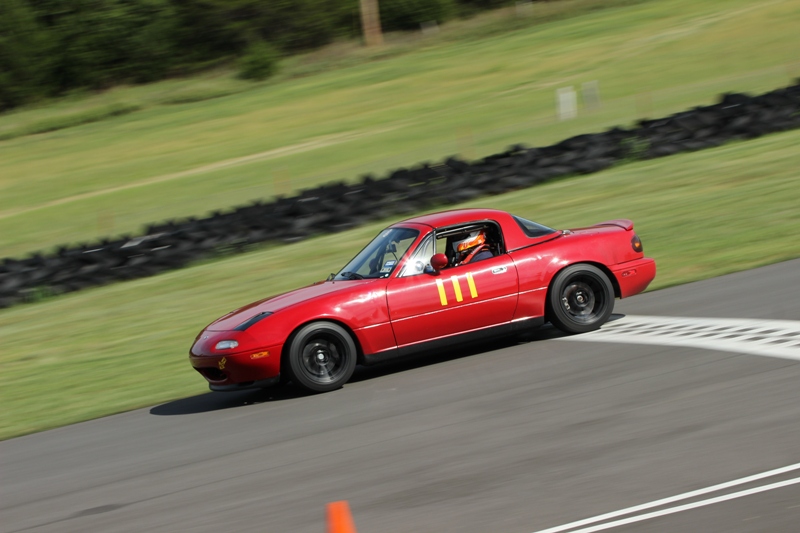

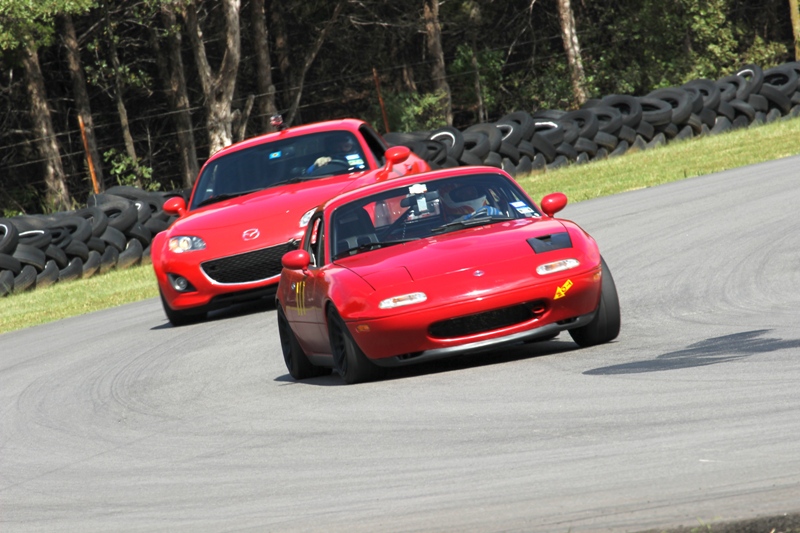

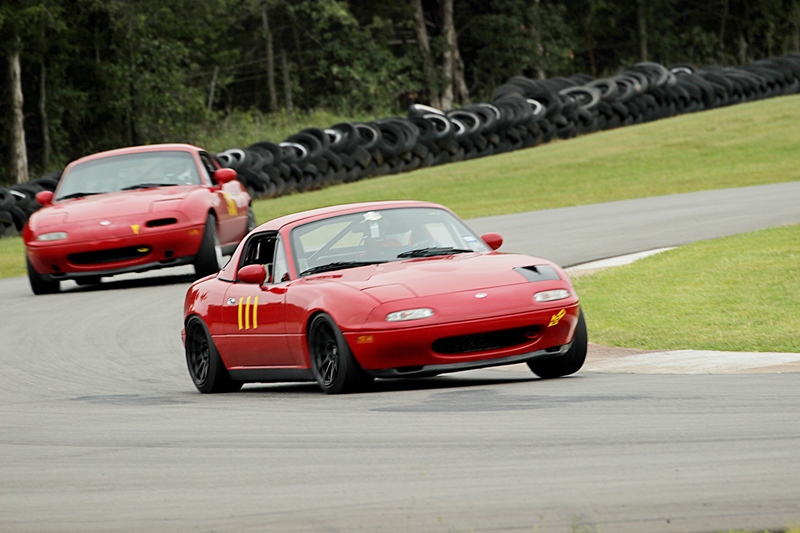

Some pictures from Hallett. It was fun running out there with fellow Miataheads.

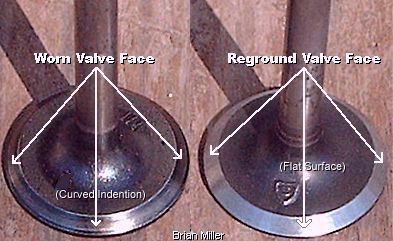

Update on the head. When disassembled, all the intake valve faces were extremely worn -- to the point that there was no valve lash. Basically, they looked like this:



The valves weren't otherwise damaged, no stretching or bending. Machine shop doesn't know what could have caused them to wear so quickly. In any case, head is being put back together with Supertech dual springs/Ti retainers and Supertech valves on the intake side. The exhaust valves were fine. I'll be getting the head back today or tomorrow.

Makes me nervous that we don't really know the wear mechanism. Obviously, I haven't been easy on the engine, but temperatures have always been in good control. I did have a few mechanical overrevs, but I thought that would cause stretching/bending, not accelerated face wear. ???
Attached Thumbnails
HornetBall's Build #2:  Meet Red-img_1262.jpg   HornetBall's Build #2:  Meet Red-img_2272.jpg   HornetBall's Build #2:  Meet Red-img_2949.jpg   HornetBall's Build #2:  Meet Red-wornface.jpg
hornetball is offline   Reply With Quote
Old 09-29-2014, 02:42 PM   #372
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,808
Total Cats: 551
Default Back in Action!

So, I've now got a 100% Supertech valvetrain. Valves, dual valve springs, retainers, valve guide seals. Compression is back. Engine is happy and revvy. I would have taken pictures, but heck, it was just a simple head job (this last sentence might be quotable). Sealing the MLS gasket turned out to be a non-issue as the surfaces were in good shape.

Did the TDE event at MSR this last weekend. Yellow group. This is a fun vid . . . I'm chasing my friend Paul (Orange Lotus Exige) through all kinds of traffic. I just catch him at the end. That was the funnest session for me:

This is my current PB on the 1.7 going CW (1:30.05). Nearly 3 seconds off my CCW pace. Need to work on that.

All in all, fun weekend.
hornetball is offline   Reply With Quote
Old 09-29-2014, 03:48 PM   #373
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,396
Total Cats: 356
Default

Quote:
Originally Posted by hornetball View Post
I would have taken pictures, but heck, it was just a simple head job (this last sentence might be quotable).
And done. Thanks for the new sig quote. Glad to see Honey Badger back on the track.
Monk is offline   Reply With Quote
Old 09-29-2014, 10:31 PM   #374
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,808
Total Cats: 551
Default

Quote:
Originally Posted by Monk View Post
Thanks for the new sig quote.
Haha! Happy to contribute.
hornetball is offline   Reply With Quote
Old 10-19-2014, 02:00 AM   #375
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,808
Total Cats: 551
Default

Got back out to the track today. A couple of interesting vids:

We're still on a warmup lap. Spec 944 in front of me misjudged Rattlesnake just a bit and paid a hefty price. Fortunately the engine was OK, but he's looking for an oil pan. Apparently, oil pans are a PITA to replace on these. What a bummer.

Later that same session . . . Had a pretty good lap going but missed my downshift going into Wagon Wheel. Had a nice spin but stayed on track. Laughed it off!

New PB on the 1.7CW. 1:29.734 (including some traffic).
hornetball is offline   Reply With Quote
Old 10-19-2014, 02:20 AM   #376
Junior Member

Join Date: Sep 2012
Location: New Zealand Christchurch
Posts: 199
Total Cats: -5
Default

nice vids
jimmyneutron is offline   Reply With Quote
Old 11-10-2014, 12:50 PM   #377
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,808
Total Cats: 551
Default

Vid from a couple of weeks ago. Cool three laps that includes a bit of open running, an MX-5 cup car spinning in front of me and having to school an SVT Mustang:


This car has really settled in. All I'm doing now is basic maintenance/upkeep and driving the snot out of it. Eyeballing the V8 Roadster LFX conversion though . . . .
hornetball is offline   Reply With Quote
Old 11-11-2014, 03:42 PM   #378
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,985
Total Cats: 409
Default

That track looks like a total riot. Jelly. nice driving! Car looks really strong and solid.
turbofan is offline   Reply With Quote
Old 11-11-2014, 04:39 PM   #379
Junior Member

Join Date: Oct 2011
Location: New Hampshire
Posts: 314
Total Cats: 52
Default

Quote:
Originally Posted by hornetball View Post
This car has really settled in. All I'm doing now is basic maintenance/upkeep and driving the snot out of it. Eyeballing the V8 Roadster LFX conversion though . . . .
Sounds like you're satisfying the original purpose of the car.

Build thread #4?

And yeah, I'm jealous you have a bulletproof track beater.
adamiata is offline   Reply With Quote
Old 11-11-2014, 04:51 PM   #380
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

Quote:
Originally Posted by hornetball View Post
This car has really settled in. All I'm doing now is basic maintenance/upkeep and driving the snot out of it. Eyeballing the V8 Roadster LFX conversion though . . . .




Yes...do the things.
Attached Thumbnails
HornetBall's Build #2:  Meet Red-surprised-reaction-gif.gif
Jeffbucc is offline   Reply With Quote
