Old 09-21-2014, 12:00 PM   #61
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,707
Total Cats: 472
Default

That throttle body coupler is so clean it looks photo shopped.

Imma gonna move this to the build thread section.
curly is offline   Reply With Quote
Old 09-21-2014, 03:47 PM   #62
Junior Member
Thread Starter

Join Date: Dec 2013
Location: Little Rock, Ar
Posts: 107
Total Cats: 24
Default

She runs! Drove it about 25 miles last night and everything seems ok so far. Got a bunch of tuning to do. I will post more info and pics later
92turbomiata is offline   Reply With Quote
Old 09-21-2014, 05:04 PM   #63
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,428
Total Cats: 2,035
Default

nice. good job.

I think eventually you'll have to do something about the manifold being millimeters away from the mixing manifold - something tells me you'll melt the hose
18psi is offline   Reply With Quote
Old 09-21-2014, 06:11 PM   #64
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 2,873
Total Cats: -6
Default

Props on the quick progress.

You've done in a month what's taking me almost a year, and I'm still not done.

I haz shame
Efini~FC3S is offline   Reply With Quote
Old 09-21-2014, 10:20 PM   #65
Junior Member
Thread Starter

Join Date: Dec 2013
Location: Little Rock, Ar
Posts: 107
Total Cats: 24
Default

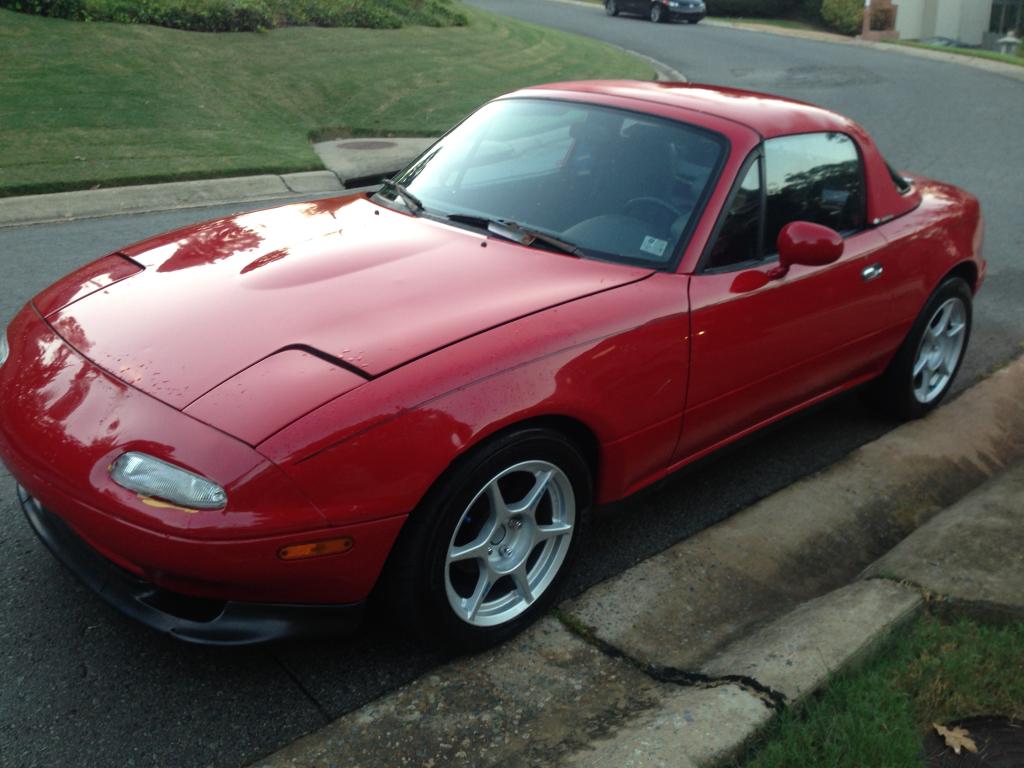

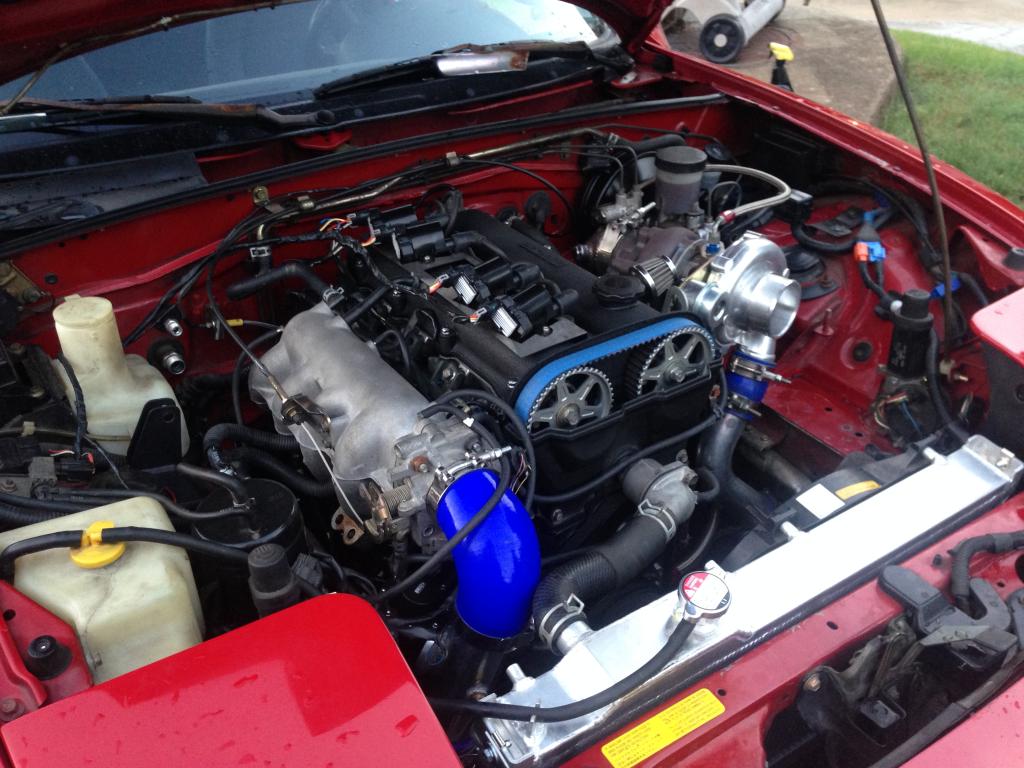

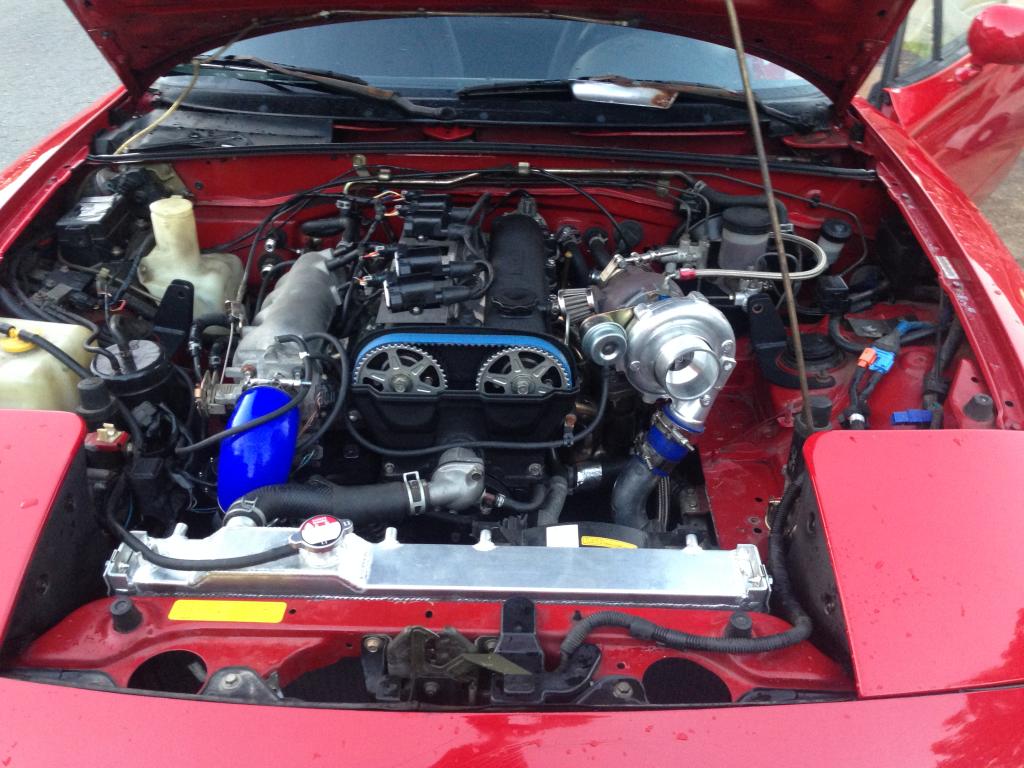

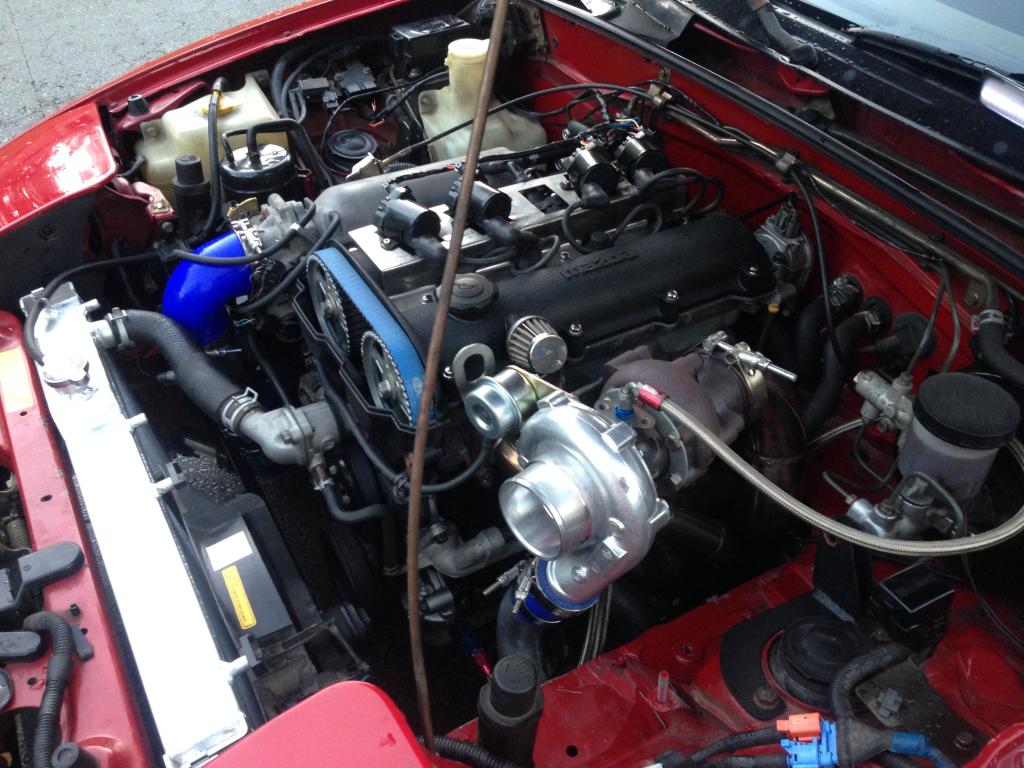

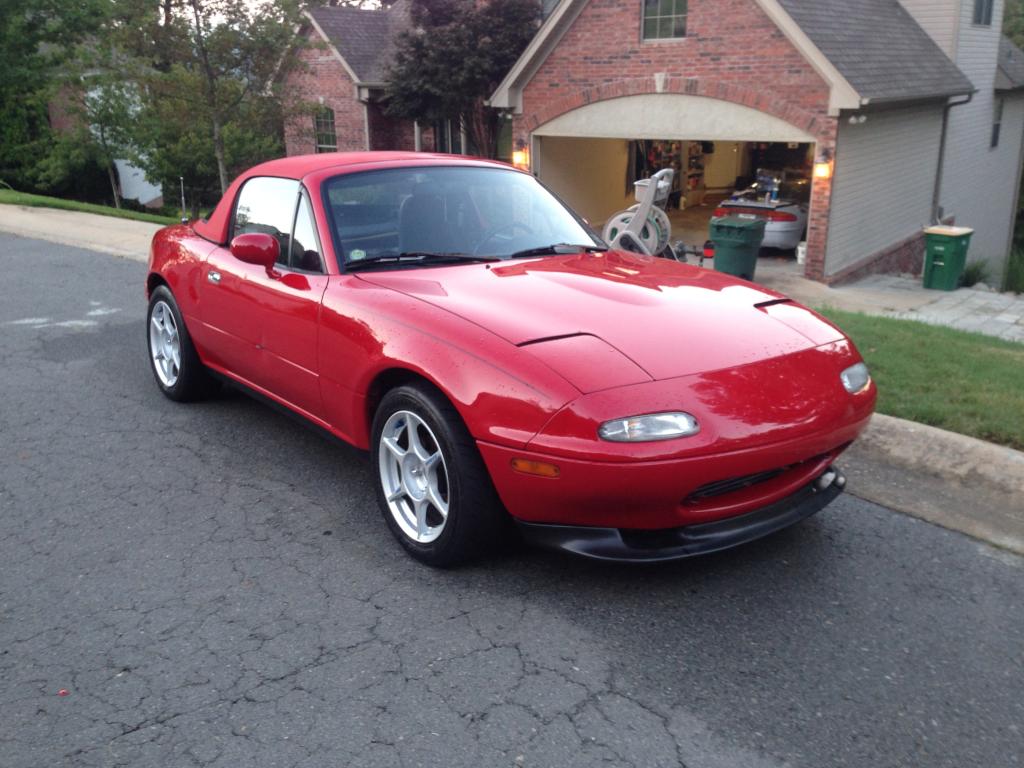

Few finished pics of the car after a much needed wash after it sat for 3 months! It's running strong and I'm not even in boost yet. Should be pretty gnarly once I add boost and get it tuned on the dyno.











oh and I'll be putting an air filter on it too lol
Attached Thumbnails
Intro turned hopefully epic build thread-d6b71399-2277-468d-b5fb-0a07de2e9b20.jpg   Intro turned hopefully epic build thread-59a8232c-e8f4-4991-8d83-2c442d0c8fcc.jpg   Intro turned hopefully epic build thread-4bceb75d-e139-496b-9f87-b5f739ee17d7.jpg   Intro turned hopefully epic build thread-98c0aee6-91d7-481a-9650-d0011e6e9c3f.jpg   Intro turned hopefully epic build thread-be0e61e3-307e-483c-81ca-7fe775a7adee.jpg

92turbomiata is offline   Reply With Quote
Old 09-22-2014, 12:48 AM   #66
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,821
Total Cats: 555
Default

Looks really nice. My red car also had pinstripes when I bought it.
hornetball is offline   Reply With Quote
Old 09-22-2014, 02:11 AM   #67
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,083
Total Cats: 424
Default

Looking good. Air filter asap. In for results.
turbofan is online now   Reply With Quote
Old 09-23-2014, 11:30 AM   #68
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,644
Total Cats: 45
Default

Great job getting this done so quickly, and cleanly to boot. Is that your 2Gb in the garage? You'll be way happier with the Miata
matthewdesigns is offline   Reply With Quote
Old 09-23-2014, 01:57 PM   #69
Junior Member
Thread Starter

Join Date: Dec 2013
Location: Little Rock, Ar
Posts: 107
Total Cats: 24
Default

Quote:
Originally Posted by matthewdesigns View Post
Great job getting this done so quickly, and cleanly to boot. Is that your 2Gb in the garage? You'll be way happier with the Miata
Thanks! It was alot of work but I'm just glad I get to drive it again.

Yes thats my 97 talon in the garage. Had it for about 6 years now, running on and off over those years. Built motor, turboed 420a. It's pretty quick but I started doing a bunch of work on it last July and never got it finished up and then bought my miata in December and haven't touched it since lol. I need to get her back up and running and painted.
92turbomiata is offline   Reply With Quote
Old 09-23-2014, 02:06 PM   #70
Junior Member
Thread Starter

Join Date: Dec 2013
Location: Little Rock, Ar
Posts: 107
Total Cats: 24
Default

Well I spent the weekend driving it around and then chasing a misfire on cylinder number 3. Turned out to be a loose injector clip :-/

After I got that figured out she was running like a champ the rest of the weekend until I got to the muffler shop Monday morning to mate the downpipe with the rest of the exhaust. As I'm pulling it on to the lift it starts running rough like it was on 3 cylinders again and sounded different. Anyways I let them finish and then pull it outside and pop the hood to find the number 3 spark plug and wire had popped right out! Threads in the head were shot. Shame on me for not checking those threads when I first received it from the guy on ebay.

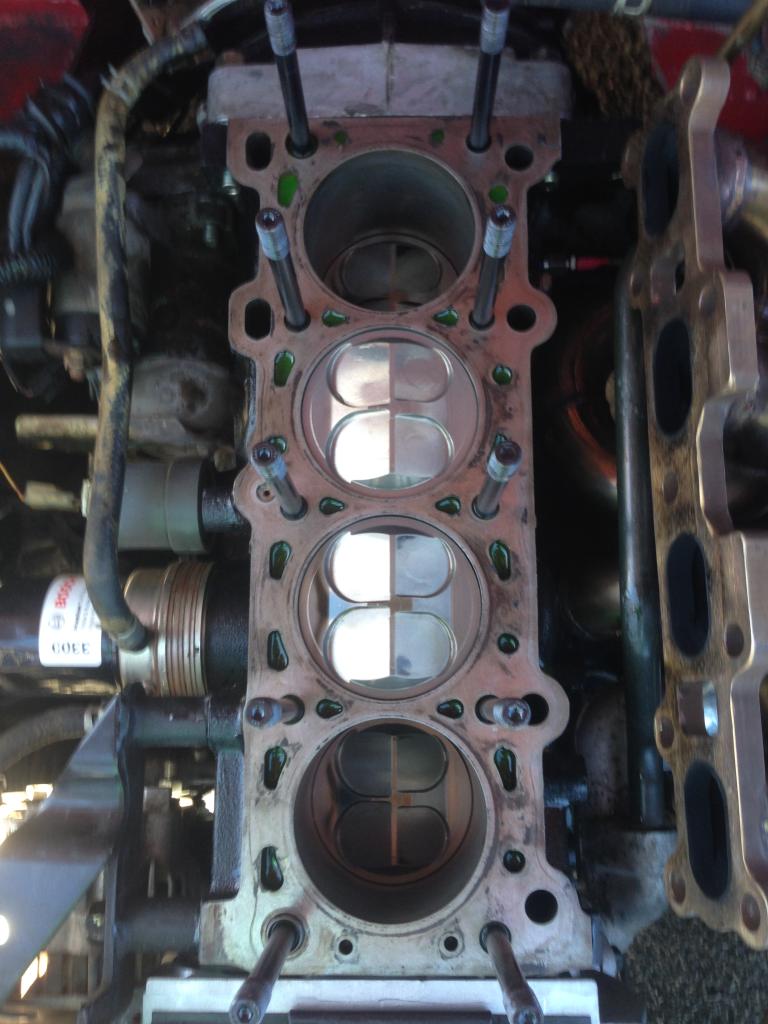

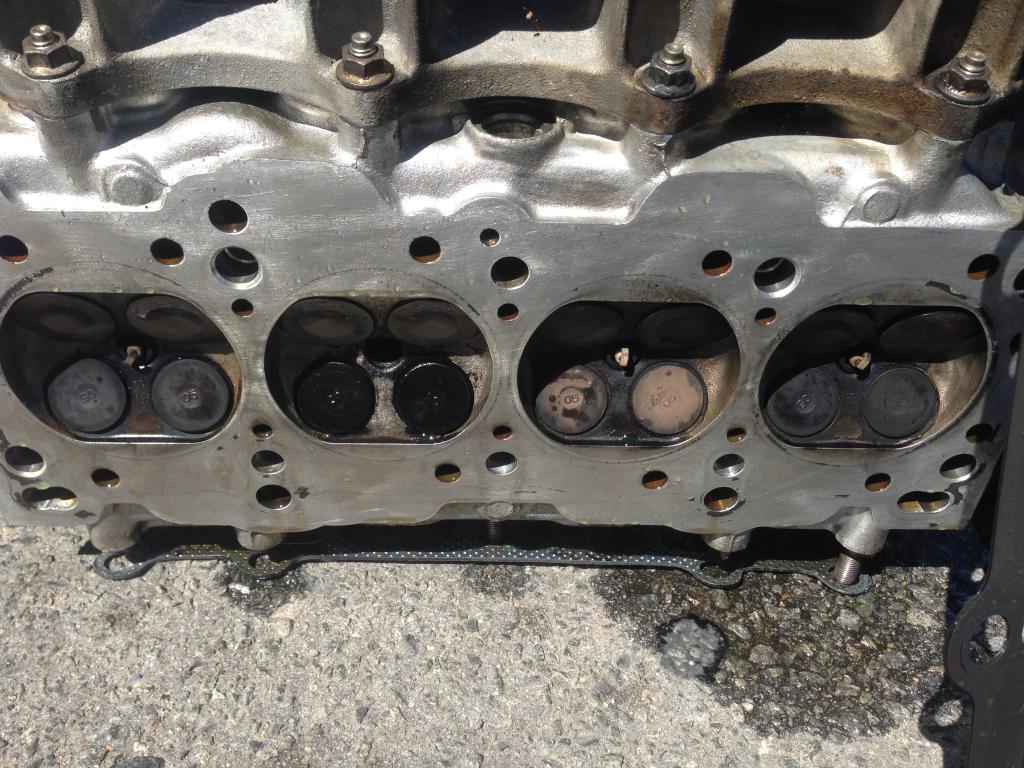

That led to this and a spark plug repair kit. This is only temporary until I find a good deal on a 99+ head. Did all this yesterday.





Got the threads fixed and put it all back together and couldn't get it running right for the life of me. I worked on it all night and finally gave up and then came back this morning with a clear mind. I must have redone and checked the timing 6 or 7 times and It was perfect everytime. Still ran on 3 cylinders. Took a break from that and changed the oil and oil filter and then went to think about it again.
When the spark plug came out the first time the spark plug wire had fallen on the exhaust manifold while they were doing my exhaust and melted some of the rubber insulation. Thought about it for a minute and thought, hey I bet its arcing to the cylinder head instead of the spark plug since electricity takes the path of least resistance so I grabbed an older "good" spark plug wire and put it on and fired it up. Ran like a dream......

Moral of the story, if your frustrated and can't get your car running right after working on it all day, take a break and grab a beer and then come back and look at it again. Lol

Everything seems to be running great again. Lets hope it stays this way so I can get on with tuning it.
Attached Thumbnails
Intro turned hopefully epic build thread-037cd0bd-124f-48de-9707-06e640ad100f.jpg   Intro turned hopefully epic build thread-d43ce32d-eb66-452e-be98-6e0379014257.jpg
92turbomiata is offline   Reply With Quote
Old 09-23-2014, 02:29 PM   #71
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 2,873
Total Cats: -6
Default

Jeez you work fast...
Efini~FC3S is offline   Reply With Quote
Old 09-23-2014, 02:30 PM   #72
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,428
Total Cats: 2,035
Default

I have a super awesome VVT head for sale btw
18psi is offline   Reply With Quote
Old 09-23-2014, 02:42 PM   #73
Junior Member
Thread Starter

Join Date: Dec 2013
Location: Little Rock, Ar
Posts: 107
Total Cats: 24
Default

Quote:
Originally Posted by 18psi View Post
I have a super awesome VVT head for sale btw
I don't think my DIYPNP can control VVT, even if it could I'm pretty much out of outputs. I'm hoping I can find a 99 or 00 head here locally since it flows better but doesn't have VVT.
92turbomiata is offline   Reply With Quote
Old 09-23-2014, 03:17 PM   #74
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,821
Total Cats: 555
Default

Where is "locally"?
hornetball is offline   Reply With Quote
Old 09-23-2014, 03:25 PM   #75
Junior Member
Thread Starter

Join Date: Dec 2013
Location: Little Rock, Ar
Posts: 107
Total Cats: 24
Default

Edited profile
92turbomiata is offline   Reply With Quote
Old 09-24-2014, 01:18 PM   #76
Junior Member
Thread Starter

Join Date: Dec 2013
Location: Little Rock, Ar
Posts: 107
Total Cats: 24
Default

Got about 100 miles on it now and have hooked up the wastegate finally. Still being easy on it with conservative timing and not going above 6k rpm. Logs showing around 6-7psi with only about 60% throttle and letting off around 5.5k. This is on a 8psi actuator. I think I need to adjust it a little more to add some more pre-load since I think it should be spooling quicker given the 11:1 compression and 1.8 engine. She pulls pretty good though, still running a bit rich but I am having a buddy of mine help me tune it tomorrow so hopefully we can get it dialed in and add in some timing. Oh and all this extra torque is amazing

Not sure if I like this hks ssqv. Its one of the cheap ebay ones that I grabbed off my other car since I had to redo the intercooler piping. It flutters with anything under about 5psi, above that and it seems to work ok. I think I will be going back to my type RS bov that I had on it before. It worked like a dream and sounded good to boot.
92turbomiata is offline   Reply With Quote
Old 09-24-2014, 02:14 PM   #77
Senior Member

Join Date: Dec 2007
Location: ATL
Posts: 684
Total Cats: 47
Default

in for the durability of the CXRacing mani (been secretly looking at it, but didn't want to be a Guinea Pig).
rwyatt365 is offline   Reply With Quote
Old 09-24-2014, 02:26 PM   #78
Junior Member
Thread Starter

Join Date: Dec 2013
Location: Little Rock, Ar
Posts: 107
Total Cats: 24
Default

Quote:
Originally Posted by rwyatt365 View Post
in for the durability of the CXRacing mani (been secretly looking at it, but didn't want to be a Guinea Pig).
its been fine so far for the first 100 miles or so but time will tell. So far so good though.

A couple issues I ran into with it. 1 the number 1 runner is so close to the water pump inlet that it was tough to get the hose on it. First start up it started melting the hose a little bit I have wrapped it in that DEI heat tape stuff as a temporary fix and its been fine so far but I'm going to have to take that water pump inlet off and cut it about an inch shorter and have it rewelded to get that lower hose away from the manifold.

Second issue was with their downpipe. It fits ok but I had to remove the little ear off of the transmission to get it to clear. It also very slightly hits the firewall at certain rpms. I haven't messed with that yet but I'm hoping I can turn it just a little bit since its a v-band downpipe so it will stop rubbing the firewall.
92turbomiata is offline   Reply With Quote
Old 09-24-2014, 07:11 PM   #79
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,644
Total Cats: 45
Default

Quote:
Originally Posted by 92turbomiata View Post
I think I will be going back to my type RS bov that I had on it before. It worked like a dream and sounded good to boot.
What spring(s) do you have in it? I got sick of trying to adjust the flutter out of mine and yanked it. Went back to a 1g DSM valve.
matthewdesigns is offline   Reply With Quote
Old 09-24-2014, 08:40 PM   #80
Junior Member
iTrader: (1)

Join Date: Mar 2013
Posts: 47
Total Cats: -2
Default

Quote:
...if your frustrated and can't get your car running right after working on it all day, take a break and grab a beer and then come back and look at it again.
Solid advice. Glad you're getting it all dialed in.
ahawks9er is offline   Reply With Quote
