Default LetItSnow's casual, emissions-oppressed build

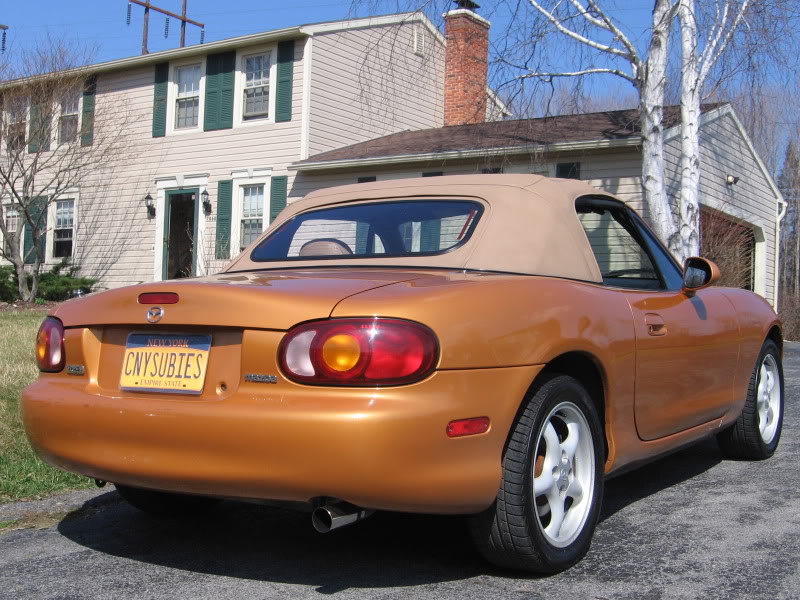

I recently introduced you to this guy:

I've done the brakes, suspension, timing belt and the top. It's time to go under the knife again! My intent is to just give the car some more guts. It's my daily, and I'll probably get back to autocross (ten years in, I took a break last season) knowing that I'll die in PAX. No track days planned. This build is more for the experience of doing it than for hitting a power goal - I'm shooting for a particular boost and an engine that I trust. I don't care how many horsepower come with it.

I've been reading the hell out of this forum, forming my build list, and following the FAQ.

I've owned Corky Bell's book for years. Check.

Because I need to retain OBD-II compliance in order to pass NYS inspection, I've opted for an eManage Ultimate. (Bashers, keep walking.) I've got an O2 clamp and the MAP sensor, and a Boomslang is on the way. I'm exploring my options in widebands. So, there's my EM and ignition control.

Fuel is where things start to escape me. From the FAQ:
Quote:
Originally Posted by Braineack
If you are using a “piggyback” fuel management unit such as the E-manage, the popular injector to use is a 305cc injector from the Supra.
I've seen a share of 305cc bashing around the forum. Maybe this just varies by application? I've also read that the stock ECU will play nice with injectors up to about this size. Naturally, that could be the same as saying that all-season tires with low tread will get you through a Syracuse winter just fine...

Keep this in mind: As addictive as boost may be, I plan on maxing out around 8psi. With the limitations of some of the hardware I'm using, it seems like a good cap.

So, my question to you: With the EMU and otherwise stock fuel system, on 8psi max boost, will 305cc Supra injectors fit my needs, and will I need to make the underhood fuel pump loop and alternate FPR?

Jumping ahead a bit, as well... Looking at their page, it seems that Weir-Tech isn't in the flange business anymore. Is there a new go-to company for good ones? I've seen a few names pop up, but Turbo-Flanges.com has particular appeal to me for their recessed ports and the availability of a Subaru TD04 flange.
<Head flange> <Subaru TD04 flange>
Attached Thumbnails
LetItSnow's casual, emissions-oppressed build-img_3108.jpg
LetItSnow is offline   Reply With Quote
Old 03-11-2015, 03:01 PM   #2
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,361
Total Cats: 127
Default

Quote:
Originally Posted by LetItSnow View Post
This build is more for the experience of doing it than for hitting a power goal - I'm shooting for a particular boost and an engine that I trust. I don't care how many horsepower come with it.
The amount of boost you put through the engine doesn't tell you much about how reliable it might be. Power and torque is what dictates which components will be the weak links so you should definitely have a specific power goal in mind.

I also believe the voodoo box is the better bandaid solution if you want to retain OBD-II capabilities over an e-manage but I am not an expert on bandaid solutions so I can't be sure. However. It is easy enough to get a megasquirt PnP and use that to tune the car and just put the stock ecu back in for inspections. No permanent modifications required.
Ryan_G is online now   Reply With Quote
Old 03-11-2015, 03:11 PM   #3
Junior Member

Join Date: Jun 2011
Location: Upstate NY
Posts: 64
Total Cats: 2
Default

Let me share a little of my experience. And since you're really not that far away perhaps a meet up sometime will help, namely a local autox event. What is your time frame for the project?

I am currently running the Powercards fuel and timing... Let me just say it isn't great at all. But I understand your position of OBD 2 compliance in NY state. So moving forward I believe I am running the 330 cc/min injectors (I would have to look as they came with my used MP62 kit) It runs fine and the stock ECU keeps up pretty well. Some idle issues (more to do with Supercharger than Injectors and ECU however). Also have some transition into boost issues (0-2 psi) runs really rich like 10-11 A/F. But I am switching to Megasquirt and 460 cc/min injectors (RX7) and that should suffice for my goals.
The Gleas is offline   Reply With Quote
Old 03-11-2015, 03:12 PM   #4
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,677
Total Cats: 830
Default

Why can you just not swap ECU's for testing?
shuiend is online now   Reply With Quote
Old 03-11-2015, 03:18 PM   #5
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Quote:
Originally Posted by shuiend View Post
Why can you just not swap ECU's for testing?

This, this is my question.

729 days of compromise for 1 easy day of emissions testing...

vs. 1 day of work to pass emissions for 729 days of non-compromised power.

It'd be an easy choice if it were me, but i may value my time and car differently.
concealer404 is offline   Reply With Quote
Old 03-11-2015, 03:20 PM   #6
Junior Member

Join Date: Jun 2011
Location: Upstate NY
Posts: 64
Total Cats: 2
Default

Quote:
Originally Posted by concealer404 View Post
This, this is my question.

729 days of compromise for 1 easy day of emissions testing...

vs. 1 day of work to pass emissions for 729 days of non-compromised power.

It'd be an easy choice if it were me, but i may value my time and car differently.
NY is yearly OBD 2 plug in. I went 95 to avoid this completely.
The Gleas is offline   Reply With Quote
Old 03-11-2015, 03:39 PM   #7
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Quote:
Originally Posted by The Gleas View Post
NY is yearly OBD 2 plug in. I went 95 to avoid this completely.

Ok 1 day of good for 354 days of compromise, then.
concealer404 is offline   Reply With Quote
Old 03-11-2015, 03:41 PM   #8
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,361
Total Cats: 127
Default

Quote:
Originally Posted by concealer404 View Post

Ok 1 day of good for 354 days of compromise, then.
What kind of calendar do you use?
Ryan_G is online now   Reply With Quote
Old 03-11-2015, 03:50 PM   #9
Junior Member
Thread Starter

Join Date: Mar 2012
Location: Cicero, NY
Posts: 63
Total Cats: 3
Default

Quote:
Originally Posted by Ryan_G View Post
I also believe the voodoo box is the better bandaid solution if you want to retain OBD-II capabilities over an e-manage...
The Voodoo Box alone gives a static timing adjustment, and it would cost me when off boost. The other option would be to get more hardware to adjust timing, and now I've got two boxes doing work where I could just use one.

Quote:
Originally Posted by shuiend View Post
Why can you just not swap ECU's for testing?
If it was only that easy... Putting the stock ECU back in, or anytime the battery is disconnected, all of the monitors switch to Not Ready. I wouldn't be able to just jack the stock ECU in, drive to the shop, and drive back out with a clean bill of health. The drive cycle to get the monitors to switch to Ready could take quite a bit of driving (the EGR one is the worst).

I really have three good options here. One of them involves time travel and an OBD-I car, and another involves moving to a state that doesn't require an OBD-II plugin annually. Neither of those is currently possible. That leaves me stuck with the third option, which is to do the best I can with what I've got to work with, and I'm sure that (skipping any understood "that sucks, dude"s) the experience on this forum can help me find a good solution.

Wha'cha think?
LetItSnow is offline   Reply With Quote
Old 03-11-2015, 03:51 PM   #10
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Quote:
Originally Posted by Ryan_G View Post
What kind of calendar do you use?

The kind where i lose a week and a half. Every year.
concealer404 is offline   Reply With Quote
Old 03-11-2015, 03:57 PM   #11
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,788
Total Cats: 2,114
Default

Quote:
Originally Posted by LetItSnow View Post
If it was only that easy... Putting the stock ECU back in, or anytime the battery is disconnected, all of the monitors switch to Not Ready. I wouldn't be able to just jack the stock ECU in, drive to the shop, and drive back out with a clean bill of health. The drive cycle to get the monitors to switch to Ready could take quite a bit of driving (the EGR one is the worst).
you know this for a fact?

cause I've done this at least a few dozen times and it never took more than about 30 min of driving and 1 cold start. so at the worst the car would be "back to stock" for 2 days vs 1

Quote:
Originally Posted by concealer404 View Post
The kind where i lose a week and a half. Every year.
you should probably stop doing drugs
18psi is offline   Reply With Quote
Old 03-11-2015, 04:19 PM   #12
Junior Member

Join Date: Jun 2011
Location: Upstate NY
Posts: 64
Total Cats: 2
Default

My experience... I ran the bandaid option for about 2 years. Then I wanted to be reliable, consistent, and get the most out of my set up.

Being that you have more than one car and I'm guessing what 5,000 miles a year on the Miata maybe? Get your car inspected in April so every year you can swap ECU at the end of season drive enough to get the monitors to reset store the car and then first trip in the spring is to the inspection shop. Or inspect in Nov at the end of season. This way you're changing the ECU is never in the middle of a season.

I bought a kit with Bandaids and it bothered me for so long that I honestly only drove the Miata to and from autox and a few times a year (3,000 or less miles a year). This year I am doing the full ECU and hope to have a more stable, safe, and reliable tune for driving around and autox.
The Gleas is offline   Reply With Quote
Old 03-11-2015, 04:20 PM   #13
Junior Member
Thread Starter

Join Date: Mar 2012
Location: Cicero, NY
Posts: 63
Total Cats: 3
Default

Quote:
Originally Posted by 18psi View Post
you know this for a fact?
So happens, yeh. I'm not here to dispute this issue, though.

Since we're on topic, however, what do you need to do after swapping the ECU to keep from damaging the engine?
LetItSnow is offline   Reply With Quote
Old 03-11-2015, 05:09 PM   #14
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,788
Total Cats: 2,114
Default

What do you mean?
Like if you have the turbo stuff bolted on? Disconnect wastegate and stay out of boost.
Done
18psi is offline   Reply With Quote
Old 03-12-2015, 12:59 AM   #15
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,144
Total Cats: 140
Default

If you run a different computer, you'd have to unhook it and go back to stock computer to pass emmissions. As said, you can tie the wastegate OPEN so it won't build any boost and drive it and get it to pass with the turbo hardware still in place, so long as the emissions equipment is installed and working correctly. I'm more or less doing this with my car, sorta. I'm gonna have to swap injectors as 305's are enough for my build. I'm actually doing a parallel setup so I won't have to swap computers, both stay in the car, I'll just swap injectors, and swap ignition coils, install TB in stock location, take belt of SC, drive and test.
patsmx5 is offline   Reply With Quote
Old 03-12-2015, 08:58 AM   #16
Junior Member
Thread Starter

Join Date: Mar 2012
Location: Cicero, NY
Posts: 63
Total Cats: 3
Default

Well, I'm an easy sell on Do Things Right the First Time Because It's Cheaper in the Long Run.

Am I going to struggle with keeping AC, PS and cruise if I choose the MS?
LetItSnow is offline   Reply With Quote
Old 03-12-2015, 09:08 AM   #17
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,884
Total Cats: 1,468
Default

Quote:
Originally Posted by LetItSnow View Post
Am I going to struggle with keeping AC, PS and cruise if I choose the MS?
I had to check to see if this post wasnt from 2005.
Braineack is online now   Reply With Quote
Old 03-12-2015, 09:48 AM   #18
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,677
Total Cats: 830
Default

Quote:
Originally Posted by LetItSnow View Post
Well, I'm an easy sell on Do Things Right the First Time Because It's Cheaper in the Long Run.

Am I going to struggle with keeping AC, PS and cruise if I choose the MS?
Go with a MS3 of some sort and no you won't.

Realistically to go back for emissions testing you would unplug the MS and plug in your stock ECU. Block the vacuum line to the MS so you don't have a leak. Then disconnect the wastegate and don't go WOT. If you have swapped in larger injectors you will have to swap back to stock. I don't know what manifold you are using, but you will probably need the EGR pipe hooked up.
shuiend is online now   Reply With Quote
Old 03-12-2015, 12:11 PM   #19
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,788
Total Cats: 2,114
Default

The newer pnp units can be physically uninstalled in literally 5 minutes or less.
Yes, it is THAT easy.
Every time I've weighed the pros/cons of piggy vs standalone (and I have, MANY times, because CA) no matter how I spin it, it just doesn't make sense to go piggy/bandaids.
18psi is offline   Reply With Quote
Old 03-12-2015, 12:32 PM   #20
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,144
Total Cats: 140
Default

Quote:
Originally Posted by 18psi View Post
The newer pnp units can be physically uninstalled in literally 5 minutes or less.
Yes, it is THAT easy.
Every time I've weighed the pros/cons of piggy vs standalone (and I have, MANY times, because CA) no matter how I spin it, it just doesn't make sense to go piggy/bandaids.
In my case I looked at that too, but for me, I wanted to add a lot of systems to the vehicle and need the second computer to run them all the time, and the factory ecu never could/wiring wouldn't match up. But if this is an option, a PNP MS3 is definitely worth looking at!

FWIW, I'm letting the stock computer in my setup do idle/AC/PS idle up, factory gauges, emissions equipment, alternator. Then let the MS do the important go-fast stuff. It's more weight/wiring/complexity, but the factory does these things perfectly, and I've messed with MS for years and they are not perfect all the time in my experience. s
patsmx5 is offline   Reply With Quote
