Old 03-04-2014, 04:02 PM   #21
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

I believe now I swear my eyes are playing tricks. It looks like 55-56 mm in length a notch below 7 inches
BlackBandit is offline   Reply With Quote
Old 03-04-2014, 04:18 PM   #22
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,732
Total Cats: 746
Default

Awesome! I'm using a Turbosmart Kompact BOV and I didn't want a bunch of adapters in there mucking things up. Sounds like I can order a 12" stick of 2.5" and roll my own. Thank you very much!

When are you going to start your install?
EO2K is offline   Reply With Quote
Old 03-04-2014, 04:31 PM   #23
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

Next weekend. Man I can't wait.
BlackBandit is offline   Reply With Quote
Old 03-06-2014, 02:31 PM   #24
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

I was wondering if anyone ran a v6 Mazda millenia oil filter on there miatas? It's a direct fit and the filter is bigger.
BlackBandit is offline   Reply With Quote
Old 03-06-2014, 02:45 PM   #25
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,732
Total Cats: 746
Default

Yep, others have been doing this for a LOOOOOONG time. For Mobil 1 the Miata PN is M1-108 and the the Millenia is M1-110. I've been using whatever the WIX interchange is for the M1-110 since I bought my car.
EO2K is offline   Reply With Quote
Old 03-06-2014, 02:54 PM   #26
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

They mention a V6 Millenia.

All Millenias were V6s. 2.5 or 2.3? Or are both the same?

Also seeing mention of using an 88-92 MX6 filter. 88-92 MX6s can use LT-5 Corvette filters. They're enormous.

Would be fun on a Miata if they fit, dimensions wise.
concealer404 is offline   Reply With Quote
Old 03-06-2014, 02:55 PM   #27
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

I have been running it as well but was wondering it the glowshift sandwich oil adapter will still fit with the v6 filter.
BlackBandit is offline   Reply With Quote
Old 03-15-2014, 10:57 AM   #28
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

It's official. Installation today and tuning tomorrow.
BlackBandit is offline   Reply With Quote
Old 03-16-2014, 12:48 AM   #29
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

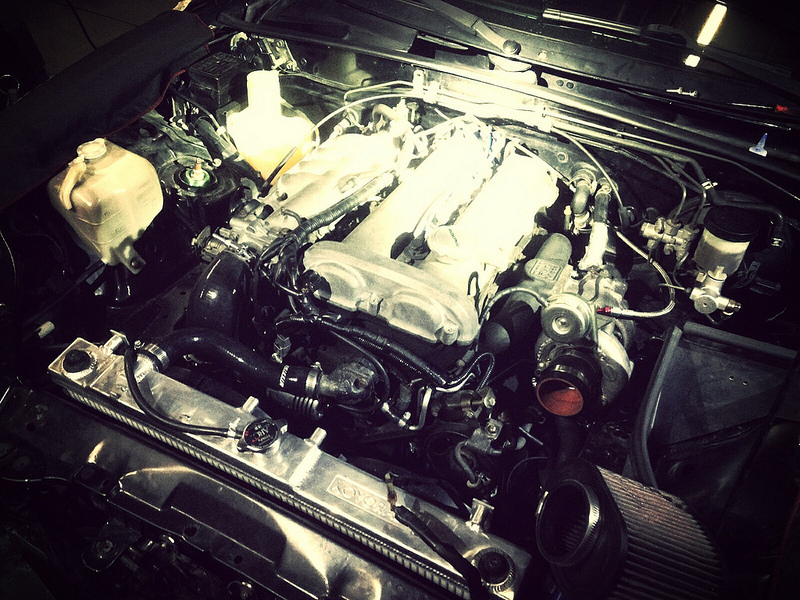

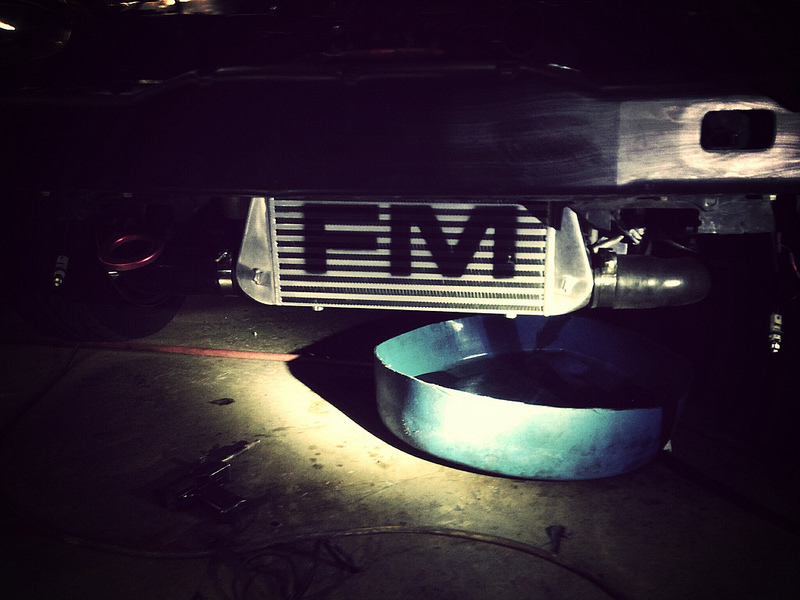

Pics from the install and custom fabrication on the spot.



Untitled by rocketeerbandit, on Flickr
Untitled by rocketeerbandit, on Flickr
Untitled by rocketeerbandit, on Flickr
Attached Thumbnails
Mini_FD '99 Flyin' Miata Turbo Build-13181615325_e4b2625d64_c.jpg   Mini_FD '99 Flyin' Miata Turbo Build-13181629225_198f1b5ed3_c.jpg   Mini_FD '99 Flyin' Miata Turbo Build-13181768353_08ccd83012_c.jpg
BlackBandit is offline   Reply With Quote
Old 03-16-2014, 01:32 AM   #30
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

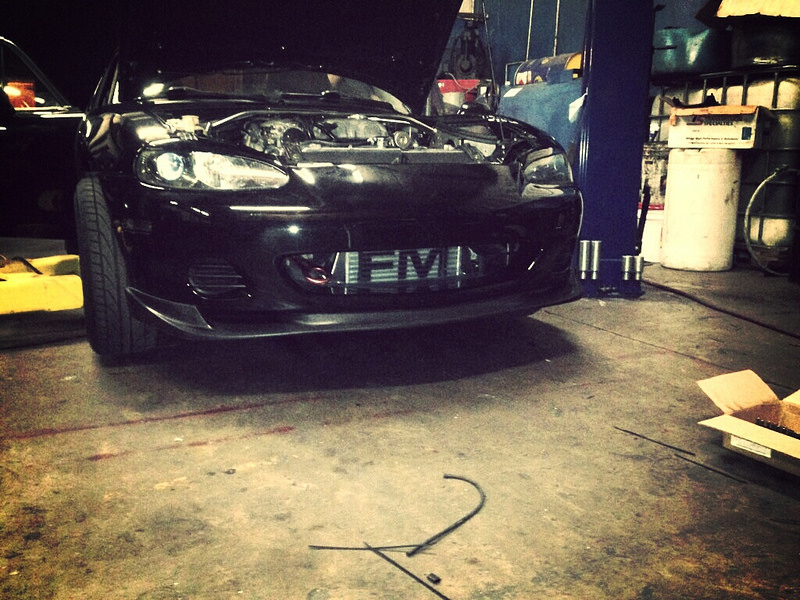

Untitled by rocketeerbandit, on Flickr
Attached Thumbnails
Mini_FD '99 Flyin' Miata Turbo Build-13182256285_89e24465dc_c.jpg
BlackBandit is offline   Reply With Quote
Old 03-16-2014, 02:33 AM   #31
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,985
Total Cats: 409
Default

Looking good man. You're gonna love what it'll do now!
turbofan is offline   Reply With Quote
Old 03-17-2014, 01:23 AM   #32
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

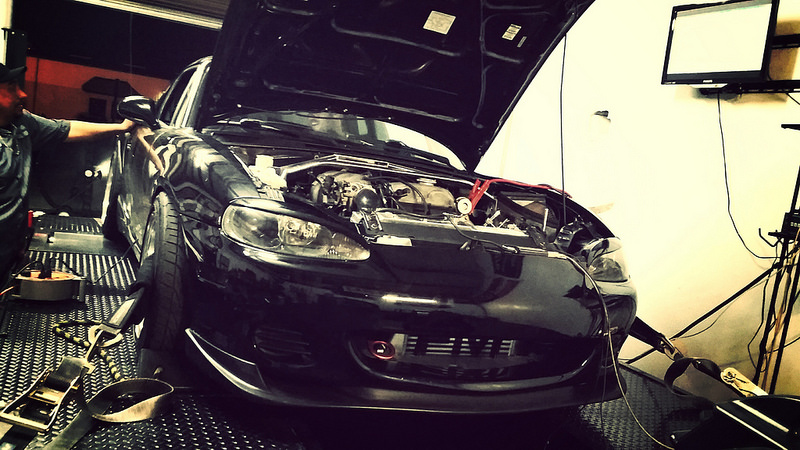

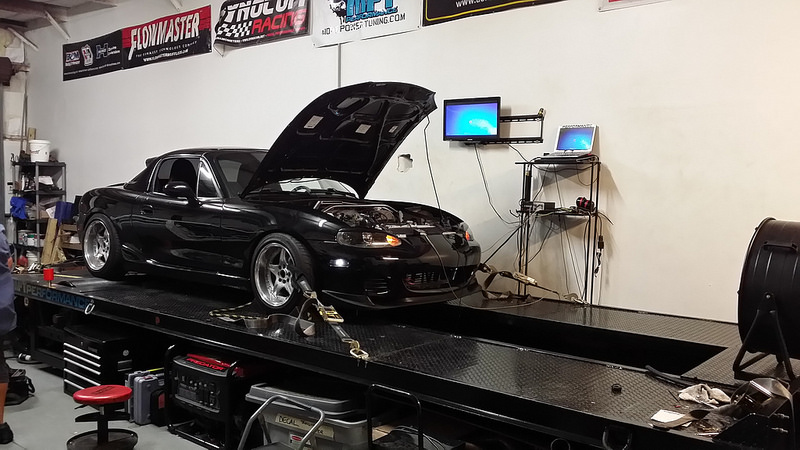

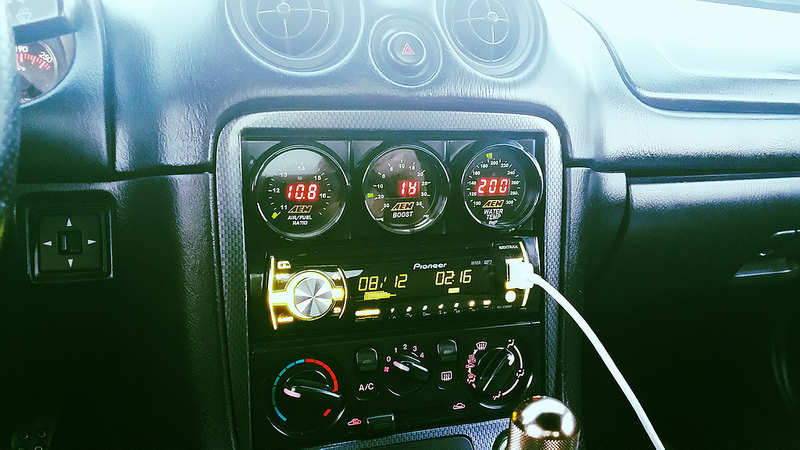

Long day of tuning and over a dozen pulls. But we are set. I need to get a midpipe, electronic boost controller, and relocate the itp sensor so the car won't run lean.

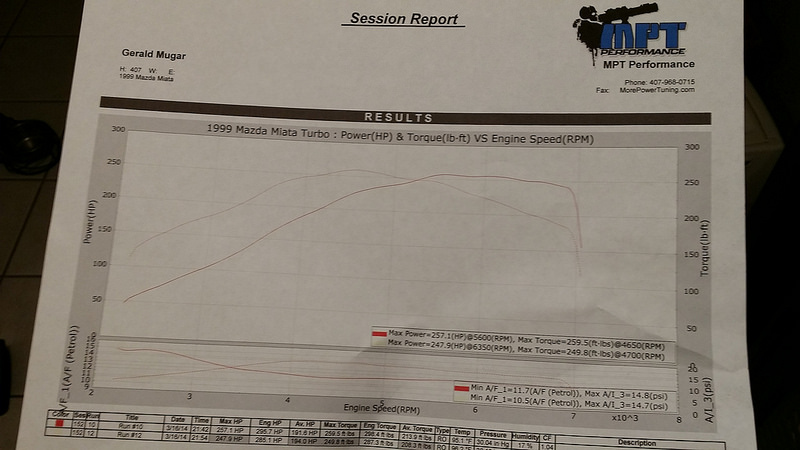

Dyno sheet by rocketeerbandit, on Flickr
Untitled by rocketeerbandit, on Flickr
Untitled by rocketeerbandit, on Flickr
Untitled by rocketeerbandit, on Flickr
Attached Thumbnails
Mini_FD '99 Flyin' Miata Turbo Build-13210149835_420e4b519a_c.jpg   Mini_FD '99 Flyin' Miata Turbo Build-13210164245_b8068cb488_c.jpg   Mini_FD '99 Flyin' Miata Turbo Build-13210329673_7ab0c20a9f_c.jpg   Mini_FD '99 Flyin' Miata Turbo Build-13210507774_cc72abcb13_c.jpg
BlackBandit is offline   Reply With Quote
Old 03-17-2014, 01:24 AM   #33
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

We adjusted the 18lbs. Of boost already so don't worry lol. It was silly fast when it was driving to the dyno. All good now.
BlackBandit is offline   Reply With Quote
Old 03-17-2014, 02:15 AM   #34
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

http://youtu.be/sRCNfhox5Ug

Last edited by BlackBandit; 03-17-2014 at 02:25 AM.
BlackBandit is offline   Reply With Quote
Old 03-17-2014, 02:31 AM   #35
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,732
Total Cats: 746
Default

If I'm reading that correctly, 257hp/259tq @ 14psi on a GT2560R w/2.5" exhaust? Most excellent!

Got a better shot of that boost & afr table? It looks like there is still a bit of taper, I'm assuming you are using some sort of MBC currently?
EO2K is offline   Reply With Quote
Old 03-17-2014, 02:33 AM   #36
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

I'm using a quickly bought vibrant boost controller last minute. Stock midpipe. And I'll take a better picture. We got it up to 267 with e85.
BlackBandit is offline   Reply With Quote
Old 03-17-2014, 02:38 AM   #37
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,150
Total Cats: 1,989
Default

Quote:
Originally Posted by BlackBandit View Post
fixed
18psi is offline   Reply With Quote
Old 03-17-2014, 02:40 AM   #38
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,150
Total Cats: 1,989
Default

And good job btw. That's healthy power. Get the ebc dialed in and you should see a bunch of lowend torque increase.
Start saving up for a build for when those rods decide they've had enough of 250+tq
18psi is offline   Reply With Quote
Old 03-17-2014, 02:42 AM   #39
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,732
Total Cats: 746
Default

Quote:
Originally Posted by BlackBandit View Post
Stock midpipe.
Lolwut? Yeah, expect some more efficiency out of a larger exhaust fo sho.

Also: damn you and your E85 availability.
EO2K is offline   Reply With Quote
Old 03-17-2014, 03:31 AM   #40
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,985
Total Cats: 409
Default

Seriously strong numbers. Like Vlad said, the rods will likely not be happy for long at 250 wtq (and neither will your 5-speed... You're still on the 5-speed right?).

Now your car has the go to back up the show. Nice work.
turbofan is offline   Reply With Quote
