Old 03-17-2014, 06:44 AM   #41
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

The rods will give on any turbo application car it's just a matter of when. And I have discussed with Ken that if it did occur where to go if the situation arises. Ken spent a solid full 24 hours tuning the car with over a dozen pulls to make sure everything was perfect. Now I am aware that I'm drastically cutting my engines life in half but I'm not also hitting it hard light to light. I will be as careful as anyone else new to boost will be lol.

First things first... midpipe and to take your suggestions and raising the car a bit with wider wheels and tires.
BlackBandit is offline   Reply With Quote
Old 03-17-2014, 06:53 AM   #42
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

Ps we drop the boost down last night as well.
BlackBandit is offline   Reply With Quote
Old 03-17-2014, 10:06 AM   #43
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Damn dude! Nice job, those are REALLY strong numbers.
concealer404 is offline   Reply With Quote
Old 03-17-2014, 10:09 AM   #44
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

I took it out this morning it it took 5 times before it started up. It kept lighting up and dying. Finally got it. So I didn't do extremely hard driving but I was spiking 16lbs. I'm gonna bring it done a quarter turn on the boost controller hopefully bring it to 15 or 14lbs.
BlackBandit is offline   Reply With Quote
Old 03-17-2014, 10:11 AM   #45
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Needs some cold start work, huh?
concealer404 is offline   Reply With Quote
Old 03-17-2014, 10:12 AM   #46
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

Lol I was told it's just part of the game.
BlackBandit is offline   Reply With Quote
Old 03-17-2014, 10:14 AM   #47
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

It is. You'll figure it out.
concealer404 is offline   Reply With Quote
Old 03-17-2014, 10:16 AM   #48
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

I'm also going to be relocating the air sensor from the ss pipe I got from fm connecting to the throttle body silicone elbow to the intercooler so the car doesn't lean out when I'm heatsoaked.
BlackBandit is offline   Reply With Quote
Old 03-17-2014, 10:25 AM   #49
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

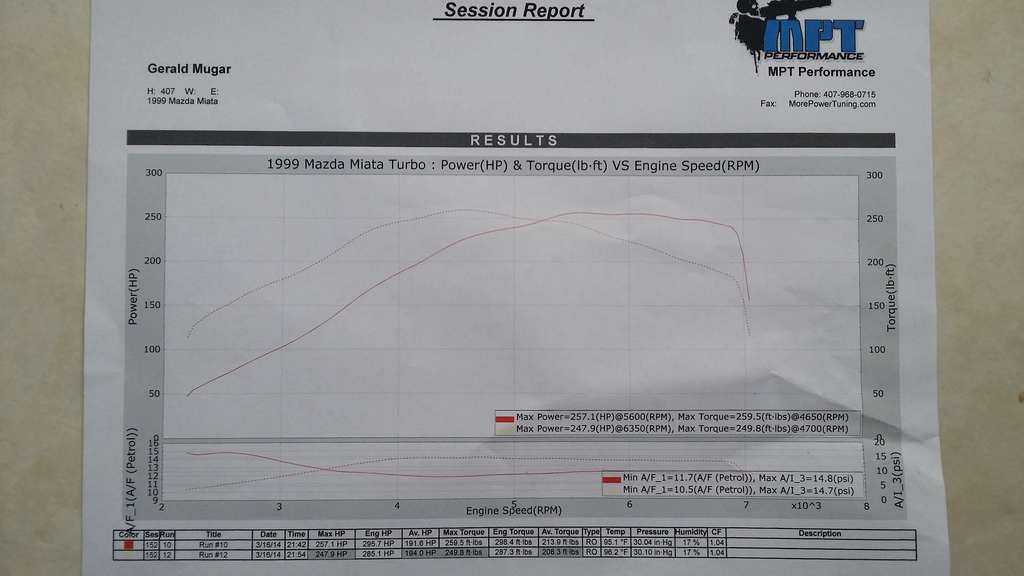

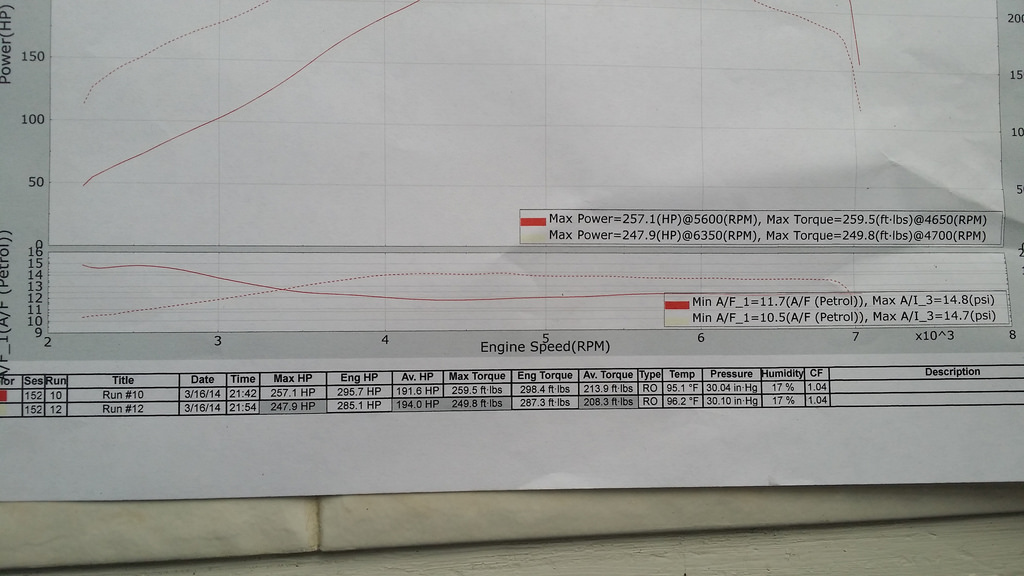

Here's a larger clearer pic of the dyno sheets

dyno chart by rocketeerbandit, on Flickr
ratios by rocketeerbandit, on Flickr
Attached Thumbnails
Mini_FD '99 Flyin' Miata Turbo Build-13218203523_7647799285_b.jpg   Mini_FD '99 Flyin' Miata Turbo Build-13218069475_975bb8c832_b.jpg
BlackBandit is offline   Reply With Quote
Old 03-17-2014, 11:58 AM   #50
Senior Member
iTrader: (8)

paNX2K&SE-R's Avatar

Join Date: Dec 2007
Location: Mocksville, NC
Posts: 646
Total Cats: 9
Default

Those are great results Gerald! I'm looking forward to seeing the car in July.
paNX2K&SE-R is offline   Reply With Quote
Old 03-17-2014, 12:11 PM   #51
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

Thanks everyone for the cheers. I'm excited how well this panned out. Shout out to my tuner and co-installer StratoBlue1109
BlackBandit is offline   Reply With Quote
Old 03-17-2014, 12:40 PM   #52
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,765
Total Cats: 752
Default

This. This is exactly what I want out of my FMII. Can't wait to see what it'll do with an EBC

Where is your source for the WGA hooked up to currently?
EO2K is offline   Reply With Quote
Old 03-17-2014, 12:43 PM   #53
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

I know right. What ebc are you using or gonna use?
BlackBandit is offline   Reply With Quote
Old 03-17-2014, 01:03 PM   #54
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,765
Total Cats: 752
Default

Either the one DIYAutoTune or the one from TrackSpeed Engineering. I've read that the DIY one can be a bit more temperature sensitive than the TSE unit, but its also cheaper. Bunch of other options out there as well, but those are the two I've seen most people have success with here on MT.
EO2K is offline   Reply With Quote
Old 03-17-2014, 02:51 PM   #55
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,662
Total Cats: 227
Default

Excellent results! cold start is certainly part of the game, but it's really not that hard. Read up on it and take some time to dial it in next cold start.

Get some videos of a quick pull, i'd love to see it on the street.
Fireindc is offline   Reply With Quote
Old 03-17-2014, 03:08 PM   #56
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,172
Total Cats: 1,990
Default

Rough cold starts means you need to tune your cold start. See my thread about it, there are also tons of others. Its one of those things a shop will never really do for you, gotta do it yourself, they just do the easy/fun part of making power, none of the hard and time consuming stuff like cold starts and all that.

Also rods don't "give way on any turbo application, just a matter of when". Many other cars have rods strong enough to withstand 500-700hp just fine. The miata just happens not to be one of those cars.

If you want to preserve your rods and trans, run some crappy tires in the back that will spin all the time lol
But you already lowered the boost so it will probably be fine.
18psi is offline   Reply With Quote
Old 03-17-2014, 07:08 PM   #57
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

I believe I'm at 14 right now. And I'm prepared to build a motor if it goes. For now more smiles...
BlackBandit is offline   Reply With Quote
Old 03-17-2014, 07:12 PM   #58
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,662
Total Cats: 227
Default

Quote:
Originally Posted by BlackBandit View Post
And I'm prepared to build a motor if it goes.
This is the right mindset
Fireindc is offline   Reply With Quote
Old 03-17-2014, 07:25 PM   #59
Junior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2010
Posts: 489
Total Cats: 33
Default

Btw fun fact my injectors are only at 53 percent load
BlackBandit is offline   Reply With Quote
Old 03-17-2014, 07:27 PM   #60
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,765
Total Cats: 752
Default

This is why I have a second motor
EO2K is offline   Reply With Quote
