Old 06-26-2015, 04:54 PM
  #1461
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,821
Total Cats: 3,481
Default

disable ego correction in ms and it wont freak out.
stock ecu won't care if you disconnect the rear o2, it will just throw a cel

if you mean disconnected sensor in the exhaust, it's not a good diea, but won't explode your sensor in .00003 seconds like some will make it sound
18psi is offline
Old 06-26-2015, 04:55 PM
  #1462
Elite Member
iTrader: (16)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 9,292
Total Cats: 475
Default

Originally Posted by rleete
Wish you were closer. I could fix that sumbitch right up.

Quick question: can I install a wideband sensor (Bosch) and run the car without hooking it up for a day or two? I don't have a plug for the bung, and I want to drive the car. But I also don't want to screw up the sensor.
Bad idea, that can ruin the sensor. They need to be powered up when installed.
patsmx5 is offline
Old 06-26-2015, 05:06 PM
  #1463
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Default

<p>From what I understand all that powering it does is turn on the heater. It will heat up anyways with exhaust flowing by. according to the manuals I'm wrong.</p>

Last edited by aidandj; 06-26-2015 at 08:04 PM.
aidandj is offline
Old 06-26-2015, 05:33 PM
  #1464
Elite Member
iTrader: (21)

rleete's Avatar

Join Date: Jun 2007
Location: Rochester, NY
Posts: 6,593
Total Cats: 1,259
Default

Thanks, I'll just wait until I can pick up a plug. Not worth risking a sensor just for a weekend joyride.
rleete is offline
Old 06-26-2015, 06:10 PM
  #1465
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,764
Total Cats: 951
Default

Originally Posted by rleete
Thanks, I'll just wait until I can pick up a plug. Not worth risking a sensor just for a weekend joyride.
JBweld that **** in like playdough for the weekend!
Jeffbucc is offline
Old 06-26-2015, 06:13 PM
  #1466
Elite Member
iTrader: (16)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 9,292
Total Cats: 475
Default

Originally Posted by aidandj
<p>From what I understand all that powering it does is turn on the heater. It will heat up anyways with exhaust flowing by.</p>
Seems right. I just read online that leaving an O2 sensor installed, but not powered up, will kill them in short order. I read it on the internet, so dunno. But I don't do that to be safe.

To OP, a local MIDAS where I live has those plugs in stock. Most any exhaust shop will have them. You may be able to get one locally.
patsmx5 is offline
Old 06-26-2015, 06:15 PM
  #1467
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,764
Total Cats: 951
Default

If not just weld a small diameter sleeve in and tap it.
Jeffbucc is offline
Old 06-26-2015, 07:27 PM
  #1468
Elite Member
iTrader: (21)

rleete's Avatar

Join Date: Jun 2007
Location: Rochester, NY
Posts: 6,593
Total Cats: 1,259
Default

I will make a plug. Good excuse to use the lathe and practice single point threading.
rleete is offline
Old 06-26-2015, 07:33 PM
  #1469
Elite Member
iTrader: (1)

richyvrlimited's Avatar

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,642
Total Cats: 42
Default

You'll kill a wideband sensor if you run the engine with it unpowered. That's stated in the manuals for the innovate and AEM units at any rate.

A NB sensor won't care. Early NB sensors didn't even have built in heaters, they relied on EGTs to get to temp, but the temp a NB sensor is, isn't critical to its operation like it is with a WB.
richyvrlimited is offline
Old 06-26-2015, 09:52 PM
  #1470
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,764
Total Cats: 951
Default

Originally Posted by rleete
I will make a plug. Good excuse to use the lathe
If I had a lathe....holy **** the things I'd make.
Jeffbucc is offline
Old 06-26-2015, 09:54 PM
  #1471
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Default

You should buy one. You can get good deal on China ones. Or find shop auctions.
aidandj is offline
Old 06-27-2015, 12:08 AM
  #1472
Elite Member
iTrader: (21)

rleete's Avatar

Join Date: Jun 2007
Location: Rochester, NY
Posts: 6,593
Total Cats: 1,259
Default

I paid $359 for mine (homier Speedway, same as all the other brands) about 10 years ago. It's been a productive hobby ever since. They go for around $500 nowadays, if you find them on sale. But be forewarned, they are a work in progress. You have to make or buy parts for them (i.e. tailstock lock) to make them useful.

I made my shift **** (out of a trailer hitch ball, no less), and have made several for other people. That's one reason I offered to fix G's, as I already have the arbor.
rleete is offline
Old 06-27-2015, 12:10 AM
  #1473
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Default

<p>Waitwaitwaitwait...lathe? for 500? I thought they were way more.</p>
aidandj is offline
Old 06-27-2015, 12:14 AM
  #1474
Elite Member
iTrader: (21)

rleete's Avatar

Join Date: Jun 2007
Location: Rochester, NY
Posts: 6,593
Total Cats: 1,259
Default

Benchtop, Chinese made. 7x12 size. Small stuff.

Harbor Freight sells them. They cost about $600 when not on sale, but you can find coupons. They are typical Chinese quality. More of a kit than a working lathe.
rleete is offline
Old 06-27-2015, 12:16 AM
  #1475
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,560
Total Cats: 1,142
Default

Originally Posted by aidandj
<p>Waitwaitwaitwait...lathe? for 500? I thought they were way more.</p>
thats about what any 7x12 goes for. for about $1k, you can have a 10x22 that is a working lathe.

theyve gone up in price since ive bought, i paid $950 shipped about 5 years ago
Grizzly.com® --
hi_im_sean is offline
Old 06-27-2015, 12:57 AM
  #1476
Senior Member
iTrader: (1)

gesso's Avatar

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 811
Total Cats: 270
Default

Originally Posted by Jeffbucc
If I had a lathe....holy **** the things I'd make.

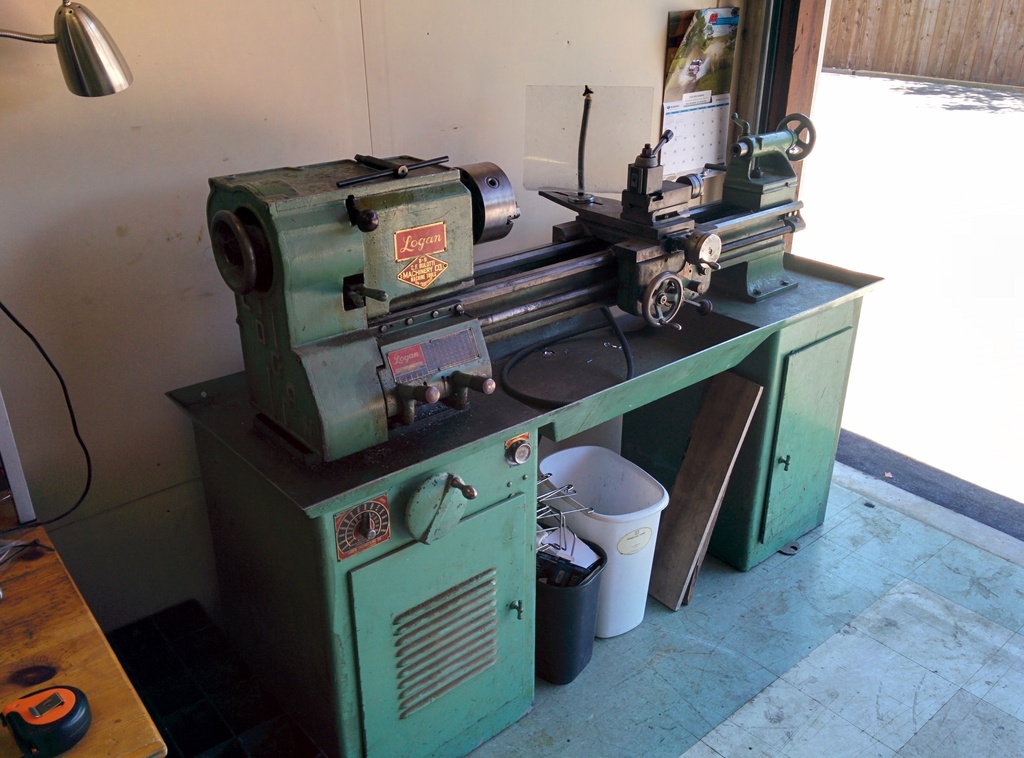

Please, go on, I would like to subscribe to your news letter. Seriously, a recent acquisition of mine makes this threads current off topic diversion of particular interest to me.

Attached Thumbnails Nothing to see here, just project Sisyphus, move along-img_20150606_121154_zpslqytbgjz.jpg
gesso is offline
Old 06-27-2015, 01:02 AM
  #1477
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,821
Total Cats: 3,481
Default

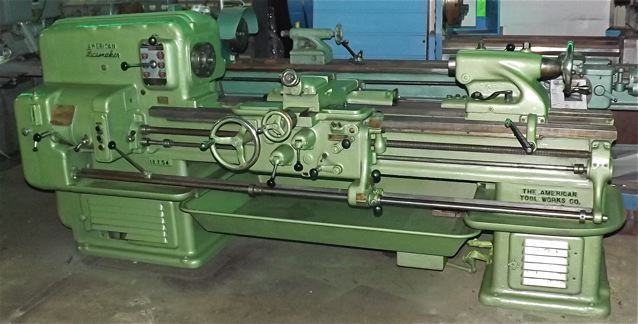

ooh our lathes match

pops got one of these

Attached Thumbnails Nothing to see here, just project Sisyphus, move along-80-10987_fc1335d0e170d6f53dc4620d648ea78a8201efb9.jpg
18psi is offline
Old 06-27-2015, 11:54 AM
  #1478
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Default

POST ALLOFTHELATHES.
<br />
<br />For all we know Jeff could have already ordered one.
aidandj is offline
Old 06-27-2015, 12:04 PM
  #1479
Elite Member
iTrader: (21)

rleete's Avatar

Join Date: Jun 2007
Location: Rochester, NY
Posts: 6,593
Total Cats: 1,259
Default

I have two lathes. One for metal/plastic, and one for woodworking (mostly pens). I made a cigar holder last night because I was sick of spitting out little bits of tobacco. Took me about 40 minutes, all told, because I am fussy.

Shall I up the ante with my mill as well?
rleete is offline
Old 06-27-2015, 12:15 PM
  #1480
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,764
Total Cats: 951
Default

I can just envision a lot of small parts and brackets that are a bitch to make/need a welder that would be fabulous to have a lathe for. Also 3D printers.

Plus I just think them & CNC machines are so damn cool(my YouTube watched history is full of lathe/CNC clips)

I always thought they went for thousands though, hence never approaching the possibility of owning one unless I got lucky on a used machine.

Getting a hitch and a tow dolly for my TDI are priority #1 at the moment though. It was 116° yesterday. ****. That. I'm not man enough to drive in that heat in the Miata(no AC). Especially with the hood vents pushing oven hot air into the cabin.
Jeffbucc is offline
