Old 02-12-2016, 07:44 PM   #241
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,953
Total Cats: 127
Default

My cat looks very similar to Ian's.

Going to build it with no glasspack/no cat for now, order a cat and swap it out at the track as mentioned. Will have to order some V-bands too so I can make it easily swapable.
patsmx5 is offline   Reply With Quote
Old 02-12-2016, 07:59 PM   #242
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,598
Total Cats: 91
Default

Quote:
Originally Posted by patsmx5 View Post
So, the question is, what is the toughest catalytic converter in the world that I can buy that has 3" in/out?
A WRC cat like these. WRC Spec Catalytic Converters
Leafy is offline   Reply With Quote
Old 02-13-2016, 01:05 AM   #243
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,152
Total Cats: 1,990
Default

Quote:
Originally Posted by patsmx5 View Post
You guys are on point, listen to this...

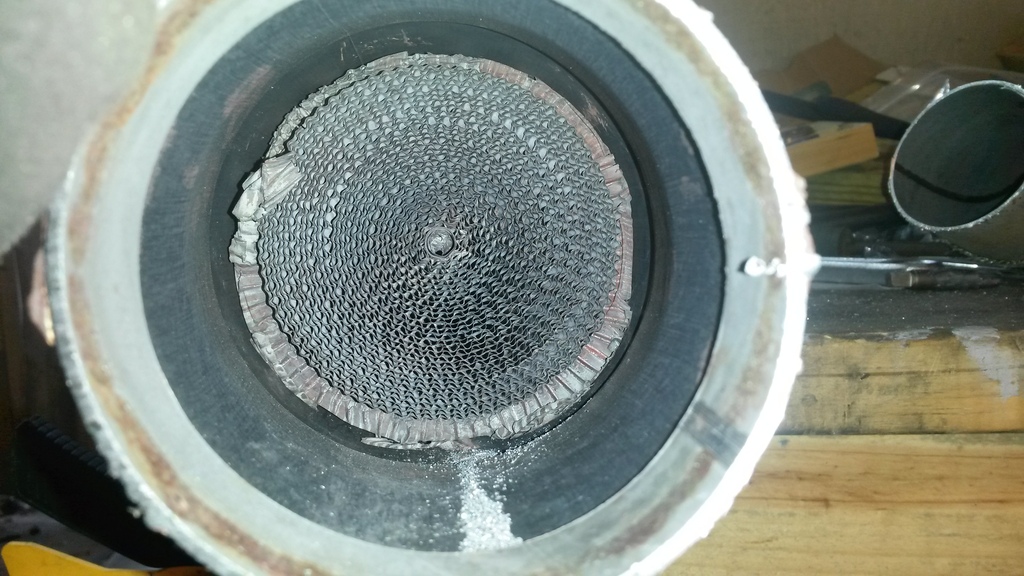

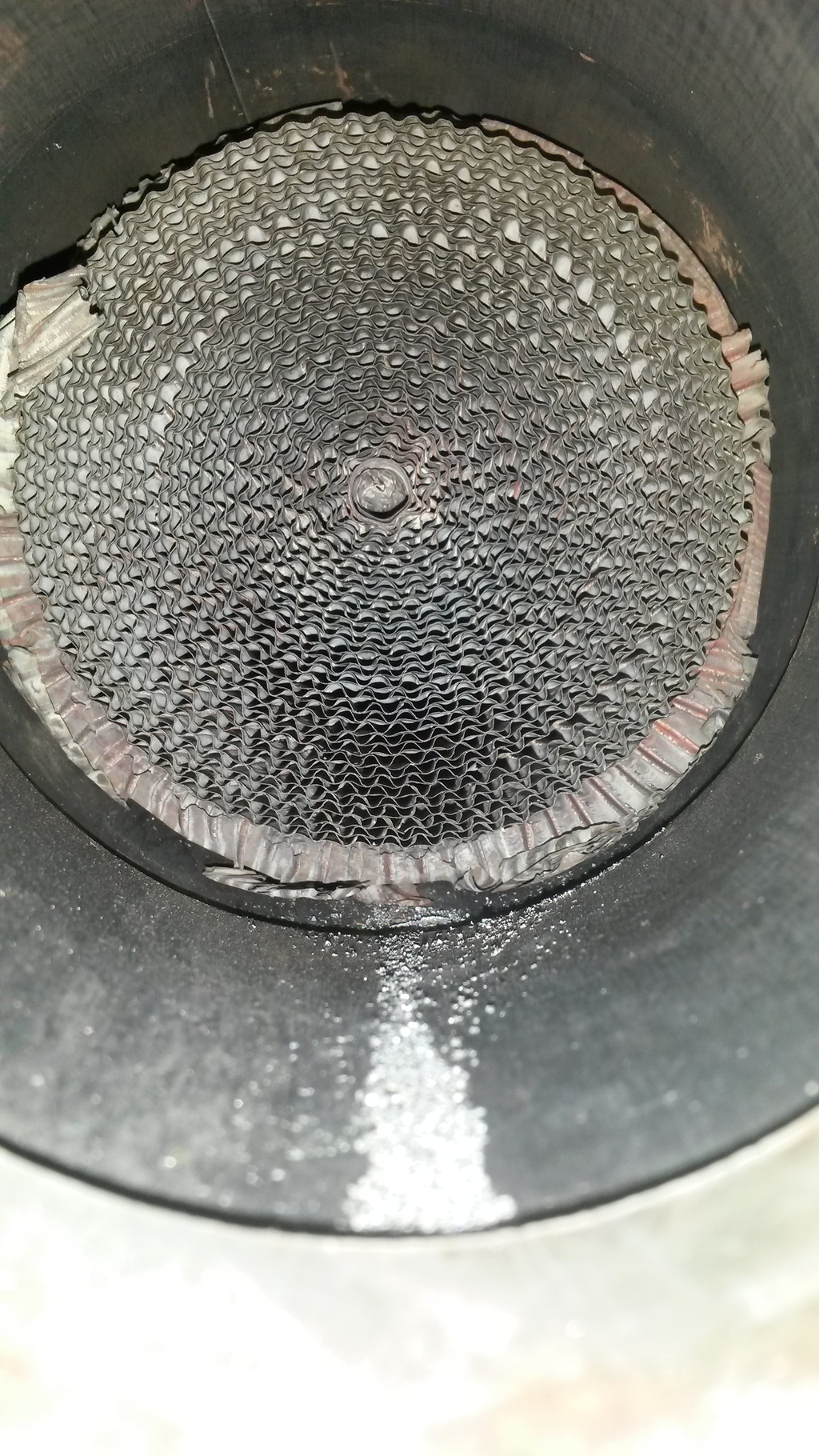

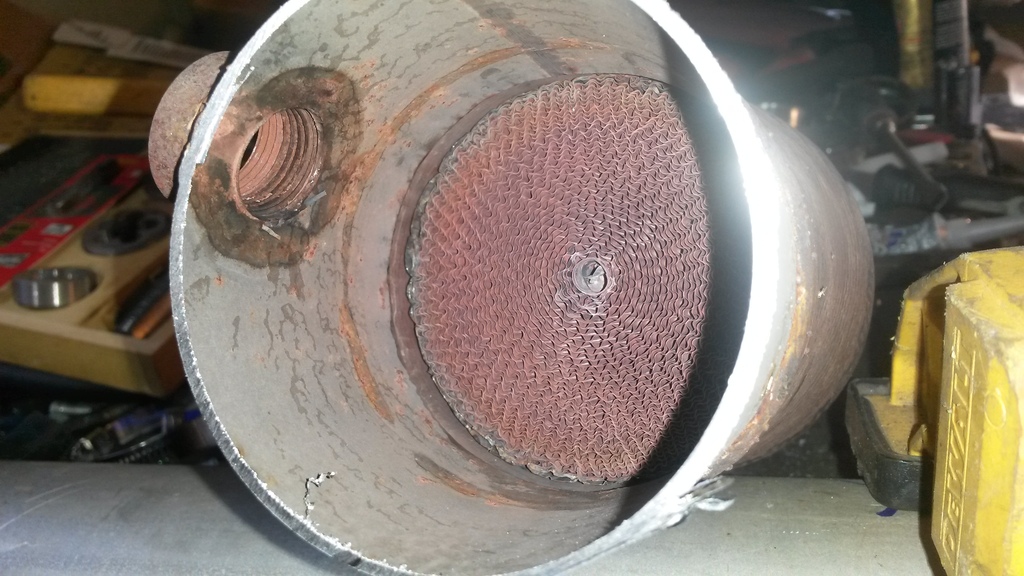

The 3" 300 cell per inch, metalic spun core Thunderbolt cat is falling apart! I inspected this cat not long ago (like maybe 2 months ago) and it looked like new. Anyways just checked it out and it's falling apart and loose inside the housing. No way I can run it. It's almost 1 year old.

My guess is using a spark cut for launch control probably killed it.

So, the question is, what is the toughest catalytic converter in the world that I can buy that has 3" in/out?

Also I might be building a test pipe for now until I can get the worlds toughest cat here.
told you, and I'll say it again: bolt in/out or you'll kill the 2nd turbo no matter which you run
18psi is offline   Reply With Quote
Old 02-13-2016, 01:21 AM   #244
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,953
Total Cats: 127
Default

V, I'm thinking about doing a rear mounted cat (post turbo)as mentioned here already. Two concerns though:

1. Will that pass emissions with it way back there? I think it might.
2. How in the hell will I ever package a muffler AND a cat back there...

Doing other stuff now, exhaust post-turbo will happen later after I get a plan together for it.
patsmx5 is offline   Reply With Quote
Old 02-13-2016, 01:32 AM   #245
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,152
Total Cats: 1,990
Default

the concern there would be that the flow would cool down so much it pretty much would never actually get up to temp and operational. dunno
18psi is offline   Reply With Quote
Old 02-13-2016, 01:49 AM   #246
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,953
Total Cats: 127
Default

Quote:
Originally Posted by 18psi View Post
the concern there would be that the flow would cool down so much it pretty much would never actually get up to temp and operational. dunno
I dunno either. But the alternatives suck. If it works, great. If not, then it goes further up and I have to swap cats all the time, which is lame. Would need a jack and stands to do that too, more suckage.

I did get the exhaust system from small to big turbo built. Just gotta pull it and weld it out. Working on getting rear external gate welded first, then pull it and weld everything out at once.

Missed my 2/12 deadline. Oh well, it's not done but it's like 80% done.
patsmx5 is offline   Reply With Quote
Old 02-13-2016, 01:51 AM   #247
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,953
Total Cats: 127
Default

Quote:
Originally Posted by 18psi View Post
the concern there would be that the flow would cool down so much it pretty much would never actually get up to temp and operational. dunno
Regarding the temp, I can insulate the crap out of the pipe to help. I'm thinking about doing that anyway. If the cat wouldn't light off, that would get me to do it as that would probably fix it.
patsmx5 is offline   Reply With Quote
Old 02-13-2016, 01:56 AM   #248
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 2,947
Total Cats: 212
Default

Quote:
Originally Posted by 18psi View Post
the concern there would be that the flow would cool down so much it pretty much would never actually get up to temp and operational. dunno
Nothing you can't fix by diverting some of the compressor output air and adding a fuel injector.

--Ian
codrus is offline   Reply With Quote
Old 02-13-2016, 10:21 AM   #249
Senior Member
iTrader: (3)

Join Date: May 2010
Location: Iowa City
Posts: 528
Total Cats: 14
Default

Quote:
Originally Posted by patsmx5 View Post
Regarding the temp, I can insulate the crap out of the pipe to help. I'm thinking about doing that anyway. If the cat wouldn't light off, that would get me to do it as that would probably fix it.
You really should insulate the crap out of it anyway to make your rear turbo work.

If you have a sniffer, the cat in the rear section will likely not get hot enough to light off in time. You may just have to swap IN the cat when you get tested and run without it on the daily.
vteckiller2000 is offline   Reply With Quote
Old 02-13-2016, 10:50 AM   #250
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 24,662
Total Cats: 1,570
Default

Quote:
Originally Posted by codrus View Post
Nothing you can't fix by diverting some of the compressor output air and adding a fuel injector.
Proprietary e-Heat™ technology.
Joe Perez is offline   Reply With Quote
Old 02-13-2016, 11:16 AM   #251
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,953
Total Cats: 127
Default

Quote:
Originally Posted by vteckiller2000 View Post
You really should insulate the crap out of it anyway to make your rear turbo work.

If you have a sniffer, the cat in the rear section will likely not get hot enough to light off in time. You may just have to swap IN the cat when you get tested and run without it on the daily.
Yeah I know it will help. I'm not doing it right now just because I want it on the road, and shake down the system/make sure it's designed ok. I think I'm going to build a sheet metal wall around the pipe to put an air gap all the way around it. Tired of using expensive wrap that doesn't work as well as a sheet metal shield, cost more, and makes a mess of dust.

I'm not gonna daily it without a cat. So it's going somewhere. Worst case is up front and swap it out for track, best case is in the back and stays all the time and passes emissions with it back there no problem.
patsmx5 is offline   Reply With Quote
Old 02-13-2016, 11:22 AM   #252
Senior Member
iTrader: (3)

Join Date: May 2010
Location: Iowa City
Posts: 528
Total Cats: 14
Default

Quote:
Originally Posted by patsmx5 View Post
Yeah I know it will help. I'm not doing it right now just because I want it on the road, and shake down the system/make sure it's designed ok. I think I'm going to build a sheet metal wall around the pipe to put an air gap all the way around it. Tired of using expensive wrap that doesn't work as well as a sheet metal shield, cost more, and makes a mess of dust.

I'm not gonna daily it without a cat. So it's going somewhere. Worst case is up front and swap it out for track, best case is in the back and stays all the time and passes emissions with it back there no problem.
I don't think that a wall is going to do anything to keep the heat energy in. If you don't do wrap, consider ceramic coating.




Also a side note. I REALLY want to see your VE and spark maps when you get this running and tuned.
vteckiller2000 is offline   Reply With Quote
Old 02-13-2016, 11:25 AM   #253
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,953
Total Cats: 127
Default

Quote:
Originally Posted by vteckiller2000 View Post
I don't think that a wall is going to do anything to keep the heat energy in. If you don't do wrap, consider ceramic coating.




Also a side note. I REALLY want to see your VE and spark maps when you get this running and tuned.
I tested both (shield, wrap, shield and wrap) and the shield worked better on my last exhaust system.

I can post whatever once it's tuned, no problem.
patsmx5 is offline   Reply With Quote
Old 02-13-2016, 11:31 AM   #254
Senior Member
iTrader: (3)

Join Date: May 2010
Location: Iowa City
Posts: 528
Total Cats: 14
Default

Quote:
Originally Posted by patsmx5 View Post
I tested both (shield, wrap, shield and wrap) and the shield worked better on my last exhaust system.

I can post whatever once it's tuned, no problem.
Better for what? This is a strange case, because you actually NEED to keep as much heat as possible inside the pipe, not just dissipate it in the air medium.
vteckiller2000 is offline   Reply With Quote
Old 02-13-2016, 11:38 AM   #255
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,953
Total Cats: 127
Default

Quote:
Originally Posted by vteckiller2000 View Post
Better for what? This is a strange case, because you actually NEED to keep as much heat as possible inside the pipe, not just dissipate it in the air medium.
Better at keeping the heat in the pipe/ not escaping the pipe. I'm an engineer, I know how basic heat transfer works. I tested this stuff by opening the throttle some, retarding the timing a lot, and getting the exhaust a light red glow for an hour one day while testing different shield designs. Ha, now that I think about it, maybe that's the day I killed my exhaust valve stem seals.

The wrap does work, but not as well as a metal shield with a 1/2" air gap all the way around the pipe.
patsmx5 is offline   Reply With Quote
Old 02-13-2016, 01:06 PM   #256
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 2,947
Total Cats: 212
Default

Quote:
Originally Posted by patsmx5 View Post
The wrap does work, but not as well as a metal shield with a 1/2" air gap all the way around the pipe.
What you really need is a metal shield with a 1/2" vacuum gap all the way around. Probably hard to make that vibration-proof though.

--Ian
codrus is offline   Reply With Quote
Old 02-13-2016, 01:23 PM   #257
SadFab CEO
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,304
Total Cats: 400
Default



Just weld a bunch of these together, they're stainless even.
Attached Thumbnails
Pat's Ebay Turbo Compound Boost Build-80-500ml_stainless_steel_thermosldodetail_021d3be3e81879f26d5db2d0a4d5617980e8669d.jpg
hi_im_sean is online now   Reply With Quote
Old 02-13-2016, 01:35 PM   #258
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,598
Total Cats: 91
Default

Quote:
Originally Posted by patsmx5 View Post
V, I'm thinking about doing a rear mounted cat (post turbo)as mentioned here already. Two concerns though:

1. Will that pass emissions with it way back there? I think it might.
2. How in the hell will I ever package a muffler AND a cat back there...

Doing other stuff now, exhaust post-turbo will happen later after I get a plan together for it.
1. Run the car leaner to heat the cat up, unless that makes you fail nox.
2. Just propane torch the outside of the cat before pulling into the emissions testing bay.
3. Run E85 and play with tune until it passes the sniffer.
Leafy is offline   Reply With Quote
Old 02-13-2016, 02:01 PM   #259
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,953
Total Cats: 127
Default

Quote:
Originally Posted by Leafy View Post
1. Run the car leaner to heat the cat up, unless that makes you fail nox.
2. Just propane torch the outside of the cat before pulling into the emissions testing bay.
3. Run E85 and play with tune until it passes the sniffer.
For emissions the stock ecu will be running the car.

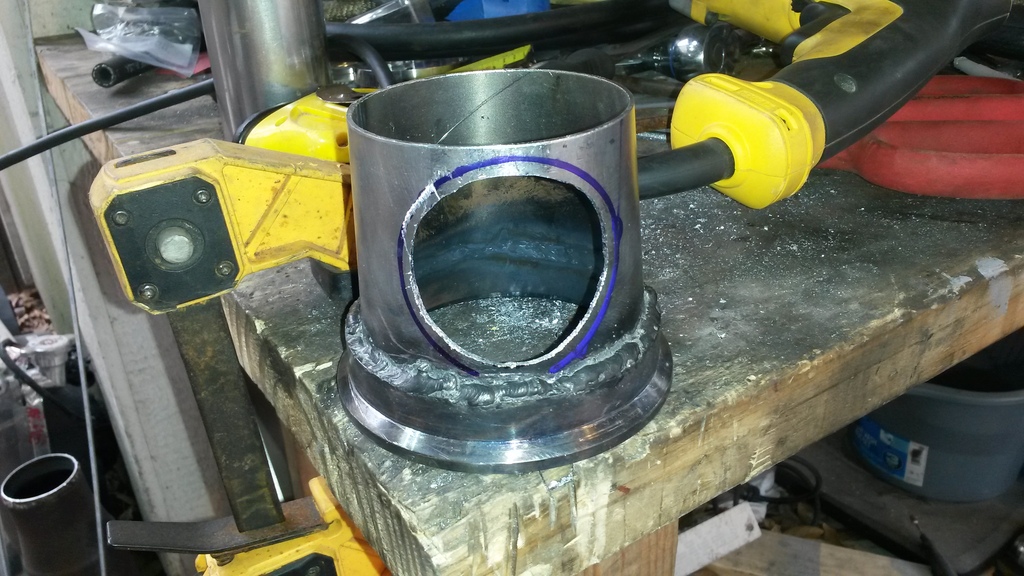

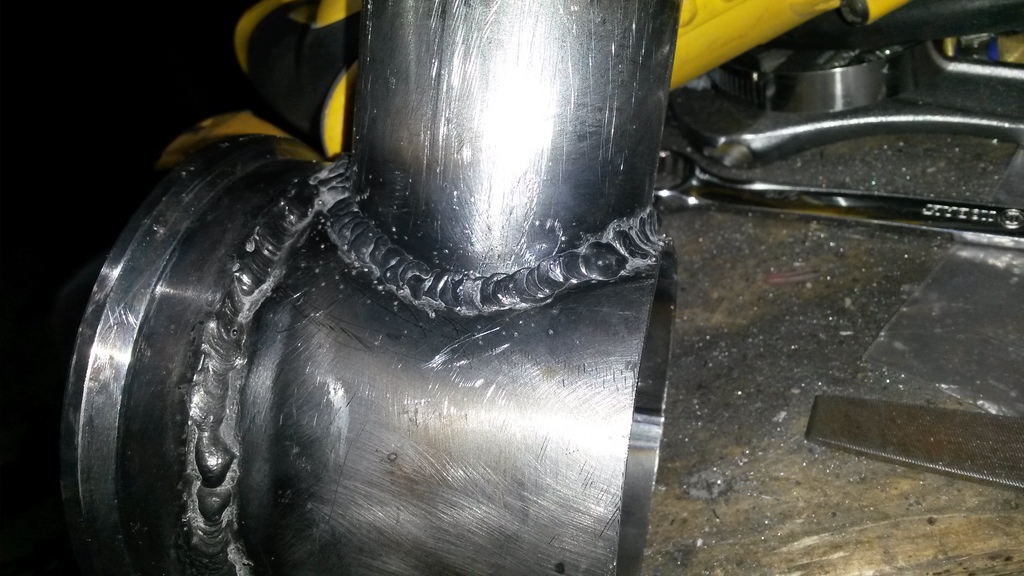

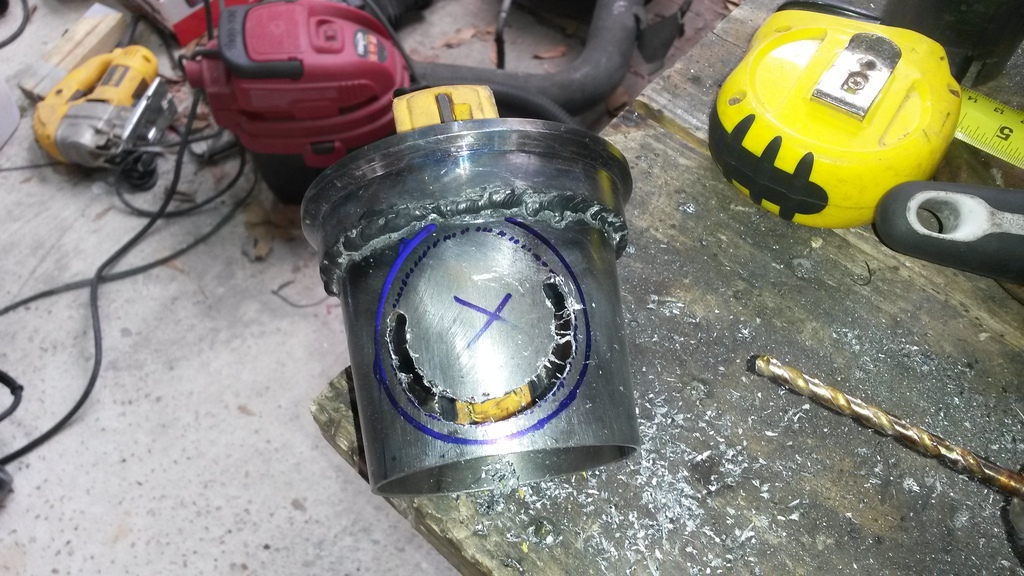

Working on the rear wastegate right now, going slow but it's going. Having to cope pipes to make everything fit right, and dumping the gate back into the exhaust right after the turbo for packaging so I can immediately put it into a cat or muffler.

I guess I'm getting close? Once this part is made, and I pull/weld out/reinstall the exhaust again, that's it on exhaust for now. Then it's charge pipes/BOV/oil lines/pump/pump wiring/radiator/coolant/oil/little crap and hit they key. Maybe it will run this weekend. Hate to say today and be wrong.... But possibly.
patsmx5 is offline   Reply With Quote
Old 02-14-2016, 03:10 AM   #260
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,953
Total Cats: 127
Default

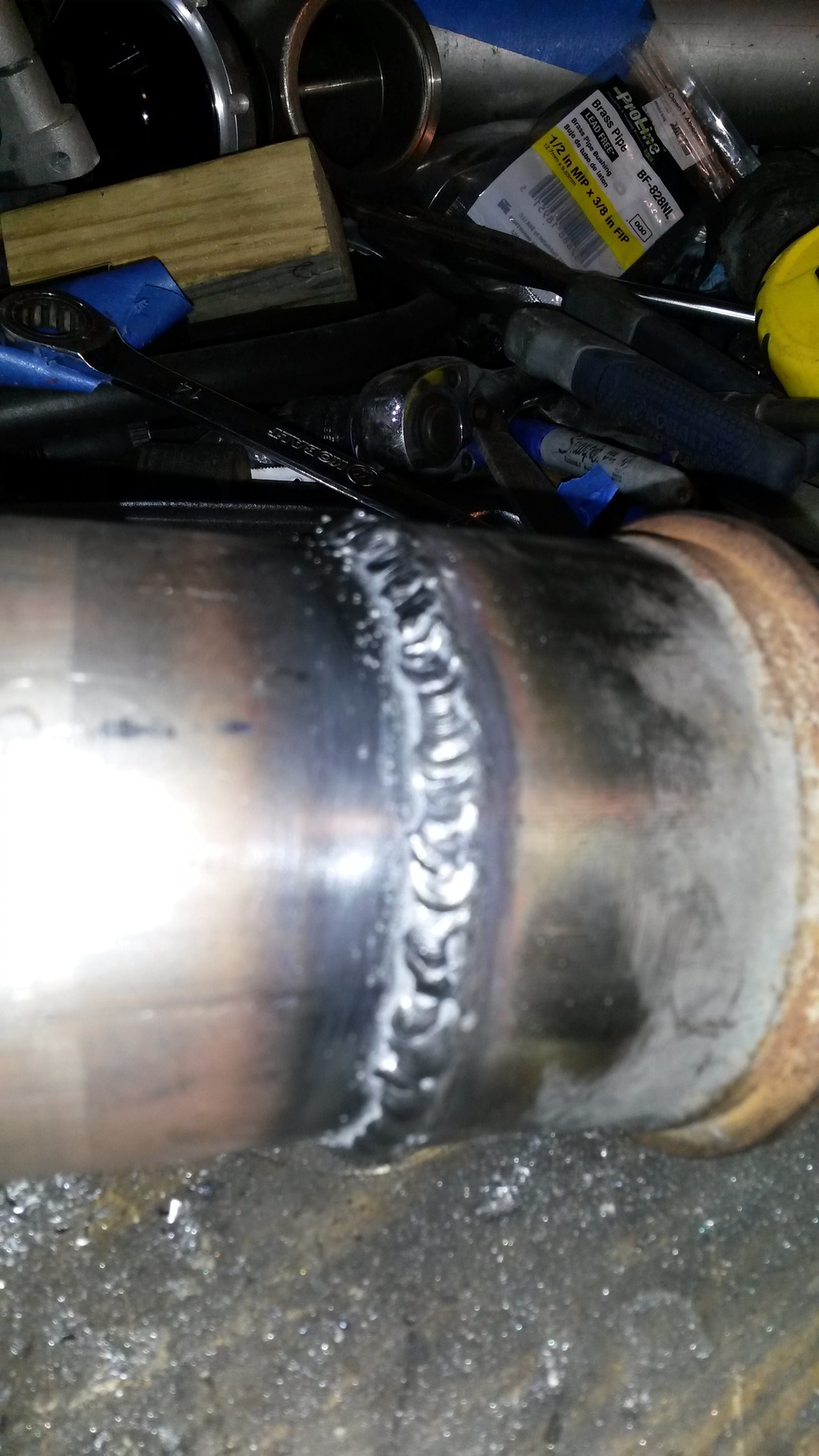

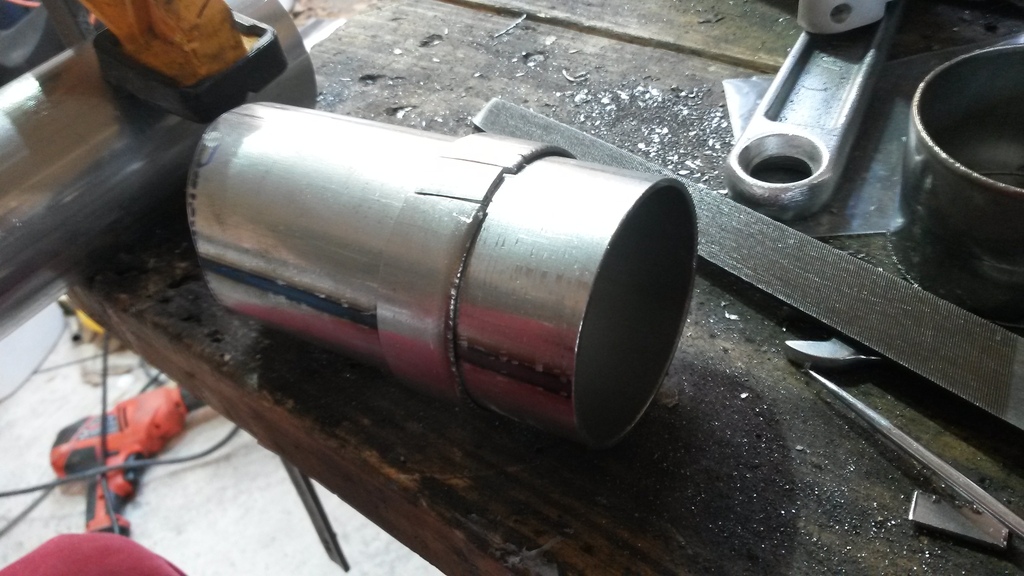

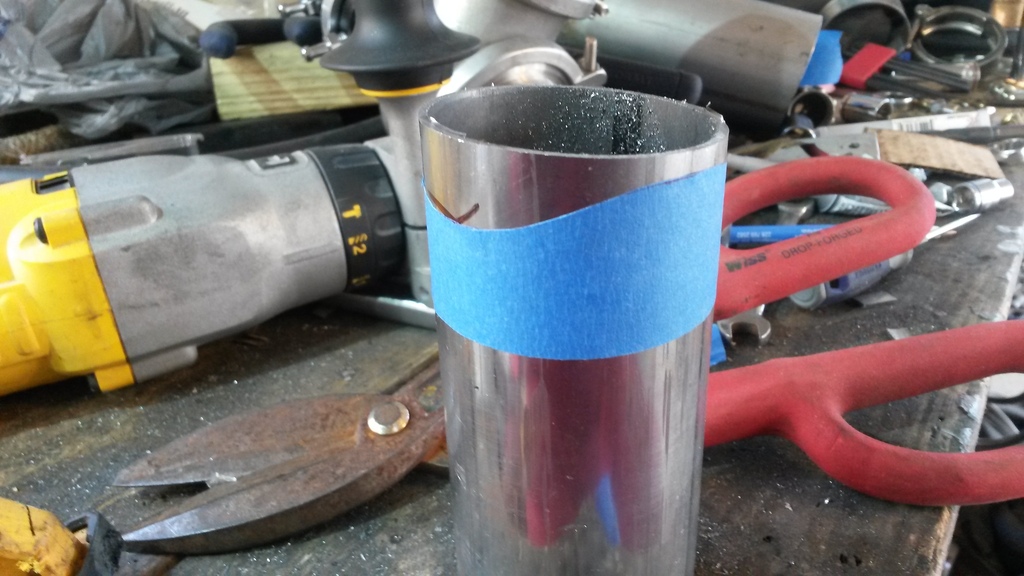

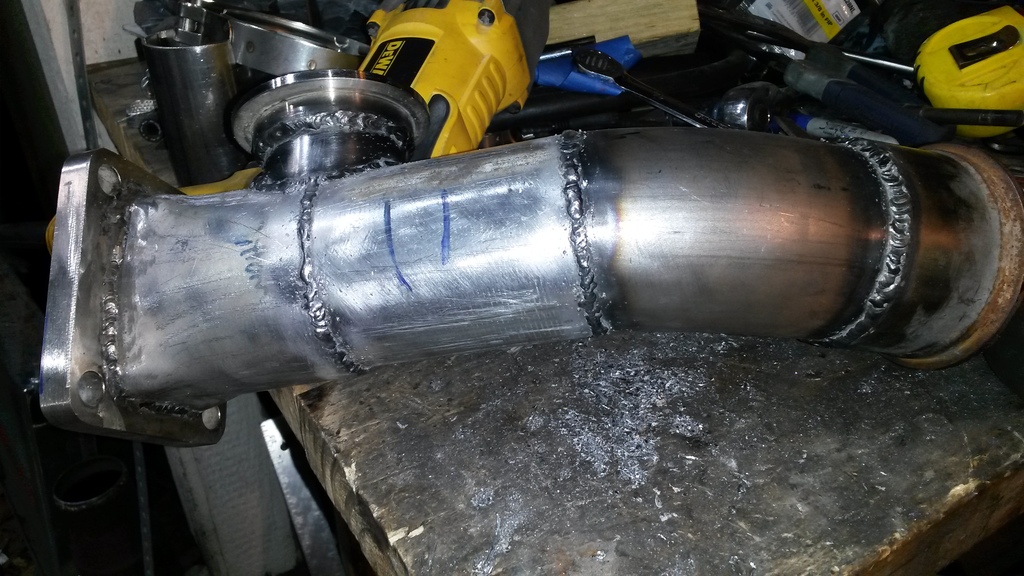

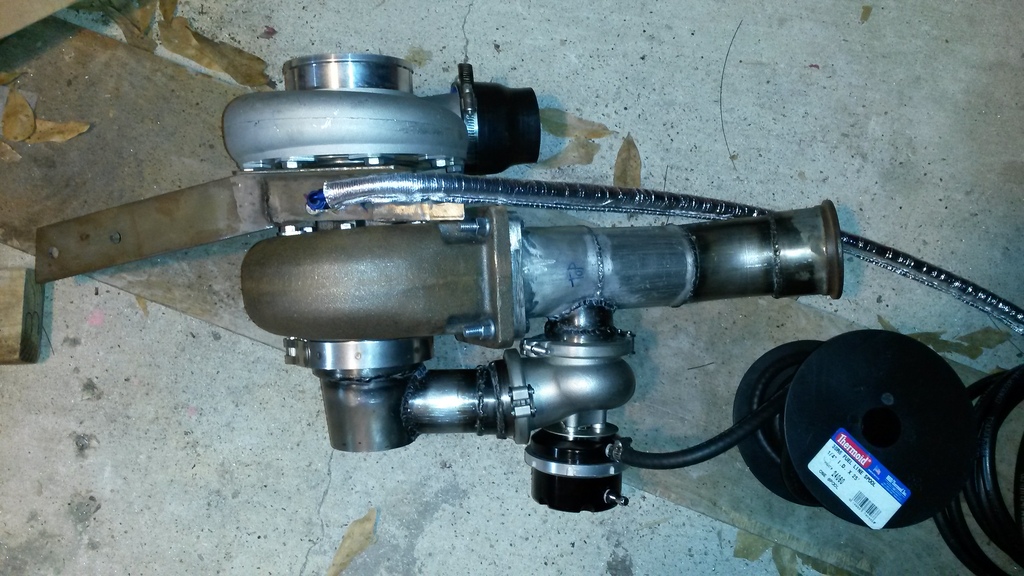

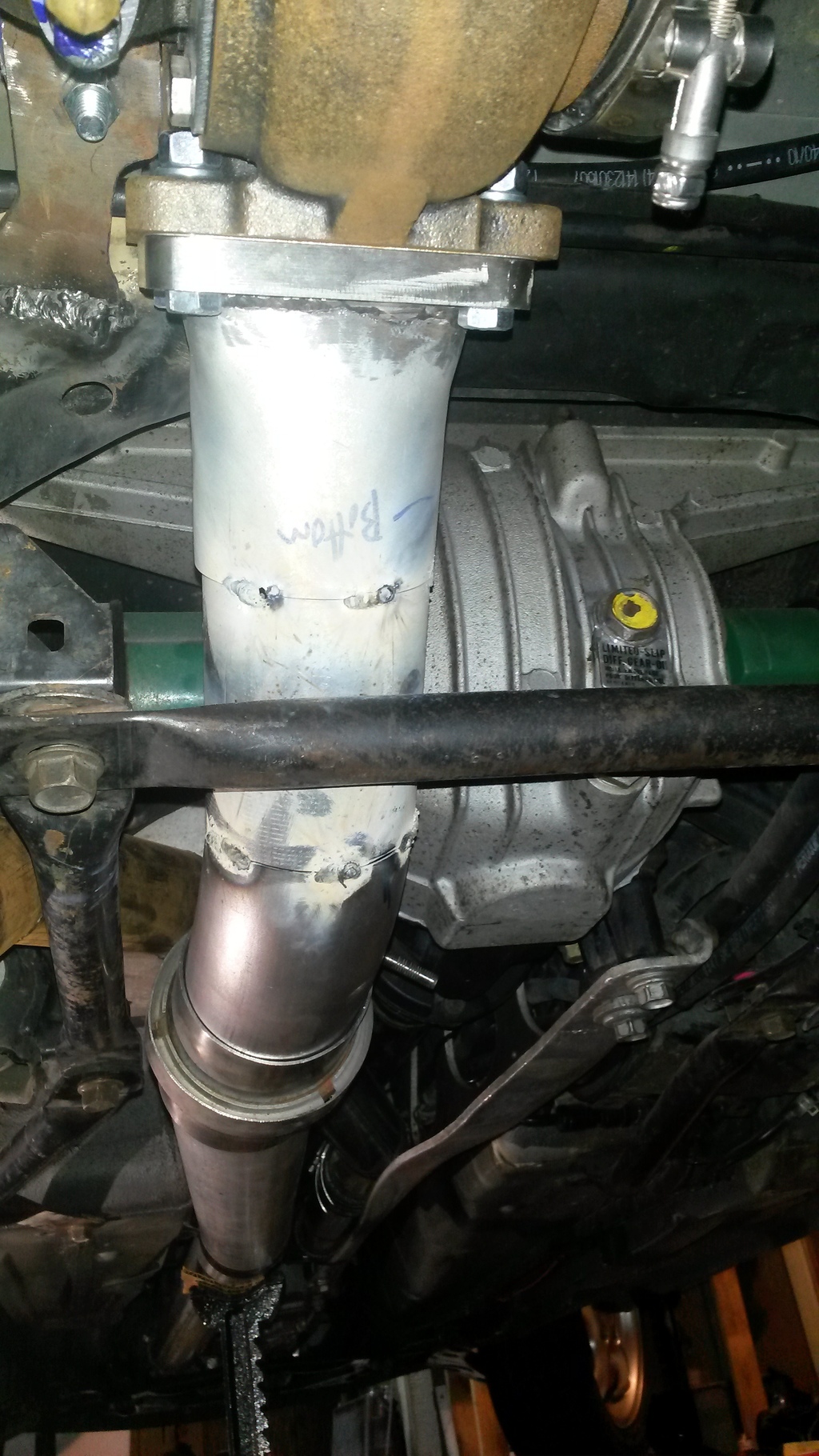

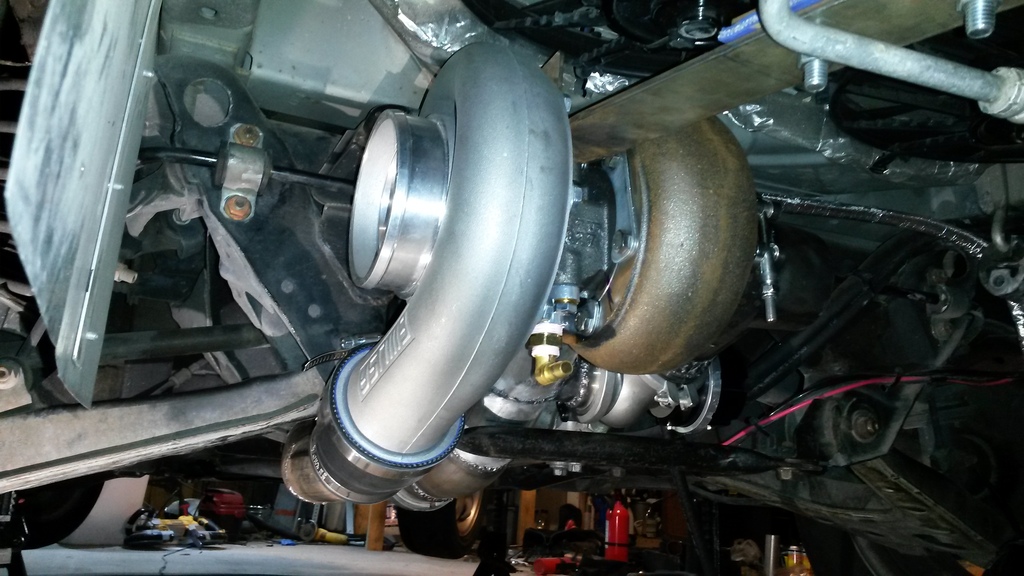

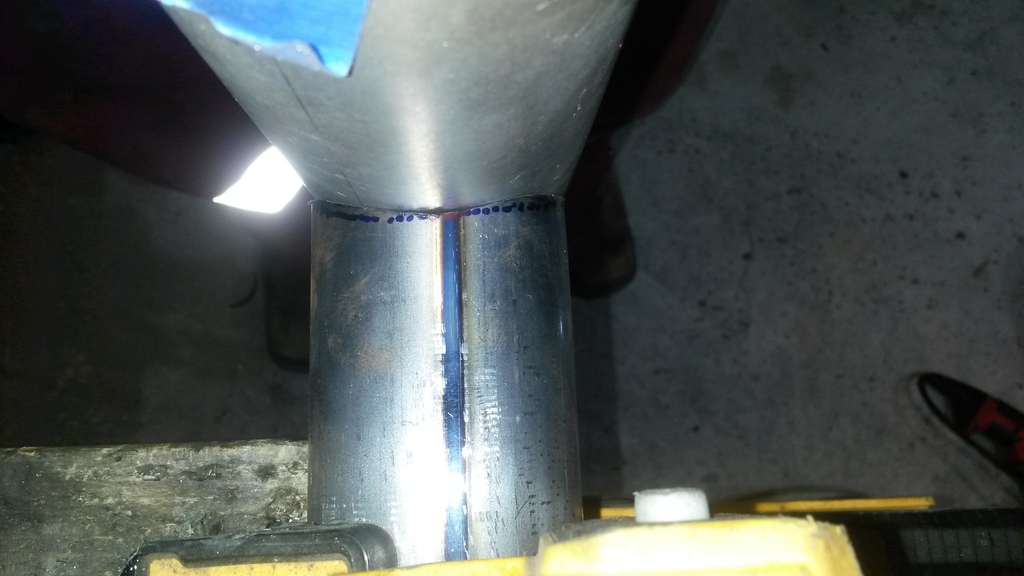

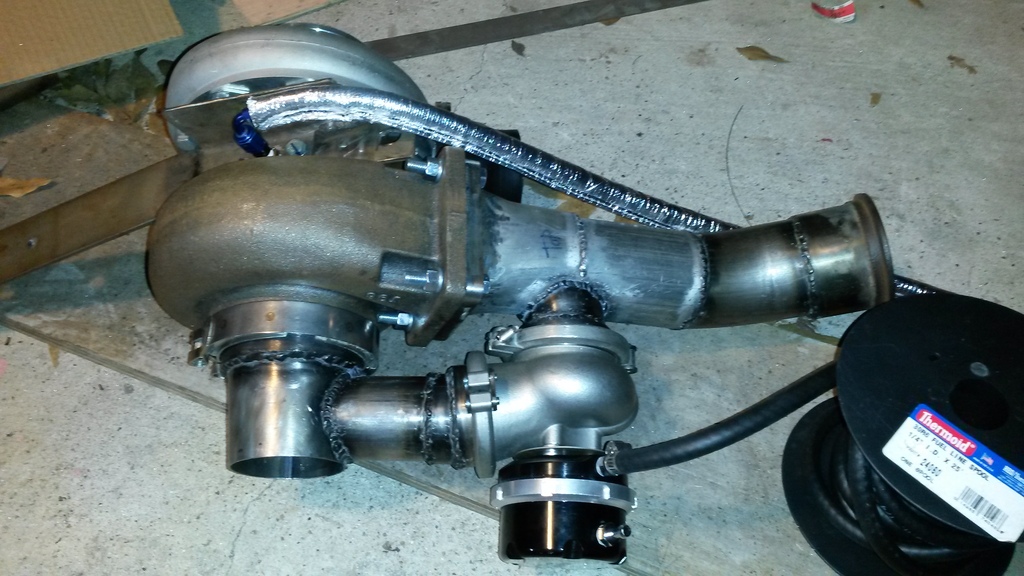

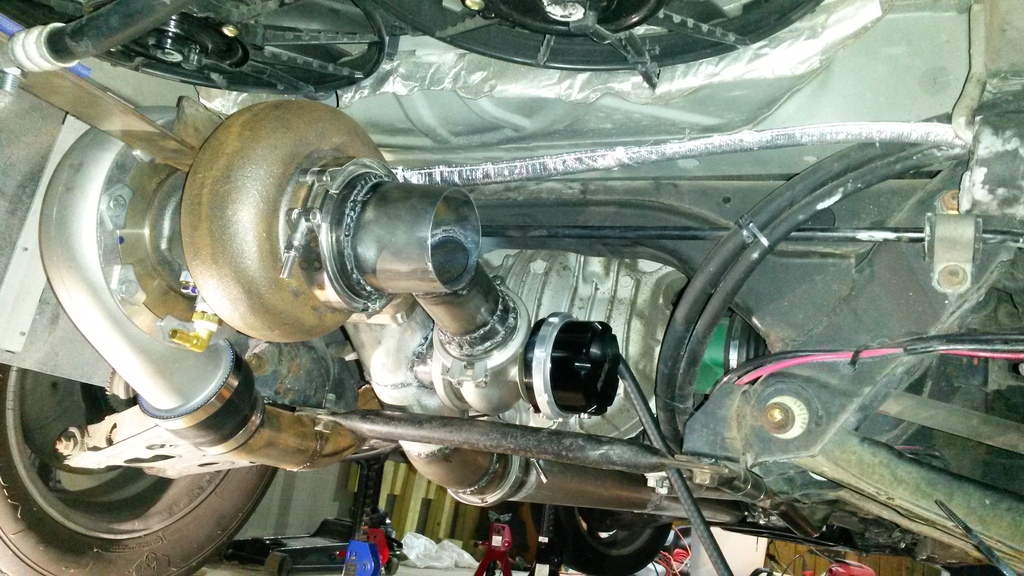

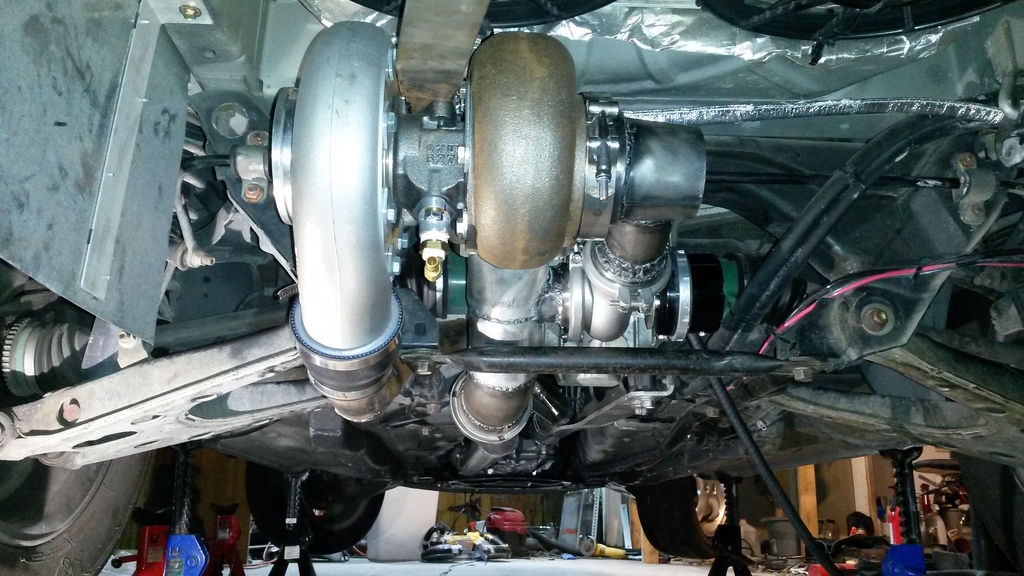

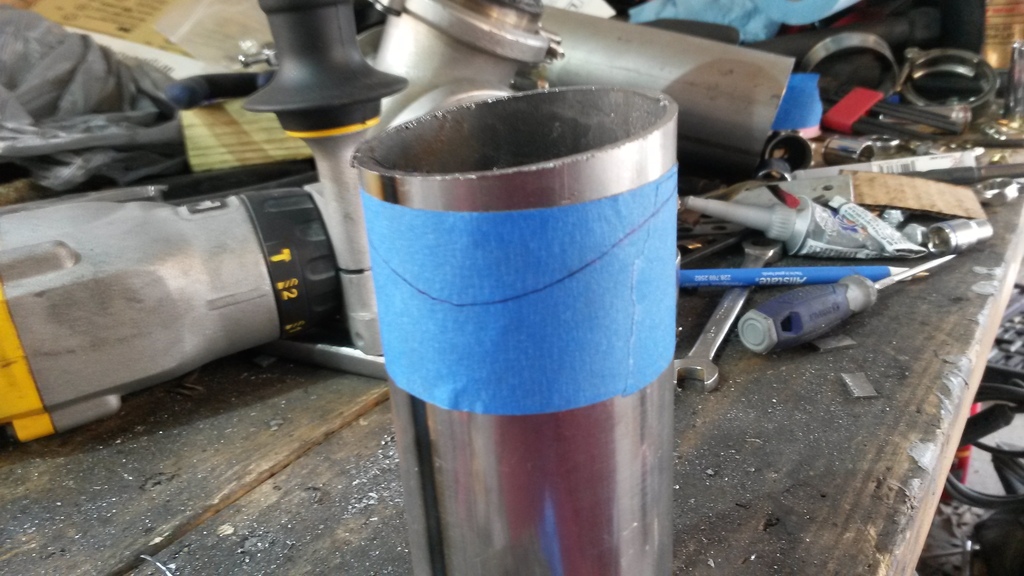

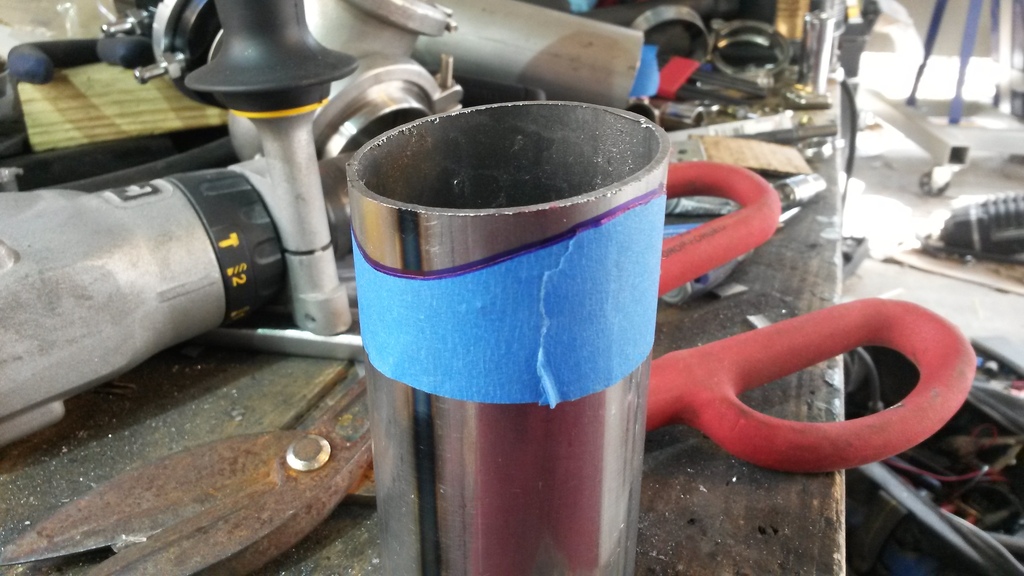

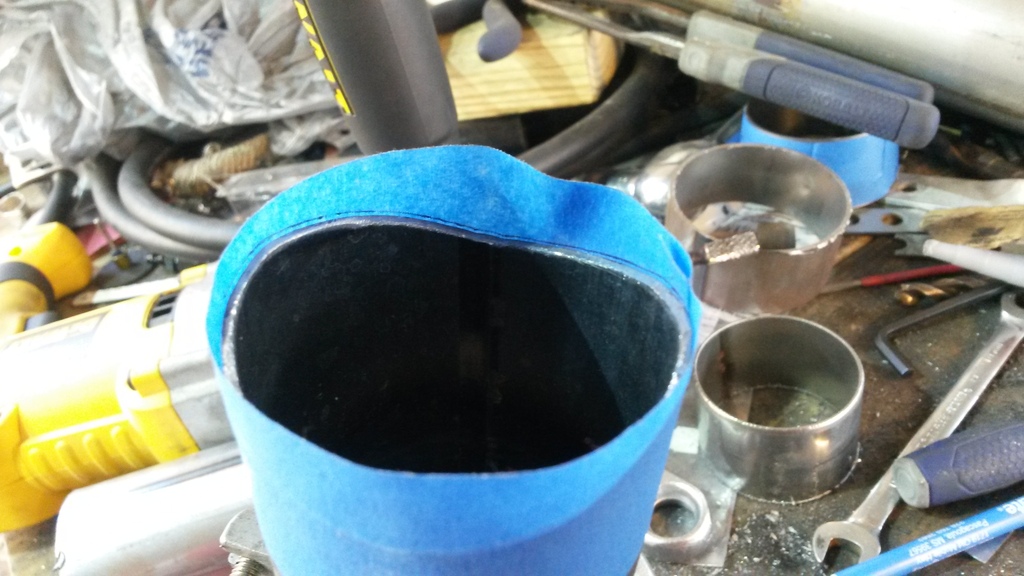

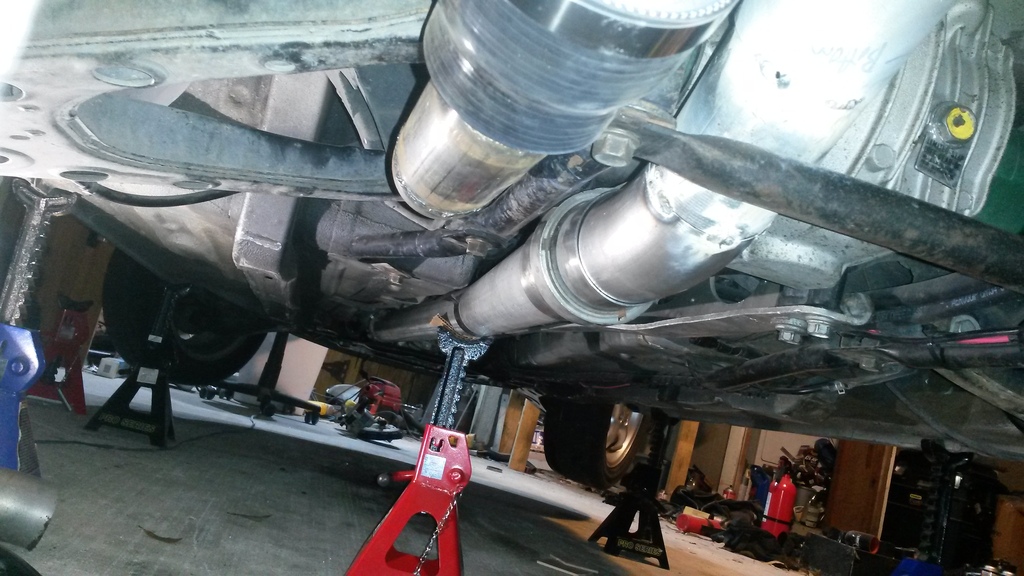

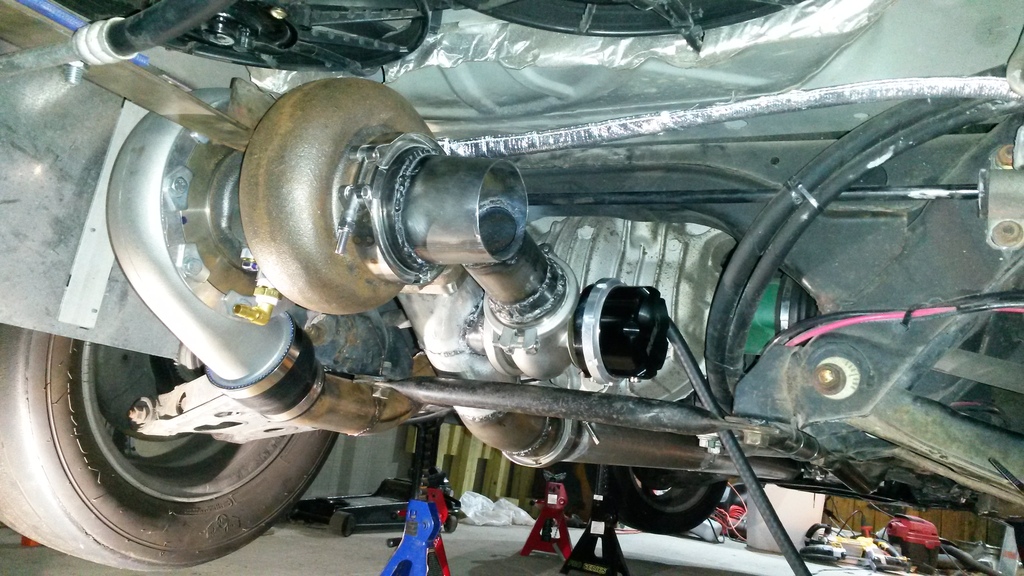

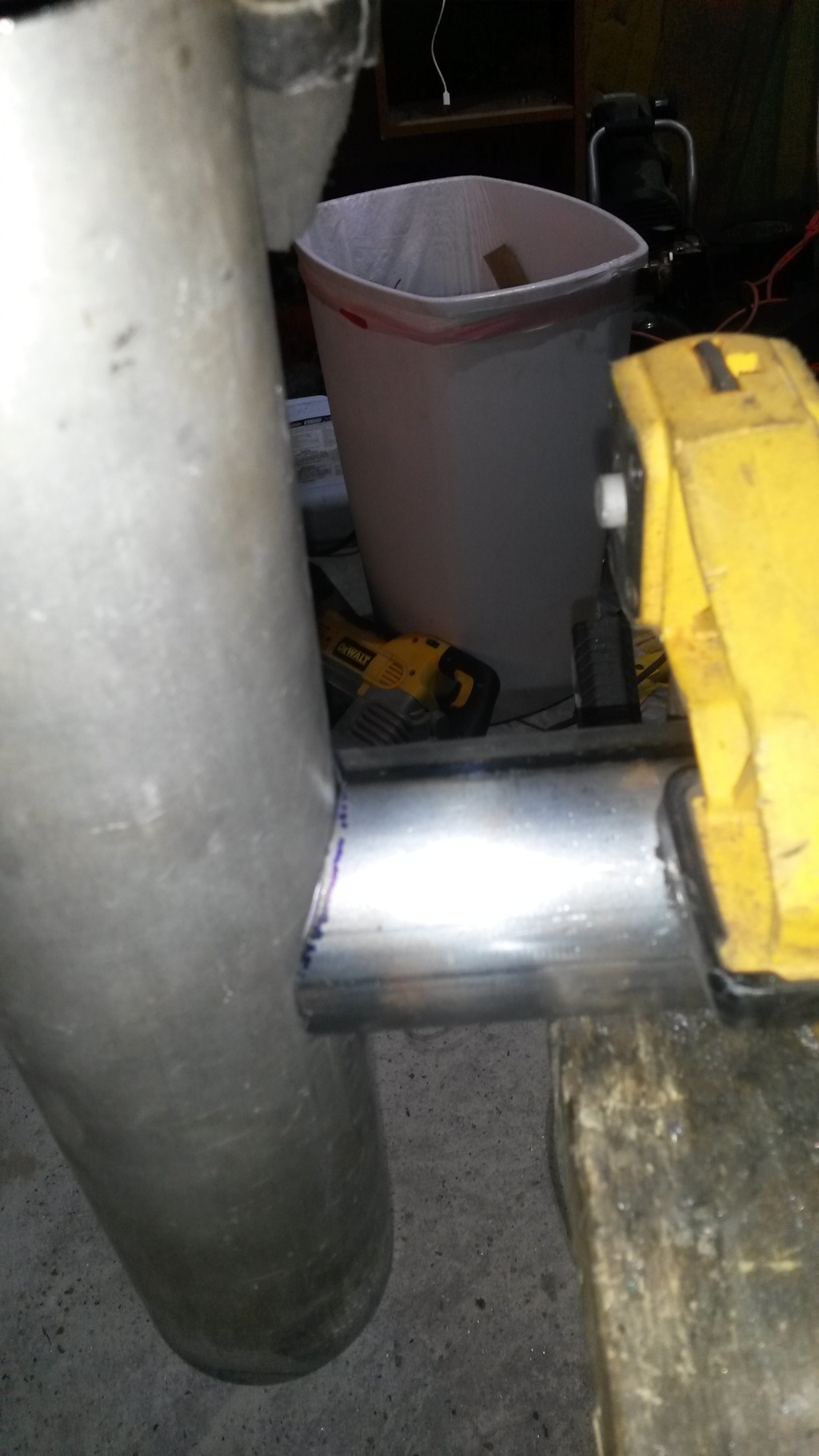

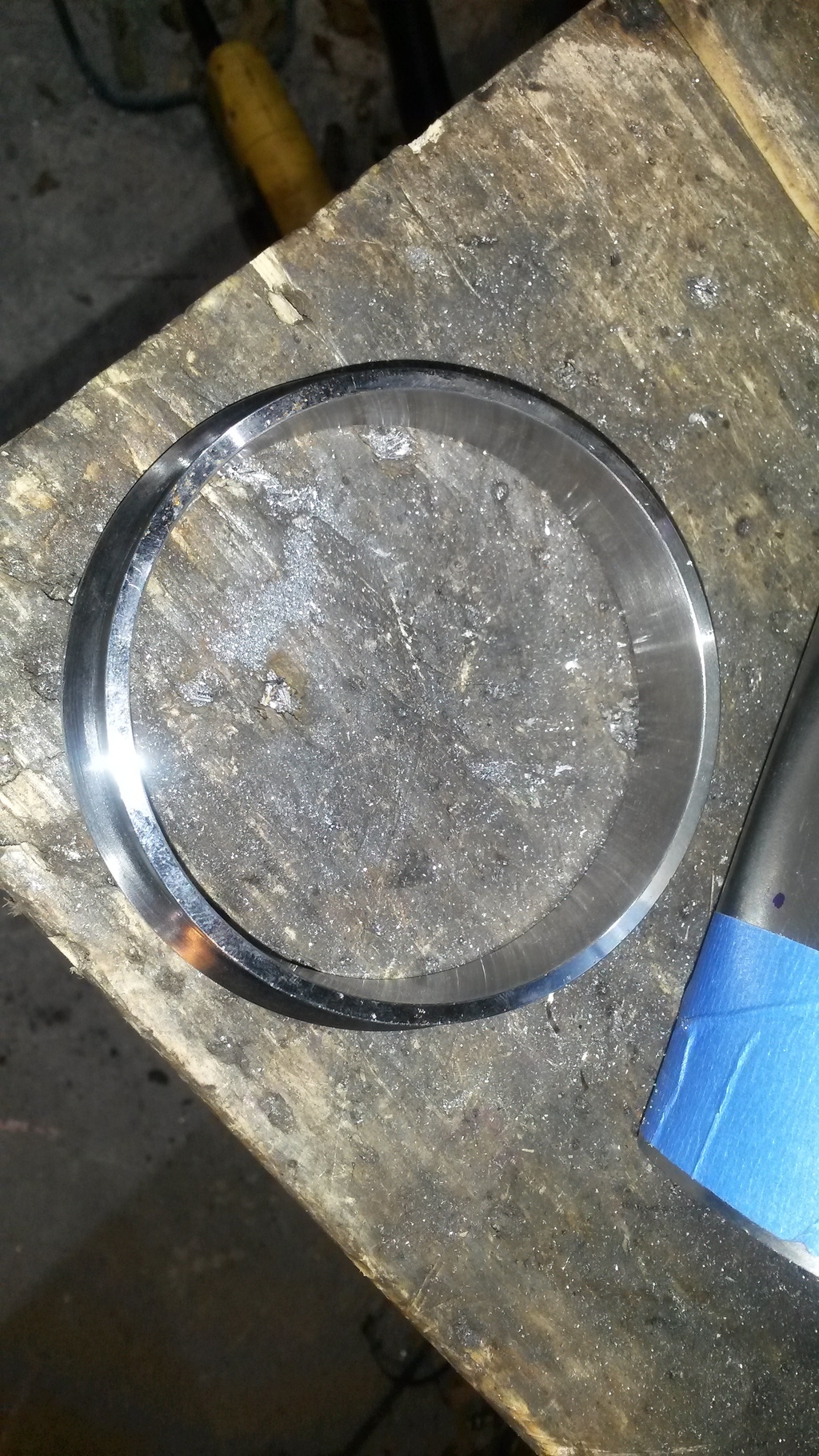

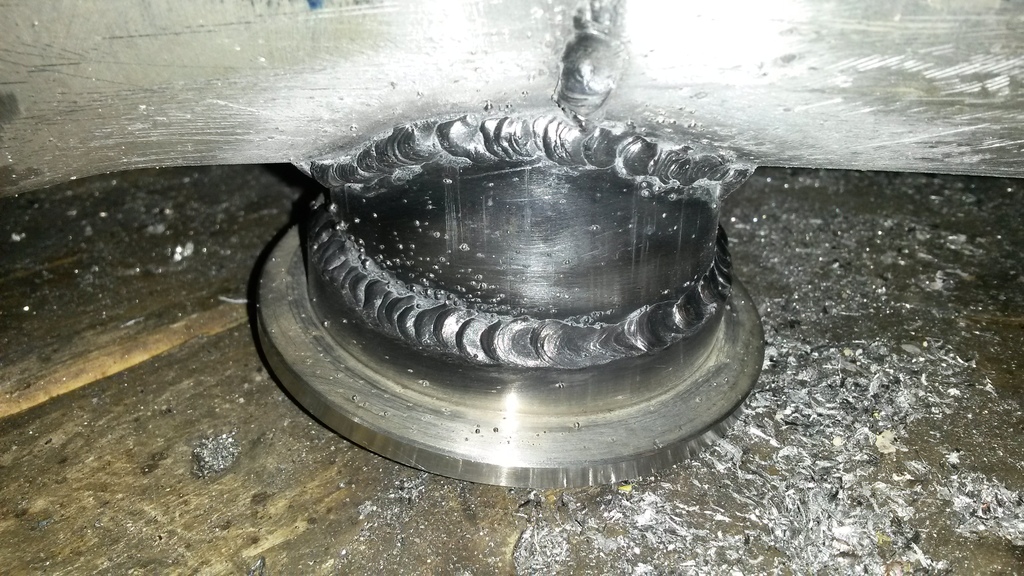

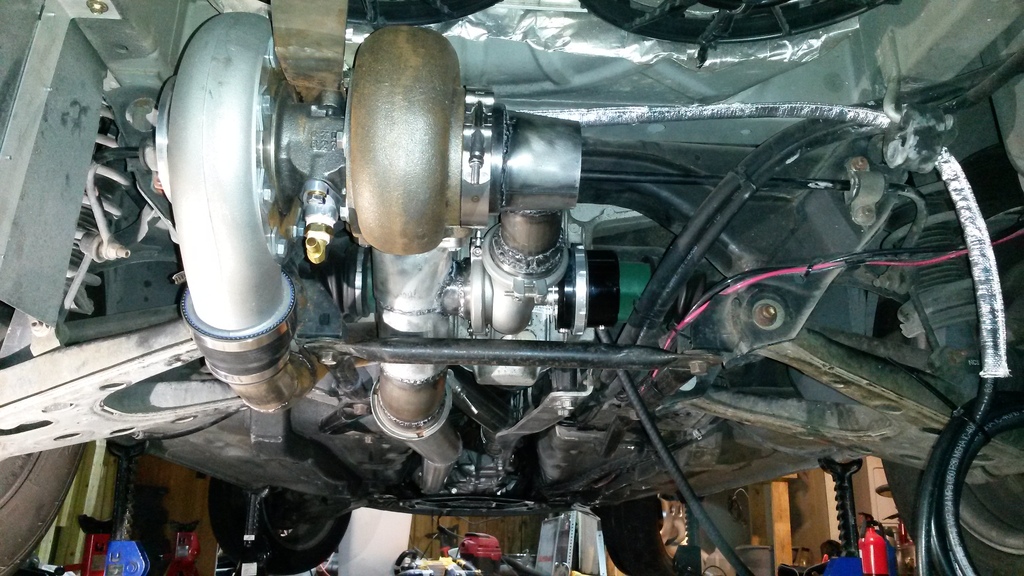

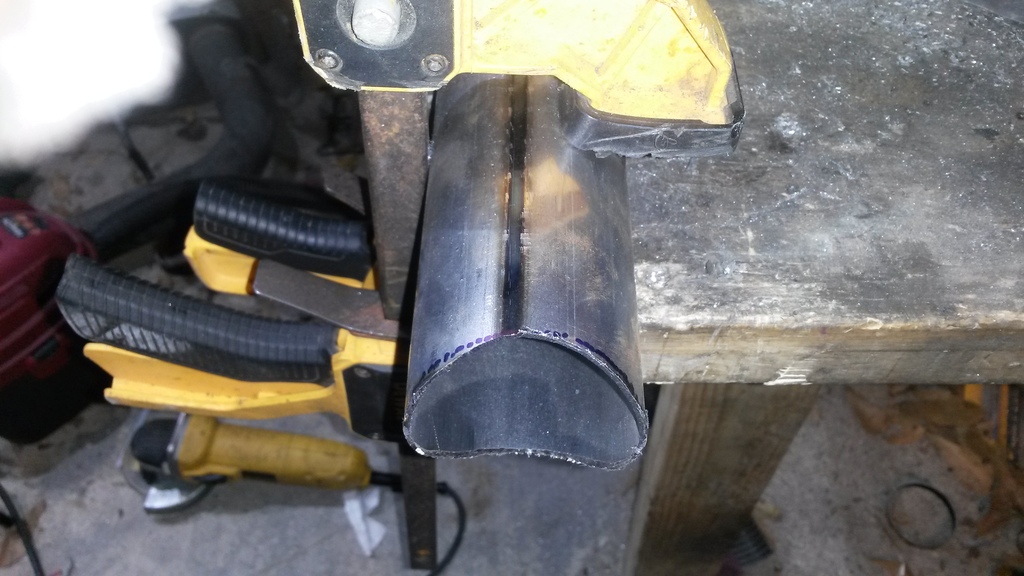

Pics kinda tell the story, but exhaust is done all the way till rear turbo, and out 3" out the big turbo. Will order a cat and muffler soon to finish that up. More on exhaust later.

Hornet, you'll see I put a fire sleeve over the oil feed line for now. If it ever leaks, will change it of course. But that should help with any heat problems at least.

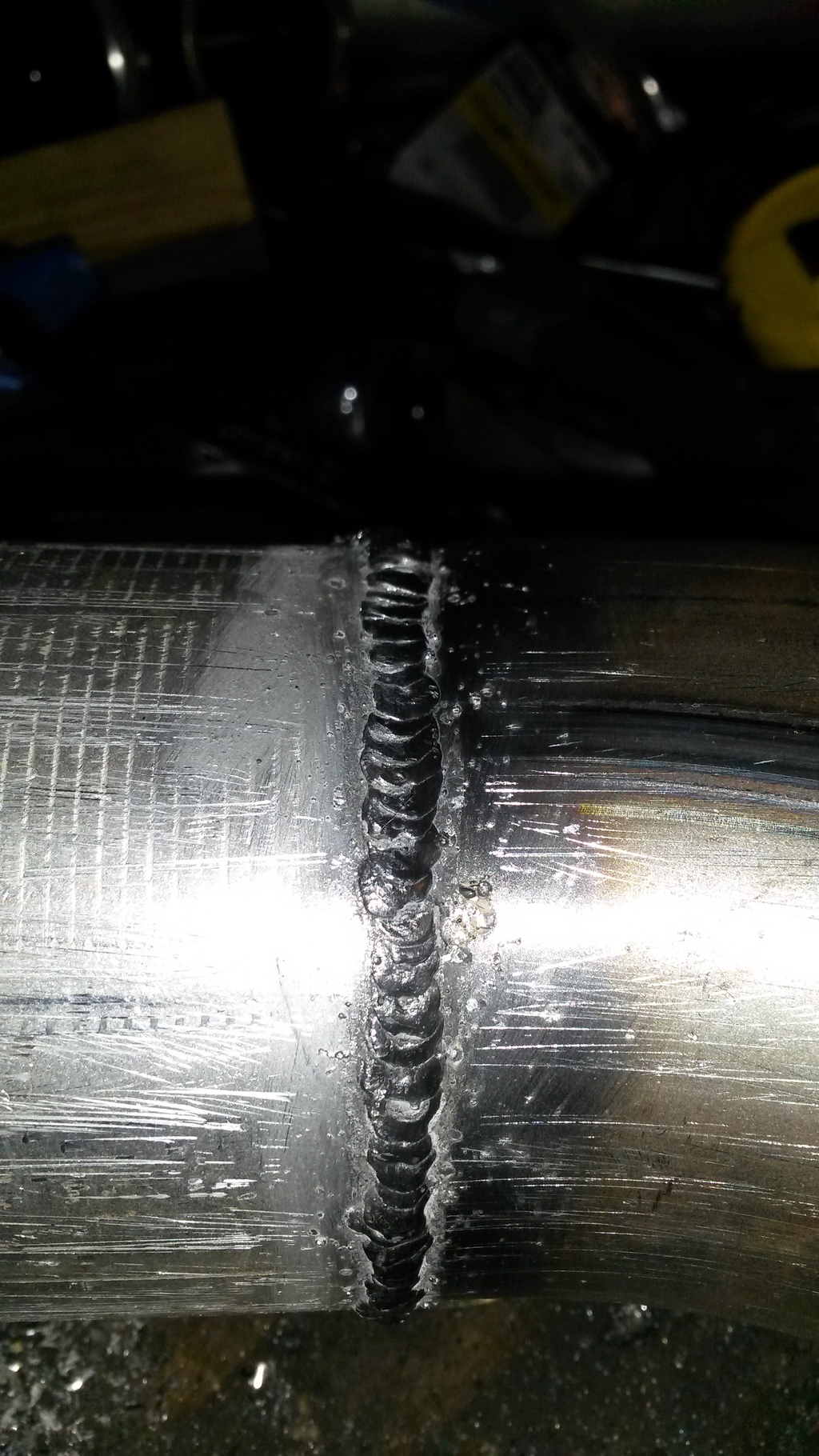

And, my crap welder died. So I bought a Lincoln MIG 140HD. It has the stuff for using gas (so did my old one too) but I'm still using flux core for now. But this one actually works, so the welds are way better than that old POS. The old one the wire speed was whatever it felt like being. Most stuff was already welded before it died, but the last welds look way better.

Also tested the oil pump. I posted pics while back, but I tore it apart and cleaned it up. It looked like crap before, gears rubbed everything. It's now bout 10x quieter vs before.

I tested it to see if it will lift oil. The pump was super clean/dry since I cleaned it with brake parts cleaner. It lifted oil 2' up with a dead battery and dry pump. As soon as it got oil and primed, this thing honks oil out. Will probably end up building a PWM system to slow the pump down, it's honking like 5 GPM probably, it's way more than ever needed for this application.

But since it works great at lifting too, it will be up a few inches relative to the turbo drain for packaging. I just wanted to test and make sure that wouldn't' be a problem, and it's not.

Next is mount the oil pump, wire it, oil lines for rear turbo, oil feed for front turbo, fab hotside IC pipe, patch coldside IC pipe, wastegate hose for rear turbo, wastegate hoses for front turbo, oil filter, oil, coolant, maybe put the radiator in before I add coolant, few other minor things and hit the key. So may fire tomorrow it looks like! Will have to make a video I think.





























































Attached Thumbnails
Pat's Ebay Turbo Compound Boost Build-20160212_165744_zps31hnuasw.jpg   Pat's Ebay Turbo Compound Boost Build-20160212_165752_zpsxo0lpvxm.jpg   Pat's Ebay Turbo Compound Boost Build-20160212_170039_zpsgmwnrqxl.jpg   Pat's Ebay Turbo Compound Boost Build-20160212_191631_zps04mwd6xo.jpg   Pat's Ebay Turbo Compound Boost Build-20160212_191648_zpsihwitcoj.jpg

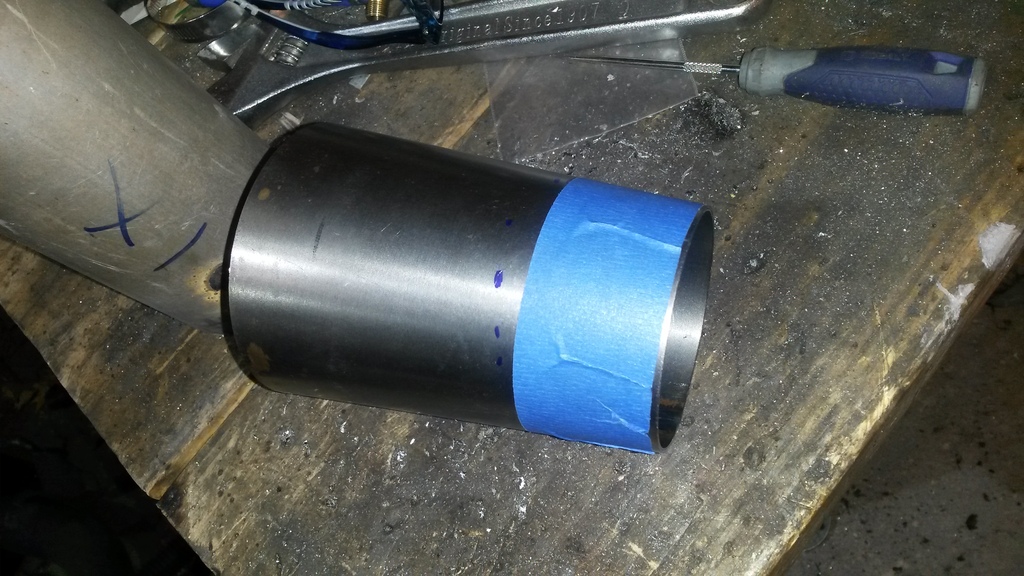

Pat's Ebay Turbo Compound Boost Build-20160212_205158_zpstthxiouq.jpg   Pat's Ebay Turbo Compound Boost Build-20160212_205204_zpswlcje7mb.jpg   Pat's Ebay Turbo Compound Boost Build-20160212_214704_zpsesteg7ka.jpg   Pat's Ebay Turbo Compound Boost Build-20160212_214713_zpsl1dawck3.jpg   Pat's Ebay Turbo Compound Boost Build-20160212_214736_zpss7jntggn.jpg

Pat's Ebay Turbo Compound Boost Build-20160213_104608_zpshnni7vuz.jpg   Pat's Ebay Turbo Compound Boost Build-20160213_113125_zps6sgvtkhb.jpg   Pat's Ebay Turbo Compound Boost Build-20160213_113306_zps9wt4xbn5.jpg   Pat's Ebay Turbo Compound Boost Build-20160213_113504_zpswrqui4lv.jpg   Pat's Ebay Turbo Compound Boost Build-20160213_113554_zpsm4vsamwh.jpg

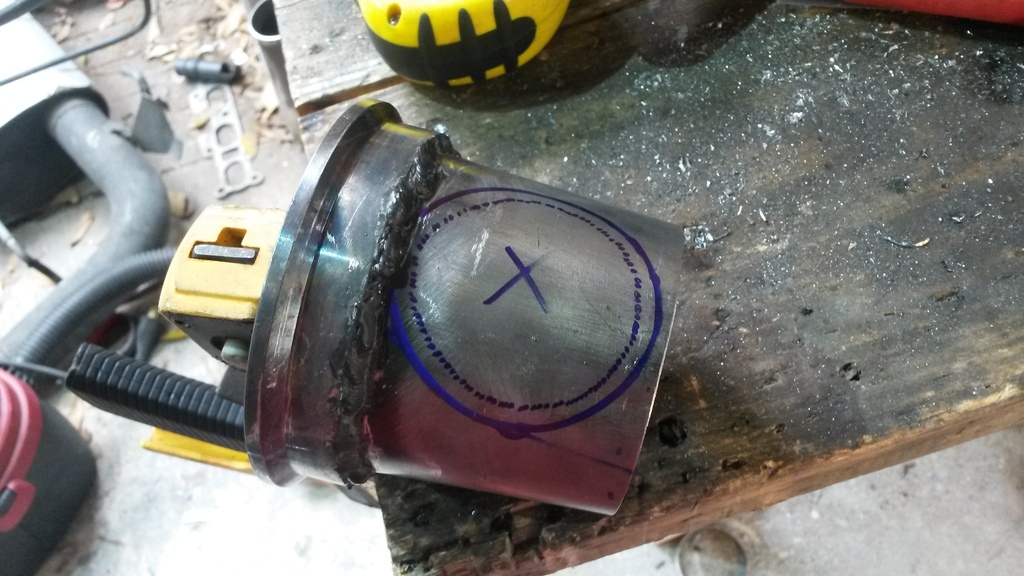

Pat's Ebay Turbo Compound Boost Build-20160213_130756_zpspqtgeeny.jpg   Pat's Ebay Turbo Compound Boost Build-20160213_131230_zpsqvl9hzcu.jpg   Pat's Ebay Turbo Compound Boost Build-20160213_131944_zpscsspckkk.jpg   Pat's Ebay Turbo Compound Boost Build-20160213_190013_zpst98e9tsc.jpg   Pat's Ebay Turbo Compound Boost Build-20160213_190019_zpsjylhgqrm.jpg

Pat's Ebay Turbo Compound Boost Build-20160213_190038_zpsvmus2qfc.jpg   Pat's Ebay Turbo Compound Boost Build-20160213_190042_zps2pgnxoa9.jpg   Pat's Ebay Turbo Compound Boost Build-20160213_191248_zpsttfvuhld.jpg   Pat's Ebay Turbo Compound Boost Build-20160213_213055_zpsy5uww6au.jpg   Pat's Ebay Turbo Compound Boost Build-20160213_213108_zps1jkbp8mw.jpg

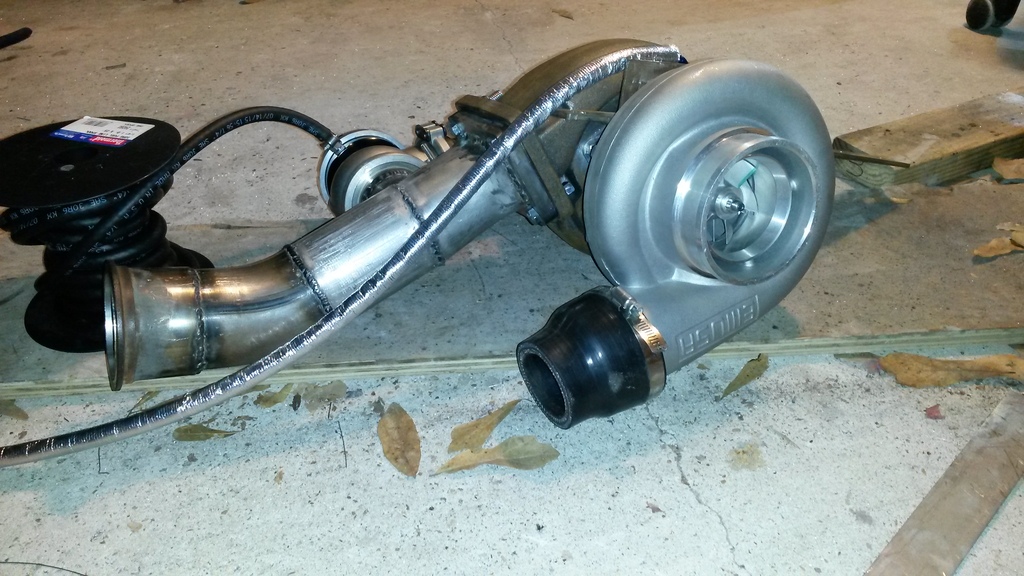

Pat's Ebay Turbo Compound Boost Build-20160213_213132_zpsoxpiz5hg.jpg   Pat's Ebay Turbo Compound Boost Build-20160213_223344_zpssuofykcm.jpg   Pat's Ebay Turbo Compound Boost Build-20160213_223349_zpsbeeahtos.jpg   Pat's Ebay Turbo Compound Boost Build-20160213_223400_zpsdisoqrk4.jpg   Pat's Ebay Turbo Compound Boost Build-20160213_223403_zpsmifod1wa.jpg

Pat's Ebay Turbo Compound Boost Build-20160213_223417_zpsrnyfyzhc.jpg
patsmx5 is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
Garrett BB CHRA pressure differential from loose V-Band housing cause oil leak Landrew Engine Performance 13 02-15-2016 05:12 PM
Whipple Virtual Dyno Results patsmx5 Supercharger Discussion 68 02-08-2016 06:44 PM
Help with my noise rear 90 Turbo Suspension, Brakes, Drivetrain 5 01-14-2016 09:49 PM
Turbo Miata & ODB2 eurojulien DIY Turbo Discussion 10 01-13-2016 09:59 AM
Cost Effective Upgrades?? andyvo DIY Turbo Discussion 23 01-06-2016 08:27 AM


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On



All times are GMT -4. The time now is 03:50 PM.
