Old 02-20-2016, 03:00 AM   #381
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,950
Total Cats: 126
Default

Quote:
Originally Posted by 18psi View Post
Gotcha, makes sense.
As for afr, e85 can still be kept at 12 unlike pump where you'd want to fatten it up with serious boost.
Sweet. And it's fat in the VD'd I posted up top. Probably find more power when I fix that, found 30whp several PSI ago going from low 11's to high 11's.
patsmx5 is offline   Reply With Quote
Old 02-20-2016, 03:05 AM   #382
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,950
Total Cats: 126
Default

Quote:
Originally Posted by 18psi View Post
Gotcha, makes sense.
As for afr, e85 can still be kept at 12 unlike pump where you'd want to fatten it up with serious boost.

looks like it dips quite a bit past 7, lean it back out, you'll gain more IDC and pick up power.

that power should be good for 130mph trap speeds, and put a hurting on most street cars that are not tx2k cars
Thanks. Yeah it rips to redline now. I moved it from 8,500 to 8,800 cause I kept hitting the limiter on pulls (which messes up VD) and I still hit it twice today.... I need to hook up a shift light.

Will pull some fuel and add some boost tomorrow.
patsmx5 is offline   Reply With Quote
Old 02-20-2016, 03:09 AM   #383
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,950
Total Cats: 126
Default

Quote:
Originally Posted by 18psi View Post
I bet it's a monster, but I care more about the shape of the curve than peak numbers
On this part, just to elaborate, my goal is to get the power as high as possible while keeping the torque down for transmission reliability. Hoping to make 500whp and be able to shift at 8,500, fall to 6,000-6,500 and only have 350tq or so there. Basically the fastest it can be with a 6 speed and reliable.

But yes if you stand on the pedal in high gears it spools and makes torque down low too. I posted a 5th gear dyno here but it's not a full to 8K one.
patsmx5 is offline   Reply With Quote
Old 02-20-2016, 08:00 AM   #384
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,632
Total Cats: 463
Default

Another thing a dyno is good for pat! Nailing that fuel curve. Repetitive pulls over and over again to get the entire rev range, and you have a lot by 8800.
curly is offline   Reply With Quote
Old 02-20-2016, 01:22 PM   #385
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,950
Total Cats: 126
Default

Sure. I can do that without a dyno though.

I do need to get fuel tuned though, it's off now even in moderate load areas.

Installing 4 bar map now.
patsmx5 is offline   Reply With Quote
Old 02-20-2016, 01:47 PM   #386
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,150
Total Cats: 1,989
Default

Quote:
Originally Posted by patsmx5 View Post
On this part, just to elaborate, my goal is to get the power as high as possible while keeping the torque down for transmission reliability. Hoping to make 500whp and be able to shift at 8,500, fall to 6,000-6,500 and only have 350tq or so there. Basically the fastest it can be with a 6 speed and reliable.

But yes if you stand on the pedal in high gears it spools and makes torque down low too. I posted a 5th gear dyno here but it's not a full to 8K one.
run mbc on the 1st turbo set at moderate level and get ebc for the 2nd and just taper up the boost
18psi is offline   Reply With Quote
Old 02-20-2016, 02:39 PM   #387
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,950
Total Cats: 126
Default

Quote:
Originally Posted by 18psi View Post
run mbc on the 1st turbo set at moderate level and get ebc for the 2nd and just taper up the boost
Pretty much. Going to put a MBC on the little turbo next (it's a 2871, I checked) and then turn it up some since I think keeping them at equal boost is best. But eventually will do ebc on big turbo for torque line if I can't do it without ebc.
patsmx5 is offline   Reply With Quote
Old 02-20-2016, 02:58 PM   #388
Junior Member

mmmjesse's Avatar

Join Date: Aug 2007
Posts: 335
Total Cats: 31
Default

i must say that this is a very cool build with the super sweet ebay parts.
mmmjesse is online now   Reply With Quote
Old 02-20-2016, 08:59 PM   #389
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,950
Total Cats: 126
Default

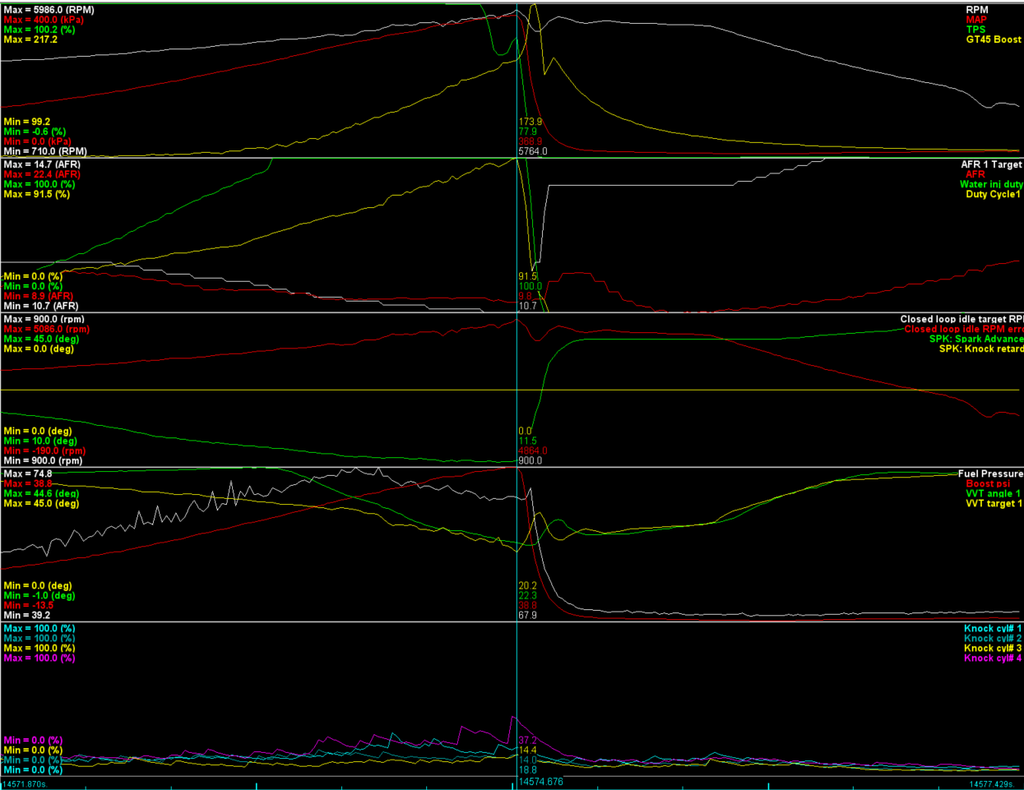

all of it

Attached Thumbnails
Pat's Ebay Turbo Compound Boost Build-booosssttt_zpsvv4sr0rs.png
patsmx5 is offline   Reply With Quote
Old 02-20-2016, 10:03 PM   #390
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 993
Total Cats: 38
Default

Needs more corn juice?
stefanst is offline   Reply With Quote
Old 02-20-2016, 10:48 PM   #391
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,150
Total Cats: 1,989
Default

needs less corn juice if that 9.8afr is correct

but yeah, this is pretty nuts lol
18psi is offline   Reply With Quote
Old 02-20-2016, 11:09 PM   #392
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,950
Total Cats: 126
Default

These are with a misfire. I think I need to gap down the plugs. Still, running strong! And fuel needs work too...

Out of fuel at this point, pretty sure it probably needs more timing or better tuning/could make more power. 37 PSI boost. I think I can find a bit more power by lowering the front turbo's boost and upping the rear turbos boost as they aren't balanced right now. Still, for a budget turbo setup this thing is stupid fast!

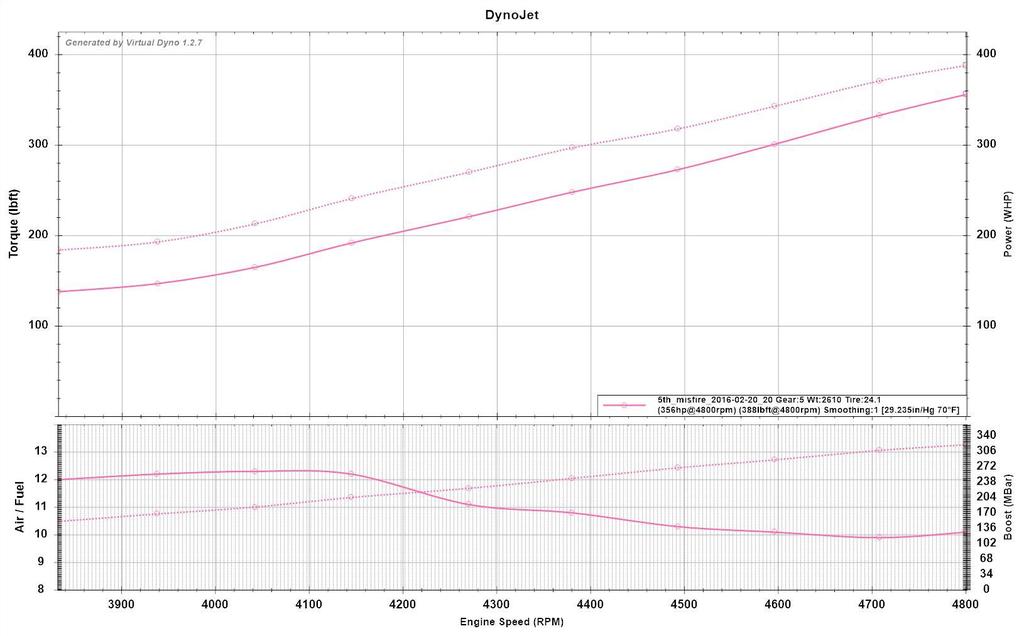

5th gear, had to stop RPMs after this, it fell on its face.

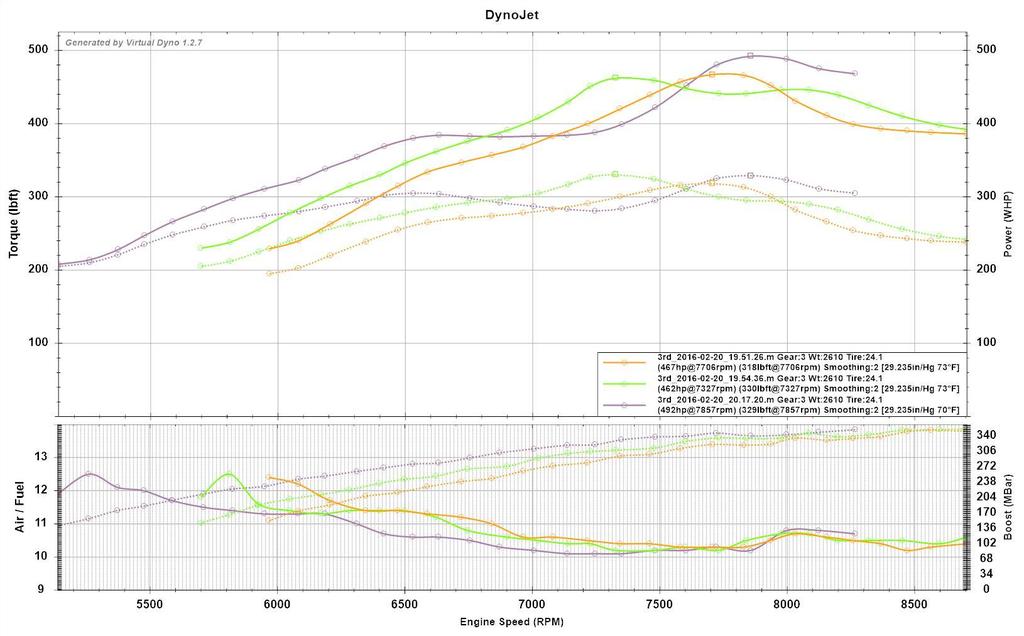

3rd gear, no misfire or not much/not noticeable.


Still, 492whp VD in 3rd is bananas! No doubt it's over 500whp on a 5th gear pull.
Attached Thumbnails
Pat's Ebay Turbo Compound Boost Build-5th_zpsup7re6kq.jpg   Pat's Ebay Turbo Compound Boost Build-more%2520than%2520all%2520of%2520it_zpstwodjbgq.jpg
patsmx5 is offline   Reply With Quote
Old 02-20-2016, 11:17 PM   #393
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,150
Total Cats: 1,989
Default

18psi is offline   Reply With Quote
Old 02-20-2016, 11:34 PM   #394
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 993
Total Cats: 38
Default

I'm pretty sure you are our current master of absolutely insane crazy build. I mean that in the best possible way.
stefanst is offline   Reply With Quote
Old 02-21-2016, 12:26 AM   #395
Junior Member

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 408
Total Cats: 13
Default

I just went from 89whp to 170whp and my car feels amazing ....how the **** you manage to keep that car straight and on the road with street tires is beyond my comprehension.

Well ******* done mate
Sirnixalot is offline   Reply With Quote
Old 02-21-2016, 02:48 AM   #396
Senior Member
iTrader: (2)

Join Date: Dec 2011
Posts: 1,251
Total Cats: 102
Default

I sitting here wondering how explosive the feel of that power coming on must be. I'm seeing a 200+ increase in both whp AND wtq over just a 1000 rpm range . . . in a MIATA!

Is that about like riding my brother's highly modified banshee when it comes on the pipe?
good2go is offline   Reply With Quote
Old 02-21-2016, 03:08 AM   #397
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,532
Total Cats: 17
Default

Yeah its an amazing effort, thankyou so much for doing it.

Whats your compression and final timing at max torque/boost?

Dann
nitrodann is offline   Reply With Quote
Old 02-21-2016, 04:11 AM   #398
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,950
Total Cats: 126
Default

Quote:
Originally Posted by stefanst View Post
I'm pretty sure you are our current master of absolutely insane crazy build. I mean that in the best possible way.
Thanks! It's a ton of fun.

Quote:
Originally Posted by Sirnixalot View Post
I just went from 89whp to 170whp and my car feels amazing ....how the **** you manage to keep that car straight and on the road with street tires is beyond my comprehension.

Well ******* done mate
Thank you sir! I have Mickey Thompson drag radials on the car that I use for daily driving. They are super sticky and hook great.

Quote:
Originally Posted by good2go View Post
I sitting here wondering how explosive the feel of that power coming on must be. I'm seeing a 200+ increase in both whp AND wtq over just a 1000 rpm range . . . in a MIATA!

Is that about like riding my brother's highly modified banshee when it comes on the pipe?
It's not as explosive as the SC was as far as transient response, but yes it does go hard when it spools.

Quote:
Originally Posted by nitrodann View Post
Yeah its an amazing effort, thankyou so much for doing it.

Whats your compression and final timing at max torque/boost?

Dann
Thanks! It's 9:1 compression FM pistons, about 17 degrees of advance at 36 PSI.
patsmx5 is offline   Reply With Quote
Old 02-21-2016, 10:45 AM   #399
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 926
Total Cats: 15
Default

Where are you getting the pressure source for the small turbo wastegate?
Miater is offline   Reply With Quote
Old 02-21-2016, 12:20 PM   #400
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,121
Total Cats: 1,400
Default

what will it take for you to get on a real dyno?
Braineack is offline   Reply With Quote
