Old 02-21-2016, 12:25 PM   #401
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 986
Total Cats: 115
Default

Why does your vehicle weight change in almost every one of your VD plots?
TNTUBA is offline   Reply With Quote
Old 02-21-2016, 12:30 PM   #402
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,632
Total Cats: 463
Default

Because deleting 200lbs makes it more accurate. At least as accurate as a dyno. Not a dynojet though, those suck.
curly is offline   Reply With Quote
Old 02-21-2016, 12:32 PM   #403
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 986
Total Cats: 115
Default

I've never used the program. I was just curious. It seems to me that something like weight would be critical to the accuracy. Another variable you wouldn't need to worry about on a dyno. Right?

In line with things like road surface, wind speed, wind direction. I think the most important part of using something like that program as a tuning aid is to do the test the same way, in the same gear, on the same road and do it in both directions and somehow take an average.

I can see the merit for the software....just trying to get my head around it.
TNTUBA is offline   Reply With Quote
Old 02-21-2016, 12:37 PM   #404
Junior Member

Join Date: Jun 2008
Location: Senatobia, MS
Posts: 121
Total Cats: 6
Default

Your fabrication skills! Thanks for this build and write up!
fivehundredton is offline   Reply With Quote
Old 02-21-2016, 12:43 PM   #405
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,632
Total Cats: 463
Default

Yes you enter gear ratio, tire circumference, and weight. Then you data log a pull, tell it what gear you were in, and it finds it in the log to create the dyno plot. Obviously if you can accelerate an object weighing X from 0-60 in Y seconds you can calculate hp. But that weight needs to be spot on, and yes road conditions matter.
curly is offline   Reply With Quote
Old 02-21-2016, 12:44 PM   #406
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,150
Total Cats: 1,989
Default

Quote:
Originally Posted by TNTUBA View Post
I've never used the program. I was just curious. It seems to me that something like weight would be critical to the accuracy. Another variable you wouldn't need to worry about on a dyno. Right?

In line with things like road surface, wind speed, wind direction. I think the most important part of using something like that program as a tuning aid is to do the test the same way, in the same gear, on the same road and do it in both directions and somehow take an average.

I can see the merit for the software....just trying to get my head around it.
You are exactly on point , The software is only as accurate as the end user makes it . When done correctly it's actually extremely close to a real Dynojet . That's why I do all my runs on the exact same road using a marker to start the pulls, same weight, same everything, so they are as identical as physically possible. as soon as you deviate from that you get sporadic results which we've all seen done. Even if his weight is off by 200 pounds though he still well over 350 wheel

As soon as this set up is figured out and he says it's done we will all demand Proper plots and 1/4 mile slips. That should settle things once and for all
18psi is offline   Reply With Quote
Old 02-21-2016, 12:47 PM   #407
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 986
Total Cats: 115
Default

No question it's got to be making power. 30 some odd psi and 17 degrees timing...It doesn't have a choice but to make power. That's not what I was saying or infering. I was just wondering if there was a reason to change the weight around that I was somehow missing.
TNTUBA is offline   Reply With Quote
Old 02-21-2016, 01:05 PM   #408
SadFab CEO
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,301
Total Cats: 399
Default

I want a ride in this car.
hi_im_sean is offline   Reply With Quote
Old 02-21-2016, 01:10 PM   #409
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,196
Total Cats: 748
Default

Quote:
Originally Posted by Braineack View Post
what will it take for you to get on a real dyno?
A miracle.
shuiend is online now   Reply With Quote
Old 02-21-2016, 01:18 PM   #410
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,950
Total Cats: 126
Default

Quote:
Originally Posted by Miater View Post
Where are you getting the pressure source for the small turbo wastegate?
It has two sources as I'm using external wastegates for each turbo. For the front turbo, bottom port goes to the intercooler pipe post-intercooler and has a MBC hooked to it now. The top port goes to the compressor inlet.


Quote:
Originally Posted by TNTUBA View Post
Why does your vehicle weight change in almost every one of your VD plots?
Some pulls were with a passenger, some are not. I updated the weight (and outside temp) to keep it as accurate as possible.

Quote:
Originally Posted by fivehundredton View Post
Your fabrication skills! Thanks for this build and write up!
Thanks man! It's got over 250 miles on it so far and it's working great!

Quote:
Originally Posted by curly View Post
Yes you enter gear ratio, tire circumference, and weight. Then you data log a pull, tell it what gear you were in, and it finds it in the log to create the dyno plot. Obviously if you can accelerate an object weighing X from 0-60 in Y seconds you can calculate hp. But that weight needs to be spot on, and yes road conditions matter.
This.

Quote:
Originally Posted by 18psi View Post
You are exactly on point , The software is only as accurate as the end user makes it . When done correctly it's actually extremely close to a real Dynojet . That's why I do all my runs on the exact same road using a marker to start the pulls, same weight, same everything, so they are as identical as physically possible. as soon as you deviate from that you get sporadic results which we've all seen done. Even if his weight is off by 200 pounds though he still well over 350 wheel

As soon as this set up is figured out and he says it's done we will all demand Proper plots and 1/4 mile slips. That should settle things once and for all
Well over indeed. I should make a new video, I will once the muffler gets installed for sure, maybe before. It's nuts at this power level.


Quote:
Originally Posted by hi_im_sean View Post
I want a ride in this car.
I'm in Houston, TX. I'll be racing at HMP every Friday night that this runs (will be racing other car there if this one does not run). You're welcome to ride along if you like, or if you are just in the area one day I'll take you for a spin through the gears.
patsmx5 is offline   Reply With Quote
Old 02-21-2016, 01:19 PM   #411
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,950
Total Cats: 126
Default

Quote:
Originally Posted by Braineack View Post
what will it take for you to get on a real dyno?
Quote:
Originally Posted by shuiend View Post
A miracle.
A start is deleting this avatar I was given.
patsmx5 is offline   Reply With Quote
Old 02-21-2016, 01:22 PM   #412
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,950
Total Cats: 126
Default

Quote:
Originally Posted by TNTUBA View Post
I've never used the program. I was just curious. It seems to me that something like weight would be critical to the accuracy. Another variable you wouldn't need to worry about on a dyno. Right?

In line with things like road surface, wind speed, wind direction. I think the most important part of using something like that program as a tuning aid is to do the test the same way, in the same gear, on the same road and do it in both directions and somehow take an average.

I can see the merit for the software....just trying to get my head around it.
It's a very handy tool to use when tuning. You will note on some of the plots I posted, I ploted two pulls and they were overlapping each other fairly close. I used to to play with AFRs to see what it likes, and see the power change as the boost changed. I can adjust which turbo makes how much boost, and see power change at the same total boost by shifting which turbo does how much work. Big turbo winning in the power department, little turbo winning in spool.
patsmx5 is offline   Reply With Quote
Old 02-21-2016, 01:47 PM   #413
Junior Member

Join Date: Jun 2008
Location: Senatobia, MS
Posts: 121
Total Cats: 6
Default

Quote:
Originally Posted by patsmx5 View Post
Two turbos, that's it.
When you were first talking about this I wondered about there being enough energy left in the exhaust to spool the rear turbo. (I'm a layman) But I see. I see More air, more fuel=more energy. More air, more fuel=more energy. Serious horse power you've got.
fivehundredton is offline   Reply With Quote
Old 02-21-2016, 02:49 PM   #414
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 24,659
Total Cats: 1,567
Default

Quote:
Originally Posted by patsmx5 View Post
A start is deleting this avatar I was given.
You know, if you were a subscriber, you'd be able to change it yourself.






949 Racing

Last edited by Joe Perez; 02-21-2016 at 03:39 PM.
Joe Perez is offline   Reply With Quote
Old 02-21-2016, 03:11 PM   #415
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,950
Total Cats: 126
Default

Quote:
Originally Posted by fivehundredton View Post
When you were first talking about this I wondered about there being enough energy left in the exhaust to spool the rear turbo. (I'm a layman) But I see. I see More air, more fuel=more energy. More air, more fuel=more energy. Serious horse power you've got.
Yeap. The big turbo probably wouldn't spool on its own until 8,000 or so. The little turbo gets enough air/fuel/energy going to light it off a lot sooner. This is the part that I was unsure about going into this. In theory it would work, but I'd never done it so wasn't 100% sure. But it does work like that.
patsmx5 is offline   Reply With Quote
Old 02-21-2016, 03:45 PM   #416
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,950
Total Cats: 126
Default

I have a question for you guys.

I would like to setup the boost control to do the following:

Small turbo wastegate stays pinned shut until I hit 30 PSI, then it opens and regulates the small turbo to 30 PSI.

As the big turbo spools, I want boost to climb to target, which is 38 PSI.

Once I hit 38, I want the small turbo so seamlessly reduce it's boost level from 30 PSI, to 19 PSI, while the big turbo climbs up from 8 PSI to 19 PSI.

This would result in the boost going from 0 to 30, then 30 to 38 and holding 38 to redline, while maximizing torque to the wheels, spool, and top end power. The little turbo spooling high and hard gets the torque up fast, and helps spool the big turbo fast.

How could I actually set this up? Simpler the better of course. Would love for this to be mechanical if possible.
patsmx5 is offline   Reply With Quote
Old 02-21-2016, 06:06 PM   #417
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,150
Total Cats: 1,989
Default

I think you need dual ebc's for that. And it's a good idea because that 2871 will not last at 30psi. When my buddy used an ebay gt35 it would always fail in a few months past 25psi

Last edited by 18psi; 02-21-2016 at 11:16 PM.
18psi is offline   Reply With Quote
Old 02-21-2016, 06:37 PM   #418
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,950
Total Cats: 126
Default

Quote:
Originally Posted by 18psi View Post
I think you need dual ebc's for that. And it's a good idea because that 2871 will not last at 30psi. When my buddy used an ebay gt35 it would always fail in a few months past 25psi
949 Racing Emilio TSE Trackspeed Andrew
Oh yeah no doubt this small turbo can't hold high boost at revs. My garrett died the same way, pushing it too high up top and it failed (killed a steel 270* thrust bearing)

Could you elaborate on EXACTLY how you'd hook it up, and control it with dual ebc's? I'm trying to figure out any way to actually make it work the way I want, and if it's electronic, limiting the little turbo's max boost to say, less than 5,500 would probably be a fantastic idea for reliability.
patsmx5 is offline   Reply With Quote
Old 02-21-2016, 06:45 PM   #419
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,150
Total Cats: 1,989
Default

something like dis?


949 Racing Emilio TSE Trackspeed Andrew
Attached Thumbnails

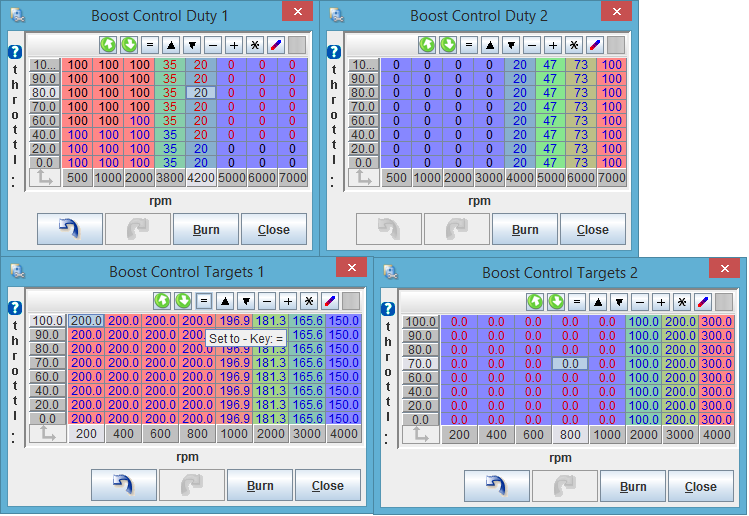

Pat's Ebay Turbo Compound Boost Build-80-boost_1_vs_boost_2_b23acafda497b5a918139b2eed2db601a5224f9a.png
18psi is offline   Reply With Quote
Old 02-21-2016, 06:50 PM   #420
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,950
Total Cats: 126
Default

So those pics show duty % and targets. Do you have to have both for closed loop? Also does MS's closed loop actually work correctly/not overshoot/undershoot a lot? Would be awesome to have MS do this if possible.
patsmx5 is offline   Reply With Quote
