Old 02-23-2016, 01:28 AM   #461
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,947
Total Cats: 126
Default

Quote:
Originally Posted by 18psi View Post
sounds like you might be lean actually


in which case you'd be breaking up from terrible leanness rather than blowing out the spark.

don't splooge this engine. move the o2 asap
I am, it's not being driving till that happens, and a cat/muffler are installed. I just put new plugs in it too so I can monitor those for any detonation.

Also muffler came in today, jesus christ this thing is gigantic. It's not 5x11, it's 6x11.25. This thing is going to hang very low in the rear, I'm afraid it's gonna drag the ground if I launch too hard.
patsmx5 is online now   Reply With Quote
Old 02-23-2016, 02:11 AM   #462
Sadfab Union President
iTrader: (2)

Join Date: May 2014
Location: Kansas
Posts: 2,675
Total Cats: 112
Default

I have to see this. No way you fit that thing, even if you can dump the turbo straight into it. Plus a cat, and 02 sensor that won't melt, where is this all going?
deezums is offline   Reply With Quote
Old 02-23-2016, 02:15 AM   #463
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 2,942
Total Cats: 212
Default

Quote:
Originally Posted by deezums View Post
I have to see this. No way you fit that thing, even if you can dump the turbo straight into it. Plus a cat, and 02 sensor that won't melt, where is this all going?
Rear mount turbo, front mount muffler.

--Ian
codrus is offline   Reply With Quote
Old 02-23-2016, 03:01 AM   #464
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,947
Total Cats: 126
Default

Quote:
Originally Posted by deezums View Post
I have to see this. No way you fit that thing, even if you can dump the turbo straight into it. Plus a cat, and 02 sensor that won't melt, where is this all going?
Two O2 sensors, one before, one after cat.

But yeah, this is going to be almost impossible. It's going to hang low, no way around it.
patsmx5 is online now   Reply With Quote
Old 02-23-2016, 03:02 AM   #465
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,362
Total Cats: 809
Default

If it were my setup, I would run a pair of O2s, one in the normal end-of-DP location, the other 6" behind the rear turbo. Measure backpressure next to the first O2, compare readings for a better idea of what true AFRs are under cruise/boost.

Then again, I think I would just run a 7163, make similar power, and have it spool much better
Savington is offline   Reply With Quote
Old 02-23-2016, 03:03 AM   #466
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,947
Total Cats: 126
Default

Quote:
Originally Posted by codrus View Post
Rear mount turbo, front mount muffler.

--Ian
I'll check, but 99.8% sure that won't work.

Magnaflow said this was a 5x11 muffler, uh.

Quote:
Originally Posted by Savington View Post
If it were my setup, I would run a pair of O2s, one in the normal end-of-DP location, the other 6" behind the rear turbo. Measure backpressure next to the first O2, compare readings for a better idea of what true AFRs are under cruise/boost.

Then again, I think I would just run a 7163, make similar power, and have it spool much better
Thanks, I thought about doing that with the O2's, but I don't have two widebands.

Are you running a 7163, and making similar power and spooling much better? What are your numbers?

Last edited by curly; 02-23-2016 at 11:38 AM.
patsmx5 is online now   Reply With Quote
Old 02-23-2016, 10:05 AM   #467
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,150
Total Cats: 1,989
Default

"in theory"

all of us can easily make 500whp in theory


....though I think we'll actually see a 7163 put to work very soon on a miata
18psi is offline   Reply With Quote
Old 02-23-2016, 10:24 AM   #468
SOMEOFIT
iTrader: (1)

Girz0r's Avatar

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,506
Total Cats: 220
Default

I'm just waiting to see the tacoburritonsalsa mani replaced with TSE/EFR goodness...
Girz0r is offline   Reply With Quote
Old 02-23-2016, 10:31 AM   #469
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,150
Total Cats: 1,989
Default

I heard the chinchillas max out at 69psi

But anyways, is the car completely out of fuel now? at 500ish?
18psi is offline   Reply With Quote
Old 02-23-2016, 10:39 AM   #470
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,173
Total Cats: 198
Default

Quote:
Originally Posted by deezums View Post

A gerotor pump would be boss, but I don't know of anyone that makes a scavenge pump one.

I was looking to make one, like this...



Wish someone would make a scavenge pump like this already...

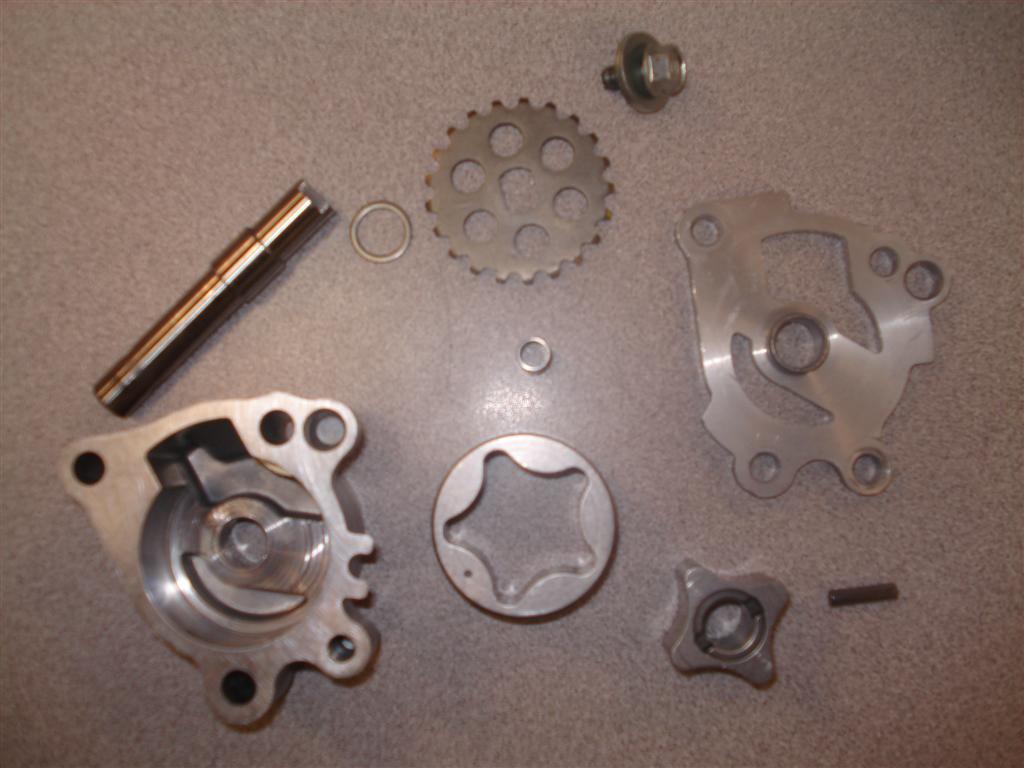

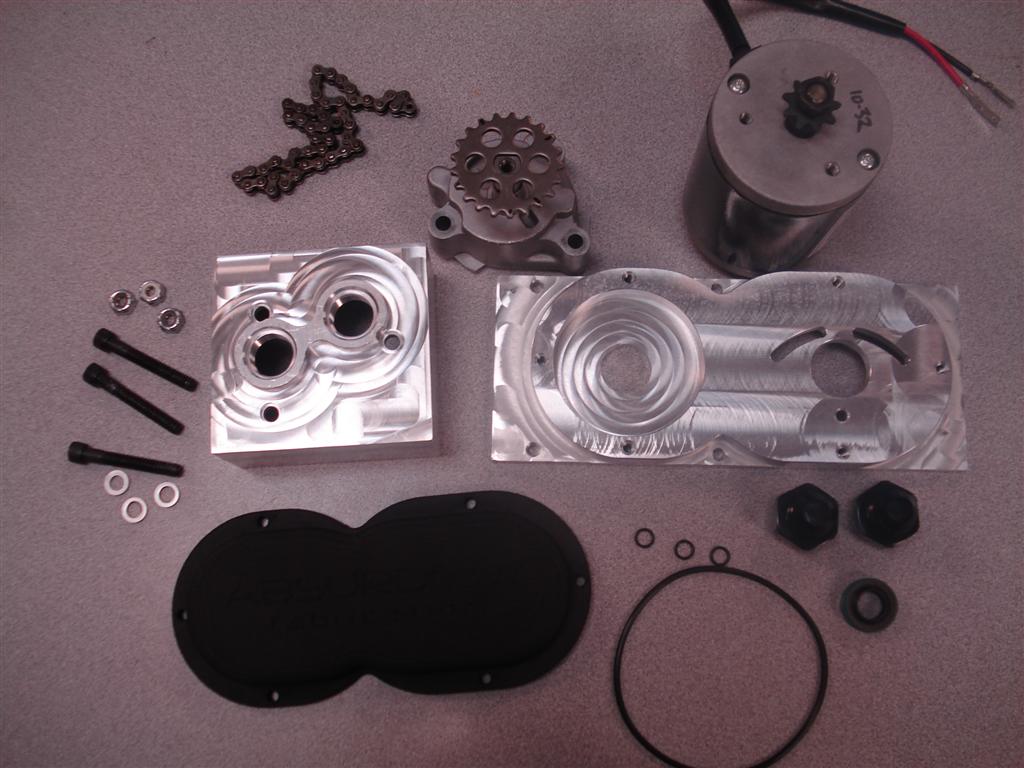

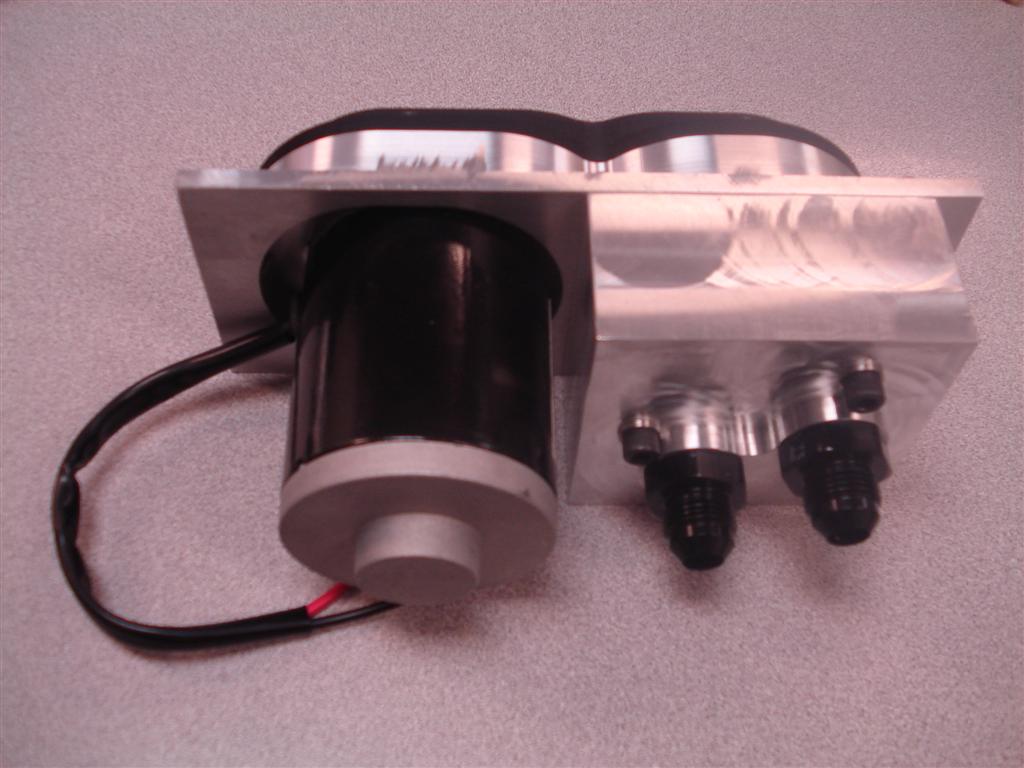

I made one for ~$50. Honda streetbike gerotor pump and razor scooter motor. I made mine to prime the engine with oil before starting, but it would work well for scavenge with a much smaller motor.

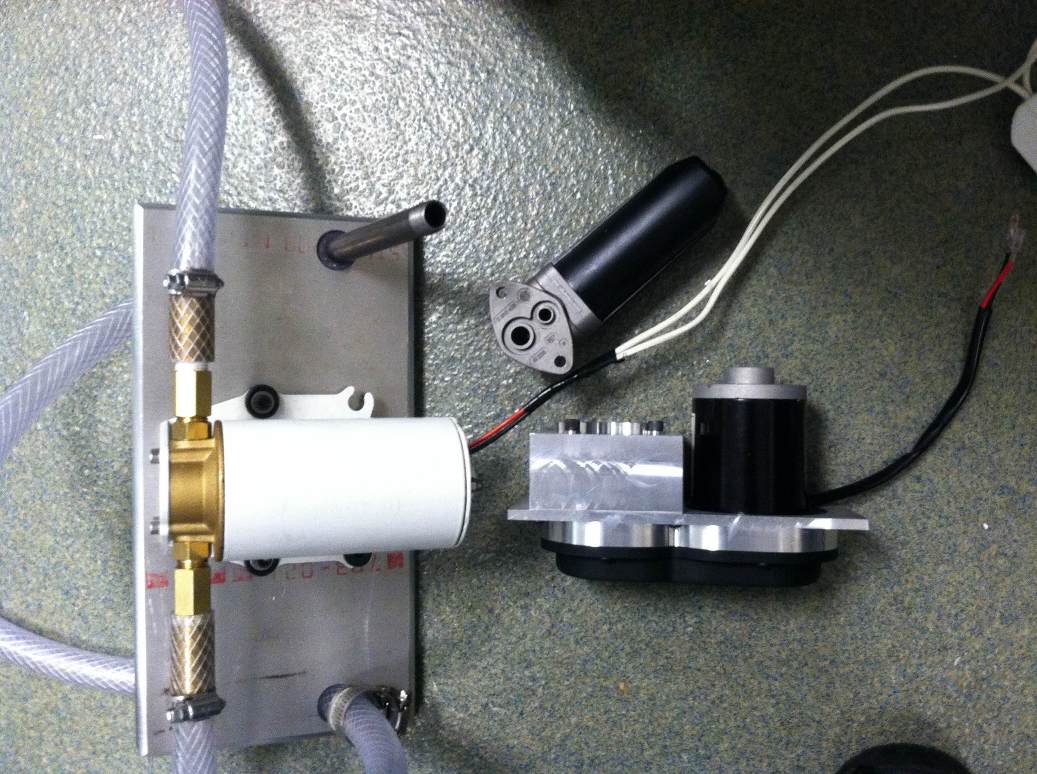

Turns out however that BMW's use little cute electric scavenge motors on their cars, tiny gerotor pumps. They didn't flow enough to produce pressure for my application, but would probably work great here.

Attached Thumbnails
Pat's Ebay Turbo Compound Boost Build-primerpump3.jpg   Pat's Ebay Turbo Compound Boost Build-primerpump6.jpg   Pat's Ebay Turbo Compound Boost Build-primerpump8.jpg
TurboTim is offline   Reply With Quote
Old 02-23-2016, 12:28 PM   #471
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,362
Total Cats: 809
Default

Quote:
Originally Posted by patsmx5 View Post
Are you running a 7163, and making similar power and spooling much better? What are your numbers?
No, but Soviet made similar power (484/404 Dynojet uncorrected) with better low end (200ft.lb@3100rpm IIRC), and he did it on an unported '99 head, and that was an EFR6758, which has about 75whp less compressor than the 7163 does.
Savington is offline   Reply With Quote
Old 02-23-2016, 01:01 PM   #472
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,947
Total Cats: 126
Default

Quote:
Originally Posted by 18psi View Post
"in theory"

all of us can easily make 500whp in theory


....though I think we'll actually see a 7163 put to work very soon on a miata
Yeah that's what I figured.
Quote:
Originally Posted by Girz0r View Post
I'm just waiting to see the tacoburritonsalsa mani replaced with TSE/EFR goodness...
Why replace the manifold or turbo? Both are working pretty well so far, I'm actually happy with it.

Quote:
Originally Posted by 18psi View Post
I heard the chinchillas max out at 69psi

But anyways, is the car completely out of fuel now? at 500ish?
Yes, at 60 PSI base (dropping to about 5 PSI from that at 38 PSI) I'm at 100% duty on 5 1,000cc injectors. With 17.9* of timing. 500ish indeed.
patsmx5 is online now   Reply With Quote
Old 02-23-2016, 01:03 PM   #473
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,947
Total Cats: 126
Default

Quote:
Originally Posted by TurboTim View Post
I made one for ~$50. Honda streetbike gerotor pump and razor scooter motor. I made mine to prime the engine with oil before starting, but it would work well for scavenge with a much smaller motor.






Turns out however that BMW's use little cute electric scavenge motors on their cars, tiny gerotor pumps. They didn't flow enough to produce pressure for my application, but would probably work great here.

Thanks Tim! I'll look into that. Do you happen to know what vehicle, or purpose that pump is usually used for on a BMW?
patsmx5 is online now   Reply With Quote
Old 02-23-2016, 01:05 PM   #474
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,947
Total Cats: 126
Default

Quote:
Originally Posted by Savington View Post
No, but Soviet made similar power (484/404 Dynojet uncorrected) with better low end (200ft.lb@3100rpm IIRC), and he did it on an unported '99 head, and that was an EFR6758, which has about 75whp less compressor than the 7163 does.
Cool. I'm won't be surprised if a turbo that cost as much as my entire setup spools better by a few hundred RPMs. That's to be expected and I'm ok with that.

EDIT: Just realized you quoted uncorrected (bigger) numbers and a different turbo too.....

Last edited by patsmx5; 02-23-2016 at 01:20 PM.
patsmx5 is online now   Reply With Quote
Old 02-23-2016, 02:18 PM   #475
Junior Member

mmmjesse's Avatar

Join Date: Aug 2007
Posts: 335
Total Cats: 31
Default

isnt it warm enough yet in houston to hit the track? i would love to see some times.
mmmjesse is offline   Reply With Quote
Old 02-23-2016, 02:20 PM   #476
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,947
Total Cats: 126
Default

Quote:
Originally Posted by mmmjesse View Post
isnt it warm enough yet in houston to hit the track? i would love to see some times.
Already answered that, but yes when it's sorted and the track is dry I'll be there. I had some parts come in yesterday I need to install to fix an oil leak in the rear turbo. Hopefully be there friday.
patsmx5 is online now   Reply With Quote
Old 02-23-2016, 02:31 PM   #477
Sadfab Union President
iTrader: (2)

Join Date: May 2014
Location: Kansas
Posts: 2,675
Total Cats: 112
Default

Quote:
Originally Posted by TurboTim View Post
I made one for ~$50. Honda streetbike gerotor pump and razor scooter motor.
That's way too cool, also good info on the BMW pump. Google seems to think they come off M cars transmission oil cooler loops. ~$200 on ebay used, not too bad.
deezums is offline   Reply With Quote
Old 02-23-2016, 04:13 PM   #478
Junior Member

Join Date: Jun 2008
Location: Senatobia, MS
Posts: 121
Total Cats: 6
Default

Don't laugh, I've heard of this: Do you think orienting all of your plug tips a certain direction would help with your spark issue? Might be a better direction than another in the combustion chamber turbulence....
fivehundredton is offline   Reply With Quote
Old 02-23-2016, 04:40 PM   #479
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 2,776
Total Cats: 205
Default

Quote:
Originally Posted by glade View Post
Again, I mean no insult, but I have local kids whom I sell parts to quoting this very build, inquiring if they too can be like pat. I this far have just laughed,
Anybody wanting to copy this build because they want a cheap turbo build on a budget is in for a ginormous bucket of fail. The level of custom fabrication here is high even for mt.net custom builds.

Pat != avg cheap turbo miata owner (1800 hrs of welding experience, anyone?)

There are ways to turbo a miata cheaply, and there are ways to turbo a miata effectively. The number of people who can do both is extremely small.
Mobius is offline   Reply With Quote
Old 02-23-2016, 04:44 PM   #480
Junior Member

Join Date: Jun 2008
Location: Senatobia, MS
Posts: 121
Total Cats: 6
Default

^ What he said. If you can't sort of pick up on this, I wonder..
