Old 02-29-2016, 01:31 AM   #521
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,979
Total Cats: 128
Default

Quote:
Originally Posted by 18psi View Post
Grats
Bench racer math projects mid to high 11's at around 120 miles an hour
Definitely fast. But not quite 500whp fast yet

Cant wait for full tilt run
It flies on the big end when it spools. It was low 400whp tonight since boost was down. When I got it to spool I broke a MSM axle, I don't know of ANYONE who'd done that.
patsmx5 is offline   Reply With Quote
Old 02-29-2016, 01:52 AM   #522
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,979
Total Cats: 128
Default

Also anyone know if Autozone axles are good? They offer a MSM axle for 200 + core, with a lifetime warranty... Dunno if they are crap or good though.
patsmx5 is offline   Reply With Quote
Old 02-29-2016, 10:12 AM   #523
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,173
Total Cats: 1,990
Default

if they have lifetime warranty I'd definitely give em a shot.

that way when you snap them you can keep getting new ones
18psi is offline   Reply With Quote
Old 02-29-2016, 10:14 AM   #524
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,859
Total Cats: 938
Default

MSM axles are somewhat rare. I'm surprised they have them.

Try repacking them with good grease.
aidandj is offline   Reply With Quote
Old 02-29-2016, 10:16 AM   #525
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,859
Total Cats: 938
Default

Wait. It looks like you stripped the hub or something?

Show us disassembled pictures. The outer end of an MSM axle is the same as a non-msm I think. You .might be able to rebuild
aidandj is offline   Reply With Quote
Old 02-29-2016, 10:36 AM   #526
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 24,681
Total Cats: 1,576
Default

Quote:
Originally Posted by patsmx5 View Post
Also anyone know if Autozone axles are good? They offer a MSM axle for 200 + core, with a lifetime warranty... Dunno if they are crap or good though.
Interestingly, we just had that exact conversation: AutoZone (Duralast) Axles

The TL;DR version is that the axles seem to be fine mechanically, but have a high rate of failure as the rebuilders seem to use only a tiny amount of low-quality grease. Thus, you can probably use a reman axle, but before installing it you should dismantle both joints, clean them and the inside of the boots thoroughly until grease-free, and then re-assemble them with a generous quantity of whatever grease your religious preferences tell you is best (eg: Redline CV-2, Amsoil Dominator, or SWEPCO 101.)


And yeah, I'm curious to know what the exact failure mode was here, and whether the hub survived it.
Joe Perez is offline   Reply With Quote
Old 02-29-2016, 12:45 PM   #527
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,979
Total Cats: 128
Default

Nobody in the world apparently actually has reman axles for sale for this.

I don't think the outers are the same, are they? If so, I have two old axles with good outers.
patsmx5 is offline   Reply With Quote
Old 02-29-2016, 12:59 PM   #528
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 24,681
Total Cats: 1,576
Default

Quote:
Originally Posted by patsmx5 View Post
Nobody in the world apparently actually has reman axles for sale for this.
Only place I know of that carries MSM axles right now is Rosenthal, and they're $500: SHAFT(R),DRIVE-RR (MA03-25-50X) - $494.95 - MA032550X


Quote:
Originally Posted by patsmx5 View Post
I don't think the outers are the same, are they? If so, I have two old axles with good outers.
So far as I know, the outers are the same between MSM and non-MSM inasmuch as how the outer stub axle interfaces with the hub; only the inners are different in that regard. I'm not sure about the OD of the axle shaft itself, or whether the interface between the axle shaft and the outer CV is different.


Waiting to see pics of the disassembled axle and hub.
Joe Perez is offline   Reply With Quote
Old 02-29-2016, 01:04 PM   #529
Senior Member
iTrader: (2)

Join Date: Dec 2011
Posts: 1,256
Total Cats: 105
Default

Mazda SHAFT(R),DRIVE-RR MA03 25 50X at PartsVP.com

#MA032550X: CV Axle Assembly

SHAFT RIGHT (R), DRIVE - REAR (RR). REAR DRIVE SHAFT for 2004 Mazda Miata. #MA032550X

All three of those are cheaper still, and they all let you put them in the cart, so maybe they have them in stock too. Still crazy expensive though.
good2go is online now   Reply With Quote
Old 02-29-2016, 01:05 PM   #530
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,979
Total Cats: 128
Default

Will disasemble shortly. Thank you a lot Joe for your help, you just found a PN and link to buy something I couldn't find the last 2 hours.

I'll tear it down and see if it's the same as a regular axle on that part. And see what damage I have.
patsmx5 is offline   Reply With Quote
Old 02-29-2016, 01:25 PM   #531
Junior Member

Join Date: Sep 2013
Posts: 193
Total Cats: 10
Default

The Driveshaft Shop | MAZDA 1995-2005 MIATA 400 HP Direct Bolt-In Axles - Mazda - Import Axles
Shortpersonbk is offline   Reply With Quote
Old 02-29-2016, 01:33 PM   #532
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 24,681
Total Cats: 1,576
Default

These won't be compatible with Pat's car. He's using an MSM differential, which has a larger receptacle for the splined portion of the inner CV stub shaft than the regular diffs. MSM diffs and MSM axles must go together as a set.

I'm sure that any competent driveshaft shop could fabricate an MSM-compatible axle, but it looks like the part that broke on Pat's car is in the vicinity of the hub shaft, and it's unlikely you could meaningfully strengthen this part of the axle while retaining compatibility with the stock hub.


Worst-case, he'd need something like Boss Frog's "Level 3" axle kit, which includes aftermarket hubs, though of course the inner shafts would have to be custom to fit his diff.


Far too early to be bench-spending money until Pat takes the hub apart and figures out what broke.
Joe Perez is offline   Reply With Quote
Old 02-29-2016, 01:52 PM   #533
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,613
Total Cats: 102
Default

Quote:
Originally Posted by 18psi View Post
Grats
Bench racer math projects mid to high 11's at around 120 miles an hour
Definitely fast. But not quite 500whp fast yet

Cant wait for full tilt run
Looking at his slips next to what I ran he's got my 11.68 pass covered by .3 sec and 3 mph through the 1/8th.

I wouldn't bet against it dipping into the 10's @ 130 as it sits (minus the exploded axle of course). I can't wait to see what it'll do once all the little issues are ironed out.
pdexta is offline   Reply With Quote
Old 02-29-2016, 02:40 PM   #534
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,979
Total Cats: 128
Default

Quote:
Originally Posted by pdexta View Post
Looking at his slips next to what I ran he's got my 11.68 pass covered by .3 sec and 3 mph through the 1/8th.

I wouldn't bet against it dipping into the 10's @ 130 as it sits (minus the exploded axle of course). I can't wait to see what it'll do once all the little issues are ironed out.
Yeap. The best part is, I wasn't running full power either, though that's kind of obvious by the trap speeds. This was 32 PSI, and not hitting full boost till 3rd. 80% duty cycle on main injectors.

36-38 PSI gets me to 100% duty cycle which is where it makes the most power of course.

Going to tear into it right now. Will post pics when it's apart.
patsmx5 is offline   Reply With Quote
Old 02-29-2016, 02:45 PM   #535
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,173
Total Cats: 1,990
Default

Yeah the car is hauling the mail, I'm just being conservative with the bench racer math
18psi is offline   Reply With Quote
Old 02-29-2016, 02:57 PM   #536
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,532
Total Cats: 18
Default

I cannot give you enough cats dude.
nitrodann is offline   Reply With Quote
Old 02-29-2016, 03:23 PM   #537
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 24,681
Total Cats: 1,576
Default

Quote:
Originally Posted by patsmx5 View Post
I can't stop watching this video... it's mesmerizing.

Did the stub axle break in two? In other words, is the castle nut still threaded onto a piece of the end of the axle, rattling around on the outboard side of the hub?

Or did the nut come off, thus permitting the axle to pull out of the hub?
Joe Perez is offline   Reply With Quote
Old 02-29-2016, 03:26 PM   #538
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,859
Total Cats: 938
Default

It almost looks like it stripped the hub
aidandj is offline   Reply With Quote
Old 02-29-2016, 03:44 PM   #539
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,638
Total Cats: 463
Default

That or it broke the threads off the end. Either way the wheel bearing is toast. Hub might be fine, but I also don't think there's enough room for it to come fully out if it's just the threads. Might of stripped just half the splines after the threads broke. That's my bet!
curly is offline   Reply With Quote
Old 02-29-2016, 04:06 PM   #540
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,979
Total Cats: 128
Default

Quote:
Originally Posted by Joe Perez View Post
I can't stop watching this video... it's mesmerizing.

Did the stub axle break in two? In other words, is the castle nut still threaded onto a piece of the end of the axle, rattling around on the outboard side of the hub?

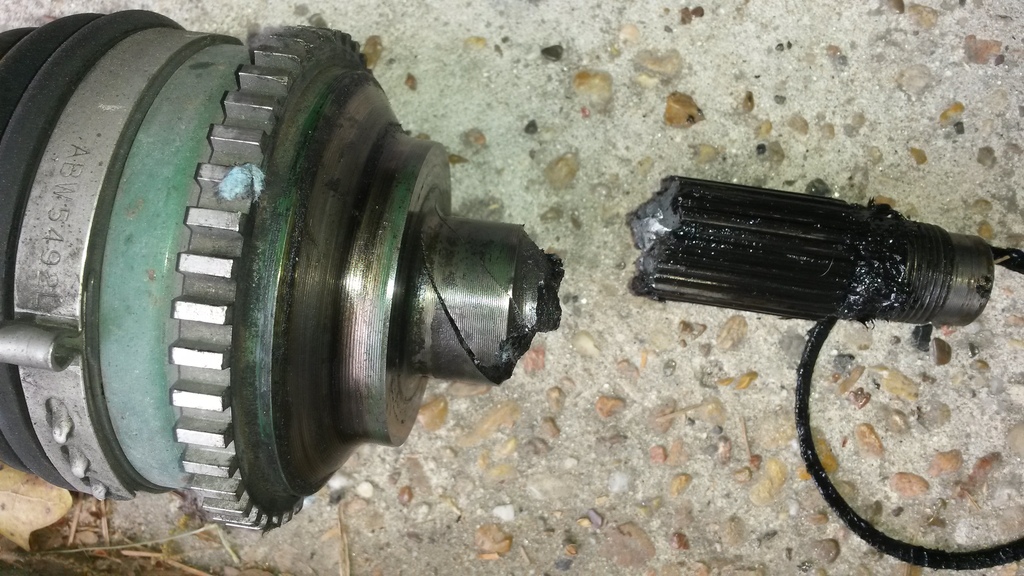

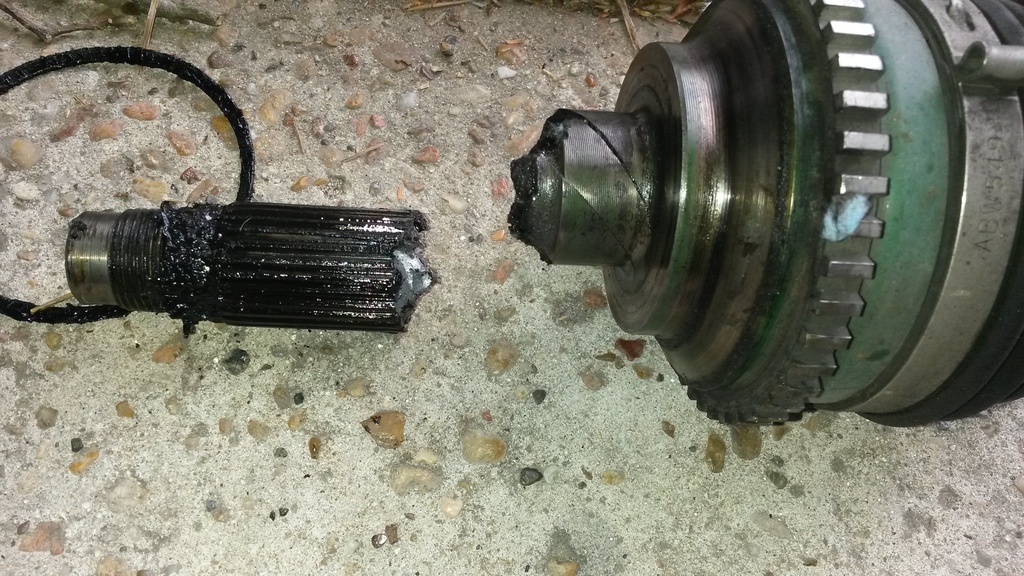

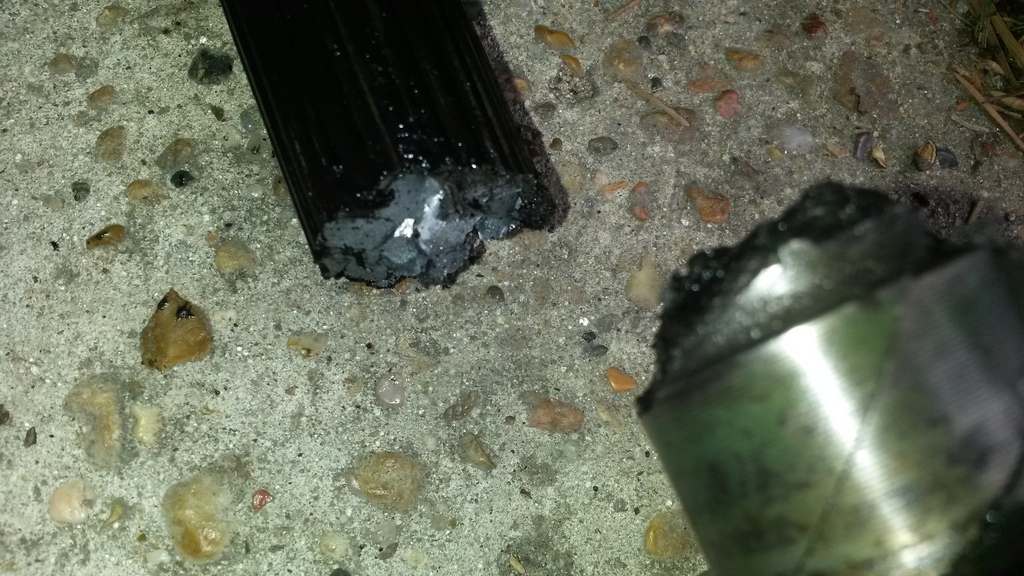

Yes, that's what happened. When I pulled the wheel, the stub axle piece still had the nut on it, and was poking out about 1.5". It knocked the center cap off when it failed, lost that at the track. :(

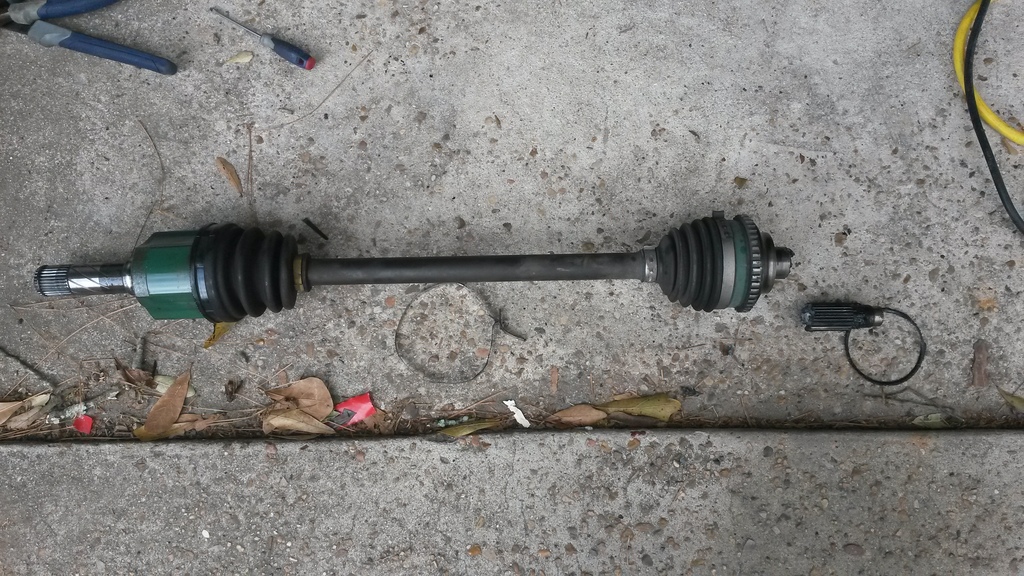

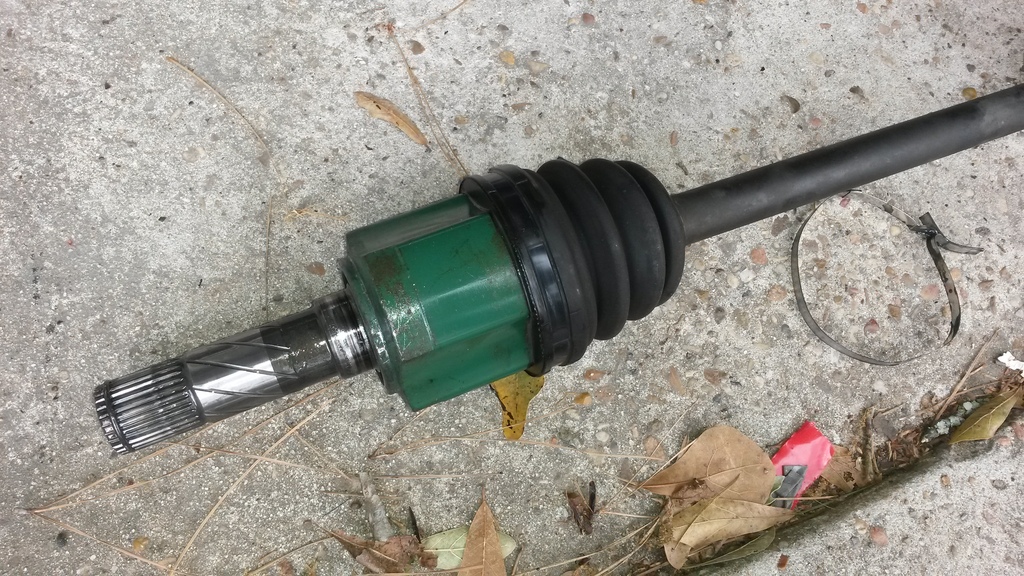

The inboard cv closest to the diff slung the metal band off, and had grease leaking out of the boot a lot. I don't know if there is damage to the inboard cv.

The outboard cv looks fine. No leaks, no obvious damage.

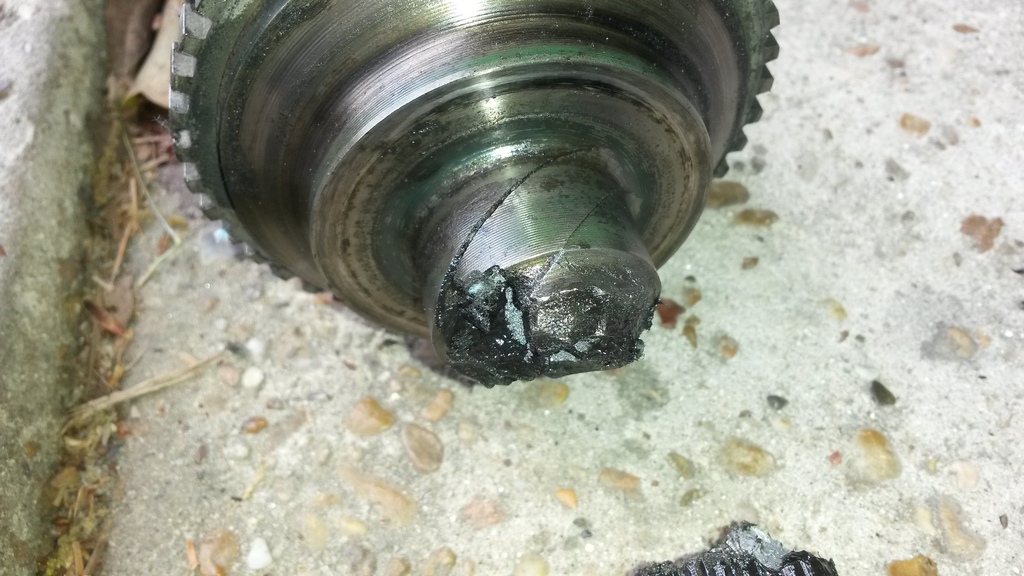

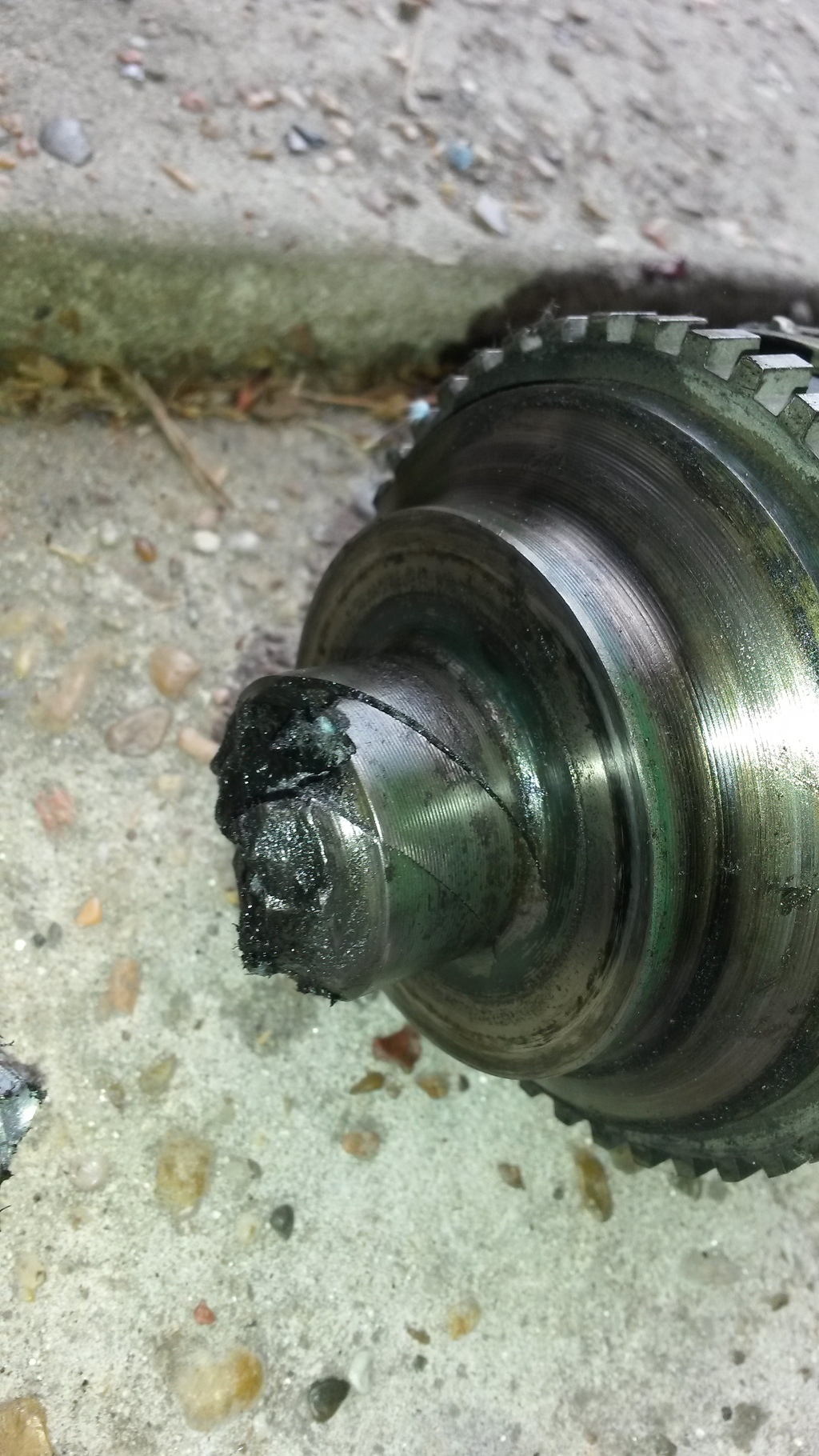

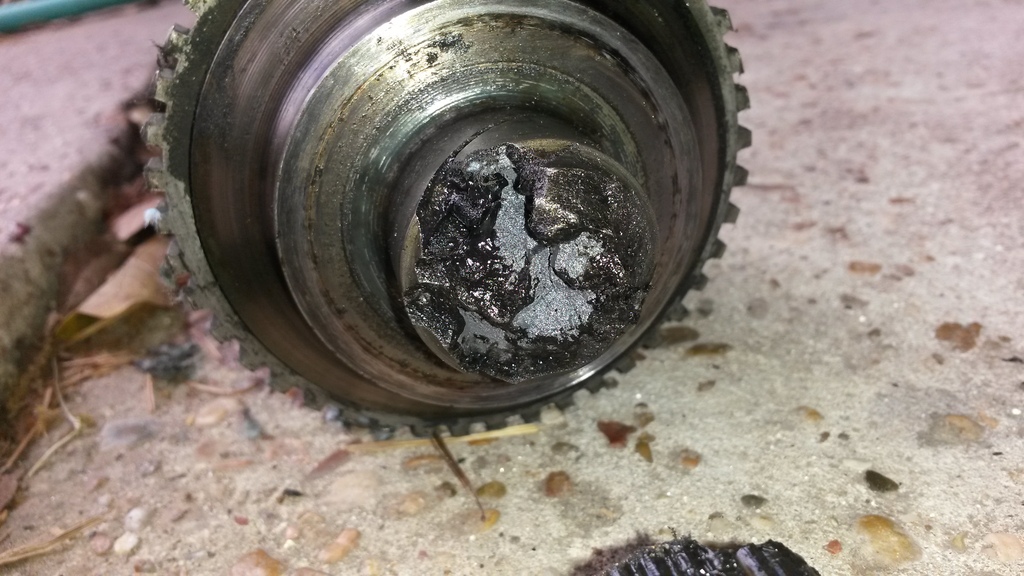

The stub axle part that goes into the hub had a bad day.

Excuse my ignorance, but Curly mentioned the wheel bearing is done. Why so? That sucks if I gotta replace that too...

Also I grabbed a stock 99 axle, and the outer cv is completely different dimensions. MSM being bigger. So no-go on patching this axle with the old regular axle.















Attached Thumbnails
Pat's Ebay Turbo Compound Boost Build-20160229_134040_zps3ch9mdwd.jpg   Pat's Ebay Turbo Compound Boost Build-20160229_134046_zpshsbqpqja.jpg   Pat's Ebay Turbo Compound Boost Build-20160229_134112_zpssaoj9bh9.jpg   Pat's Ebay Turbo Compound Boost Build-20160229_134117_zpsztvrwqn1.jpg   Pat's Ebay Turbo Compound Boost Build-20160229_134121_zpsybirbhuv.jpg

Pat's Ebay Turbo Compound Boost Build-20160229_134135_zpsfu5cqfex.jpg   Pat's Ebay Turbo Compound Boost Build-20160229_134145_zpsuboeu6hj.jpg   Pat's Ebay Turbo Compound Boost Build-20160229_134149_zpsswpvkmw2.jpg
patsmx5 is offline   Reply With Quote
