Old 02-06-2016, 08:30 AM   #101
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 994
Total Cats: 38
Default

Quote:
Originally Posted by nitrodann View Post
...
If you have external gates and you reference inlet pressure, and you feed it with outlet pressure then you will get the multiplication of pressure ratios
It will be addition, not multiplication. The pressure will be reference plus spring.
Let's assume the first one has a 7psi spring which will make approx. 150kpa as per wastegate and the second one a 15psi spring (which would result at 200kpa in a single turbo setup) you would get 250kpa, not 300 as a total.
stefanst is offline   Reply With Quote
Old 02-06-2016, 09:00 AM   #102
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 24,680
Total Cats: 1,576
Default

Just dropping a pin here so I can find the thread later.

Pat, you're clearly insane. But that said, an idea has been rolling around in the back of my head for several years which I've never had the opportunity to test. You & I need to talk about this.
Joe Perez is offline   Reply With Quote
Old 02-06-2016, 12:26 PM   #103
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,964
Total Cats: 128
Default

Joe, let's talk.

Dann, I do have an external gate for each turbo with ports on the top and bottom of each gate.
patsmx5 is offline   Reply With Quote
Old 02-06-2016, 05:08 PM   #104
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,964
Total Cats: 128
Default

Does anybody know if a regular T3 wastegate actuator will fit my ebay GT28? I want to buy a dual port wastegate can that fits my T2 based GT28 ebay turbo.
patsmx5 is offline   Reply With Quote
Old 02-06-2016, 05:15 PM   #105
Sadfab Union President
iTrader: (2)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default

If you measure the spacing on the mounting bolts I will measure my t3 can for you.
deezums is offline   Reply With Quote
Old 02-06-2016, 08:08 PM   #106
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,964
Total Cats: 128
Default

1.34" center to center on my T2 actuator. Thanks for checking on yours!

I'll post some pics later, making slow progress on getting the front turbo on the car.
patsmx5 is offline   Reply With Quote
Old 02-06-2016, 08:09 PM   #107
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,169
Total Cats: 1,990
Default

there's no "set flange" for those, so you gotta measure each time
18psi is offline   Reply With Quote
Old 02-06-2016, 08:28 PM   #108
Sadfab Union President
iTrader: (2)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default

Seems to be the same as what I measure. .22" diameter studs, 1.57" outside distance, makes for about ~1.35" center to center distance, maybe 34mm?

At least as reliably as I can measure without taking the can off, hope it's useful data.

Looks like something like this would fit.
Turbo Wastegate Actuator Dual Port for T3 T3 T4 T04E Turbocharger | eBay

Edit: They say weird things in the description on these two port cans. They all have to work the same, right? Is it just really bad chinglish?
"Second port is for quick release inside hot air. It will be extension actuator life"
deezums is offline   Reply With Quote
Old 02-06-2016, 08:42 PM   #109
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,532
Total Cats: 18
Default

Quote:
Originally Posted by patsmx5 View Post
Joe, let's talk.

Dann, I do have an external gate for each turbo with ports on the top and bottom of each gate.
If you use those you can choose the reference pressure for the bottom ports, but if you ALSO use the internal gate you cant do this, and it will open based on atmo reference, so you will need to control this wastegate using a different, and more aggressive method. Maybe a boost tee on it to adjust final pressure ratio AFTER the other MAC based tuning is done.
nitrodann is offline   Reply With Quote
Old 02-06-2016, 10:30 PM   #110
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,964
Total Cats: 128
Default

Quote:
Originally Posted by deezums View Post
Seems to be the same as what I measure. .22" diameter studs, 1.57" outside distance, makes for about ~1.35" center to center distance, maybe 34mm?

At least as reliably as I can measure without taking the can off, hope it's useful data.

Looks like something like this would fit.
Turbo Wastegate Actuator Dual Port for T3 T3 T4 T04E Turbocharger | eBay

Edit: They say weird things in the description on these two port cans. They all have to work the same, right? Is it just really bad chinglish?
"Second port is for quick release inside hot air. It will be extension actuator life"
Awesome, thanks for checking.
patsmx5 is offline   Reply With Quote
Old 02-06-2016, 10:31 PM   #111
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,964
Total Cats: 128
Default

Quote:
Originally Posted by nitrodann View Post
If you use those you can choose the reference pressure for the bottom ports, but if you ALSO use the internal gate you cant do this, and it will open based on atmo reference, so you will need to control this wastegate using a different, and more aggressive method. Maybe a boost tee on it to adjust final pressure ratio AFTER the other MAC based tuning is done.
Yeap. I'm thinking tie the internal gate shut for now and tune it with the two external gates. If the single 38mm gate up front can't flow enough, I'll put a dual port on the turbo and have it run with the 38mm at the same time to help. Like you said, has to be dual port to work right.
patsmx5 is offline   Reply With Quote
Old 02-07-2016, 02:43 AM   #112
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,964
Total Cats: 128
Default

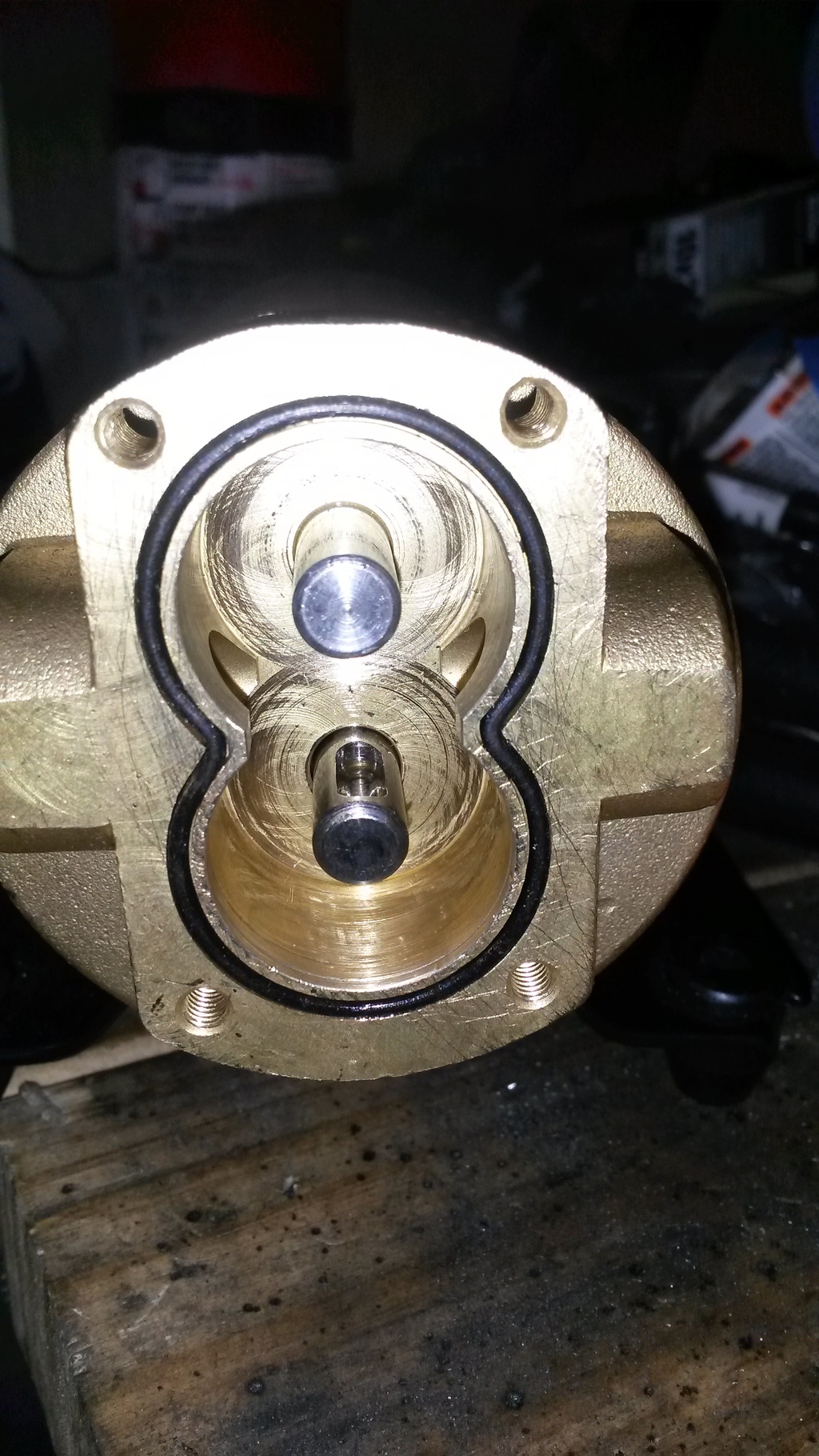

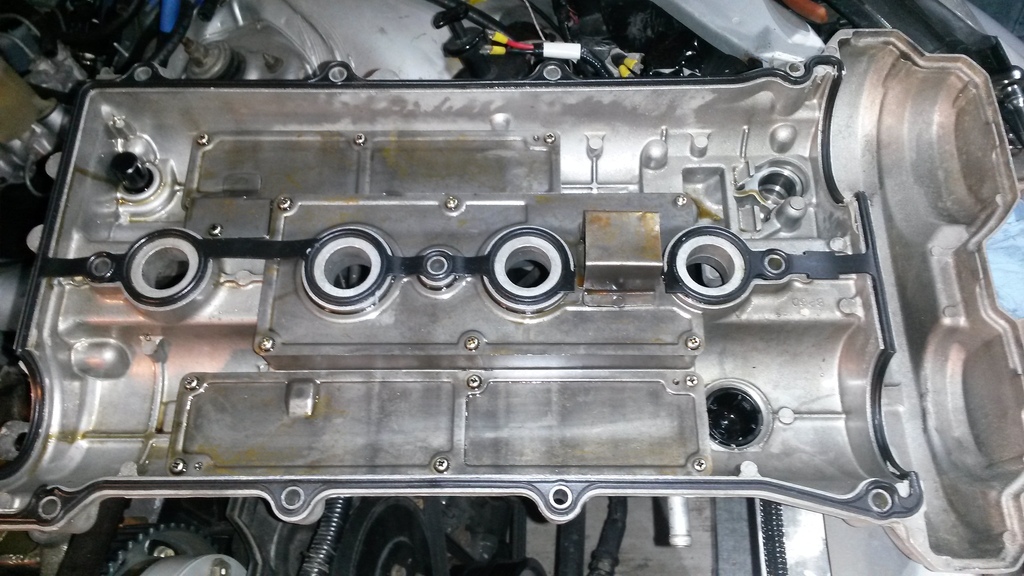

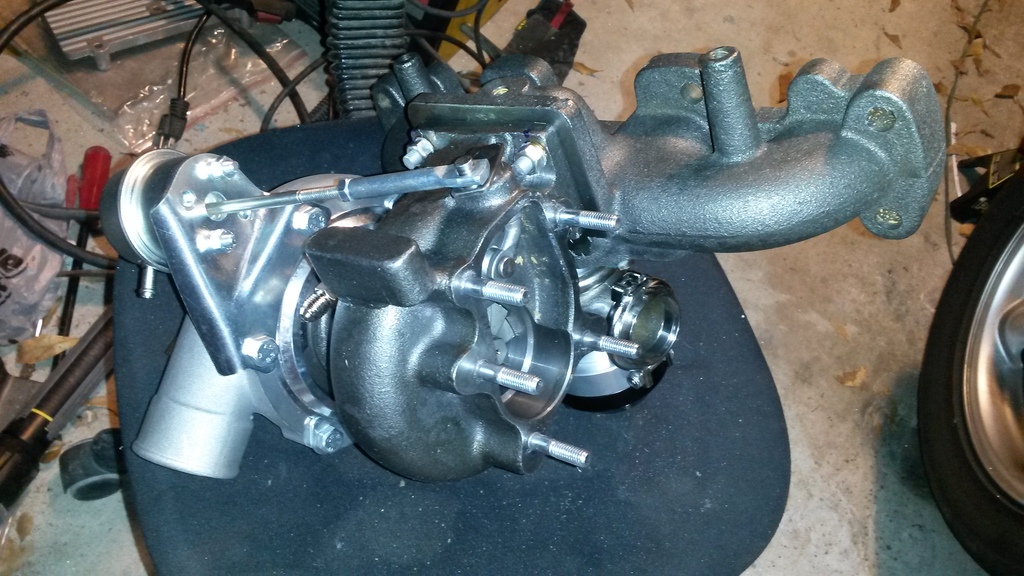

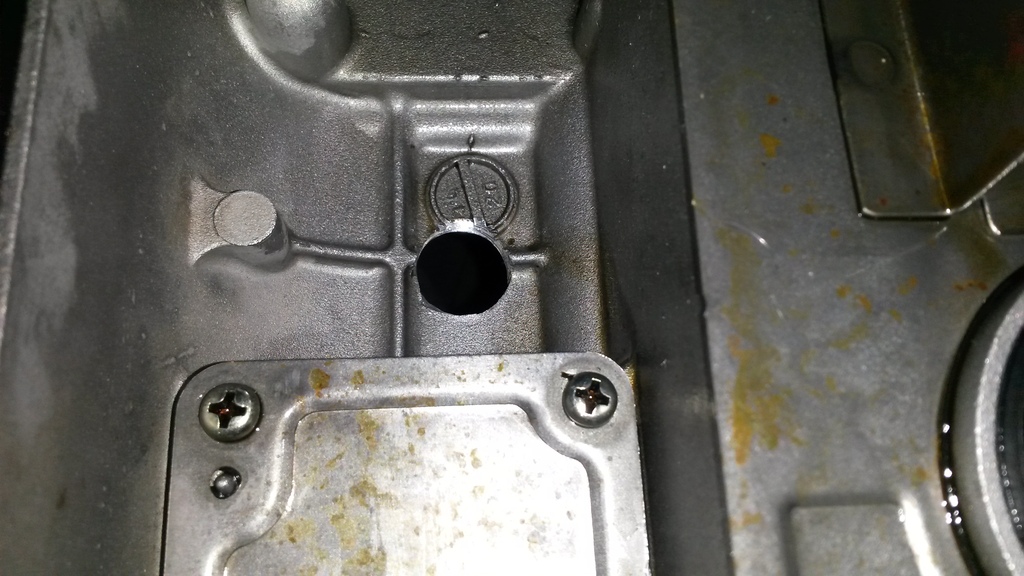

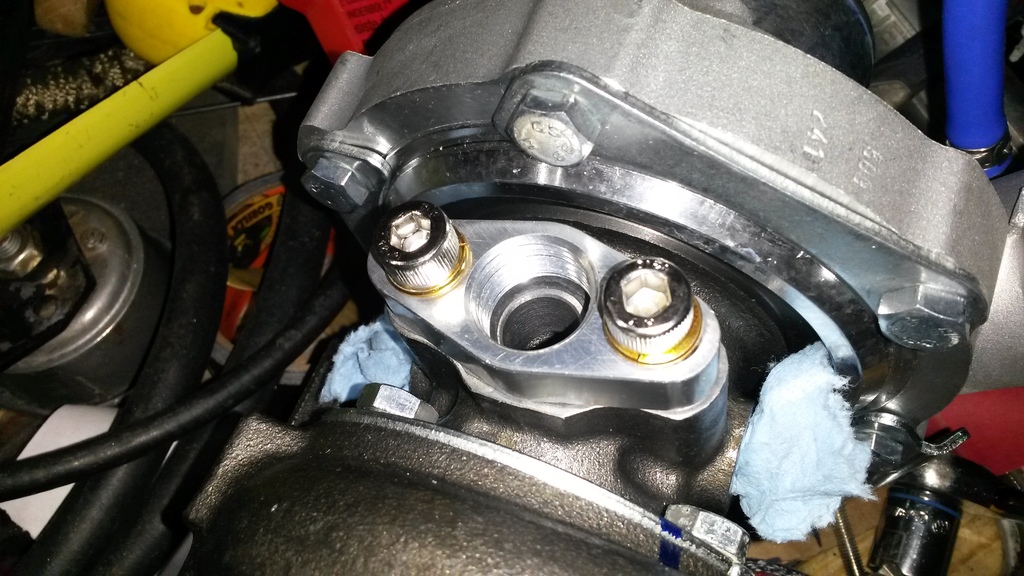

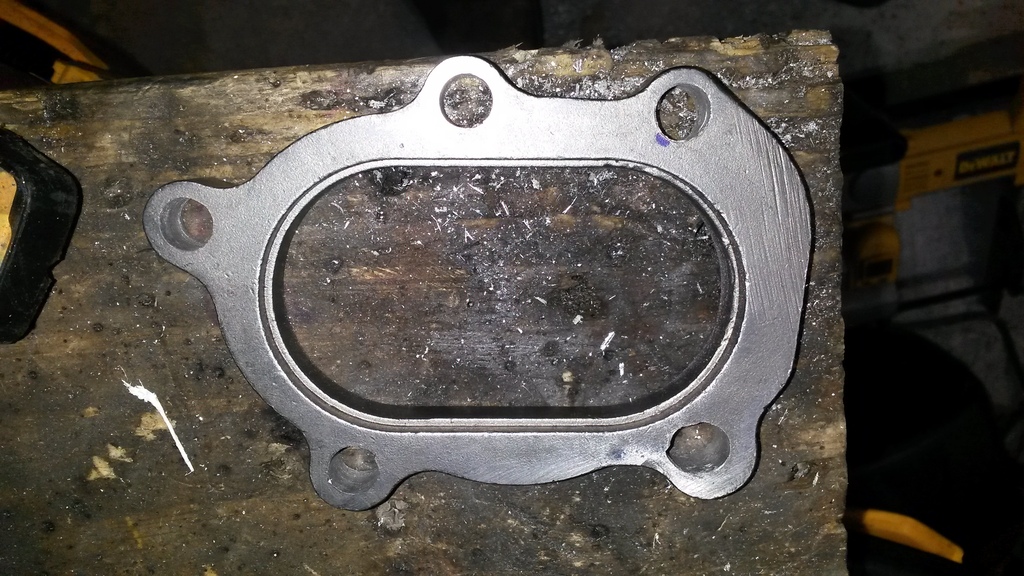

Made some progress. Will be buying some better studs for the turbo/down pipe, but for now running some cheap stuff I bought locally that I had to shorten to make work.

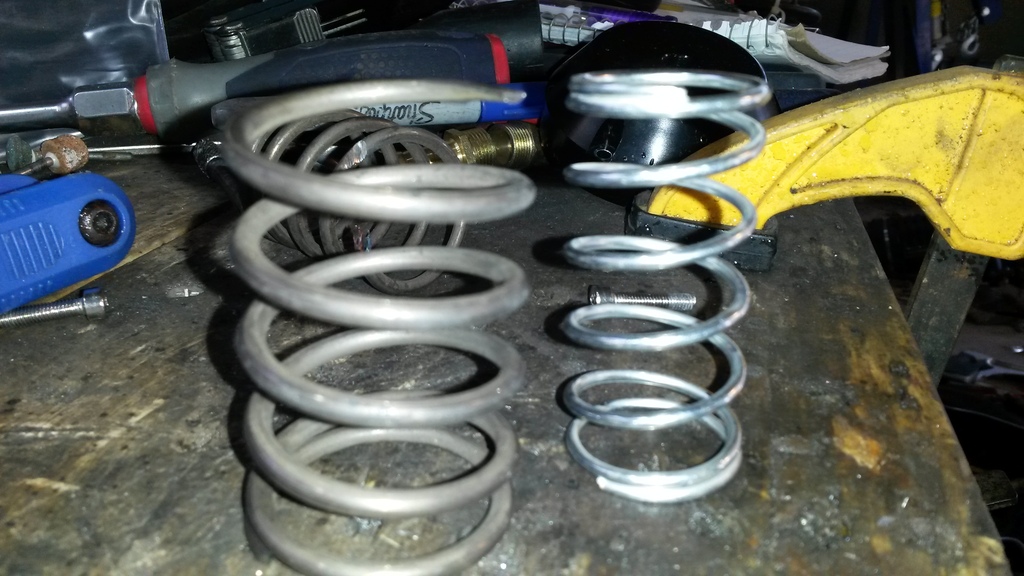

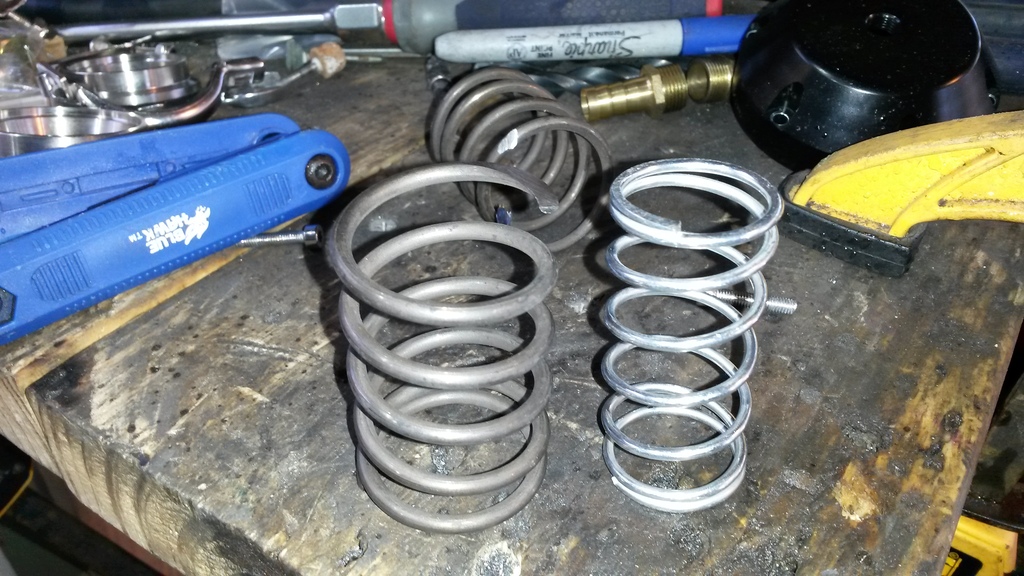

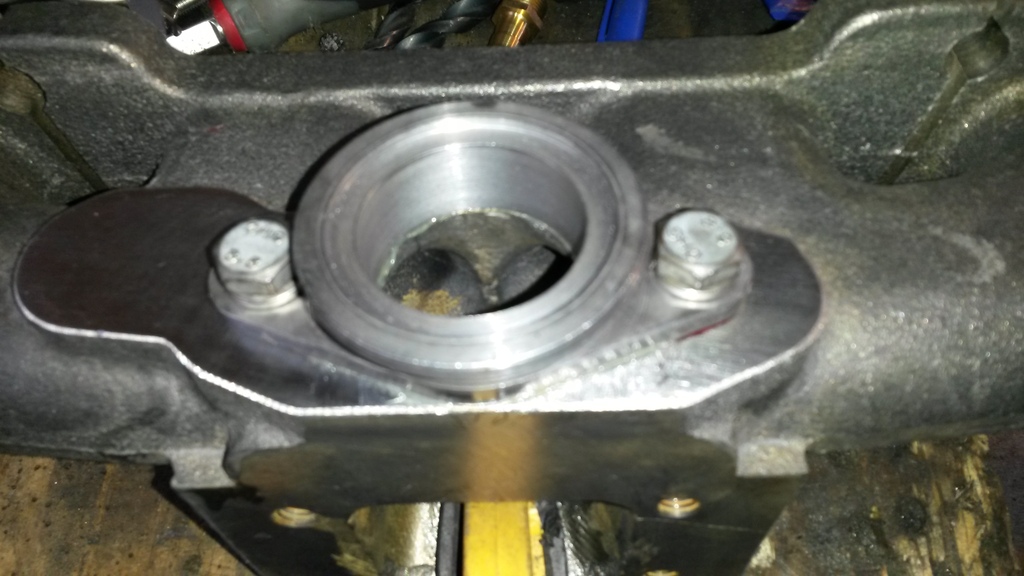

The 38mm gate I bought had a 4 PSI spring in it. I decided I want 16-18 PSI out of the small turbo on wastegate pressure, so I found some springs I had. I measured the stock spring and calculated the stiffness K. Then did the same for the springs I had, and found that cutting and using one of the springs I had, plus the stock spring, would add up to 14.6 PSI in theory. So did that, kind of curious to see how close my math was. I have it all on paper somewhere, n pics of math but the equation is simple.

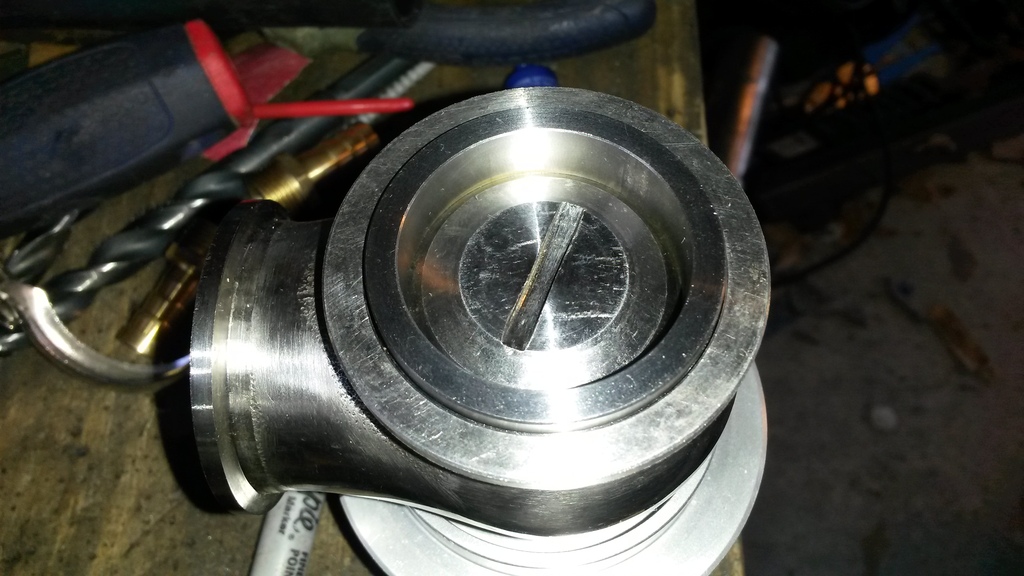

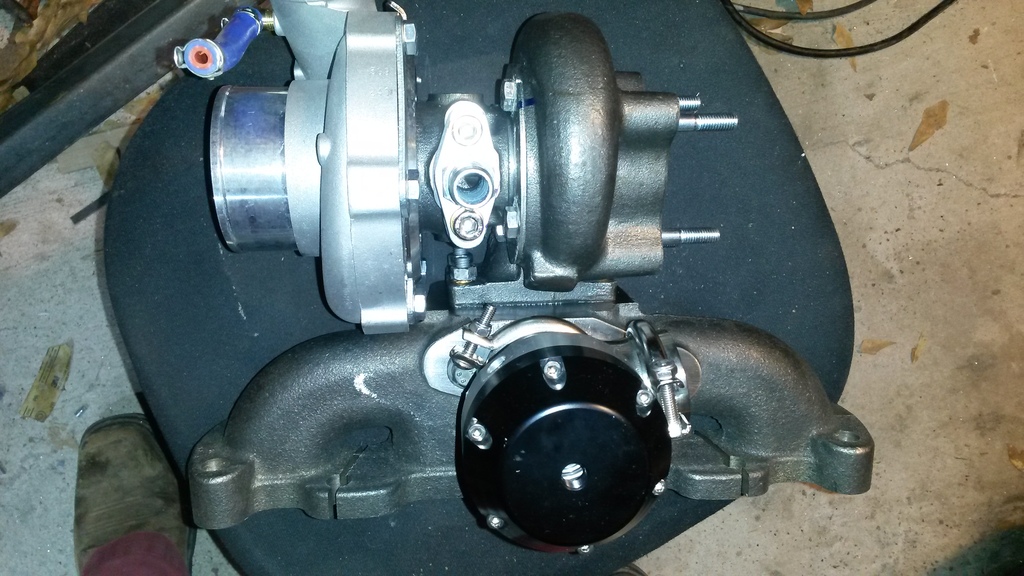

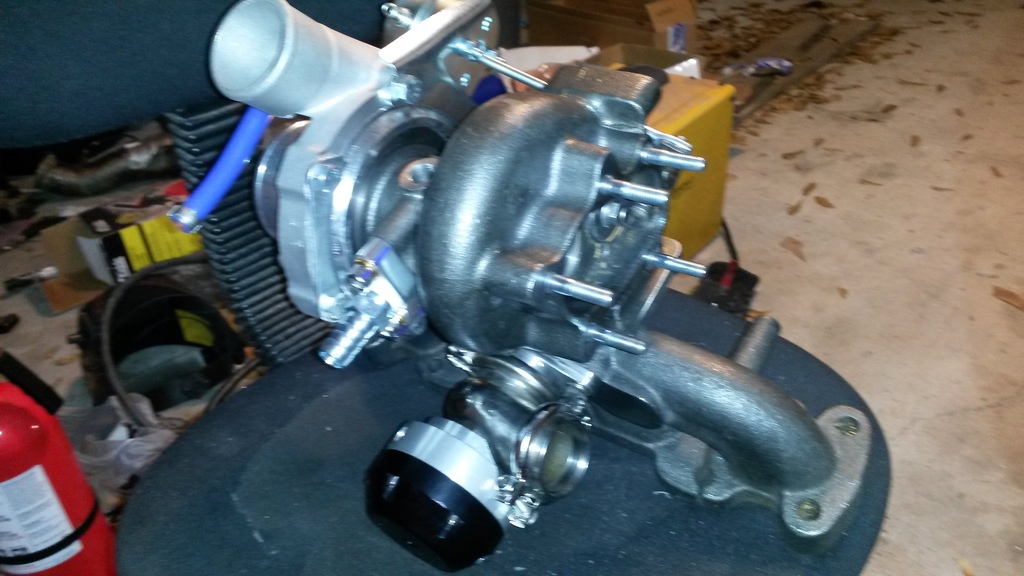

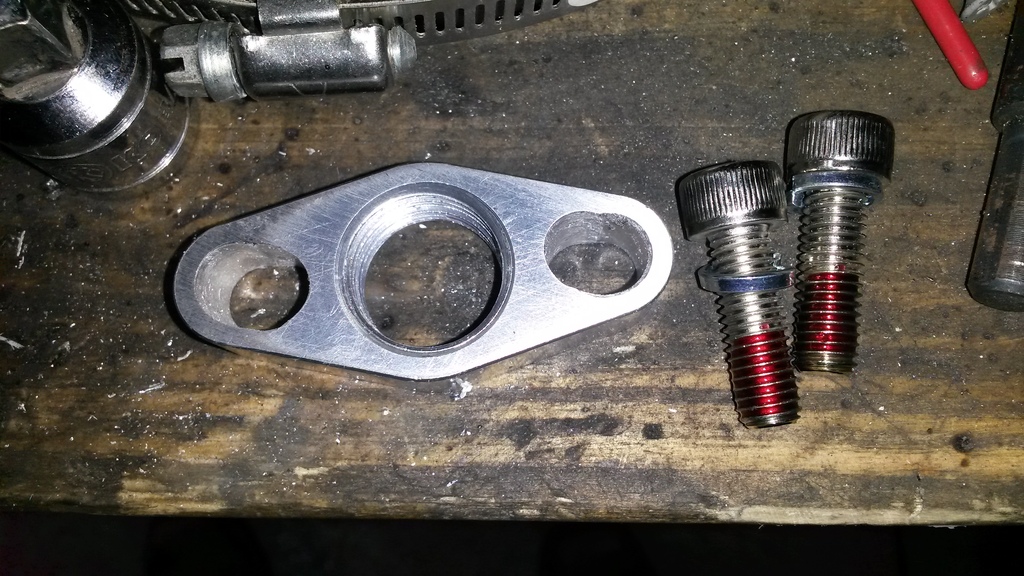

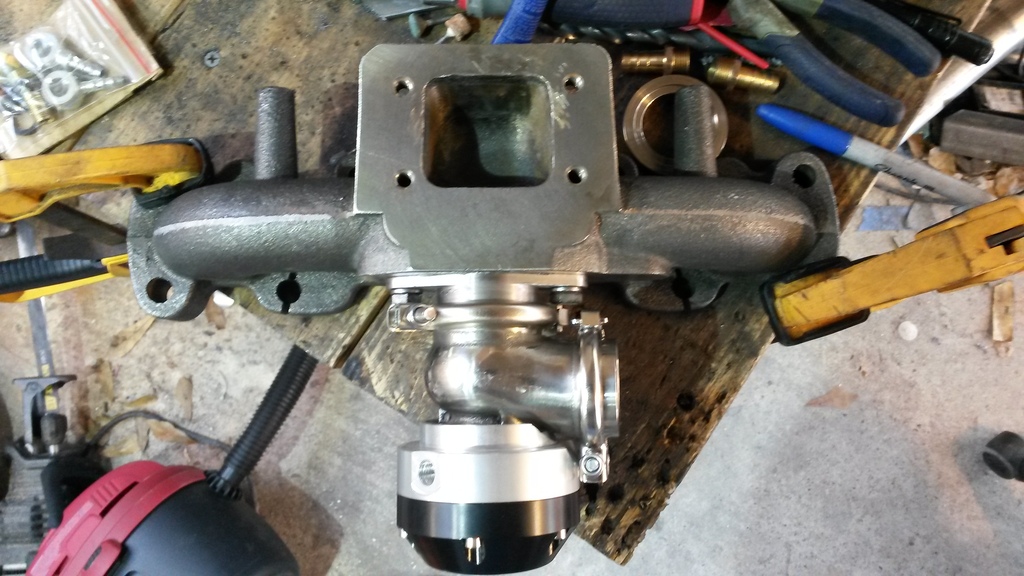

Put the gate together, tore down my old BOV and cleaned it up and reassembled.

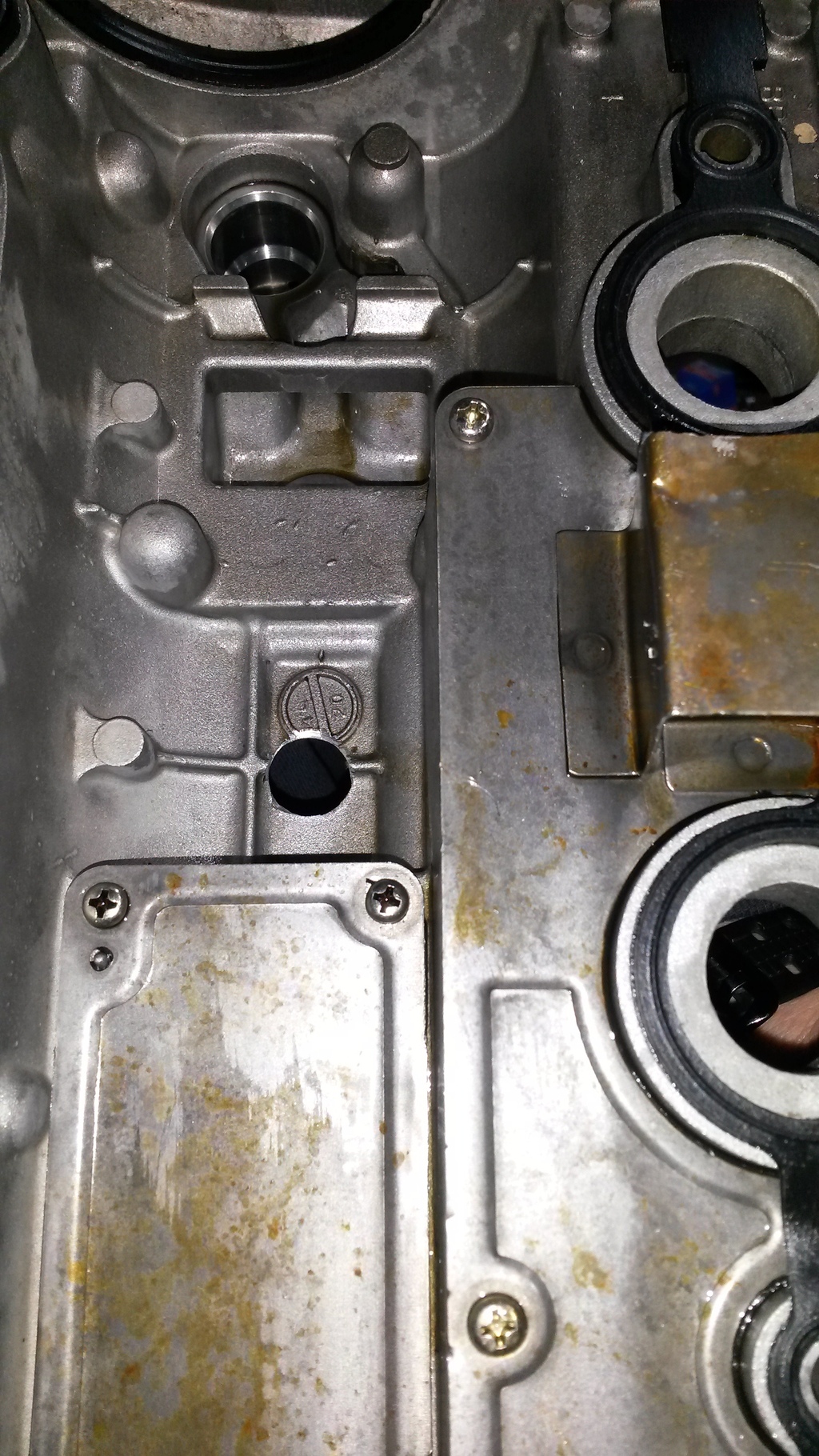

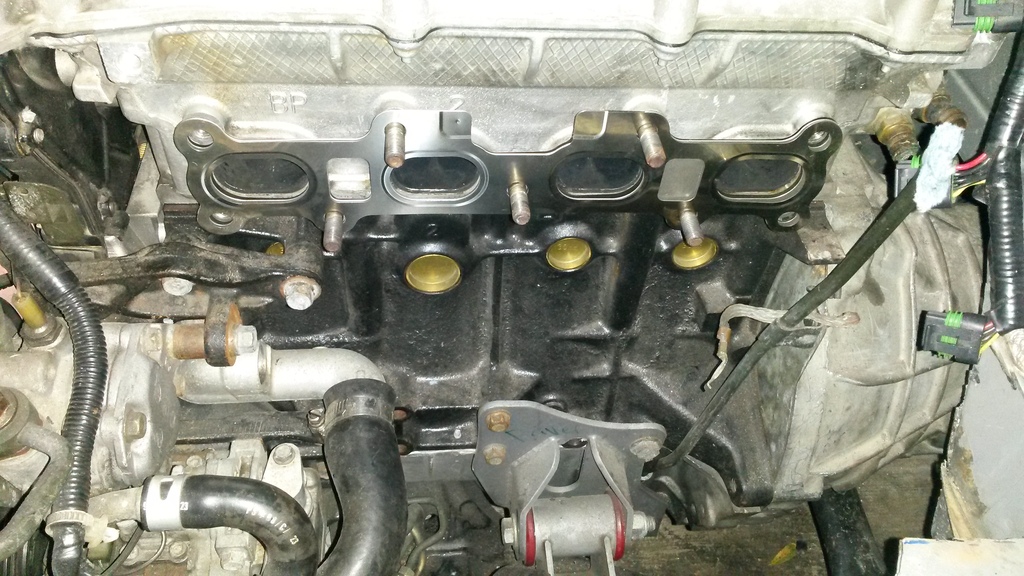

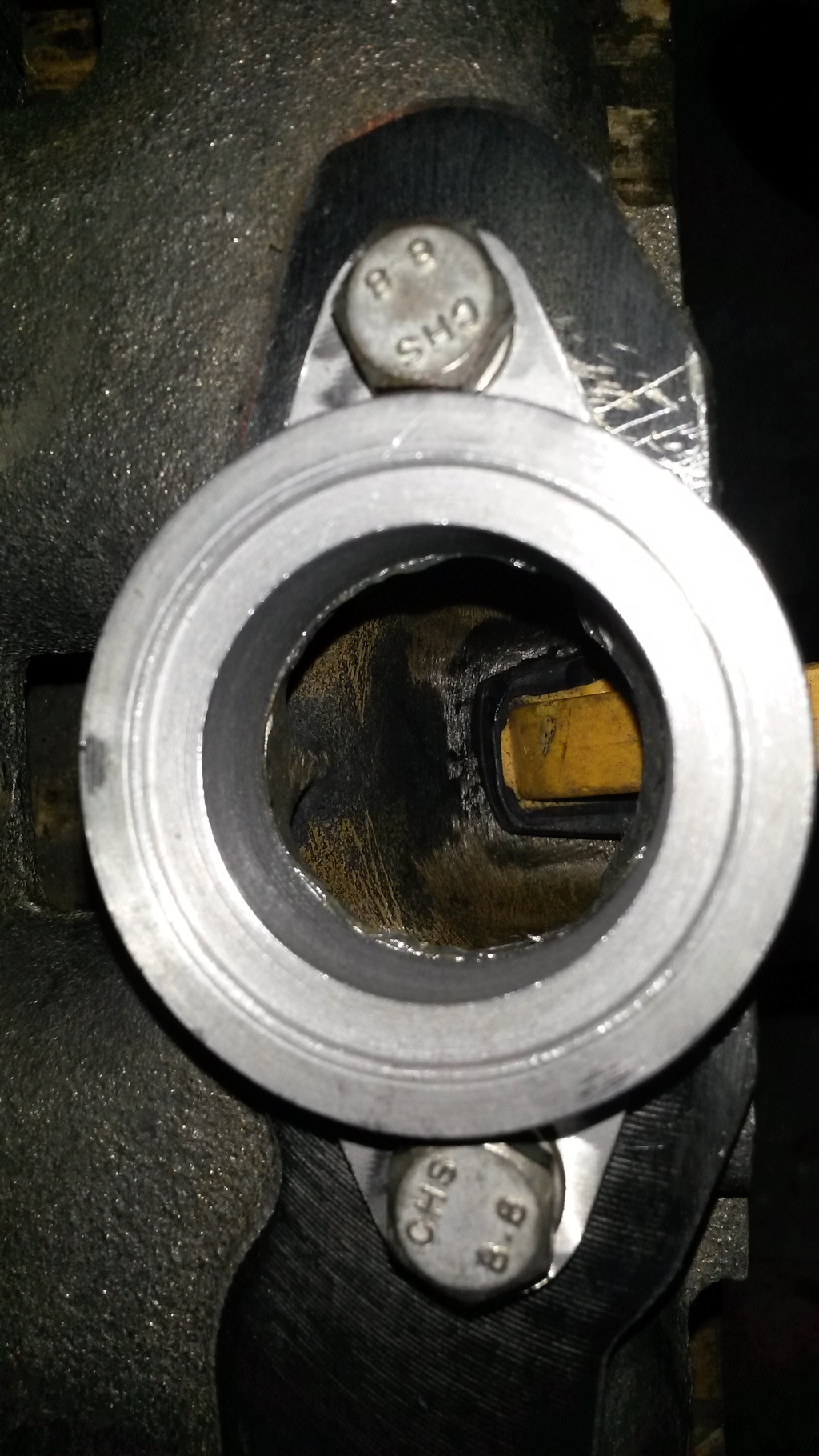

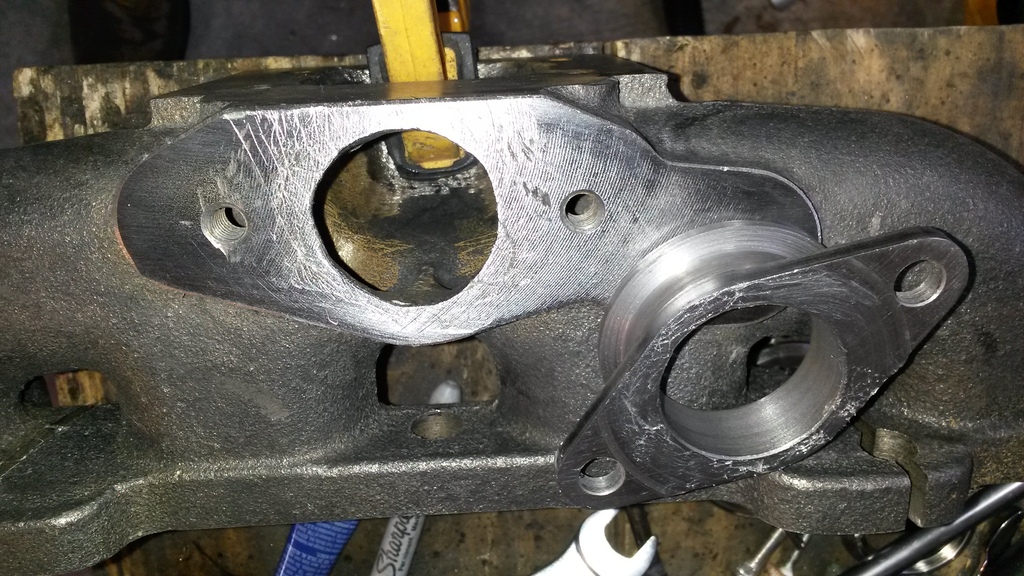

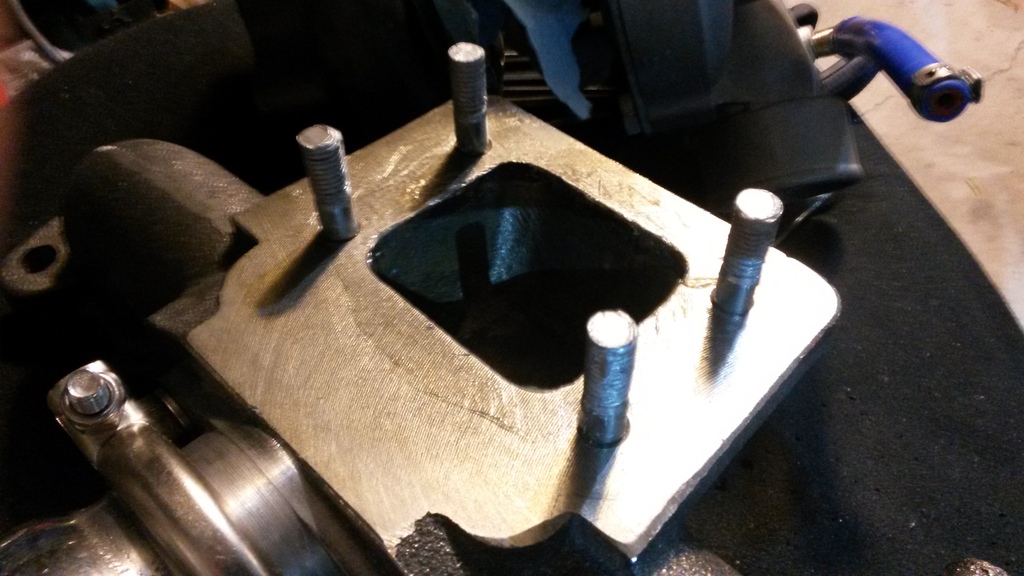

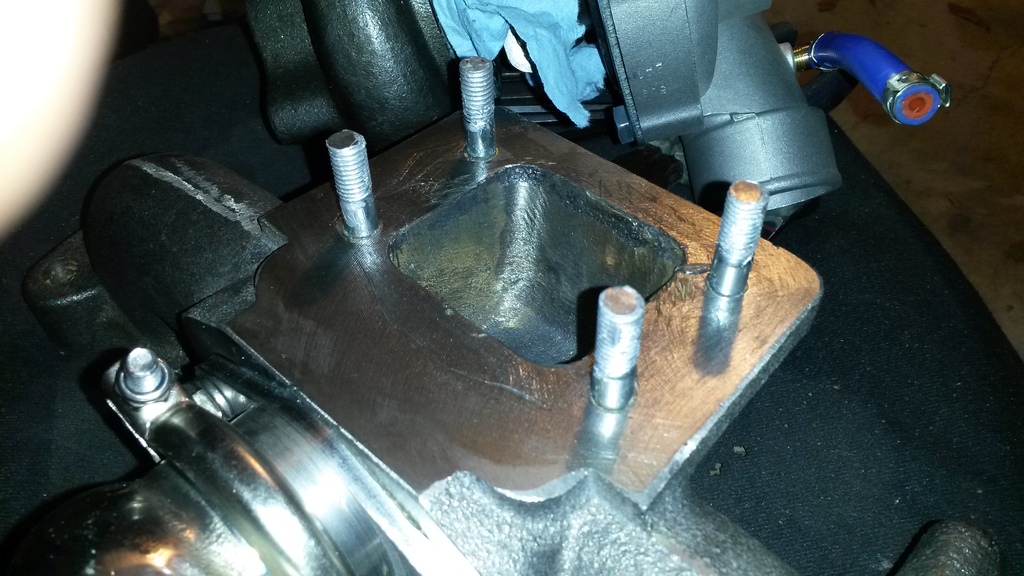

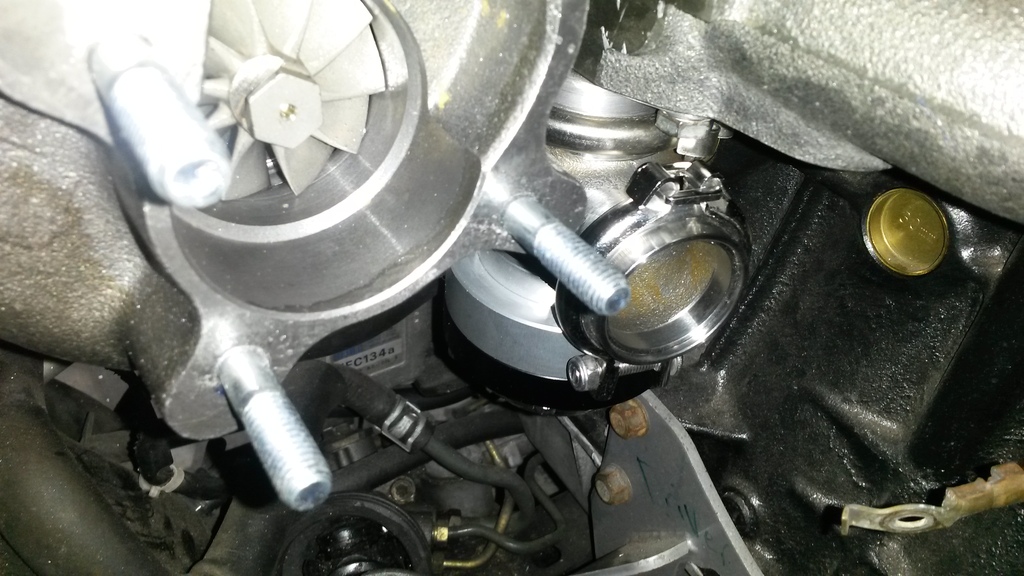

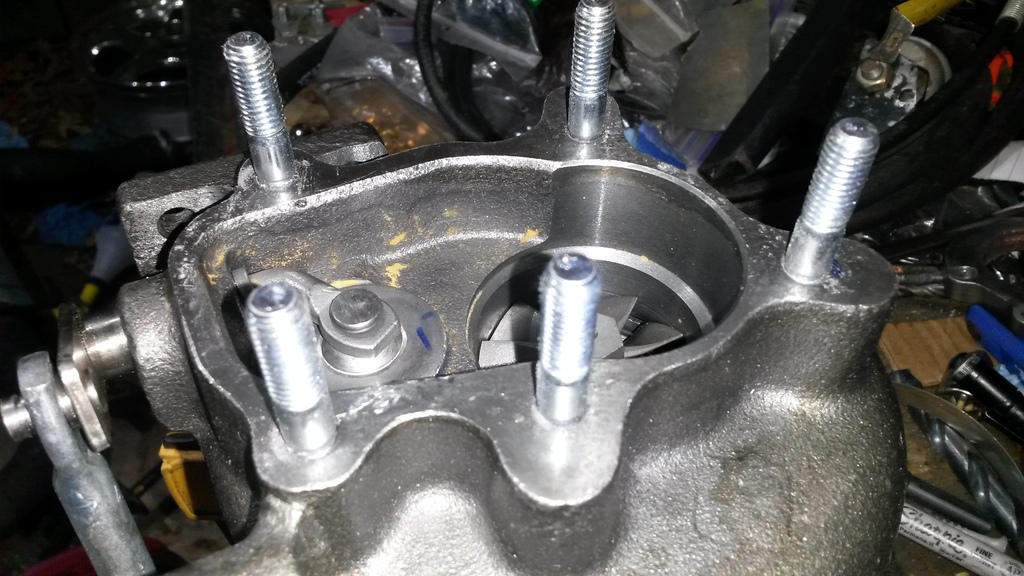

Bought studs, shortened them (sucks...) installed them into manifold, cleaned up mounting surface for turbo flange where nuts meet it as it was crappy ebay quality and cast and not even flat. Put V-band adapter on manifold, 38mm gate on, turbo on, modified the ebay downpipe flange so it fits, modified the ebay drain fitting so it fits, and the gasket. Modified the ebay oil feed bolt so it won't oil-starve the turbo (needs a new bolt, there's is very short...) Installed oil fitting in valve cover and reinstalled. Removed 4 studs from head for longer bolts for ebay manifold.

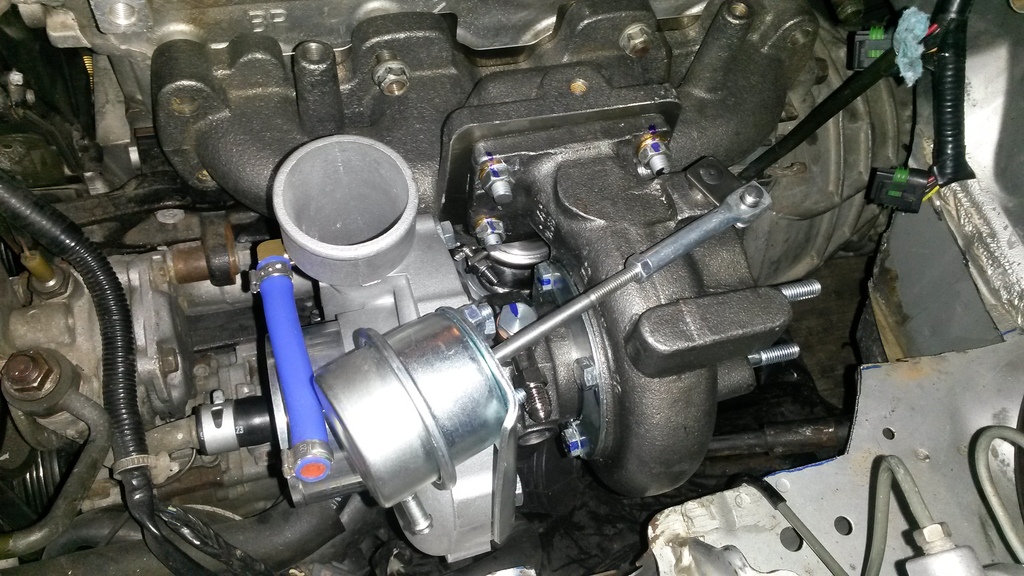

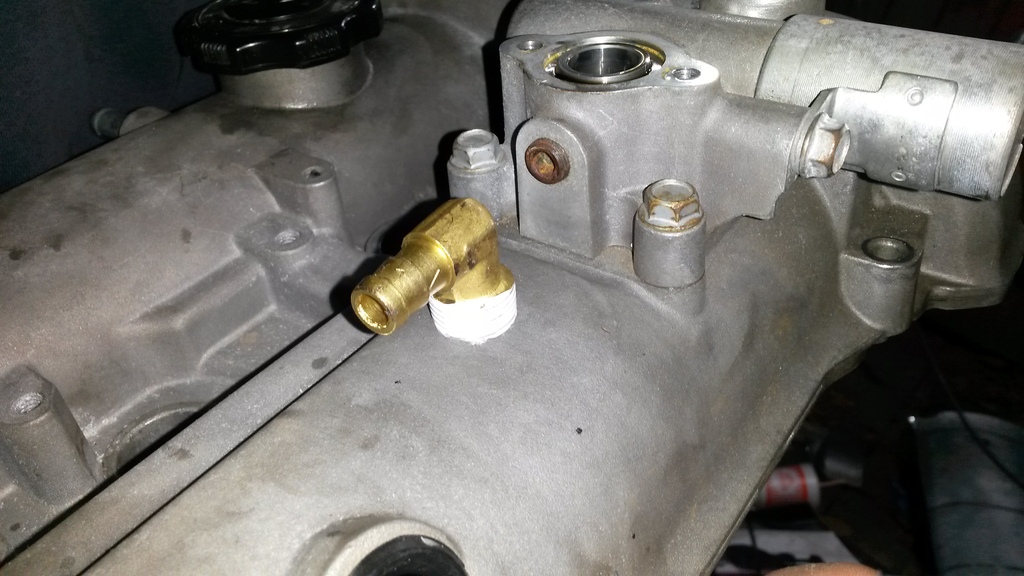

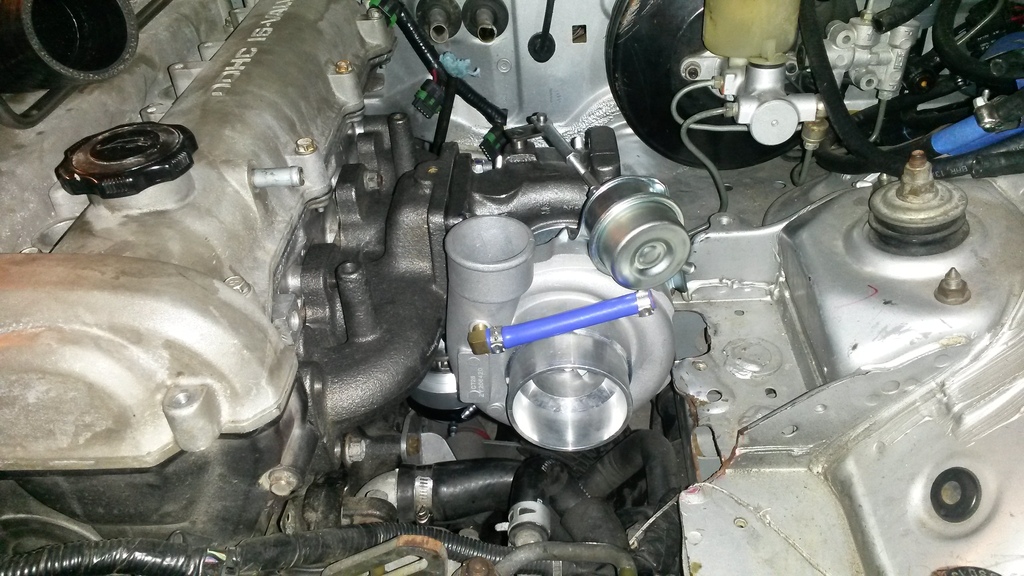

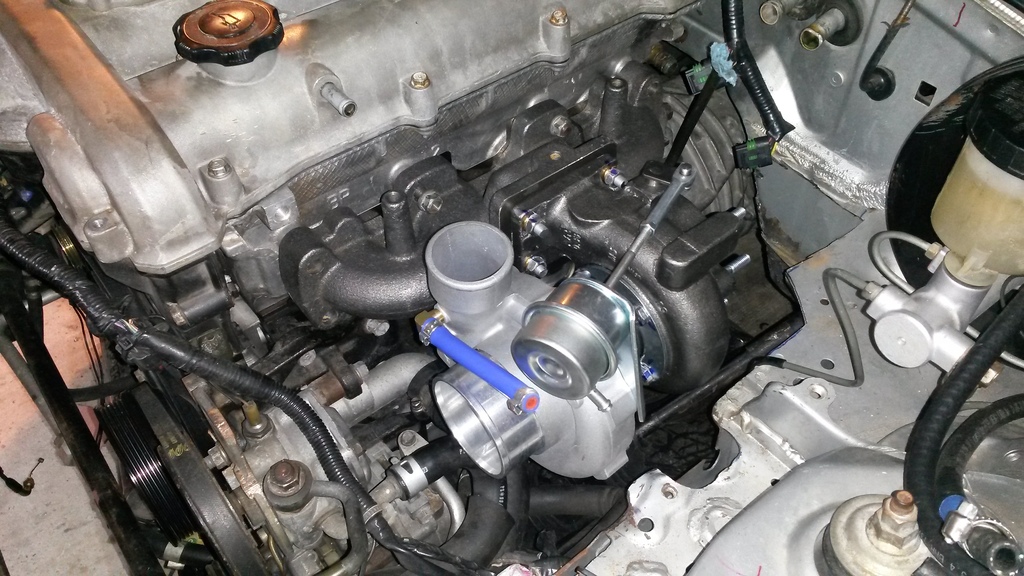

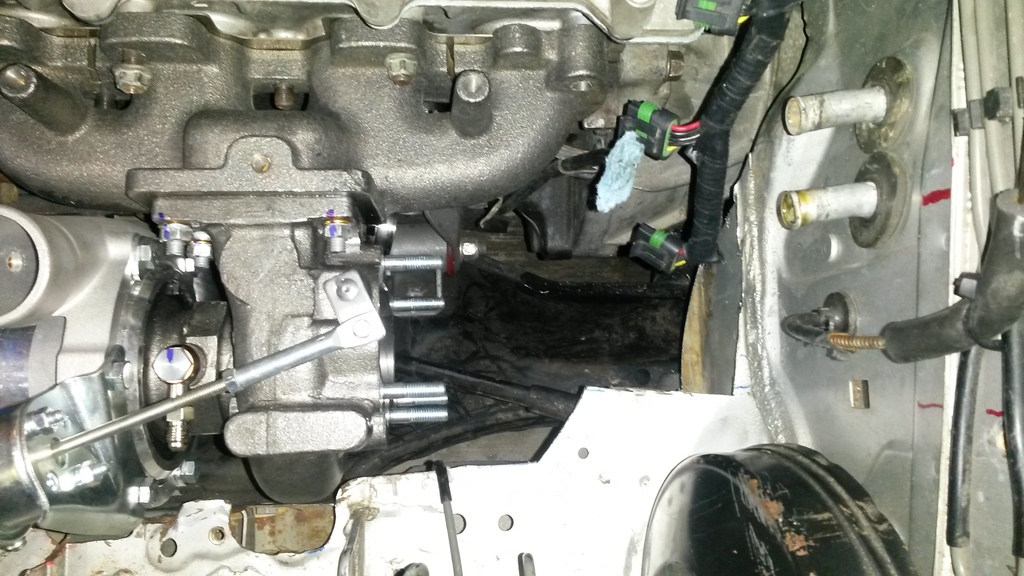

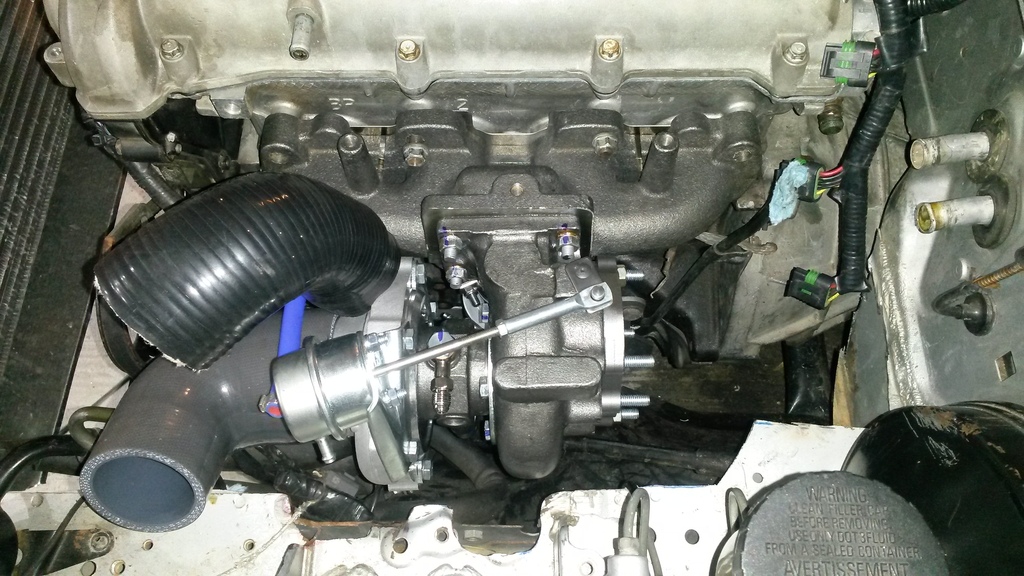

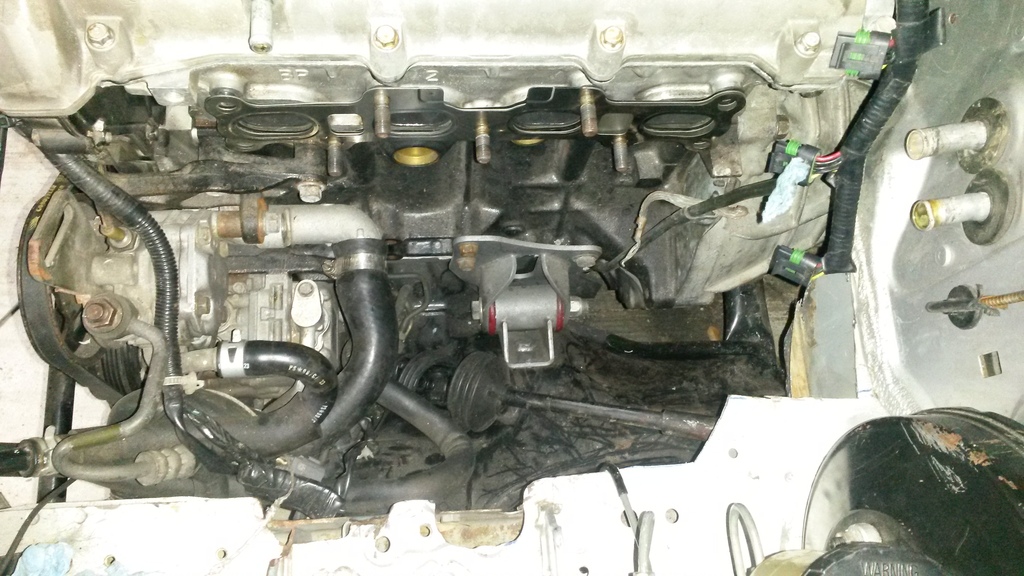

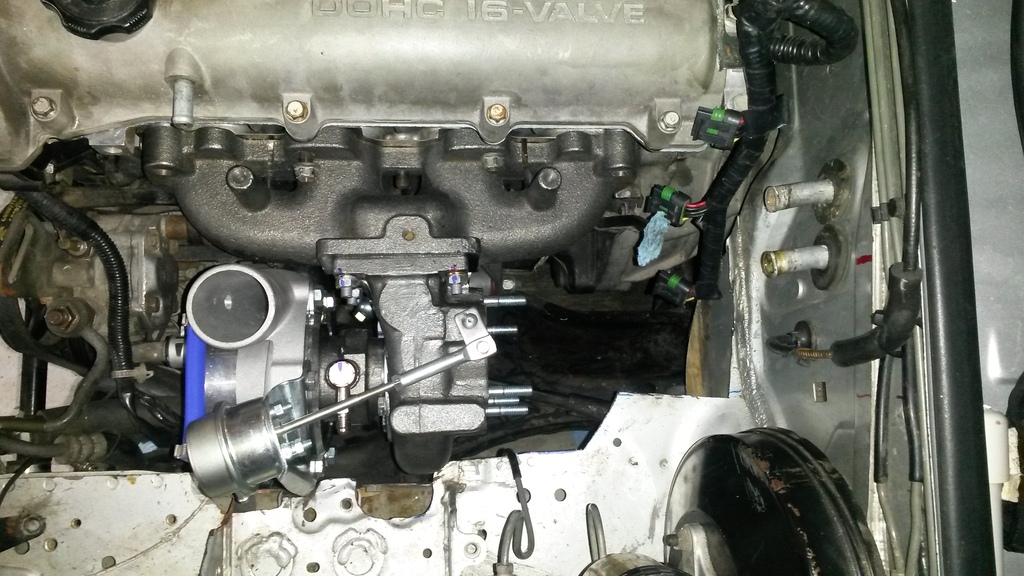

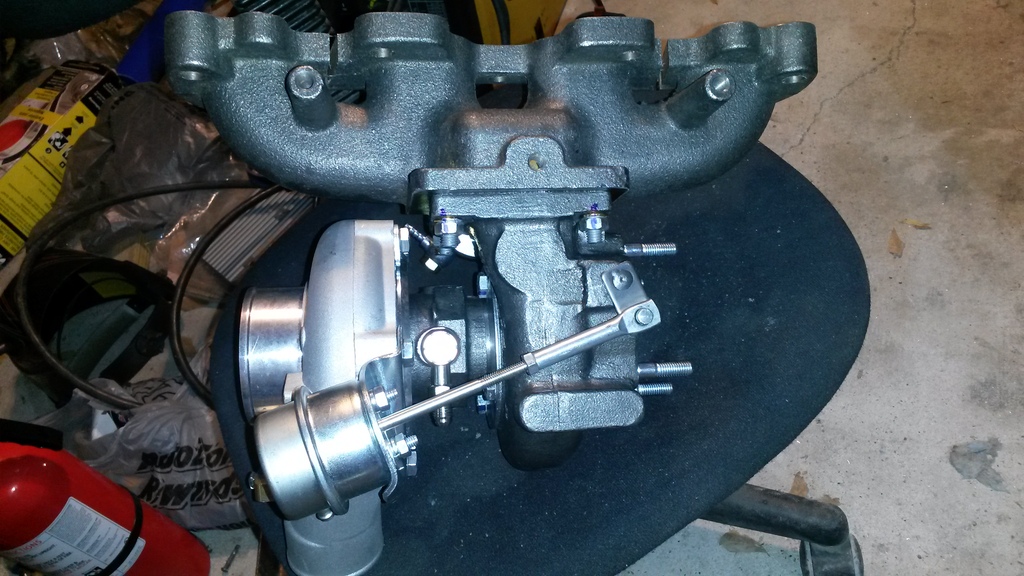

Tons of little crap as you can tell. Anyways finally got it all bolted up, looks pretty good. TON of space, I like that. The SC took up all the space and then some. I like the turbo more just for the ease of servicing and space.

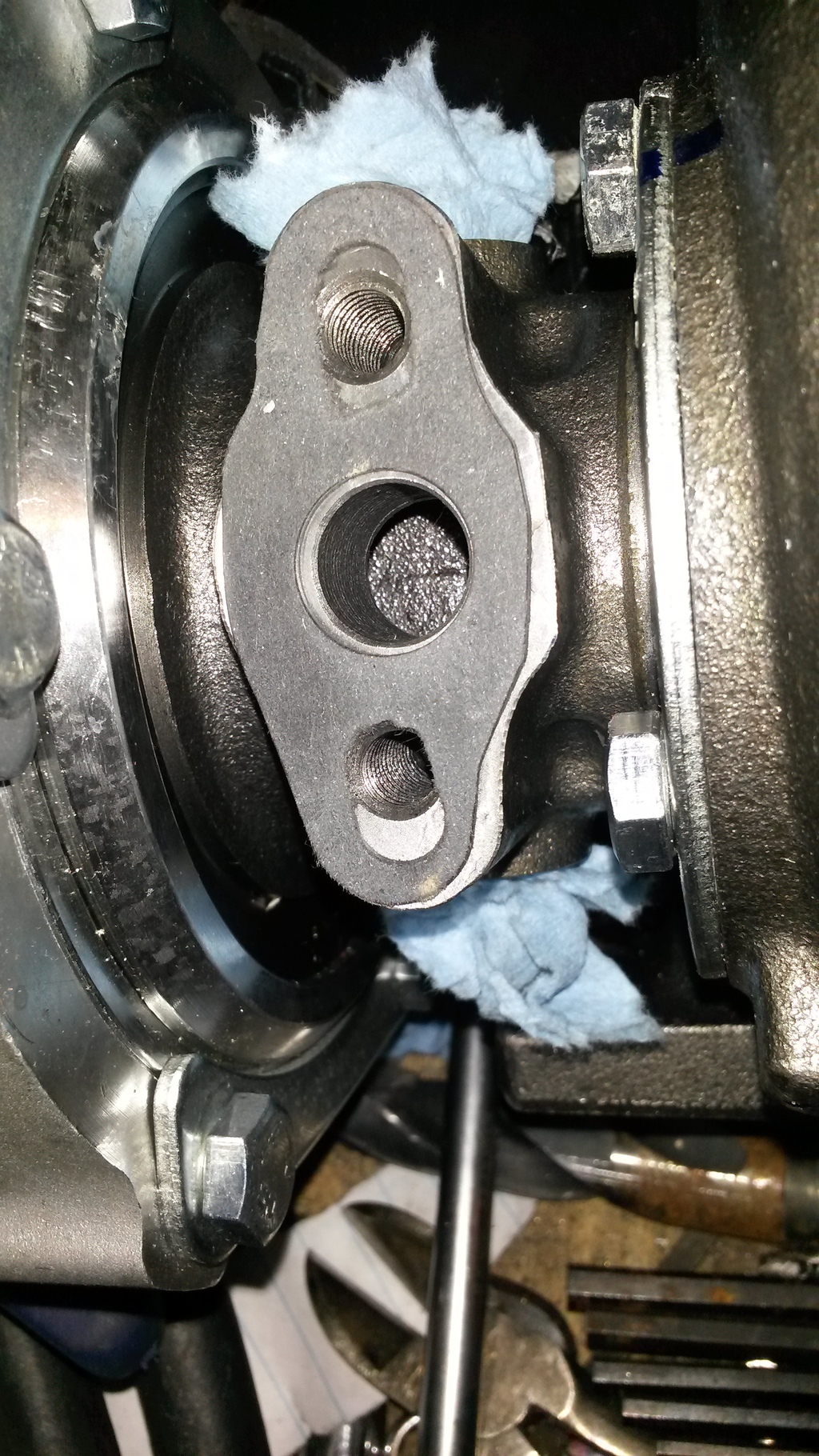

No surprise but ebay parts are cheap and take some massaging to make them work. But I had to keep this cheap so that's how it goes.

Tired of typing, pics.





































































Attached Thumbnails

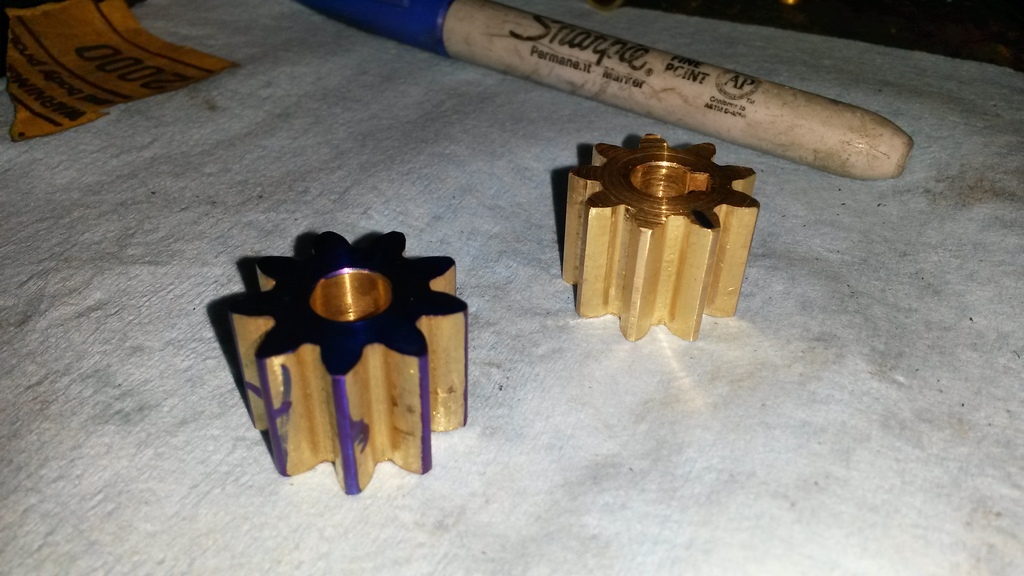

Pat's Ebay Turbo Compound Boost Build-20160205_200114_zpsr0qdx13z.jpg   Pat's Ebay Turbo Compound Boost Build-20160205_200125_zpsyuhlookq.jpg   Pat's Ebay Turbo Compound Boost Build-20160206_135749_zpszyt85yez.jpg   Pat's Ebay Turbo Compound Boost Build-20160206_135758_zps6kdqxq5b.jpg   Pat's Ebay Turbo Compound Boost Build-20160206_141858_zpsg95vinif.jpg

Pat's Ebay Turbo Compound Boost Build-20160206_142147_zpsgywjh0qi.jpg   Pat's Ebay Turbo Compound Boost Build-20160206_142202_zpsd5xfjcmq.jpg   Pat's Ebay Turbo Compound Boost Build-20160206_142315_zpszdrvqdfa.jpg   Pat's Ebay Turbo Compound Boost Build-20160206_143056_zpssmqd7ihr.jpg   Pat's Ebay Turbo Compound Boost Build-20160206_185809_zpsot9lszwd.jpg

Pat's Ebay Turbo Compound Boost Build-20160206_185814_zpskt1qmmuy.jpg   Pat's Ebay Turbo Compound Boost Build-20160206_191314_zpsls8d4km8.jpg   Pat's Ebay Turbo Compound Boost Build-20160206_191344_zpspoysrtcx.jpg   Pat's Ebay Turbo Compound Boost Build-20160206_191347_zpss1q64voj.jpg   Pat's Ebay Turbo Compound Boost Build-20160206_191600_zps2tq7dwkq.jpg

Pat's Ebay Turbo Compound Boost Build-20160206_200038_zpsq5a3an2u.jpg   Pat's Ebay Turbo Compound Boost Build-20160206_200045_zpstfbjgjwd.jpg   Pat's Ebay Turbo Compound Boost Build-20160206_200513_zpsxxslbczi.jpg   Pat's Ebay Turbo Compound Boost Build-20160206_222154_zpsydc1heeg.jpg   Pat's Ebay Turbo Compound Boost Build-20160206_222225_zpswnqmohvp.jpg

Pat's Ebay Turbo Compound Boost Build-20160206_222240_zpshax17epf.jpg   Pat's Ebay Turbo Compound Boost Build-20160206_222246_zpsytjqhp8e.jpg   Pat's Ebay Turbo Compound Boost Build-20160206_224718_zpsbmzevmym.jpg   Pat's Ebay Turbo Compound Boost Build-20160206_224732_zpsi68xcfmy.jpg   Pat's Ebay Turbo Compound Boost Build-20160206_225906_zpscv3fxt9z.jpg

Pat's Ebay Turbo Compound Boost Build-20160206_225915_zpsst8dkaxp.jpg   Pat's Ebay Turbo Compound Boost Build-20160206_231834_zps5cflypba.jpg   Pat's Ebay Turbo Compound Boost Build-20160206_231840_zpskfxqvmbn.jpg   Pat's Ebay Turbo Compound Boost Build-20160206_234023_zpshdddnyur.jpg   Pat's Ebay Turbo Compound Boost Build-20160206_234028_zpsqhzh76vx.jpg

Pat's Ebay Turbo Compound Boost Build-20160206_234035_zps6umqt8dy.jpg   Pat's Ebay Turbo Compound Boost Build-20160206_234039_zpswbxwgx40.jpg   Pat's Ebay Turbo Compound Boost Build-20160206_234046_zpszsva5h7a.jpg   Pat's Ebay Turbo Compound Boost Build-20160206_234101_zps25todesr.jpg   Pat's Ebay Turbo Compound Boost Build-20160206_234942_zps6ss4if6b.jpg

patsmx5 is offline   Reply With Quote
Old 02-07-2016, 09:47 AM   #113
SadFab CEO
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,325
Total Cats: 402
Default

So much exite.

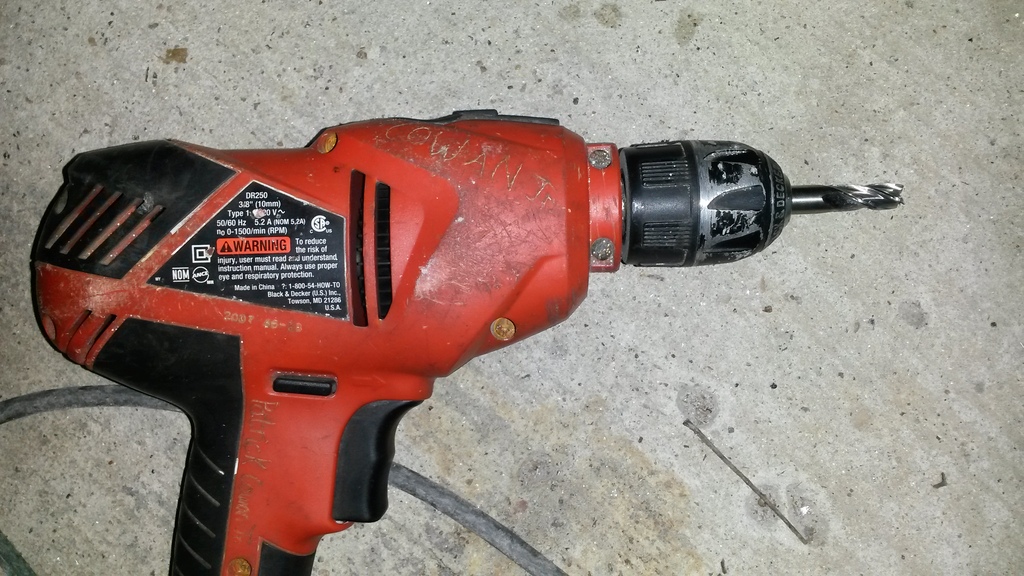

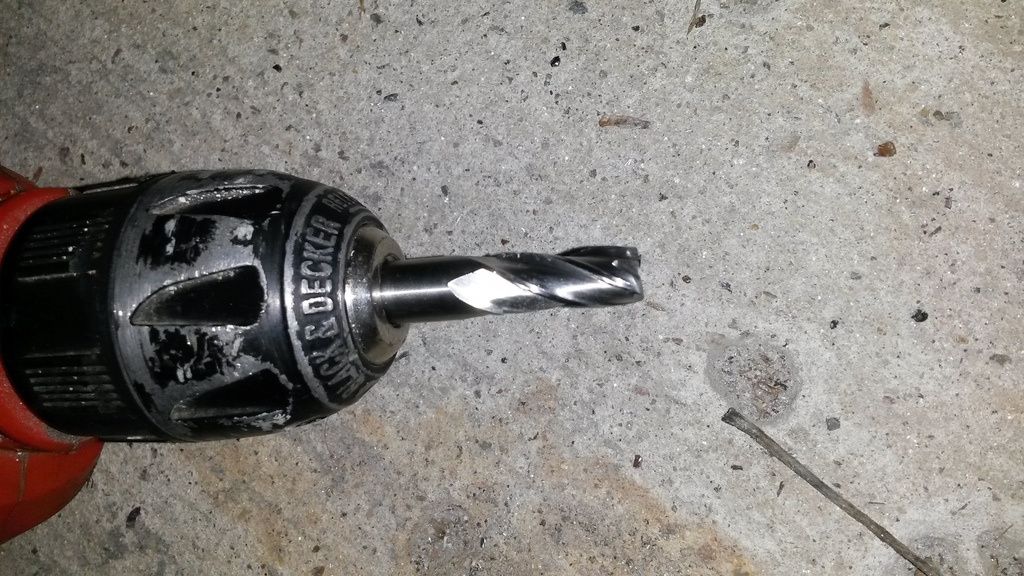

That drill is a piece of ****, I have the same one.
hi_im_sean is online now   Reply With Quote
Old 02-07-2016, 11:13 AM   #114
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

Why not run 2 boost control solenoids. Then you can control exactly what each wastegate sees.
aidandj is offline   Reply With Quote
Old 02-07-2016, 11:26 AM   #115
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,214
Total Cats: 750
Default

I like how you cut the rear shelf. Made all the room back there for a down pipe.
shuiend is offline   Reply With Quote
Old 02-07-2016, 01:11 PM   #116
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,964
Total Cats: 128
Default

Quote:
Originally Posted by hi_im_sean View Post
So much exite.


That drill is a piece of ****, I have the same one.
Yeap! In that drill's defense though, it's been through some crap and never died. I have a really fancy 10A dewalt hammer drill 2 speed drill but I don't use it often. I used it to port the exhaust manifold though with a carbide bur in it.



Quote:
Originally Posted by shuiend View Post
I like how you cut the rear shelf. Made all the room back there for a down pipe.
Should have done it about 10 years ago. Highly recommend. I do need to clean up the rough edges, but the extra space is very nice. My boost pipe will be in that area too, so needed the extra room.


Quote:
Originally Posted by aidandj View Post
Why not run 2 boost control solenoids. Then you can control exactly what each wastegate sees.
I may, we'll see. But it's better to have most of the control done with a spring if you're never going to turn down the boost, improves spool by keeping the gate pinned shut. One of the great things about external gates, that and top ports that help do the same thing.

Also still planning to have it on the road by 2/12/16!
patsmx5 is offline   Reply With Quote
Old 02-07-2016, 09:02 PM   #117
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,430
Total Cats: 1,015
Default

My shelf is cut similarly. Love the room. Needed the room, too.
sixshooter is offline   Reply With Quote
Old 02-08-2016, 03:24 AM   #118
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,964
Total Cats: 128
Default

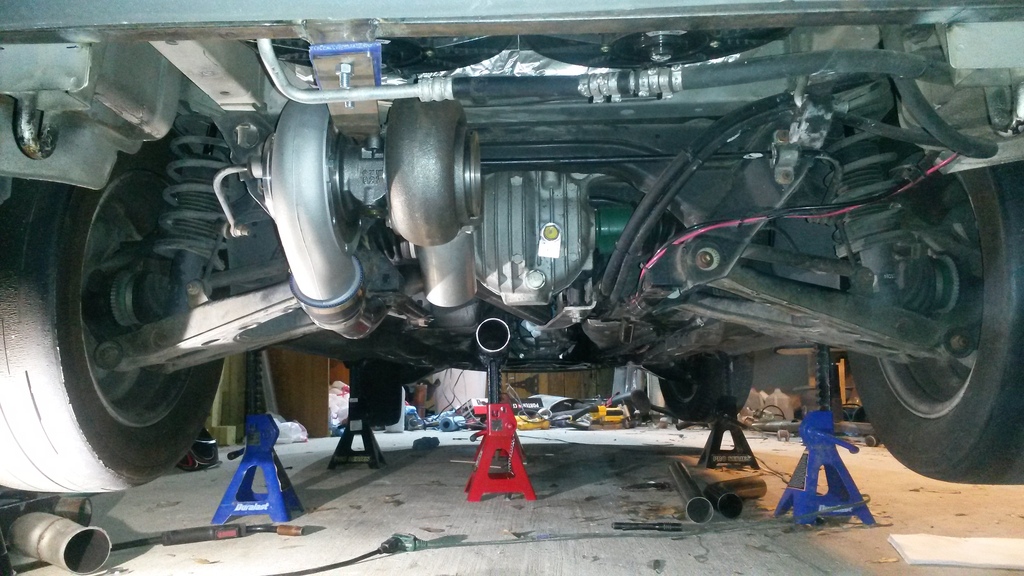

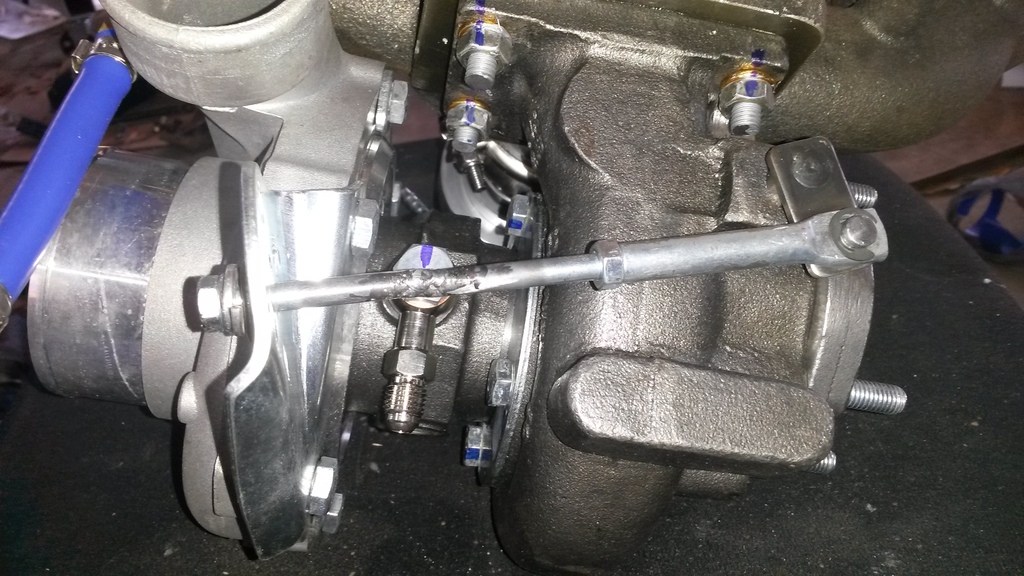

Bolted internal gate shut for now. Welded a bolt to make one long enough... Made some progress on the boost pipe.

Took some measurements and that silicone 180 thing was too low, and looked like crap too.

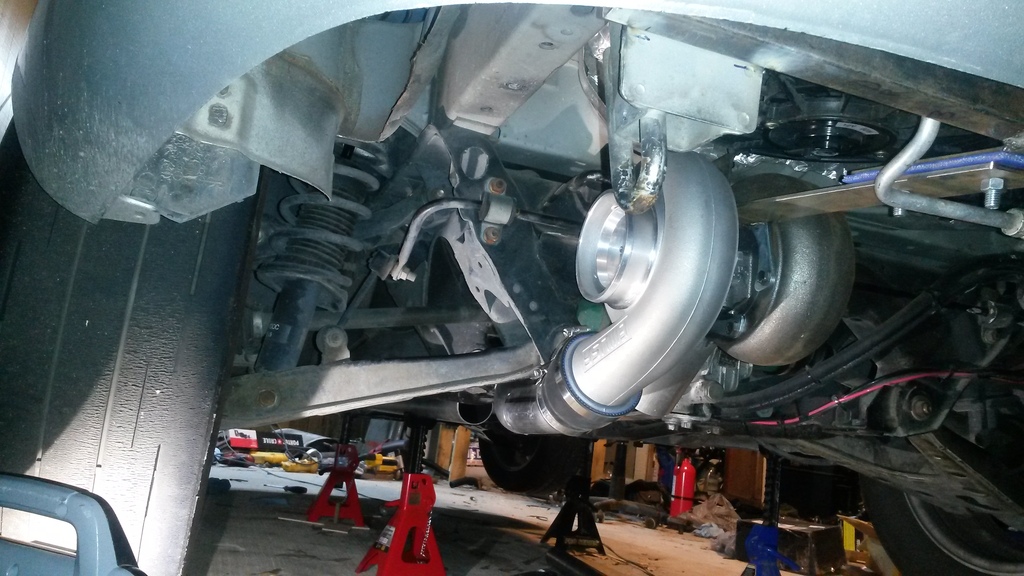

Decided to test rotating the turbo as suggested again. I lost about 1/4" of clearance where the turbo outlet hangs, but got rid of the ugly U-bend and gained lots of clearance in the back where the silicone was hanging down before. So overall an improvement I think, it looks 10x better at least.

So thanks guys for that suggestion!

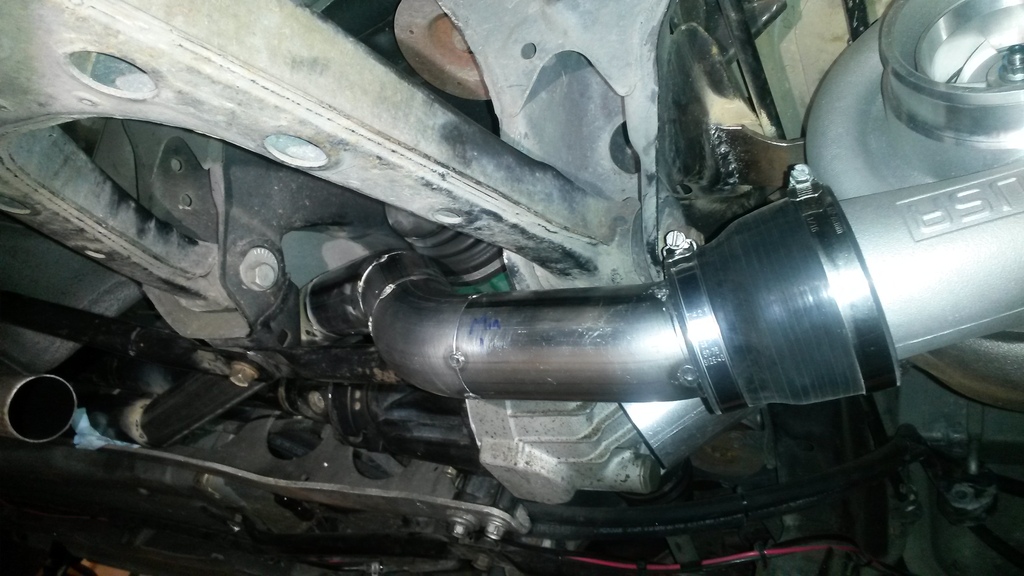

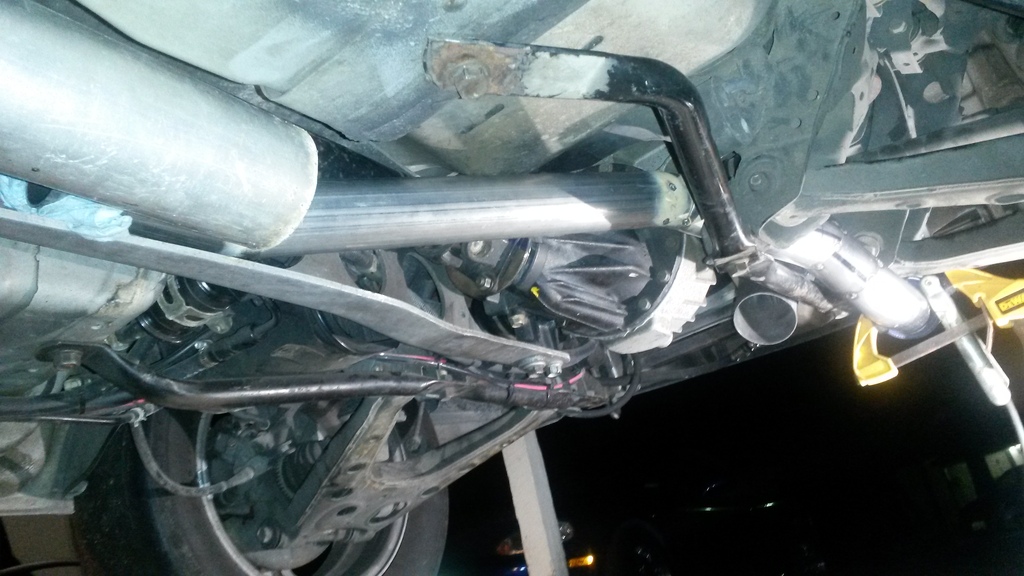

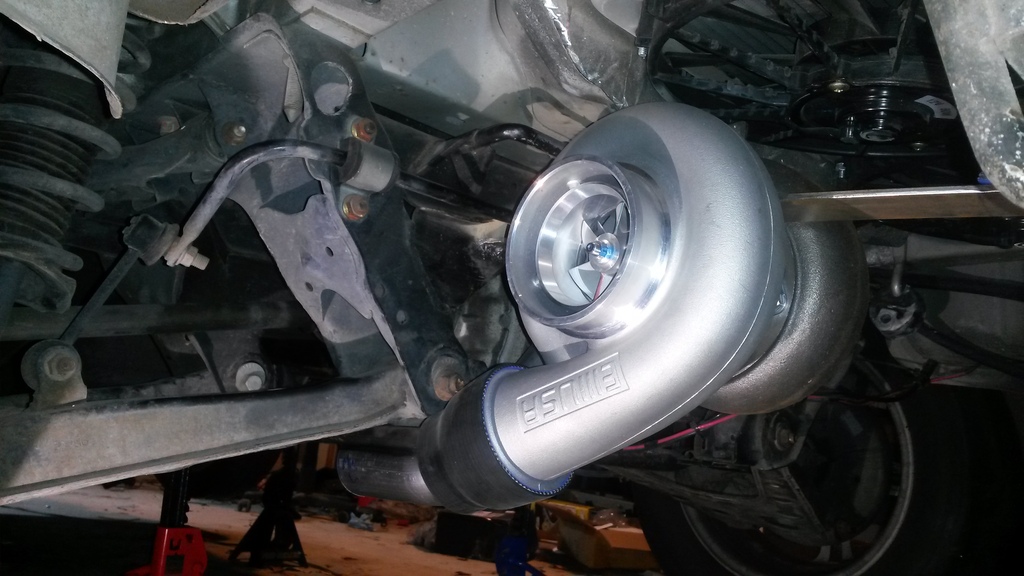

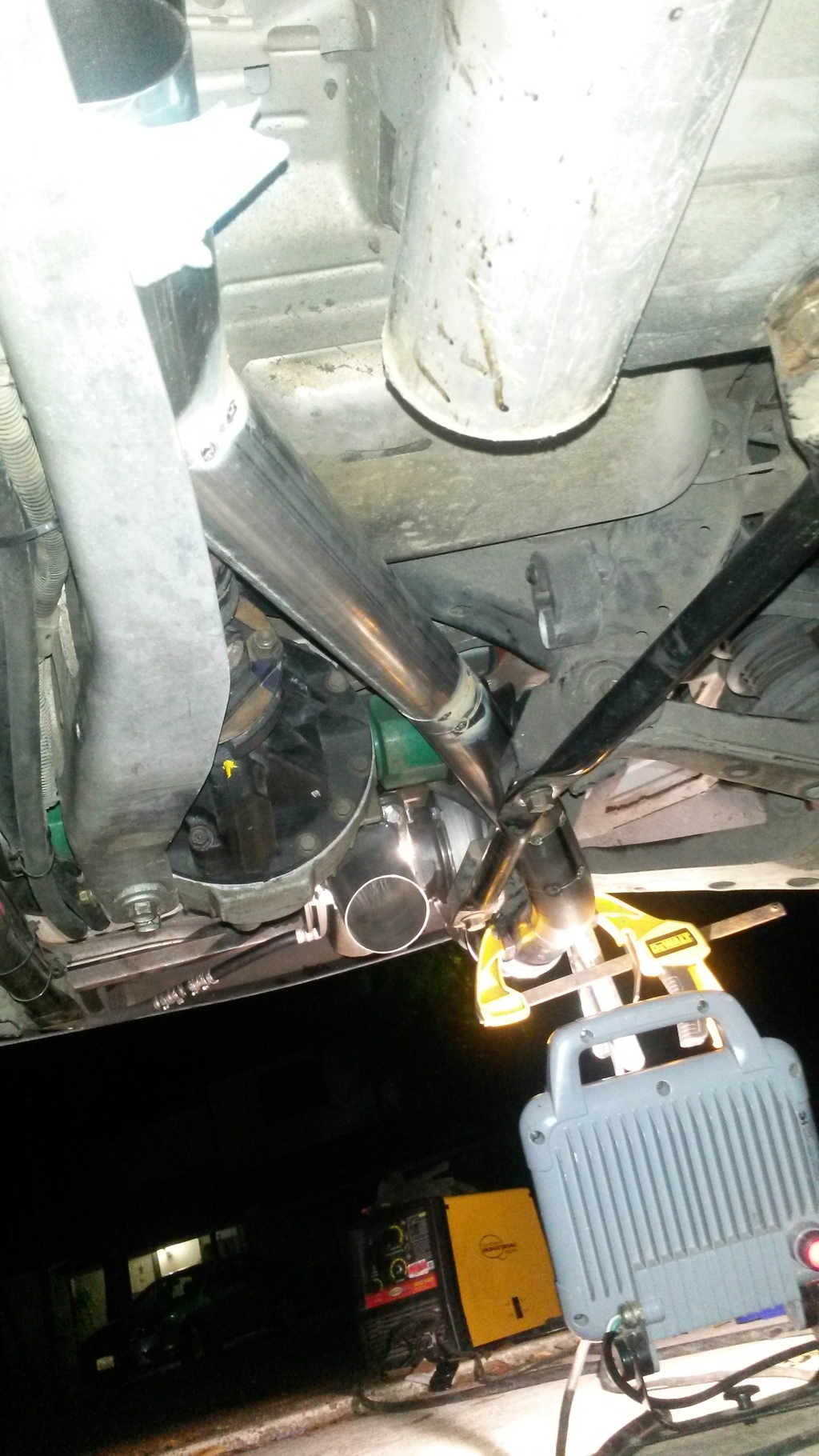

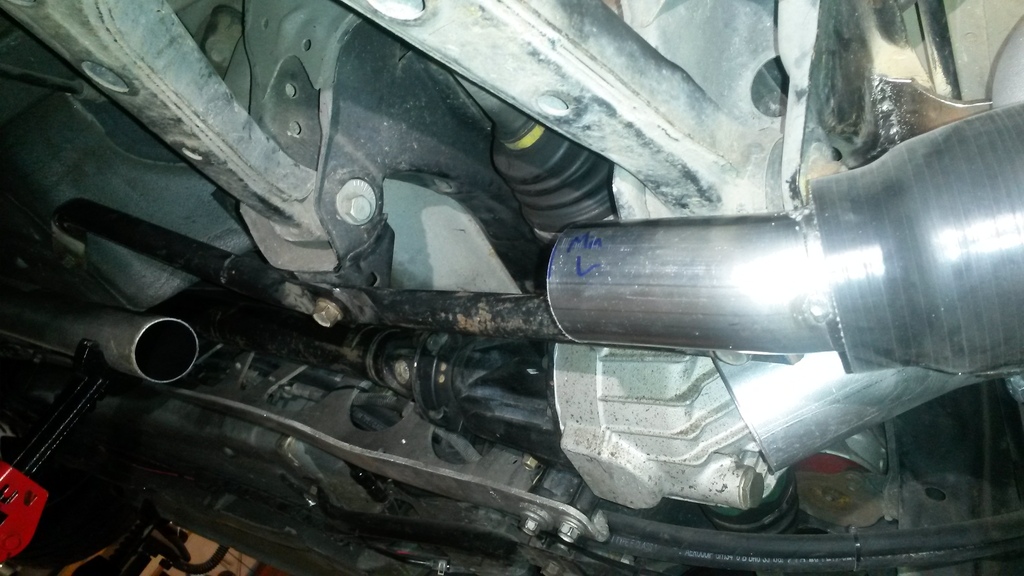

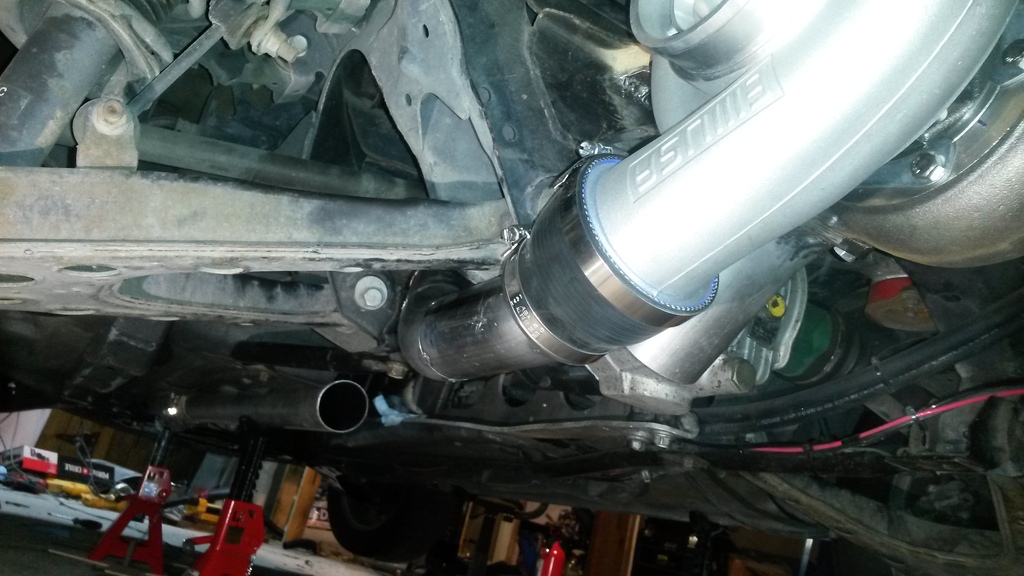

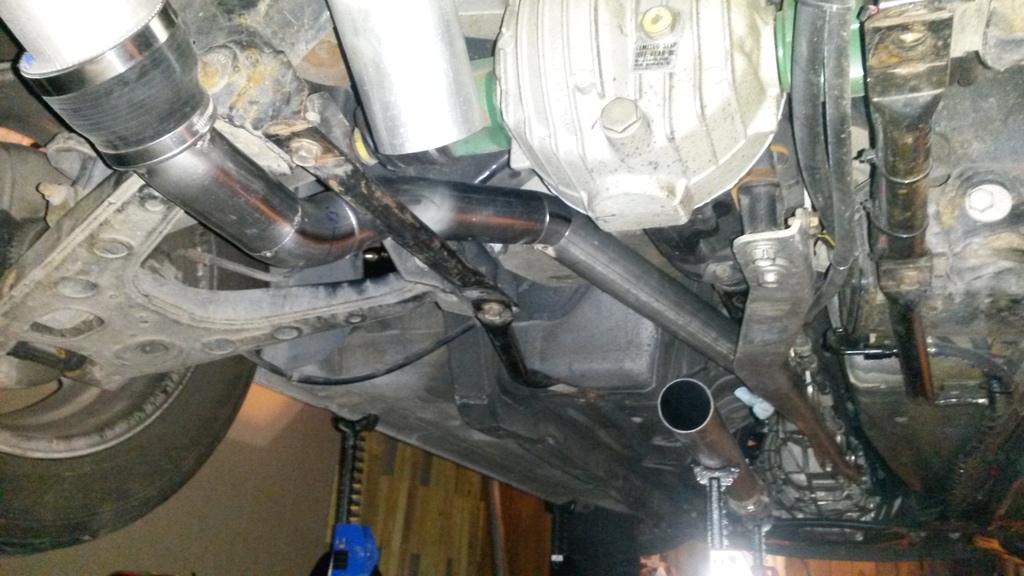

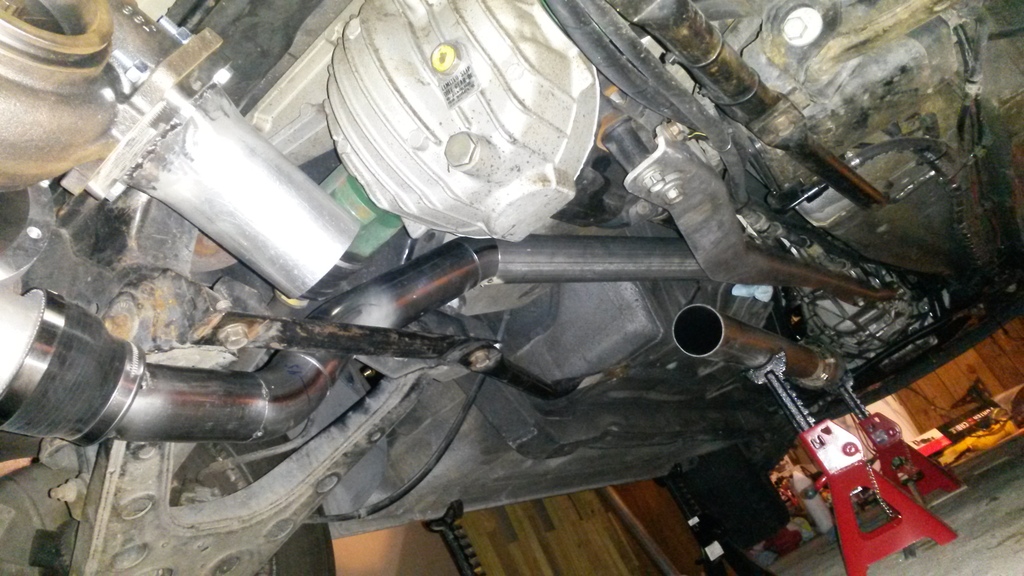

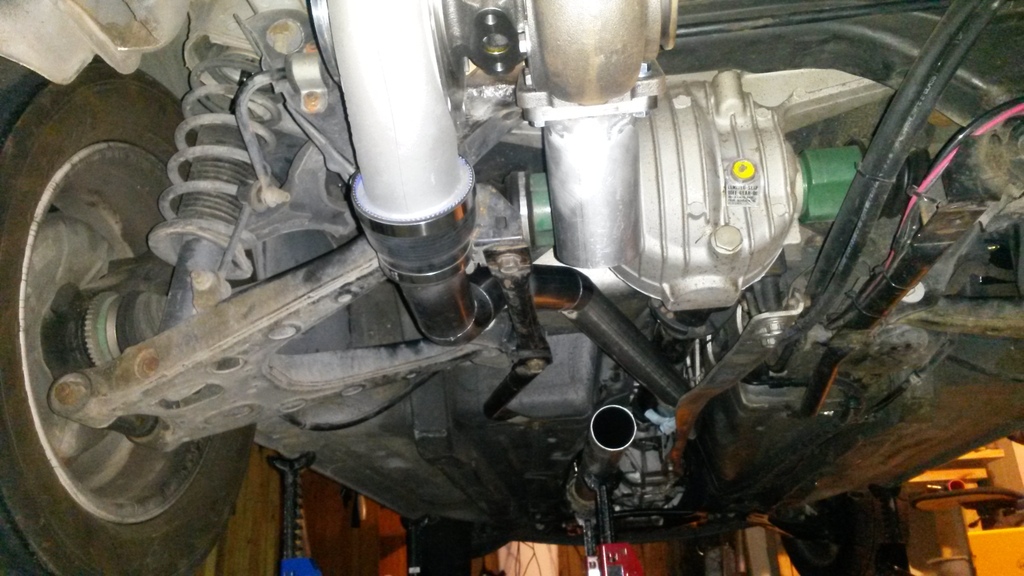

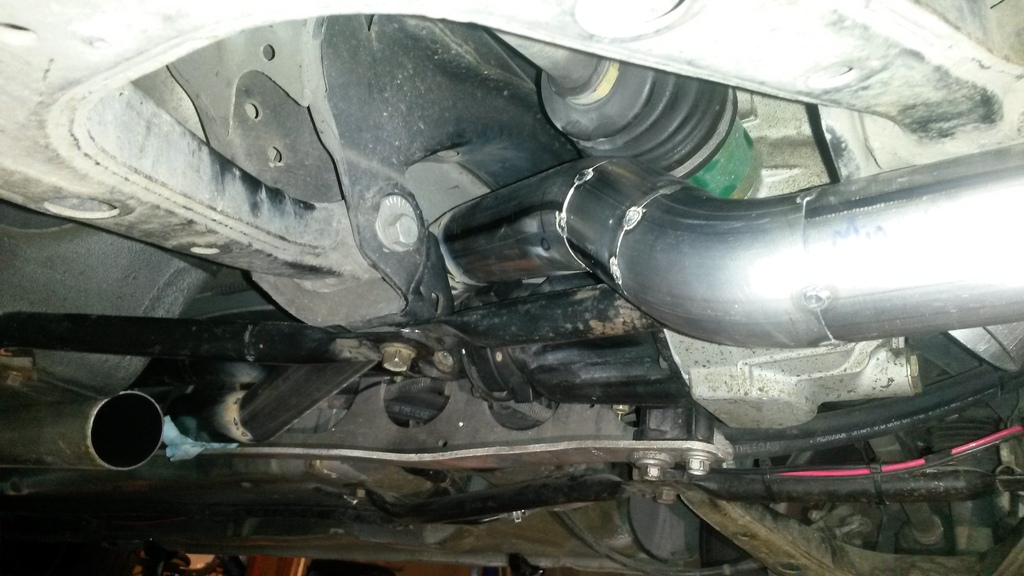

And then got to work on the boost pipe, snaking it through all the things. Got it to the PPF. From this point forward (literally) it will just follow the PPF and then up and follow the bellhousing up to the firewall and into the engine bay.



























Tomorrow I finish the boost pipe and then a downpipe and exhaust
Attached Thumbnails
Pat's Ebay Turbo Compound Boost Build-20160207_135017_zpsesllsutw.jpg   Pat's Ebay Turbo Compound Boost Build-20160207_211842_zpsdbbxs0oz.jpg   Pat's Ebay Turbo Compound Boost Build-20160207_211903_zps1ywiladm.jpg   Pat's Ebay Turbo Compound Boost Build-20160208_003125_zpshvc40tdc.jpg   Pat's Ebay Turbo Compound Boost Build-20160208_003212_zpsrqikbzmz.jpg

Pat's Ebay Turbo Compound Boost Build-20160208_003408_zpsfkt93wuh.jpg   Pat's Ebay Turbo Compound Boost Build-20160208_003416_zpsauj0bgb3.jpg   Pat's Ebay Turbo Compound Boost Build-20160208_003446_zpseg293lrf.jpg   Pat's Ebay Turbo Compound Boost Build-20160208_003502_zps0smi0wul.jpg   Pat's Ebay Turbo Compound Boost Build-20160208_003507_zps3kunwbyq.jpg

Pat's Ebay Turbo Compound Boost Build-20160208_010105_zpsz7rlmamu.jpg   Pat's Ebay Turbo Compound Boost Build-20160208_010112_zpskxs2mbco.jpg   Pat's Ebay Turbo Compound Boost Build-20160208_010120_zpshmrrtrmg.jpg
patsmx5 is offline   Reply With Quote
Old 02-08-2016, 04:27 AM   #119
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 2,782
Total Cats: 205
Default

You work fast and entertain us for free, like we expect and deserve. Cats.
Mobius is offline   Reply With Quote
Old 02-08-2016, 10:17 AM   #120
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,169
Total Cats: 1,990
Default

looks like clocking the compressor was indeed a good idea and you did it. Cats
18psi is offline   Reply With Quote
