Old 06-09-2016, 11:16 PM   #161
Newb

Join Date: Feb 2016
Posts: 33
Total Cats: 1
Default OBDII connections

Question on the OBDII connections. The ECU is signaling the CEL and I am trying to get a scanner to work so I can see what the issue is. I am using the cheap bluetooth scanner I have and I can not get it to talk to the ECU. Hopefully someone with a working conversion can help me figure out what pins need to be connected.

I know the following for sure:
4=Ground
16= 12v

The pinout shows 12 and 13 are the CAN + and - respectively but that is not working. My research on the Web has only added more confusion...LOL
griff is offline   Reply With Quote
Old 06-09-2016, 11:23 PM   #162
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,668
Total Cats: 93
Default

does that bluetooth work with other cars? Sometimes the cheap ones are DOA or super flaky.
Leafy is online now   Reply With Quote
Old 06-09-2016, 11:23 PM   #163
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 623
Total Cats: 44
Default

Where do you see 12 and 13 being CAN high and low? I thought it was standard that 6 and 14 were CAN HIGH and CAN LOW respectively.
acedeuce802 is offline   Reply With Quote
Old 06-09-2016, 11:31 PM   #164
Newb

Join Date: Feb 2016
Posts: 33
Total Cats: 1
Default

Quote:
Originally Posted by Leafy View Post
does that bluetooth work with other cars? Sometimes the cheap ones are DOA or super flaky.
I put in my other car and it worked just fine but you are 100% correct.....it was a PITA to get working with my phone. I would go buy a "real" scanner but I live out in BFE and was just trying to get it working with what I have on hand.
griff is offline   Reply With Quote
Old 06-09-2016, 11:33 PM   #165
Junior Member
Thread Starter

Join Date: May 2007
Location: Atlanta
Posts: 296
Total Cats: 26
Default

So there's probably some confusion stemming from 2 highspeed GMLAN's being output to the OBDII connector.

6 High, 14 Low - This is the SAE standard. This is the one you need to run the wires from the ECU to.
12 High, 13 Low - Optional Additional from GM

gooflophaze is offline   Reply With Quote
Old 06-09-2016, 11:36 PM   #166
Newb

Join Date: Feb 2016
Posts: 33
Total Cats: 1
Default

Quote:
Originally Posted by acedeuce802 View Post
Where do you see 12 and 13 being CAN high and low? I thought it was standard that 6 and 14 were CAN HIGH and CAN LOW respectively.

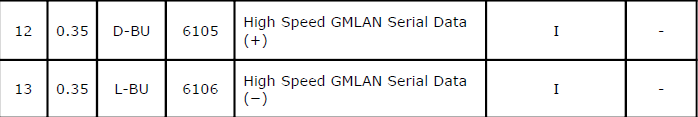

That is from the OBDII pin out for an LFX Camaro. everything else has been 100% in the wiring diagrams so I trust it personally.
Attached Thumbnails
The Portabull LFX Build-80-2016_06_09_20_32_42_obdii_connector_a4ed9000814c35dbc3446d73010846fc3426a707.png
griff is offline   Reply With Quote
Old 06-09-2016, 11:38 PM   #167
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,668
Total Cats: 93
Default

Quote:
Originally Posted by griff View Post
I put in my other car and it worked just fine but you are 100% correct.....it was a PITA to get working with my phone. I would go buy a "real" scanner but I live out in BFE and was just trying to get it working with what I have on hand.
WHy not just use the scanner function built into hp tuners?
Leafy is online now   Reply With Quote
Old 06-09-2016, 11:39 PM   #168
Newb

Join Date: Feb 2016
Posts: 33
Total Cats: 1
Default

Quote:
Originally Posted by gooflophaze View Post
So there's probably some confusion stemming from 2 highspeed GMLAN's being output to the OBDII connector.

6 High, 14 Low - This is the SAE standard. This is the one you need to run the wires from the ECU to.
12 High, 13 Low - Optional Additional from GM
OK....I will try those now. Are there any other wires that are needed?
griff is offline   Reply With Quote
Old 06-09-2016, 11:42 PM   #169
Newb

Join Date: Feb 2016
Posts: 33
Total Cats: 1
Default

Quote:
Originally Posted by Leafy View Post
WHy not just use the scanner function built into hp tuners?
Sorry for spamming your build thread but I was hoping this would help the next guy...

I had V8R program the ECU so I do not have HPTuner...yet. I am hoping to install an e85 sensor and upload a table down the road but for now I just want to see what the LFX is complaining about.
griff is offline   Reply With Quote
Old 06-09-2016, 11:45 PM   #170
Junior Member
Thread Starter

Join Date: May 2007
Location: Atlanta
Posts: 296
Total Cats: 26
Default

Power and ground(s). 16, 4 + 5. https://developer.mbed.org/media/upl...GdyXCBV7-t.jpg

Leafy - I'll need to post an update about it, but the Torque app saved my *** last week. Besides - you'll need the proper pins to get Hptuners to work as well.
gooflophaze is offline   Reply With Quote
Old 06-10-2016, 12:42 AM   #171
Newb

Join Date: Feb 2016
Posts: 33
Total Cats: 1
Default

Still no joy.... Forgive my ignorance but is there a difference in an error code reader and a full blown scanner as it relates to interface ports on the OBDII? I ask because I am wondering if the scanner is looking for serial data on pin 2 to establish the OBDII interface connection rather than just talking to the ECU via CAN Bus the way something like HPTuners may do.

O well.... I will research a bit tonight and try again tomorrow.
griff is offline   Reply With Quote
Old 06-10-2016, 01:00 AM   #172
Junior Member
Thread Starter

Join Date: May 2007
Location: Atlanta
Posts: 296
Total Cats: 26
Default

Nope - 4, 5, 6, 14 and 16 are the only ones we have hooked up. The other pins, like J1850, are non-canbus based OBDII protocols. OBDII has been standardized since 96, CANBus as the primary OBDII protocol wasn't established until 2008.
gooflophaze is offline   Reply With Quote
Old 06-10-2016, 01:05 AM   #173
Newb

Join Date: Feb 2016
Posts: 33
Total Cats: 1
Default

Quote:
Originally Posted by gooflophaze View Post
Nope - 4, 5, 6, 14 and 16 are the only ones we have hooked up. The other pins, like J1850, are non-canbus based OBDII protocols. OBDII has been standardized since 96, CANBus as the primary OBDII protocol wasn't established until 2008.
I found it....

As you like to call them gooflophaze..."pro tip":

If your harness happens to be out of an auto the transmission has an internal loop that goes to and from the ATX-Q8 connector. Fell back on the good old rule of "when in doubt...ohm it out". 1 unloomed ECU harness and 2 hours later I now have a working OBDII port.

Last edited by griff; 06-10-2016 at 03:05 AM.
griff is offline   Reply With Quote
Old 06-10-2016, 01:16 PM   #174
Junior Member
iTrader: (1)

Join Date: Jun 2010
Location: Westover, Md
Posts: 173
Total Cats: 3
Default

Quote:
Originally Posted by gooflophaze View Post
So there's probably some confusion stemming from 2 highspeed GMLAN's being output to the OBDII connector.

6 High, 14 Low - This is the SAE standard. This is the one you need to run the wires from the ECU to.
12 High, 13 Low - Optional Additional from GM
12 and 13 are only used if the vehicle has a chassis expansion communication bus. I pulled up a 13 camaro wiring diagram and the only modules on that bus are the abs, power steering, steering angle sensor, suspension control module, and multi axis sensor.
B6Tfastiva is offline   Reply With Quote
Old 06-12-2016, 04:12 AM   #175
Newb

Join Date: Feb 2016
Posts: 33
Total Cats: 1
Default

If someone could verify that they have 12v on pin 5 of their MAF plug (pink/blk) I would greatly appreciate it. It looks like it should have voltage via the schematics but I'd like to verify before I just start throwing 12v to something.

All of my error codes are linked to the multi-function MAF sensor and again I traced the wire back to the transmission plugs that went to the auto. I guess I would STRONGLY advise others doing this swap to just fork out the coin for a standard trans harness if your motor was pulled from an auto.

Last edited by griff; 06-12-2016 at 04:29 AM.
griff is offline   Reply With Quote
Old 06-12-2016, 09:33 PM   #176
Junior Member
Thread Starter

Join Date: May 2007
Location: Atlanta
Posts: 296
Total Cats: 26
Default

Pretty much everything pink/blk is fused 12v in GM. It looks like you're looking for F14UA fuse, which is.. maf, iat, vss, fpcm, reverse inhibit solenoid, skip shift actuator.. so it makes sense that it'd shoot to the tranny plug.
gooflophaze is offline   Reply With Quote
Old 07-19-2016, 06:49 AM   #177
Newb

Join Date: Jan 2016
Posts: 30
Total Cats: 1
Default

Gooflophaze, It's been a while. Did you get all the gauges working?
Cujoel is offline   Reply With Quote
Old 07-21-2016, 04:30 AM   #178
Newb

Join Date: Jan 2016
Posts: 30
Total Cats: 1
Default

fyi, I found a controller for the fuel pump. They use the tach signal to detect the engine running, primes and shuts off

Fuel Pump Safety Switch
Cujoel is offline   Reply With Quote
Old 07-22-2016, 08:44 PM   #179
Newb

Join Date: Jan 2016
Posts: 21
Total Cats: 9
Default

It's been a while since posting, but I wanted to give you guys still building a little encouragement. Have done a lot of autox since the LFX swap, but finally got around to doing my first track day. Within my group, I was able to keep up with the vettes and 911s, and in the below video was running with a really nice GT40. I couldn't be happier with the setup. Driving the car has been a blast, but it's been a lot of fun talking to people that stop by after each run to check out the car after seeing it on track.

Little traffic in the first two minutes, but after that things open up and get a lot more fun:

1999LFX is offline   Reply With Quote
Old 07-23-2016, 12:53 AM   #180
Newb

Join Date: Jan 2016
Posts: 30
Total Cats: 1
Default

Awesome!
Cujoel is offline   Reply With Quote
