Old 09-17-2015, 01:58 AM   #2221
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,985
Total Cats: 409
Default

<p>guise. I need a VICS plumbing diagram.</p>
turbofan is offline   Reply With Quote
Old 09-17-2015, 02:02 AM   #2222
Senior Member
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 638
Total Cats: 102
Default

Quote:
Originally Posted by turbofan View Post
This is labeled the PSP switch. What is it?</p><p><a href="http://imgur.com/tQr344r" target="_blank"><img alt="" src="http://i.imgur.com/tQr344rl.jpg" /></a></p>
Power Steering Pump - I have no idea what function it actually serves, but that's what it is.
gesso is offline   Reply With Quote
Old 09-17-2015, 02:17 AM   #2223
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,950
Total Cats: 126
Default

Quote:
Originally Posted by gesso View Post
Power Steering Pump - I have no idea what function it actually serves, but that's what it is.
It goes to the pressure switch on the P/S Pump. When you turn the wheel, P/S pressure drops since the pump is now doing work to move the wheels. This signal goes to the ECU and the ECU cracks the idle valve open a bit more to prevent the engine RPM from dropping due to the added load.
patsmx5 is offline   Reply With Quote
Old 09-17-2015, 02:22 AM   #2224
Senior Member
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 638
Total Cats: 102
Default

Quote:
Originally Posted by patsmx5 View Post
It goes to the pressure switch on the P/S Pump. When you turn the wheel, P/S pressure drops since the pump is now doing work to move the wheels. This signal goes to the ECU and the ECU cracks the idle valve open a bit more to prevent the engine RPM from dropping due to the added load.
Cool, so it's basically the same as an ac pressure switch. Also in this case, remove it!
gesso is offline   Reply With Quote
Old 09-17-2015, 02:29 AM   #2225
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,950
Total Cats: 126
Default

Quote:
Originally Posted by gesso View Post
Cool, so it's basically the same as an ac pressure switch. Also in this case, remove it!
On my 99, if I forget to plug that sensor in, my RPMs dip about 50 RPMs at idle when I turn the wheel.

I would never advocate removing an a/c system, at least not on a street car.
patsmx5 is offline   Reply With Quote
Old 09-17-2015, 02:49 AM   #2226
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,985
Total Cats: 409
Default

<p>Need a picture of how to plumb the &quot;VICS&quot; solenoid I have.</p><p>-aidan</p>
turbofan is offline   Reply With Quote
Old 09-17-2015, 02:55 AM   #2227
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 2,946
Total Cats: 212
Default

Quote:
Originally Posted by patsmx5 View Post
I would never advocate removing an a/c system, at least not on a street car.
Living in Houston, I can understand that.

I went a year without ever using the AC in my Miata, so I took it out.

--Ian
codrus is offline   Reply With Quote
Old 09-17-2015, 03:12 AM   #2228
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,950
Total Cats: 126
Default

Quote:
Originally Posted by turbofan View Post
<p>Need a picture of how to plumb the &quot;VICS&quot; solenoid I have.</p><p>-aidan</p>
One hose to VICS actuator and solenoid, one to manifold and solenoid. Easy.
Quote:
Originally Posted by codrus View Post
Living in Houston, I can understand that.

I went a year without ever using the AC in my Miata, so I took it out.

--Ian
Yeah here you gotta have AC. Houston traffic in the summer sucks big time without a/c!
patsmx5 is offline   Reply With Quote
Old 09-17-2015, 03:17 AM   #2229
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

Something about a check valve too.<br />
<br /><br />Anyone have a spare VICS solenoid?
aidandj is offline   Reply With Quote
Old 09-17-2015, 03:34 AM   #2230
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 2,946
Total Cats: 212
Default

Quote:
Originally Posted by aidandj View Post
Something about a check valve too.<br />
<br /><br />Anyone have a spare VICS solenoid?

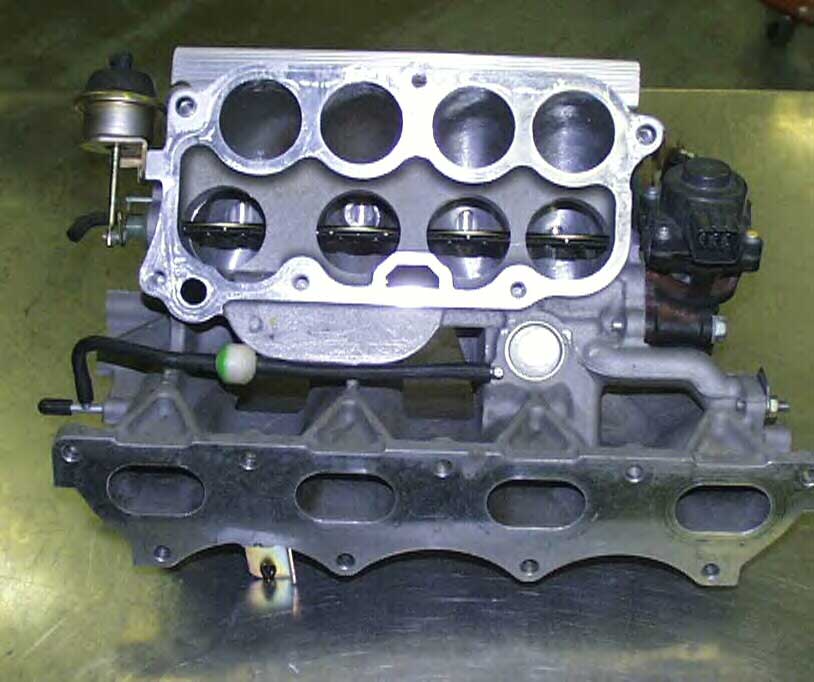

The check valve is in the line that runs underneath the fuel rail. IIRC, there's a vacuum reservoir hidden inside the VICS manifold casting, which is connected to the plenum through that hose with the check valve in it. The solenoid gets its vacuum from the reservoir, so that it can hold the VICS open even at WOT.

It's the one in this photo:



--Ian
Attached Thumbnails
Rebuild all the salvage Miatas! ASS!-99intakemanifold.jpg
codrus is offline   Reply With Quote
Old 09-17-2015, 10:10 AM   #2231
Elite Member
iTrader: (19)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,184
Total Cats: 321
Default

PSP switch is for power steering pump. If no P/S, ignore.
rleete is online now   Reply With Quote
Old 09-17-2015, 10:13 PM   #2232
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

<p>Oh, and were running eds greddy host controller because he likes it and it works right now. Will probably go to 4 port EBC solenoid soon.</p><p>concealer404 will be proud.</p>
aidandj is offline   Reply With Quote
Old 09-18-2015, 01:01 PM   #2233
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

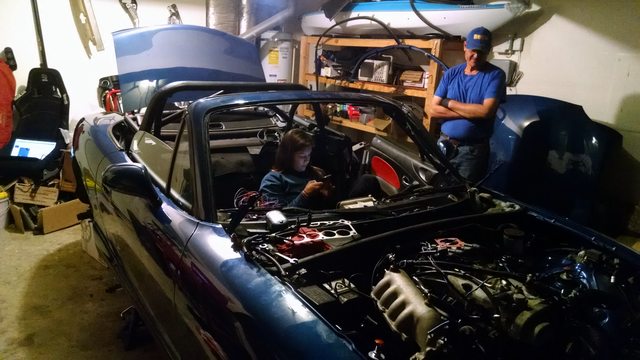

<p>Ok, while Ed is driving to idaho, I'm going to give a quick &quot;state of the turbofan car&quot; speech.</p><p>Its getting there. The suspension is together, wheels are on, its a roller. The engine is in, filled with oil, and the wiring is all done. I need to wrap the harness changes I made for spark, and pull some wires through the firewall, but otherwise its ready to button up. Ed left this morning at 2:30 for idaho, but I'm not sure how much he got done last night after I left. Goal is get it road ready by monday. It won't be track ready, but it will be road ready. If it werent for the fact that Ed is gone all weekend, and I am moving all weekend, we could easily pull a 48 hour stretch and get this car ready for the track. But that just isn't happening. Family comes first, and so does having a place to live.</p><p>The current plan is as follows. (I need to double check with everyone involved)</p><p>Friday: Dash harness shows up. Me and possibly yank are going to go over after work and get that installed, engine bay buttoned up and shoot for first start. If it starts I'm driving it, already told ed that. Bottom end wasn't touched, just a new head, so no break-in required.</p><p>Saturday: Get the car to AR, still doesn't have a windshield, so I'll bring my goggles. Martin will be doing an alignment on it. Glass is still up in the air. If we could coordinate, and have someone meet the car at AR to put glass on it that would be ideal.</p><p>Locals, who do we contact for glass.</p><p>After alignment its up to Ed. He will be back on sunday evening and if I'm done moving I will be able to help. I really hope the car starts easily tonight, otherwise its going to be a long night.</p><p>curly, greddygalant, yank this all sound right? Martin, if the car drives tonight can I bring it to your place tonight instead of driving it tomorrow? I will be moving all day and short on time. Has no windshield or top.</p>
aidandj is offline   Reply With Quote
Old 09-18-2015, 01:01 PM   #2234
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

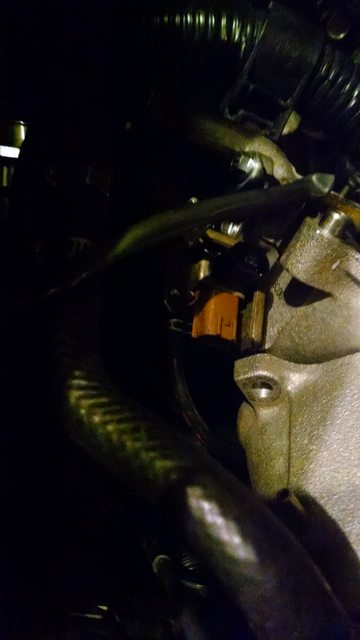

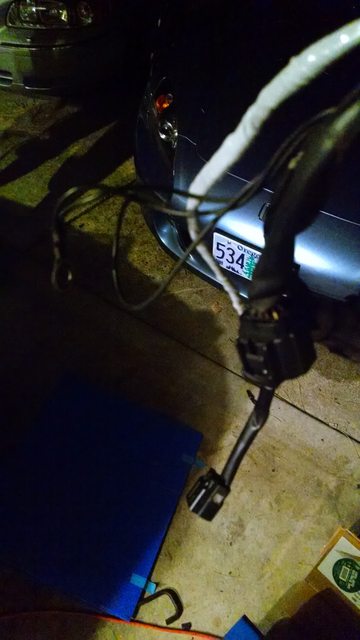

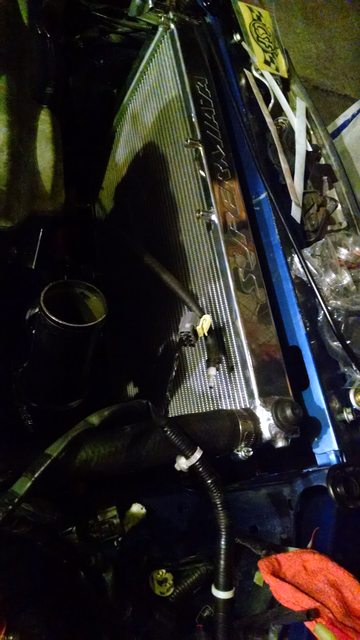

<p>Random pictures:</p><p><br /><br /><br /><br /></p>
Attached Thumbnails
Rebuild all the salvage Miatas! ASS!-qllbll4l.jpg   Rebuild all the salvage Miatas! ASS!-uxvlld4l.jpg   Rebuild all the salvage Miatas! ASS!-yowyffhl.jpg   Rebuild all the salvage Miatas! ASS!-tpbkurrl.jpg   Rebuild all the salvage Miatas! ASS!-bmdydxil.jpg

aidandj is offline   Reply With Quote
Old 09-18-2015, 01:19 PM   #2235
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

<p>turbofan:&nbsp;Can't post in the thread or use hangouts,internet too spotty!! It does have a top just needs the soft top anchors mounted to the bulkhead.</p><p>But a top with no windshield is just a parachute.</p>
aidandj is offline   Reply With Quote
Old 09-18-2015, 01:36 PM   #2236
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 2,946
Total Cats: 212
Default

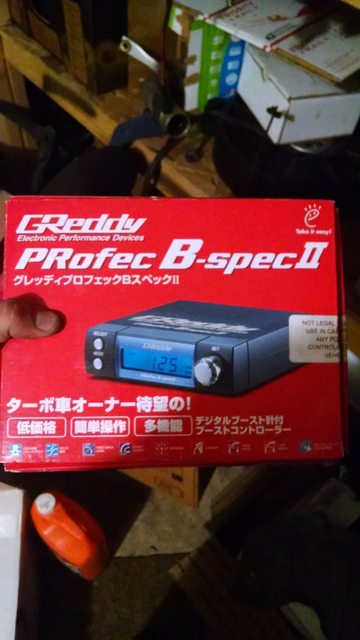

The Profec B-spec II controls boost very nicely, but the downside to it (at the reason I switched to the built-in MS3 controller) is it's got a 1-d boost target, and can't do different boost levels at different throttle positions.

--Ian
codrus is offline   Reply With Quote
Old 09-18-2015, 01:37 PM   #2237
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

<p>Its going to be used at the start because we are short on time. I'm still running a wire into the engine bay for when we install one in the future.</p>
aidandj is offline   Reply With Quote
Old 09-18-2015, 03:29 PM   #2238
Senior Member
iTrader: (2)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 683
Total Cats: 27
Default

Quote:
Originally Posted by aidandj View Post
<p>Ok, while Ed is driving to idaho, I'm going to give a quick &quot;state of the turbofan car&quot; speech.</p><p>Its getting there. The suspension is together, wheels are on, its a roller. The engine is in, filled with oil, and the wiring is all done. I need to wrap the harness changes I made for spark, and pull some wires through the firewall, but otherwise its ready to button up. Ed left this morning at 2:30 for idaho, but I'm not sure how much he got done last night after I left. Goal is get it road ready by monday. It won't be track ready, but it will be road ready. If it werent for the fact that Ed is gone all weekend, and I am moving all weekend, we could easily pull a 48 hour stretch and get this car ready for the track. But that just isn't happening. Family comes first, and so does having a place to live.</p><p>The current plan is as follows. (I need to double check with everyone involved)</p><p>Friday: Dash harness shows up. Me and possibly yank are going to go over after work and get that installed, engine bay buttoned up and shoot for first start. If it starts I'm driving it, already told ed that. Bottom end wasn't touched, just a new head, so no break-in required.</p><p>Saturday: Get the car to AR, still doesn't have a windshield, so I'll bring my goggles. Martin will be doing an alignment on it. Glass is still up in the air. If we could coordinate, and have someone meet the car at AR to put glass on it that would be ideal.</p><p>Locals, who do we contact for glass.</p><p>After alignment its up to Ed. He will be back on sunday evening and if I'm done moving I will be able to help. I really hope the car starts easily tonight, otherwise its going to be a long night.</p><p>curly, greddygalant, yank this all sound right? Martin, if the car drives tonight can I bring it to your place tonight instead of driving it tomorrow? I will be moving all day and short on time. Has no windshield or top.</p>
Car needs windshield and some sort of top in it if you drop it off with me, if not bring it to me Saturday.
greddygalant is offline   Reply With Quote
Old 09-18-2015, 03:31 PM   #2239
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

<p>Alright, windshield probably won't be happening. I still don't know where to get that done.</p>
aidandj is offline   Reply With Quote
Old 09-18-2015, 03:40 PM   #2240
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,732
Total Cats: 746
Default

https://www.safelite.com/stores/beaverton
