Old 09-19-2015, 12:00 PM   #2261
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

Unless someone can spoonfeed me TSE wheel on a VVT with megasquirt I don't have time to mess with it. Need to finish moving this weekend.
aidandj is offline   Reply With Quote
Old 09-19-2015, 12:12 PM   #2262
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,964
Total Cats: 128
Default

I believe my ATI damper came with a 4 tooth wheel that worked. I dunno if the stock 4 tooth wheel would fit (never tested it) but the ATI that I bought from FM had it's own wheel that of course bolted right in.
patsmx5 is offline   Reply With Quote
Old 09-19-2015, 12:43 PM   #2263
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

I'm going to try and pull my auction crank trigger wheel.
aidandj is offline   Reply With Quote
Old 09-19-2015, 01:44 PM   #2264
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,764
Total Cats: 750
Default

Quote:
Originally Posted by curly View Post
What're those two separate grounds coming forward though? They're supposed to be at the back of the head.
The two black wires on the single brass ring terminal? They go to one of the bolts in the 90 steel bracket that connects the upper intake to the lower intake, directly below the throttle body and above the alternator at the front of the intake manifold. Unless I missed what we were talking about.
EO2K is offline   Reply With Quote
Old 09-19-2015, 01:48 PM   #2265
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

^^^what he said. Right now they are all just bolted to the top of the intake manifold because it was easy to get to.
aidandj is offline   Reply With Quote
Old 09-19-2015, 02:21 PM   #2266
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 2,959
Total Cats: 215
Default

That is definitely a 12+1 crank trigger wheel. A normal NB trigger wheel has 4 teeth on it, so you'll see two pairs of pulses between each single and double pulse on the cam trigger.

I dunno about about grounds at the back of the head, all of the electronics grounds on my 99 have always run to the front of the intake manifold.

Stock trigger wheels don't fit on ATI dampers (at least, not without some creative machining). Do you have an ATI on this car?

--Ian
codrus is online now   Reply With Quote
Old 09-19-2015, 02:28 PM   #2267
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

Auction car trigger wheel is good. Going to try and pull it today.
<br />No way grounds would go to the back of the head. I had to cut the split loom to get them where they are.
aidandj is offline   Reply With Quote
Old 09-19-2015, 03:20 PM   #2268
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,764
Total Cats: 750
Default

I thought DIY added the FM wheel profiles to the MS software? We have a thread about it somewhere on here.

Before you go doing all this work it might be worth firing up the MS and checking to see if its there.
EO2K is offline   Reply With Quote
Old 09-19-2015, 03:25 PM   #2269
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

But then I wouldn't do a bunch of unnecessary work. And we know that's not how I roll. Can someone check for me?
aidandj is offline   Reply With Quote
Old 09-19-2015, 03:26 PM   #2270
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,637
Total Cats: 463
Default

It's 4 bolts, it's not a lot of work.

And he doesn't have an ATI, it's a stock pulley. Slipped too if I'm not mistaken.
curly is offline   Reply With Quote
Old 09-20-2015, 10:08 AM   #2271
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,000
Total Cats: 409
Default

Okidoke gentlemen, so what's the game plan today? Need to get this timing issue sorted and get her started up today. Glass goes in tomorrow, and then it's alignment and tuning and done.
<br />
<br />My current ETA for home is 3 pm. What can we do?
turbofan is offline   Reply With Quote
Old 09-20-2015, 10:36 AM   #2272
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

I need help getting a couch upstairs, then you can have my 4 tooth wheel.
aidandj is offline   Reply With Quote
Old 09-20-2015, 11:55 PM   #2273
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

<p>Although my auction car wheel was bent six ways to sunday. Ed flattened it out.</p><p>And it worked!!</p><p><img src="http://cimg0.ibsrv.net/gimg/www.miataturbo.net-vbulletin/930x570/80-apuyggz_3043507dae11d582380d08f75ba07197c3de3f8b.p ng" title="" /><br /><br />Car still wont start. It backfires out the intake and never pulls vacuum. Valve cover is coming off.</p><p>Spoonfeed VVT timing pictures?</p>
aidandj is offline   Reply With Quote
Old 09-20-2015, 11:59 PM   #2274
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,764
Total Cats: 750
Default

EO2K is offline   Reply With Quote
Old 09-21-2015, 12:15 AM   #2275
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

<p>Timing is backassward to hell</p><p>Curly you're a moron.</p><p>Things are just all sorts of the wrong direction.</p><p>&nbsp;</p>
aidandj is offline   Reply With Quote
Old 09-21-2015, 12:46 AM   #2276
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,764
Total Cats: 750
Default

At least its not an interference motor?
EO2K is offline   Reply With Quote
Old 09-21-2015, 01:09 AM   #2277
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,964
Total Cats: 128
Default

Quote:
Originally Posted by aidandj View Post
<p>Timing is backassward to hell</p><p>Curly you're a moron.</p><p>Things are just all sorts of the wrong direction.</p><p>&nbsp;</p>
E's and I's backwards? There's not much to mess up to cause it to spit and backfire really. Still I've installed a cylinder head on my miata many times and on like the 9th time I successfully put the head gasket on backwards... **** happens, nobody's perfect!
patsmx5 is offline   Reply With Quote
Old 09-21-2015, 01:20 AM   #2278
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

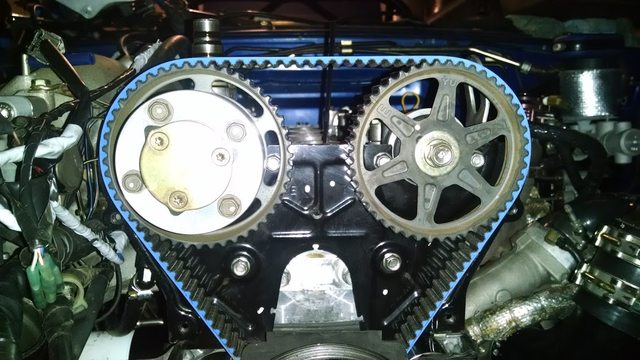

<p>Nope. I'll show you a picture in a second.</p><p></p>
Attached Thumbnails
Rebuild all the salvage Miatas! ASS!-l885e6ul.jpg
aidandj is offline   Reply With Quote
Old 09-21-2015, 01:56 AM   #2279
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

<p>We got a cough</p>
aidandj is offline   Reply With Quote
Old 09-21-2015, 02:05 AM   #2280
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,637
Total Cats: 463
Default

That's super weird. If that's TDC I'm at a loss as to why it'd be like that, sorry boys. Hope
You figured it out.
curly is offline   Reply With Quote
