You have to click the links. Because google.
turbofan is offline   Reply With Quote
Old 03-25-2016, 09:44 PM   #2642
Elite Member
iTrader: (19)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,190
Total Cats: 326
Default

Click the links, ya dirty savage.
rleete is offline   Reply With Quote
Old 03-25-2016, 09:46 PM   #2643
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,854
Total Cats: 938
Default

Well there's 10 pictures I'll never look at.
aidandj is offline   Reply With Quote
Old 03-25-2016, 09:46 PM   #2644
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,170
Total Cats: 1,990
Default

Quote:
stupid phone screen shot
found your problem
18psi is offline   Reply With Quote
Old 03-25-2016, 10:03 PM   #2645
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,000
Total Cats: 409
Default

Poopypants.

Car is filthy, gets washed tomorrow.




















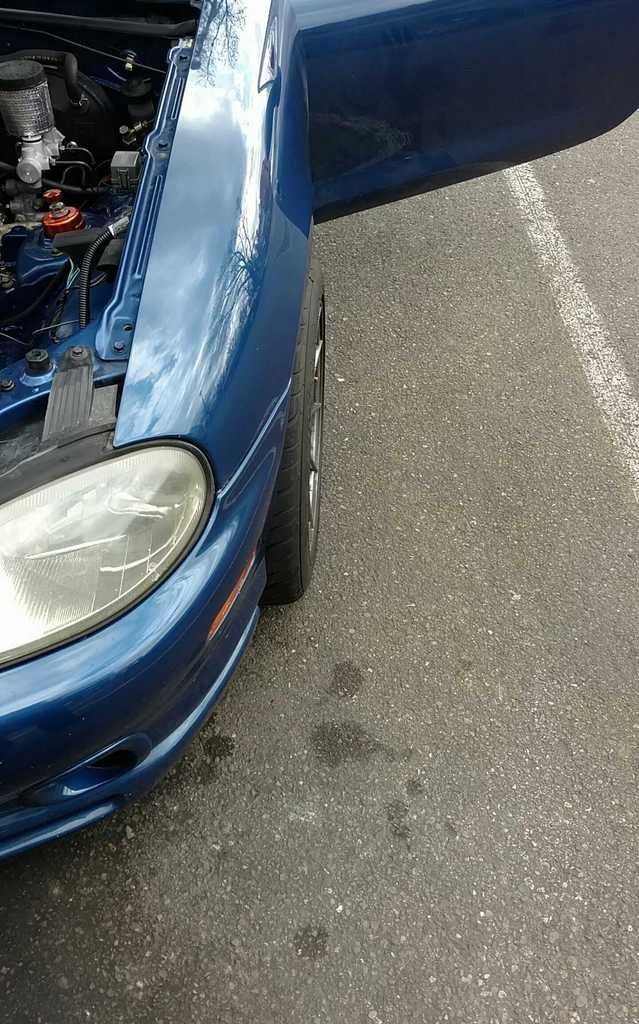

I do not currently have excessive camber. Hopefully I did the lower bushings correctly, lol. Alignment tomorrow.




This oil cooler kit was the TSE kit. I appreciate that it's meant to be something of a DIY kit, but just some basic assembly instructions would have gone a LONG way and saved me a lot of time. **** like:

-- basic suggestions for cooler orientation
-- which fitting on the sandwich plate is out and which is return
-- What's supposed to be included in the package, so I know if something is missing. In my case, the o-rings for the connections at the cooler were missing. If I hadn't thought something was missing and messaged Andrew, I'd have been seriously pissed at severe leakage and more work. As it was, I was simply mildly annoyed at having to go to the hardware store and find o-rings. A simple packing list would have made this a non-issue.
-- how the sandwich plate should actually be installed on the block. With or without oil heater? how's it all screw together? Yes, one can **** around with the pieces for a while and figure it out, but it would be sooooo easy to include basic stuff like this. Again I realize it's a DIY kit, but if I wanted to just order a collection of parts I could have done so, and spent a bit less money. The kit is top quality, but some documentation would have been super helpful, and I told Andrew as much while he was helping me with my missing o-rings.

I do need to give him props for his responsiveness and helpfulness throughout the process, and I'll order from him again.

I ordered this too:
GM Gen IV LS2 LS3 LS4 LS7 Ignition Coils 12573190 Round Style New Set of 8 | eBay

Anyone need some coils?

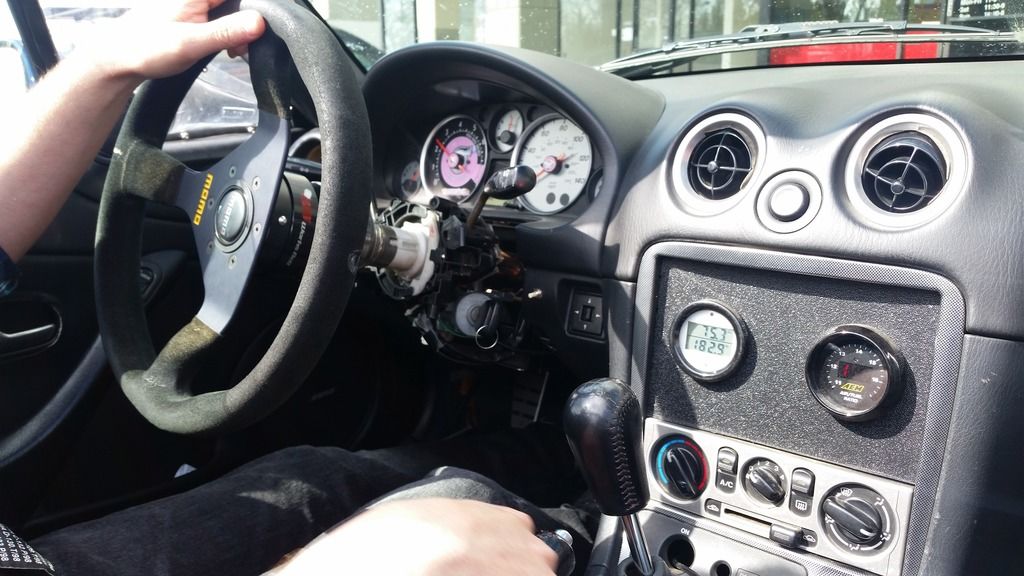

Attached Thumbnails
Rebuild all the salvage Miatas! ASS!-80-img_20160324_154621040_hdr_e6a561bee6d00e11e7bb01900028bc58399948f5.jpg   Rebuild all the salvage Miatas! ASS!-80-img_20160324_154645872_hdr_38577380941875d4d6c44829f56461c677bfb928.jpg   Rebuild all the salvage Miatas! ASS!-80-img_20160324_154634090_hdr_abebdd34af15fbac5a5aaeba850a5b2ccdfd3ef2.jpg   Rebuild all the salvage Miatas! ASS!-80-20160324_150245_d38de6e908e342eba2f677a9c014aeb479e522da.jpg   Rebuild all the salvage Miatas! ASS!-80-20160324_150358_4d5078ba994cf59c275e640d519cb36a62d2cd4d.jpg

Rebuild all the salvage Miatas! ASS!-80-20160324_154705_d173bab1a9de55b9375b583aed6f13e30bd5cc0c.jpg   Rebuild all the salvage Miatas! ASS!-80-1458859726743_686726c25e0939bacccc0a32498152e745b550c9.jpg
turbofan is offline   Reply With Quote
Old 03-25-2016, 10:05 PM   #2646
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,000
Total Cats: 409
Default

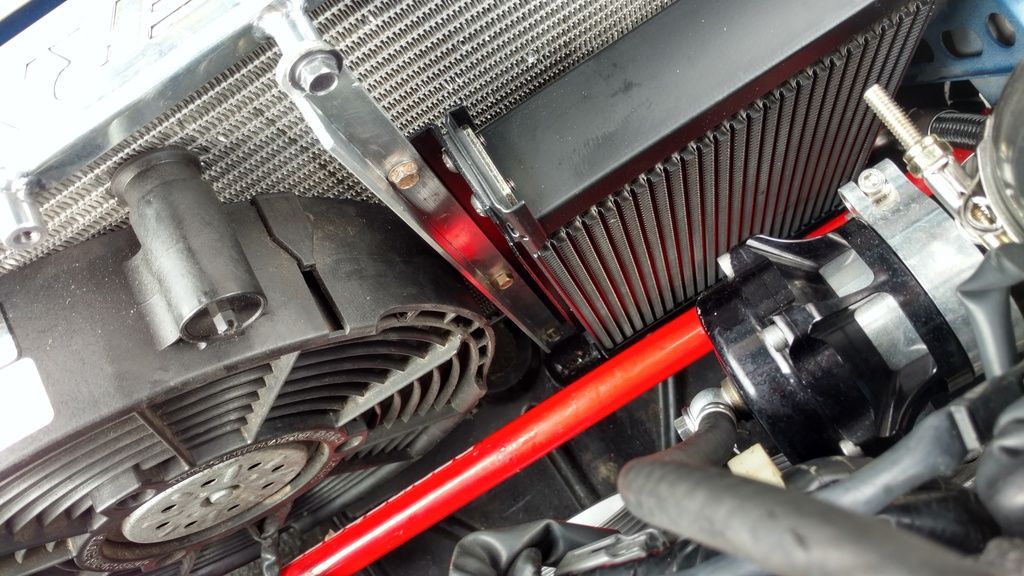

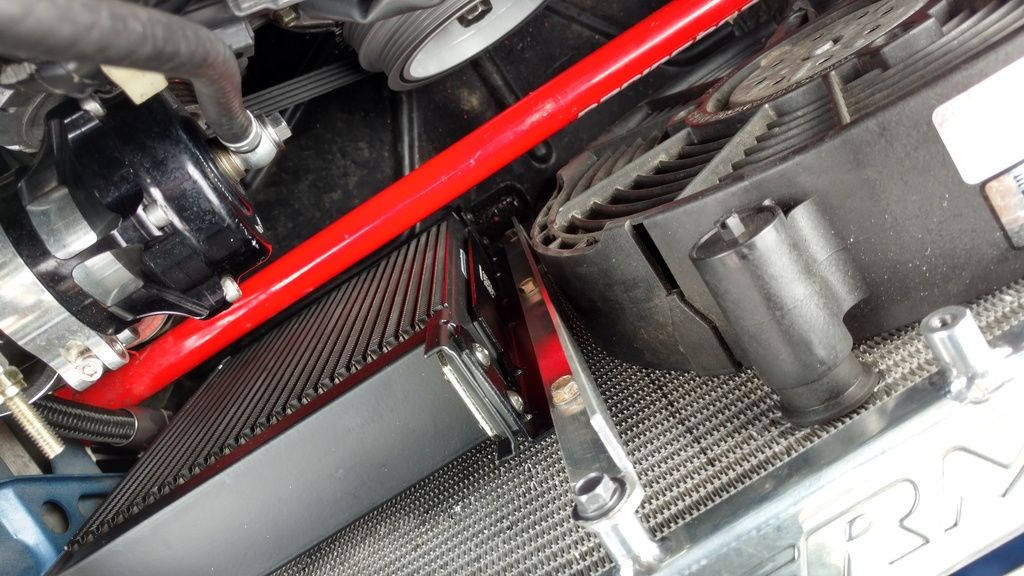

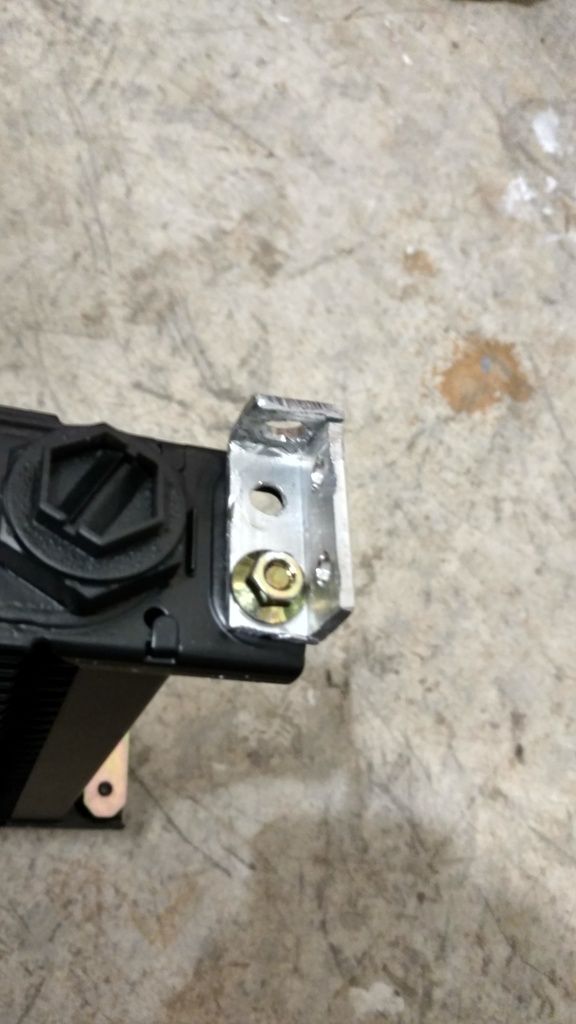

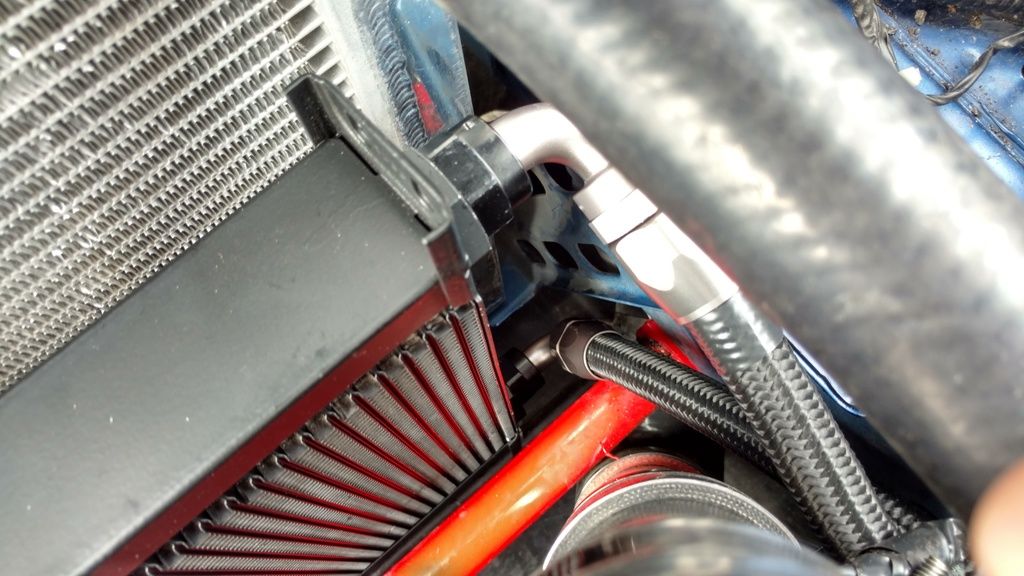

Oh, the cooler isn't hovering on the other side like it appears. There's this little bracket holding it on the bottom corner:


Attached Thumbnails
Rebuild all the salvage Miatas! ASS!-80-img_20160323_211436514_hdr_98ad15be9ca42e0ad430ddd95c947f01604ad6e7.jpg
turbofan is offline   Reply With Quote
Old 03-26-2016, 01:19 PM   #2647
Junior Member
iTrader: (1)

Join Date: May 2013
Location: Sandia Park, NM
Posts: 333
Total Cats: 29
Default

Google photo rage building inside. ...
I've been making it work by adding the pic to an album then accessing it in the old Picasaweb site and linking from there. ... now I hear Picasa is getting axed.
All this cross link instatwatterbook crap is really annoying.
leboeuf is offline   Reply With Quote
Old 03-26-2016, 01:35 PM   #2648
Ich verstehe nur Bahnhof
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,773
Total Cats: 221
Default

Clever Oil Cooler mounting. I might have to copy this. I wonder if you where able to mount it higher if you could stick a fan pack on it. Would the AN line interfere with the FSB?
psyber_0ptix is offline   Reply With Quote
Old 03-26-2016, 01:38 PM   #2649
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,854
Total Cats: 938
Default

Fan would hinder performance. Oil temps are high at high rpm (or high speed) you get more air through there without fans in the way.
aidandj is offline   Reply With Quote
Old 03-26-2016, 01:58 PM   #2650
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,000
Total Cats: 409
Default

Indeed, indeed, indeed. To all that has been said.

The WG dump tube popped off last night. Managed to get it back on this morning but it's been ugly. when we replaced the bellows I didn't test fit it well enough and I had Aidan weld it in a not-ideal orientation. Either way, it's back on. the clamp stayed on the shelf under the brake booster, thankfully. Will need to get better hardware today.
turbofan is offline   Reply With Quote
Old 03-26-2016, 02:19 PM   #2651
Ich verstehe nur Bahnhof
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,773
Total Cats: 221
Default

Quote:
Originally Posted by aidandj View Post
Fan would hinder performance. Oil temps are high at high rpm (or high speed) you get more air through there without fans in the way.
I didn't realize. It looked like it wasn't shrouded so why would air want to pass through a smaller more restrictive area with that gap. My b. But makes sense with oil temp and operational RPM
psyber_0ptix is offline   Reply With Quote
Old 03-26-2016, 04:04 PM   #2652
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,854
Total Cats: 938
Default

You are correct, I've been toying with the idea of foam around the edges on mine to get a better seal. Need to measure the distance and pick some up.

I'm not pushing my car anywhere near the limit, and Ed runs lower than max power on the track. I have a second temp sensor insalled to measure cooler effectiveness. But need to get my tinyiox up and running first.
aidandj is offline   Reply With Quote
Old 03-26-2016, 04:53 PM   #2653
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,000
Total Cats: 409
Default

I got to thinking. This cooler was too large to fit in front of the core support, which is why I put it behind the radiator.

Wouldn't a smaller cooler mounted in front of the core support be more effective than this huge cooler mounted right behind the hot radiator? Or does air temperature difference not make as much difference as surface area? also of course where it is here it's getting more airflow than it would behind the bumper where the other cooler was. Hmm.
turbofan is offline   Reply With Quote
Old 03-26-2016, 04:56 PM   #2654
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,854
Total Cats: 938
Default

That's actually an easy to answer question. With the right data.
aidandj is offline   Reply With Quote
Old 03-26-2016, 04:58 PM   #2655
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,000
Total Cats: 409
Default

easy for someone with the correct brain. However i do not have the data, nor the brain.
turbofan is offline   Reply With Quote
Old 03-26-2016, 05:00 PM   #2656
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,854
Total Cats: 938
Default

Measure air temp in front and behind radiator. In front and behind oil cooler. Then use maths to figure out which is better
aidandj is offline   Reply With Quote
Old 03-26-2016, 05:31 PM   #2657
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,402
Total Cats: 835
Default

Oil cooler instructions added today, here:

Trackspeed Oil Cooler Kit
Savington is offline   Reply With Quote
Old 03-26-2016, 06:35 PM   #2658
Elite Member
iTrader: (19)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,190
Total Cats: 326
Default

Generally, oil coolers are mounted in front of the radiator if they have to be in the same airflow. Keeping the oil cool is more important than keeping the coolant temps down.
rleete is offline   Reply With Quote
Old 03-26-2016, 08:15 PM   #2659
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,000
Total Cats: 409
Default

Likecat given, Andrew! That would have been great before I did mine, but at least the next guy will have some really useful info.


Quote:
Originally Posted by rleete View Post
Generally, oil coolers are mounted in front of the radiator if they have to be in the same airflow. Keeping the oil cool is more important than keeping the coolant temps down.
That's incorrect as far as I understand.

If in the same airflow, the oil cooler goes behind the radiator because the oil needs to be kept below 250* while coolant should be under 200*. Air coming through the oil cooler is too hot to cool the water, but air flowing through the radiator will still cool the oil.
turbofan is offline   Reply With Quote
Old 03-26-2016, 09:05 PM   #2660
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,968
Total Cats: 128
Default

Quote:
Originally Posted by turbofan View Post
Likecat given, Andrew! That would have been great before I did mine, but at least the next guy will have some really useful info.




That's incorrect as far as I understand.

If in the same airflow, the oil cooler goes behind the radiator because the oil needs to be kept below 250* while coolant should be under 200*. Air coming through the oil cooler is too hot to cool the water, but air flowing through the radiator will still cool the oil.
You got it right.

I run a similar setup on my car, using hot water exiting the engines thermostat to cool the oil via a water/oil heat exchanger. It pre-heats the oil when warming up, and then keeps it 10-20*F above the water temps.

I like your setup, looks good. As mentioned, fan will hurt cooling at speed, which is when you'll need the oil cooler to work well. So I'd run it no-fan for that reason.

I have another car that has an oil cooler with a fan, and people tracking them found removing the fan drops oil temps on the track, but raises them on the street at low speeds.

What is the distance between the core of the radiator and the cooler? I'd want that to be at least 3/4 of an inch. I think you have plenty from the pics, but hard to tell. I'd also seal the edge of the oil cooler to the face of the radiator so air going through the radiator core also travels through the oil cooler core, not around it.
patsmx5 is offline   Reply With Quote
