Old 06-13-2016, 10:41 AM   #2761
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

Its not very obvious. Definitely one of those "read the manual" features. You have to click on the button that has the 2 arrows pointing at the axis. Now that I've done it it seems obvious, but I had never pressed that button before.

Brb rescalling all my tables to match.
aidandj is offline   Reply With Quote
Old 06-13-2016, 10:43 AM   #2762
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,150
Total Cats: 1,989
Default

I never read the manual.
I always stumble onto stuff like this mid tune and have one of those moments realizing how much time I just wasted doing things manually
18psi is offline   Reply With Quote
Old 06-13-2016, 10:44 AM   #2763
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

Hey at least I wasnt doing the math by hand. I was using a tool.
aidandj is offline   Reply With Quote
Old 06-13-2016, 11:11 AM   #2764
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

Alright I'm working this out by hand. How much timing would you run at 280kpa to start with
aidandj is offline   Reply With Quote
Old 06-13-2016, 11:17 AM   #2765
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,150
Total Cats: 1,989
Default

I would start gradually adding boost and see how it behaves at lower levels and adjust from there. Maybe plug in 10 for now
*edit: it has to be relatively linear. It's not like it should plummet past a certain level, it should still keep going down gradually as boost goes up.
So what does the rest of the table look like? post up most recent
18psi is offline   Reply With Quote
Old 06-13-2016, 11:19 AM   #2766
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

Thats the plan. Not going to go straight for a 20+psi run lol. Just want something to rough in.

What about the shape from left to right. Right now i'm shaping it based off of soviets map. But with very retarded values (his is e85)
aidandj is offline   Reply With Quote
Old 06-13-2016, 11:21 AM   #2767
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,150
Total Cats: 1,989
Default

dude. stop trying to copy soviets or whoever's map. he was on e85 and a borg turbo. totally not what Ed's car is running.

You can just keep it super simple for now and keep all the rows same. Then depending on what the car likes and what the power is looking like, you can dip the midrange and/or taper up top to "prop up" the power from dropping (if it does drop).

Trust me, copying someone else's tune is usually a waste of time. It almost never helps. Esp when the setup is different.
18psi is offline   Reply With Quote
Old 06-13-2016, 11:23 AM   #2768
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

I'm not copying. I'm looking at different maps for the shapes and how they change. But alright I'll start simple and adjust from there.
aidandj is offline   Reply With Quote
Old 06-13-2016, 11:25 AM   #2769
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,150
Total Cats: 1,989
Default

post up most current scaling and I can give you more input (and I'm sure others will too)
18psi is offline   Reply With Quote
Old 06-13-2016, 11:34 AM   #2770
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

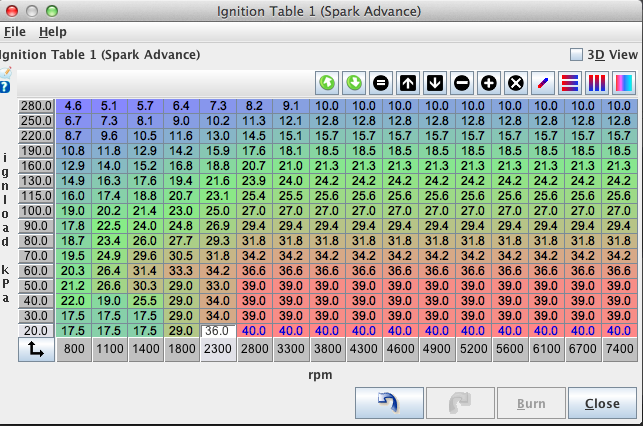

Roughed in.

39* to 50kpa

27* at 100kpa (for most of the row. Tapering left of 2800 so were not running super advanced at full throttle low RPM)

10* at 280kpa.

Interpolated between the above numbers.
Attached Thumbnails
Rebuild all the salvage Miatas! ASS!-milttmw.png
aidandj is offline   Reply With Quote
Old 06-13-2016, 11:45 AM   #2771
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,150
Total Cats: 1,989
Default

Yup, that's a good starting point right thurr
18psi is offline   Reply With Quote
Old 06-13-2016, 01:52 PM   #2772
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,362
Total Cats: 809
Default

That looks really aggressive for gas, but I am used to really shitty pump gas. My general rule for safety is 26-27 degrees at 100kpa, and 1 degree less for every 7kpa (1psi) of boost. So 170kpa should be ~16-17deg, 240kpa should be 6-7 degrees. That is way conservative but at least you know you (probably) won't grenade the motor on the first pull.

If you're on E85, that looks good, carry on.
Savington is offline   Reply With Quote
Old 06-13-2016, 01:54 PM   #2773
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

Not e85. Oregon pump gas. So 92. Also we aren't 100% sure the pistons are 8.6. Its a trackspeed engine, but not the first owner.

I like conservative. I'll work those suggestions in.

Tuning MBT on non-load bearing dyno: What are best practices for this.
aidandj is offline   Reply With Quote
Old 06-13-2016, 02:02 PM   #2774
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

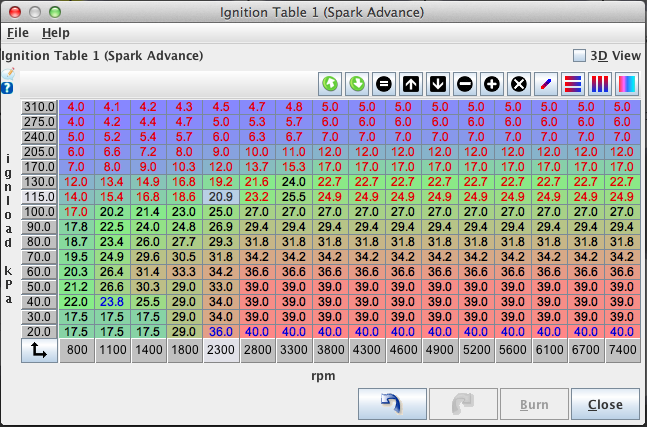

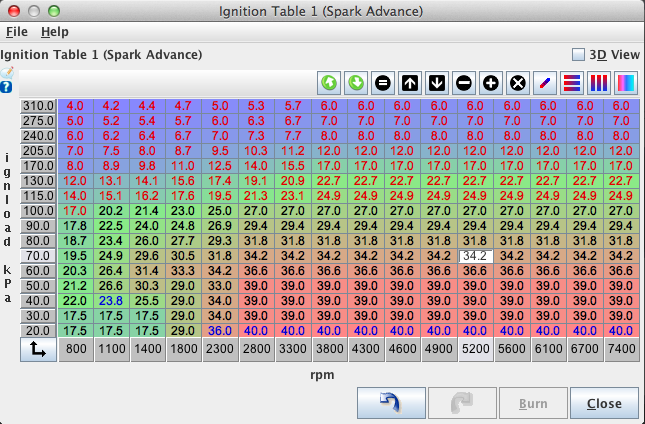

Here is a reworked table from Savs input. Note the y axis change to match jumps of 5 psi for ease of conversion from kpa to psi.

Conservative is good. This is a track car, not a dyno queen. It needs to run on cali gas and oregon gas, and everything in between.

Attached Thumbnails
Rebuild all the salvage Miatas! ASS!-lsidrm4.png   Rebuild all the salvage Miatas! ASS!-mijhwqc.png
aidandj is offline   Reply With Quote
Old 06-13-2016, 02:06 PM   #2775
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,150
Total Cats: 1,989
Default

lol good luck tuning for MBT on non-load bearing.
you'll likely have better luck hitting realistic loads street tuning it.
but yeah, for heavy track use I'd err on too conservative vs most powah
actually I'd worry less about MBT and more about the car being ultra happy and not having issues.

and can't you guys have Andrew look up the specs he built that motor to? I recall him remembering quite a few details about it and posting them here
18psi is offline   Reply With Quote
Old 06-13-2016, 02:08 PM   #2776
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

Inorite. I need to get my hands on a load bearing. We will probably just add 2* at a time and see what power does. Its hard because we need to watch fuel and boost changes with timing also.

Andrew. Post anything up if you know. I'm kind of assuming its an 8.6:1 build.
aidandj is offline   Reply With Quote
Old 06-13-2016, 02:10 PM   #2777
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

We really should get closed loop boost running first but i dont think we will get that in time.
aidandj is offline   Reply With Quote
Old 06-13-2016, 02:35 PM   #2778
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,950
Total Cats: 126
Default

Last table you posted looks the best of what you've posted if you gotta run on California 91. Everything I've read about that is it's terrible, worse than regular 91. Are you going to track it on CA 91? I don't think I'd want to run much boost on CA 91 on a track.
patsmx5 is offline   Reply With Quote
Old 06-13-2016, 02:45 PM   #2779
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,787
Total Cats: 930
Default

Track in california will be wastegate (8psi).

We are going to tune up to wastegate (and a little beyond for safety) to be conservative. At least 4* or more below MBT (if we can find it).

Up to 300hp on a safe tune (push to pass button)

And then go for glory beyond that and try and break 350hp.
aidandj is offline   Reply With Quote
Old 06-13-2016, 02:58 PM   #2780
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,985
Total Cats: 409
Default

As for engine details, TSE built the engine originally but then another shop rebuilt it. I don't fully understand how that all happened, but it doesn't have TSE's supertechs in it, it has wisecos in it. So we really aren't sure what CR it has, though I expect it's 8.6:1 given the PO's penchant for being conservative for boost.
turbofan is offline   Reply With Quote
