Argh freaking site killed my comment.

Intercooler is one of those chunky Precision cores. 2.5" intercooler piping all the way.

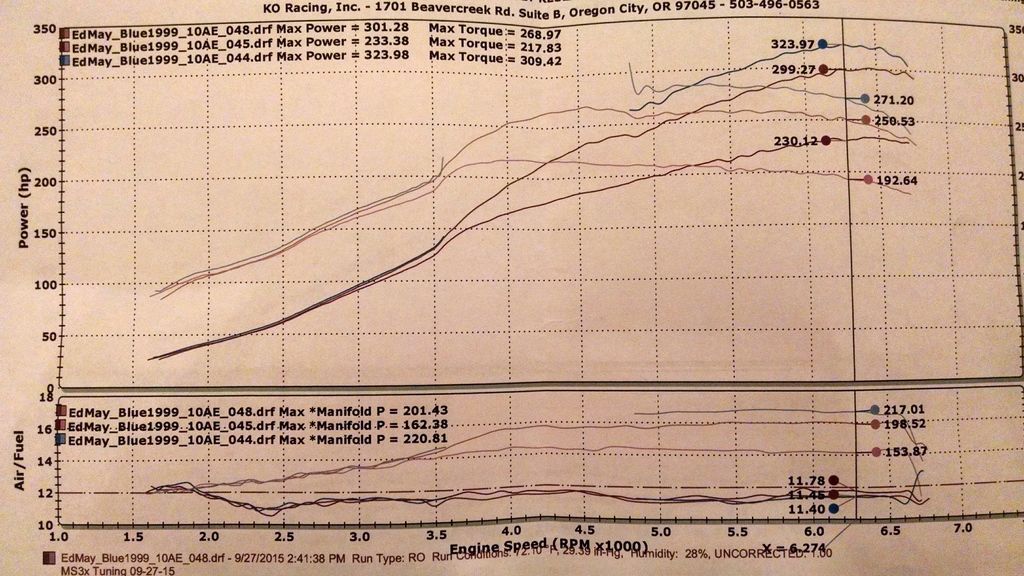

The turbo itself might be the bottleneck perhaps? It's a nice Tial vband turbine housing, though not totally sure of the AR. But the compressor housing is small -- smaller than a 2860. It actually looks the same as the 2560 compressor housings I've seen, with the same M24 markings on it. dunno if that means anything or not. But the weird part is that this same setup made 323 whp uncorrected on this same dyno in October, with WAY better spool. This graph shows 15 psi and 17 psi plots from last October:

Attached Thumbnails
Rebuild all the salvage Miatas! ASS!-80-img_20150927_235916518_hdr_edit_1443424392957_92d24e458fc97a619c6d0eaed8b0d86675c3edec.jpg
turbofan is offline   Reply With Quote
Old 06-27-2016, 10:08 PM   #2822
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

Keep in mind. It was easily 30* warmer yesterday.
aidandj is offline   Reply With Quote
Old 06-27-2016, 11:30 PM   #2823
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,000
Total Cats: 409
Default

It was 73 before, and 90 yesterday, so 17 degrees warmer yes.

I'm still just blown away at the spool difference.

Let it be said -- butt dyno reports the car is an animal. Seriously impressive the way it pulls.
turbofan is offline   Reply With Quote
Old 06-27-2016, 11:36 PM   #2824
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,169
Total Cats: 1,990
Default

Maybe the compact comp housing is choking it but that's a 71, so it still should flow to at least 350
18psi is offline   Reply With Quote
Old 06-27-2016, 11:37 PM   #2825
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 2,959
Total Cats: 215
Default

What does the VVT curve look like? That's supposed to have a huge impact on spool.

--Ian
codrus is online now   Reply With Quote
Old 06-27-2016, 11:38 PM   #2826
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

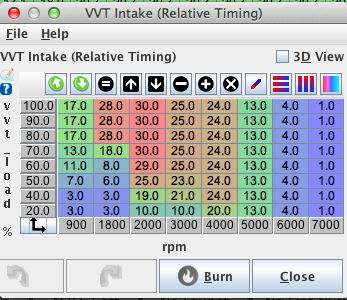

Its the same as it was last time. I figured we could play with it at another time. Because spool is easy to log on the street.

It spooled better on wastegate. So I wonder if just better EBC tuning could make a difference.

Attached Thumbnails
Rebuild all the salvage Miatas! ASS!-hbl70if.png
aidandj is offline   Reply With Quote
Old 06-27-2016, 11:40 PM   #2827
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

Quote:
Originally Posted by 18psi View Post
Maybe the compact comp housing is choking it but that's a 71, so it still should flow to at least 350
Ed, has this been actually measured?
aidandj is offline   Reply With Quote
Old 06-27-2016, 11:41 PM   #2828
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,000
Total Cats: 409
Default

I think I'm going to chalk up the max power difference to heat soak/higher ambient temps. The fans at the shop are pretty pathetic in terms of flow.
turbofan is offline   Reply With Quote
Old 06-27-2016, 11:42 PM   #2829
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

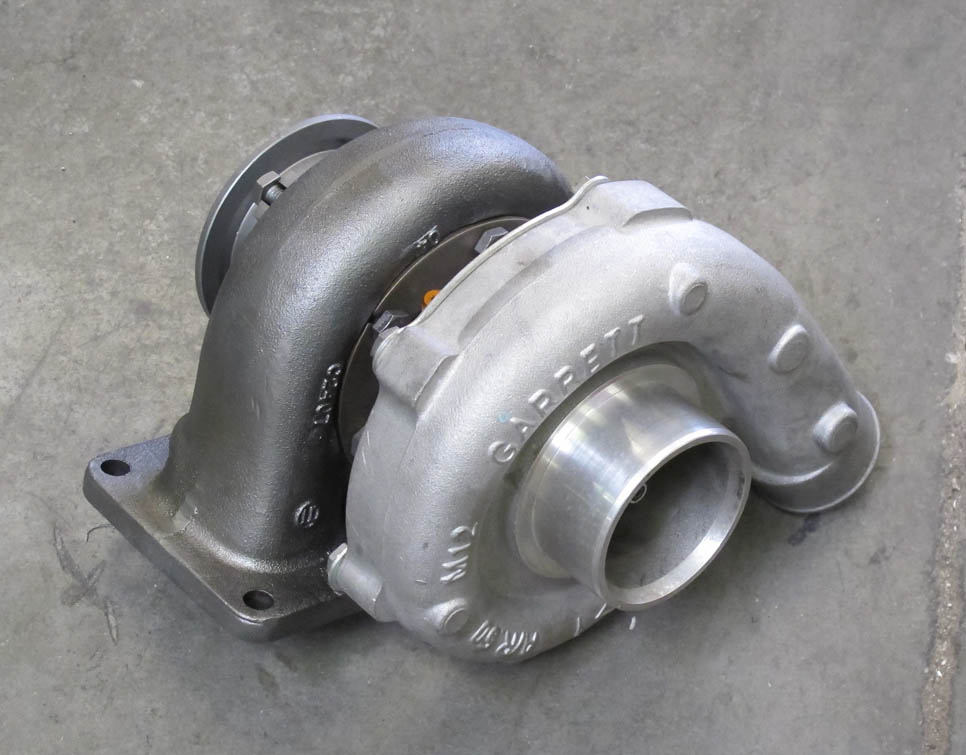

that is supposedly a 2871. Looks bigger than yours.
Attached Thumbnails
Rebuild all the salvage Miatas! ASS!-10vt_2871r-1.jpg
aidandj is offline   Reply With Quote
Old 06-27-2016, 11:43 PM   #2830
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,169
Total Cats: 1,990
Default

the table isn't as important as the log showing it hitting target properly

*edit: pull the part number off the chra and stop wondering.
18psi is offline   Reply With Quote
Old 06-27-2016, 11:45 PM   #2831
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

Yep. VVT angle is nailed.

30* at 2000
25* at 3000
24* at 4000
then drops down.
aidandj is offline   Reply With Quote
Old 06-27-2016, 11:47 PM   #2832
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,169
Total Cats: 1,990
Default

you can easily run more at 3k and likely spool faster
I've ran 38* before
18psi is offline   Reply With Quote
Old 06-27-2016, 11:48 PM   #2833
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

Cool. We will try that out. What does it usually max at?

Or is it just something we need to test out.
aidandj is offline   Reply With Quote
Old 06-28-2016, 02:11 AM   #2834
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,964
Total Cats: 128
Default

Quote:
Originally Posted by aidandj View Post
Cool. We will try that out. What does it usually max at?

Or is it just something we need to test out.
On my car, I tested it and found it liked all the advance at low RPMs. I max out it's range.
patsmx5 is offline   Reply With Quote
Old 06-28-2016, 02:45 AM   #2835
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,964
Total Cats: 128
Default

Quote:
Originally Posted by aidandj View Post
We stopped making power after like 220kpa. So I didn't touch the ones above.

Here is wastegate tuning.

Run 54: Baseline.
Run 55: Go to 19* at 170kpa. No power gain
Run 56: Go back down to 15*. So -2 from baseline. Power lost.
Run 57: Add 1 from 4k-5k 2 from 5k-6300, 3 from 6700 up. Power Gained



Tuning Spark ~280hp.

Run 60: DC at 35%. No timing changes.
Run 62: Add 2* timing. Slight map changes but overall no power gained. Might have lost power



We messed around with fuel a bit more. Tried playing with VVT and VICS. But couldn't really make any big changes. At this point Ed was ready to get off.

I'd like to go back with e85 and see if it was choking for air, and where we can send the timing too.
Thanks. Could you post the "final" map you decided to keep on timing? I'm guessing it's the one for run 60, since run 62 showed no power gained as you say, it may have even lost power.

patsmx5 is offline   Reply With Quote
Old 06-28-2016, 02:47 AM   #2836
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

Quote:
Originally Posted by aidandj View Post
Here
aidandj is offline   Reply With Quote
Old 06-28-2016, 11:08 AM   #2837
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,637
Total Cats: 463
Default

Most of the temperature corrections are taken care of with a correction factor added in. I don't have the latest dyno files for Ed, but last time he actually made 321 with correction. Ed's turbo is spooling right in the sweet spot of VVT usefulness, so it'll make a huge difference. But if the table hasn't changed since the last dyno, I'd definitely think something's happened. Either the turbo is wearing out, engine is wearing out, or something else in the fuel/spark map is different.

I'll have to look on my laptop to see what the timing table looked like when I dyno'd it.
curly is offline   Reply With Quote
Old 06-28-2016, 11:15 AM   #2838
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

Send me that. The one I pulled from the ecu was quite close to this one.

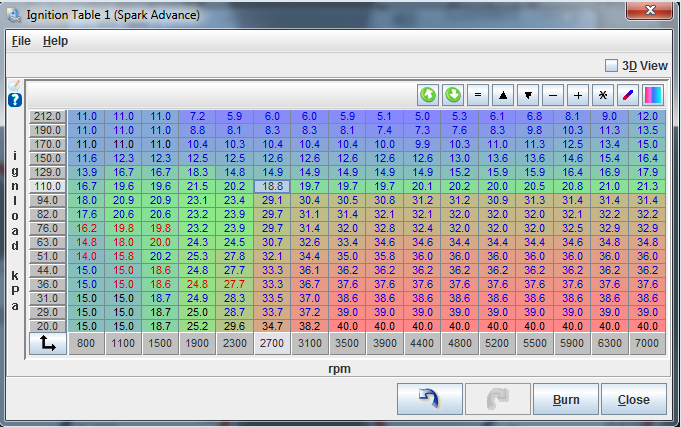

Old:

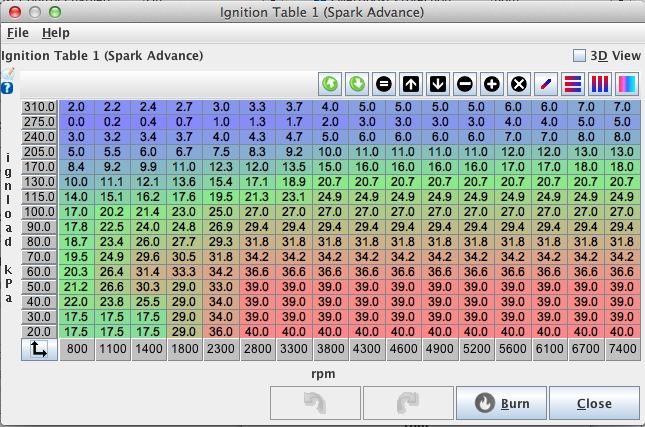

New:

Attached Thumbnails
Rebuild all the salvage Miatas! ASS!-pdfofso.png   Rebuild all the salvage Miatas! ASS!-e0i7tcl.png
aidandj is offline   Reply With Quote
Old 07-01-2016, 06:03 PM   #2839
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,848
Total Cats: 937
Default

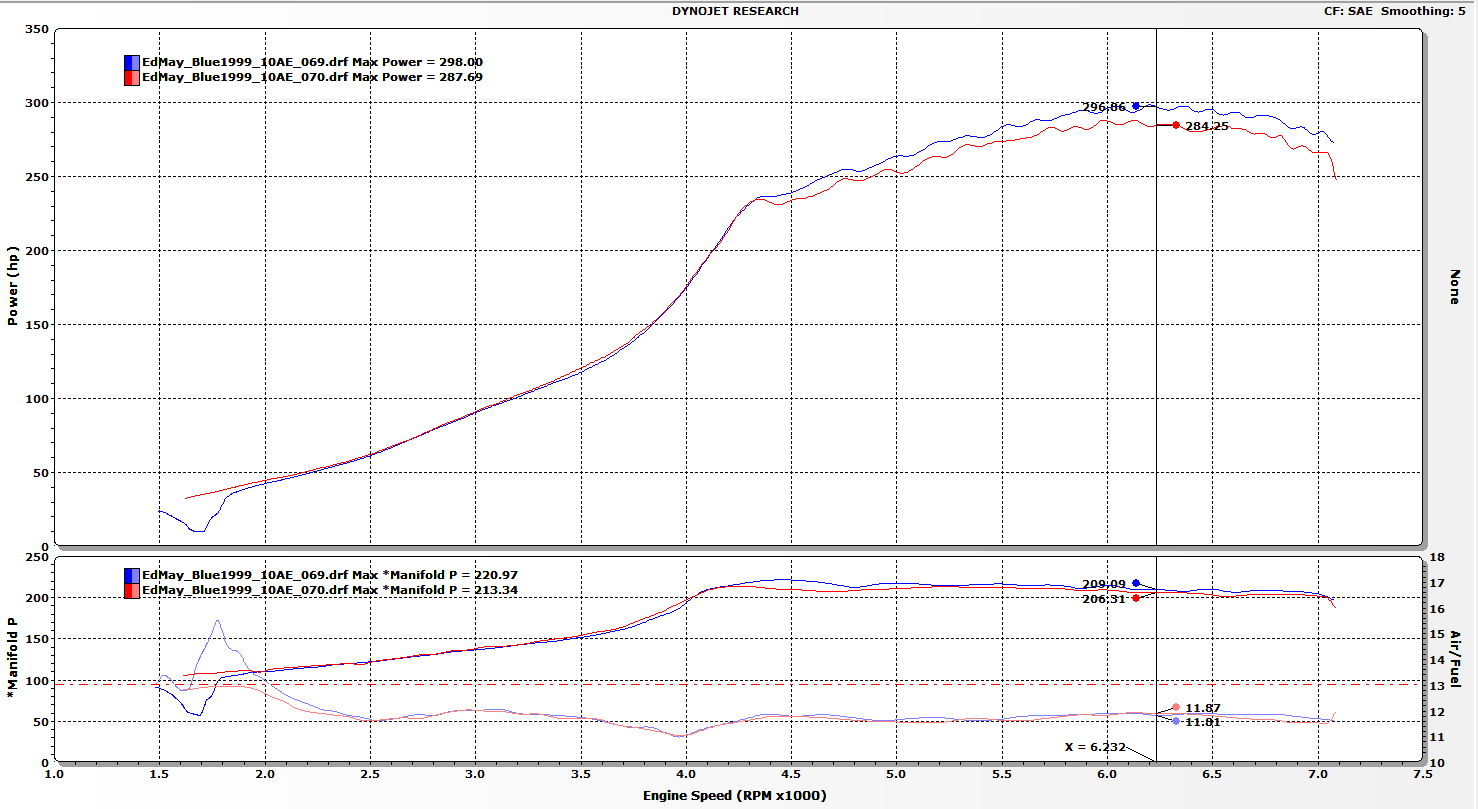

Because it was being discussed in another thread

69: VICS set at redline
70: VICS set at 0

Attached Thumbnails
Rebuild all the salvage Miatas! ASS!-rpjp8qc.png
aidandj is offline   Reply With Quote
Old 07-01-2016, 07:37 PM   #2840
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,169
Total Cats: 1,990
Default

so Ideally you'd want it at 4200?
