Old 07-01-2016, 07:47 PM   #2841
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,824
Total Cats: 933
Default

Yeah. I think we set it at like 4k? I'd have to check. As you can see there isn't much change below. Was a little suprised.
aidandj is offline   Reply With Quote
Old 07-01-2016, 07:56 PM   #2842
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,824
Total Cats: 933
Default

Just found something digging through the logs again. MAT based spark retard was turned on.

Right around 5600 MAT starts to climb, and timing retards. It was retarding about 4*.

Well ****. Ed you are gonna make more power when it is cool.
aidandj is offline   Reply With Quote
Old 07-01-2016, 08:00 PM   #2843
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,157
Total Cats: 1,990
Default

so what was teh timing curve of the highest pull?
18psi is offline   Reply With Quote
Old 07-01-2016, 08:10 PM   #2844
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,824
Total Cats: 933
Default

Cold advance was also on.

Our 234kpa pull timing was 3-4* at full boost. Should have been 7-9*. 210kpa was 8ish instead of 12ish.

Sounds like were going to put on the squaretop and get back to the dyno. Some better det cans. And timing that we actually know is right.

Oh well, live and learn. We got fuel dialed in.

What is interesting is I didn't touch those settings from the old tune. I guess it wasn't hot enough last time to kick in.

What should MAT retard be set to? Just something else to tune?
aidandj is offline   Reply With Quote
Old 07-01-2016, 08:15 PM   #2845
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,157
Total Cats: 1,990
Default

Geez, did you not notice that overall timing was uber low?

I usually do -1 or so for every 10F past 140F or something. But yeah, it depends on car and setup.

With the flattop and better tuning I think 320-330 should be possibru
18psi is offline   Reply With Quote
Old 07-01-2016, 08:19 PM   #2846
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,824
Total Cats: 933
Default

I'm not sure. We were approaching the end of the 2 hours. And didn't want to pay for another. I clicked on base timing in the log instead of spark advance I think. FWIW this was my first time tuning spark....ever lolol.

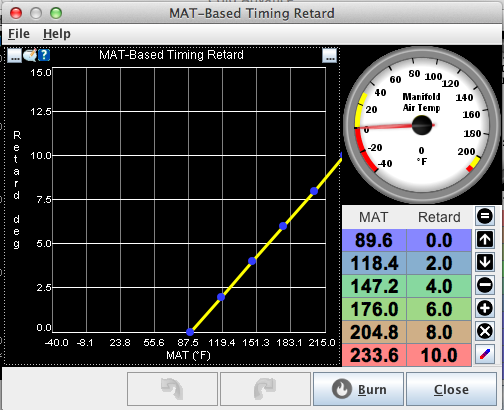

This base map table is stupid retarded.



I like the -1 for every 10* over 140. We never got to 140 on the dyno. Only like 138.
Attached Thumbnails
Rebuild all the salvage Miatas! ASS!-80-vnryfjh_087306c89063b4979c29bcc97723868ebe391717.png
aidandj is offline   Reply With Quote
Old 07-01-2016, 08:54 PM   #2847
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 2,950
Total Cats: 212
Default

Quote:
Originally Posted by aidandj View Post
I like the -1 for every 10* over 140. We never got to 140 on the dyno. Only like 138.
I was reading this thinking that I never seen my MATs going over 60, even on the dyno, then I realized you were using stupid units instead of celsius.

--Ian
codrus is offline   Reply With Quote
Old 07-01-2016, 08:55 PM   #2848
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,157
Total Cats: 1,990
Default

'Muricuhh
18psi is offline   Reply With Quote
Old 07-01-2016, 08:56 PM   #2849
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,824
Total Cats: 933
Default

Quote:
Originally Posted by codrus View Post
I was reading this thinking that I never seen my MATs going over 60, even on the dyno, then I realized you were using AMERICAN units instead of celsius.

--Ian


And on this sacred weekend. How dare you Ian. I is dissapoint.
Attached Thumbnails
Rebuild all the salvage Miatas! ASS!-80-ajx46js_43147afbc802a36fb58a49ae7401a66341b777e8.jpg
aidandj is offline   Reply With Quote
Old 07-01-2016, 08:58 PM   #2850
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,824
Total Cats: 933
Default

I'm really impressed with the intercooler though. 90* day. Continuous dyno pulls. And never hit more than 140ish.
aidandj is offline   Reply With Quote
Old 07-01-2016, 09:08 PM   #2851
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,157
Total Cats: 1,990
Default

Quote:
Originally Posted by aidandj View Post
I'm really impressed with the intercooler though. 90* day. Continuous dyno pulls. And never hit more than 140ish.
side bar and true story:

last week I tuned a begi-s 1.6 with no intercooler and 1 fan and no undertray.

the ait's NEVER dipped below 160. not 1 time.

it was hilarious
18psi is offline   Reply With Quote
Old 07-01-2016, 09:10 PM   #2852
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,824
Total Cats: 933
Default

Glad that I have one sitting in my garage....its gonna be there for a while. My ebay one never went over 140 either. 80 less hp though.
aidandj is offline   Reply With Quote
Old 07-01-2016, 09:13 PM   #2853
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,991
Total Cats: 409
Default

Wait you have a chunky Precision intercooler sitting in your garage?
turbofan is offline   Reply With Quote
Old 07-01-2016, 09:14 PM   #2854
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,824
Total Cats: 933
Default

Yeah. Whatever was on andrews black turbo car. Precision 350 or something?
aidandj is offline   Reply With Quote
Old 07-02-2016, 12:03 AM   #2855
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 2,950
Total Cats: 212
Default

Bwhahahahahahah.

Seriously though, fahrenheit works well for everyday life temperatures, but celsius is the right choice for technical stuff like data logging.

--Ian
codrus is offline   Reply With Quote
Old 07-02-2016, 12:31 AM   #2856
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,824
Total Cats: 933
Default





Attached Thumbnails
Rebuild all the salvage Miatas! ASS!-80-696f22d321ee2507b24a4e2797c6cd60a48ab6d2a8737b11d3b7740aa7842eb5_0fca8cc26b2d16816b80048c5ba5.jpg   Rebuild all the salvage Miatas! ASS!-80-why_fahrenheit_is_better_than_celsius_o_526505_769bbad6566e63072a67ef2bbad5fc1bcd1be971.jpg   Rebuild all the salvage Miatas! ASS!-80-57841793_449920cd7304e209b463d636a0dfdc52d18e0d5a.jpg
aidandj is offline   Reply With Quote
Old 07-02-2016, 01:33 AM   #2857
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 2,950
Total Cats: 212
Default

You forgot Rankine!

--Ian
codrus is offline   Reply With Quote
Old 07-02-2016, 05:26 PM   #2858
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,632
Total Cats: 463
Default

If you tuned spark by going down until loss is measured, and then up a bit back, I don't think the mat based retard would effect overall power. If you're hoping for 350, less than 4 degrees difference probably wouldn't account for 50hp. I think I remember seeing about a 10hp loss for 2 degrees, so you might get back to the original 315 we saw back in October, maybe 320-325, but not 350.
curly is offline   Reply With Quote
Old 07-02-2016, 05:28 PM   #2859
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,824
Total Cats: 933
Default

I dont expect 350 without e85. But it was at like 2* when we did the 235kpa run. Cold advance was also pulling timing I found.
aidandj is offline   Reply With Quote
Old 07-03-2016, 05:57 AM   #2860
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 2,950
Total Cats: 212
Default

Colder air is also denser, by quite a bit. Denser => more moles of O2 => more fuel => more POWAH.

--Ian
codrus is offline   Reply With Quote
