Old 03-13-2015, 02:52 AM   #1601
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 2,963
Total Cats: 215
Default

Quote:
Originally Posted by turbofan View Post
for what it's worth, I found another difference between 949's BBK and TSE's... I believe Andrew assembles the rotors to the hats with nifty safety wiring and such if I'm not mistaken.
Yes, Andrew assembles, safety-wires, and (I believe) resbonds the hats to the rotors.

--Ian
codrus is online now   Reply With Quote
Old 03-13-2015, 03:16 AM   #1602
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 2,782
Total Cats: 205
Default

Quote:
Originally Posted by codrus View Post
Yes, Andrew assembles, safety-wires, and (I believe) resbonds the hats to the rotors.

--Ian
All of the above, yes. What you pull out of the box is a rotor&hat ready to go on the car.

Having recently done these things to install my replacement rotors to my hats, it is a PITA, and well worth the $100. My wiring job is not as nice as Andrews' but it will suffice.

Ed: Properly torque and resbond those bolts. Check them twice. I haz resbond if you need.

I am somewhat surprised at the lack of safety wiring - these fasteners fall into the "extremely critical, failure real bad" category.
Mobius is offline   Reply With Quote
Old 03-13-2015, 03:39 AM   #1603
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,000
Total Cats: 409
Default

Well there you have it. It becomes a $140 difference after the club orange discount but perhaps it would have been worth it. Oh well. Hope others can learn from this. I'll be buying some goodies from TSE shortly... Need brake ducts and such.

I will indeed take you up on your resbond offer... Unless I should just go buy my own since I'm going to be reassembling an entire car. I expect there are other bits that could benefit from it?

Spare me some research please guys... Will need to drill and tap the control arms for zerks for poly bushings. Think a HF tap set will work or do I need to buy a higher quality one?
turbofan is offline   Reply With Quote
Old 03-13-2015, 03:42 AM   #1604
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,402
Total Cats: 835
Default

Yep. I'm surprised that nobody else provides safety wire on those fasteners either. Right now, I wire every 11.75 kit that goes out. That will change when our V2 kit releases later this year - we'll reduce the retail price substantially and make the wiring job an option. Some people see value in it, others don't, so we'll give people the option.
Savington is online now   Reply With Quote
Old 03-13-2015, 03:50 AM   #1605
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,968
Total Cats: 128
Default

I'm not gonna question the business decision to offer the option either way, but it's highly respectable that you wire EVERY KIT before it goes out. I think that's the right thing to do given the part, good business IMO.
patsmx5 is offline   Reply With Quote
Old 03-13-2015, 12:41 PM   #1606
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,000
Total Cats: 409
Default

^agreed. As for now Andrew you might make a bigger point of it in your product description. I missed it when researching. But I'm kindof a **** so maybe it's just me.

Oh well, more fun project time.
turbofan is offline   Reply With Quote
Old 03-13-2015, 12:42 PM   #1607
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,764
Total Cats: 750
Default

Quote:
Originally Posted by turbofan View Post
I will indeed take you up on your resbond offer... Unless I should just go buy my own since I'm going to be reassembling an entire car. I expect there are other bits that could benefit from it?
That seems expensive and excessive. Resbond comes into its own with things that will be exposed to excessive heat. For regular tasks I see no reason why Loctite Blue 243 (the oil resistant one) can't do the job.

Quote:
Originally Posted by turbofan View Post
Spare me some research please guys... Will need to drill and tap the control arms for zerks for poly bushings. Think a HF tap set will work or do I need to buy a higher quality one?
Mine seem to be working fine. I think I have the 60+ piece set with taps and dies, SAE and Metric. The shanks on the taps are a little spindly but mine survived me retapping my flange after my weld blob/resbond/stud disaster. I would/will use them for zerks. The only tap I've found missing from the kit I needed was the M10x1.25. It has the M10 in x1.0 and x1.5 but no x1.25 so I can retap my shift ****

Quote:
Originally Posted by Savington View Post
will change when our V2 kit releases later this year - we'll reduce the retail price substantially and make the wiring job an option.
I've got a set of Dynalites so Ive been pondering the 11.75 "upgrade" listed on your site. Is there any reason I should wait for the V2 set? Will the upgrade continue to be an option?
EO2K is offline   Reply With Quote
Old 03-13-2015, 01:12 PM   #1608
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,764
Total Cats: 750
Default

Quote:
Originally Posted by turbofan View Post
I haven't gotten G's package yet but I await the filthy contents of VVT oil line and a dirty pan from Gesso.

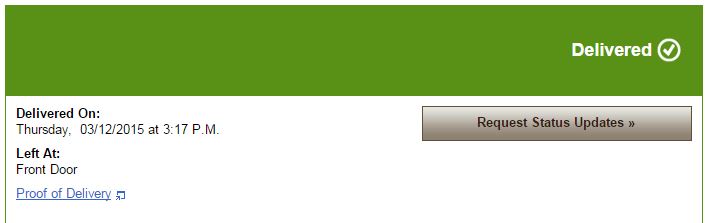

Um...



Attached Thumbnails
Rebuild all the salvage Miatas! ASS!-eds_package.jpg
EO2K is offline   Reply With Quote
Old 03-13-2015, 01:24 PM   #1609
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,638
Total Cats: 463
Default

Ed, go to Home Depot. Buy a package of 2-4 drill bits of the correct size (see chart below, 'R' for 1/8NPT, or .339"). Then buy 2 of their taps, not Harbor Freight. If you hear any snaps or crackles or pops while tapping, blow off the tap with some compressed air and inspect the teeth for any chipping. If you see any chipping, throw away the tap and use #2.

If you take your time and go at it with a methodical method, I don't see why the 20 zerks you have to install would take more than a few drills and 2ish taps.

curly is offline   Reply With Quote
Old 03-13-2015, 01:52 PM   #1610
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,000
Total Cats: 409
Default

Thanks Josh, that's super helpful. Propped. I'll do that.

G, your package arrived yesterday, though I have not yet opened it. I thought I made that post the day before yesterday... didn't i?
turbofan is offline   Reply With Quote
Old 03-13-2015, 01:57 PM   #1611
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,854
Total Cats: 938
Default

Quote:
Originally Posted by EO2K View Post
That seems expensive and excessive. Resbond comes into its own with things that will be exposed to excessive heat. For regular tasks I see no reason why Loctite Blue 243 (the oil resistant one) can't do the job.
This^ Mobius has plenty of his blue goo, and is very generous in sharing it. But if you are dying to have your own. There is some on ebay for like $25.
aidandj is offline   Reply With Quote
Old 03-13-2015, 01:58 PM   #1612
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,764
Total Cats: 750
Default

Ok, cool. Now I can breathe again
EO2K is offline   Reply With Quote
Old 03-13-2015, 05:01 PM   #1613
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 2,782
Total Cats: 205
Default

Lube the tap with some oil, any kind really, and back it out a 1/4 turn or so after progressing 1/2 turn or so. This will let the debris clear and help keep it sharper longer. Add a drop of oil every now and then.

Just cranking it straight through will work, but the tap will wear out quick and chip and whatnot.

Josh may have more precise instructions.
Mobius is offline   Reply With Quote
Old 03-13-2015, 05:16 PM   #1614
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,000
Total Cats: 409
Default

Thanks for the tips. I've used a tap before so am familiar with how it feels, but I don't own my own set.

Fun times ahead....
turbofan is offline   Reply With Quote
Old 03-13-2015, 06:07 PM   #1615
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,968
Total Cats: 128
Default

Thread cutting fluid will make it go faster, and the tap will last about 30x longer.
patsmx5 is offline   Reply With Quote
Old 03-13-2015, 07:52 PM   #1616
Elite Member
iTrader: (19)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,190
Total Cats: 326
Default

Tapping aluminum, WD-40 or kerosene are the preferred lubricants. Tapping fluid is available for aluminum, but it's just oil and kerosene, for the most part.

On the other hand, tapping steel requires a good tapping fluid. I prefer Tapmagic, but there are others out there. Plain oil just won't do as well. If oil is all you have, try using a full synthetic. I use Mobil 1 on the lathe and mill as cutting fluid.
rleete is offline   Reply With Quote
Old 03-13-2015, 08:01 PM   #1617
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,890
Total Cats: 220
Default

How thick are the control arms in these spots?
Seriously can't be over 1/8" can it?

Don't over think it.
Erat is offline   Reply With Quote
Old 03-13-2015, 08:44 PM   #1618
Junior Member
iTrader: (1)

Join Date: Apr 2014
Location: Mountain View, CA
Posts: 333
Total Cats: 19
Default

Are the self tapping zerks a no-no? Thats what I used on mine and they seemed to work great.

Drill > Deburr > Install > repeat
OneTwo is offline   Reply With Quote
Old 03-13-2015, 08:55 PM   #1619
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,000
Total Cats: 409
Default

^ah right, I was thinking about those. Do you have a build thread on that? If not, I remember reading one at one point so i'll have to dig it up again.

I really need to create a little repository for useful things like that...
turbofan is offline   Reply With Quote
Old 03-13-2015, 09:20 PM   #1620
Junior Member
iTrader: (1)

Join Date: Apr 2014
Location: Mountain View, CA
Posts: 333
Total Cats: 19
Default

No, its on my list of things to do though! I have bunch of updates I'm working on and once I get everything done I'll be doing that. But I digress...

I am building up an NB front end for my NA so its fresh in my mind.

Kingfisher 3apa8 6mm zerk
OneTwo is offline   Reply With Quote
