stare in awe of B6 power

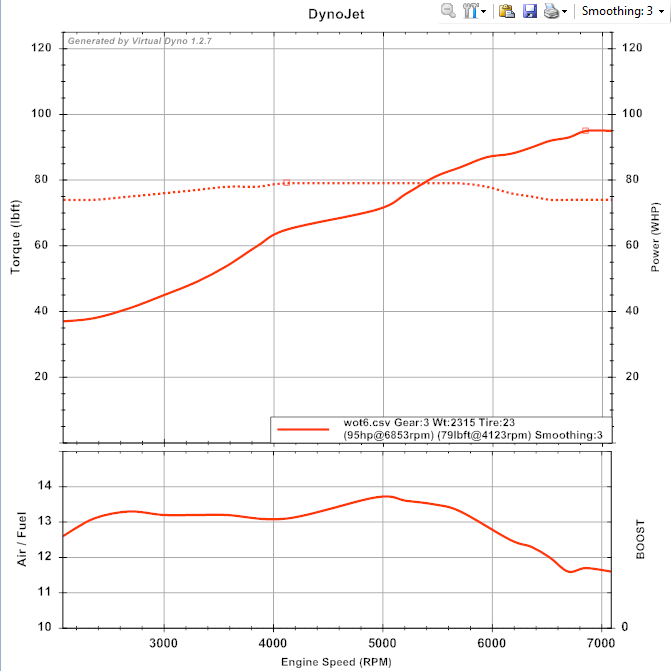

Once I get the hang of how to use the haltech data log viewer I might actually hit triple digit power
Attached Thumbnails
Round 2: Wannabe turbo NB6C-miata%2520dyno_zpsclunwuo0.png
Sirnixalot is offline   Reply With Quote
Old 12-03-2015, 08:34 AM   #122
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 417
Total Cats: 15
Default

worst
video
ever

I'll be getting a real go pro or ion before the next season starts
Sirnixalot is offline   Reply With Quote
Old 12-03-2015, 07:31 PM   #123
Moderator
iTrader: (10)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 14,092
Total Cats: 1,167
Default

Your lean area at 5000rpm corresponds with the dip in horsepower.
sixshooter is online now   Reply With Quote
Old 12-04-2015, 12:09 AM   #124
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 417
Total Cats: 15
Default

Thanks for the tip.

I attempted to work on the map some more tonight but it spat the alt/waterpump belt off. The FD alternator appears to be offset ever so slightly. I'll tackle that tomorrow and get back to the action weather permitting
Sirnixalot is offline   Reply With Quote
Old 01-05-2016, 11:48 PM   #125
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 417
Total Cats: 15
Default

car has been performing pretty flawless the past few weeks so I ordered the rest of the stuff to go turbo this evening. Hopefully it all arrives by end of the month so I can get a wastegate tune done before the season starts end of feb.

I see that people run into boost creep with a 3" exhaust....wonder if I should waste time porting the wastegate port on the turbo
Sirnixalot is offline   Reply With Quote
Old 01-31-2016, 06:44 PM   #126
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 417
Total Cats: 15
Default

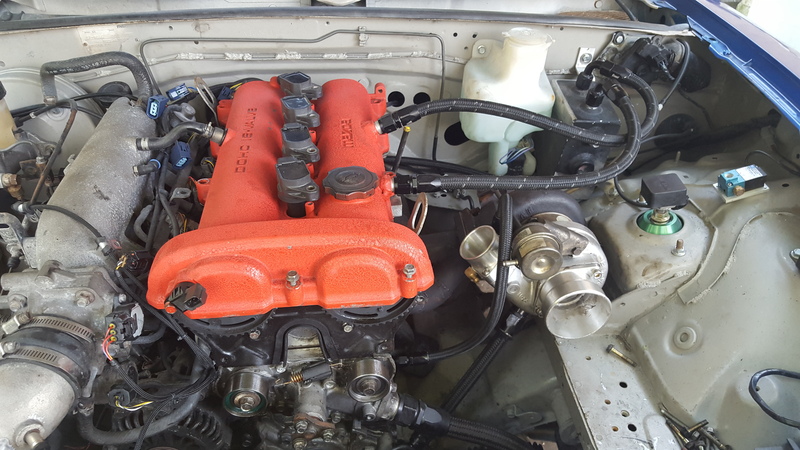

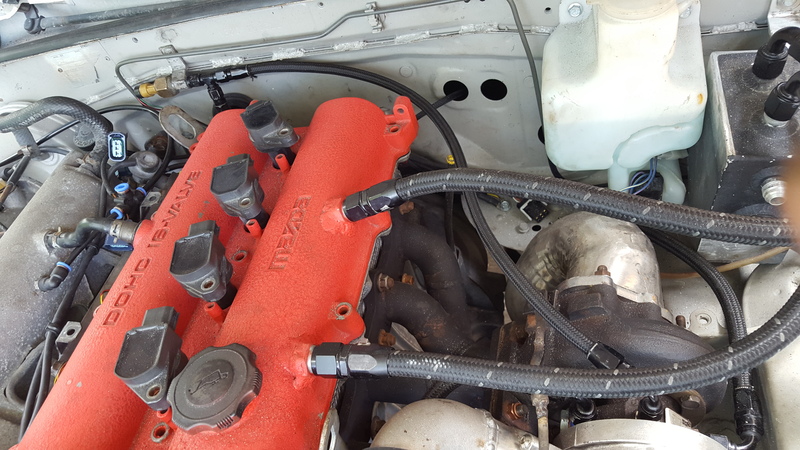

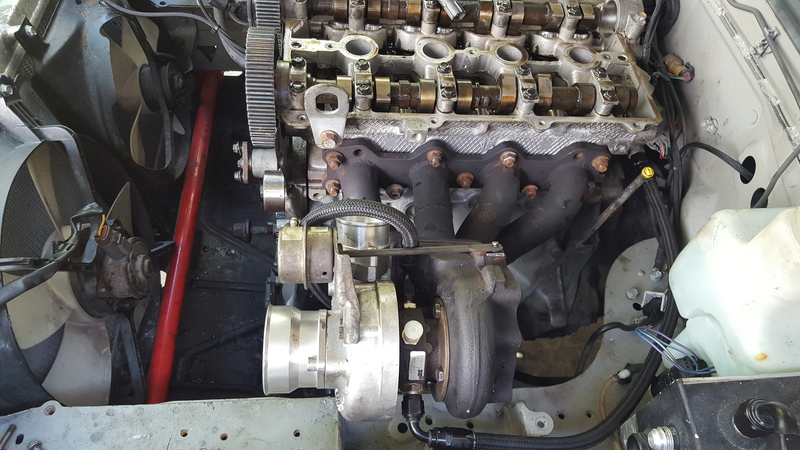

Mounted turbo and manifold up, plumbed the coolant and oil drain. I am missing some fittings to do the oil feed.

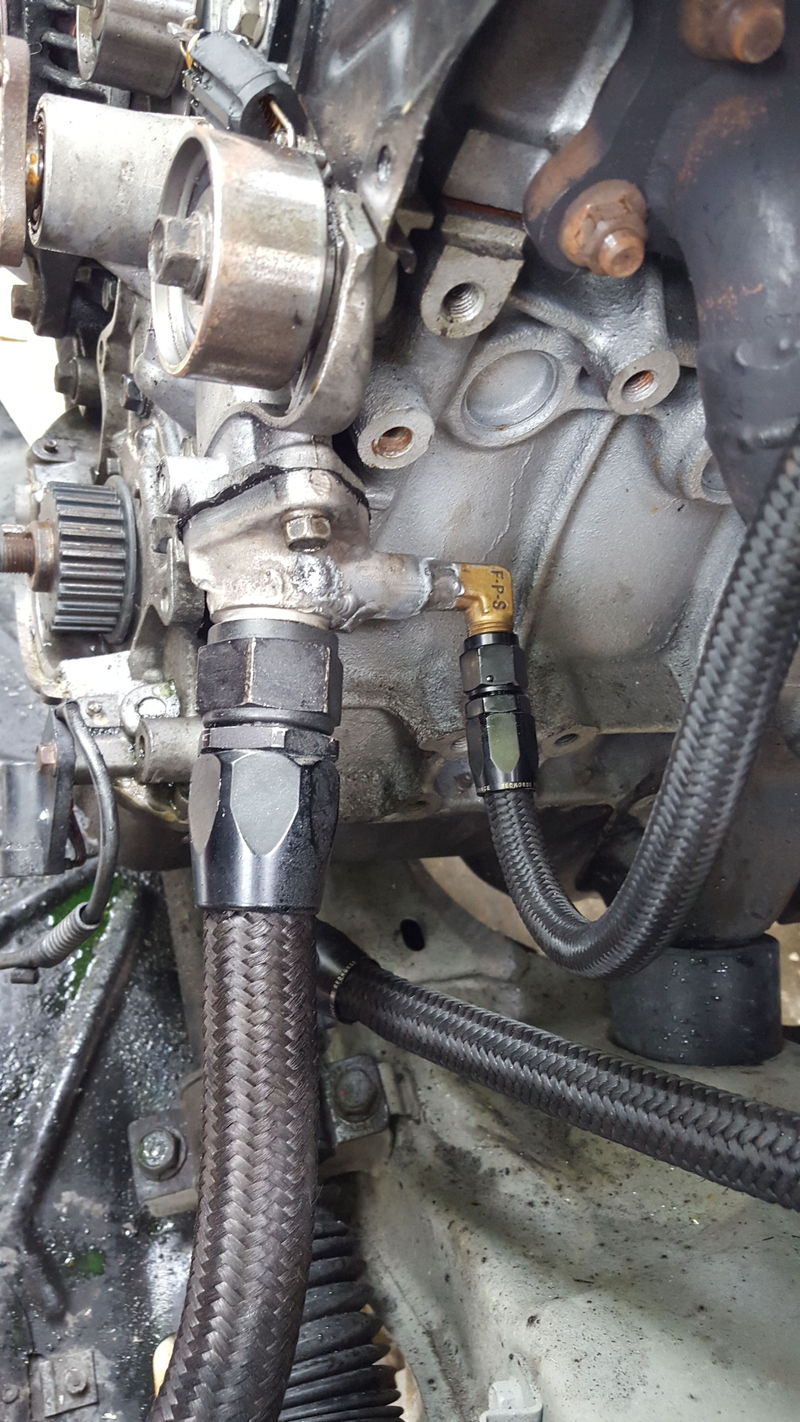

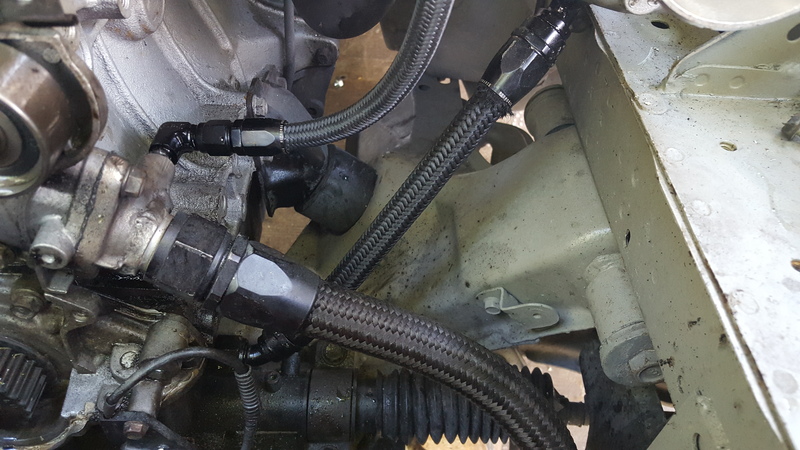

Shot of the lower coolant hose and oil drain


Had to pull the front covers and timing belt off since it seems the front main seal wasn't installed properly.

I am welding up the end tanks for the intercooler as well but to be honest, me being a noob and 3/16 being at the upper end of what my welder can do, it's not coming out as nice as I would like. No pictures of that until I hit everything with the flap wheel
Attached Thumbnails
Round 2: Wannabe turbo NB6C-20160131_165813_zpseqysmjue.jpg   Round 2: Wannabe turbo NB6C-20160131_165838_zpsits4aito.jpg   Round 2: Wannabe turbo NB6C-20160131_173301_zps7fqvn3tb.jpg
Sirnixalot is offline   Reply With Quote
Old 02-01-2016, 04:41 AM   #127
Junior Member

Join Date: Sep 2012
Location: New Zealand Christchurch
Posts: 199
Total Cats: -5
Default

Your washer bottle isn't going to last long back there haha.
jimmyneutron is offline   Reply With Quote
Old 02-01-2016, 11:04 AM   #128
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 417
Total Cats: 15
Default

Quote:
Originally Posted by jimmyneutron View Post
Your washer bottle isn't going to last long back there haha.
I will probably take it out, the motor is bad and I have 0 ambition to try and find a replacement
Sirnixalot is offline   Reply With Quote
Old 02-04-2016, 08:42 AM   #129
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 417
Total Cats: 15
Default

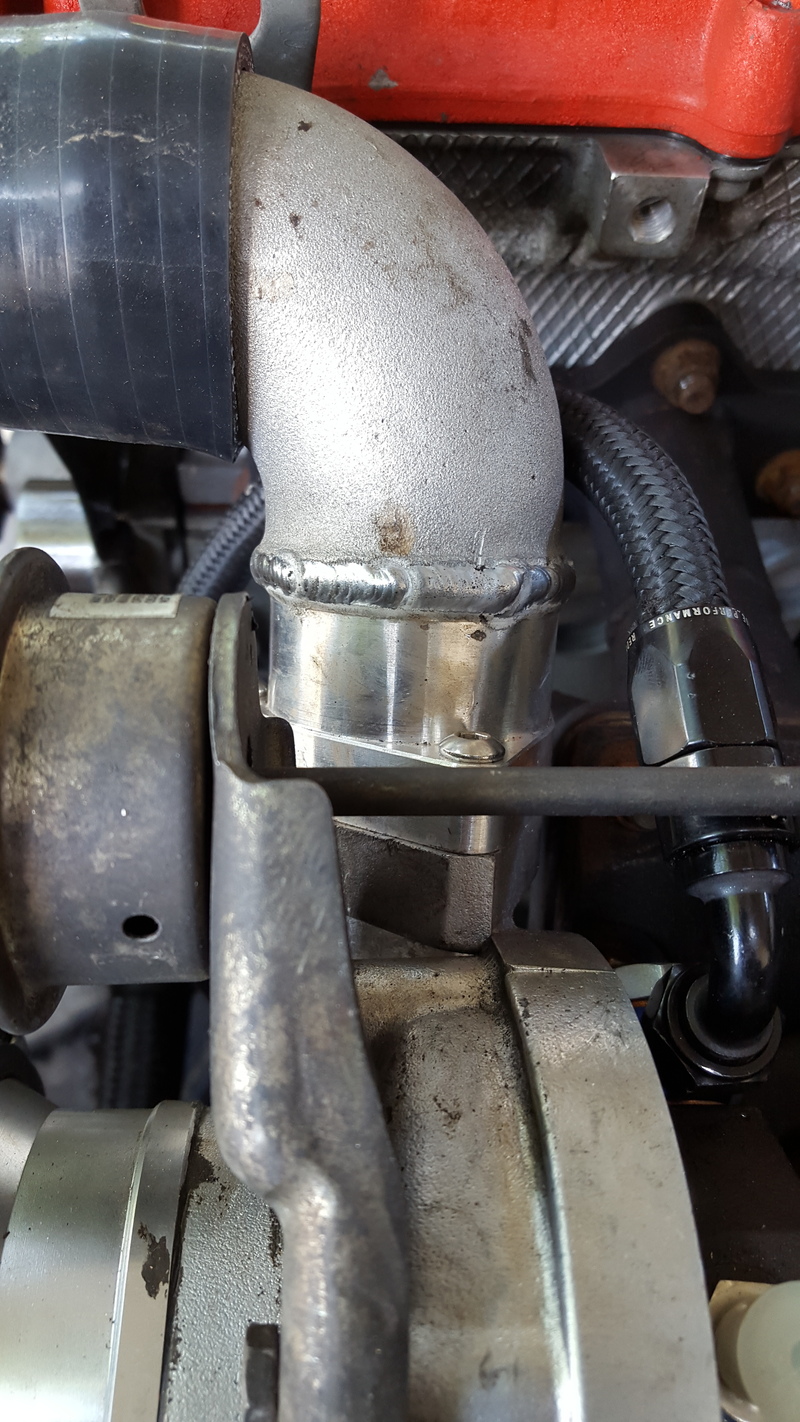

My angle grinder died and the hand file wasn't working out so hot to finish the oval hose. (the 90* needs to angle outwards hence the need for an oval.

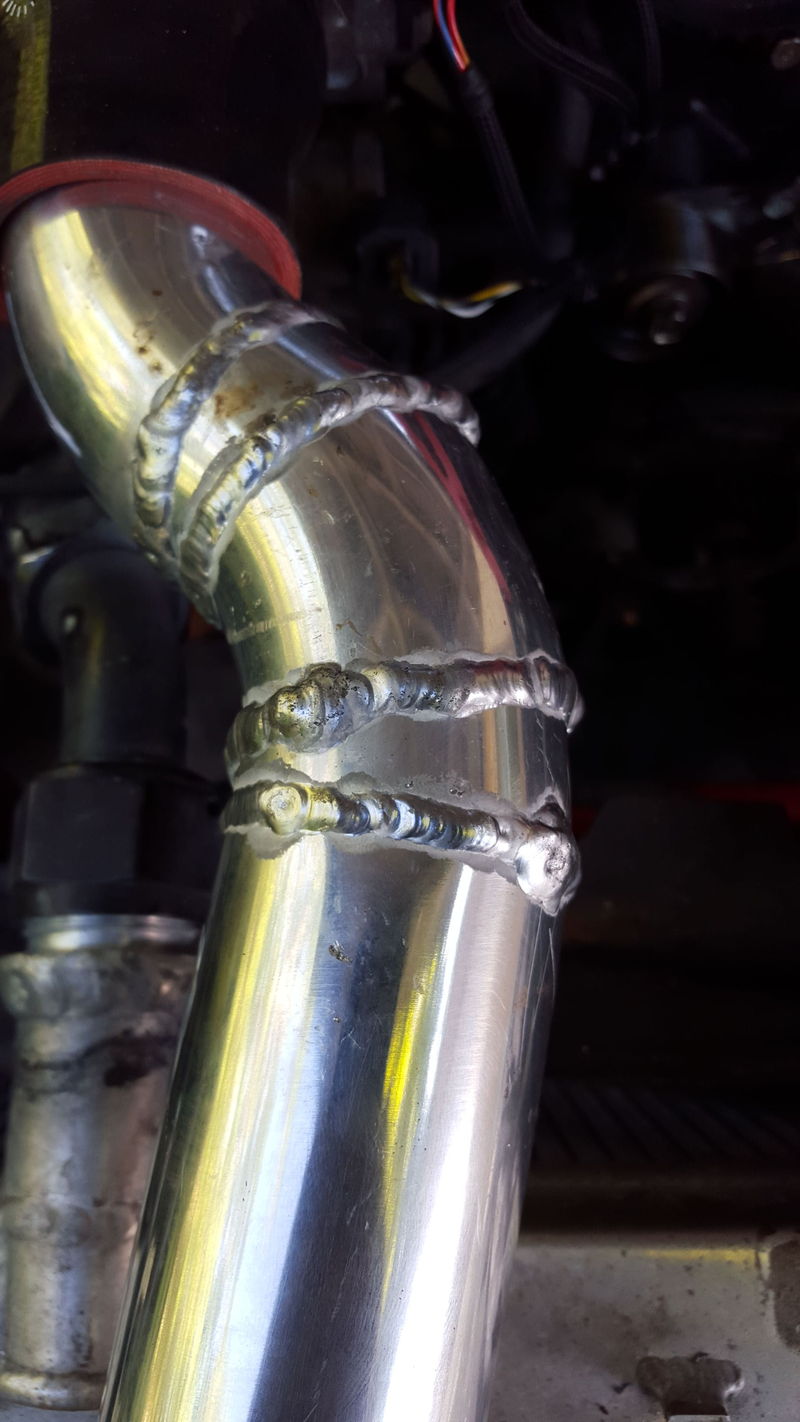

I hate thin aluminum. I get about an inch of decent weld then the arc goes nuts. Probably didn't sand off the polish enough.


Thicker cast is yummy

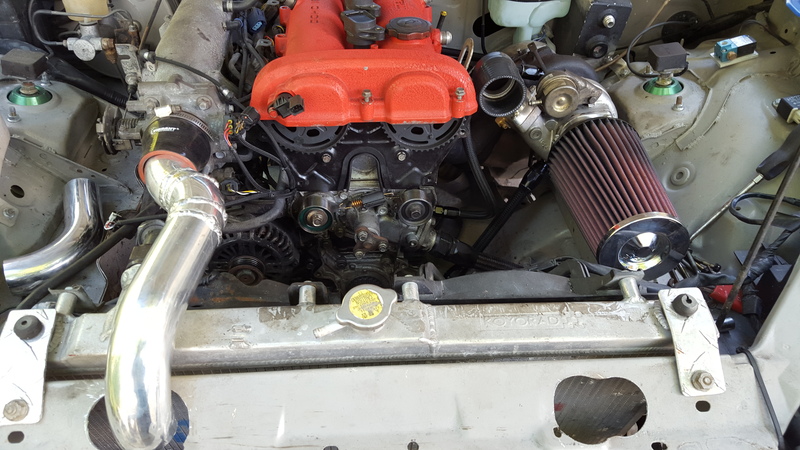

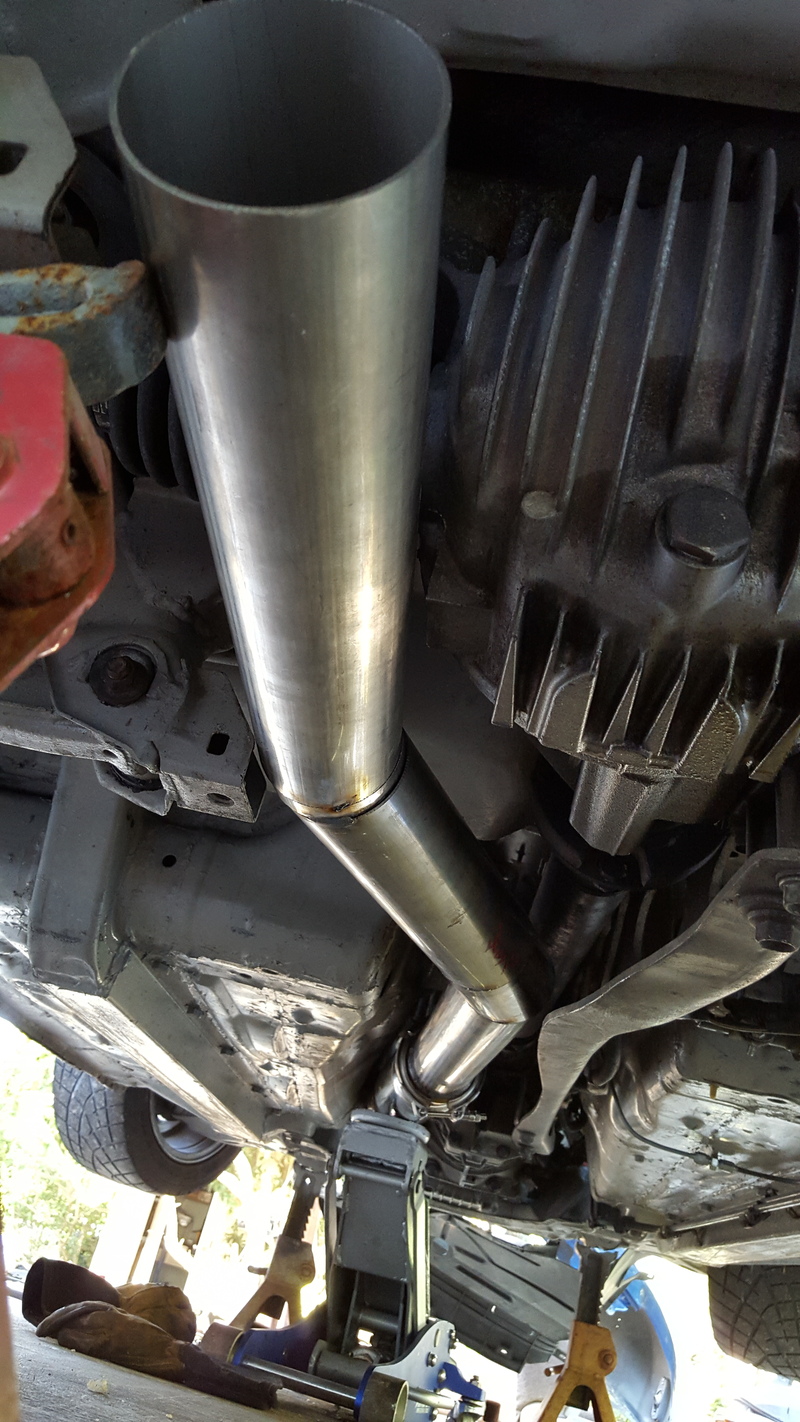

Finished the down pipe and tacked together the mid pipe. It looks like it's hitting the subframe but it's just hanging down a bit. I did it this way to clear the Autoexe rear under brace whenever it arrives.

The muffler i got is a little too long and using a 45 off the pipe by the diff points it at the tow point. I am trying to avoid going left to U turn right. Might try a 90 and see where I end up this weekend.
Attached Thumbnails
Round 2: Wannabe turbo NB6C-20160203_163905_zpsfcsms3uo.jpg   Round 2: Wannabe turbo NB6C-img-20160203-wa0006_zpsdbilvuip.jpeg   Round 2: Wannabe turbo NB6C-20160203_163943_zpsx2znuxlt.jpg   Round 2: Wannabe turbo NB6C-20160203_163925_zpsfmlfq1em.jpg
Sirnixalot is offline   Reply With Quote
Old 02-05-2016, 11:55 AM   #130
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 417
Total Cats: 15
Default

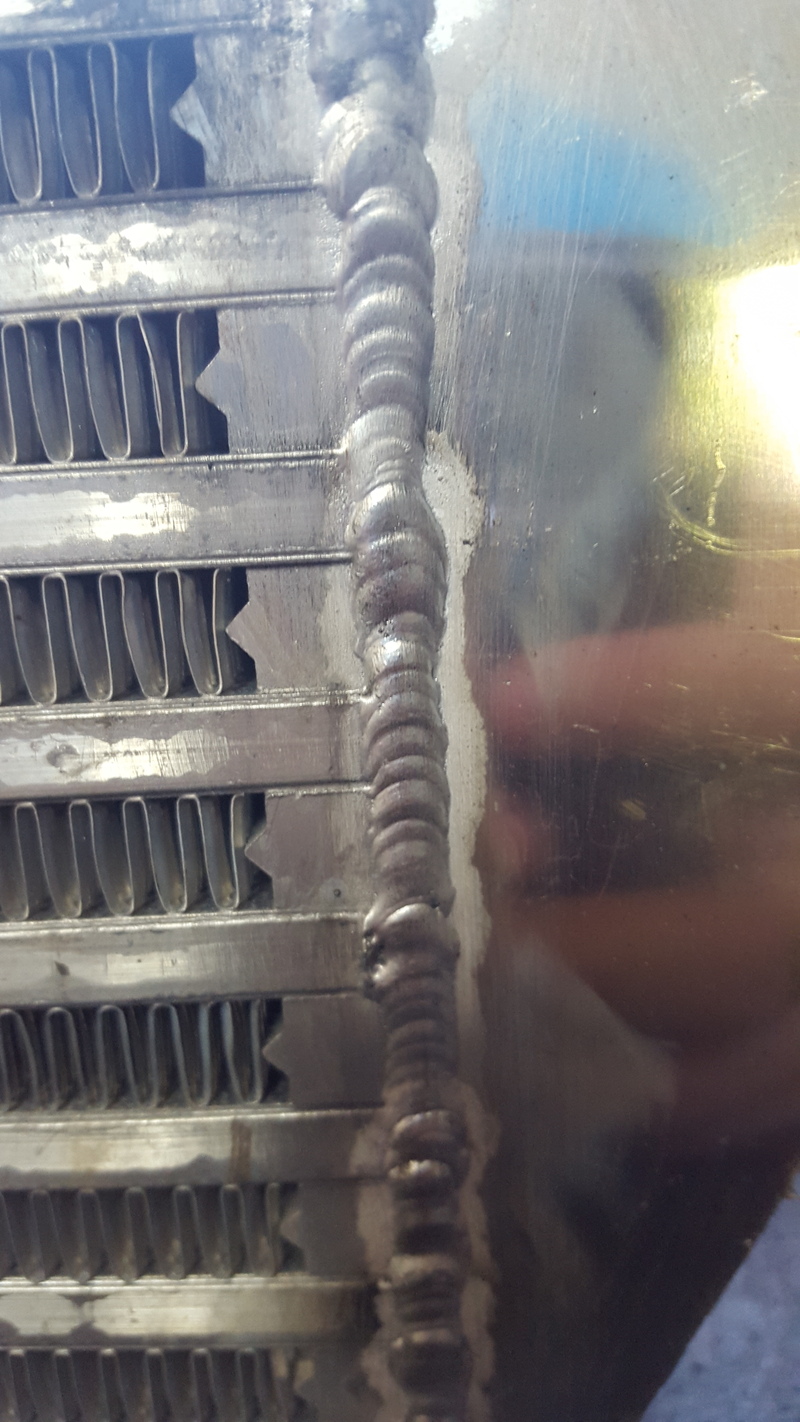

one of my better looking stretch of weld on the intercooler. I am getting the hang of it but most of the welds that join the sheet metal together need flap wheel jesus before i post pictures
Attached Thumbnails
Round 2: Wannabe turbo NB6C-20160205_103717_zpsg5j0plz9.jpg
Sirnixalot is offline   Reply With Quote
Old 02-05-2016, 10:41 PM   #131
Junior Member
iTrader: (1)

Join Date: May 2013
Location: Sandia Park, NM
Posts: 350
Total Cats: 30
Default

Good progress!
I found welding random bits of aluminum together to be problematic.
Welding pie cut sections of the same pipe was waaaaaaay easier.
leboeuf is offline   Reply With Quote
Old 02-07-2016, 05:57 PM   #132
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 417
Total Cats: 15
Default

It seem's my welder and I can weld any aluminum other than the thin tubing. The arc just kept jumping around and not making a puddle.


So I said **** it and pizza sliced the **** out of some 2" 409 stainless I had laying around. Ran out of gas so I had to use my mig, which meant grinding down all the pebbles and trying to make the pipes look presentable

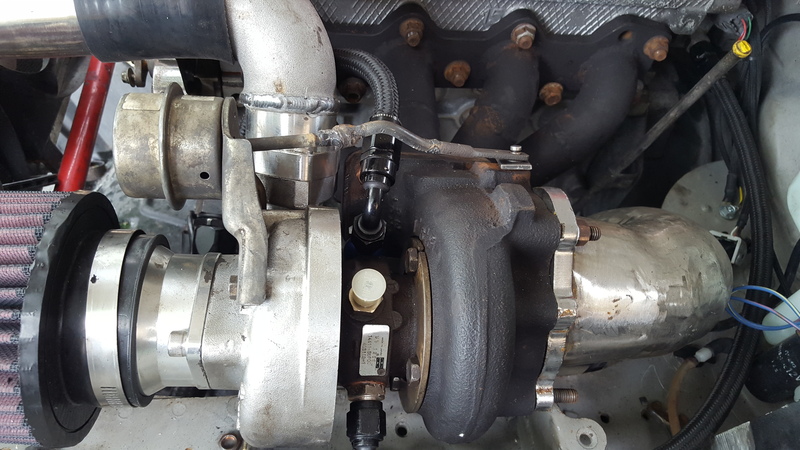

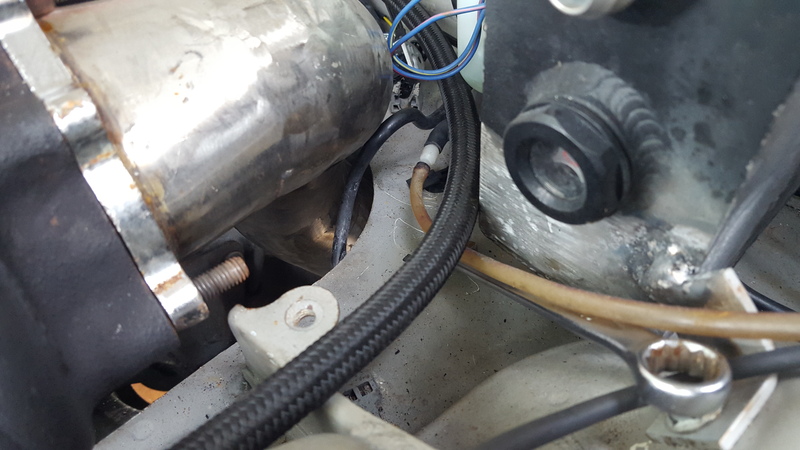

Cut and bent actuator rod to clear the coolant fitting

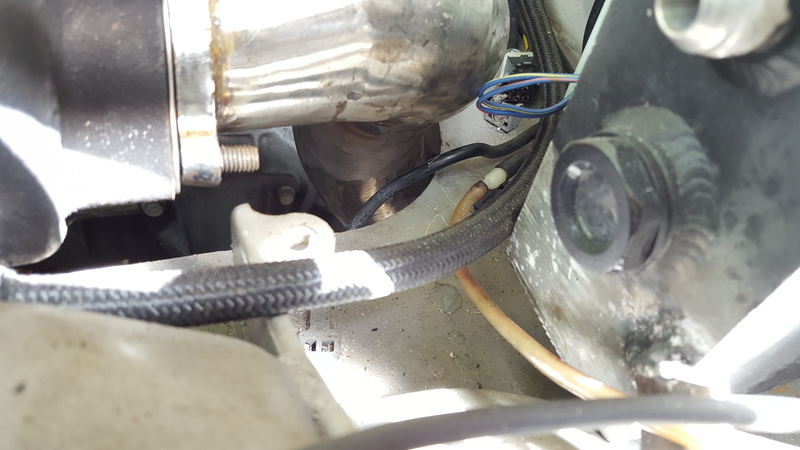

I need to re-route this brake line and wrap the downpipe


The NPT thread stripped out because aluminum so I welded the 90* adapter in. Black anodizing turns that doo doo gold color from heat.

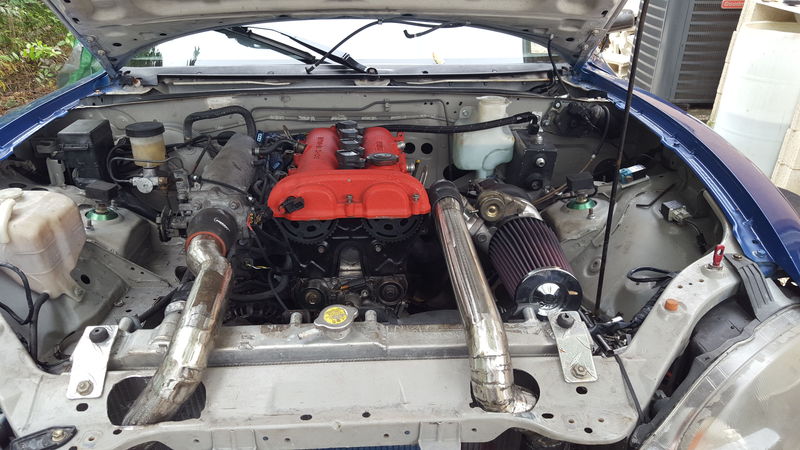

dat jdm side exit turn down. I have many welds to finish once I get some argon

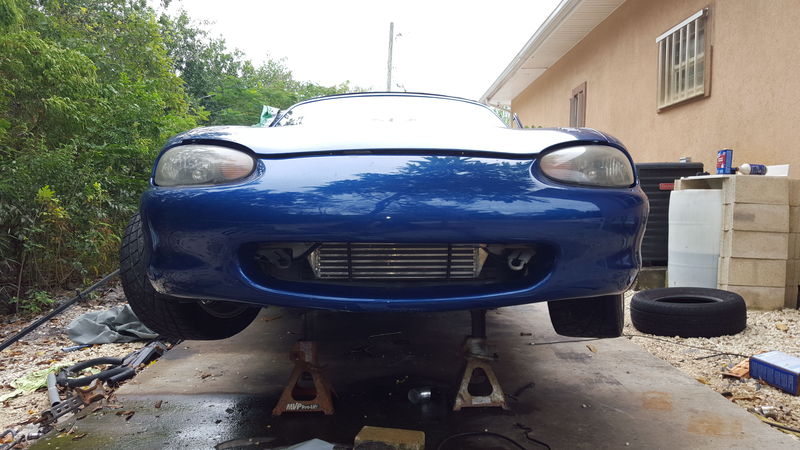

money shot. I need to make 2 more mounting tabs for the intercooler and add the BOV port and a 3/8npt port for the IAT.

Injector connectors are getting swapped this weekend to EV1's for the evo 550's I have. A friend donated a denso fuel pump meant for an RX7 so that's the fuel sorted out.
Attached Thumbnails
Round 2: Wannabe turbo NB6C-img-20160207-wa0004_zps8jhsouwt.jpeg   Round 2: Wannabe turbo NB6C-20160207_155607_zpsuaetaawg.jpg   Round 2: Wannabe turbo NB6C-20160207_155622_zpsbfmmu71p.jpg   Round 2: Wannabe turbo NB6C-img-20160207-wa0002_zps5yg43fap.jpeg

Last edited by Sirnixalot; 02-08-2016 at 08:13 AM.
Sirnixalot is offline   Reply With Quote
Old 02-07-2016, 09:30 PM   #133
Moderator
iTrader: (10)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 14,092
Total Cats: 1,167
Default

It is pretty common to cut the shelf up underneath where the heater core hoses come out. Structurally it doesn't effect much. You can come all the way over to where the steering shaft comes out. It makes you huge difference for routing.
sixshooter is online now   Reply With Quote
Old 02-08-2016, 08:17 AM   #134
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 417
Total Cats: 15
Default

I was thinking of doing that but I should be able to bend it to clear and toss some gold tape on it. Trying to avoid cutting for the moment
Sirnixalot is offline   Reply With Quote
Old 02-12-2016, 08:11 AM   #135
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 417
Total Cats: 15
Default

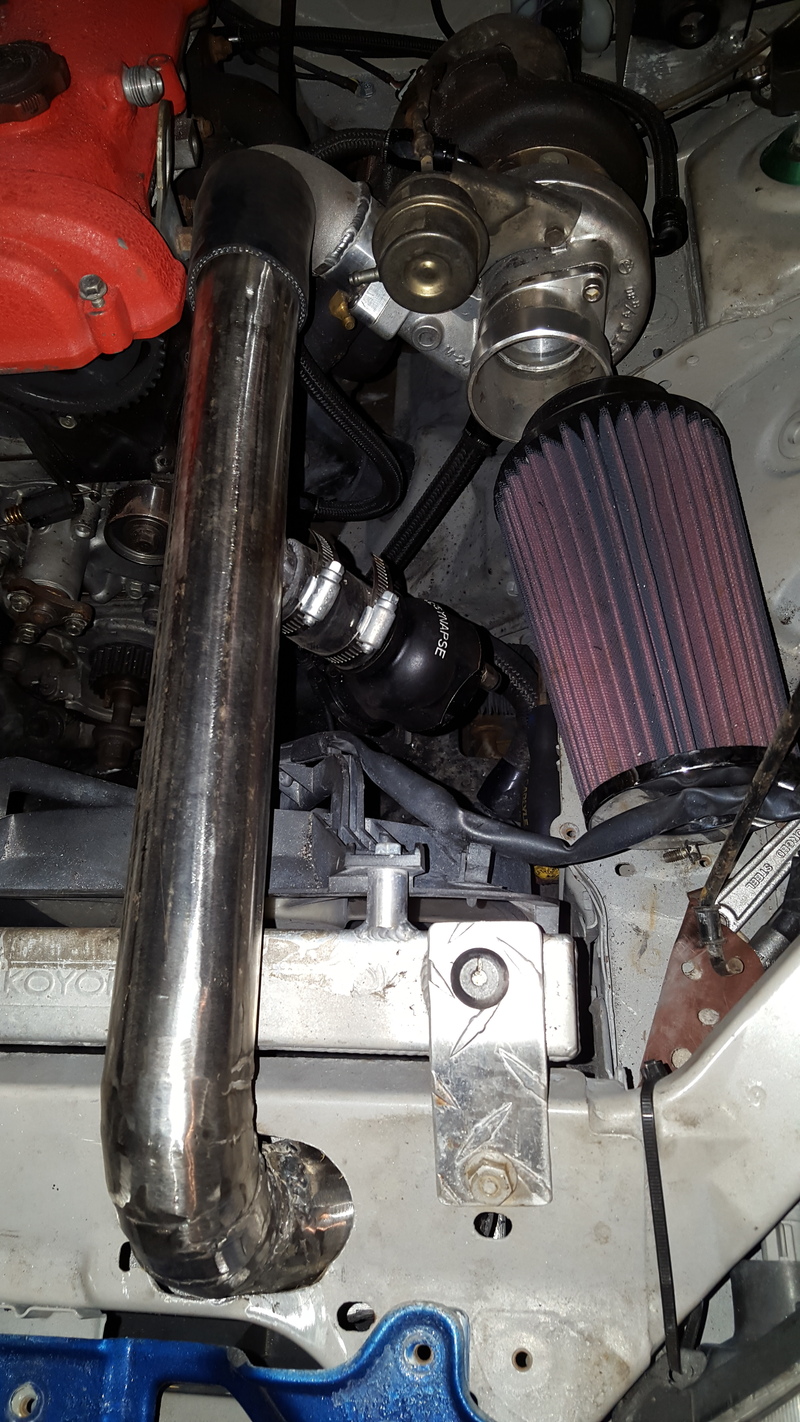

Fucked up on the BOV port. I need to angle it down a bit to clear the filter


IAT position

Plan is to do a boost leak test tomorrow to make sure everything is sealed tight and then start on finishing the exhaust.
Attached Thumbnails
Round 2: Wannabe turbo NB6C-20160211_201430_zpsjsuqqpzq.jpg
Sirnixalot is offline   Reply With Quote
Old 02-14-2016, 03:06 PM   #136
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 417
Total Cats: 15
Default

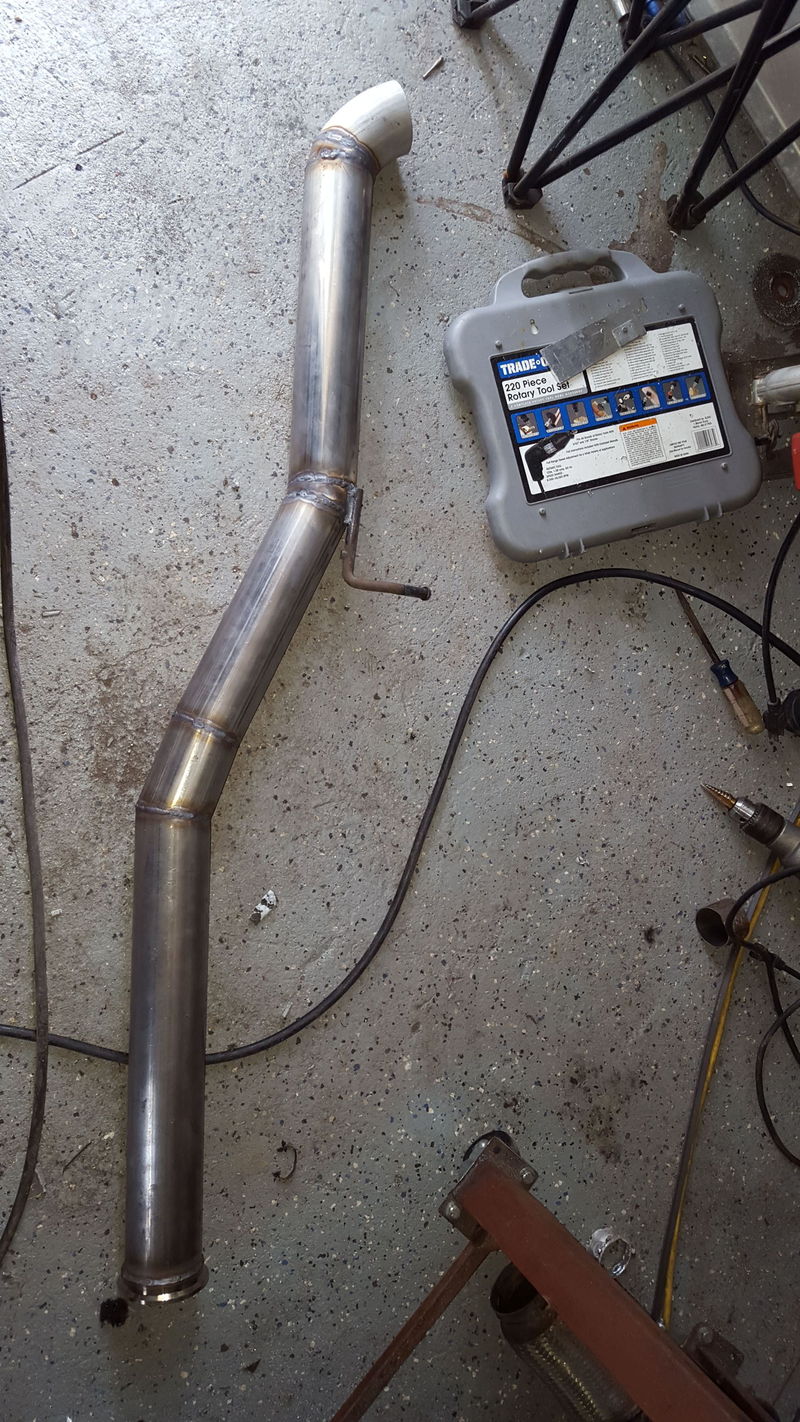

Welded up the exhaust. I need to weld up the v band on the end and the muffler to complete


Bent the brake line to get some more clearance. Think that will be enough with once its wrapped?


Forgot the bung at home so didn't get to weld that up today

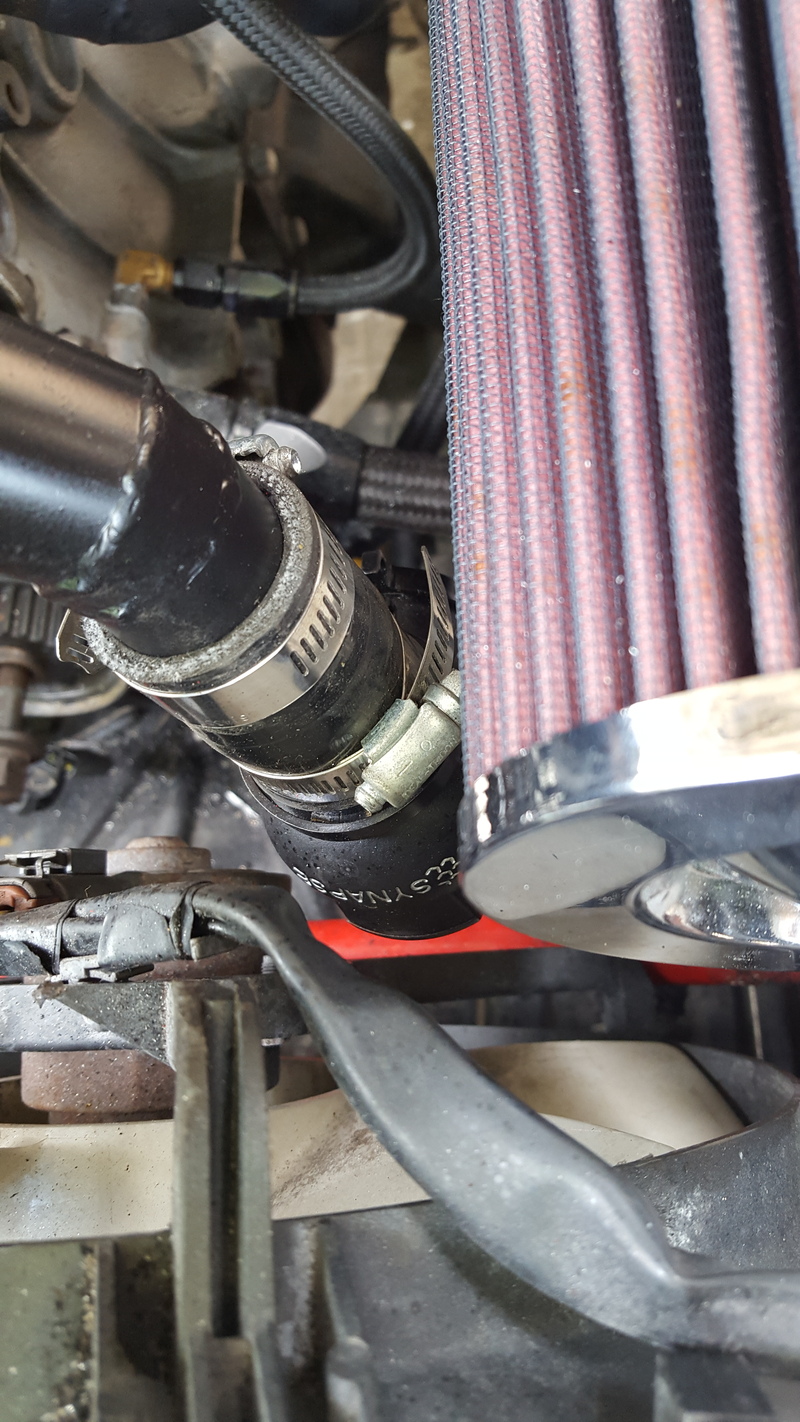

Angled the DV down so it clears the filter. Picking up the hose to connect it tomorrow

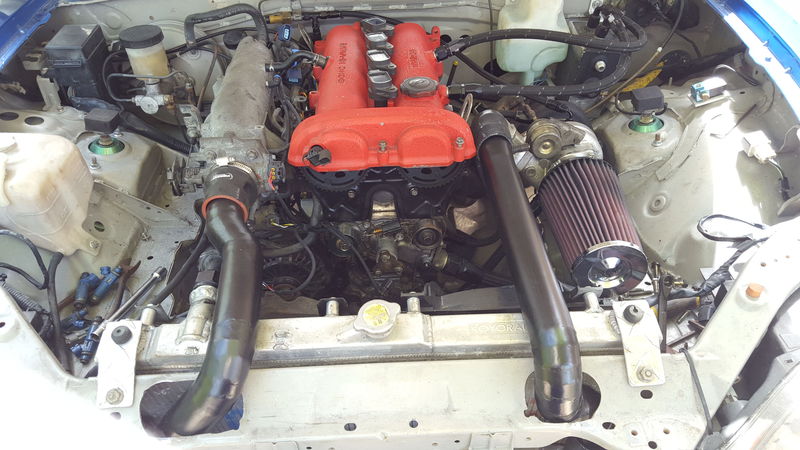

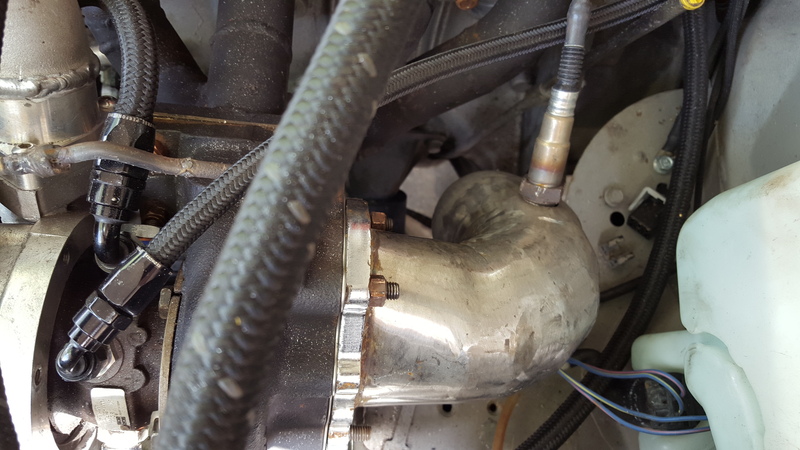

Shot of the oil feed. I'm using -4AN with a 1.5mm restrictor fitting on the turbo

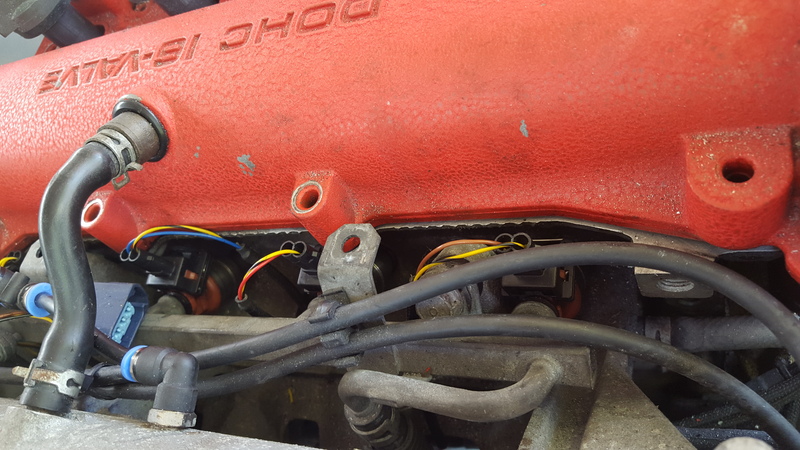

Evo 8 560's with new quick disconnect connectors


Intercooler pipes painted black and looking 1000 times better

My new gates racing timing belt and front main seal are scheduled to be on island by friday. Fingers crossed for start up next saturday
Attached Thumbnails
Round 2: Wannabe turbo NB6C-img-20160214-wa0021_zps5ik9un2m.jpeg   Round 2: Wannabe turbo NB6C-20160214_140538_zpsm8cmoz9q.jpg   Round 2: Wannabe turbo NB6C-20160214_140532_zpsx6irtajz.jpg   Round 2: Wannabe turbo NB6C-20160214_124107_zpsvfowfuxn.jpg   Round 2: Wannabe turbo NB6C-20160214_124112_zpsvgup2lms.jpg

Round 2: Wannabe turbo NB6C-20160214_124659_zps9atvxbaz.jpg   Round 2: Wannabe turbo NB6C-img-20160214-wa0013_zpsf0f18bft.jpeg
Sirnixalot is offline   Reply With Quote
Old 02-16-2016, 06:56 PM   #137
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 417
Total Cats: 15
Default

Mission complete!

I took 0 pictures cause...well they would look like the rest of them above. I thought I added more tension to the actuator after I cut it but max boost was 25kpa

I'll buy some 1/4" spacers and new bolts tomorrow and shim the actuator to see if that gets me to the 8psi goal

Last edited by Sirnixalot; 02-16-2016 at 08:06 PM.
Sirnixalot is offline   Reply With Quote
Old 02-17-2016, 02:16 PM   #138
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 417
Total Cats: 15
Default

Holy **** it's a whole new car and the tune is still all over the place. A friend of mine is gonna drive while I tackle the tune this saturday, first auto cross of the year is sunday so fingers crossed
Sirnixalot is offline   Reply With Quote
Old 02-17-2016, 05:24 PM   #139
Junior Member
iTrader: (1)

Join Date: May 2013
Location: Sandia Park, NM
Posts: 350
Total Cats: 30
Default

Congrats man!
Quite the project. What will you do now with your new free time ?
leboeuf is offline   Reply With Quote
Old 02-18-2016, 08:08 AM   #140
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 417
Total Cats: 15
Default

Thanks!

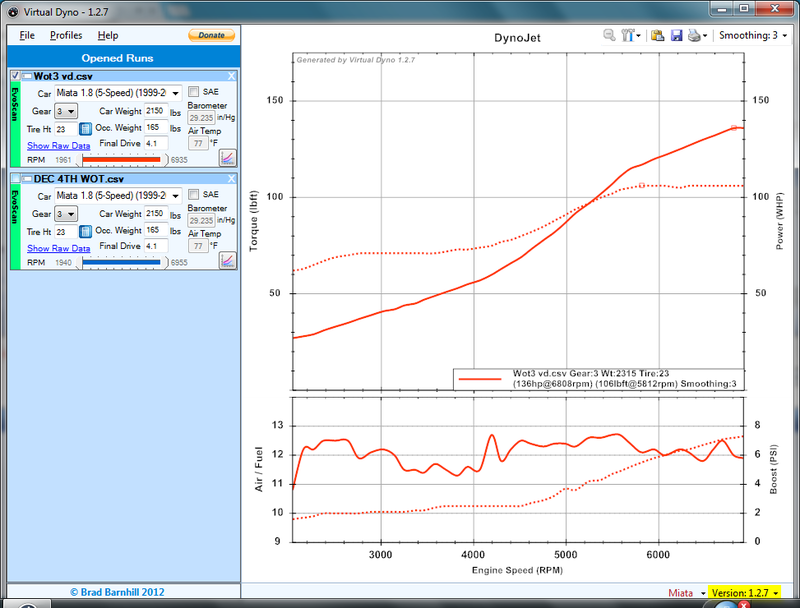

Right now I'm trying to figure out why the boost is so late. I think it's because I didn't put enough tension back in when I modified the actuator rod. I'm going by the hardware store to get shims and extra bolts now




(i know the fuel needs a ton of work)
Attached Thumbnails
Round 2: Wannabe turbo NB6C-turbo%2520dyno_zpsiokzjw4p.png
Sirnixalot is offline   Reply With Quote
