Old 09-17-2016, 08:23 PM   #21
Junior Member

Forrest95M's Avatar

Join Date: Jan 2016
Posts: 287
Total Cats: 12
Default

I approve of your color choice
Forrest95M is offline   Reply With Quote
Old 09-17-2016, 09:06 PM   #22
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,618
Total Cats: 102
Default

Purple power! I really want to find a merlot M-editon NA to get some pictures with, but the only one local I know of is hella mad tyte stanced out slammmmed jdm with stickers errywhere yo.
pdexta is offline   Reply With Quote
Old 09-17-2016, 09:28 PM   #23
Junior Member

Forrest95M's Avatar

Join Date: Jan 2016
Posts: 287
Total Cats: 12
Default

Yes it's choice of rusty, faded paint m-editions or ones that look good but have a subframe that's spent more time on the ground than off
Forrest95M is offline   Reply With Quote
Old 09-29-2016, 11:24 AM   #24
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,618
Total Cats: 102
Default

I got the engine swapped, connected the turbo to the intake manifold and it ran great. The next day I plumbed up the intercooler piping and went to start the car and it wouldn't turn over. I assumed the battery was dead, tried to jump it and it still wouldn't turn over. When I started looking into what the culprit could be I found the motor to be locked up, wouldn't budge at all.

I pulled spark plugs and they looked fine. Pulled the starter to see if it somehow jammed against the flywheel. Started to remove the crank pulley and the motor finally broke loose. After that the car ran terrible, like it was making 30hp. I checked the timing and the crank was 18 degrees off the timing marks on the pulley. Advanced timing and it ran great again, but I noticed the crank pulley wobbling.

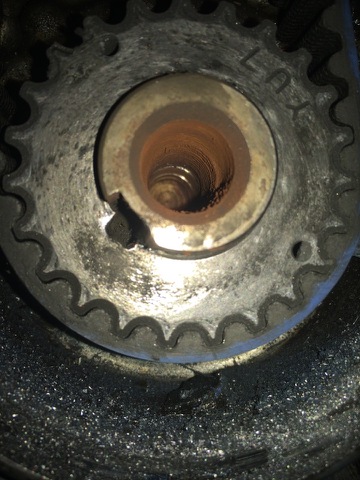

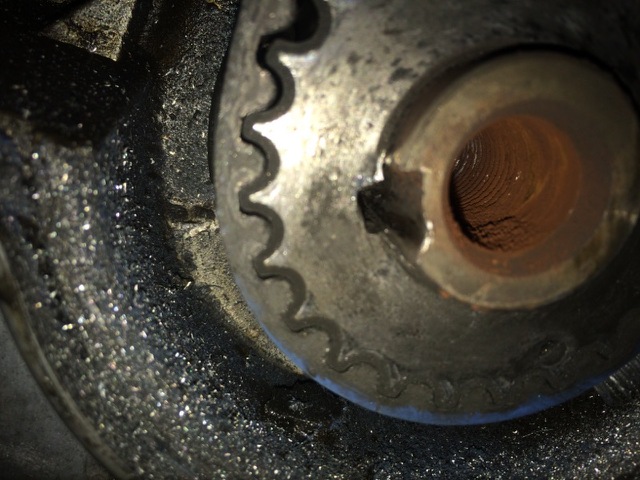

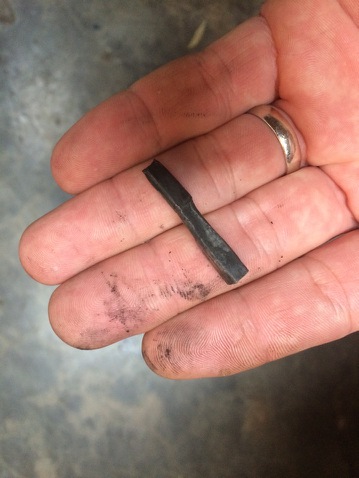

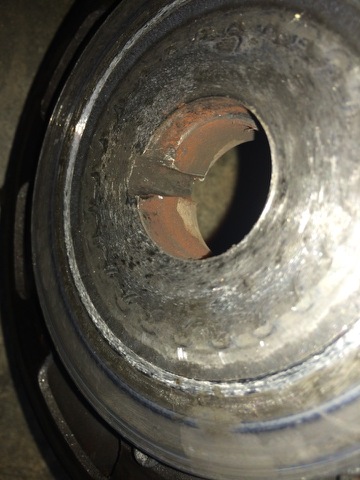

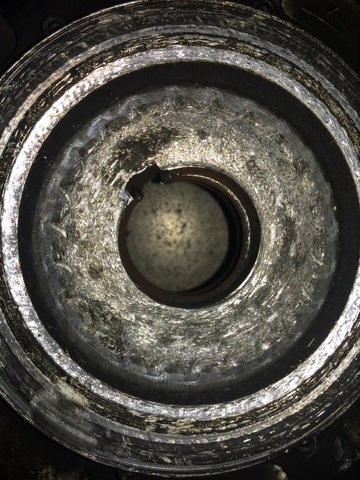

I pulled the crank pulley off and found both the crank and my supermiata damper totally mangled. Apparently something fell down between the crank pulley and something, jammed itself in there tight enough to spin the pulley 18 degrees on the crank. It tore up the crank pin notchs and ovalled out the whole in my damper. I still never found what it got hung up on.











My plan at this point is to just swap back to the stock damper with a new crank pin, and figure out the least ghetto way I can come up with to hold the pulley in place, then hope for the best. Any suggestions or advise as to how to make it work would be greatly appreciated.
pdexta is offline   Reply With Quote
Old 01-09-2017, 07:37 PM   #25
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,618
Total Cats: 102
Default

I kind of gave up on my build thread, it seems like every time I post what I'm doing every thing falls apart. The car's been running good the last few months. It's still got a stock MSM muffler so it's super stealthy. I'm running about 230whp@170kpa on wastegate and 270whp@200kpa with EBC.

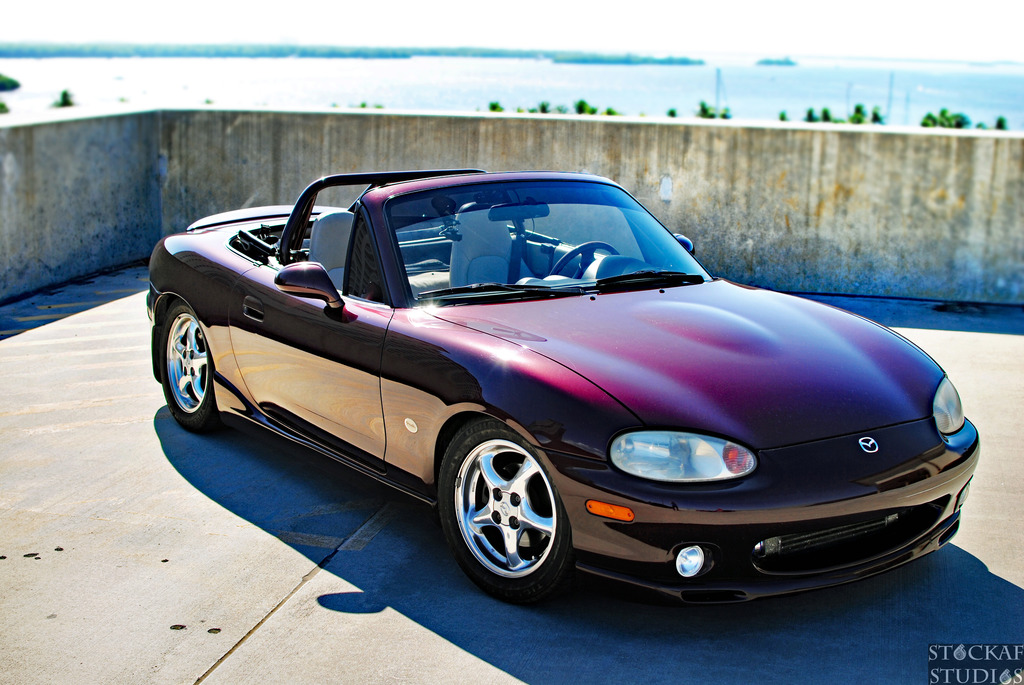

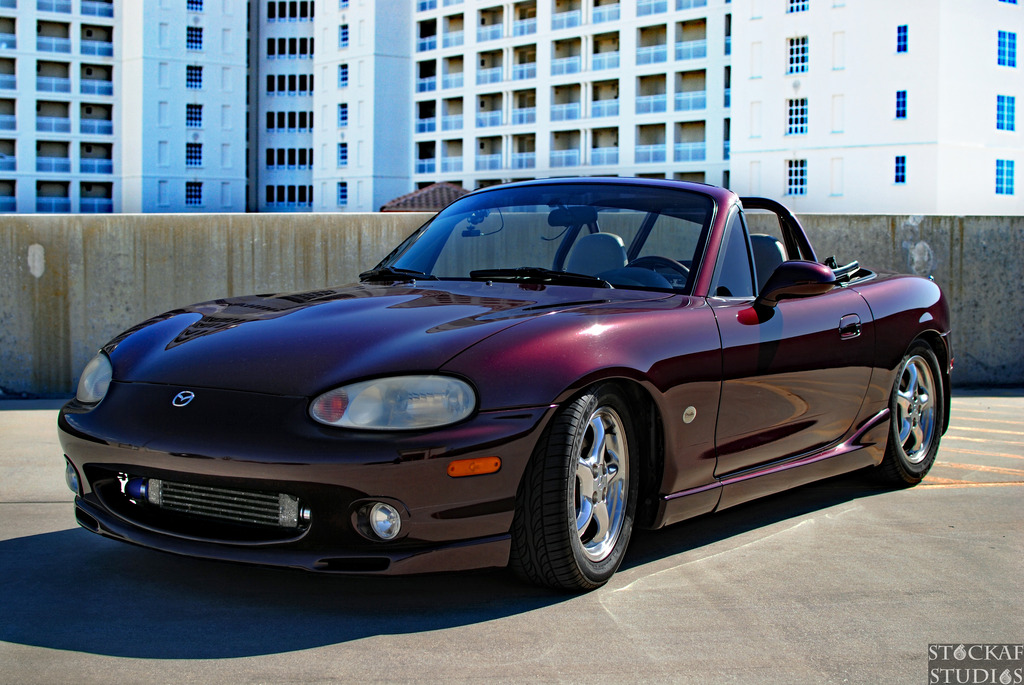

A friend took a few pics of my car and I thought they came out really nice so I figured I'd share.







And a wet autocross from this weekend:

pdexta is offline   Reply With Quote
Old 01-09-2017, 07:42 PM   #26
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,384
Total Cats: 2,032
Default

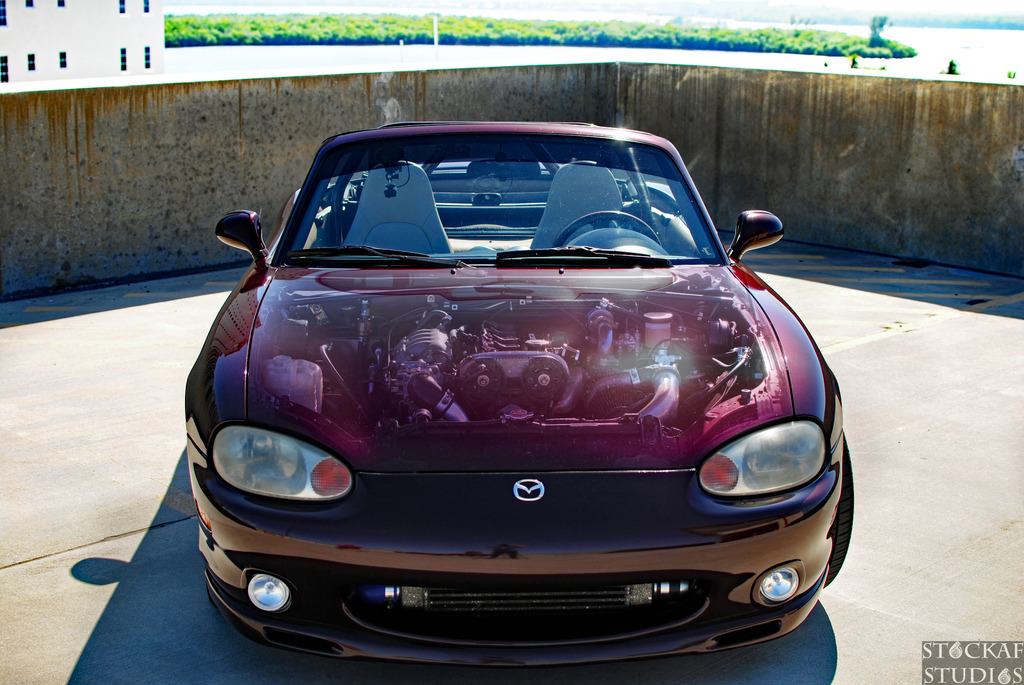

I for some reason really love "clear hood" pics. You'll notice I've done them on just about every one of my cars too

Looking good man, glad you're just enjoying the car at this point.
18psi is offline   Reply With Quote
Old 01-09-2017, 08:27 PM   #27
SOMEOFIT
iTrader: (1)

Girz0r's Avatar

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,563
Total Cats: 224
Default

Looks nice!
Girz0r is online now   Reply With Quote
Old 01-10-2017, 01:20 AM   #28
Senior Member
iTrader: (1)

Join Date: Aug 2016
Location: Woostuh, MA
Posts: 555
Total Cats: 13
Default

How are things with 230hp on the stock nb wheels?
ridethecliche is offline   Reply With Quote
Old 01-10-2017, 09:43 AM   #29
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 1,890
Total Cats: 165
Default

Lovely Build. I definitely like the color matched roll bar.

How is cooling? Any issues?
DNMakinson is offline   Reply With Quote
Old 01-10-2017, 10:43 AM   #30
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,618
Total Cats: 102
Default

Thanks guys, I appreciate the love.

Quote:
Originally Posted by ridethecliche View Post
How are things with 230hp on the stock nb wheels?
Not too bad, even on the all-season tires that came with them. At 230hp it spins first, but usually holds 2nd gear. At 270hp it will spin 2nd, but it holds in 3rd. I've got some 15x8 Konigs with Kumho V720's that I run if I'm doing something that requires more traction.

Quote:
Originally Posted by DNMakinson View Post
Lovely Build. I definitely like the color matched roll bar.

How is cooling? Any issues?
Thanks, I was really happy with how the rollbar came out.

It's got a coolant reroute and a 180 deg thermostat (I think stock is 190 or 195?), but otherwise stock cooling system. I haven't seen it go over 205 degrees so it's been fine for my use.
pdexta is offline   Reply With Quote
