Old 02-28-2015, 07:12 PM   #361
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,705
Total Cats: 472
Default

Ha! Pin in the wrong hole, works every time.
curly is offline   Reply With Quote
Old 02-28-2015, 11:46 PM   #362
Senior Member
iTrader: (8)

Join Date: Feb 2012
Location: Raleigh, NC
Posts: 617
Total Cats: 52
Default

Nice Ryan! I was really hoping this wasn't gonna be another example of neverending VVT issues. Now the fun part begins.
petrolmed is offline   Reply With Quote
Old 03-01-2015, 08:46 PM   #363
Elite Member
Thread Starter
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,279
Total Cats: 122
Default

So now that the car runs I spent the day taking care of the details. I got 205 rivals mounted on my 15x8 6ULs because the 225s were not available and my other tires were corded. I was curious how much of a difference there would actually be in the tread width from the 225s and the 205s so I took some measurements for science!

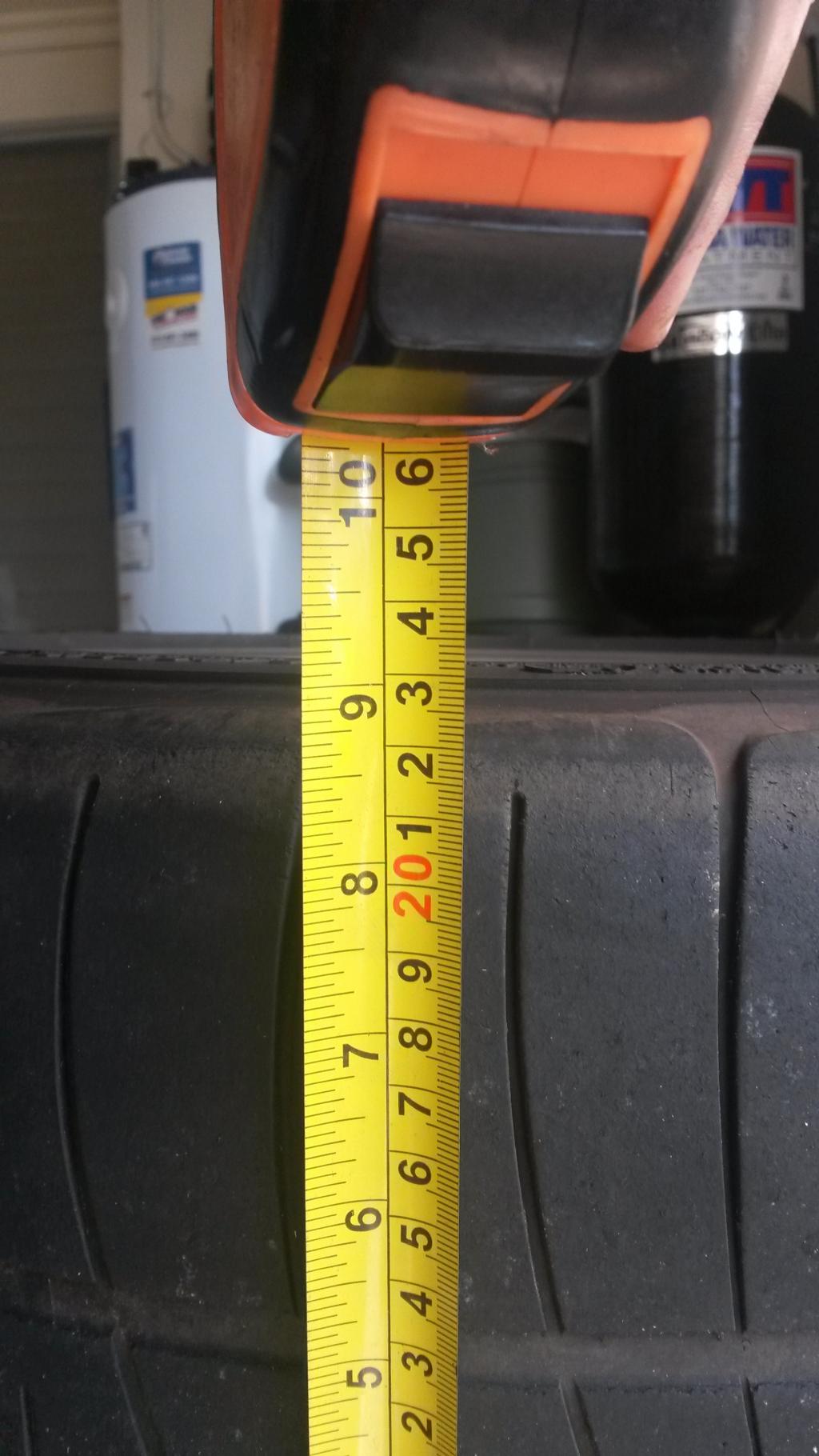

225 Rivals mounted on 15x8 wheels:

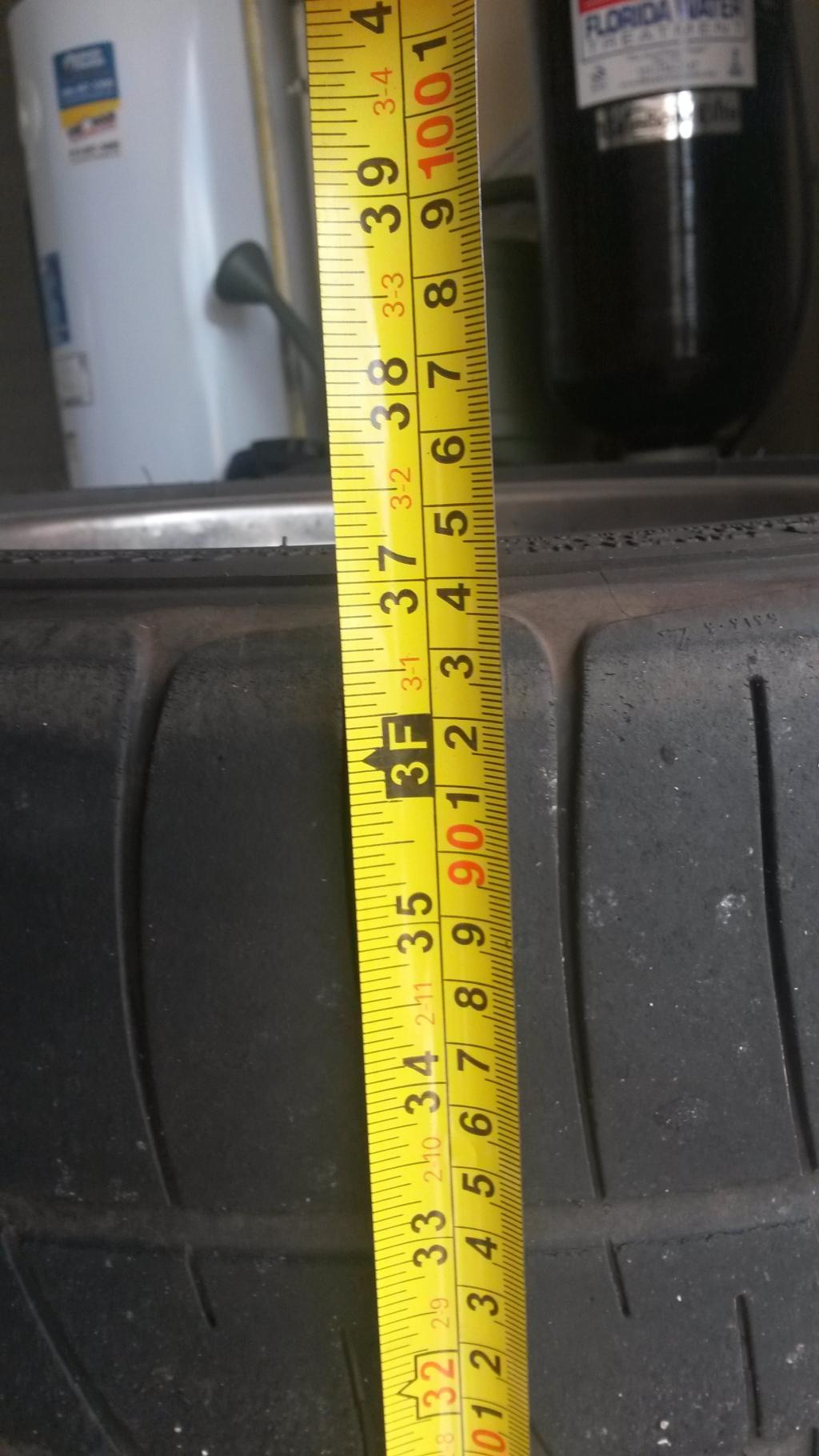

Stacked height



Individual tire treadwidth



205 Rivals mounted on 15x8 wheels:

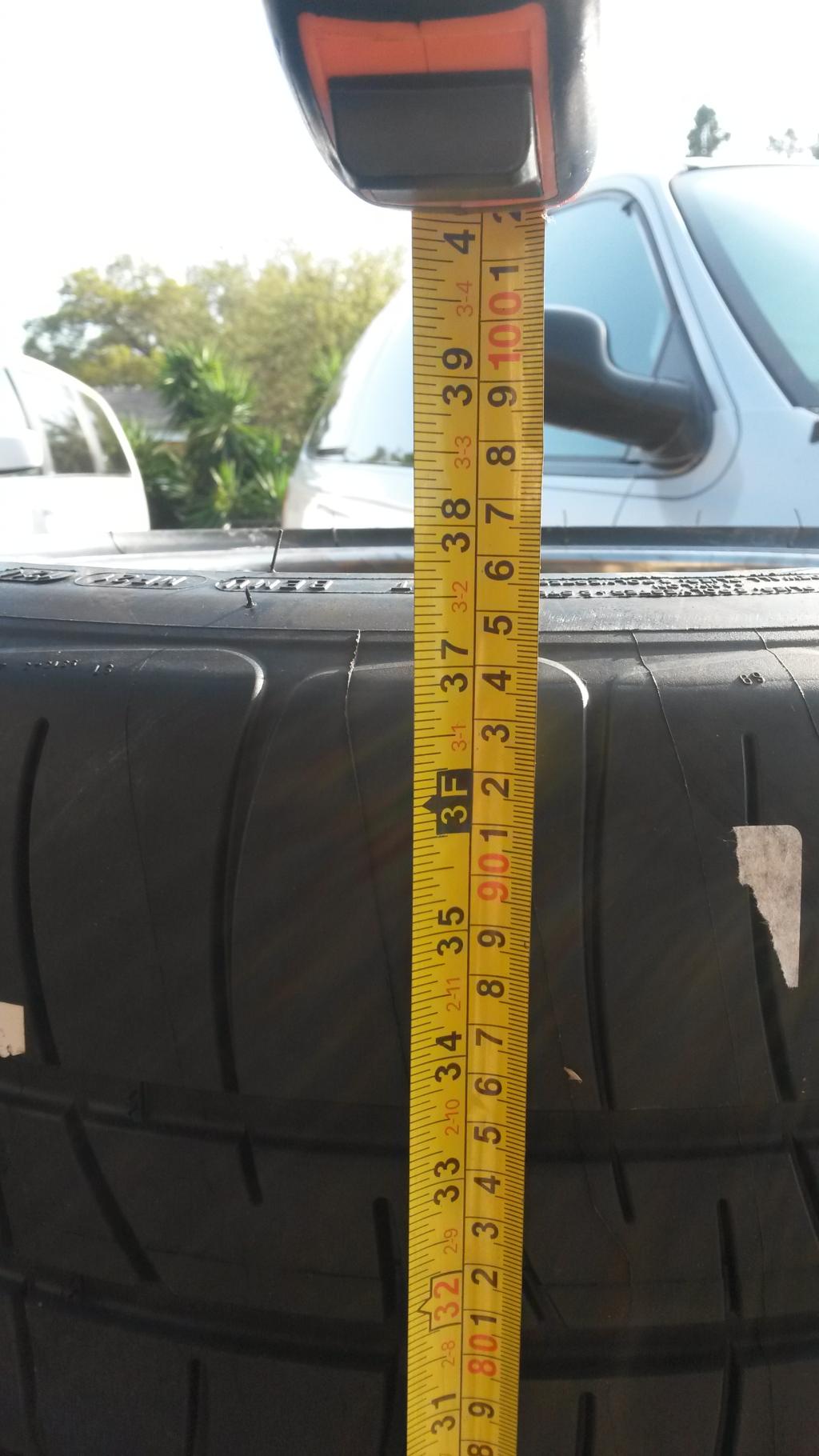

Stacked height

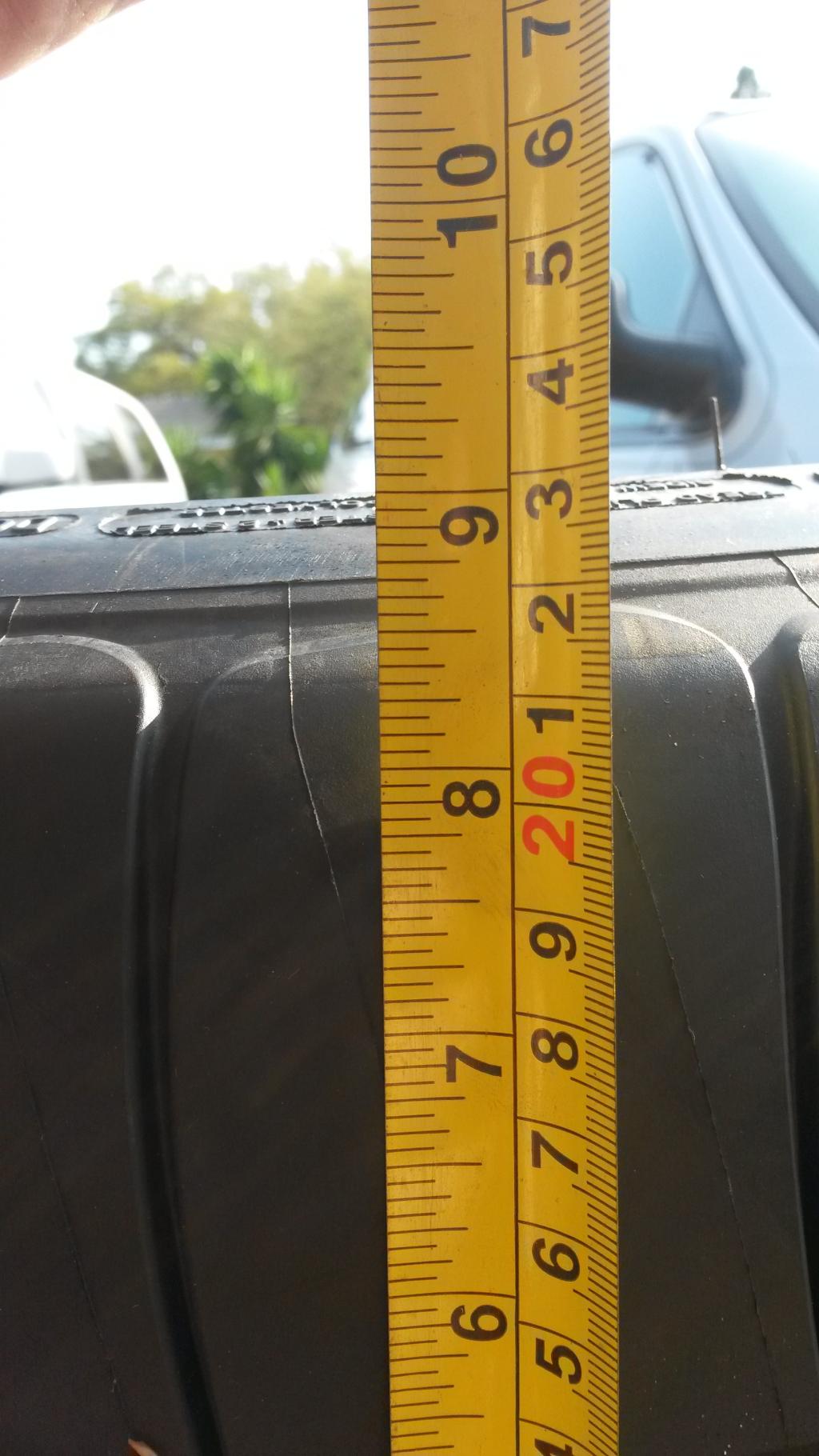

Individual Treadwidth

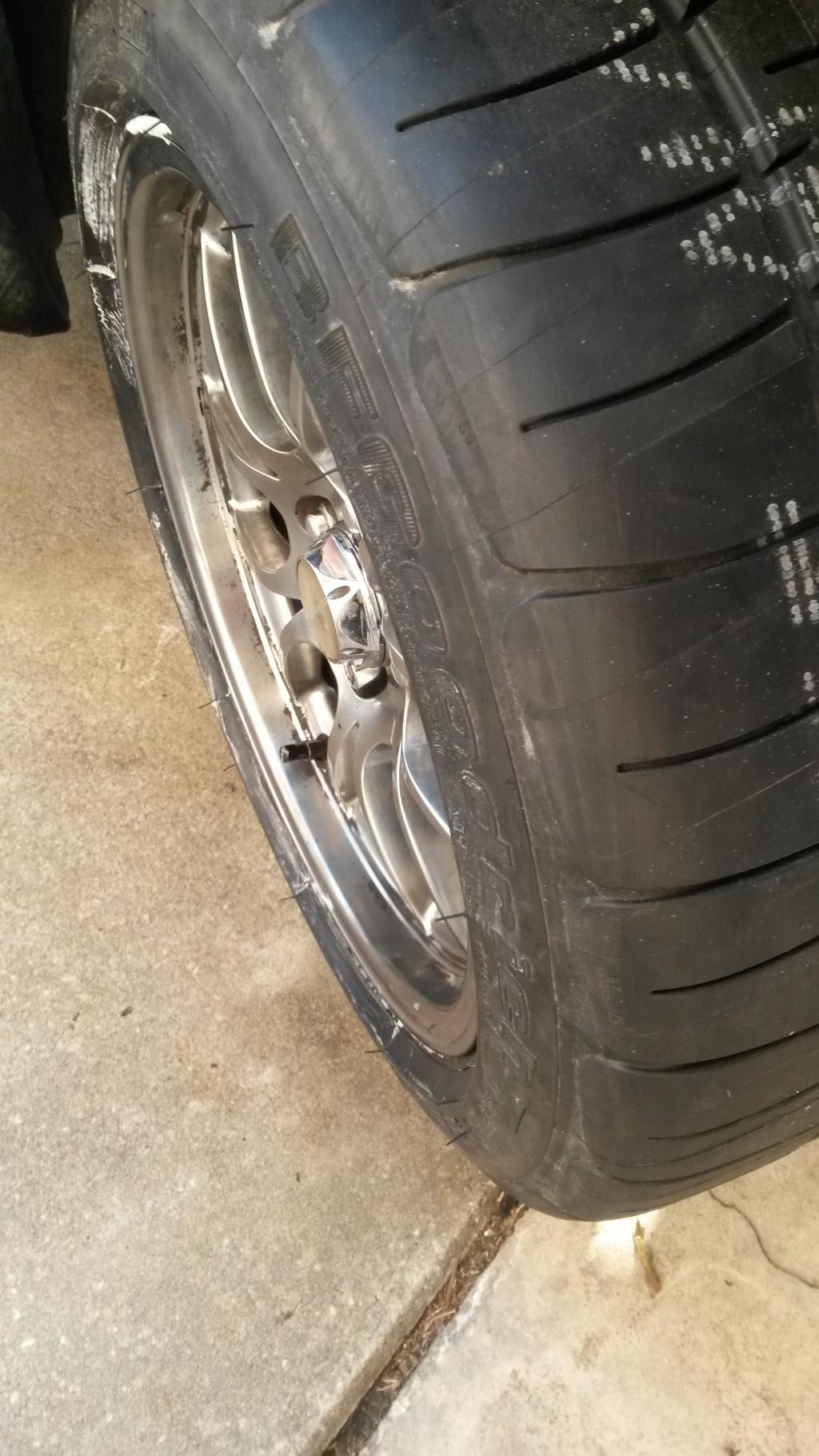

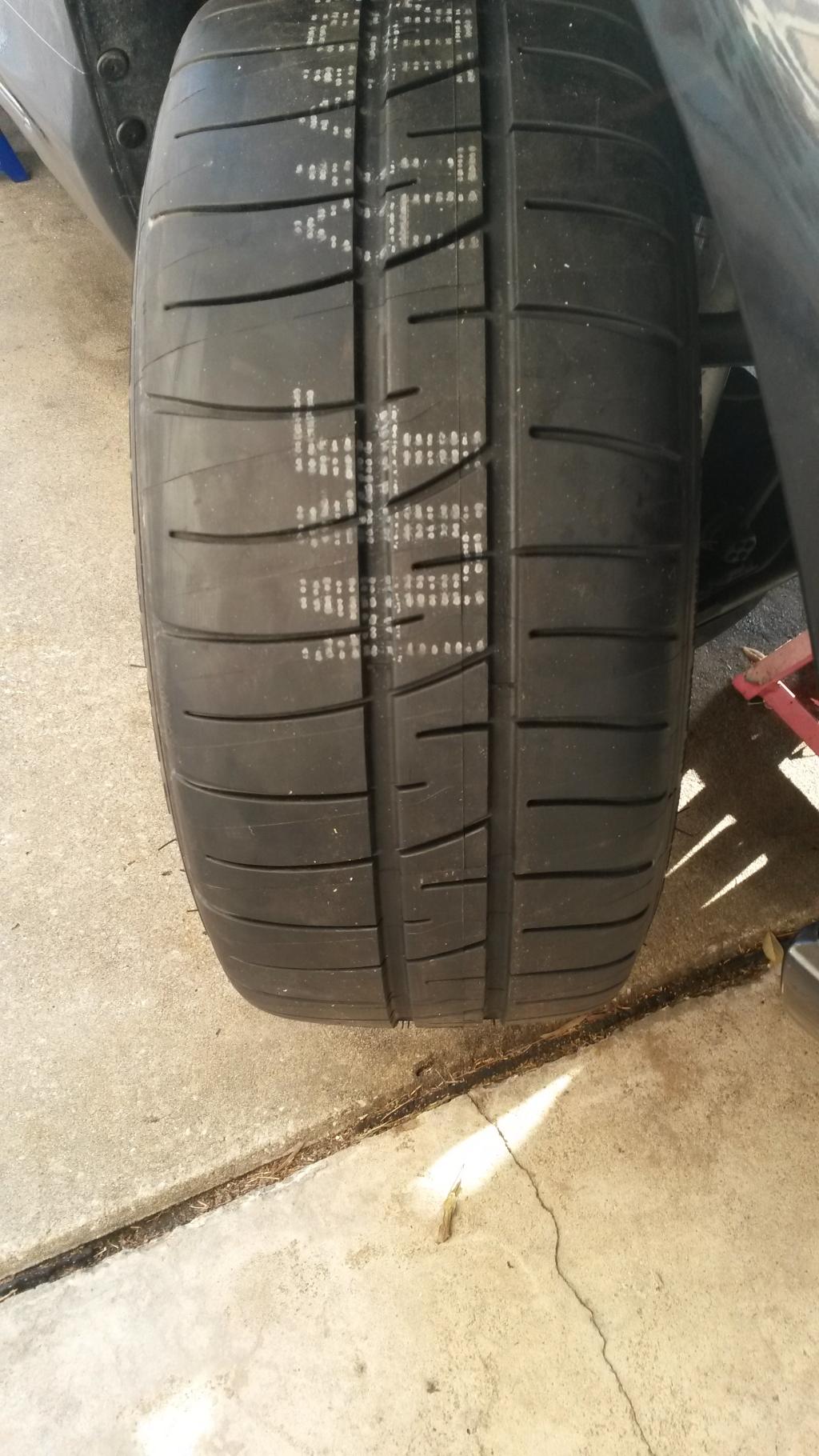

It looks as though they are about the same height when stacked but there is just under half and inch of difference in the actual treadwidth per tire. Not bad. More pics of the new tires mounted.





I also rerouted my oil feed line from going around the back of the engine to going around the front. It was originally contacting the manifold and sitting right underneath it elsewhere which would have resulted in it being completely cooked. Here is the new routing.

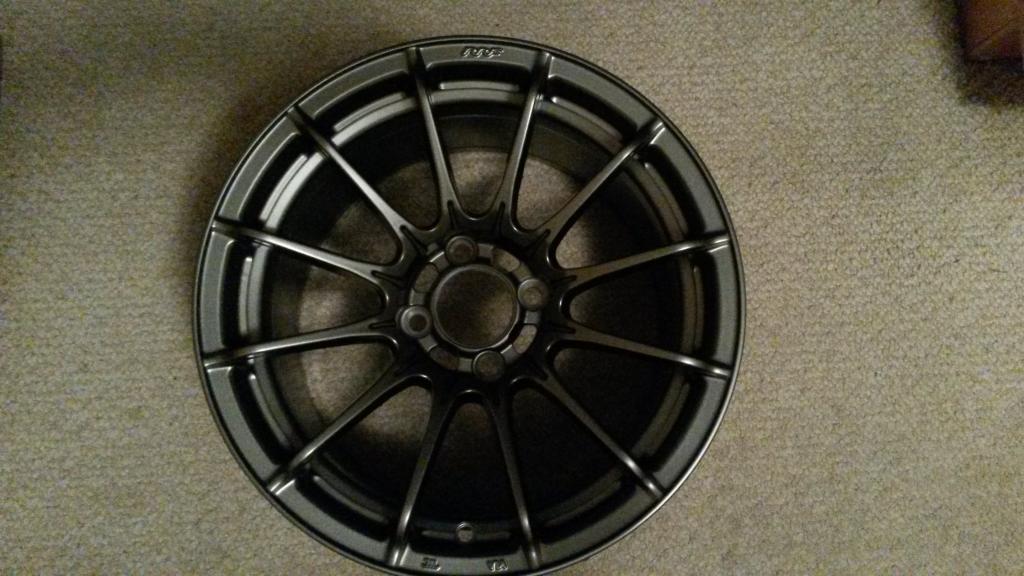

I also made a surprise purchase....15x9 Konig Dial In's. Corifto got these from Good-win during the free shipping special but decided he wanted to go with 15x8s instead since his car will be mainly a street car. These wheels will become my track wheels which will be paired with some 225 conti takeoffs courtesy of Sixshooter. Very excite!



All I need to really do to make the car completely driveable is to cut and bend a small part of the shelf for some additional clearance in case the engine rocks and get the mid-pipe on my exhaust converted to v-band so I can mate it to my downpipe. SO CLOSE! Should just need next weekend to wrap it all up. Then there are lots of other parts I already have that will need to be installed afterward including a new soft top, Singular motorsports hood louvers, nexus 7 infotainment setup, rx7 oil cooler, and ducting.
Attached Thumbnails
Ryan's build thread - Clean and Mean-20150301_131645_zpsdlelut5m.jpg   Ryan's build thread - Clean and Mean-20150301_192325_zps4uqm9da0.jpg

Last edited by Ryan_G; 03-01-2015 at 08:57 PM.
Ryan_G is online now   Reply With Quote
Old 03-01-2015, 09:15 PM   #364
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,692
Total Cats: 84
Default

Cant wait to see it in person, and get a proper ride in that beast.
miata2fast is offline   Reply With Quote
Old 03-02-2015, 01:08 AM   #365
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 2,796
Total Cats: 213
Default

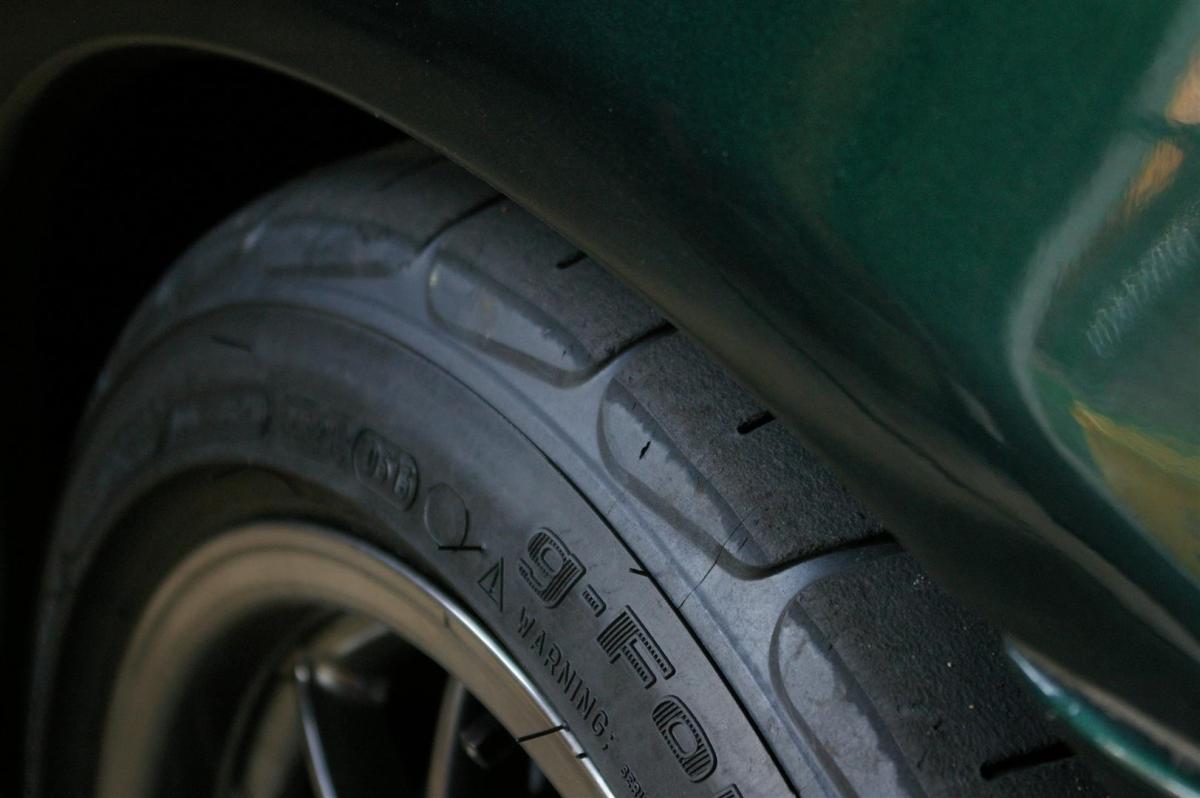

205 Rivals are really beefy tires and look right on an 8" wheel.

Attached Thumbnails
Ryan's build thread - Clean and Mean-70616d1363648114-205-50-bfg-rivals-rivalshoulderwear-large-.jpg
Mobius is offline   Reply With Quote
Old 03-02-2015, 01:38 PM   #366
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,895
Total Cats: 774
Default

Wow, dem Rivals. I may need to rethink my tire choices.

I'm a little late to the game here but I'm SUPER GLAD this started and ran! I'm also wondering if this wasn't the same problem Vlad was having.
EO2K is online now   Reply With Quote
Old 03-08-2015, 03:20 PM   #367
Elite Member
Thread Starter
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,279
Total Cats: 122
Default

So I have another problem...........

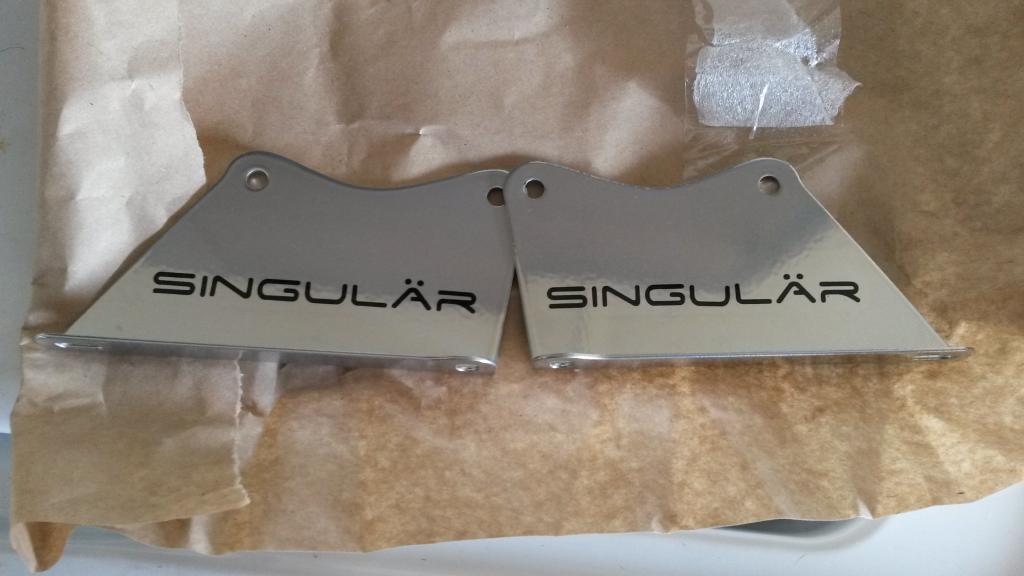

But first, I received something neat in the mail.



These will be nice once I get the GM coils in place. Now to the bad news.

I took the turbo off the notch part of the shelf because the clearance was tighter than I would have liked.



The notching was easy. However, upon reassembly I noticed something I had not before. The compressor housing is contacting the A/C compressor which is obviously not good. I went back to the pictures that Abe sent which clearly show ample room between the compressor housing and A/C compressor with essentially the same clocking. As discussed previously in this thread, the MSM compressor is different than the normal NB compressor. It is significantly smaller which would make you think that clearance would not be an issue. Upon further inspection of the pictures of both compressors side by side I am convinced that either the bracket used for the MSM compressor sits it higher up or the compressor itself is longer. Does anyone by chance know if the ac compressor brackets are different on the MSM or have a normal NB bracket I could borrow to check?
Attached Thumbnails
Ryan's build thread - Clean and Mean-20150307_104249_zpsaobhxpn7.jpg
Ryan_G is online now   Reply With Quote
Old 03-08-2015, 03:35 PM   #368
Elite Member
Thread Starter
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,279
Total Cats: 122
Default

Upon further research here are the following part numbers listed by Mazda for AC brackets.

BPE815810A – 99-00 Bracket
BP6F15810A – 01+ Bracket
NC726147Y – MSM bracket

I think my theory is correct about the bracket location. What I am hoping is that the bolt spacing for all of the compressors in the same so I just need a new bracket. However, with my luck I seriously doubt I will get away with anything less than completely replacing the compressor, lines, and bracket together.
Ryan_G is online now   Reply With Quote
Old 03-08-2015, 04:11 PM   #369
Elite Member
Thread Starter
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,279
Total Cats: 122
Default

So after looking at a ton of pictures I can see exactly why it is making contact. The MSM compressor sits farther back than the normal NB compressor due to the way the bracket sits. Unfortunately, switching out just the brackets will not work because then the pulley would be out of alignment. So I am going to need to source a complete NB A/C Compressor, bracket, and lines.
Ryan_G is online now   Reply With Quote
Old 03-08-2015, 08:45 PM   #370
Elite Member
Thread Starter
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,279
Total Cats: 122
Default

Removed AC condensor and lines for the time being. I just want a running car. Should be going to the exhaust shop this week so I can start driving it on the road.
Ryan_G is online now   Reply With Quote
Old 03-09-2015, 10:15 AM   #371
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,692
Total Cats: 84
Default

I would be willing to bet that we can come up with a solution to get it working. Up to the challenge?

Next Saturday I will be doing a work session at the shop. You are welcome to bring it by.
miata2fast is offline   Reply With Quote
Old 03-09-2015, 10:37 AM   #372
Elite Member
Thread Starter
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,279
Total Cats: 122
Default

Quote:
Originally Posted by miata2fast View Post
I would be willing to bet that we can come up with a solution to get it working. Up to the challenge?

Next Saturday I will be doing a work session at the shop. You are welcome to bring it by.
Got your message late last night. I can bring it by but I would be kind of amazed if you could fix it. You can't move it forward due to the pulley alignment so the only option is to drop it straight down somehow and I'm not sure if there is room. I am more than willing to give it a go though. I am bringing the car to the exhaust shop this week so you should be abke to see it running too!
Ryan_G is online now   Reply With Quote
Old 03-09-2015, 07:35 PM   #373
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 2,796
Total Cats: 213
Default

Ryan I have all my AC stuff in a box. I'll try to get pictures today of everything.
Mobius is offline   Reply With Quote
Old 03-09-2015, 07:57 PM   #374
Elite Member
Thread Starter
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,279
Total Cats: 122
Default

Quote:
Originally Posted by Mobius View Post
Ryan I have all my AC stuff in a box. I'll try to get pictures today of everything.
Awesome! I really appreciate it.
Ryan_G is online now   Reply With Quote
Old 03-10-2015, 08:25 PM   #375
Junior Member

Join Date: Jul 2013
Location: TX
Posts: 313
Total Cats: -12
Default

Hey Ryan, is there anyway I could get your part numbers on the stuff you ordered for the MSM billies?

Congrats on the new motor, anxiously awaiting updates!
ihiryu is offline   Reply With Quote
Old 03-10-2015, 10:40 PM   #376
Elite Member
Thread Starter
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,279
Total Cats: 122
Default

Quote:
Originally Posted by ihiryu View Post
Hey Ryan, is there anyway I could get your part numbers on the stuff you ordered for the MSM billies?

Congrats on the new motor, anxiously awaiting updates!
I'll be home shortly to pm you that info.

On another note, I just drove it around the block and did a final inspection to make sure everything looked good for tomorrow. Good god is this car spartan as ****. It is so loud with an open dp. No power steering without the proper alignment is pretty rough. It also vibrates like a ************. Definitely have to readjust from the sequoia.
Ryan_G is online now   Reply With Quote
Old 03-10-2015, 10:54 PM   #377
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,895
Total Cats: 774
Default

Quote:
Originally Posted by Ryan_G View Post
It also vibrates like a ************.
I did warn you
EO2K is online now   Reply With Quote
Old 03-11-2015, 12:31 AM   #378
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 2,796
Total Cats: 213
Default

Ryan I haven't forgotten but been slammed. Might be Thursday, sorry.
Mobius is offline   Reply With Quote
Old 03-11-2015, 10:33 AM   #379
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,708
Total Cats: 1,058
Default

I told you you might want one of those fancy motor mounts on the side that stretches apart and one of the Mazdacomp ones on the compressing side. I've got Mazdacomp on both sides and will split the set with you if you decide you want to try it. Mine won't have the same beans that yours does so it will be less important on my end to have a super strong one on the side that typically rips apart.
sixshooter is offline   Reply With Quote
Old 03-11-2015, 10:54 AM   #380
Elite Member
Thread Starter
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,279
Total Cats: 122
Default

I will withhold judgement on the motor mounts until I drive it with a full exhaust. The vibration didn't seem bad at all this morning. I think the fact that it sounds like I open the gates of hell when I give it 10% throttle is making me think everything is shittier than reality. I felt like such a jackass driving it to the exhaust shop this morning. I think everyone stared me down.
Ryan_G is online now   Reply With Quote
