Old 01-01-2013, 04:20 AM   #81
Newb

Join Date: Mar 2010
Location: Sulphur, La
Posts: 15
Total Cats: 0
Default

Very impressed with the cleanliness of this build. Interesting to see nitrous.
nuwing is offline   Reply With Quote
Old 01-01-2013, 04:58 AM   #82
Senior Member
Thread Starter
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,332
Total Cats: 55
Default

Quote:
Originally Posted by Miater View Post
White is so right.

Please tell me your not putting the old rusty hardware back in there.
The hardware isn't rusty, it has all gone threw my parts tumbler and the threads wire brushed... If you wanna buy me new hardware I won't complaint, I'll even send you my address to send them to :wink:
RyanRaduechel is offline   Reply With Quote
Old 01-01-2013, 01:24 PM   #83
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 927
Total Cats: 16
Default

Tumbled should look **** too.

I've seen a fair share of nice paint and old nuts. Lol
Miater is offline   Reply With Quote
Old 01-08-2013, 08:01 PM   #84
Senior Member
Thread Starter
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,332
Total Cats: 55
Default

Update...
Attached Thumbnails

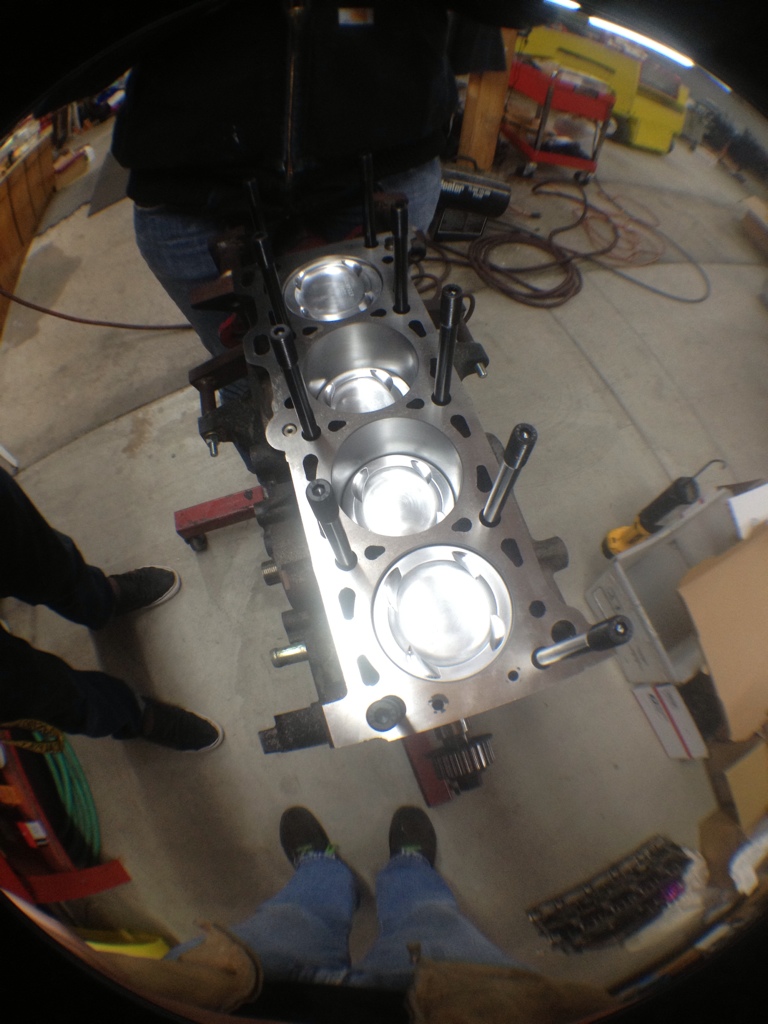

Ryan's turbo build-c464d5c7-c269-4d8b-8f2a-b27fd07555aa-824-000000706eaa85f6.jpg
RyanRaduechel is offline   Reply With Quote
Old 01-17-2013, 05:54 PM   #85
Senior Member
Thread Starter
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,332
Total Cats: 55
Default

Okay here is a real update. Engine progress is going good. Bottom end is together, the head has been disassembled and awaiting valves. I have not ordered anything recently. Just been saving up to buy everything at once so I'm not buying something then waiting and buying something else. It gets tiresome. So the wait presses on. I have had bronchitis for about a week and a half now and I am just now getting over that, so last night I finished up the bottom end.

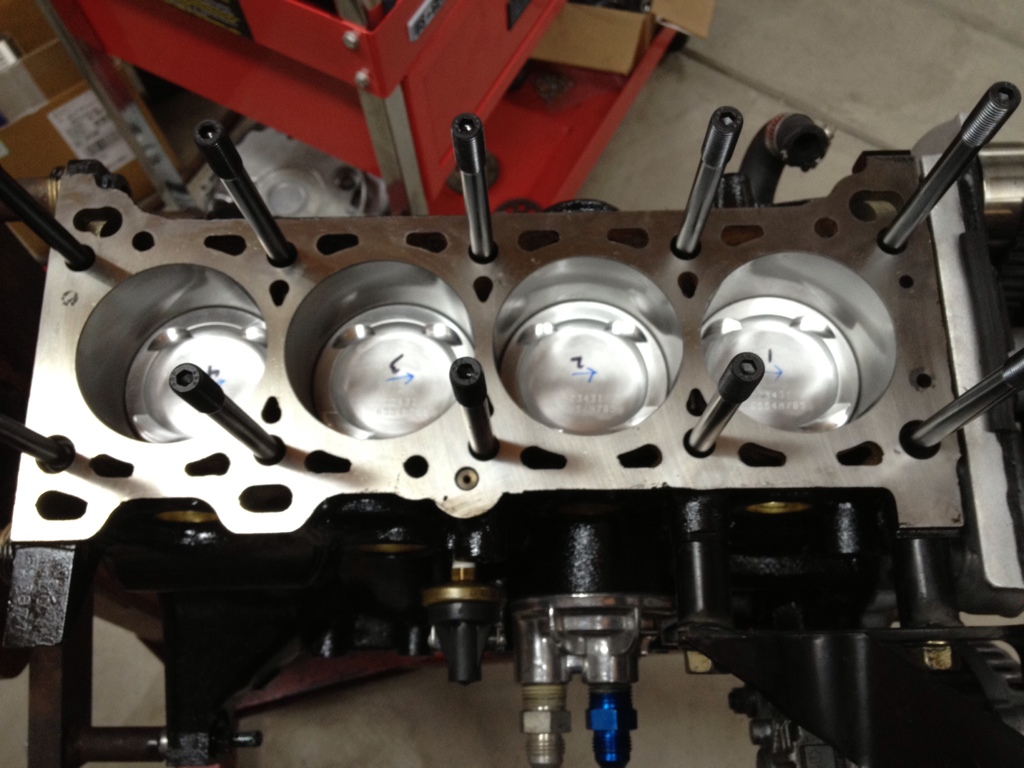

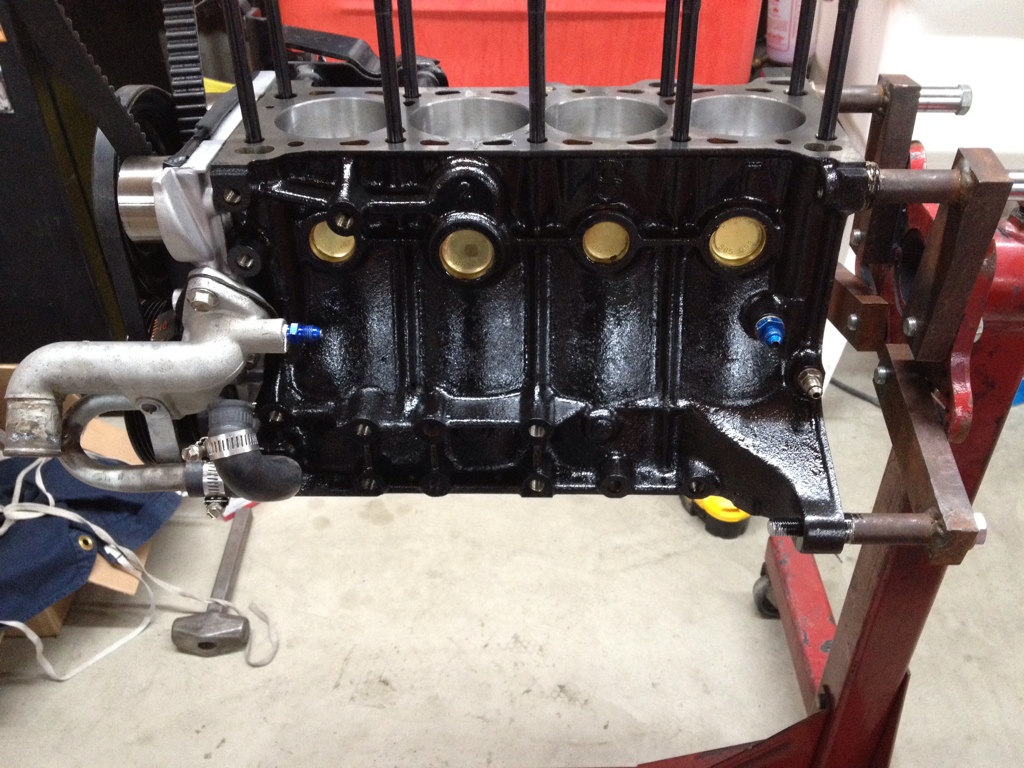

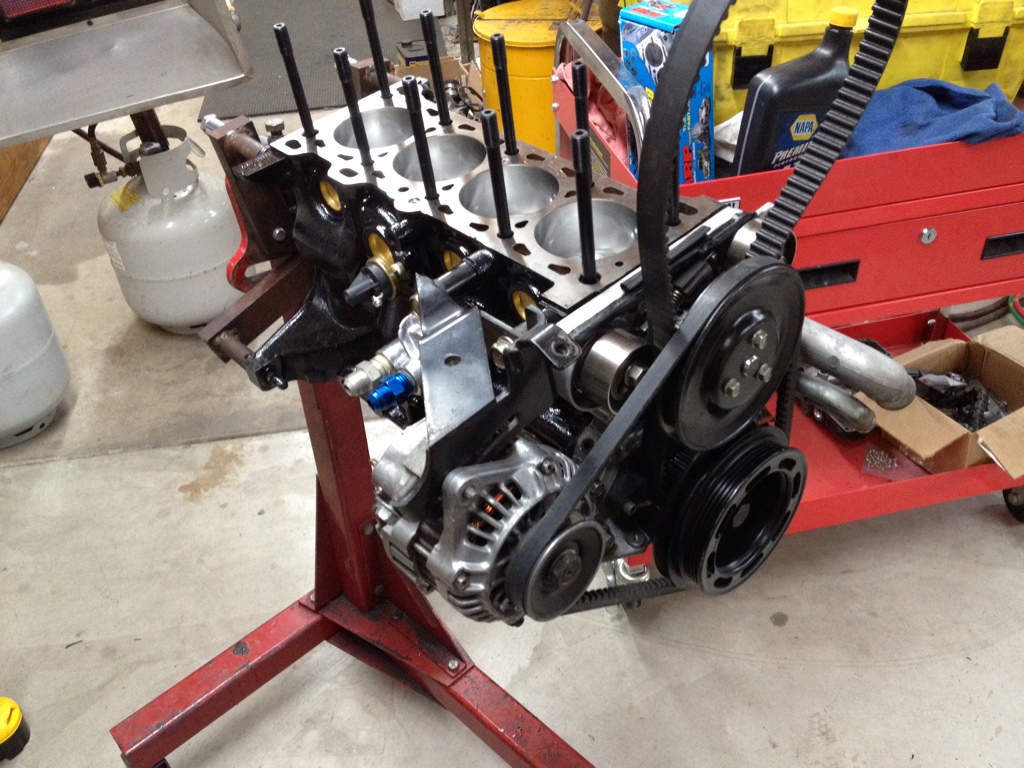

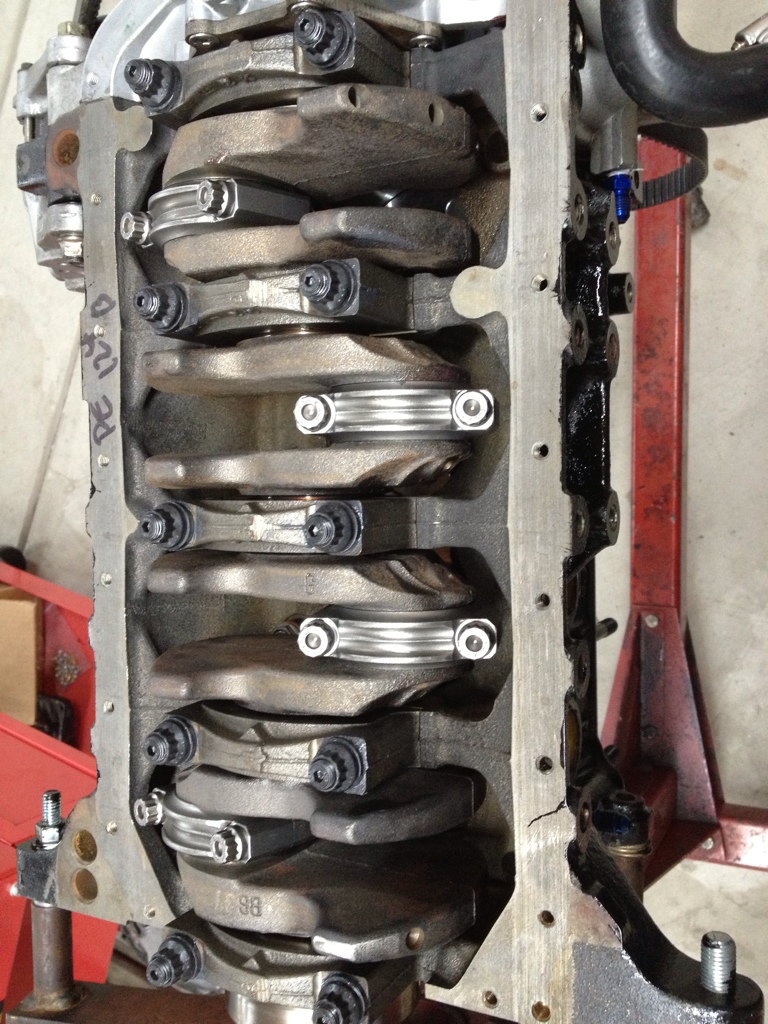

Anyways, here are final pictures of the bottom end.

I had the entire rotating assembly balanced, they drilled holes in my fancy clutch basket, oh well. So it goes as follows, stock LNC crank, ARP main studs, Eagle rods with ARP 2000 hardware, Wiseco .020 over 8.5:1, Clevite 77 series tri-metal bearings, ARP head studs, and I think that is it.

I disassembled the alternator and cleaned it because it had 240,xxx miles of road grim, I was hoping it would've came out a little nicer, oh well.




Attached Thumbnails
Ryan's turbo build-c8756278-14ec-4f8a-aaf6-2d9793fad721-8601-0000071049d4b257.jpg   Ryan's turbo build-775fa59f-8f95-4210-bbf8-5a07d22bd0d5-8601-0000071043d249ae.jpg   Ryan's turbo build-aa91f407-6f86-4240-9f1b-6bdf81f7a860-8601-000007103e1858b6.jpg   Ryan's turbo build-f867b2dc-b9e8-443d-927c-0bd7fcfb8a23-8601-0000071037e4f78c.jpg
RyanRaduechel is offline   Reply With Quote
Old 01-17-2013, 07:45 PM   #86
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,152
Total Cats: 1,990
Default

lookin real good man
18psi is offline   Reply With Quote
Old 01-17-2013, 11:59 PM   #87
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by RyanRaduechel View Post
I have had bronchitis for about a week and a half now and I am just now getting over that








BTMiata is offline   Reply With Quote
Old 01-18-2013, 02:51 AM   #88
Senior Member
Thread Starter
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,332
Total Cats: 55
Default

^well played sir. Thanks Vlad, it's getting there. Slower than I want, but it's all good. I'm kinda looking at buying another one to daily. But one thing at a time.
RyanRaduechel is offline   Reply With Quote
Old 01-18-2013, 02:54 AM   #89
A living god
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 5,933
Total Cats: 222
Default

I have a large crate that will be heading your way sometime soon.
viperormiata is offline   Reply With Quote
Old 01-18-2013, 09:38 PM   #90
Senior Member
Thread Starter
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,332
Total Cats: 55
Default

Alright, that means I have to finish the harness for your COPs. I still need to do the harness for my LS coils. I haven't felt like doing either of them lol sorry for the delay.
RyanRaduechel is offline   Reply With Quote
Old 01-18-2013, 09:51 PM   #91
A living god
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 5,933
Total Cats: 222
Default

No worries. I'm still waiting for Abe to get some free time.
viperormiata is offline   Reply With Quote
Old 01-23-2013, 11:00 PM   #92
Senior Member
Thread Starter
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,332
Total Cats: 55
Default

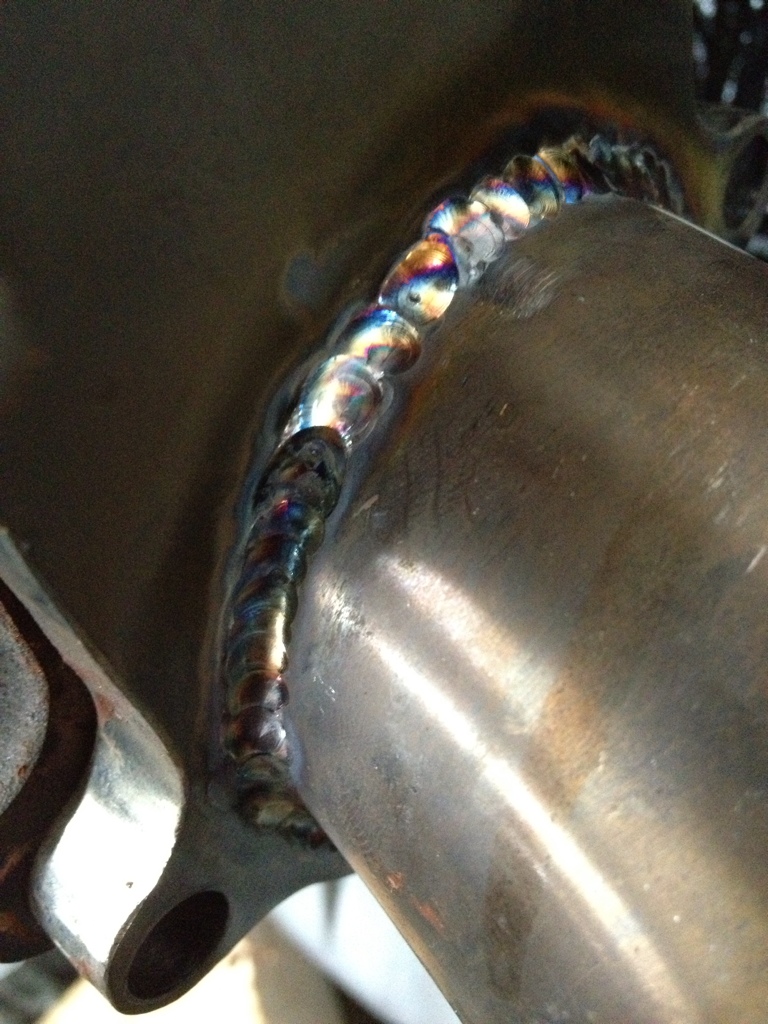

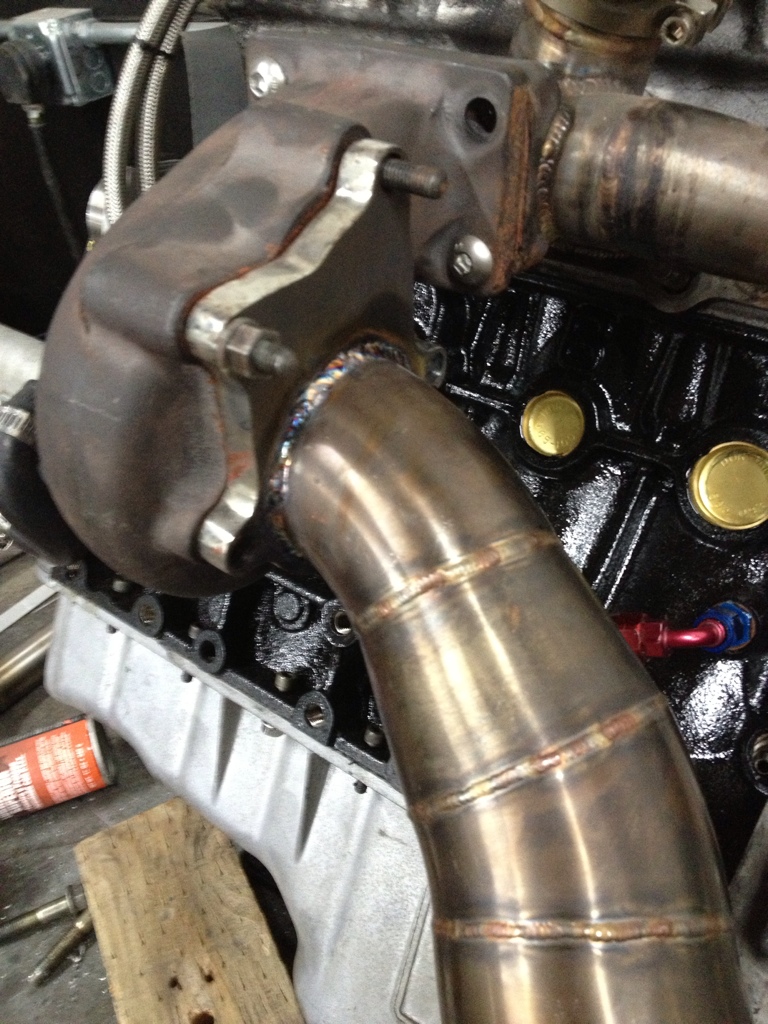

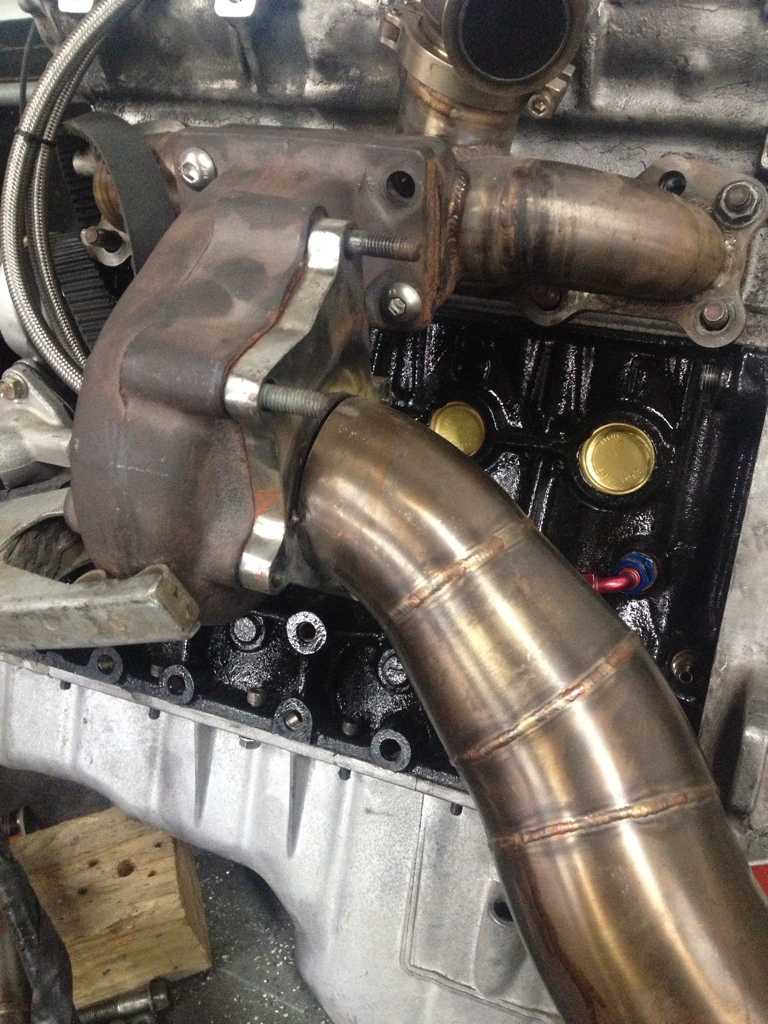

Teaser shot, I really disliked that spacer that I had to make to use that churbo. So I decided to cut the flange off and redo it. I took an inch off and re welded it with the right angle and rotation. It's all good, granted the welds aren't as pretty as they once were, I think I will survive.

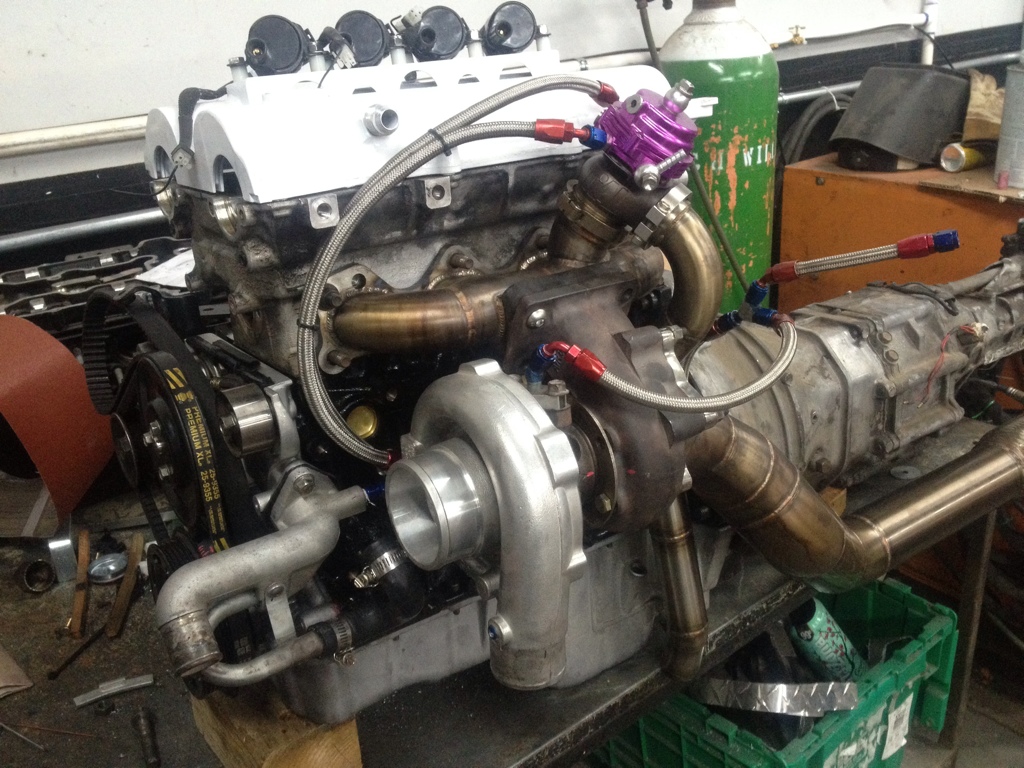

And a little teaser shot...
Attached Thumbnails
Ryan's turbo build-57072ed1-2818-41fa-ba02-6391fb550db9-13785-00000ad96b6a0f83.jpg   Ryan's turbo build-f2f353e7-a5bf-4908-90cb-9948ab9f892d-13785-00000ad978ac7d8d.jpg   Ryan's turbo build-1affe085-5d72-4437-9b88-1ecbec458ae8-13785-00000ad96226eab0.jpg   Ryan's turbo build-f588748f-f042-4299-bc8e-bd472a8eea42-13785-00000ad982698707.jpg
RyanRaduechel is offline   Reply With Quote
Old 01-24-2013, 12:22 AM   #93
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,152
Total Cats: 1,990
Default

aww snap its all coming together, you're so close now
18psi is offline   Reply With Quote
Old 01-24-2013, 01:56 AM   #94
Senior Member
iTrader: (1)

Join Date: Sep 2008
Location: Tucson, Arizona
Posts: 887
Total Cats: 54
Default

I thought the H series of clevites were discontinued. I tried to find some and thought i was buying them when I bought the clevite 77 series but they were only bi metal after researching. I called them to confirm this and they said they currently did not make a trimetal for the bp. this was back in November.

I wonder how they compare to the acl bearings now that mahle is making performance again... hopefully you have the CB-1453H and not the AL version.
krissetsfire is offline   Reply With Quote
Old 01-24-2013, 02:12 AM   #95
Senior Member
Thread Starter
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,332
Total Cats: 55
Default

The numbers on the boxes are:
Rods CB-1453H
Mains MS-1802H
Thrust TW-472S
RyanRaduechel is offline   Reply With Quote
Old 01-24-2013, 02:41 AM   #96
Senior Member
iTrader: (1)

Join Date: Sep 2008
Location: Tucson, Arizona
Posts: 887
Total Cats: 54
Default

nice. You can be the test dummy
krissetsfire is offline   Reply With Quote
Old 01-28-2013, 11:06 PM   #97
Senior Member
Thread Starter
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,332
Total Cats: 55
Default

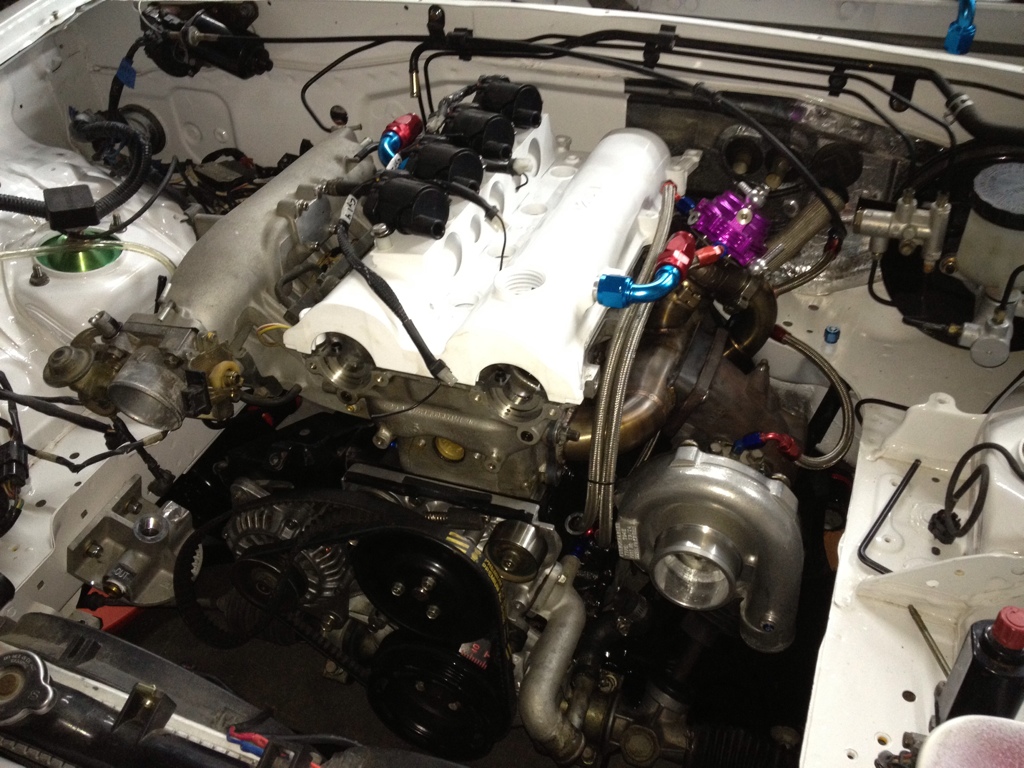

Here is another teaser.


The downpipe fits nice, no more spacer to make it fit. I finally ordered my V8Roadsters upper ball joints, fuel pump and install kit. My catch can was a little snug on the firewall and I didn't feel like messing with it. So I ordered one from Summit, along with more fittings, hose, MSD wires and boot ends so I can make the plug wires.

I have one big *** order from Emilio that I will be placing on Friday, then as far as I know I will be done ordering parts and I just need to assemble, tune, and paint. Trying to get it done before April.
Attached Thumbnails
Ryan's turbo build-9f2c2055-9461-43de-8240-425ebe8c749e-17956-00000d92bcc5b8e0.jpg
RyanRaduechel is offline   Reply With Quote
Old 01-30-2013, 06:20 PM   #98
Junior Member
iTrader: (1)

MicaCeli's Avatar

Join Date: Aug 2006
Location: Ellicott City, MD
Posts: 458
Total Cats: 6
Default

Jesus this is a nice build.
MicaCeli is offline   Reply With Quote
Old 01-31-2013, 02:40 AM   #99
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,662
Total Cats: 227
Default

+1, Last pic gave me a boner.
Fireindc is offline   Reply With Quote
Old 02-01-2013, 02:42 AM   #100
Senior Member
Thread Starter
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,332
Total Cats: 55
Default

Quote:
Originally Posted by MicaCeli View Post
Jesus this is a nice build.
Quote:
Originally Posted by Fireindc View Post
+1, Last pic gave me a boner.

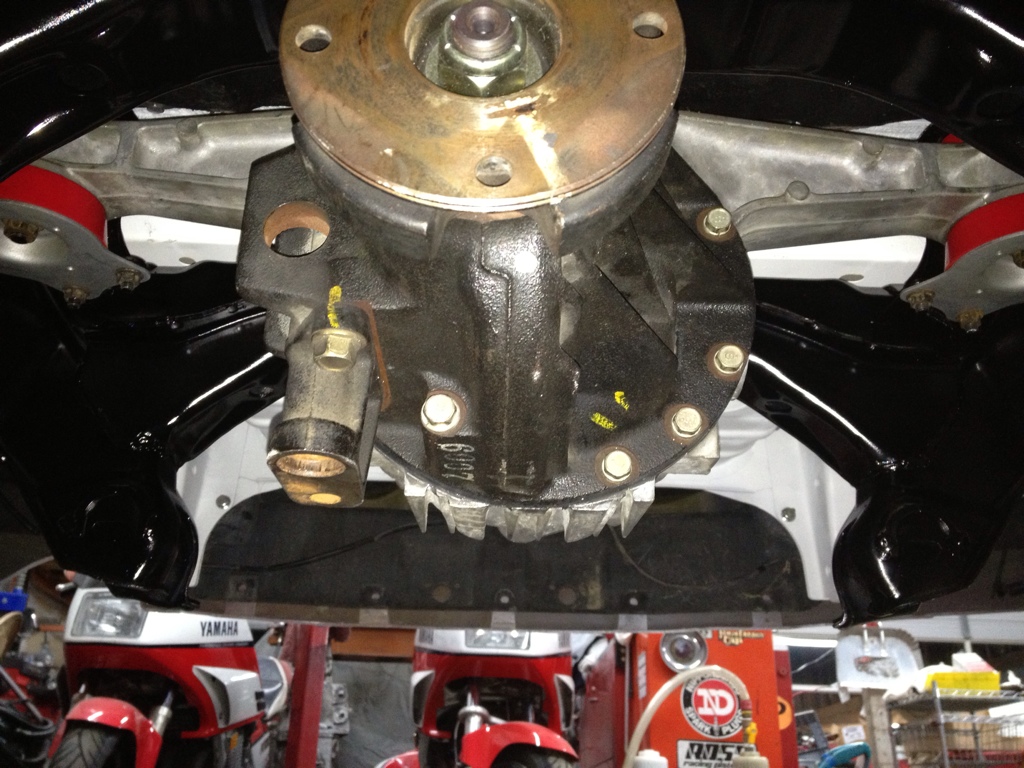

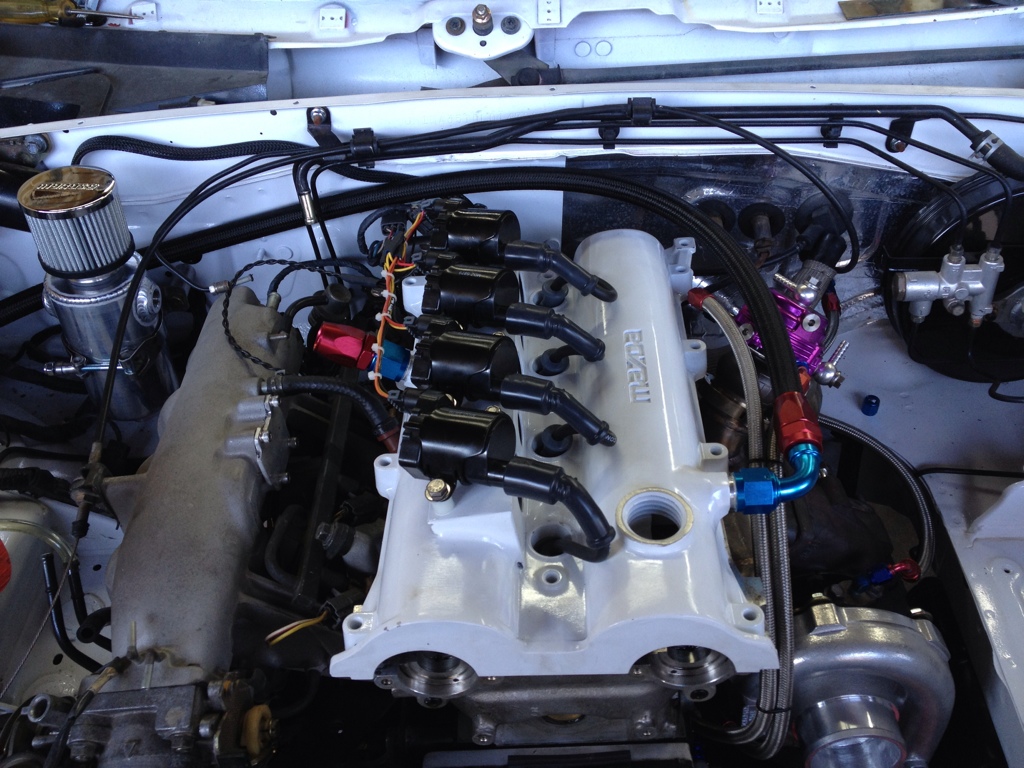

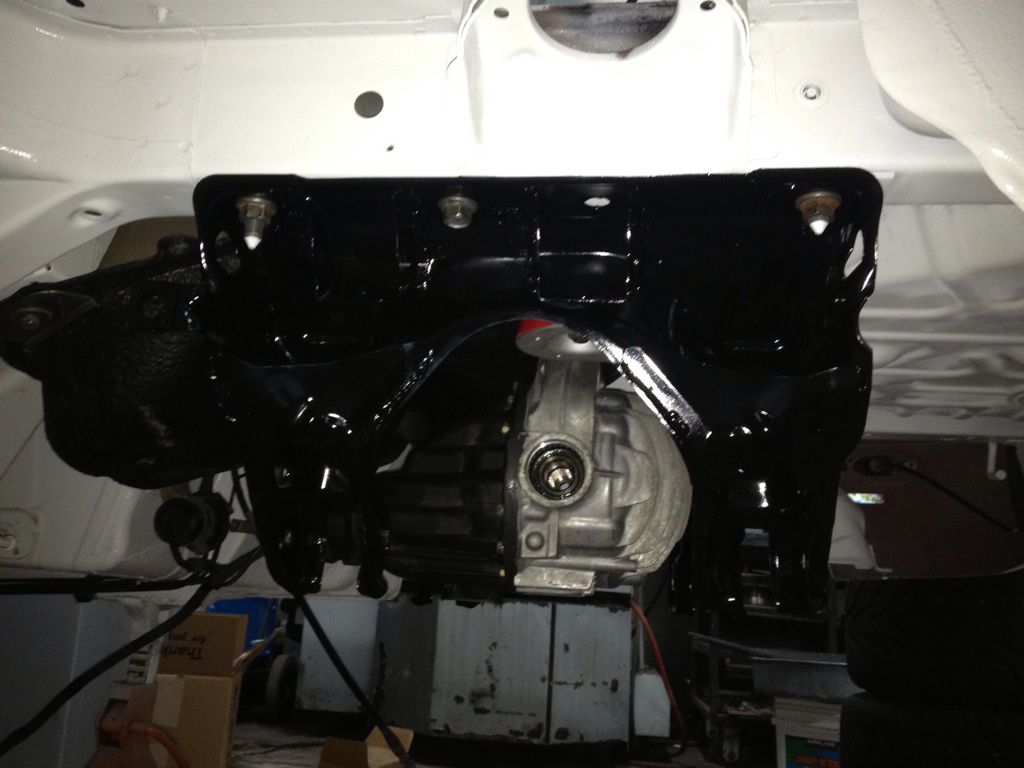

Thanks guys. I got the coil wires made and the coils wired up. The only thing left to do in that area is get my tach working in my dash I also got the catch can mounted. Still waiting on my fittings and hoses to arrive so I can make the lines for the catch can. I also got the rear subframe torn down, glass beaded, painted and stuffed back in with the new 1.8 3.90 Torsen and one piece axles.



I know, it's missing the seals, the guy at NAPA delivered the wrong ones.





Kinda shitty pictures but you get the idea.
Attached Thumbnails
Ryan's turbo build-c2c0fee4-a216-4c99-8ae1-6041ad602414-20751-00000fe2d369fd94_zps818f1ce9.jpg   Ryan's turbo build-ecc5503a-a6bb-42d8-81d9-255ec804b3e9-20751-00000fe2e8a5aed1_zps4ddfa39d.jpg   Ryan's turbo build-aba04bbc-9778-4111-9f56-a20352bcdb22-20751-00000fe2c545865b_zps61ba9371.jpg
RyanRaduechel is offline   Reply With Quote
