Old 02-16-2015, 12:35 PM   #241
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,557
Total Cats: 455
Default

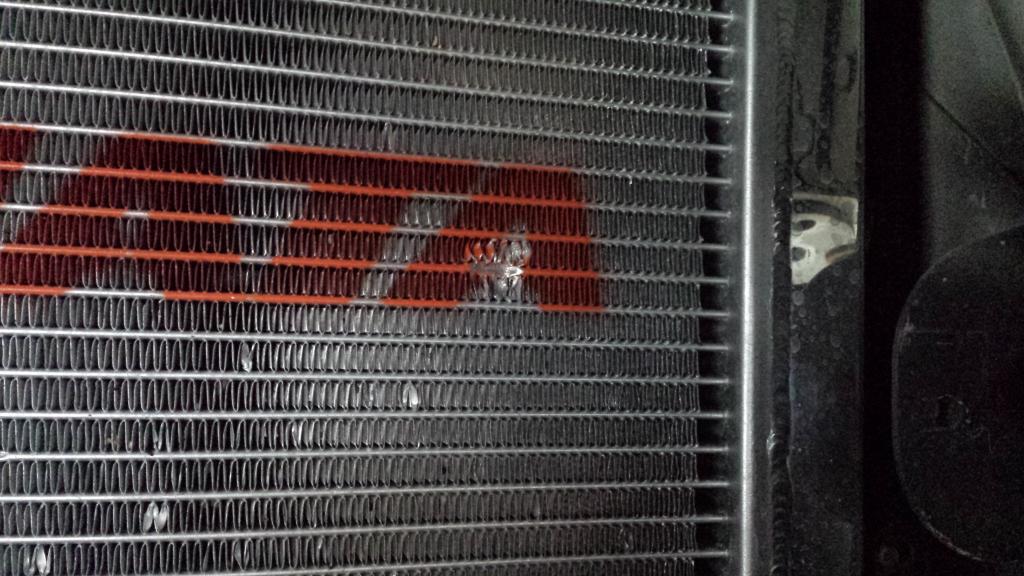

this boys and girls is why you keep a clean shop and dont leave sheet metal next to walk ways where it can attack you.
it required stitches... i didnt get any

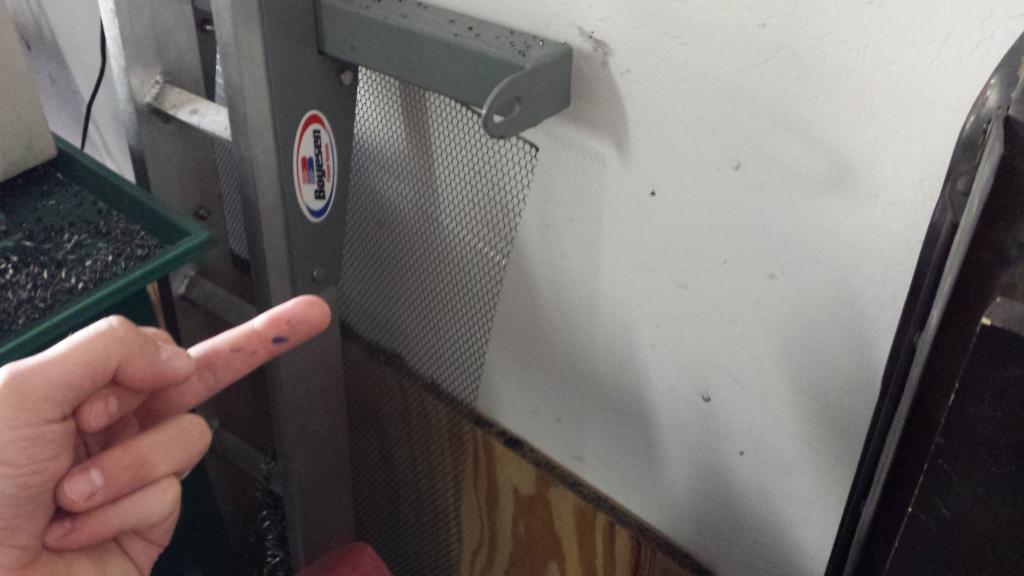

so i cleaned


i then sought revenge

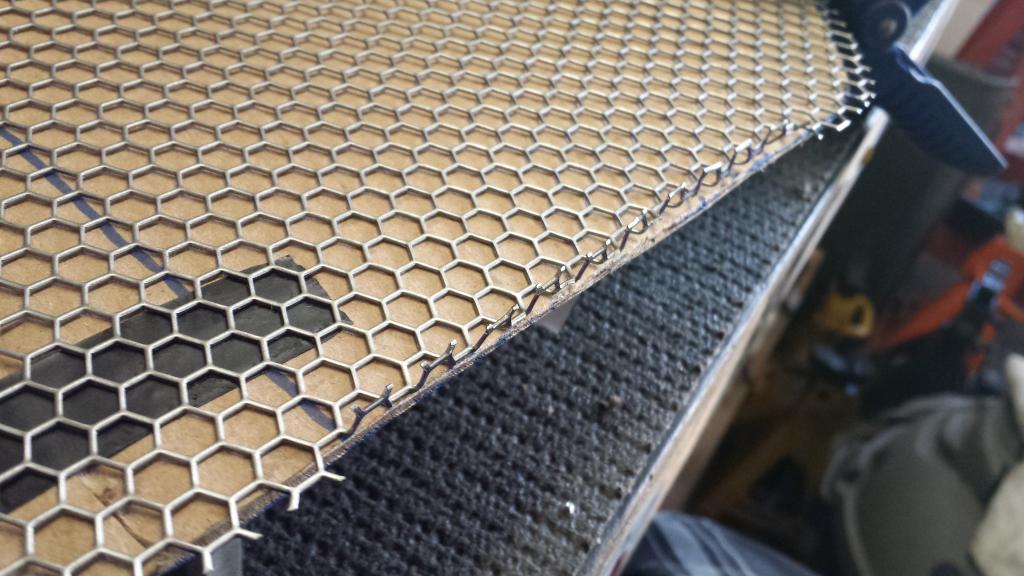

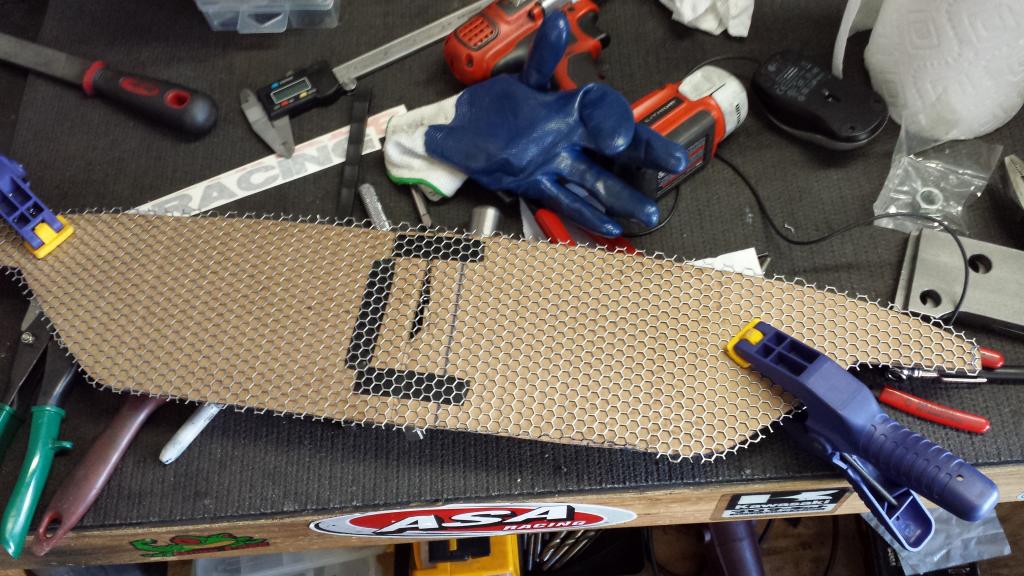

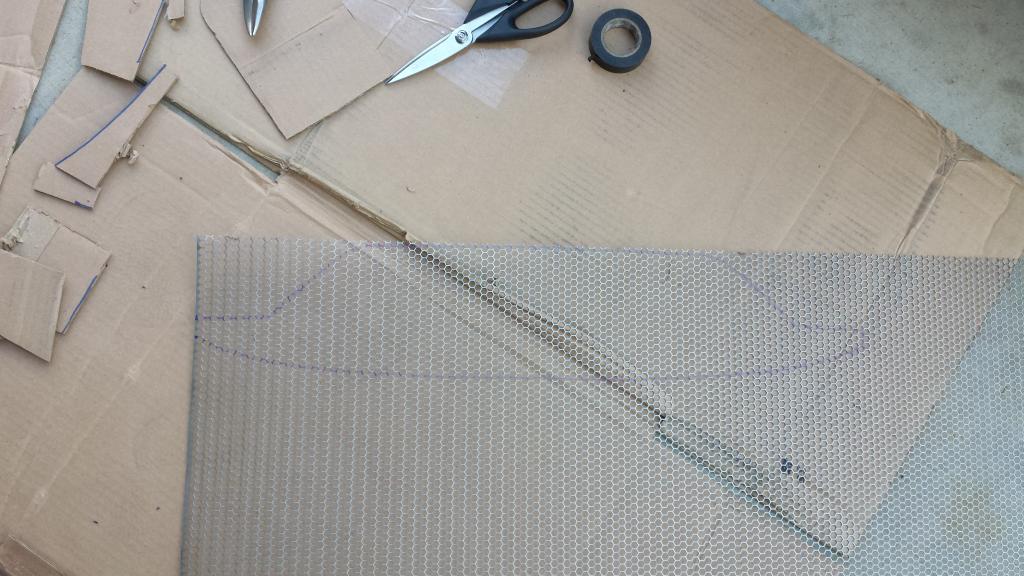

i cut it slightly over sized and bent the edges up for a little structure and so the sharp edges dont bite the car.

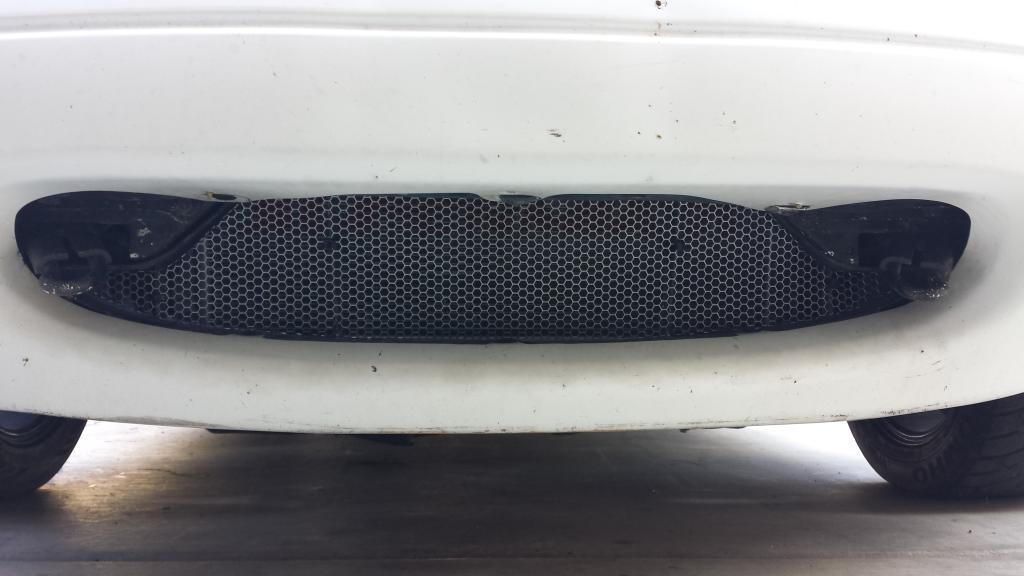

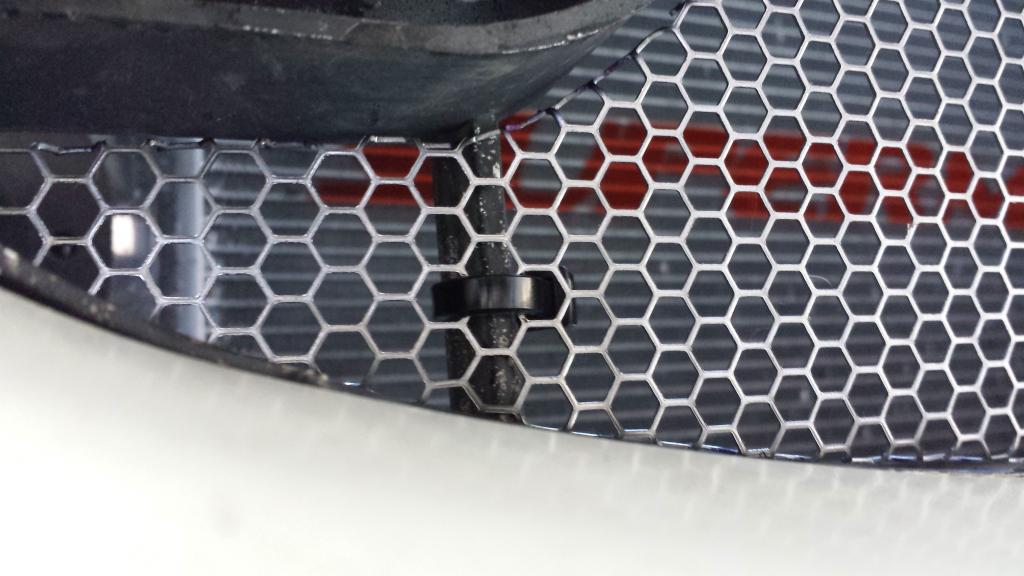

just ziptied in there

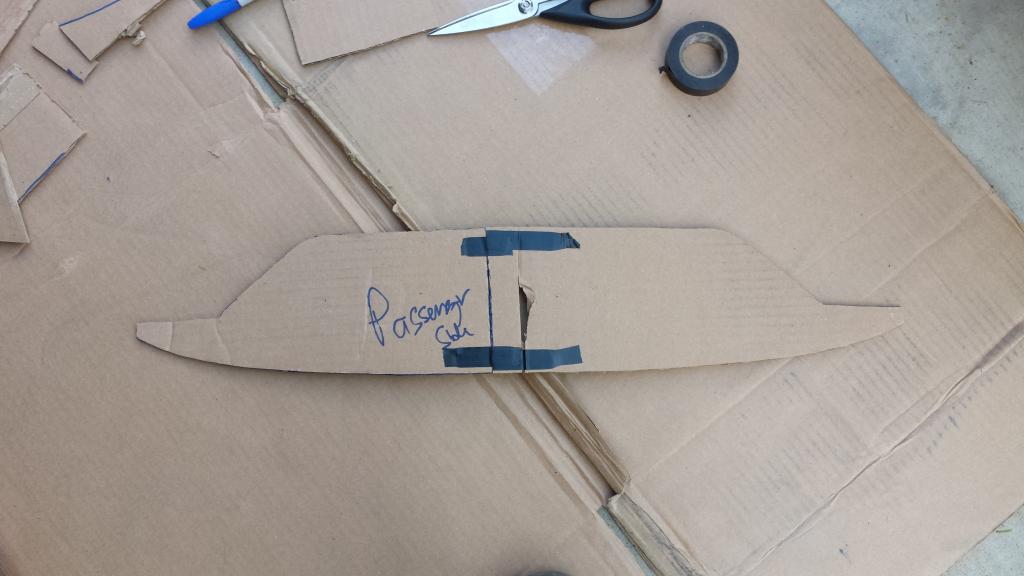

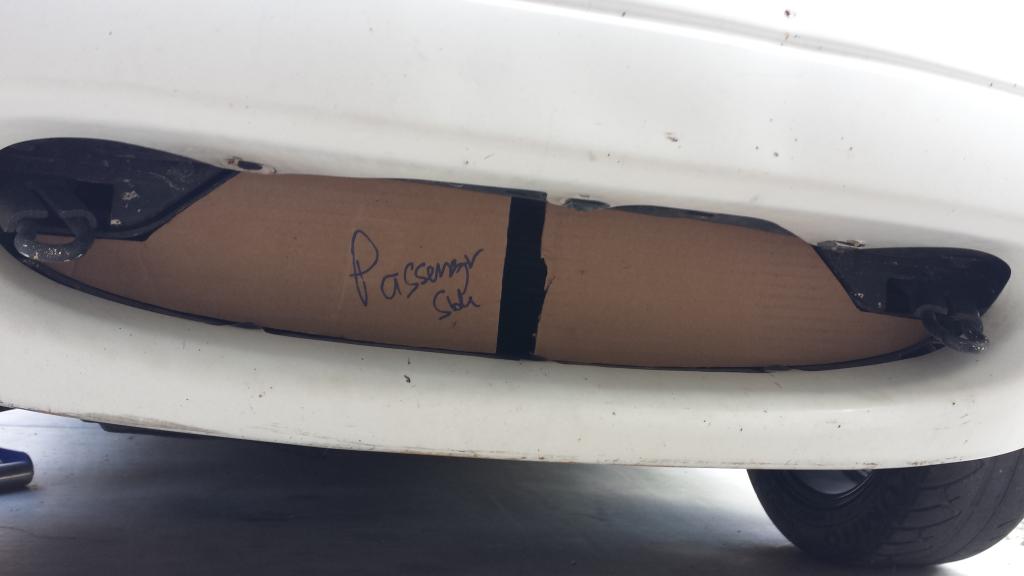

i didnt have time to get this done before my last track day and i just took my chances. 35 miles to the track and 100+ miles on track and no major dings. i drove home and dont bother/forget to check. while i was making my pattern i noticed this.


its not leaking, but the tube is pushed back farther than the pic shows. probably 1/4"+. i was thinking of hitting it with some solder just as a preventative measure. thoughts?
Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-20150211_194523_zpsxwtgbszr.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20150215_103414_zpsfyji5pph.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20150215_102854_zpskuqdp7kz.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20150215_103359_zps6izgmbmn.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20150215_103803_zpsz46dx8oc.jpg

sean's cheap thrills, 90 1.6 with subaru td04-20150215_110626_zpsilt3pt3e.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20150215_110614_zpsdjyvbvhu.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20150215_114727_zpsmsh2pw7g.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20150215_114745_zpscyj6o270.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20150215_102937_zps2x70a1u7.jpg

hi_im_sean is online now   Reply With Quote
Old 02-16-2015, 12:37 PM   #242
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,908
Total Cats: 1,093
Default

Just go turbo intercooler will protect that
aidandj is offline   Reply With Quote
Old 02-16-2015, 12:49 PM   #243
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,557
Total Cats: 455
Default

Quote:
Originally Posted by aidandj View Post
Just go turbo intercooler will protect that
lots of boxes arrived this week, sans 1.5" band clamps i have everything sitting in my kitchen i need. its killing me, but i really want finish out the season as im not confident enough that i can do the whole swap and tune in between events.

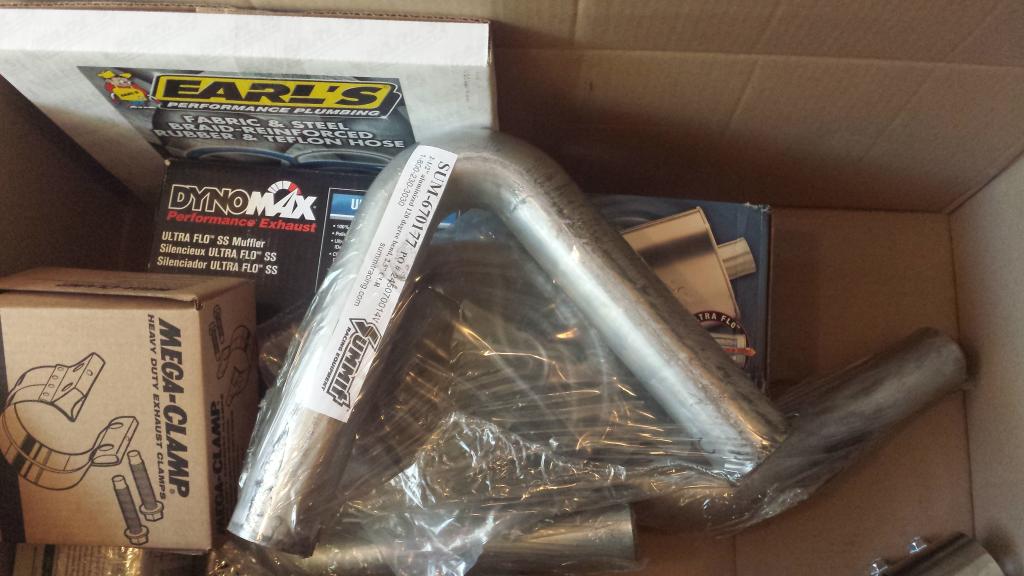

that should make a good down pipe

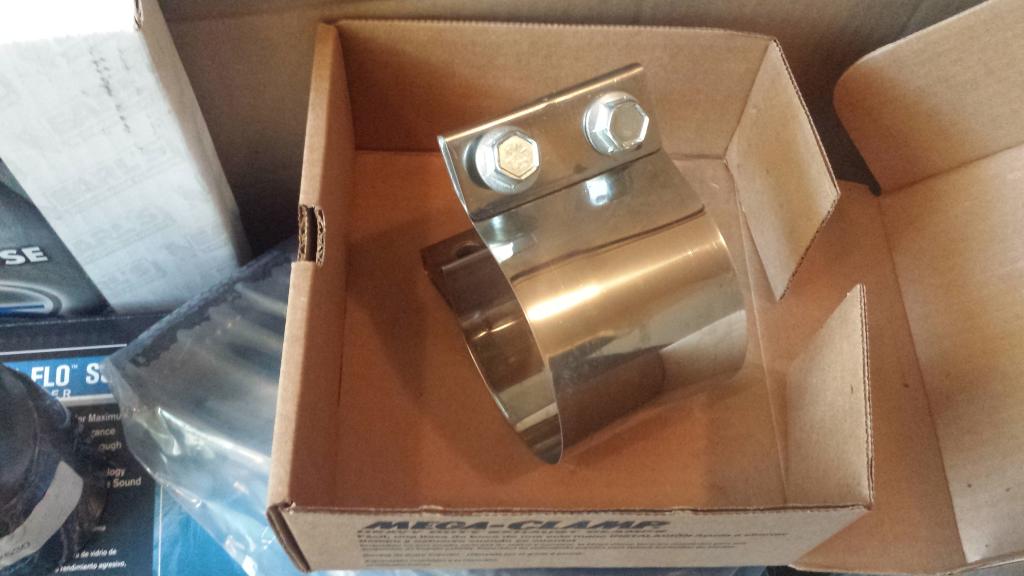

this would have worked great as a transmission mounted downpipe bracket... if i had purchased the proper size


izaak cant stand the excitement either
Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-20150211_164857_zpsun4rsn4g.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20150211_164632_zpsmvdq70zm.jpg
hi_im_sean is online now   Reply With Quote
Old 02-16-2015, 12:50 PM   #244
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,908
Total Cats: 1,093
Default

In for pictures of downpipe bracket, I stared at mine this weekend for 15 minutes and couldn't come up with anything I liked.
aidandj is offline   Reply With Quote
Old 02-16-2015, 12:56 PM   #245
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,557
Total Cats: 455
Default

Quote:
Originally Posted by aidandj View Post
In for pictures of downpipe bracket, I stared at mine this weekend for 15 minutes and couldn't come up with anything I liked.
im combining bobs and hustlers ideas for track robustnesses.

might be overbuilt for what im doing (might not) but i dont want to have to **** with things after its built.
ideasa came from a few threads
FM Exhaust Brace

Downpipe Bracing - What Works and What Doesn't?
hi_im_sean is online now   Reply With Quote
Old 02-16-2015, 12:59 PM   #246
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,557
Total Cats: 455
Default

to summarize:
attach bracket to tranny, preferably close-ish to the bellhousing, PPF works to i guess. clamp exhaust to bracket with a band clamp to spread to load. flex joint downstream of bracket, no more than a foot IMO. then limit side to side movement of the post flex exhaust with a strap(mounted to my rear subframe brace im thinking).
hi_im_sean is online now   Reply With Quote
Old 02-16-2015, 01:02 PM   #247
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,908
Total Cats: 1,093
Default

Quote:
Originally Posted by hi_im_sean View Post
to summarize:
attach bracket to tranny, preferably close-ish to the bellhousing, PPF works to i guess. clamp exhaust to bracket with a band clamp to spread to load. flex joint downstream of bracket, no more than a foot IMO. then limit side to side movement of the post flex exhaust with a strap.
Link to band clamp? I already bought the U-bolt clamp but the band clamp might be easier to work with.
aidandj is offline   Reply With Quote
Old 02-16-2015, 01:36 PM   #248
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,845
Total Cats: 559
Default

Summit, Jegs, Zone, O'Reilly's . . . they're literally everywhere.

Props on the grill. Looks great and sweet revenge! I'm going to build one too. I've got carnage on my radiator similar to yours. If I don't do something my radiator will someday get punctured at the track and everyone will hate me for black flagging a session. I'd rather be hated for passing them in a Miata. LOL.
hornetball is offline   Reply With Quote
Old 02-16-2015, 01:40 PM   #249
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,908
Total Cats: 1,093
Default

I've had a tough morning, I just wanted spoon feeding
aidandj is offline   Reply With Quote
Old 02-16-2015, 02:11 PM   #250
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,557
Total Cats: 455
Default

the reviews say the summit brand stretches and loosens, i got a walker
http://www.summitracing.com/search/p...rder=Ascending
hi_im_sean is online now   Reply With Quote
Old 02-16-2015, 03:16 PM   #251
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 115
Default

I used the same bend for my downpipe, worked great. I've been needing to make a downpipe strap though, I'll have to try something like that.
deezums is offline   Reply With Quote
Old 02-16-2015, 03:28 PM   #252
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,908
Total Cats: 1,093
Default

Pshhh, high mount peasants over here I only have 2 90s in mine.
aidandj is offline   Reply With Quote
Old 02-16-2015, 05:11 PM   #253
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,557
Total Cats: 455
Default

with my turbo flange adapter, i might need more than 90 to clear the engine bay shelf, i ordered the 120 just in case. then 2, 45s like the MKturbo kit shuiend does, but mine will be divorced.
hi_im_sean is online now   Reply With Quote
Old 03-08-2015, 04:53 PM   #254
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,557
Total Cats: 455
Default

i haz 2 questions


what is the recommended tire pressure starting point for 205s on 9s? specifically rivals? the only post i found said 26psi cold. i know i should probably get a pyrometer, but founds allow for either a track day, or a tool, not both. maybe some day.

oil consumption recently quadrupled, at least. kind of just out of no where too. we are using a quart+ every track day which i calculated to be 160 miles on average. it used to be a quart every thousand miles maybe, which was a mix of street and track. given these circumstances, i assume the most likely culprit to be valve seals? im going to try and do a comp test today.
hi_im_sean is online now   Reply With Quote
Old 03-08-2015, 04:56 PM   #255
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,908
Total Cats: 1,093
Default

Search for leaks too. My oil consumption went down to almost none with a new head gasket. I'm losing a teeny bit out of the valve cover.
aidandj is offline   Reply With Quote
Old 03-08-2015, 04:58 PM   #256
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,557
Total Cats: 455
Default

Quote:
Originally Posted by aidandj View Post
Search for leaks too. My oil consumption went down to almost none with a new head gasket. I'm losing a teeny bit out of the valve cover.
0 drips or drops from this car on a pristine driveway. it sits still for weeks-months at a time between track days, with no loss of oil as evidenced by the dipstick. its definitely a dynamic condition.

also, black soot on the bumper, that will return astonishingly quick after i scrub it off with a solvent.

edit: the CAS started weeping a while ago too.
hi_im_sean is online now   Reply With Quote
Old 03-08-2015, 05:33 PM   #257
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,908
Total Cats: 1,093
Default

1.8 time?
aidandj is offline   Reply With Quote
Old 03-08-2015, 06:13 PM   #258
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,557
Total Cats: 455
Default

Quote:
Originally Posted by aidandj View Post
1.8 time?
if it comes to that, yes. if its just seals, probably not.
hi_im_sean is online now   Reply With Quote
Old 03-11-2015, 07:43 AM   #259
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,030
Total Cats: 185
Default

Tight radius near "kink" on my turbo water line caused the crimp at the banjo to leak. Now I'm looking for the 12x1.25 to 11mm barb, same as what you used. Did anyone ever come up with a commercial version, cause I cannot find anything.
DNMakinson is offline   Reply With Quote
Old 03-11-2015, 08:49 AM   #260
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,557
Total Cats: 455
Default

i looked hard for a good while, i dont think they exist. the only other option i found was banjo to barb. or AN
hi_im_sean is online now   Reply With Quote
