Old 07-24-2015, 08:10 PM   #421
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 115
Default

Not the fitting, but the tap. Since you need to tap about 3/4 or more the way down on those NPT fittings to get the proper engagement cutting off half the fitting's threads will leave a tapered part too big to fit the shallow tapped hole.

Since the windage tray is angled and the fitting is way clear of the oil I don't see how it could have a problem.

IMO there's nowhere near enough meat to ever get NPT to seal on the pan alone, but JB weld does nice. If the fitting is loose fitting in the tapped hole I'd hook up the oil line so it's pulling the installed tension against the JB as it's drying.
deezums is offline   Reply With Quote
Old 07-24-2015, 08:15 PM   #422
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,145
Total Cats: 140
Default

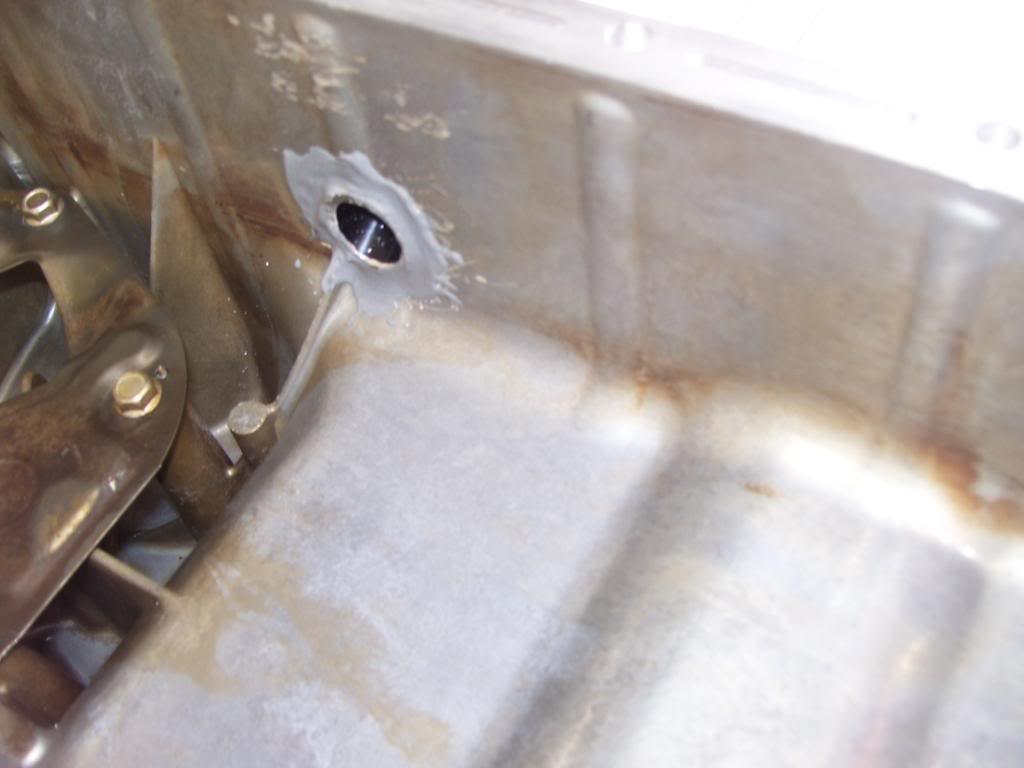

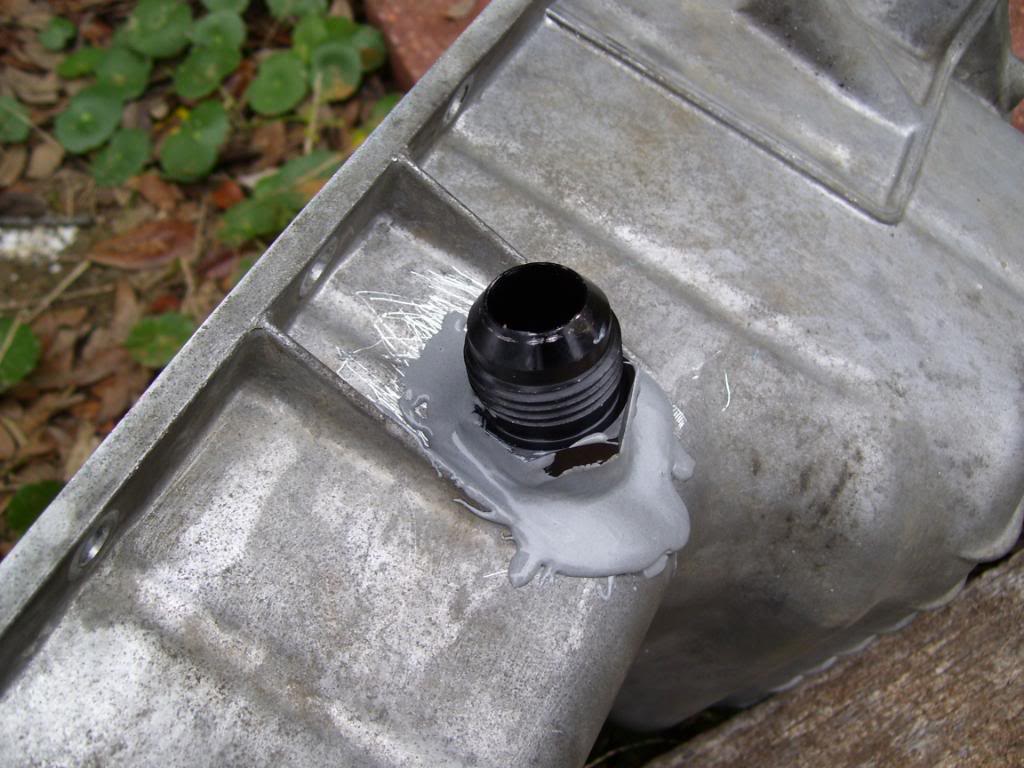

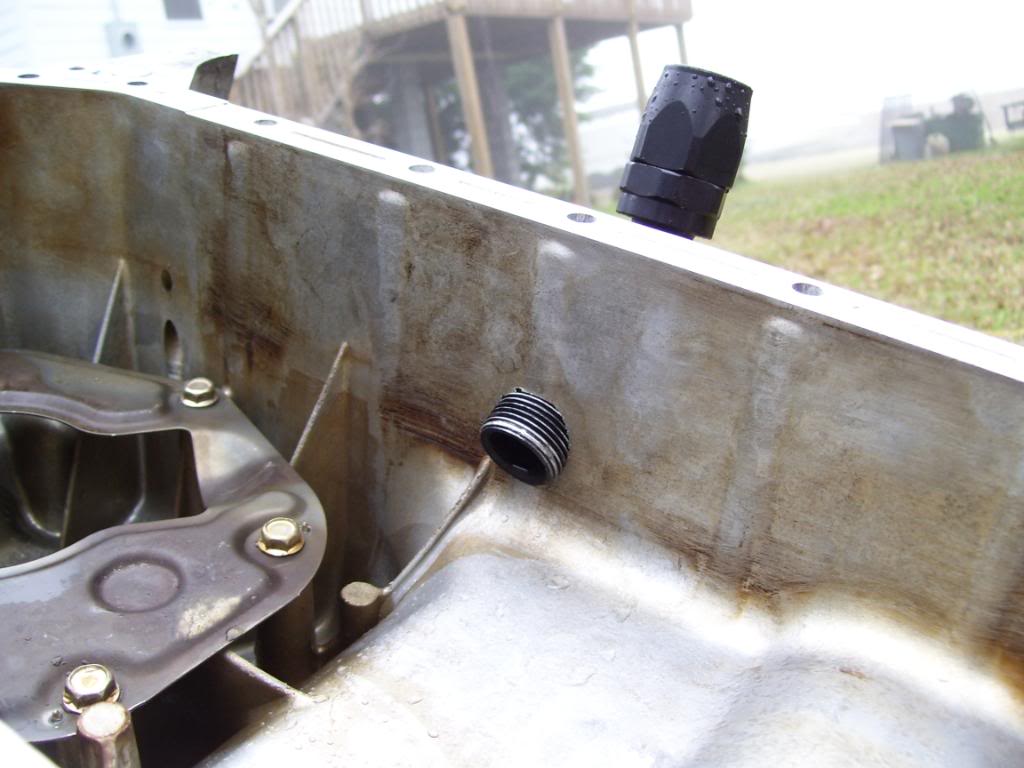

For clarity, this is my oil drain:





Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-100_1811.jpg   sean's cheap thrills, 90 1.6 with subaru td04-100_1818.jpg   sean's cheap thrills, 90 1.6 with subaru td04-100_1815.jpg
patsmx5 is online now   Reply With Quote
Old 07-24-2015, 09:31 PM   #423
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,552
Total Cats: 446
Default

Quote:
Originally Posted by patsmx5 View Post
Ah, I missed that if that's what he said. I thought he said it's threading in too far without getting tight. (like he over-tapped the hole, the opposite of not being able to get full tap engagement).
No you got it right, this was* my concern. Draining isnt an issue, its just I thought* the fitting was hitting the tray before the pipe tapers seated. In your defense, shortening the threaded length had occurred to me as a possible solution.

*=see below

Quote:
Originally Posted by deezums View Post
Not the fitting, but the tap. Since you need to tap about 3/4 or more the way down on those NPT fittings to get the proper engagement cutting off half the fitting's threads will leave a tapered part too big to fit the shallow tapped hole.

Since the windage tray is angled and the fitting is way clear of the oil I don't see how it could have a problem.
Now that ive looked at things closer, this is the actual issue. The tap hits the windage tray before I can get the threads cut deep enough. 1/2" NPT calls for 7.47 threads for a "full thread" at 0.534" engagement. I probably have 3 -4 threads cut at half the engagement. Although the pan material isnt thick enough to get a true full engagement, I still want the full 7 turns to get to the proper seat diameter so the thread roots are cut completely.

Quote:
Originally Posted by deezums View Post
IMO there's nowhere near enough meat to ever get NPT to seal on the pan alone, but JB weld does nice. If the fitting is loose fitting in the tapped hole I'd hook up the oil line so it's pulling the installed tension against the JB as it's drying.
Exactly. A sealant was going to be used no matter what, I just didnt want to rely on it for the mechanical connection, although thats not the concern any more. Now that I've measured and looked better, the fitting isn't hitting the tray at all, lol all this talk for nothing.

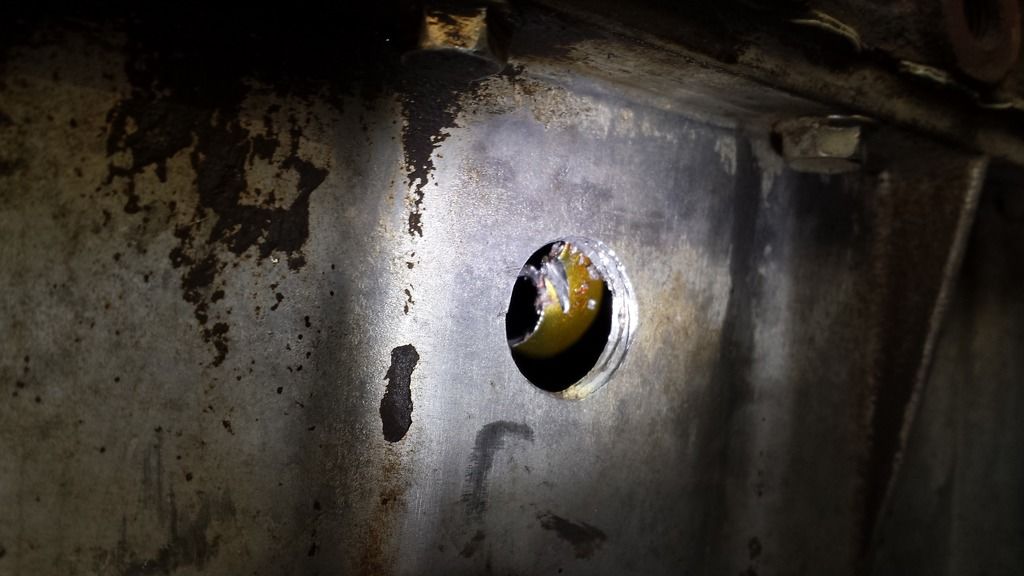

You can see the hole I drilled through the tray, and where the tap was starting to cut into it when it bottomed on the tray. The tap cut demonstartes the curvature of the tray.

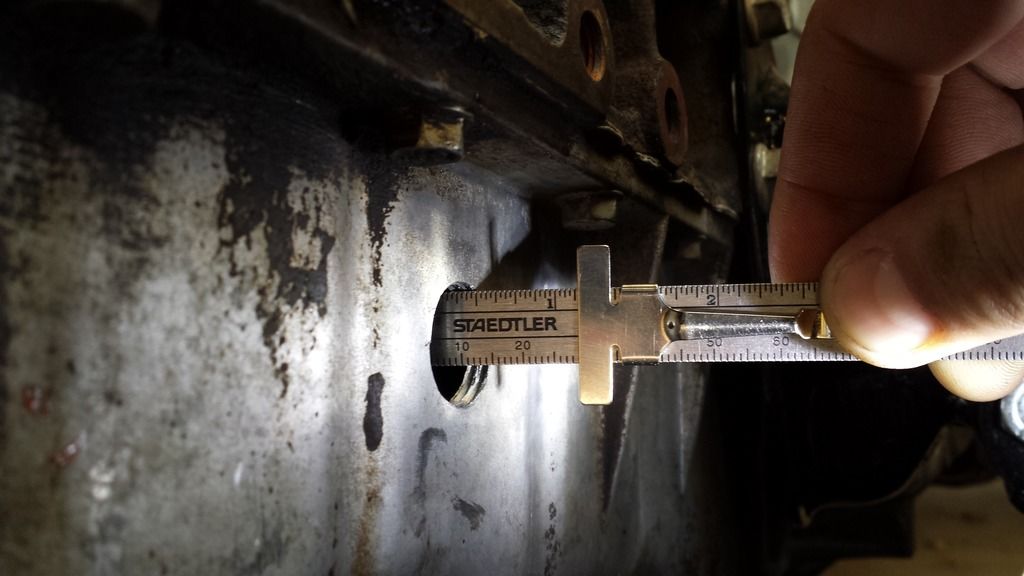

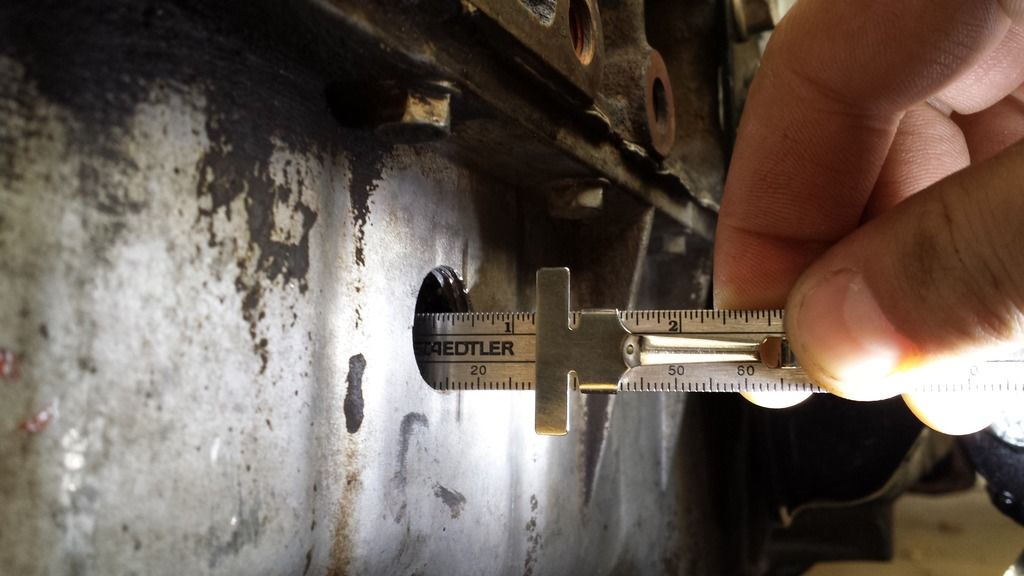

Distance from tray to outer edge. Top and bottom. The top is a little over 10mm from the tray to the oiuter edge of the pan

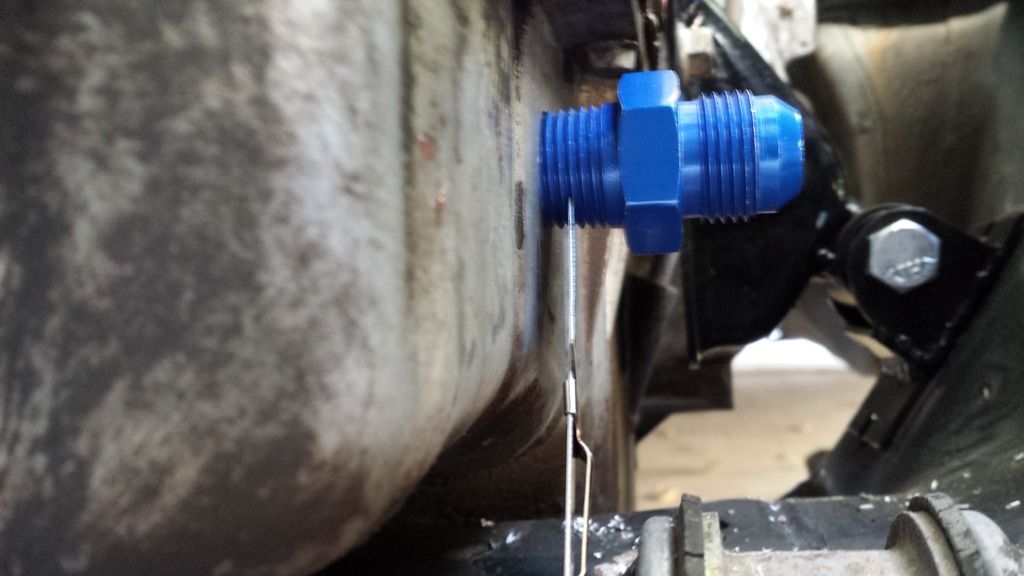

The fitting is in hand tight, so it will go another turn or 2. Ruler shows the 10mm in mark, so it wont hit the tray until the ruler is flush with the pan edge, about 3 more threads or turns.




So with all that, its fine just the way it is. I cant tap it anymore if I wanted to, and if I some how could, any more tap depth than I have now will cause the fitting to bottom on the tray. Ill just spooge the hell out of it, fill in those thread roots, and never think about it again.
Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-80-20150724_174640_zpseyul0yem_68f107a48a7c1bfacd541e571de50bd565057a34.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20150724_174731_zpsqltmpvjo_4a3a66a51b0c9843f092783c7f4e861842f6447f.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20150724_174739_zpsoi87swsw_484227d11b588b8e87d7b2e429075c9ffda8d7c1.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20150724_174855_zps268f0kw2_83e821a9d3ea862f867bcf879c24461b2d4d0d6e.jpg

Last edited by hi_im_sean; 07-24-2015 at 09:51 PM.
hi_im_sean is online now   Reply With Quote
Old 07-24-2015, 09:48 PM   #424
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,145
Total Cats: 140
Default

If it turns 2 turns to get tight, and you do that, you're saying the fitting will be like 1 or 2 mm from the windage tray, right?

If it's really that close, I don't think that's ideal, at all. I'd cut some excess threads off the fitting so that once it's threaded in, there is not an excessive amount of it hanging inside the pan. Based on your pics there's only 10mm between the pan and the metal, and that's before any of the fitting is protruding into the pan.

If you shorten the fitting threads, you can fix this, and make the threads engage tighter. And knock a gram or two off the fitting (gram strategy! haha).
patsmx5 is online now   Reply With Quote
Old 07-24-2015, 09:53 PM   #425
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,552
Total Cats: 446
Default

Quote:
Originally Posted by patsmx5 View Post
If it turns 2 turns to get tight, and you do that, you're saying the fitting will be like 1 or 2 mm from the windage tray, right?

Only at the top, about 3-4mm at the middle, 5-6mm at the bottom at least. Ill probably trim a thread or 2 off the end, it wont hurt.
hi_im_sean is online now   Reply With Quote
Old 07-24-2015, 10:12 PM   #426
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,858
Total Cats: 1,089
Default

The way I see it is you have 2 options.
<br />
<br />1. Pull the pan and weld a bung on there. The right way to do it.
<br />
<br />2. Splooge on as much JB weld as you can and call it a day.
aidandj is offline   Reply With Quote
Old 07-24-2015, 10:13 PM   #427
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,552
Total Cats: 446
Default

If I were prepared to yank the pan, thats how it would have happened to begin with.

Ill take a large #2 with a side of onion rings.
hi_im_sean is online now   Reply With Quote
Old 07-24-2015, 10:15 PM   #428
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,858
Total Cats: 1,089
Default

Good plan.
aidandj is offline   Reply With Quote
Old 07-25-2015, 03:04 PM   #429
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,552
Total Cats: 446
Default

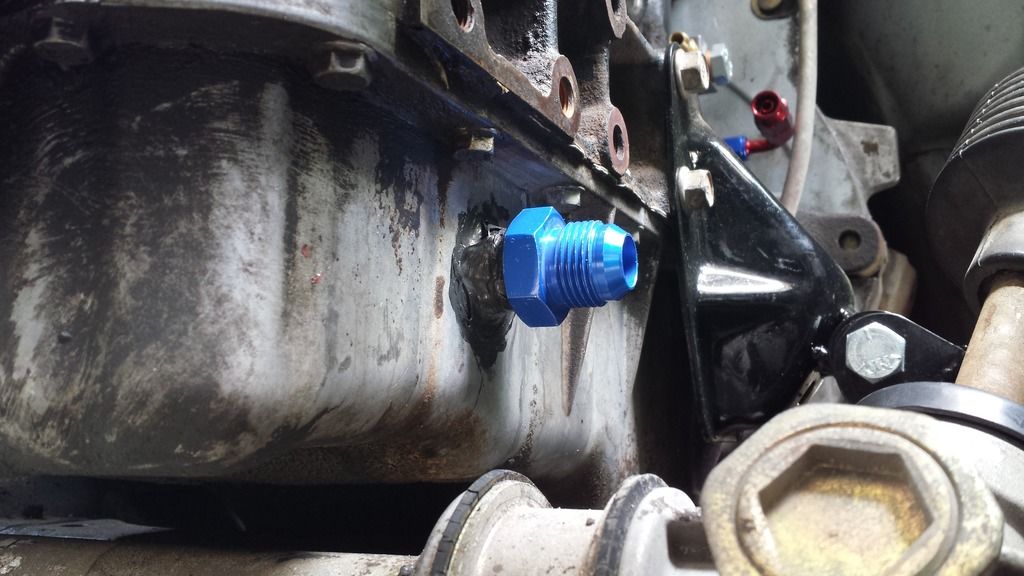

Does this make you happy pat?

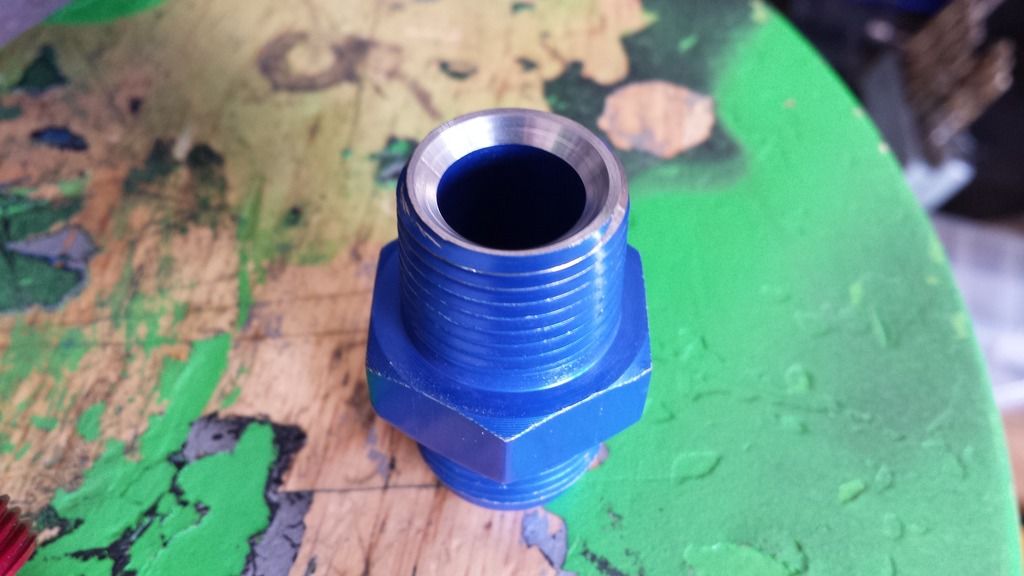

about 2.5mm removed from the end, and i put a huge chamfer on the ID


It went in about 1.8 turns past hand tight. By my measurements, with the amount I removed, that puts the internal "stick out" at about 1mm.

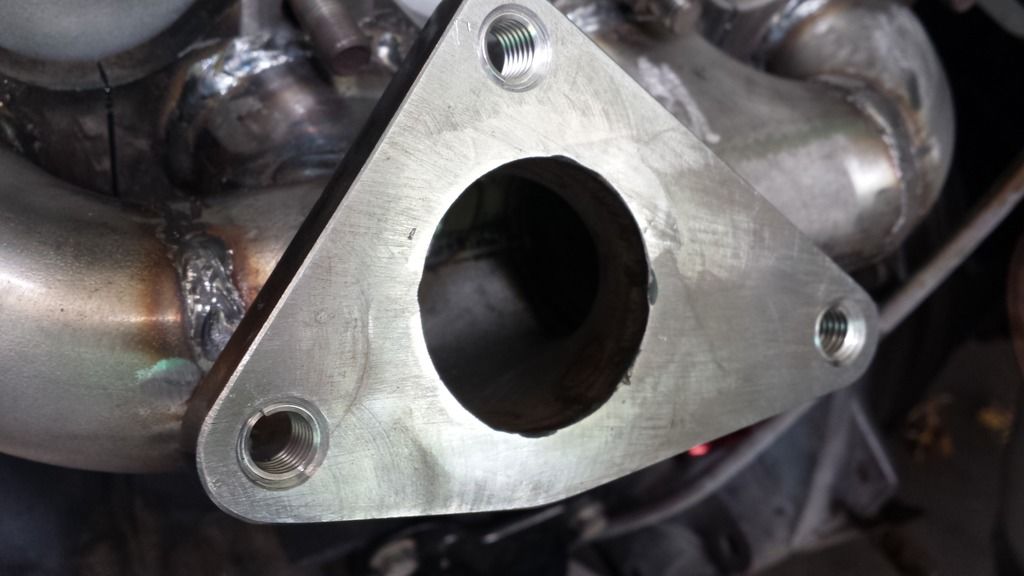

I relief cut the mani, and installed the helicoils.





Building oil lines next.
Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-80-20150725_112911_zpszgw3svfz_27e7597136ccb23630f78fad8be681e4ae72aaea.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20150725_114633_zpspnmae6qd_4e67d95bba020375c8859dc5eceb0cb542996fa7.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20150725_114930_zpsg8awte28_226d4403a9fa6bfb407a0dc7eca47933ecb3918e.jpg
hi_im_sean is online now   Reply With Quote
Old 07-25-2015, 03:24 PM   #430
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,145
Total Cats: 140
Default

I approve! And your turbo will thank you for it. Nice on the helicoils, I like those.
patsmx5 is online now   Reply With Quote
Old 07-25-2015, 11:31 PM   #431
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,552
Total Cats: 446
Default

Oil supply and drain done and installed, water plumbed to turbo, started making the downpipe.

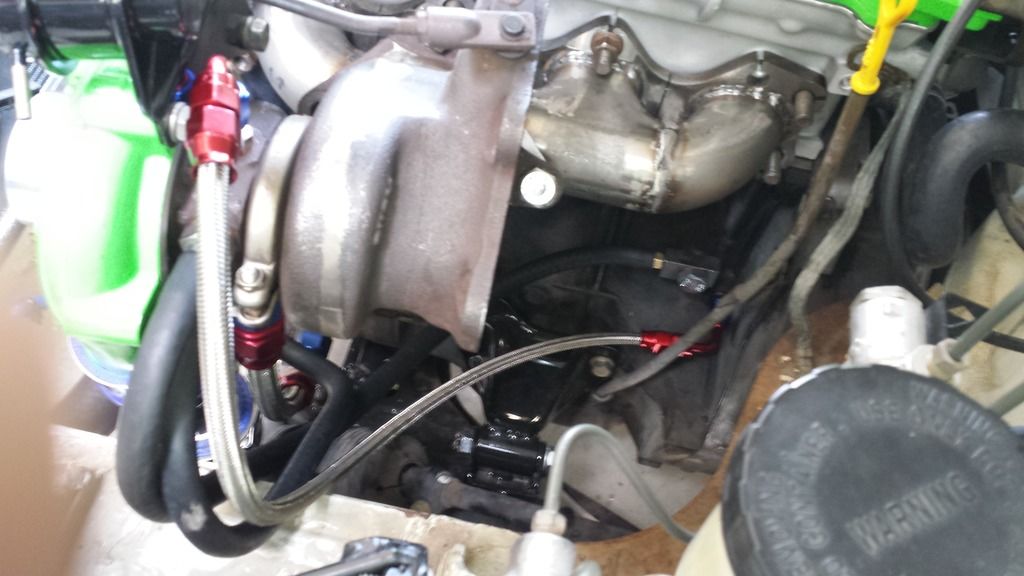

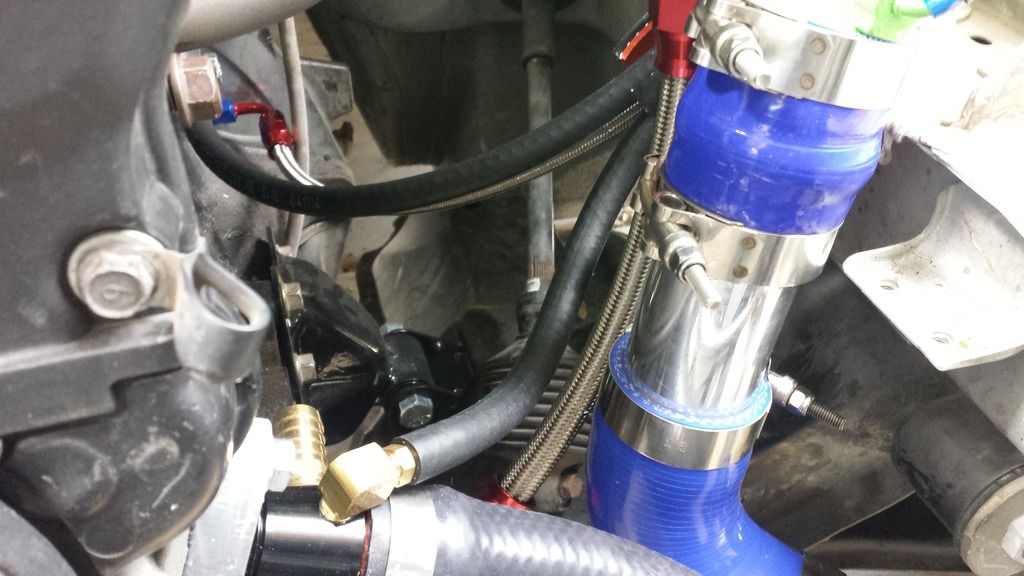

Here's the octopus i ended up with




Nice, clean, straightish drain. -10 hose, ending in a 45 at the pan, to 1/2" NPT.

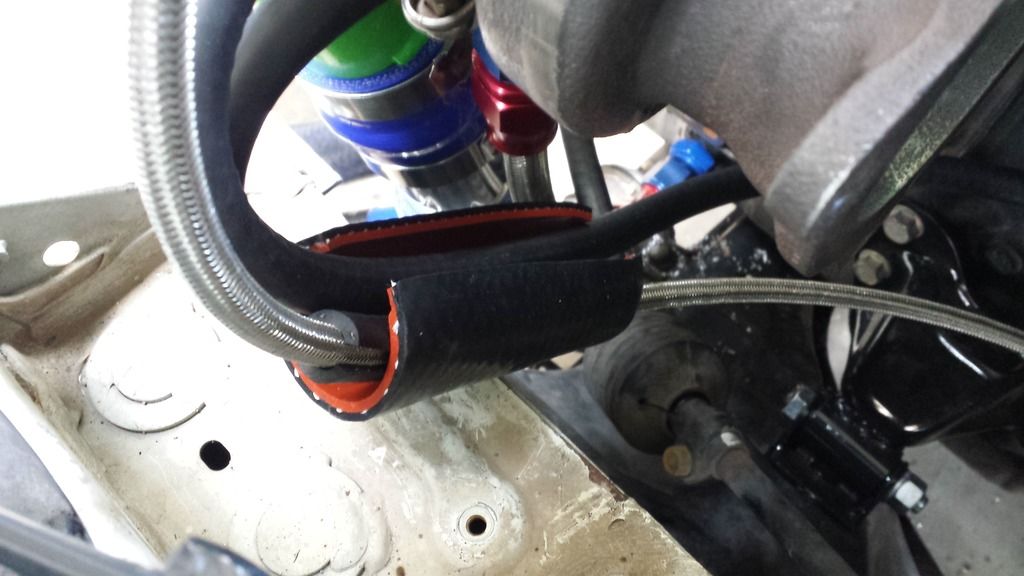

Covered the oil line with a piece of water line for obvious reasons.

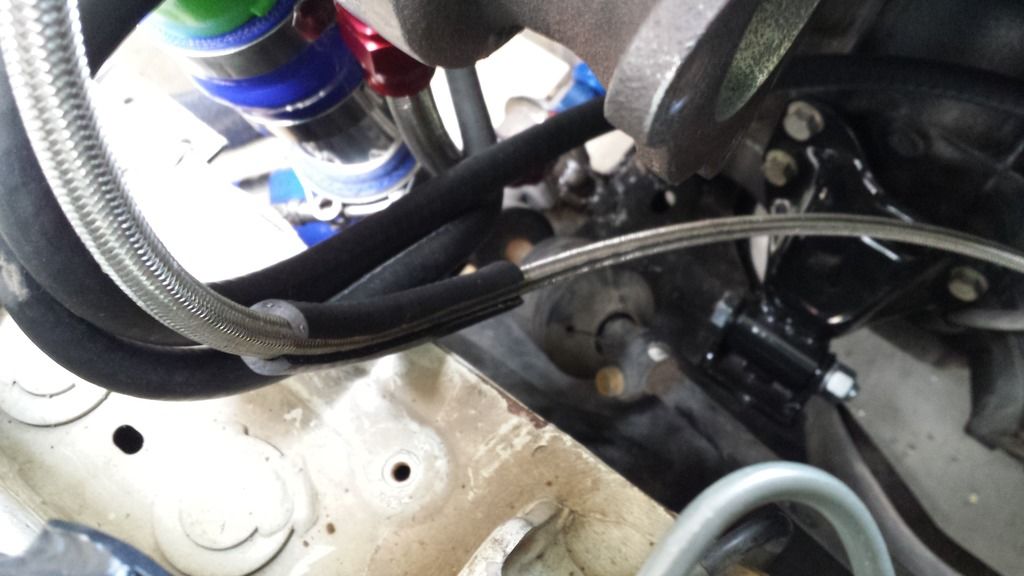

And wrapped the whole thing, ill tie it off somehow upon final assy., im pretty sure a plastic zip tie will melt, or at least get brittle quick, being that close to the hot parts.

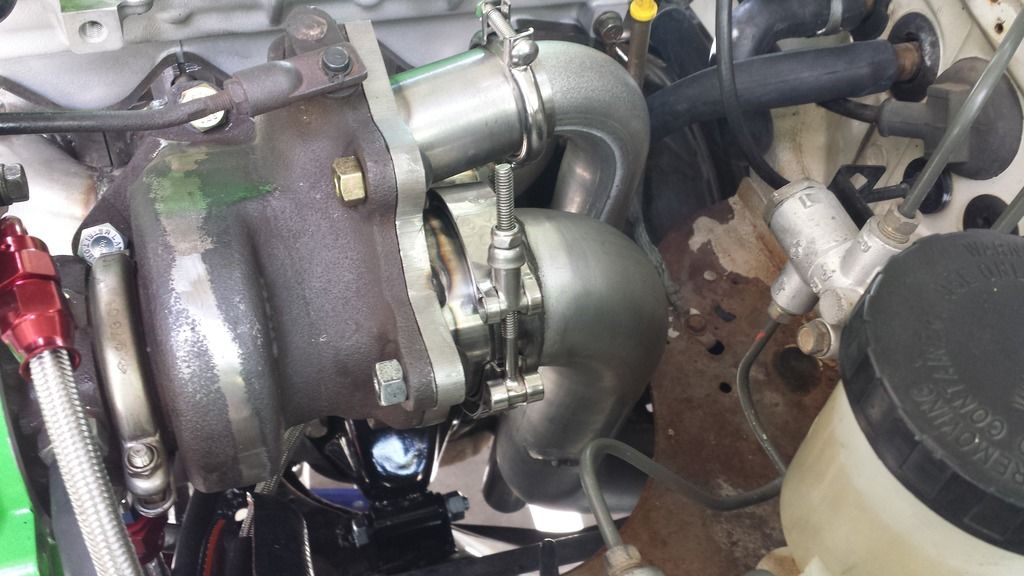

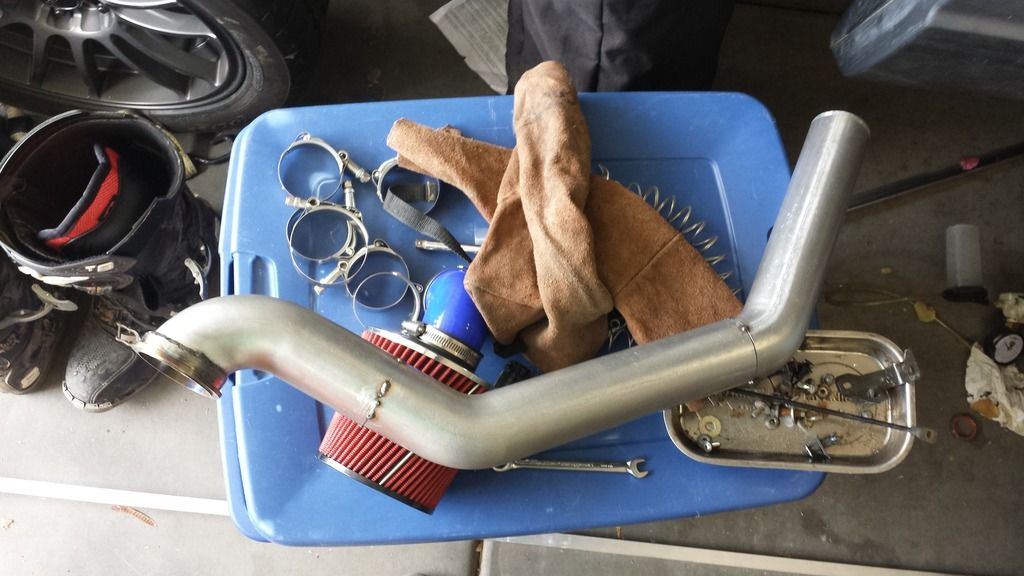

Divorced gases downpipe

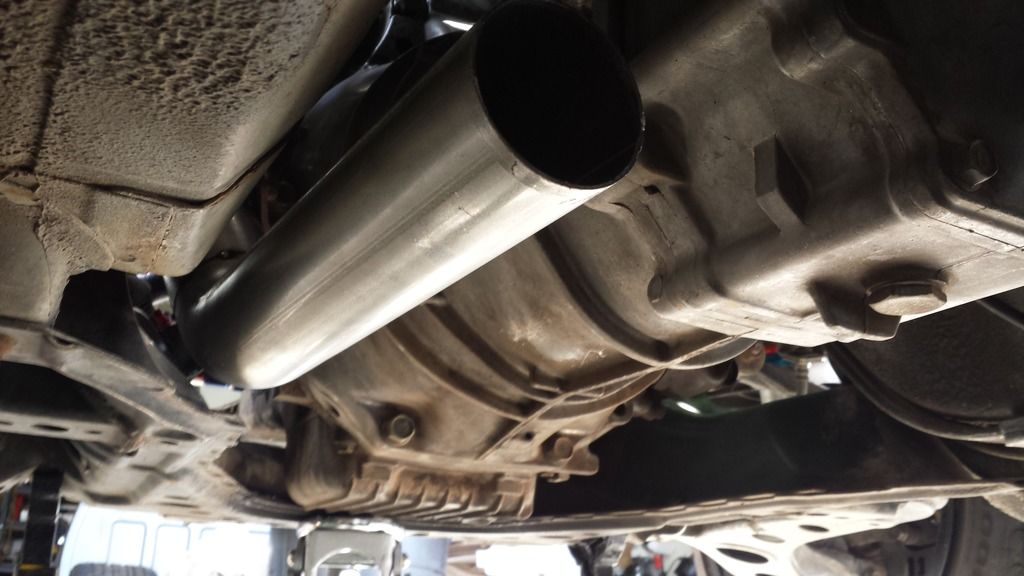

This is about as far as I could get today




And where it ends up. Somewhere along that final straight ill merge the dowpipe and transistion to 3". The wastegate pipe should have plenty of room along the top of the main pipe. Ill probably cut the "annoying tranny ear" off to make more room for install, which may actually require that I use a slip joint and make it into 2 pieces.

Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-80-20150725_135128_zpsjrbpvahh_4c30347b56075fc838828119a6a43eb8c834614e.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20150725_140229_zpsomammaar_81ad66f1db8cb14b7bcf49dcebf77b3cb7bb5fa0.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20150725_140939_zpspr2jdus9_a4193387d6b32ca390b238c64598ac3f3cfa4f5b.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20150725_141035_zps0cy6ay6f_1a27f06f666520c6f222dcd9157ce2365f41bb89.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20150725_165706_zpspl7gmosc_0835294dcb2e7100034310e715eb5a57fb519959.jpg

sean's cheap thrills, 90 1.6 with subaru td04-80-20150725_165952_zpsdm09g5rl_5ecb5b971e2c026d7bee076f94e344fec0543e24.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20150725_165723_zpsv13mmcit_7e55c22345add332f2b4cc2092bc480e9b704a7f.jpg

Last edited by hi_im_sean; 07-25-2015 at 11:45 PM.
hi_im_sean is online now   Reply With Quote
Old 07-25-2015, 11:45 PM   #432
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,858
Total Cats: 1,089
Default

Exhaust looks done to me. Maybe a turndown.
aidandj is offline   Reply With Quote
Old 07-25-2015, 11:48 PM   #433
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,552
Total Cats: 446
Default

lol, my laziness makes that really tempting, but no.

I have to be honest, I thought about starting it today like this, as everything else is done. My one neighbor already hates me though.
hi_im_sean is online now   Reply With Quote
Old 07-26-2015, 12:05 AM   #434
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 115
Default

Turbine spindown sounds ******* sex

I agree though, it's hard as hell to be discreet in a open pipe miata, I like discreet.
deezums is offline   Reply With Quote
Old 07-26-2015, 12:08 AM   #435
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,552
Total Cats: 446
Default

If it was trailered, I would entertain you guys. The track we run the most has no sound limits. The other track is 96 fuking DB. I dont think the muff I choose is going to hit that mark.

edit: which reminds me, does anyone know if the smart phone DB meter apps are accurate to any usable degree?
hi_im_sean is online now   Reply With Quote
Old 07-26-2015, 12:15 AM   #436
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 115
Default

I bet they'd have a hard time dealing with the low frequencies, but I imagine the higher frequencies are the loudest comparatively.

You just need the big *** boat anchor muffler, at least it's weight on the right end.
deezums is offline   Reply With Quote
Old 07-26-2015, 12:16 AM   #437
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,858
Total Cats: 1,089
Default

I started mine with no downpipe at all...made me feel like I was in a fighter jet.
aidandj is offline   Reply With Quote
Old 07-26-2015, 12:17 AM   #438
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,552
Total Cats: 446
Default

I really want that feel, I like fighter jets.


Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-80-uz3wiuk_4603eb56d600c9d0ab858364ebba7fe0f5e78c59.png
hi_im_sean is online now   Reply With Quote
Old 07-26-2015, 12:23 AM   #439
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,552
Total Cats: 446
Default

I has

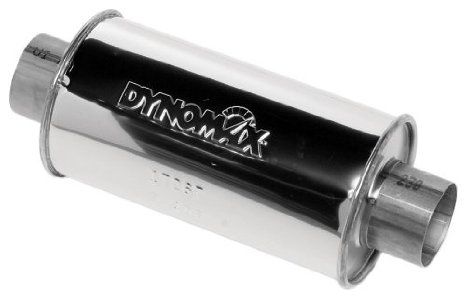

http://www.summitracing.com/parts/wlk-17267



Dont care to much about weight, I was trying to avoid the big tangle in the exhaust pipe everyone has to make that runs that big magnaflow. Im going to install a cannon brace which makes it even worse. This muffler should only need 2 45s. If its not quiet enough, ill throw a cat at it.
Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-80-41iuotn9xol_sx466__9016af8893df228f692109b3ede84799908b323f.jpg
hi_im_sean is online now   Reply With Quote
Old 07-26-2015, 12:28 AM   #440
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,858
Total Cats: 1,089
Default

I run mine sans downpipe every chance I get.
aidandj is offline   Reply With Quote
