Old 07-28-2015, 05:07 PM   #501
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default

I'd be interested in buying that water neck from you, was kinda curious if a smallblock piece could be modified to fit. Guess there's a caravan with a water inlet about right as well, but not the right angle...

Have any of you ever used the spray sealant with those heat wraps, to keep it from sucking up water and corrosives?

Dei Aluminum High Temp Silicone Coating for Exhaust Wrap 010302 | eBay
deezums is offline   Reply With Quote
Old 07-28-2015, 05:09 PM   #502
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,435
Total Cats: 418
Default sean's cheap thrills, 90 1.6 with subaru td04

The spray sealant is for the fiberglass wrap only. Not to be used with titanium.

I'll pm you in a bit about the neck, welding right now.
hi_im_sean is offline   Reply With Quote
Old 07-28-2015, 05:11 PM   #503
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default

Ah, I see.

No rush on the waterneck!
deezums is offline   Reply With Quote
Old 07-28-2015, 05:41 PM   #504
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,689
Total Cats: 1,052
Default

I'll look when I get home. I bought it at the bolt and fastener store, now that I think about it. It has only come off of my FM cast mani in the places where I have gouged or scratched it. It is very durable and looks much better than rust brown would have.
sixshooter is offline   Reply With Quote
Old 07-28-2015, 07:34 PM   #505
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,435
Total Cats: 418
Default

Can anyone guess the max temp at the WG merge near the 3" v band? Im wondering if it ever gets to 250F, its a good ways from the turbo outlet and in the breeze.

I have an idea and need to know if buna-N will survive or if not, im sure viton will with a 400F rating.
hi_im_sean is offline   Reply With Quote
Old 07-28-2015, 09:06 PM   #506
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,665
Total Cats: 92
Default

Quote:
Originally Posted by hi_im_sean View Post
Can anyone guess the max temp at the WG merge near the 3" v band? Im wondering if it ever gets to 250F, its a good ways from the turbo outlet and in the breeze.

I have an idea and need to know if buna-N will survive or if not, im sure viton will with a 400F rating.
What are you trying to do down there?
Leafy is offline   Reply With Quote
Old 07-28-2015, 09:48 PM   #507
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,435
Total Cats: 418
Default

Quote:
Originally Posted by Leafy View Post
What are you trying to do down there?
Have you ever seen how a 2 stroke dirt bike pipe attaches to the head?


Found viton at ace in the exact size i need! Was quite surprised, expensive though, $6 for the pair.

Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-80-20150728_172855_zpse2bvpxhl_17721d62e46f522cbebf02eab30c5122e0063b5e.jpg
hi_im_sean is offline   Reply With Quote
Old 07-28-2015, 10:41 PM   #508
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,689
Total Cats: 1,052
Default sean's cheap thrills, 90 1.6 with subaru td04

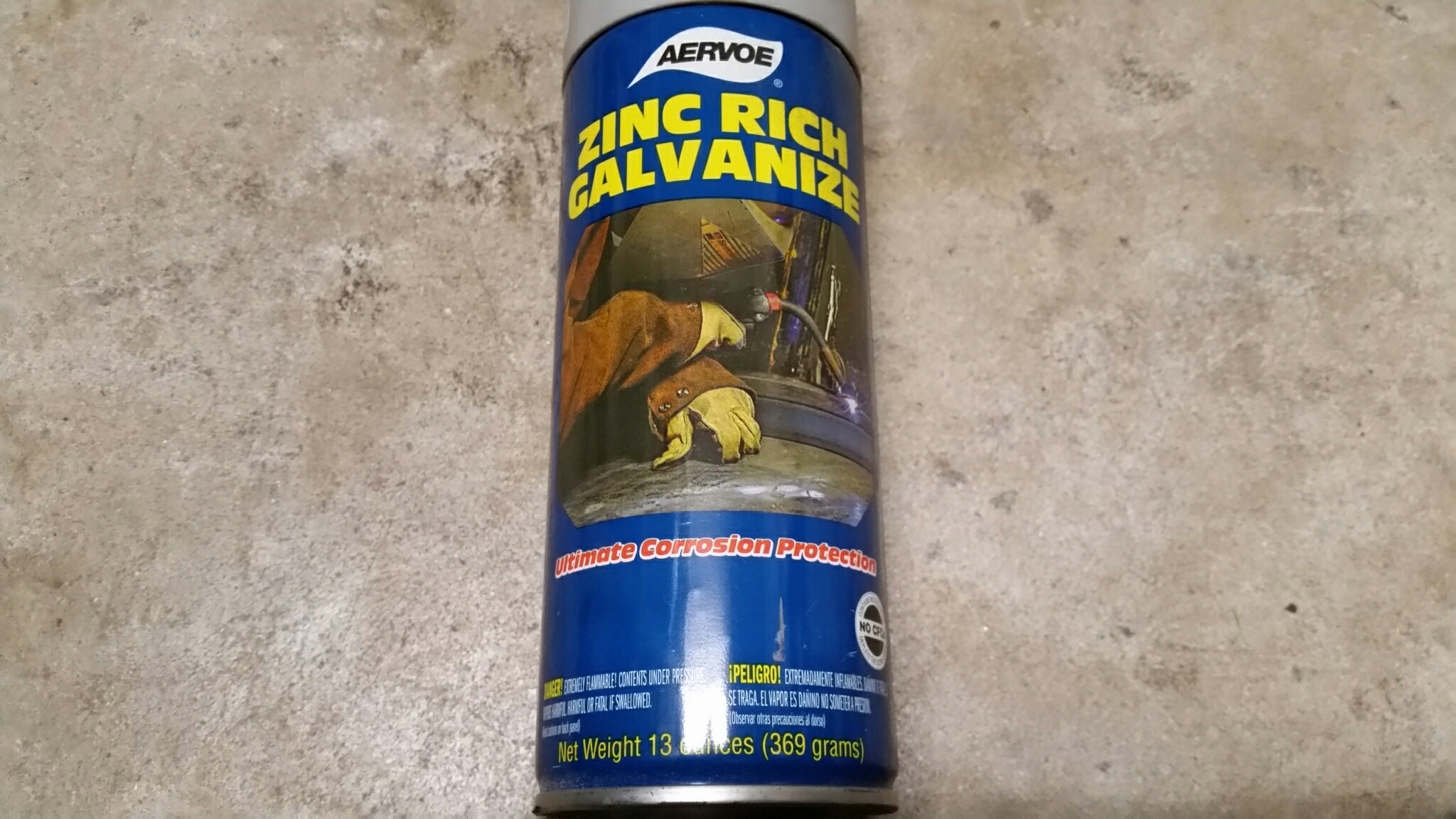

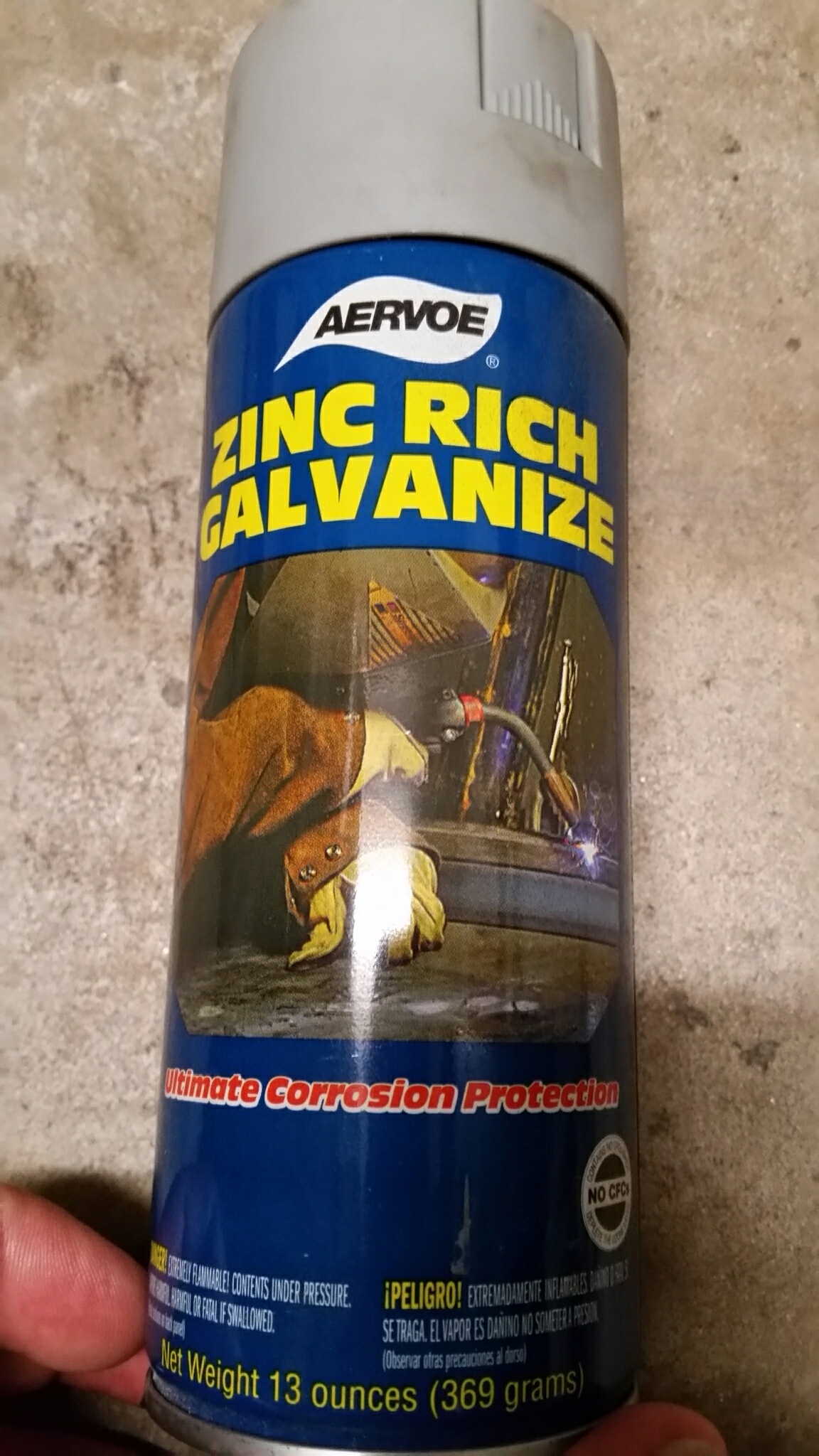

This stuff.
Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-20150728_213946.jpg   sean's cheap thrills, 90 1.6 with subaru td04-20150728_213926.jpg
sixshooter is offline   Reply With Quote
Old 07-28-2015, 10:47 PM   #509
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,435
Total Cats: 418
Default

Thanks six, ill look into it.
hi_im_sean is offline   Reply With Quote
Old 07-29-2015, 02:38 AM   #510
Senior Member

Join Date: Jan 2013
Location: Gilbert, AZ
Posts: 629
Total Cats: 75
Default

Temperatures there will probably eclipse 400F easily since it is a track car... I would imagine the exhaust gas would still be over 1000F at that point in the exhaust. Probably about 1500F before the turbo in boost. You will definitely melt those the first time you hit a dyno where there is pretty much no airflow under the car though.
Arca_ex is offline   Reply With Quote
Old 07-29-2015, 03:16 AM   #511
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,023
Total Cats: 129
Default

Quote:
Originally Posted by hi_im_sean View Post
Can anyone guess the max temp at the WG merge near the 3" v band? Im wondering if it ever gets to 250F, its a good ways from the turbo outlet and in the breeze.

I have an idea and need to know if buna-N will survive or if not, im sure viton will with a 400F rating.
>1000*F. Likely a lot hotter.
patsmx5 is offline   Reply With Quote
Old 07-29-2015, 03:17 AM   #512
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,023
Total Cats: 129
Default

Quote:
Originally Posted by Arca_ex View Post
... You will definitely melt those the first time you run the engine for a few minutes at idle
Fixed that.
patsmx5 is offline   Reply With Quote
Old 07-29-2015, 11:19 AM   #513
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,435
Total Cats: 418
Default

You guys are probably right, not sure what I was thinking lol. It works on dirtbike exhaust so I thought it would work here. Now that I think of it, 2 stroke EGTs are significantly lower than a boosted 4 stroke.

Was going to make an o ring slip joint, so itll just have to metal on metal.
hi_im_sean is offline   Reply With Quote
Old 07-29-2015, 04:40 PM   #514
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,435
Total Cats: 418
Default

Plan A.- **** the good advice from deezums and aidan, remove turbo like a man
Plan B- Fab o-ring coupler like a moron, totally discounting entropy

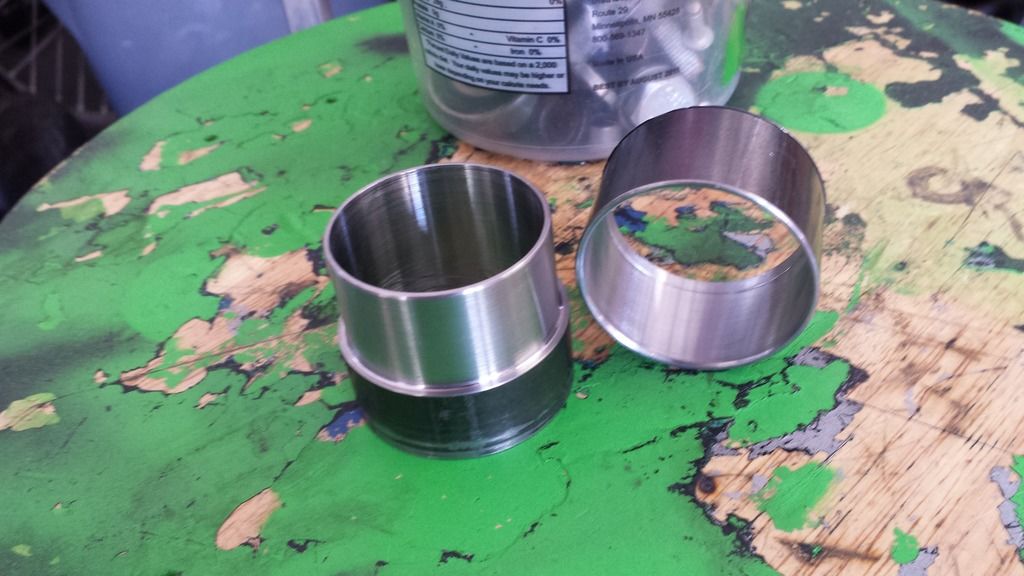

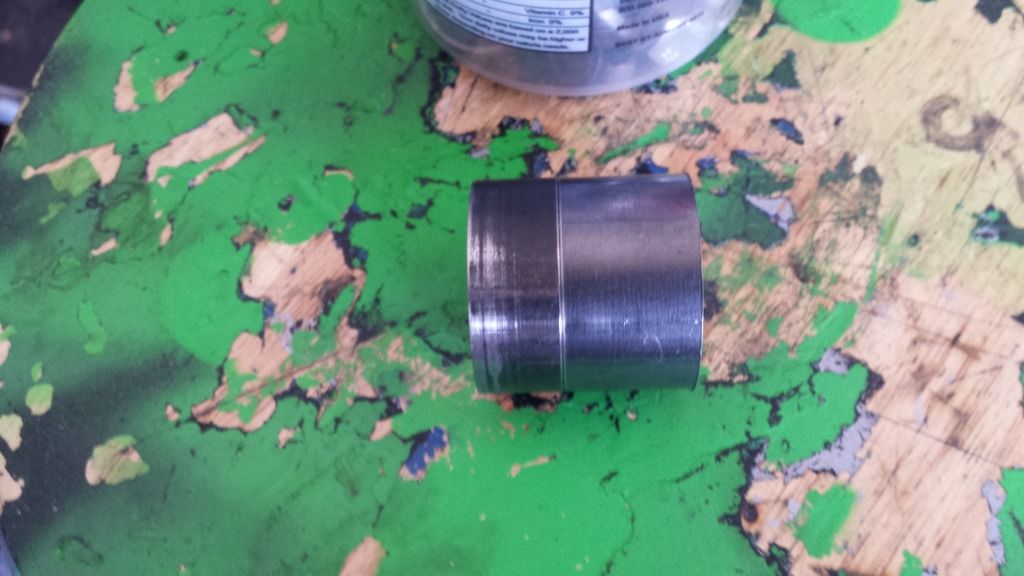

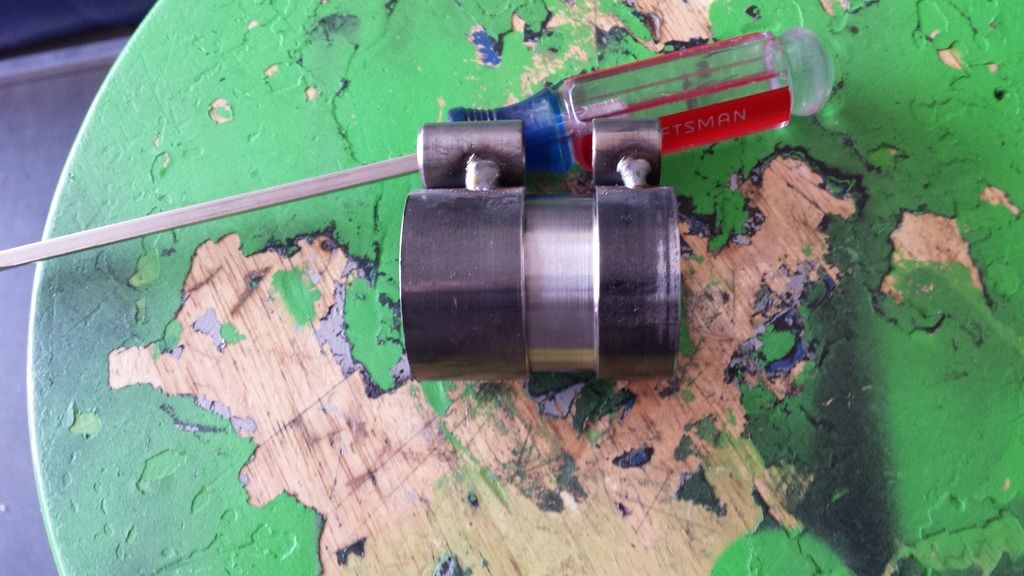

Plan C- Fab steel slip joint thingy










Does this make aidan, tommy, pat and aaron happy?
Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-80-20150729_115531_zpsequlnohd_31e474df78be6a258d96cf4109de1e901c086b71.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20150729_115539_zpsrz9gknwo_273349ad007b5d838b4f00e3101d74b432d9c812.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20150729_122522_zpsfgbpnjok_8bb3e0d123607a3d6783691ee31f308bd0a1c4c4.jpg
hi_im_sean is offline   Reply With Quote
Old 07-29-2015, 04:42 PM   #515
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,023
Total Cats: 129
Default

More better!
patsmx5 is offline   Reply With Quote
Old 07-29-2015, 05:12 PM   #516
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default

I'm never happy, but here's a like cat

deezums is offline   Reply With Quote
Old 07-29-2015, 05:16 PM   #517
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,159
Total Cats: 972
Default

<p>Approved</p>
aidandj is offline   Reply With Quote
Old 07-29-2015, 06:23 PM   #518
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,435
Total Cats: 418
Default

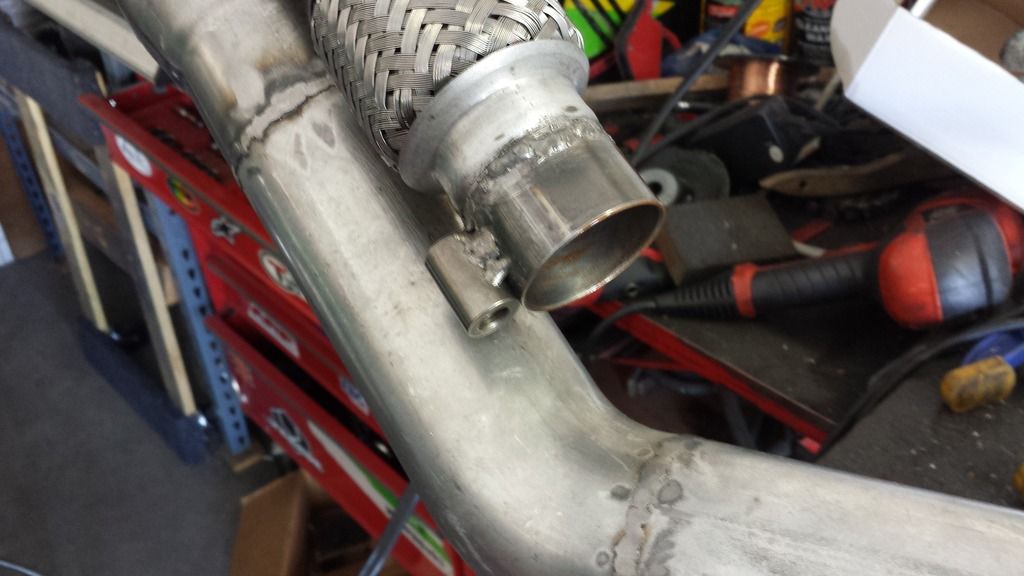

And DP is ******* done. It god dam hot outside, my welds suffer in the summer time... not that im a particularly good welder to begin with. Im done for the day.

I got half way done welding this side and realized it warped, so I had to cut it off and start over.

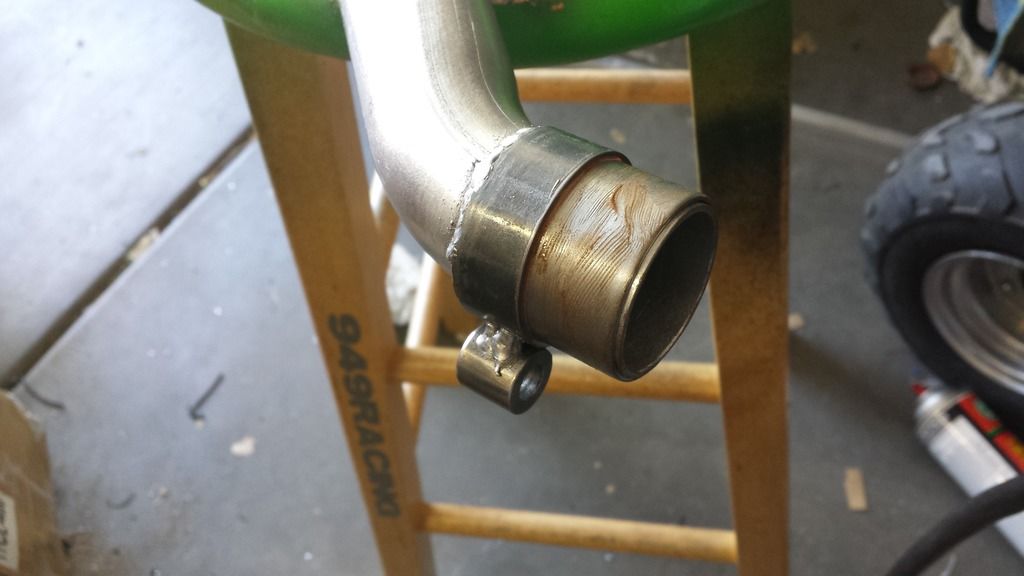

copper anti seize splooge

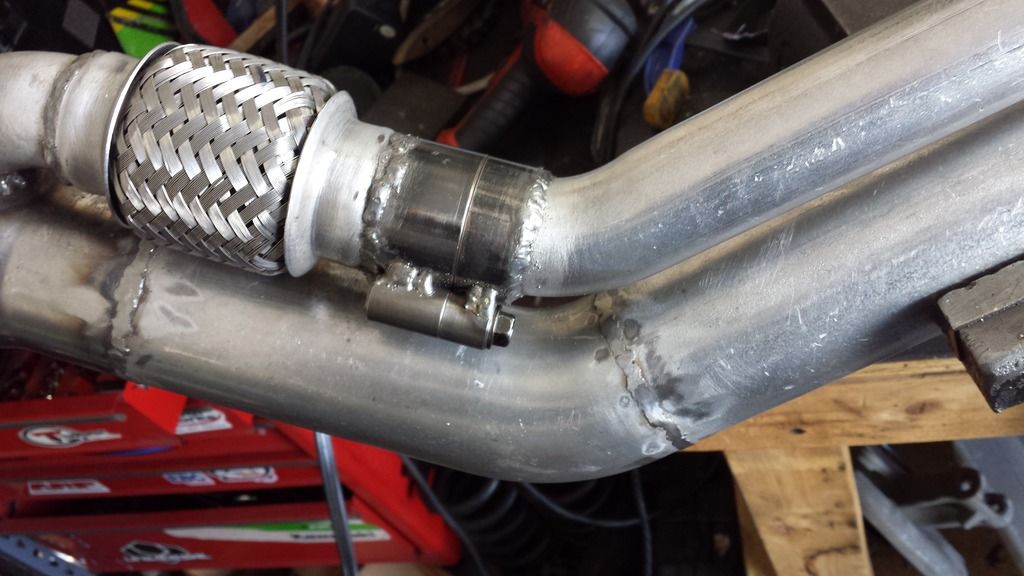

pinch bolt is easily accessible with a wrench or socket. The entire exhaust can be taken apart with one 10mm wrench.

Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-80-20150729_141257_zpssbng2dpi_80b9de052352d6a1bd01e7ec97d350244c9de2e2.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20150729_141310_zpspen5vtz4_390b20930e4901ea3f56f5f52429bec1f746258d.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20150729_141600_zpslye9ck8k_06a35174dbc3ee07a017d2d4ad2726c937063cfd.jpg
hi_im_sean is offline   Reply With Quote
Old 07-29-2015, 06:25 PM   #519
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,023
Total Cats: 129
Default

I'll admit it, I got some welding to do myself, and it's just too hot outside! I'm going to try to get to it tonight.... But yes it's stupid hot, impressive that you're still getting work done! Looks nice too!
patsmx5 is offline   Reply With Quote
Old 07-29-2015, 06:28 PM   #520
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,435
Total Cats: 418
Default

Quote:
Originally Posted by patsmx5 View Post
I'll admit it, I got some welding to do myself, and it's just too hot outside! I'm going to try to get to it tonight.... But yes it's stupid hot, impressive that you're still getting work done! Looks nice too!
Its been a mild summer to be honest, and im in the garage with a fan or swamp cooler (when im not welding since it blows the gas away). But still, its 100+, ive got leather on, and sweat keeps dripping onto my work, constantly. Ever feel like flys or something are crawling all over your legs because of sweat running down your calves. yea.

Last edited by hi_im_sean; 07-29-2015 at 07:15 PM.
hi_im_sean is offline   Reply With Quote
